Memphis Gauge Style MXA1MC User manual

Gauge Style Media Center
Thank you for purchasing Memphis Audio’s Gauge Style Media Center.
MXA1MC
EST 1965 | MEMPHIS, TN | USA
OPERATION CONTINUED
FM MODE
JUMP TO PREVIOUS PRESET STATION - SHORT PUSH
ENTER “MANUAL MODE” (SHOWING 2 SECONDS) SHORT PUSH TO HAVE STEPPING FREQUENCY ADJUSTMENT OR PRESS AND HOLD TO HAVE
FAST FORWARD FREQUENCY ADJUSTMENT.
AFTER ENTER “MANUAL MODE” IF NO ADJUSTMENT FOR 3 SECONDS, IT WILL AUTOMATICALLY SWITCH BACK TO AUTO MODE AND SHOW
“AUTO” FOR 2 SECONDS
USB MODE
FAST BACKWARD - LONG PUSH
<<
FM MODE
JUMP TO NEXT PRESET STATION - SHORT PUSH
ENTER “MANUAL MODE” (SHOWING 2 SECONDS) SHORT PRESS TO HAVE STEPPING FREQUENCY ADJUSTMENT OR PRESS AND HOLD TO HAVE
FAST FORWARD FREQUENCY ADJUSTMENT.
AFTER ENTER “MANUAL MODE” IF NO ADJUSTMENT FOR 3 SECONDS, IT WILL AUTOMATICALLY SWITCH BACK TO AUTO MODE AND SHOW
“AUTO” FOR 2 SECONDS
FAST FORWARD- LONG PUSH
>>
PAIRING DEVICES
WHEN BT MUSIC IS FLASHING THE DEVICE IS IN PAIRING MODE
LOCATE THE DEVICE NAME ON YOUR PHONE TO PAIR. DEVICE NAME: MEMPHIS MXA1
Settings:
PRESS AND HOLD MODE(4) TO ENTER SETTING MENU. PRESS AND RELEASE MODE (4) TO CHANGE MENU ITEMS. TO ADJUST SETTING USE
ROTARY DIAL (5). ADJUSTABLE SETTINGS ARE: BASS, TREBLE, BALANCE, FADER, BEEP, EQ, LOUD AND TUNER REGION.

U S B
R E M
A N T
AUX
FRONT PREAMP
REAR PREAMP

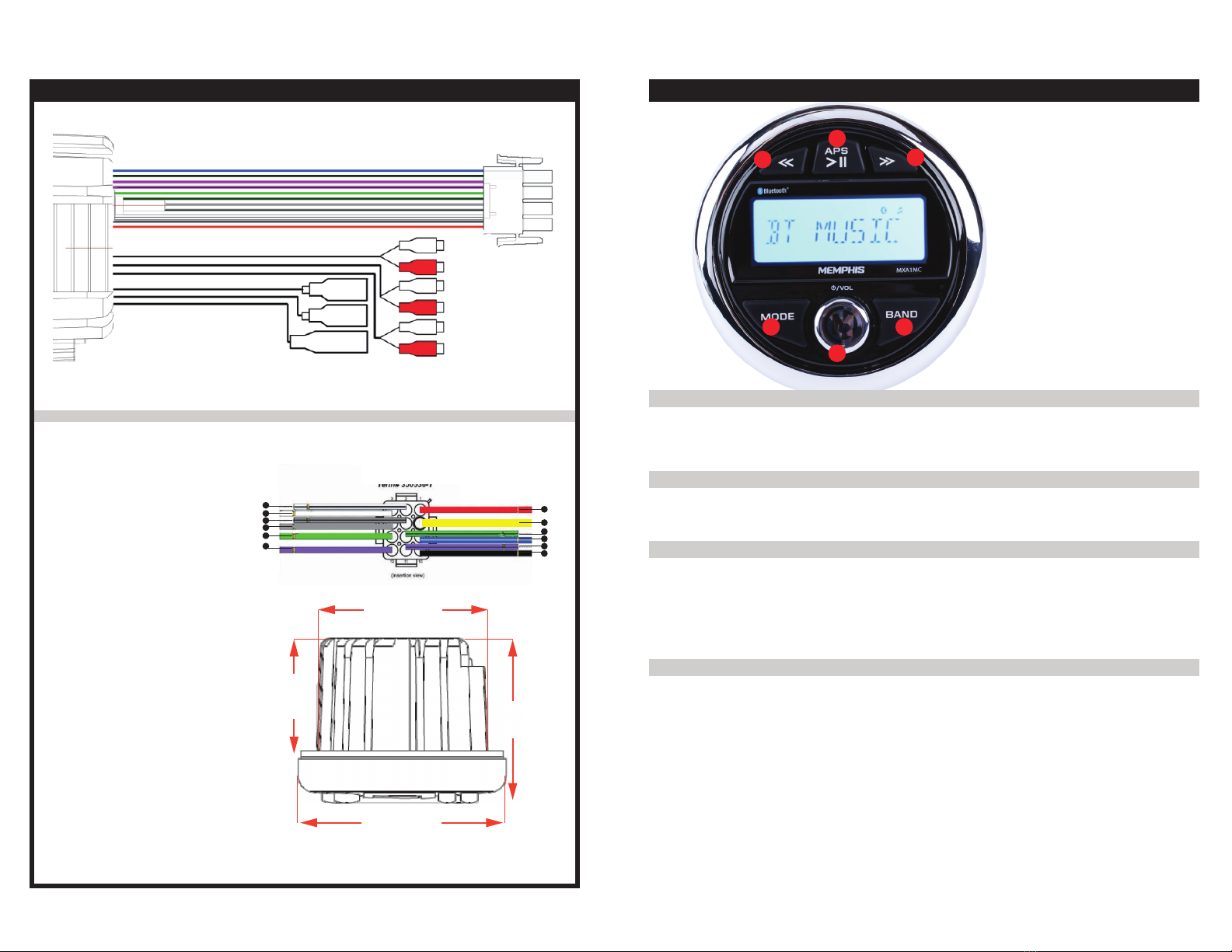

CONNECTION:
Pin 1 - Red // 12V Ignition
Pin 2 - White & Black // Left Front Speaker (-)
Pin 3 - White // Left Front Speaker (+)
Pin 4 - Yellow // 12V Constant
Pin 5 - Grey & Black // Right Front Speaker (-)
Pin 6 - Grey // Right Front Speaker (+)
Pin 7 - Blue // Remote Turn On
Pin 8 - Green & Black // Left Rear Speaker (-)
Pin 9 - Green // Left Rear Speaker (+)
Pin 10 - Black // Ground
Pin 11 - Purple & Black // Right Rear Speaker (-)
Pin 12 - Purple // Right Rear Speaker (+)
INSTALLATION OVERVIEW
*For 2 wire zero current draw when powered off:
Wire 12v constant and 12v ignition together
4.44in(113mm)
2.92”
(74mm) 4.33”
(87.9mm)
3.5” (88.9mm)
3
BUTTON FUNCTIONS
1. SEEK DOWN
2. APS / PLAY / PAUSE
3. SEEK UP
4. MODE
5. POWER/VOLUME
6. BAND
2
1
4
5
6
CONTROLS
POWER ON - LONG PUSH
MUTE - SHORT PUSH
POWER OFF - LONG PUSH
VOLUME - ROTATE KNOB
FUNCTION SELECT (FM/BT/USB (IF INSERTED) AUX CYCLE - SHORT PUSH
BASS/TREBLE/BALANCE/FADE/LOUD/EQ/CLOCK ADJUST - LONG PUSH TO ENTER MENUS
SCROLL THROUGH FUNCTIONS AND VOLUME TO ADJUST FUNCTIONS - SHORT PUSH
PLAY/PAUSE - SHORT PUSH
USB MODE
ENTER TRACK NUMBER BY ROTATING KNOB, PRESS KNOB TO SELECT TRACK OR LEAVE FOR 3 SECONDS TO PLAY TRACK - APS LONG PUSH
RADIO MODE
JUMP TO NEXT STATION - SHORT PUSH
AUTO-SCAN PRESET STATIONS - LONG PUSH
RADIO MODE
BAND SELECT FM1, FM2, FM3, AM1, AM2, FM1 CYCLING - SHORT PUSH
STORE DESIRED STATION AS A PRESET - LONG PUSH
USB MODE
TITLE, ARTIST, ALBUM, TRACK NUMBER, & TIME LAPPED (CYCLING) - SHORT PUSH
TURN ON/OFF “REPEAT” 1 SONG PLAYBACK - LONG PUSH
BLUETOOTH MODE
DISCONNECT LINKED BLUETOOTH DEVICE - LONG PUSH
POWER & ROTARY KNOB
MODE
PLAY/PAUSE/APS
BAND
12
6
9
2
3
5
11
10
8
7
1
4
