Men'sHealth Active+ 455 / 2248 Owner's manual

Assembly & User Instructions – Please keep for future reference
455 / 2248
Wow MH Cable Cross Over
Important – Please read these instructions fully before assembly or use
These instructions contain important information which will help you get best from your
equipment and ensure safe and correct assembly, use and maintenance.
If you need help or have damaged or missing parts, call the Customer Helpline: 0345 600 1714
www.argos-support.co.uk

Contents
Safety Information
2
Components - Parts
3-7
Components – Fixings
8
Assembly Instruction
9-23
Free area and training area
24
Workout Information
25
Care and Maintenance
26
Exploded Parts List
27
Guarantee
1

This exercise equipment is built for optimum safety. However, certain precautions apply whenever you
operate a piece of exercise equipment. Be sure to read the entire manual before you assemble, operate
or use this equipment
Assembly
• The product must be installed on a stable and level
surface.
• Assemble the item as close to its final position
(in the same room) as possible.
• Make sure you have enough space to layout the
parts before starting.
• Keep children and animals away from the exercise
area, small parts could pose a choking hazard if
swallowed.
• Dispose of all packaging carefully and responsibly.
• Check you have all the components and tools
listed in the parts list, bearing in mind that, for ease
of assembly, some components are
pre-assembled.
• The assembly of this equipment is best carried out
by 2 people.
Using the equipment
• It is the responsibility of the owner to ensure that all
users of this product are properly informed as to how
to use this product safely.
• This product is intended for domestic use only.
Do not use in any commercial, rental, or institutional
setting.
•Use the equipment only for intended use, as
described in this manual. Do not use attachments not
recommended by the manufacturer.
• Keep this equipment indoors, away from moisture
and dust. Do not put the equipment in a garage,
outbuilding, covered patio, or near water.
• Your product is intended for use in clean dry
conditions. You should avoid storage in excessively
cold or damp places as this may lead to corrosion
and other related problems that are outside our
control.
• Keep unsupervised children away from the
equipment.
• Parents and others in charge of children should be
aware of their responsibility because the natural play
instinct and the fondness of experimenting of children
can lead to situations and behavior for which the
training equipment is not intended.
• If children are allowed to use the equipment under
supervision, their mental and physical development
should be taken into account. They should be
controlled and instructed to the correct use of the
equipment. The equipment is under no
circumstances suitable as a toy..
• Disabled persons should not use the equipment
without a qualified person or doctor in attendance.
This product is not suitable for therapeutic
purposes.
• Always wear appropriate workout clothing when
exercising. Do not wear loose or baggy clothing, as
it may get caught in the equipment. Wear trainers to
protect your feet while exercising.
•Do not place any sharp objects around the
equipment.
• Keep hands away from all moving parts.
• If any of the adjustment devices are left projecting,
they could interfere with the user’s movement.
• Before using the equipment to exercise, always
perform stretching exercises to properly warm up.
• Only one person at a time should use the
equipment.
• A spotter is recommended during exercise.
• If the user experiences dizziness, nausea, chest
pain, or other abnormal symptoms stop the workout
and seek immediate medical attention.
• Injuries to health may result from incorrect or
excessive training.
• The maximum user weight recommended for this
product is 125kg.
• The max traing weight is 100Kgs.
• This product is fit for 1" and 2" weight plates.
• This product conforms to: (BS EN ISO 20957-1,
EN957-2) class (H) - Home Use .
.
Warning: Before beginning any exercise program, consult your Doctor. This is especially
important for persons with pre-existing health problems or those who have not exercised for a period of
time. You MUST read all instructions before using any fitness equipment. Argos and its associates assumes no
responsibility for personal injury or property damage sustained by or through the use of this product.
Important –Please read fully before using and assembly
Safety Information
2

:
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully
before contacting Argos regarding any missing components.
Total weight of the product is 91 kg. The product dimensions after being assembled are(W) 200 ×(D)148
×(H) 205 cm.
Please check you have all parts listed below
Components-parts
If you have any damaged or missing parts, Please
Call the Customer Helpline:0345 600 1714.
1
Right Slant Upper Frame x 1
Left Slant Upper Frame x 1
Left Slant Base Frame x 1
Right Slant Base Frame x 1
Right Upright Support x 1
Guide Rod x 2
Upper Bar x 1
Rear Stabilizer x 1
Left Upright Support x 1
Upper Frame x 1
Main Base Frame x 1
Weight Stack Cover Support x 2
3
9
6
2
5
4
8
7
12
11
10
3

:
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully
before contacting Argos regarding any missing components.
Please check you have all parts listed below
Components-parts
If you have any damaged or missing parts, Please
Call the Customer Helpline:0345 600 1714.
13
Lat Bar x 1
18
15
14
16
17
21
20
19
24
23
22
27
26
25
Right Sliding Adjustment Frame x 1
Connecting Rod x 1
Load Support x 1
Foot Plate x 1
Swivel Pulley Bracket x 2
Weight Stack Cover x 1
Weight Plate Post x 2
Left Sliding Adjustment Frame x 1
Pull Bar x 1
Saddle-Shaped Strap x 1
Double Floating Pulley Bracket x 4
120×50 Bracket x 2
150×55 Bracket x 1
200×55 Bracket x 3
4

:
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully
before contacting Argos regarding any missing components.
Please check you have all parts listed below
Components-parts
If you have any damaged or missing parts, Please
Call the Customer Helpline:0345 600 1714.
28
120×45 Bracket x 1
60×1.5 End Cap x 7
60×2.0 End Cap x 2
Ø25×1.5 End Cap x 2
Ø32×2.0 End Cap x 4
30×60 End Cap x 4
Ø19×2.0 End Cap x 2
1" Spring Collar Cap x 4
Ø25×2.0 End Cap x 4
Ø97 Pulley x 14
Ø78 Pulley x 7
Lock Knob x 2
□60×50 Sleeve x 4
Level Bracket Bush x 8
Pulley Level Bracket x 8
33
30
32
31
36
35
34
39
38
37
42
40
41
29
5
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)

:
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully
before contacting Argos regarding any missing components.
Please check you have all parts listed below
Components-parts
If you have any damaged or missing parts, Please
Call the Customer Helpline:0345 600 1714.
43
Ø16 End Cap x 2
Foot Cover x 4
Nylon Bushing x 4
Ø37×465 Handle Grip x 2
Rubber Bumper x 4
Sleeve x 4
2" Spring Collar Cap x 4
2" Spring Collar x 2
Ø31×255 Handel Grip x 2
Single Strap x 2
Ø25×325 Handle Grip x 2
Ø25×135 Handle Grip x 2
Bush x 4
Pin x 2
U-Shaped Connector x 1
48
45
44
54
53
52
47
51
50
49
46
57
56
55
6
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)
(Pre-fitted)

:
Note: Some of the smaller components may be pre-fitted to larger components. Please check carefully before
contacting Argos regarding any missing components.
Please check you have all parts listed below
Components-parts
If you have any damaged or missing parts, Please
Call the Customer Helpline:0345 600 1714.

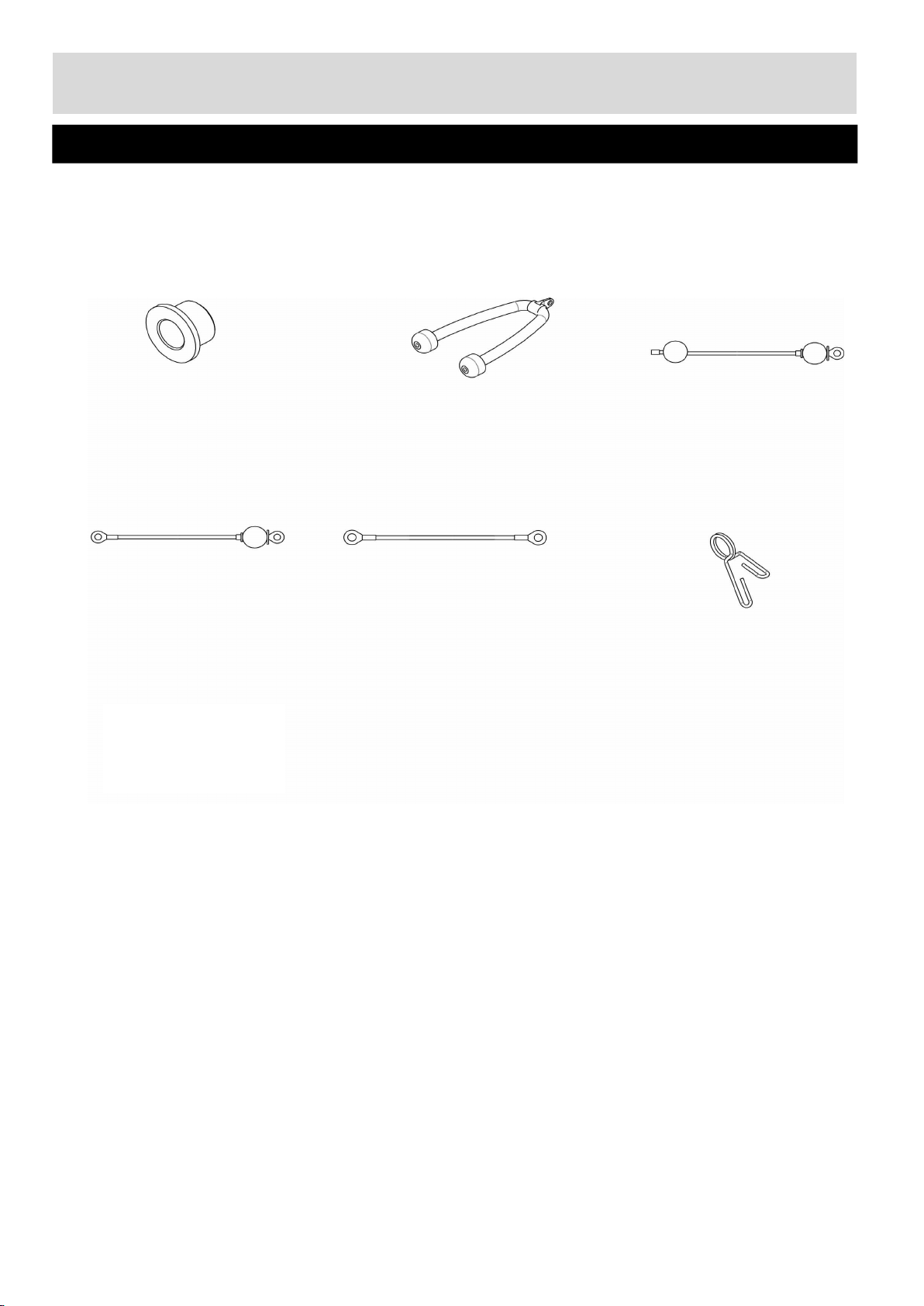

Ø22×15 Pulley Bushing x 4
Tricep Rope x 1
Upper Cable x 1
Left Lower Cable x 1
Right Lower Cable x 1
58
73
59
75
74
7
76
1" Spring Collar x 2

:

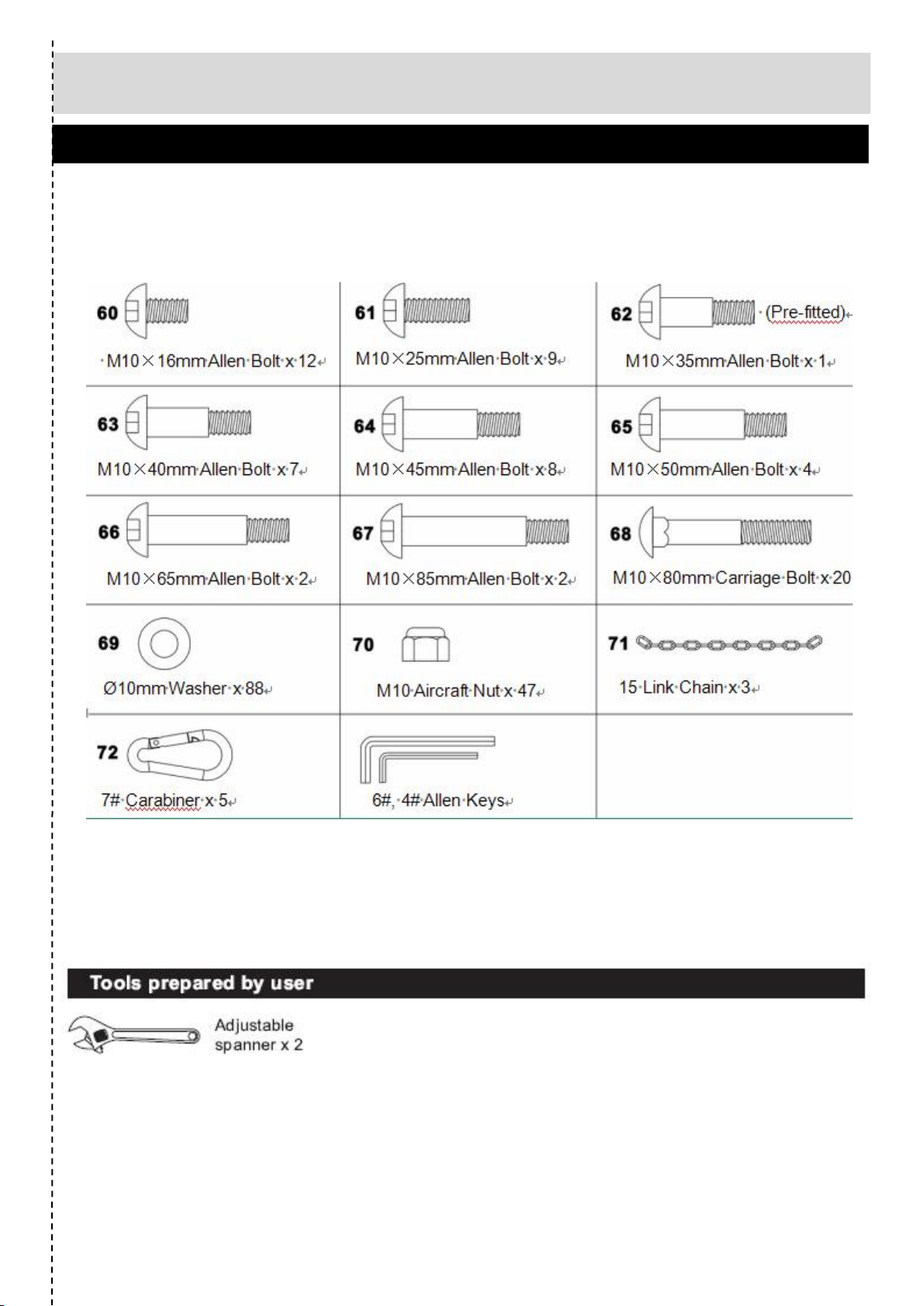

NOTE:The quantities below are the correct amount to complete the assembly. In some cases more
hardware may be supplied than are required. Some of the fixings are pre-fitted to the larger components.
Please check carefully before contacting Argos regarding any missing fixings.
Please check you have all fixings listed below
Components – Fixings
8
(Pre-fitted)

:
Two person assembly recommended
Assembly Instructions
a. Attach the Guide Rods (10) to the Rear Stabilizer (9) using 2×M10×25mm Allen Bolts (61) and
2×Ø10mm Washers (69).
b. Attach the Weight Plate Post (20) to the Rear Stabilizer (9) using 2 × M10×25mm Allen Bolt (61) and
2×Ø10mm Washers (69).
c. Put 4 x Rubber Rumpers (47) on the Guide Rods (10) and Weight Plate Posts (20).
Notes: parts (30), (34), (45) are pre-assembled.
Step 1
9

:
Two person assembly recommended
Assembly Instructions
a. Attach the Main Base Frame (7) and 200×55mm Bracket (25) to the Rear Stabilizer (9) using 2 × M10
× 80mm Carriage Bolts (68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
b. Insert the Load Support (16) into the Guide Rods (10).
Notes: parts (29), (43), (44) are pre-assembled.
Step 2
10

:
Two person assembly recommended
Assembly Instructions
Attacht the Left & Right Slant Base Frames (3, 4) to the Main Base Frame (7) using 2 × M10 × 80mm
Carriage Bolts (68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
Notes: parts (29), (45) are pre-assembled.
Step 3
11

:
Two person assembly recommended
Assembly Instructions

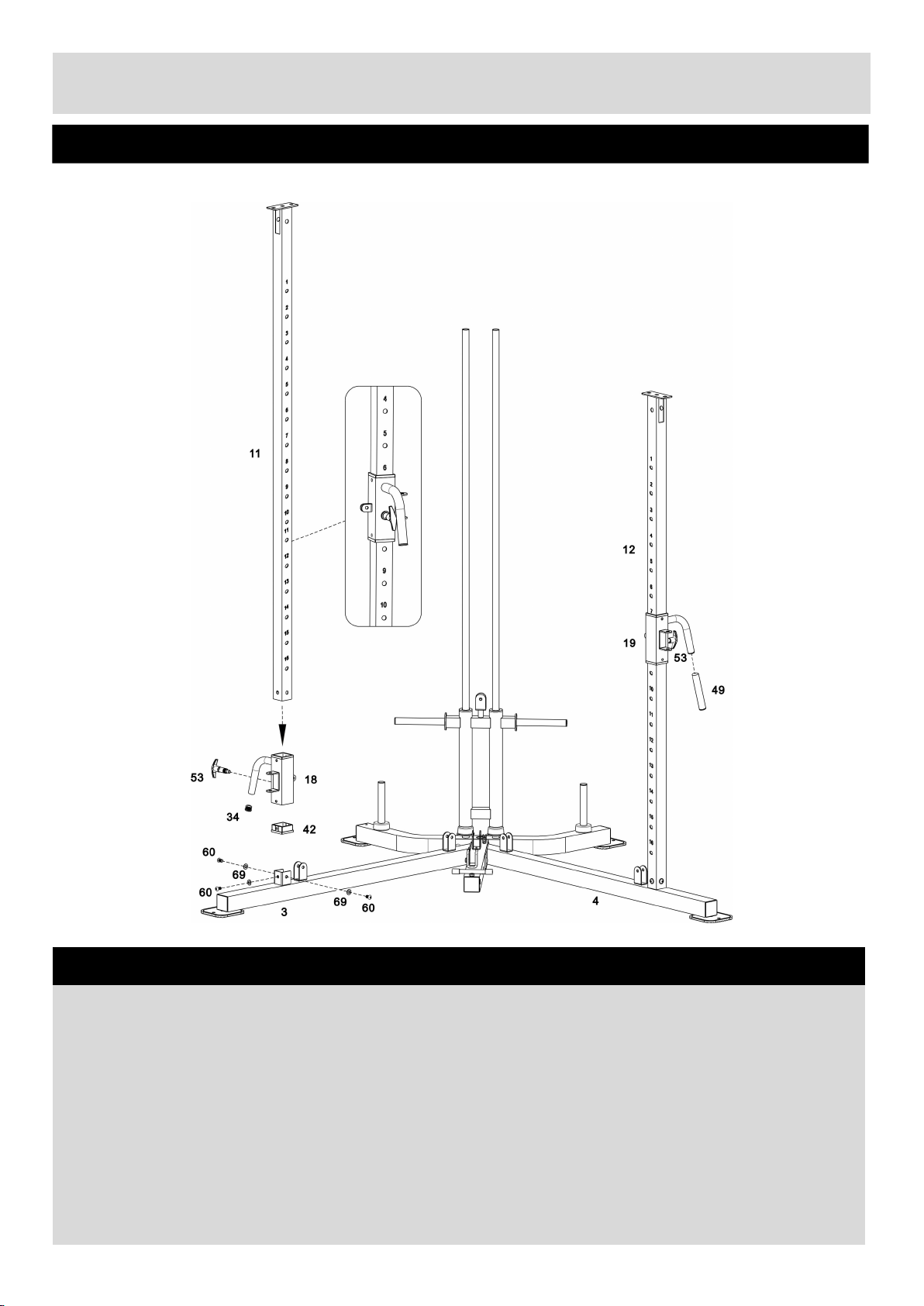

a. Put the Right Upright Support (11) through the Right Sliding Adjustment Frame (18), and secure with
the Pin (53).
b. Fix the Right Upright Support (11) to the Right Slant Base Frame (3) using 3 × M10 ×16mm Allen Bolts
(60), 3 x Ø10mm Washers (69).
c. Put the Left Upright Support (12) through the Left Sliding Adjustment Frame (19), and secure with the
Pin (53).
d. Fix the Left Upright Support (12) to the Left Slant Base Frame (4) using 3 × M10 ×16mm Allen Bolts
(60), 3 x Ø10mm Washers (69).
Notes: parts (34), (42), (49) are pre-assembled.
Step 4
12

:
Two person assembly recommended
Assembly Instructions
a. Fix the Weight Stack Cover Support (5) to the Main Base Frame (7) using 2 × M10×80mm Carriage
Bolts (68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
b. Attach the Upper Frame (8) to the Guide Rods (10) using 2 × M10×25mm Allen Bolts (61) and 2 ×
Ø10mm Washers (69).
c. Fix the Weight Stack Cover Support (5) to the Upper Frame (8) using 2 × M10×80mm Carriage Bolts
(68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
Notes: parts (29), (31) are pre-assembled.
Step 5
13

:
Two person assembly recommended
Assembly Instructions
a. Attach the Right Slant Upper Frame (1) to the Right Upright Support (11) using 2 × M10×80mm
Carriage Bolts (68), 2 × Ø10mm Washers (69), 2 × M10 Aircraft Nuts (70) and 1 x 120×50 Bracket (27).
b. Attach the Left Slant Upper Frame (2) to the Right Upright Support (12) using 2 × M10×80mm
Carriage Bolts (68), 2 × Ø10mm Washers (69), 2 × M10 Aircraft Nuts (70) and 1 x 120×50 Bracket (27).
c. Attach the Left & Right Slant Upper Frame (1, 2) to the Upper Frame (8) using 2 × M10×80mm
Carriage Bolts (68), 2 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
Notes: parts (29) is pre-assembled. Do not tighten the bolts at this step.
Step 6
14

:
Two person assembly recommended
Assembly Instructions
a. Attach the Upper Bar (6) to the Upper Frame (8) using 2 × M10×80mm Carriage Bolts (68), 2 ×
Ø10mm Washers (69), 2 × M10 Aircraft Nuts (70) and 1 x 150×55 Bracket (26). Do not tighten the bolts
at this step.
b. Attach the Upper Bar (6) to the Left & Right Slant Upper Frame (1, 2) using 4 × M10×80mm Carriage
Bolts (68), 4 × Ø10mm Washers (69), 4 × M10 Aircraft Nuts (70) and 2 × 200×55 Brackets (25).
Notes: parts (32) and (48) are pre-assembled. Tighten all the bolts fitted at step 6and step 7.
Step 7
15

:
Two person assembly recommended
Assembly Instructions
a. Fix the Swivel Pulley Bracket (14) to the Right Sliding Adjustment Frame (18) using 1 x M10 × 85mm
Allen Bolts (67), 2 × Ø10mm Washers (69), 2 × Bushes (54) and 1 x M10 Aircraft Nut (70).
b. Fix the Swivel Pulley Bracket (14) to the Left Sliding Adjustment Frame (19) using 1 x M10 × 85mm
Allen Bolts (67), 2 × Ø10mm Washers (69), 2 × Bushes (54) and 1 x M10 Aircraft Nut (70).
c. Fix the Foot Plate (15) to the Main Base Frame (7) using Connecting Rod (17), and then secure the
two sides of the Foot Plate (5) using 2 × Ø25×1.5 End Caps (33).
d. When you use 1" plate, secure with the 1" Spring Collar (76); if you use 2" plate, attach the Sleeve (46)
to the Load Support (16), and then secure with the 2" Spring Collar (50).
e. Attach the Sleeve (46) to both sides of the Weight Plate Post(20).
Notes: parts (36), (51) and (35) are pre-assembled.
Step 8
16

:
Two person assembly recommended
Assembly Instructions
17
a
b
c
d
e
f
g
h
i
j
k

a. Remove the bolts and U-Shaped Connector (52) on the active end of the Upper Cable (73). Thread the
Upper Cable (73) through 2 × Ø78 Pulleys (38), and then fix the 2 × Ø78 Pulleys (38) to the Swivel
Pulley Bracket (14) on the Right Sliding Adjustment Frame (18) using 2 × M10×40mm Allen Bolts (63),
4 × Ø10mm Washers (69) and 2 × M10 Aircraft Nuts (70).
b. Thread the Upper Cable (73) through the top hole of the Right Upright Support (11), and fix 1 x Ø97
Pulley (39) to the Right Upright Support (11) using 1 x M10×65mm Allen Bolt (66), 2 × Ø22×15 Pulley
Bushes (58) and 1 x M10 Aircraft Nut (70).
c. Thread the Upper Cable (73) through the Right Slant Upper Frame (1), and then fix 1 x Ø97 Pulley (39)
to the Right Slant Upper Frame (1) using 1 x M10×45mm Allen Bolt (64), 2 × Ø10mm Washers (69) and
1 x M10 Aircraft Nut (70).
d. Put Ø97 Pulley (39) on the Upper Cable (73), and fix the Pulley Level Bracket (40) and Level Bracket
Bushing (41) and Double Floating Pulley Bracket (22) to the Ø97 Pulley (39) using 1 x M10×50mm
Allen Bolt (65), 2 × Ø10mm Washers (69) and 1 x M10 Aircraft Nut (70). Please note that the Level
Bracket Bushing (41) and Upper Cable (73) should be embedded into the Pulley Level Bracket (40).
e. Thread the Upper Cable (73) through the right notch of the Upper Frame (8), and fix 1 x Ø78 Pulley
(38) using 1 x M10×40mm Allen Bolt (63), 2 × Ø10mm Washers (69) and 1 x M10 Aircraft Nut (70).
f. Thread the Upper Cable (73) through the the Load Frame (16), and fix 1 x Ø78 Pulley (38) using 1 x
M10×40mm Allen Bolt (63), 2 × Ø10mm Washers (69) and 1 x M10 Aircraft Nut (70).
g. Repeat step eto assemble on the left side.
h. Repeat step dto assemble on the left side.
i. Repeat step cto assemble on the left side.
j. Repeat step bto assemble on the left side.
k. Repeat step ato assemble on the left side.
Notes
：
do not tighten the bolts on the active end of the Upper Cable (73) at this step.
Step 9
18
a
b
c
d
e
g
f
h
i
k
j

:
Two person assembly recommended
Assembly Instructions
19
