Our company and staff congratulate you on the
purchase of your new Mercedes-Benz.
Your selection of our product is a demonstration of your
trust in our company name. Further, it exemplifies your
desire to own an automobile that will be as easy as
possible to operate and provide years of service.
Your Mercedes-Benz represents the efforts of many
skilled engineers and craftsmen. To ensure your
pleasure of ownership, we ask you to make a small
investment of your time:
* Please
aside.
read this manual carefully before putting
it
a Please abide by the recommendations contained in
this manual. They are designed to acquaint you with
the operation of your Mercedes-Benz.
We extend our best
pleasurable driving.
wishes for many miles of safe,
Mercedes-Benz Aktiengeselschaft

Introduction
This Owner’s Manual contains a great deal of useful
information. We urge you to read it carefully and
familiarize yourself with the vehicle before driving.
For your own safety and longer service life of the
vehicle, we urge you to follow the instructions and
warnings. Ignoring them could result in damage to
the vehicle or personal injury.
Your vehicle may have some or all of the equipment
described. Therefore, you may find explanations of
equipment not installed in your vehicle. If you have
any questions about the operation of any equip-
ment, your authorized Mercedes-Benz dealer will be
glad to demonstrate the proper procedures.
Owner’s Service and Warranty Policy
The Owner’s Service and Warranty Policy Booklet
contains detailed information about the warranties
covering your Mercedes-Benz, including:
New Car Limited Warranty
Emission System Warranty
Emission Performance Warranty
California Emission Control System
Warranty (California Only)
State Warranty Enforcement Laws
(Lemon Laws)
Important Notice for California Retail Buyers of
Mercedes-Benz Automobiles
Under California law you may be entitled to a
replacement of your vehicle or a refund of the
P
urchase
price, if Mercedes-Benz of North America,
nc. or its authorized dealer fails to conform the
vehicle to its express warranties after a reasonable
number of repair attempts during the period of one
year or 12 000 miles from original delivery of the
vehicle. A reasonable number of repair attempts is
presumed for a retail buyer (1) if the vehicle is out
of service by reason of repair of substantial non-
conformities for a cumulative total of more than
30 calendar days or (2) the same substantial non-
conformity has been subject to repair four or more
times and you have at least once directly notified
us in writing of the need to repair the non-con-
formit
K
and have given us an opportunity to per-
form t
e repair ourselves. Notifications should
be sent to the nearest Mercedes-Benz Regional
Office listed in the Owner’s Service and Warran-
ty Information Booklet.
Maintenance
The Maintenance Booklet describes all the ne-
cessa
maintenance work which should be per-
forme cr at regular intervals.
Always have the Maintenance Booklet with you
when you take the vehicle to your authorized
Mercedes-Benz dealer for service. The service
advisor will record each service in the booklet for
you.
4

Roadside Assistance
The Mercedes-Benz Roadside Assistance Program
provides factory trained technical help in the event
of a breakdown. Calls to the toll-free Roadside
Assistance number:
l-800-222-01 00 (in the U.S.A. only)
will be answered by Mercedes-Benz Customer
Assistance Representatives 24 hours a day,
365 days a year.
For additional information refer to the Mercedes-
Benz Roadside Assistance Program brochure in
your glove box.
Change of Address or Ownership
If ou change your address, be sure to send in the
“
c!
hange of Address Notice” found in the Owner’s
Service and Warranty Policy Booklet. It is in your
own interest that we can contact you should the
need arise.
If you sell your Mercedes, please leave all owner’s
literature with the vehicle to make it available to the
next owner.
If you bought this vehicle used, be sure to send in
the “Notice of Purchase of Used Car” found in the
Owner’s Service and Warranty Policy Booklet.
Operating Your Vehicle Outside the U.S.A. or
Canada
If you plan to operate your vehicle in foreign
countries, please be aware that:
unleaded fuels for vehicles with catalytic
converters may not be available; the use of
leaded fuels will damage the catalysts,
fuel may have a considerably lower octane
rating, and improper fuel can cause engine
damage,
service facilities or replacement parts may not be
readily available.
Certain Mercedes-Benz models are available for
delivery in Europe under our European Delivery
Program. For details, consult your authorized
Mercedes-Benz dealer or write to:
Mercedes-Benz of North America, Inc.
European Delivery Department
One Mercedes Drive
Montvale, NJ 07645
In Canada write to:
Mercedes-Benz Canada, Inc.
Euro ean Delivery Department
849
gglinton
Avenue East
Toronto, Ontario M4G 2L5

We continuous/y strive to improve our product, and ask
for your understanding that we reserve the right to make
changes in design and equipment. Therefore, information,
illustrations and descriptions in this Owner’s Manual might
differ from your vehicle.
Optional equipment is also described in this manual,
including operating instructions wherever necessary.
Since they are special-order items, the descriptions and
illustrations herein may vary slightly from the actual
equipment of your vehicle.
If there are any equipment details that are not shown or
described in this Owner’s Manual, your authorized
Mercedes-Benz dealer will be glad to inform you of
correct care and operating procedures.
The Owner’s Manual and Maintenance Booklet are
important documents and should be kept with the
vehicle.

.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Instruments and Controls
Starting the Engine, Driving Instructions
Operation
Driving
Practical Hints
Technical Data
Fuels, Coolants, Lubricants etc.
Consumer Information
Index

The First 1000 Miles
(1500 km)
The more cautiously you treat your
vehicle during the break-in period,
the more satisfied you will be with
its performance later on. There-
fore, drive your vehicle during the
first 1000 miles (1500 km) at
moderate vehicle and engine
speeds.
During this period, avoid heavy
loads (full throttle driving) and
high RPM (no more than */a of
maximum permissible speed in
each gear as indicated on the
speedometer).
Downshift at proper engine speed!
On vehicles with automatic trans-
mission avoid accelerating by
kick-down. It is not recommended
to brake the vehicle by manually
shifting to a lower gear. We re-
commend to select positions “3”
or “2” only at moderate speeds
(for hill driving).
After 1000 miles (1500 km)
speeds may gradually be
increased to the permissible
maximum.
heck
efore
See Index
ly and
Trip
Maintenance
We strongly recommend that you
have your vehicle serviced by your
authorized Mercedes-Benz dealer,
in accordance with the Mainte-
nance Booklet.
8

Instruments and Controls
Starting the Engine, Driving Instructions
Instruments and Controls
Instrument Cluster
1:
Indicator Lamp Symbols
13
Catalytic Converter
14
Starting and Turning Off the
Engine
15
Driving Instructions
16

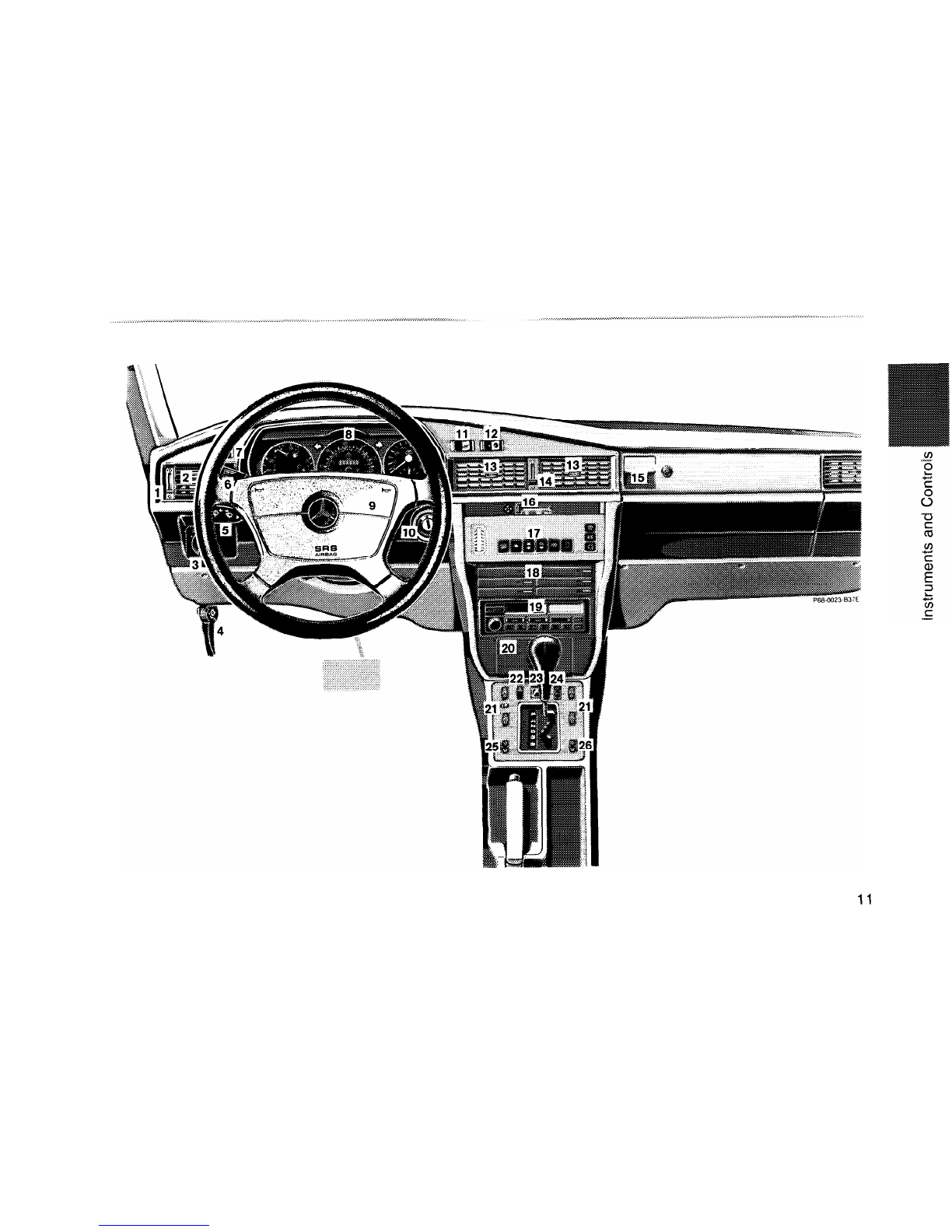

Instruments and Controls
For more detailed descriptions see Index.
14
15
1
2
3
4
5
6
7
8
9
10
11
12
13
Air volume control lever for side air outlets
Adjustable side air outlets
Exterior lamp switch
Hood lock release
Combination switch
Cruise control
Rear passenger compartment lamp switch
Instrument cluster
Horn, airbag
Steering lock with ignition/starter switch
Rear window defroster switch
Snow chain switch
Adjustable center air outlets
16
17
18
19
20
21
22
23
24
Loudspeaker front to rear fader control
25 Left front seat heater switch
26 Right front seat heater switch
Air volume control lever for center air outlets
Glove box, illuminated (only with key in steering
lock positions 1 or 2)
Fan speed control lever
Tempmatic climate control
Cassette box
Radio
Ashtray with lighter
Power window switch group
Hazard warning flasher switch
Adjusting switch for exterior mirror on front
passenger side
10

11

Instrument Cluster
Coolant temperature gauge. See Index
Fuel gauge with reserve warning lamp (yellow).
See Index
10
Engine oil pressure gauge (bar). See Index
Turn signal indicator lamp, left (green)
Speedometer
ASR function indicator lamp (yellow).
See Index
ASD function indicator lamp (yellow).
See Index
Main odometer
Trip odometer
11
12
13
14
15
Knob for instrument lamps and trip odometer
Rotate knob: to vary intensity of instrument
lamps
Depress knob: to reset trip odometer
Outside temperature indicator. See Index
Knob for clock adjustment
(press in and rotate for adjustments)
Turn signal indicator lamp, right (green)
Tachometer
Red marking on tachometer:
Excessive engine speed
Electric clock
12

Indicator Lamp Symbols
Function Indicator Lamp
l-iigh beam
Warning Lamps
(should go out with the engine running unless)
Battery not being charged.
See Index
Brake pads worn down.
See Index
Brake fluid low (except Canada).
Parking brake engaged.
See Index
Brake fluid low (Canada only).
Parking brake engaged.
-.
See Index
Engine oil level low. See Index
Coolant level low. See Index
ASR malfunction. See Index
ASD malfunction. See Index
Fluid level for windshield and headlamp
washer system low.
See Index
ABS malfunction. See Index
SRS malfunction. See Index
190 E 2.3 (California version only)
Oxygen sensor replacement indicator
lamp: When the indicator lamp comes on,
the oxygen sensor must be checked and,
if necessary, replaced.
Engine malfunction indicator lamp
(California version only)
If the lamp comes on when the engine is
running, it indicates a malfunction in the
fuel injection system or emission control
system. In either case, we recommend
that you have the malfunction checked as
soon as possible.
See Index
13

Catalytic Converter
Your Mercedes-Benz is equipped
with monolithic catalytic convert-
ers, an important element in con-
junction with the oxygen sensor to
achieve substantial control of the
pollutants in the exhaust
emissions. Keep your vehicle in
proper operating condition by
following our recommended
maintenance instructions as
outlined in your maintenance
booklet.
Caution!
To prevent damage to the catalytic
converters, use only premium
unleaded gasoline in this vehicle.
Any noticeable irregularities in
engine operation should be re-
paired promptly. Otherwise
excessive unburned fuel may
reach the converter causing it to
overheat.
Warning!
As with any vehicle, do not
idle, park, or operate this ve-
hicle in areas where combus-
tible materials such as grass,
hay or leaves can come into
contact with the hot exhaust
system, as these materials
could be ignited.
14

Starting and Yurning Off the
Engine
Before Starting
Engage parking brake and ensure
gearshift lever is in neutral (selec-
tor lever position “P” or “N” on
automatic transmissions). Turn key
in steering lock to position 2. The
charge indicator lamp should
come on.
Cold Engine
Do not depress accelerator. Turn
key in steering lock clockwise to
the stop. Release key only when
the engine is firing regularly.
Hot Engine
Do not depress accelerator. Turn
key in steering lock clockwise to
the stop. If the engine has not
fired after approx. 4 seconds,
depress accelerator and continue
cranking until the engine is firing
regularly. Release key and back
off accelerator.
At very high coolant temperatures
the engine starting time can be
shortened if the accelerator is de-
pressed slowly at the beginning of
the starting process.
Turning off
Turn the key in the steering lock to
position 0 to stop the engine.
Note:
Vehicles with automatic trans-
mission: the key can only be re-
moved with the selector lever in
position “P”.
If the coolant temperature is very
high (e. g. after hard driving on
mountain roads), do not shut off
the engine immediately, but allow
it to run for 1
- 2 minutes at in-
creased idle speed with selector
lever in neutral or position “P”.
Important!
Due to the installed starter non-
repeat feature, the key must be
turned completely to the left before
attempting to start the engine
again.
Observe the oil pressure gauge
immediately after starting the
engine. In a very cold engine the
oil pressure will rise slowly after
the engine has started. Do not
speed up the engine before pres-
sure is registered on the pressure
gauge. If you do not see the
gauge register oil pressure, stop
the engine and have it checked.
The charge indicator lamp should
go out as soon as the engine has
started.
In areas where temperatures
frequently drop below -13°F
(-25”C), we recommend that an
engine block heater be installed.
Your authorized Mercedes-Benz
dealer will advise you on this
subject.
15

Driving Instructions
Power assistance
Warning!
When the engine is not
running, the brake and
steering systems are without
power assistance. Under these
circumstances, a much greater
effort is necessary to stop or
steer the vehicle.
Brakes
Caution!
When driving down long and steep
grades, relieve the load on the
brakes by shifting into a lower
gear (selector lever position “3”
or “2” in the case of automatic
transmission). This helps prevent
overheating of the brakes and
reduces brake pad wear. Do not
exceed engine speed limits (see
Index).
After hard braking it is advisable
to drive on for some time so the
air stream will cool down the
brakes faster.
Warning!
After driving in heavy rain for
some time without applying
the brakes or through water
deep enough to wet brake
components, the first braking
action may be somewhat re-
duced and increased pedal
pressure may be necessary.
Be sure to maintain a safe
distance from vehicles in
front.
The condition of the parking brake
system is checked each time the
car is in the shop for the required
maintenance.
Between maintenance checks, it is
a good practice to apply the park-
ing brake once or twice while driv-
ing at a
P
proximately 30 mph
(50 km h) on a dry straight road.
Raise parking brake lever lightly
while holding the release button in
until a slight drag on the wheels is
felt. Keep applying brake for about
10 seconds while holding the
release button in before releasing
the parking brake completely. This
practice will keep the parking
brake at maximum efficiency.
Warning!
The stop lamps will not come
on when applying the parking
brake only. Perform the pro-
cedure in the previous para-
graph only when the road is
clear of other traffic.
Resting your foot on the brake
pedal will cause excessive and
premature wear of the brake
pads.
It can also result in the brakes
overheating thereby signifi-
cantly reducing their effective-
ness. It may not be possible to
stop the car in sufficient time
to avoid an accident.
All checks and maintenance work
on the brake system should be
carried out by an authorized
Mercedes-Benz dealer.
16

If the parking brake is released
and the brake warning lamp in the
instrument cluster stays on, the
brake fluid level in the reservoir is
too low.
Brake pad wear or a leak in the
system may be the reason for low
brake fluid in the reservoir.
Have the brake system inspected
at an authorized Mercedes-Benz
dealer immediately.
Install only brake pads and brake
fluid recommended by Mercedes-
Benz.
Warning!
If other than recommended
brake pads are installed, the
braking properties of the ve-
hicle can be affected to an
extent that safe braking is
substantially impaired.
. . . . . ... . . . . . . . . .
.................
..................................
......................
...........................................
. . . . . . ... ... . . . ...
. . .
‘.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.‘.~.~.‘.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~.~
..........................................................
........................................................................................................
....................................................
.........................................................................................................
1801
...................................
Tires
Tread wear indicators (TWI) are
required by law. These indicators
are located in six places on the
tread circumference and become
visible at a depth of approximately
l/16 in (2 mm), at which point the
tire is considered worn and should
be replaced.
The tread wear indicator appears
as a solid band across the tread.
Warning!
Do not allow your tires to wear
down too far. With less than
'/8 in (3 mm) of tread, the
adhesion properties on a wet
road fall off sharply.
Depending upon the weather
and/or road surface (condi-
tions), the traction varies
widely.
Specified tire pressure must be
maintained. This applies particu-
larly if the tires are subjected to
high loads (e. g. high speeds,
heavy loads, high ambient
temperatures).
Do not drive with a flat tire.
A flat tire affects the ability to
steer or brake the vehicle. You
may lose control of the car.
Continued driving with a flat
tire or driving at high speed
with a flat tire will cause ex-
17

Aquaplaning
Depending on the depth of the
water layer on the road, aqua-
planing may occur, even at low
speeds and with new tires. Avoid
track grooves in the road and
apply brakes cautiously in the rain.
Tire traction
The safe speed on a wet, snow
covered or icy road is always
lower than on a dry road.
You’ should pay particular attention
to the condition of the road as
soon as the prevailing tempera-
tures fall close to the freezing
point.
trally reduced. Under such
weather conditions, drive,
steer and brake with extreme
We recommend M + S radial-ply
tires for the winter season for all
four wheels to insure normal
balanced handling characteristics.
On packed snow, they can reduce
your stopping distance as com-
pared with summer tires. Stopping
distance, however, is still consid-
erably greater than when the road
is wet or dry.
Parking
Warning!
To reduce the risk of personal
injury as a result of vehicle
movement, before turning off
the engine and leaving the
vehicle always:
1. Keep foot on brake pedal.
2. Pull up parking brake lever.
3. Engage first or reverse gear
(selector lever position “P”
in the case of automatic
transmissions).
4. Slowly release brake pedal.
5. Turn front wheels towards
the road curb.
6. Turn the key to steering
lock position 0 and remove.
Important!
It is advisable to set the parking
brake whenever parking or leaving
the vehicle. In addition, engage
first or reverse gear (selector lever
position “P”).
When parking on hills, always
apply the parking brake.
Clutch
Caution!
Resting your foot on the clutch
pedal will cause excessive and
premature wear of the clutch disc.
18

Winter Driving Instructions
The most important rule for
slippery or icy roads is to drive
sensibly and to avoid abrupt ac-
celeration, braking and steering
action. Do not use the cruise
control system under such
conditions.
When the vehicle is in danger of
skidding, declutch, or in case of
an automatic transmission move
selector lever to position “N”. Try
to keep the vehicle under control
by corrective steering action.
..,,.
Road salts and chemicals can ad-
versely affect braking efficiency.
Increased pedal force may be-
come necessary to produce the
normal brake effect. We therefore
recommend depressing the brake
pedal periodically when traveling
at length on salt-strewn roads.
This can bring road salt impaired
braking efficiency back to normal.
A prerequisite is, however, that
this is done without endangering
other drivers on the road.
If the vehicle is parked after being
driven on salt treated roads, the
braking efficiency should be tested
as soon as possible after driving is
resumed while observing the safe-
ty rules in the previous paragraph.
Warning!
If the vehicle becomes stuck
in snow, make sure that snow
is kept clear of the exhaust
pipe and from around the ve- ,
hicle with engine running.
Otherwise, deadly carbon
monoxide (CO) gases may
enter vehicle interior resulting
in unconsciousness and
death.
To assure sufficient fresh air
ventilation, open a window
slightly on the side of the car
that is out of the wind.
19

. . . . . . . . . . . . . . . . . . . /
,.1_....,,.......,,. %,.,” . . . . . . . . l...l . . . . . . . . .,\.... .,
. . . . . . . . . . . I
Tempmatic Climate Control
Car Keys
Opening the Doors
Lock;oysand Unlocking of
Central Locking System
Anti-Theft Alarm System
Manual Seat Adjustment,
Front
Power Seats, Front
Orthopedic Seat Backrest
Armrest (Front Seats)
Armrest (Rear Bench Seat)
Head Restraints, Rear
Heated Seats
;8’
29
Operation
Seat Belts and Supplemental
Restraint System (SRS) 38
Steering Lock
Exterior Lamp Switch 2:
Combination Switch 51
Shelf below Rear Window 52
Inside Rear View Mirror
Exterior Rear View Mirrors z:
Sun Visors
54
Interior Lamps
Rear Window Defroster
zz
Lighter 56
Sliding Roof with Rear
Pop-Up Feature
Power Wrndows 55;
Antenna 58
Cellular Telephone 58
