Mercedes-Benz AMG CLS 2019 User manual

É2575843801_ËÍ
2575843801
Order no. P2570093 13 Part no. 257584 38 01
EditionC-2019
CLS
Mercedes-AMG Supplement
Mercedes-Benz

Publication details
Internet
Further information about Mercedes-Benzvehi‐
cles and about Daimler AG can be found on the
following websites:
http://www.mbusa.com (USAonly)
http://www.mercedes-benz.ca (Canada only)
Editorial office
©Daimler AG:Not to be reprinted, translated or
otherwise reproduced, in whole or in part, with‐
out written permission from Daimler AG.
Vehiclemanufacturer
Daimler AG
Mercedesstrasse 137
70327Stuttgart
Germany
Symbols
In this Operator's Manual, youwill find thefol‐
lowing symbols:
&DANGER Dangerdue to notobserving
thewarning notices
Warning notices draw your attentiontohaz‐
ards that mayendanger your healthorlife, or
thehealthorlifeofothers.
#Please observe thewarning notices in
this manual.
+ENVIRONMENTAL NOTE Environmental
damage due to failuretoobserve envi‐
ronmental notes
Environmental notesinclude information on
environmentally responsible behavior or envi‐
ronmentally responsible disposal.
#Observe environmentalnotes.
*NOTE Damage to property due to failure
to observe notesonmaterial damage
Notesonmaterial damageinformyou of
riskswhichmay lead to your vehicle being
damaged.
#Observe notesonmaterial damage.
%Useful instructions or further information
that couldbehelpful to you.
XInstruction
(Qpage) Further information on atopic
Display Information in themultifunction dis‐
play/multimedia display
+Highestmenu level, whichistobe
selected in themultimedia system
*Corresponding submenus, whichare
to be selected in themultimedia sys‐
tem
*Marks acause
Example
&WARNING Risk of injury or fatalinjuries
if thefront passenger airbag is enabled
If thefront passenger front airbag is enabled,
achild on thefront passenger seat maybe
struck by thefront passenger airbag during
an accident.
NEVERuse arearward-facing child restraint
system on aseat withanENABLED FRONT
AIRBAG,DEATH or SERIOUS INJURYtothe
CHILD can occur.
Observe the"Children in thevehicle" section. As at 30.11.18

Welcome to theworld of Mercedes-AMG
Before your first drive, read this Operator's Man‐
ual carefully and familiarize yourself with your
vehicle. Foryour own safety and a longer vehicle
life, follow the instructions and warning notices
in this Operator's Manual. Disregarding them
may lead to damage to thevehicle or personal
injury.
Vehicle damage resulting from disregarding
these instructions is not coveredby the
Mercedes-Benz Limited Warranty.
The equipment or model designation of your
vehicle may vary according to:
RModel
ROrder
RNational version
RAvailability
Mercedes-AMG reservestheright to introduce
changes in thefollowing areas:
RDesign
REquipment
RTechnical features
The equipment in your vehicle may therefore dif‐
fer from that shown in the descriptions and illus‐
trations.
The following are integral parts of thevehicle:
RDigital Operator's Manual
RPrinted Operator's Manual
RMaintenance Booklet
REquipment-dependent Supplements
Keep these documents in thevehicle at all
times. If you sell thevehicle, always pass all of
the documents on to the new owner.
Mercedes-Benz USA, LLC
Mercedes-Benz Canada, Inc.
A Daimler Company
2575843801
2575843801

General notes............................................... 3
Operator's Manual .......................................... 3
Operating safety .............................................3
Qualified specialist workshop .........................4
Correct use of thevehicle ...............................4
Limited Warranty ............................................ 5
At aglance .................................................... 6
Cockpit ........................................................... 6
Driving and parking ...................................... 9
Driving ............................................................ 9
DYNAMIC SELECT switch .............................. 10
Automatic transmission ................................ 11
Driving and driving safety systems ................13
Instrument Display and on-board
computer.................................................... 20
Notes on the Instrument Display and on-
board computer ............................................ 20
Calling up displays on thePerformance
menu ............................................................ 20
Displaying and starting RACETIMER in
thePerformance menu ................................. 21
Function of the Head-up Display ...................22
Multimedia system .................................... 24
AMG TRACKPACE .........................................24
Breakdown assistance .............................. 29
Flat tire ......................................................... 29
Wheels and tires ........................................ 30
Overview of the tire-change tool kit .............. 30
Cover of jack support points ........................ 30
Technical data ............................................ 32
Operating fluids ............................................ 32
Vehicle data .................................................. 33
Display messages and warning/indi‐
cator lamps ................................................ 36
Display messages .........................................36
Warning and indicator lamps ........................ 38
Index ........................................................... 39
2Contents

Operator's Manual
This Supplement provides information on all the
important functions of your AMG vehicle that are
either not described or differ from the descrip‐
tions in thevehicle Operator's Manual. This
information supplements or replaces the corre‐
sponding sections in thevehicle Operator's Man‐
ual. Under no circumstances does the Supple‐
ment replace the Operator's Manual.
This Supplement describes all models, and
standard and optional equipment foryour vehi‐
cle, as available at the time of going to press.
Country-specific differences are possible. Bear
in mind that your vehicle may not feature all
functions described here. This is also the case
for systems and functions relevant to safety.
Therefore, the equipment on your vehicle may
differ from that in the descriptions and illustra‐
tions.
The original purchase contract documentation
foryour vehicle contains a list of all of the sys‐
tems in your vehicle.
Should you have any questions concerning
equipment and operation, please consult an
authorized Mercedes-Benz Center.
The Operator's Manual, the Supplement and the
Maintenance Booklet are important documents
and should be kept in thevehicle.
Operating safety
&WARNING Risk of accident due to mal‐
functions or system failures
If you do not have the prescribed service/
maintenance work or any required repairs
carried out, this could result in malfunctions
or system failures.
#Always have the prescribed service/
maintenance work as well any required
repairs carried out at a qualified spe‐
cialist workshop.
&WARNING Risk of accident or injury due
to incorrect modification of electronic
components and parts
Modification to electronic components, their
software or wiring could impair their function
and/or the function of other networked com‐
ponent parts. In particular, systems relevant
to safety could also be affected.
As a result, these may no longer function
properly and/or jeopardize the operating
safety of thevehicle.
#Nevertamper with thevehicle's wiring,
electronic components or software.
#You should have all work on electrical
and electronic components carried out
at a qualified specialist workshop.
&WARNING Risk of fire due to flammable
materials on hot parts of theexhaust
system
Flammable material such as leaves, grass or
twigs may ignite if they come into contact
with hot parts of theexhaust system.
General notes 3

#When driving on unpavedroads or off-
road, regularly check thevehicle under‐
side.
#Remove trapped plants or other flam‐
mable material.
#If there is damage, consult a qualified
specialist workshop immediately.
*NOTE Damage to thevehicle
In thefollowing situations, in particular, there
is a risk of damage to thevehicle:
RThe vehicle becomes grounded, e.g. on a
high curb or an unpavedroad
RThe vehicle is driven toofast over an
obstacle, e.g. a curb, speed bump or pot‐
hole
RA heavy object strikesthe underbody or
chassis components
In situations such as this, the body, the
underbody, chassis components, wheels or
tires could be damaged without the damage
being visible. Components damaged in this
way can unexpectedly fail or, in the case of
an accident, may not absorb the loads that
arise as intended.
If the underbody paneling is damaged, flam‐
mable materials such as leaves, grass or
twigs can collect between the underbody and
the underbody paneling. These materials may
ignite if they come into contact with hot
parts on theexhaust system.
#Have thevehicle checked and repaired
immediately at a qualified specialist
workshop.
or
#If driving safety is impaired while con‐
tinuing your journey, pull over and stop
thevehicle immediately in accordance
with the traffic conditions, and contact
aqualified specialist workshop.
Qualified specialist workshop
An authorized Mercedes-Benz Center is a quali‐
fied specialist workshop. It has the necessary
special skills, tools and qualifications to cor‐
rectly carry out thework required on your vehi‐
cle. This particularly applies to safety-relevant
works.
Forthefollowing, always have your vehicle
checked at an authorized Mercedes-Benz Cen‐
ter:
Rsafety-relevant works
Rservice and maintenance work
Rrepair work
Rmodifications as well as installations and
conversions
Rwork on electronic components
Mercedes‑AMG recommends a Mercedes‑Benz
service center.
Correct use of thevehicle
If youremove any warning stickers,you or others
could fail to recognize certain dangers. Leave
warning stickers in position.
When using thevehicle, observe thefollowing
information:
Rthe safety notes in this manual
4General notes

Rtechnical data forthevehicle
Rtrafficrules and regulations
Rlaws and safetystandards pertaining to
motorvehicles
Limited Warranty
*NOTE Damage to thevehicle arising
from violation of these operating instruc‐
tions.
Damage to thevehicle can arise from viola‐
tion of these operating instructions.
This damage is not covered either by the
Mercedes-Benz implied warranty or by the
New‑ or Used-Vehicle Warranty.
#Follow the instructions in these operat‐
ing instructions on proper operation of
your vehicle as well as on possible vehi‐
cle damage.
General notes 5

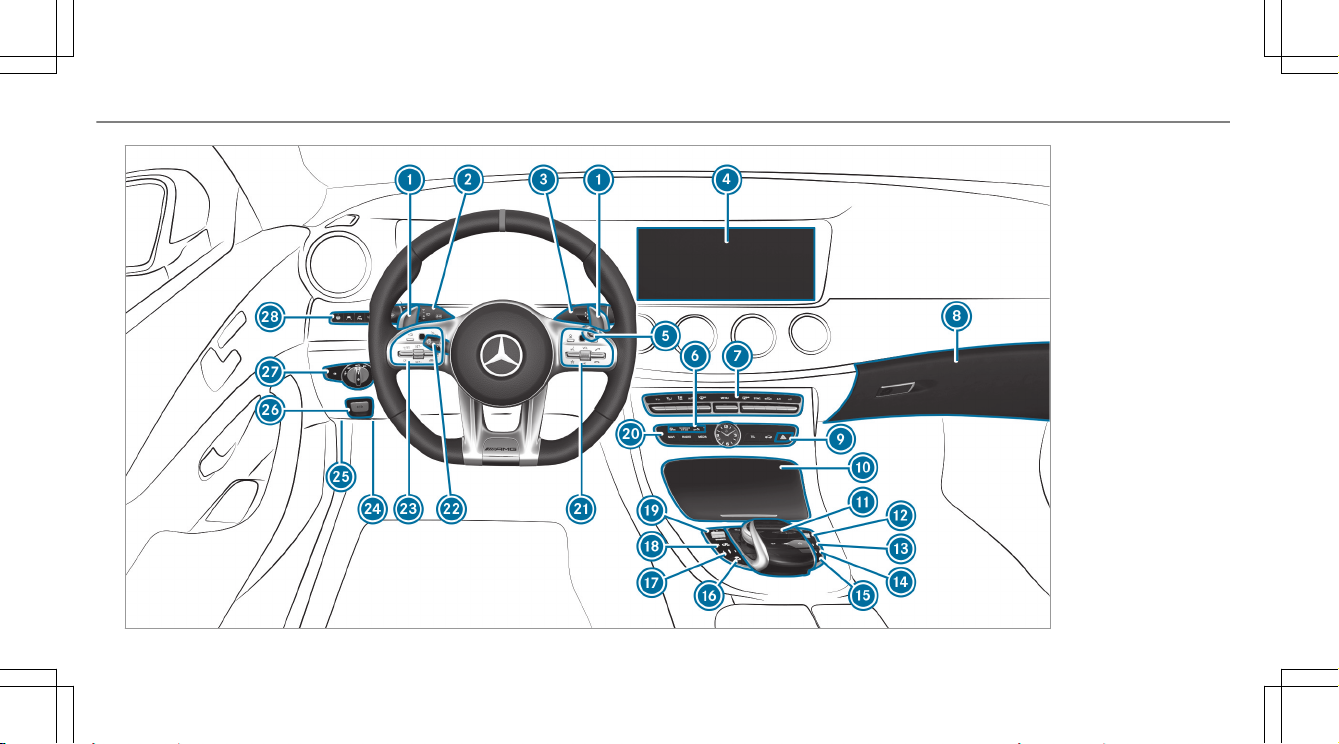

Left-hand-drive vehicles
6At aglance – Cockpit

1Steering wheel paddle shifters →11
2Combination switch
3DIRECT SELECT lever
4Multimedia system display
5Start/stop button
6PASSENGER AIR BAG indicator lamp
7Climate control systems
8Glove box
9Hazard warning lights
AStowage compartment
BControl panel forthe multimedia system
CControl knob forvolume and switches the sound
on/off
Switches the multimedia system on/off
DAMG Performance exhaust system →10
EECO start/stop function →9
FActive Parking Assist
GActivates/deactivates ESP®→13
HAMG adaptive sport suspension system →16
IManual gearshifting (permanent setting) →11
JDYNAMIC SELECT switch
KControl panel forthe multimedia system
LControl panel forthe multimedia system (steer‐
ing wheel)
MAdjusts thesteering wheel
NControl panel forthe on-board computer
Operates cruise control
Operates Active Distance Assist DISTRONIC
ODiagnostics connection
POpens the hood
QElectric parking brake
RLight switch
SControl panel for:
Active Steering Assist
At aglance – Cockpit 7

Active Lane Keeping Assist
Parking Assist PARKTRONIC
Head-up Display
Rear window roller sunblind
8At aglance – Cockpit
