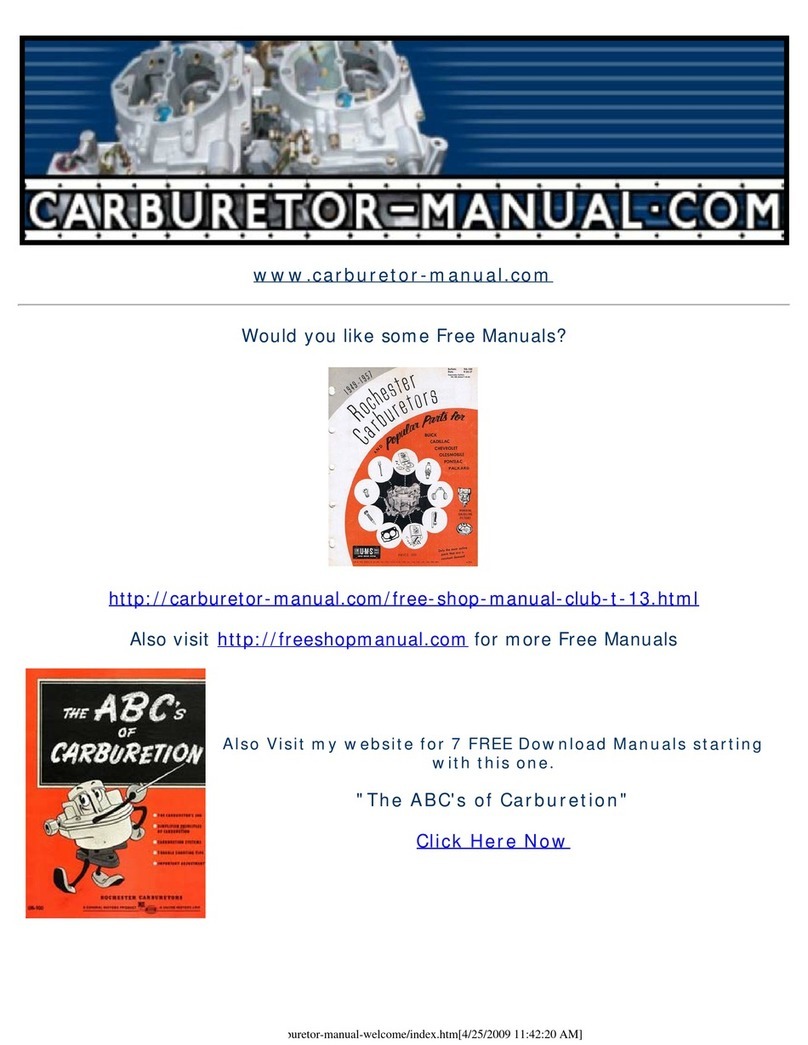

www.carburetor-manual.com
Would you like some Free Manuals?
http://carburetor-manual.com/free-shop-manual-club-t-13.html
Also visit http://freeshopmanual.com for more Free Manuals
Also Visit my website for 7 FREE Download Manuals starting
with this one.
"The ABC's of Carburetion"
Click Here Now

Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 13
Entertainment Systems 15
AM/FM stereo cassette 15
AM/FM stereo with CD 18
CD changer 20
Climate Controls 23
Manual heating and air conditioning 23
Electronic automatic temperature control 25
Rear window defroster 27
Lights 29
Headlamps 29
Turn signal control 32
Bulb replacement 34
Driver Controls 45
Windshield wiper/washer control 45
Steering wheel adjustment 46
Power windows 48
Mirrors 48
Speed control 50
Message center 57
Table of Contents
1

Locks and Security 72
Keys 72
Locks 72
Anti-theft system 82
Seating and Safety Restraints 87
Seating 87
Safety restraints 91
Air bags 107
Child restraints 115
Driving 128
Starting 128
Brakes 132
Traction control 134
Transmission operation 136
Vehicle loading 140
Trailer towing 143
Recreational towing 146
Roadside Emergencies 148
Getting roadside assistance 148
Hazard flasher switch 149
Fuel pump shut-off switch 149
Fuses and relays 151
Changing tires 157
Jump starting 162
Wrecker towing 168
Table of Contents
2

Customer Assistance 170
Reporting safety defects (U.S. only) 178
Cleaning 179
Maintenance and Specifications 185
Engine compartment 187
Engine oil 190
Battery 194
Fuel information 201
Tire Information 217
Part numbers 229
Refill capacities 230
Lubricant specifications 231
Accessories 239
Index 241
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright © 2003 Ford Motor Company
Table of Contents
3

CALIFORNIA Proposition 65 Warning
WARNING: Engine exhaust, some of its constituents, and
certain vehicle components contain or emit chemicals known to
the State of California to cause cancer and birth defects or other
reproductive harm. In addition, certain fluids contained in vehicles and
certain products of component wear contain or emit chemicals known
to the State of California to cause cancer and birth defects or other
reproductive harm.
CONGRATULATIONS
Congratulations on acquiring your new Mercury. Please take the time to
get well acquainted with your vehicle by reading this handbook. The
more you know and understand about your vehicle, the greater the
safety and pleasure you will derive from driving it.
For more information on Ford Motor Company and its products visit the
following website:
•In the United States: www.ford.com
•In Canada: www.ford.ca
•In Mexico: www.ford.com.mx
•In Australia: www.ford.com.au
Additional owner information is given in separate publications.
This Owner’s Guide describes every option and model variant available
and therefore some of the items covered may not apply to your
particular vehicle. Furthermore, due to printing cycles it may describe
options before they are generally available.
Remember to pass on the Owner’s Guide when reselling the vehicle. It
is an integral part of the vehicle.
Fuel pump shut-off switch: In the event of an accident the
safety switch will automatically cut off the fuel supply to the
engine. The switch can also be activated through sudden vibration (e.g.
collision when parking). To reset the switch, refer to the Fuel pump
shut-off switch in the Roadside Emergencies chapter.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
Introduction
4

SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury and prevent possible
damage to others, your vehicle and its equipment? In this guide, answers
to such questions are contained in comments highlighted by the warning
triangle symbol. These comments should be read and observed.
Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,600 km (1,000 miles) of
new vehicle operation. Vary your speed to allow parts to adjust
themselves to other parts.
Drive your new vehicle at least 800 km (500 miles) before towing a
trailer.
Do not add friction modifier compounds or special break-in oils during
the first few thousand kilometers (miles) of operation, since these
additives may prevent piston ring seating. See Engine oil in the
Maintenance and Specifications chapter for more information on oil
usage.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
5

SPECIAL NOTICES
Emission warranty
The New Vehicle Limited Warranty includes Bumper-to-Bumper
Coverage, Safety Restraint Coverage, Corrosion Coverage, and 6.0L
Power Stroke Diesel Engine Coverage. In addition, your vehicle is eligible
for Emissions Defect and Emissions Performance Warranties. For a
detailed description of what is covered and what is not covered, refer to
the Warranty Guide that is provided to you along with your Owner’s
Guide.
Service Data Recording
Service data recorders in your vehicle are capable of collecting and
storing diagnostic information about your vehicle. This potentially
includes information about the performance or status of various systems
and modules in the vehicle, such as engine, throttle, steering or brake
systems. In order to properly diagnose and service your vehicle, Ford
Motor Company, Ford of Canada, and service and repair facilities may
access vehicle diagnostic information through a direct connection to your
vehicle when diagnosing or servicing your vehicle.
Event Data Recording
Other modules in your vehicle — event data recorders — are capable of
collecting and storing data during a crash or near crash event. The
recorded information may assist in the investigation of such an event.
The modules may record information about both the vehicle and the
occupants, potentially including information such as:
•how various systems in your vehicle were operating;
•whether or not the driver and passenger seatbelts were buckled;
•how far (if at all) the driver was depressing the accelerator and/or the
brake pedal;
•how fast the vehicle was traveling; and
•where the driver was positioning the steering wheel.
To access this information, special equipment must be directly connected
to the recording modules. Ford Motor Company and Ford of Canada do
not access event data recorder information without obtaining consent,
unless pursuant to court order or where required by law enforcement,
other government authorities or other third parties acting with lawful
authority. Other parties may seek to access the information
independently of Ford Motor Company and Ford of Canada.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
6

Special instructions
For your added safety, your vehicle is fitted with sophisticated electronic
controls.
Please read the section Supplemental restraint system (SRS)
in the Seating and Safety Restraints chapter. Failure to follow
the specific warnings and instructions could result in personal injury.
Front seat mounted rear-facing child or infant seats should
NEVER be placed in front of an active passenger air bag.
MIDDLE EAST/NORTH AFRICA VEHICLE SPECIFIC INFORMATION
For your particular global region, your vehicle may be equipped with
features and options that are different from the ones that are described
in this Owner’s Guide; therefore, a supplement has been supplied that
complements this book. By referring to the pages in the provided
supplement, you can properly identify those features, recommendations
and specifications that are unique to your vehicle. Refer to this
Owner’s Guide for all other required information and warnings.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
7

These are some of the symbols you may see on your vehicle.
Vehicle Symbol Glossary
Safety Alert See Owner’s Guide
Fasten Safety Belt Air Bag-Front
Air Bag-Side Child Seat
Child Seat Installation
Warning
Child Seat Lower
Anchor
Child Seat Tether
Anchor Brake System
Anti-Lock Brake System Brake Fluid -
Non-Petroleum Based
Traction Control AdvanceTrac娂
Master Lighting Switch Hazard Warning Flasher
Fog Lamps-Front Fuse Compartment
Fuel Pump Reset Windshield Wash/Wipe
Windshield
Defrost/Demist
Rear Window
Defrost/Demist
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
8

Vehicle Symbol Glossary
Power Windows
Front/Rear Power Window Lockout
Child Safety Door
Lock/Unlock
Interior Luggage
Compartment Release
Symbol
Panic Alarm Engine Oil
Engine Coolant Engine Coolant
Temperature
Do Not Open When Hot Battery
Avoid Smoking, Flames,
or Sparks Battery Acid
Explosive Gas Fan Warning
Power Steering Fluid Maintain Correct Fluid
Level
MAX
MIN
Emission System Engine Air Filter
Passenger Compartment
Air Filter Jack
Check fuel cap
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Introduction
9

WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
bulb works. If any light remains on after starting the vehicle, have the
respective system inspected immediately.
Service engine soon: The Service
engine soon indicator light
illuminates when the ignition is first
turned to the ON position to check
the bulb. Solid illumination after the engine is started indicates the On
Board Diagnostics System (OBD-II) has detected a malfunction. Refer to
On board diagnostics (OBD-II) in the Maintenance and Specifications
chapter. If the light is blinking, engine misfire is occurring which could
damage your catalytic converter. Drive in a moderate fashion (avoid
heavy acceleration and deceleration) and have your vehicle serviced
immediately.
Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Check fuel cap: Illuminates when
the fuel cap may not be properly
installed. Continued driving with
this light on may cause the Service
engine soon warning light to come
on. Refer to Fuel filler cap in the
Maintenance and Specifications chapter.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
Instrument Cluster
10

Brake system warning light: To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running, or in a position between ON and START,
or by applying the parking brake when the ignition is turned to the ON
position. If the brake system warning light does not illuminate at this
time, seek service immediately from your dealership. Illumination after
releasing the parking brake indicates low brake fluid level and the brake
system should be inspected immediately by your servicing dealership.
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your dealer immediately.
Anti-lock brake system (if
equipped): If the ABS light stays
illuminated or continues to flash, a
malfunction has been detected, have
the system serviced immediately.
Normal braking is still functional unless the brake warning light also is
illuminated.
Air bag readiness: If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately. A chime will also sound when a malfunction in the
supplemental restraint system has been detected.
Safety belt: Reminds you to fasten
your safety belt. A chime will also
sound to remind you to fasten your
safety belt.
Charging system: Illuminates when
the battery is not charging properly.
P!
BRAKE
ABS
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
11

Engine oil pressure: Illuminates
when the oil pressure falls below the
normal range, refer to Engine oil in
the Maintenance and
specifications chapter.
Traction Control娂active (if
equipped): Flashes when the
Traction Control娂is active. If the
light remains on a malfunction has
been detected; have the system
serviced immediately, refer to the Driving chapter for more information.
Speed control (if equipped):
Illuminates when the speed control
is activated. Turns off when the
speed control system is deactivated.
Securilock娂Anti-theft system:
Flashes when the Securilock娂
Passive Anti-theft System has been
activated. Refer to Securilock娂Passive Anti-theft System in the Locks
and Security chapter.
Turn signal: Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators stay on or flash faster, check for a burned out bulb.
High beams: Illuminates when the
high beam headlamps are turned on.
Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver’s door
is opened.
Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
CRUISE
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
12

GAUGES
Speedometer: Indicates the
current vehicle speed.
Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the needle will be in
the normal range (between “H”and
“C”). If it enters the red section,
the engine is overheating. Stop
the vehicle as soon as safely
possible, switch off the engine and let the engine cool.
Never remove the coolant reservoir cap while the engine is
running or hot.
Tachometer: Indicates the engine
speed in revolutions per minute.
Driving with your tachometer
pointer continuously at the top of
the scale may damage the engine.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
13

Fuel gauge: Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
The FUEL icon and arrow indicates
which side of the vehicle the fuel
filler door is located.
Refer to Filling the tank in the Maintenance and Specifications
chapter for more information.
Odometer: Registers the total
kilometers (miles) of the vehicle.
Refer to Message Center in the
Drivers Controls chapter on how to
switch the display from Metric to
English.
Trip odometer: Registers the
kilometers (miles) of individual
journeys. Press and release the
message center INFO button until
“TRIP”appears in the display (this
represents the trip mode). Press
and hold the RESET button for three seconds to reset.
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Instrument Cluster
14

AM/FM STEREO CASSETTE/MACH姞AUDIO SYSTEM WITH AM/FM
STEREO CASSETTE (IF EQUIPPED)
1. Tape: Insert the cassette with the
opening to the right. If a tape is
already inserted into the system,
press TAPE to begin tape play.
2. Clock: To set the hour, press and
hold the H control. When the
desired hour appears, release the
control.
To set the minute, press and hold
the M control. When the desired
minute appears, release the control.
3. CD: Press to play the CD (if
equipped).
Note: This system is CDDJ
compatible, but CDDJ is an option with limited availability as defined in
the order guide.
4. Bass: Press / to
decrease/increase the bass output.
5. Treble: Press / to
decrease/increase the treble output.
BASS
TREB
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
Entertainment Systems
15

6. Balance: Press / to shift
sound to the left/right speakers.
7. Fade: Press / to shift
sound to the rear/front speakers.
8. Scan: Press SCAN to hear a brief
sampling of all listenable radio
stations, tape or CD selections.
Press again to stop.
9. Shuffle: Press to play CD tracks
in random order.
10. COMP (compression): While
playing a CD, press to bring soft and
loud passages together for a more
consistent listening level.
11. Dolby威noise reduction:
Reduces tape noise and hiss while
playing a tape, press to
activate/deactivate.
12. Side 1–2: Press to change tape
direction.
13. FF (fast forward): Press to
advance the tape or CD.
14. REW (rewind): Press to rewind
the tape or reverse the CD.
15. Memory preset buttons: To
set a station: Select frequency band
AM/FM1/FM2; tune to a station,
press and hold a preset button until sound returns.
BAL
FADE
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
16

16. Tune: Works in radio mode or
CD mode. Press / to change
frequency down/up or previous/next
disc.
17. Cassette door: Insert a
cassette into the cassette door.
18. Seek: Press and
release / for previous/next
listenable radio station, tape
selection or CD track.
19. Power/volume: Press to turn
ON/OFF; turn to increase or
decrease volume levels.
20. AM/FM: Press to choose a
frequency band in radio mode
(AM/FM1/FM2).
21. EJ (Eject): Press to eject a
tape.
VOL
PUSH ON
AM
FM
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
17

AUDIO SYSTEM WITH AM/FM STEREO/SINGLE CD PLAYER
(IF EQUIPPED)
1. Clock: To set the hour, press and
hold the H control. When the
desired hour appears, release the
control.
To set the minute, press and hold
the M control. When the desired
minute appears, release the control.
2. Bass: Press / to
decrease/increase the bass output.
3. Treble: Press / to
decrease/increase the treble output.
4. Balance: Press / to shift
sound to the left/right speakers.
5. Fade: Press / to shift
sound to the rear/front speakers.
12 11 10 98
16 123
17
5
4
15
14
13
76
BASS
TREB
BAL
FADE
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
18

6. Scan: Press to hear a brief
sampling of all listenable radio
stations or CD tracks. Press again to
stop.
7. CD: Press to play a CD. Press
again to toggle between single CD
mode and CD Changer mode (if
equipped).
8. Shuffle: Press to play CD tracks
in random order.
9. COMP (compression): Press to
bring soft and loud passages
together for a more consistent
listening level.
10. FF (fast forward): Press and
hold until desired selection is
reached.
11. REW (rewind): Press and hold
until desired selection is reached.
12. Memory preset buttons: To
set a station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
13. Tune: Press / to change
radio frequency down/up. With CD
changer (if equipped), press to
select the previous/next CD.
14. Seek: Press and
release / for previous/next
listenable radio station or
previous/next CD track.
15. Power/volume: Press to turn
ON/OFF; turn to increase or
decrease volume levels. VOL
PUSH ON
2004 Sable (sab)
Owners Guide (post-2002-fmt)
USA English (fus)
Entertainment Systems
19
