Merlin Merlin 10005 User manual

OPERATING
INSTRUCTIONS
Merlin
®
/Proxxon
®
King Arthur’s Tools, 3645 Hartsfield Road, Tallahassee, Florida 32303 USA
Telephone:[phone] • Fax:[phone] • Email: [email protected]
Internet: www.katools.com • www.kingarthurstools.com • www.hooftrimmingtools.net
Protected by worldwide patents. Made in the U.S.A and Germany.

MERLIN - 11
SPECIFICATIONS
• Variable Speed 110-115 Volt
Merlin Model 10005 - Universal Carving Set
Merlin Model 10050 - Hoof Trimming Set
(Proxxon LW/E 38544)
Motor:
Voltage 110V-115 V- 60Hz
Power 1.0 amp/100 Watt
Unit:
Rotational Speed 6,500 up to13,000 rpm
Disc diameter approx. 2”/ 50mm
Length 11-13/32”/280mm
Weight 1.54 lb/700 grams
• Variable Speed 220-240 Volt
Merlin Model 10018 - Universal Carving Set
(Proxxon LW/E 28544)
Motor:
Voltage 220V-240V~ 50hz
Power 1.0 amp/100 Watt
Unit:
Rotational Speed 6,500 up to13,000 rpm
Disc diameter 2” / 50mm
Length 11-13/32”/280mm
Weight 1.54 lb/700grams
All Models:
Characteristic noise emission < 78 dB (A)
Noise level may exceed 85 dB (A) during operation.
Vibration at handle < 2.5 m/s2
Class II Equipment Double Insulation
2 - MERLIN
MODEL IDENTIFICATION
King Arthur’s Tools
®
includes Proxxon
®
long neck angle grinders in various models for
®
®
different applications. The power unit is available in both 110V/115V and 220V/240V.
The following chart easily identifies your Proxxon
®
power unit model.
(Limited Stock)
IMPORTANT WARRANTY INSTRUCTIONS
FOR MERLIN
®
SERVICE AND REPAIR, CONTACT KING ARTHUR’S TOOLS
AT
1-800-942-1300
(USA ONLY) OR
1-850-877-7650
.
DO NOT RETURN UNIT TO PROX-TECH.
LIMITED WARRANTY
of Merlin
®
/Proxxon
®®
®
Long Neck Angle Grinder for Home Use
King Arthur’s Tools
®
(“Seller”) warrants to the original purchaser only, that the Proxxon
®
long neck mini angle grinder, which is the power unit for the Merlin
®
miniature woodcarv-
®
®
ing set, will be free from defects in material or workmanship for a period of one year from
the date of purchase. Seller’s sole obligation and your exclusive remedy under this limited
warranty and, to the extent permitted by law, any warranty or condition implied by law,
shall be the repair or replacement of parts, without charge, which are defective in material
or workmanship and which have not been misused, carelessly handled, or misrepaired by
persons other than Seller and Authorized Service Station.
In the unlikely event of a failure of a product to conform to this written warranty, please
take the following action:
1. DO NOT return your product to the place of purchase.
2. Securely package the product by itself and return the product only,
freight prepaid, along with:
3. A copy of your dated proof of purchase (please keep a copy for yourself).
4. A written statement about the nature of the problem.
5 Your name, address and phone number to:
King Arthur’s Tools, 3645 Hartsfield Road, Tallahassee, FL 32303
We recommend that the package be insured against loss or in transit damage for which
we cannot be responsible. Damage to the product resulting from tampering, accident,
abuse, negligence, unauthorized repairs or alterations, unapproved attachments or other
causes unrelated to problems with material or workmanship are not covered by this war-
ranty. Any implied warranties shall be limited in duration to one year from date of purchase.
No employee, agent, dealer or other person is authorized to give any warranties on behalf
of Merlin
products from King Arthur’s Tools. King Arthur’s Tools makes no other warranty
of any kind whatever, express or implied, and all implied warranties of merchantability and
fitness for a particular purpose which exceed the above mentioned obligation are hereby
disclaimed by King Arthur’s Tools and excluded from this limited warranty. Some states
in the U.S. and some Canadian provinces do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. In no event shall Seller be
liable for any incidental or consequential damages (including but not limited to liability for
loss of profits) arising from the incidental or consequential damages. This limited warranty
applies only to the Proxxon long neck angle grinder and the accessories included in the
Merlin Universal Carving Set or the Merlin Hoof Trimming Set sold within the United States
of America, Canada and the commonwealth of Puerto Rico. For warranty coverage within
other countries contact your local Merlin distributor. Repairs made necessary by normal
wear or abuse, or repair for product outside the warranty period, if they can be made, will
be charged at regular service prices.

10 - MERLIN
MERLIN - 3
MERLIN
®
MERLIN
MERLIN
Instructions
®
®
Congratulations and thank you for purchasing
Merlin
®
, a real “Wizard Of A Tool”.
Merlin
®
joins our realm of innovative tools with “The World’s Smallest Chain Saw”.
®
®
The Universal Carving Set pairs the Proxxon
®
long neck angle grinder with five (5)
accessories. The Hoof Trimming Set pairs the grinder with three (3) accessories.
The power unit is available in a variable speed model for 110V/115V.
All models come in a molded case with specific model accessories and an Allen key
for mounting and disassembly. Additional accessories available from King Arthur’s
Tools ® fit all models and allow Merlin to be used for a wide variety of applications
by simply changing the accessories.
The Merlin/Proxxon
®
long neck angle grinder is ideal for miniature woodcarving, hoof
®
®
trimming, taxidermy, model making, tool making, mold making and minor vehicle repairs.
It can be used for carving, roughening, shaping, deburring, fine grinding, chamfering,
paint removal, rust removal, cutting small components and sharpening tools. Merlin’s
accessories can be used on wood, hooves, fiberglass, foam, bone, antlers, steel, non-
ferrous metals, glass and ceramics.
Before putting the machine into operation, please read all the enclosed safety rules and
operating instructions.
–SAFETYGUARD –
The angle grinder comes fitted with a miniature chainsaw blade and is ready for use.
The position of the safety guard has been rotated to the correct position.
DO NOT
REMOVE THE SAFETY GUARD WHEN USING THE CHAINSAW BLADE OR ANY
ACCESSORY AND ALWAYS OPERATE THEM WITH THE GUARD IN THE 23
o
TO 45
o
POSITION.
The risk of kickback or binding, however small, is greatly increased with no
safety guard. The guard also protects operator from broken grinding wheel fragments.
IF YOU REMOVE THE SAFETY GUARD, DON’T USE THESE ACCESSORIES.
We caution you not to force the accessories into the work piece.
Let the tool do the
work.
Use the correct accessories for your application.
Excessive force could cause
bearing failure in the head of the grinder.
The chain blades and carbide discs can be
used on their face, laterally and vertically to remove, shape, shave and etch wood.
A light motion works best.
– WARNING –
OVERHEATING
: Do not overwork the grinder.
If the unit overheats, switch it off and
allow it to cool. Failure to do so could burn out the motor. Also on a regular basis,
blow out the motor to prevent clogging which could contribute to overheating.
OVERTIGHTENING:
Do not over tighten accessories or you could strip the
internal gear in the lock down switch of the aluminum gear head.
Use a gentle
touch to secure the accessory – not brute force! In the event of failure, contact King
Arthur’s Tools. Look after your tool and your tool will look after you!
®

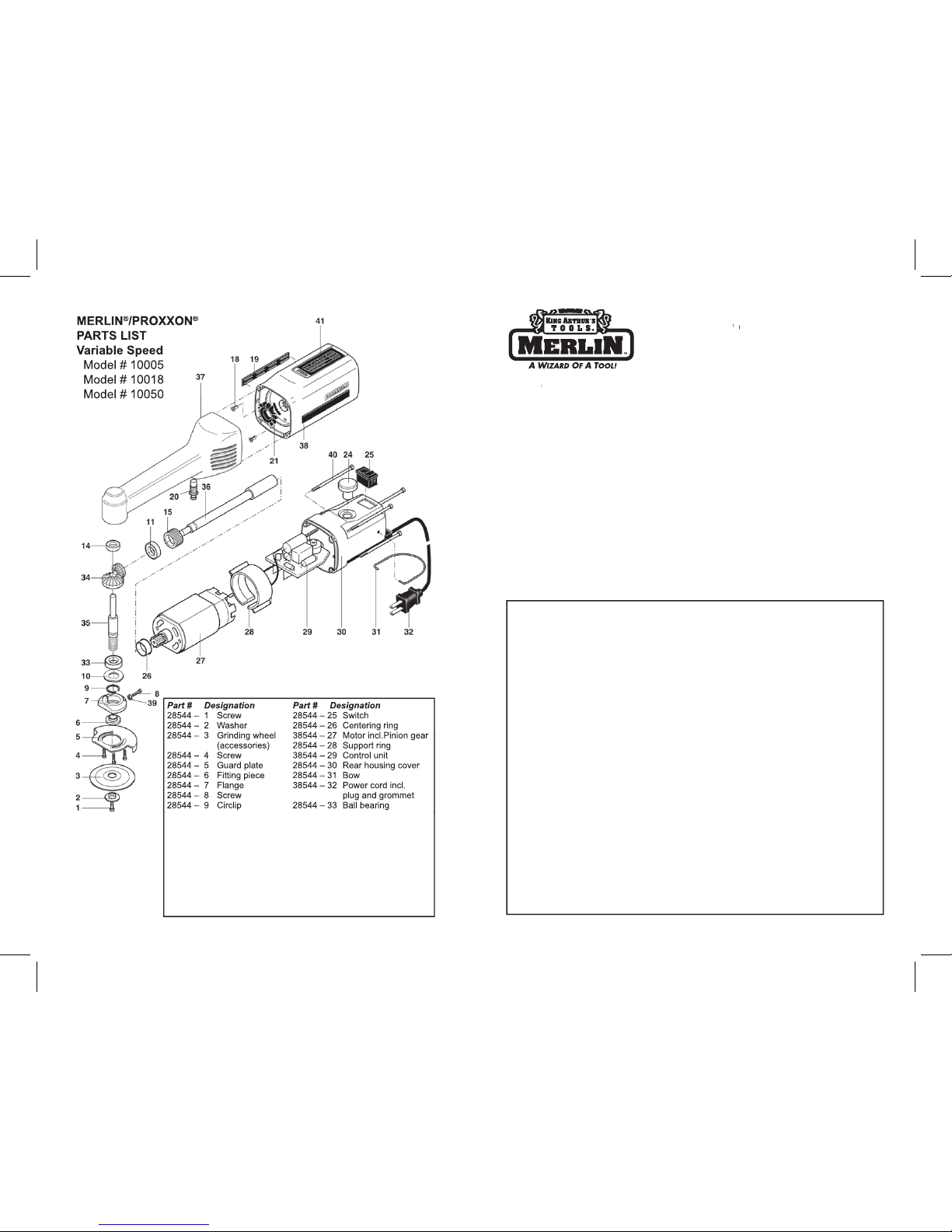

/PROXXON
®
®
®
28544 – 10 Spring washer
28544 – 11 Ball bearing
28544 – 14 Ball bearing
28544 – 15 Nut
28544 – 18 Motor fastening
screws
28544 – 19 Protective Strip
28544 – 20 Locking button
28544 – 21 Fan
28544 – 24 Control knob
28544 – 34 Gear pair
28544 – 35 Shaft (short)
28544 – 36 Shaft (long)
28544 – 37 Gear head with
locking button
28544 – 38 Motor housing incl.
protective strip
28544 – 39 Hexagon nut
28544 – 40 Housing screw
38544 – 41 Label

4 - MERLIN
MERLIN - 9

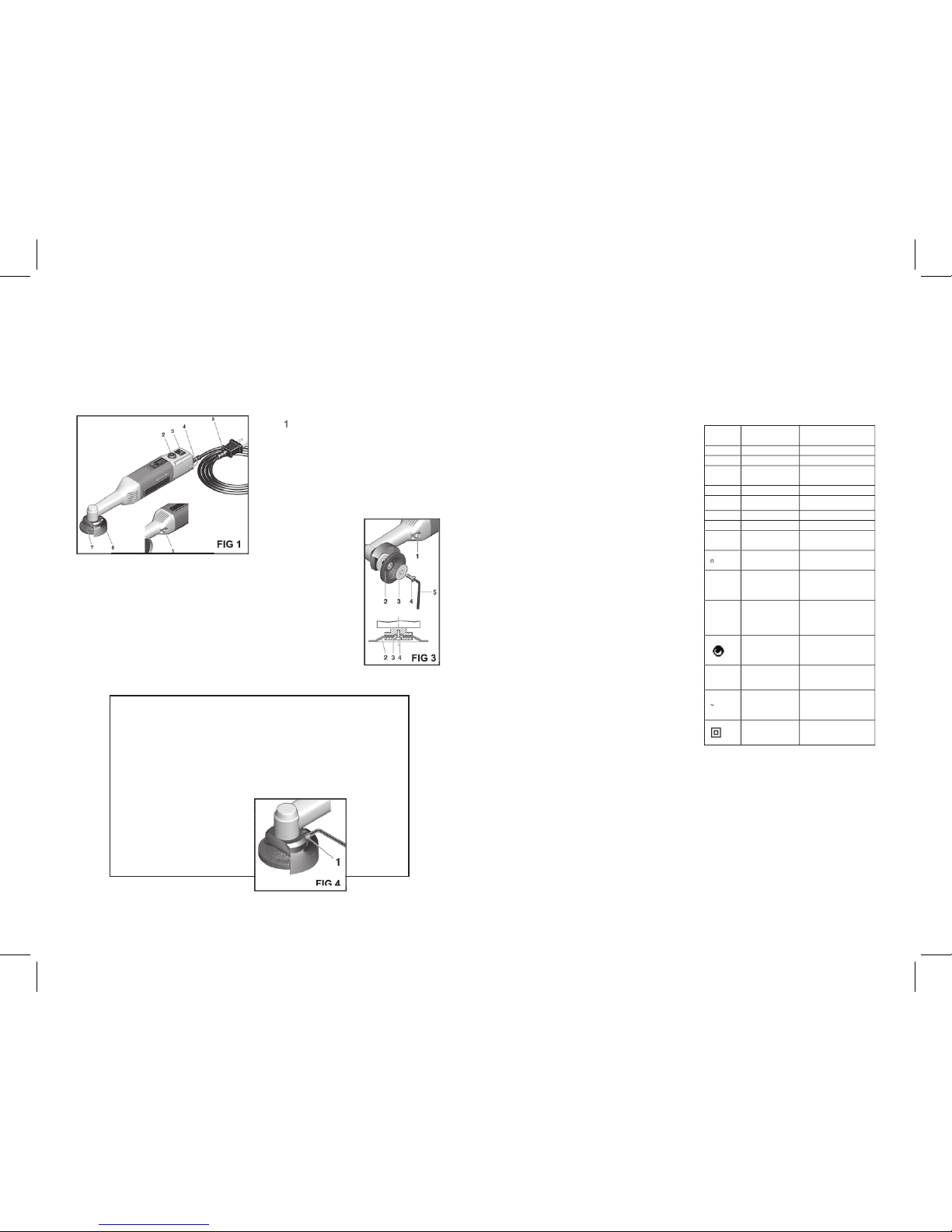

Variable Speed Overview
(FIG 1)
1. Locking button
2. Variable Speed control
3. ON-OFF switch
4. Unit handle
5. Connection cable with mains plug
6. Protective safety guard
7. Grinder accessories
Using The Unit
1. Switch the unit on:
Variable Speed, switch
3 - (
FIG 1)
,
2. For Variable Speed (FIG 1) use
switch
2
to set the speed control
to a speed appropriate for the
work to be performed.
(Refer Speed Chart on Page 5)
Replacing Accessories
(FIG 3)
W A R N I N G !
Disconnect the plug from the
mains before replacing any
accessories. Never press the
locking button if the accessory
is still rotating.
1
. Press the locking button 1
(FIG 3)
2. Turn the fastening screw 4
using an Allen key 5 until the
locking button engages.
3. Undo the fastening screw 4,
remove the centering disc 3
and the accessory 2 (e.g.
grinding disc).
4. Fit the new
accessory
and ensure it
is properly
seated in the
centering disc
shoulder 3.
5. Press locking
button 1 and
secure, but
do not over-
tighten the
fastening screw 4.
Adjusting Protective
Safety Guard
(FIG 4)
W A R N I N G !
Disconnect the plug from the
mains before the following.
1. Release fastening screw 1
and turn protective guard to
the correct position.
2. Retighten the fastening screw.
Ensure the accessory is
properly
seated in
the cen-
tering disc
shoulder 3
(FIG 3).
Grinding Wheel Use
Good grinding performance can only
be achieved using the correct and
constant rotational speed. To achieve
the best results when roughening,
apply the grinding disc to the grinding
surface at an angle of between 30°
and 40° and move evenly back and
forth over the workpiece. Do not
bend the grinding disc into the
cutting surface during cutting work.
W A R N I N G !
Do not use the cutting disc for
roughening work. Risk of fracture!
Use the tungsten carbide or chain
saw accessories.
Maintenance
W A R N I N G !
Disconnect the plug from the mains
before performing any maintenance or
cleaning work.
After Use
Clean the unit thoroughly, removing
all wood shavings, grinding dust, hoof
residue, etc with a brush or a soft cloth.
Ensure all ventilation slots are free
from obstruction so....
Regularly clean the tool’s air
vents by compressed air.
Excessive accumulation of wood and
hoof shavings, sawdust, powdered
metal, or other foreign particles
inside the motor housing may cause
overheating or electrical failures.
Symbols
Important:
Some of the following
symbols may be used on your tool.
Please study them and learn their
meaning. Proper interpretation of
these symbols will allow you to
operate the tool better and safer.
Symbol
Name
Designation/
Explanation
V
Volts
Voltage (potential)
A
Amperes
Current
Hz
Hertz
Frequency
(cycles per second)
W
Watt
Power
Kg
Kilograms
Weight
min
Minutes
Time
s
Seconds
Time
Ø
Diameter
Size of drill bits,
grinding wheels, etc.
n
0
No Load Speed
Rotational speed,
at no load
…/min
Revolutions or
Reciprocation
Per Minute
Revolutions, strokes,
surface speed, orbits
etc. per minute
1, 2, 3,
…
Selector
Settings
Speed, torque, or
position settings.
Higher number
means greater speed
Infinitely
Variable
Selector
Speed is increasing
from narrow end

Arrow
Action in the
direction of arrow
~
Alternating
Current
Type or a
characteristic
of current
Class II
Construction
Designates
Double Insulated
Construction tools
FIG 3
properly
seated in
the cen-
tering disc
shoulder 3
(FIG 3).
FIG 4

8 - MERLIN
MERLIN - 5
Assembling and
Changing Saw Chain
Outlined below is the mounting
procedure for the saw chain to be
correctly fi tted to the long neck mini
grinder when you want to remount it.
(Refer also to FIG 3)
1) Use the Allen key
5
to unscrew any
accessories, simultaneously holding
down the locking button.
2) The small fastening screw
4
with the
Allen key head fi ts through a (top) black
spacer
3
, which has a 10mm raised
shoulder. The 10mm discs with the saw
chain fi t over this shoulder.
3) Make sure the chain is secured
between the discs and the chain is
facing the right direction with the raker
on the left. Another check is to make
sure that the number 25 stamped on
tang of the chain is face down.
4) The bottom saw chain disc
sits on
(not over) the silver spacer (which is
part of the grinder).
5) Simply tighten the screw
4
with
the Allen key
5
using the lock down
switch
1
to hold the chain/discs during
tightening, making sure the discs are
centered for proper balance.
Do not overtighten!
Do not overtighten!
A quick on/off
test will allow you to check this visually.
Readjust chain and discs as necessary.
It’s ready to use.
IMPORTANT
If assembled in reverse
to motor direction,
MERLIN will not cut,
leaving burn marks
on the work piece.
ASSEMBLY OF
CHAIN AND DISCS
The two discs secure the saw chain
circlet between them.
For both the
8 tooth (shown) and the 4 tooth circlet.
NOTE DIRECTION OF
RAKER POINT AND TOOTH
Speed Chart
Accessories Available and
Recommended Speeds
Accessory
Part #
Rec.
Speed
100 Grit Flap
Disc Sander
10003
12,000 –
13,000 rpm
150 Grit Flap
Disc Sander
10004
12,000 –
13,000 rpm
Silicon Carbide
Grinding Disc
10007
10,000 rpm
Aluminum Oxide
Metal Cutting Disc
10008
10,000 rpm
Coarse Red
Carbide Abrasive Disc
10009
7,000 –
13,000 rpm
Medium Yellow
Carbide Abrasive Disc
10010
7,000 –
13,000 rpm
Fine Stone Garnet
Carbide Abrasive Disc
10011
7,000 –
13,000 rpm
Coarse Green
“V” Edge Carbide Disc
10012
7,000 –
13,000 rpm
4 Tooth Carbide
Replacement Chain
for Hooftrimming
20004
9,000 –
13,000 rpm
8 Tooth Standard
Replacement Chain
20008
9,000 –
13,000 rpm
4 Tooth Carbide Chain
Assembly (with discs)
21004
9,000 –
13,000 rpm
8 Tooth Standard Chain
Assembly (with discs)
21008
7,000 –
13,000 rpm
4 Tooth Carbide
Replacement Chain
for Wood Working
2004MW
9,000 –
13,000 rpm
4 Tooth Carbide Chain
Assembly (with discs)
for Wood Working
2104MW
9,000 –
13,000 rpm
Always disconnect the power cord
from the power source before making
any adjustments or attaching any
accessories.
You may unexpectedly
cause the grinder to start, leading to
serious personal injury.
Accessories must be rated for at
least the speed recommended on the
tool warning label.
Wheels and other
accessories running over rated speed
can fl y apart and cause injury.
Do not reach in the area of the
rotating wheel.
The proximity of the
rotating wheel to your hand may not
always be obvious.
Carefully handle both the tool and
individual grinding wheels to avoid
chipping or cracking. Install a new
grinding wheel if tool is dropped
while grinding. Do not use a wheel
that may be damaged.
Fragments from
a wheel that bursts during operation
will fl y away at great velocity possibly
striking you or bystanders.
If a chain
tooth becomes jagged, simply
sharpen it with a few strokes of
the diamond fi le to bring the edge
back. Other accessories may need
replacing if damaged.
We highly recommend not to hold
a hoof in one hand while using the
grinder with chain saw in the other
hand. Use clamps to secure the hoof
whenever practical.
Clamping allows
you to use both hands to control the
tool.
If it is absolutely necessary to
hold the hoof or work object, allow
for suffi cient space between your
hand and the spinning blades/discs.
Use clamps to support workpiece
whenever practical. Never hold a
small workpiece in one hand and the
tool in the other hand while in use.
Allow for suffi cient space between
your hand and the spinning grinder.
Round material such as dowel rods,
pipes or tubing have a tendency to roll
while being cut, and may cause the
grinder to “bite” or jump toward you.
Clamping a small workpiece allows you
to use both hands to control the tool.
Inspect your hoof or workpiece
before cutting. When cutting
irregularly shaped objects, plan your
work so it will not slip, pinch the
grinder and be torn from your hand.
For example, if carving wood, make sure
there are no nails or foreign objects in
the workpiece. These alien materials
may cause the grinder to jump.
Never start the tool when the grinder
is engaged in the hoof or material.
The accessory’s cutting edge may grab
the cutting object causing loss of control
of the cutter and possible injury to the
animal.
Avoid bouncing and snagging the
accessories, especially when working
corners, sharp edges, etc.
This can
cause loss of control and kickback.
If the grinder becomes jammed or
bogged down in the hoof/workpiece,
turn the tool off by the switch. Wait
for the spinning accessory to stop
and unplug the tool, then work to
free the jammed material.
If the switch
is left on, the grinder could restart
unexpectedly causing serious injury.
Do not leave a running tool un-
attended; turn power off.
Only when
the accessory on the grinder comes to
a complete stop is it safe to put down.
Do not grind or sand near fl ammable
materials. Sparks from the wheel
could ignite these materials.
W A R N I N G !
Do not use the unit
on materials which contain asbestos.
Do not alter or misuse tool.
Any
alteration or modifi cation is a misuse
and may result in serious personal
injury.
This product is not intended
for use as a dental drill or in medical
applications.
Serious personal injury
may result.
Raker Point
Tooth
Disc

6 - MERLIN
MERLIN - 7
SAVE THESE INSTRUCTIONS
GENERAL SAFETY RULES
Warning! Read and understand
all instructions.
Failure to follow all
instructions listed below may result
in electric shock, fi re and/or serious
personal injury.
Work Area
Keep your work area clean and well
lit.
Cluttered benches and dark areas
invite accidents.
Do not operate power tools in
explosive atmospheres, such as in
the presence of fl ammable liquids,
gases, or dust.
Power tools create
sparks which may ignite the dust
or fumes.
Keep bystanders, children, and
visitors away while operating a
power tool.
Distractions can cause
you to lose control.
Electrical Safety
Double Insulated tools are equipped
with a polarized plug (one blade is
wider than the other).
This plug will
fi t in a polarized outlet only one way. If
the plug does not fi t fully in the outlet,
reverse the plug. If it still does not fi t,
contact a qualifi ed electrician to install
a polarized outlet. Do not change the
plug in any way.
Double Insulation
eliminates the need for the three
wire grounded power cord and
grounded power supply system.
Avoid body contact with grounded
surfaces such as pipes, radiators,
ranges, and refrigerators.
There is
an increased risk of electric shock if
your body is grounded.
Do not expose power tools to rain
or wet conditions.
Water entering
a power tool will increase the risk of
electric shock.
Do not abuse the cord. Never use
the cord to carry the tools or pull
the plug from an outlet. Keep cord
away from heat, oil, sharp edges
or moving parts. Replace damaged
cords immediately.
Damaged cords
increase the risk of electric shock.
When operating a power tool
outside, use an outdoor extension
cord marked “W-A” or “W”.
These
cords are rated for outdoor use and
reduce the risk of electric shock.
Personal Safety
Stay alert, watch what you are
doing and use common sense
when operating a power tool. Do
not use tool while tired or under
the infl uence of drugs, alcohol, or
medication.
A moment of inattention
while operating power tools may result
in serious personal injury.
Dress properly. Do not wear loose
clothing or jewelry. Contain long
hair. Keep your hair, clothing, and
gloves away from moving parts.
Loose clothes, jewelry, or long hair
can be caught in moving parts.
Avoid accidental starting. Be sure
switch is off before plugging in.
Carrying tools with your fi nger on the
switch or plugging in tools that have
the switch on invites accidents.
Remove adjusting keys or wrenches
before turning the tool on.
A wrench
or a key that is left attached to a
rotating part of the tool may result in
personal injury.
Do not overreach. Keep proper
footing and balance at all times.
Proper footing and balance enables
better control of the tool in unexpected
situations.
Use safety equipment by always
wearing safety goggles or full-face
visor and dust mask.
Additionally,
non-skid safety shoes, hard hat, or
hearing protection must be used for
appropriate conditions. Using personal
safety devices and working in safe
environment reduces risk of injury. Use
the tool only in ventilated area.
Tool Use and Care
Use clamps, vise or other practical
ways to secure and support the
workpiece or hoof to a stable
platform.
Holding the object by hand
or against your body is unstable and
unsafe and may lead to loss of control.
Disconnect the plug from the
power source before making any
adjustments, changing accessories,
or storing the tool.
Such preventive
safety measures reduce the risk of
starting the tool accidentally.
Store idle tools out of reach of
children and other untrained
persons.
Tools are dangerous in
the hands of untrained users.
Maintain tools with care. Keep
cutting tools sharp and clean.
Properly maintained tools, with sharp
cutting edges, are less likely to bind
and are easier to control.
Check for misalignment or binding
of moving parts, breakage of
parts, and any other condition that
may affect the tools operation. If
damaged, have the tool serviced
before using.
Many accidents are
caused by poorly maintained tools.
Use only accessories that are
recommended by the manufacturer
for your model.
Accessories that may
be suitable for one tool may become
hazardous when used on another tool.
Service
Tool service must be performed
only by qualifi ed repair personnel.
Service or maintenance performed
by unqualifi ed personnel could result
in a risk of injury and could void the
warranty.
When servicing a tool, use only
identical replacement parts. Follow
instructions in the Maintenance
section of this manual.
Use of
unauthorized parts or failure to follow
Maintenance Instructions may create a
risk of electric shock or injury. Certain
cleaning agents such as gasoline,
carbon tetrachloride, ammonia, etc.
may damage plastic parts.
SPECIFIC SAFETY RULES
Be aware of the switch location,
when placing the tool down or
when picking the tool up.
You may
accidentally activate the switch.
After changing any accessory or
making any adjustments, make
sure the Allen key or any screws
are securely tightened
but not over
tightened.
tightened.
Hold the grinder by insulated
gripping surfaces when performing
an operation where the cutting tool
may contact hidden wiring or its
own cord.
Contact with a “live” wire
will make exposed metal parts of the
tool “live” and shock the operator. If
cutting into existing walls or other blind
areas where electrical wiring may exist
is unavoidable, disconnect all fuses or
circuit breakers feeding this worksite.
