Makita 9627 User manual

Disc Grinder
No load speed
(RPM)
6,000
180 mm (7") MODEL 9627
Overall length Net weight Spindle thread
518-1 1 UNC
442 mm I1 7-1 /2"l
5.4 kg I1 1.9 Ibs)
INSTRUCTION MANUAL
DOUBLE
I N S U LATlO N

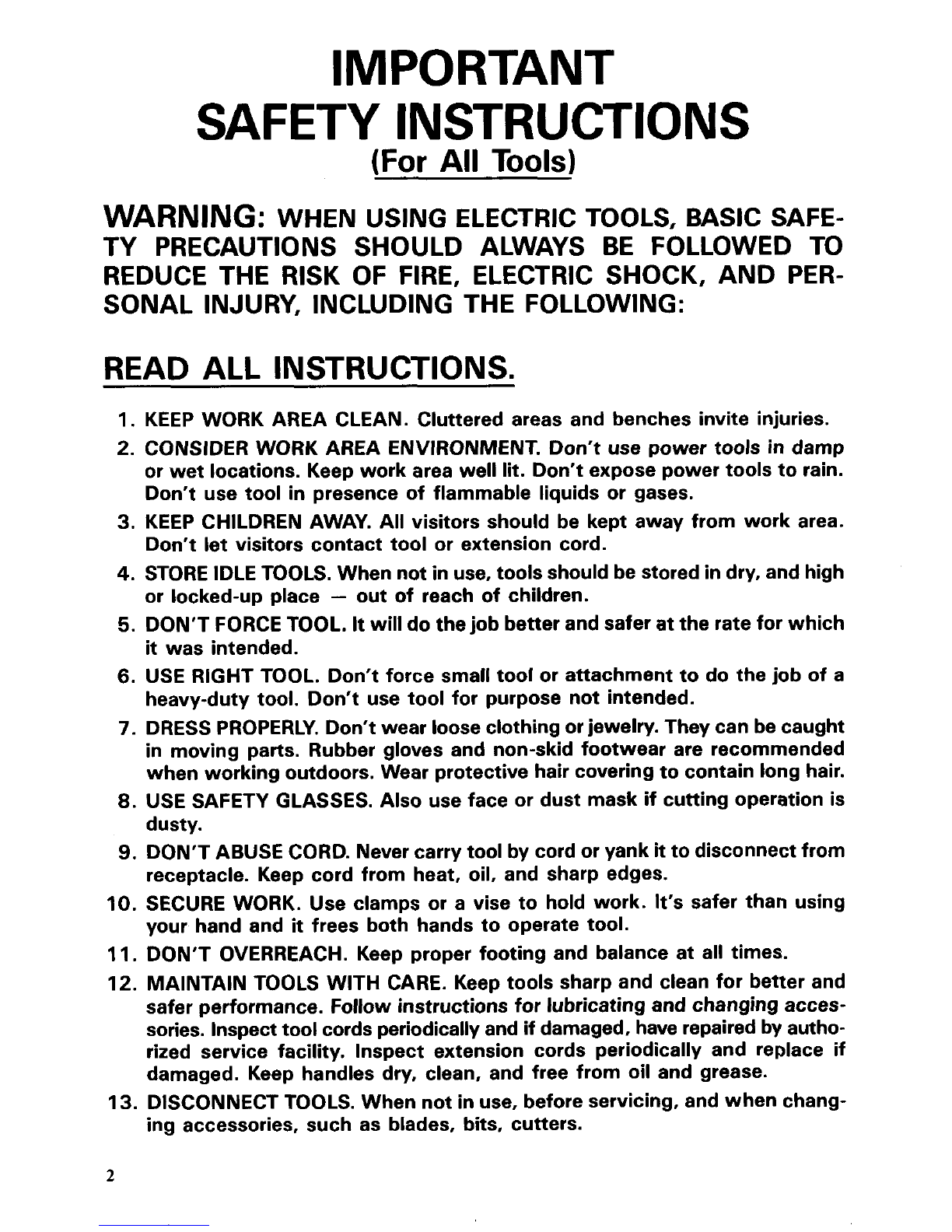

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING:
WHEN USING ELECTRIC TOOLS, BASIC SAFE-
REDUCE THE
RISK OF FIRE, ELECTRIC SHOCK, AND PER-
TY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO
SONAL INJURY, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS.
1.
2.
3.
4.
5.
6.
7.
8.
9.
IO.
11.
12.
13.
2
KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
CONSIDER WORK AREA ENVIRONMENT. Don't use power tools
in damp
or wet locations. Keep work area well lit. Don't expose power tools torain.
Don't use tool
in presence of flammable liquids or gases.
KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
STORE IDLETOOLS. When not
in use, toolsshouldbe stored in dry, andhigh
or locked-up place - out of reach of children.
DON'T FORCETOOL.
It will do thejob betterand safer atthe ratefor which
it was intended.
USE RIGHT TOOL. Don't force small toolor attachment to do the job of a
heavy-duty tool. Don't use tool for purpose not intended.
DRESS PROPERLY. Don't wear looseclothing orjewelry. They can be caught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering to contain longhair.
USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
DON'T ABUSE CORD. Never carry tool by cordor yank
it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
DON'T OVERREACH. Keep proper footing and balance at all times.
MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance. Follow instructionsfor lubricatingand changing acces-
sories. Inspecttoolcordsperiodicallyand ifdamaged, have repairedby autho-
rized service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean, and free from oil and grease.
DISCONNECTTOOLS. When not
in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
seethat keys andadjusting wrenches are removedfromtoolbeforeturning
it on.
15. AVOID UNINTENTIONALSTARTING. Don’t carry plugged-intoolwithfinger
on switch. Be sure switch is OFF when plugging in.
16. OUTDOOR USE EXTENSIONCORDS. Whentool is used outdoors, use only
extension cords intended for use outdoors and
so marked.
17. STAY ALERT. Watch what you are doing, use common sense. Don’t operate
tool when you are tired.
18. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
movingparts, bindingof movingparts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere inthis instruction manual.
Have defective switches replaced by authorized service center. Don’t use
tool
if switch does not turn it on and off.
19. GUARDAGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
20. REPLACEMENTPARTS. When servicing, useonly identicalreplacementparts.
VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.1 be sure the voltage supplied is the same as that specified on the
nameplate of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURYto the user - as well as damage to
the tool, If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
3

ADDITIONAL SAFETY RULES
1. Keep guards in place.
2. Useonly wheels havinga maximum operating speedat leastas highas "No
Load RPM" marked onthe tool's nameplate. When using depressed center
wheels, be sure to use only fiberglass-reinforced wheels.
3. Check the wheel carefully for cracks or damage before operation. Replace
cracked or damaged wheel immediately.
4. Use only flanges specified for this tool.
5. Be careful not to damage the spindle, the flange (especially the installing
surface) or the lock
nut. Damage to these parts could result in wheel
breakage.
6. Hold the tool firmly.
7. Keep hands away from rotating parts.
8. Make sure the wheel is not contacting the workpiece before the switch is
turned
on.
9. Before using the tool on an actual workpiece, let it runfor a while. Watch
for vibration or wobbling that could indicate poor installation or a poorly
balanced wheel.
IO. Use the specified surface of the wheel to perform the grinding.
11. Watch out for flying sparks. Holdthe tool so that sparks fly away from you
12. Do not leave the tool running. Operate the tool only when hand-held.
13. Donottouchthe workpiece immediately after operation; it may beextremely
and other persons or flammable materials.
hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

Installingwheel guard
When using a depressed center wheel or an
abrasive cut-off wheel, always use
a wheel
guard. Mount the wheel guard with the tab
on the wheel guard band aligned with the
notch on the bearing box. Then rotate the
wheel guard
160 degrees counterclockwise.
Be sure to tighten the screw securely.
Installingside grip (auxiliary handle)
Screw the side grip on the tool securely.
The side grip can be installed on either side
of the tool, whichever is convenient.
I
Wheel guard
5

Installing or removingdepressed center wheel
CAUTION
:
Always be sure that the tool is switched off and unpluggedbefore installingor removing
the wheel.
Lock nut
Depressed
center wheel
Mount the inner flange onto the spindle.
Fit the wheel on over the inner flange and
screw the lock nut onto the spindle.
To tighten the lock nut, press the shaft
lock firmly
so that the spindle cannot re-
volve, then use the lock nut wrench and
securely tightenclockwise.
To remove the wheel, follow the installation procedure in reverse.
Switch action
To start the tool, simply pull the trigger.
Release the trigger to stop. For continuous
operation, pull the trigger and then push in
the lock button. To stop the tool from the
locked position, pull the trigger fully, then
release
it.
I
Lock button
I------ Trigger switch
CAUTION :
Before plugging in the tool, always check to see that the trigger switch actuates properly
and returns to the "OFF" position when released.
6

Operation
Hold the tool firmly. Turn the tool on and
then apply the wheel or disc to the work-
piece.
In general, keep the edge of the wheel or
disc
at an angle of about 15" to the work-
piece surface.
During the break-in period with
a new
wheel, do not work the grinder in the B
direction or
it will cut into the workpiece.
Once the edge of the wheel has been
rounded off
by use, the wheel may be
worked in both A and Bdirections.
WARN
I NG :
0 It should never be necessary to force the tool. The weight of the tool applies adequate
pressure. Forcingand excessive pressurecould cause dangerous wheel breakage.
.Continued use
of a worn-out wheel may result in wheel explosion and serious personal
injury. Depressed center wheel should not be used after
it has been worn down to
115 mm (4-1/2") in diameter. Use of the wheel after this point is unsafeand it should
be removed from service and rendered unusable by intentional destruction.
MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and unplugged before attempting to perform
inspection or maintenance.
To maintain product SAFETY and RELIABILITY, repairs, carbon brush inspection and
replacement, any other maintenance or adjustment should be performed by Makita
Authorized of Factory Service Centers, always using Makita replacement parts.
7

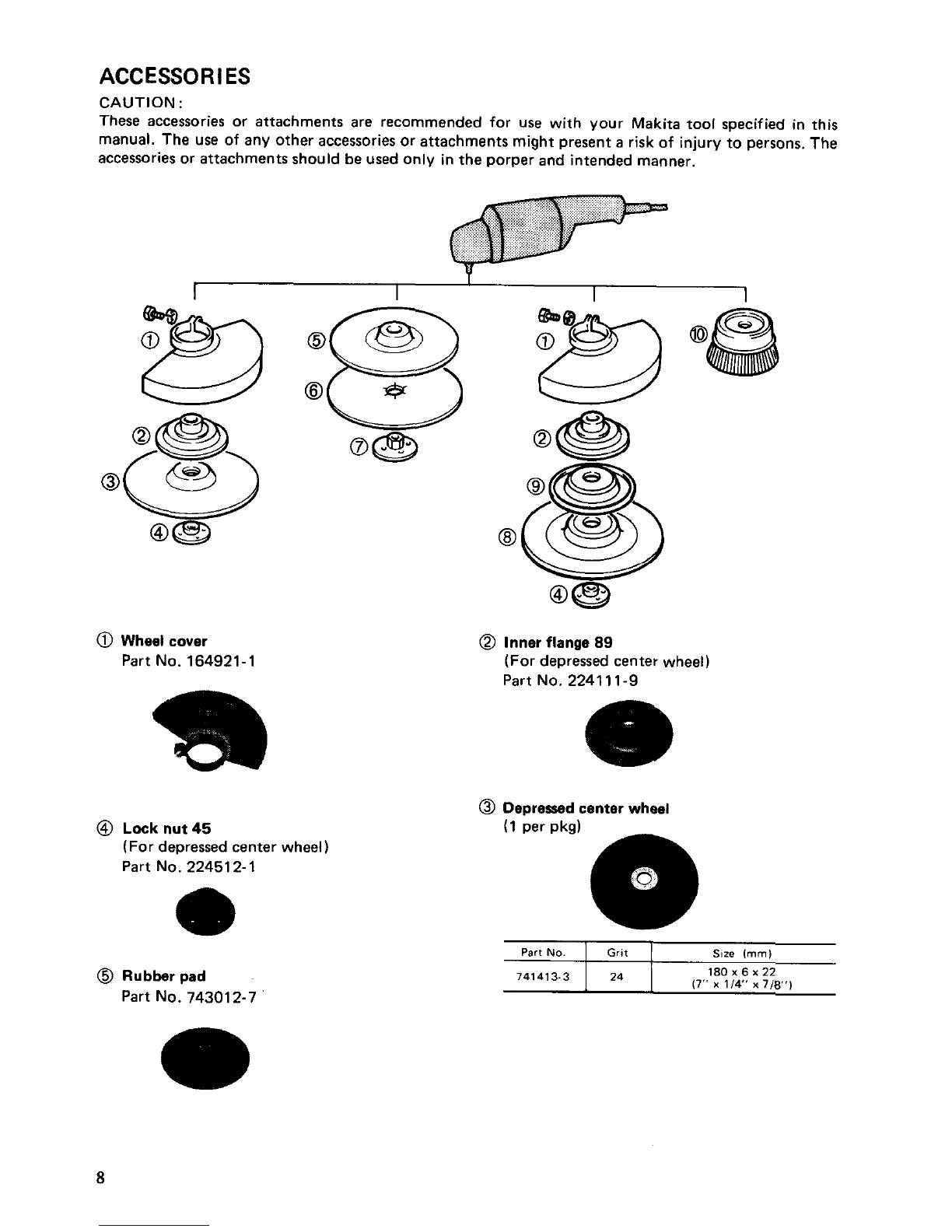

ACC ESSO R I ES
Part No.
CAUTION :
These accessories or attachments are recommended for use with your Makita tool specified in this
manual. The use
of any other accessories or attachmentsmight present a risk of injury to persons.The
accessories or attachments should be used only inthe porper and intendedmanner.
Grit Size (mm)
@ Wheel cover
Part No. 164921-1
741413-3
@ Inner flange 89
(Fordepressed center wheel)
Part
No. 224111-9
180 x 6 x 22
(7" x 1/4' x 718')
24
@ Depressed center wheel
@ Lock nut 45
(Fordepressed center wheel)
Part
No. 224512- 1
@ Rubber pad
Part No. 743012-7
8

0 Sanding lock nut 48
(For abrasive disc1
Part No. 22451 7- 1
143201 2
Part No Diameter ("1
742067-A-5
742069-A 5
742089-A-5
742070-A-5
74201
1 -A-5
180 17'')
742091
-A- 5 120
110 (4-3/8"1
@ Flexible grinding wheel
(IO per pkg)
%re (mm)
180 x 3 x 22
(7''
x 1/8" x 118")
741441 -8
741442- 6
741443-4 Part No. 743027.41
(Includes one back up pad. (9,'
@ Wire cup brush
150 (6')
743206-A
743206-E
0 Lock nut wrench 28
Part No. 782413-4
0 Grip 37
Part No. 273480-5
9

June-06-'91 EN
180 mm (7")
DISC GRINDER
Model 9627
Note: The switch, noise suppressor and other part configui
may differ from country to country. .ations
10

MODEL 9627 June-06-'91 US
MACHINE
~ ~
MACHINE
1
2
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
~
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
1
1
2
1
1
4
1
-
Cap 15
Retaining Ring
R 12
Pin 6
Compression Spring I
Gear Housing
0 Ring 36
Retaining Ring S 9
Spiral Bevel Gear 12
Ball Bearing 6301DDW
Bearing
Retainer
Fan 100
Baffle Plate
ARMATURE ASSEMBLY
IWith Item 12 & 14 - 161
lniulation Washer
Ball Bearing 6200DDW
Rubber Pin 4
Pan Head Screw M4x16 (With Washer)
Brush Holder
Motor Housing
Field
Pan Head Screw M5x65 IWith Washer)
Hex Socket Head 8011 M5xl2 IWith Washer)
Hex
Socket Head Bolt M5x30 (With Washer)
Pan Head Screw M5x30 IWiIh Washer)
Grio
31
21
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
46
41
48
49
50
51
52
1
1
1
1
1
1
1
1
4
1
1
1
1
4
1
1
1
1
1
1
4
2
1
1
1
Refaining Ring S ~ 17
Spiral Bevel Gear 50
Retaining Ring R-40
Ball Bearing 6203LLB
Flat
Washer 17
Spindle
Woodruff
Key 4
Bearing Box
Pan Head Screw M5x18 lWiIh Washerl
Pan Head Screw Max30 IWith Washer1
Wheel
Cover
Inner Flange
Lock Nu1
Pan Head Screw M4x2O (With Washerl
Handle Set IWith Item 471
Dust Cover
Switch Lever
Switch
Name Plate
Handle Set IWith Item 411
Pan Head Screw M5x55 IWith Washer)
Pan Head Screw M4x18 (With Washer)
Strain Relief
Cord Guard
Cord
Note The witch and other part Speciftcations may deffer from country to country
11

P

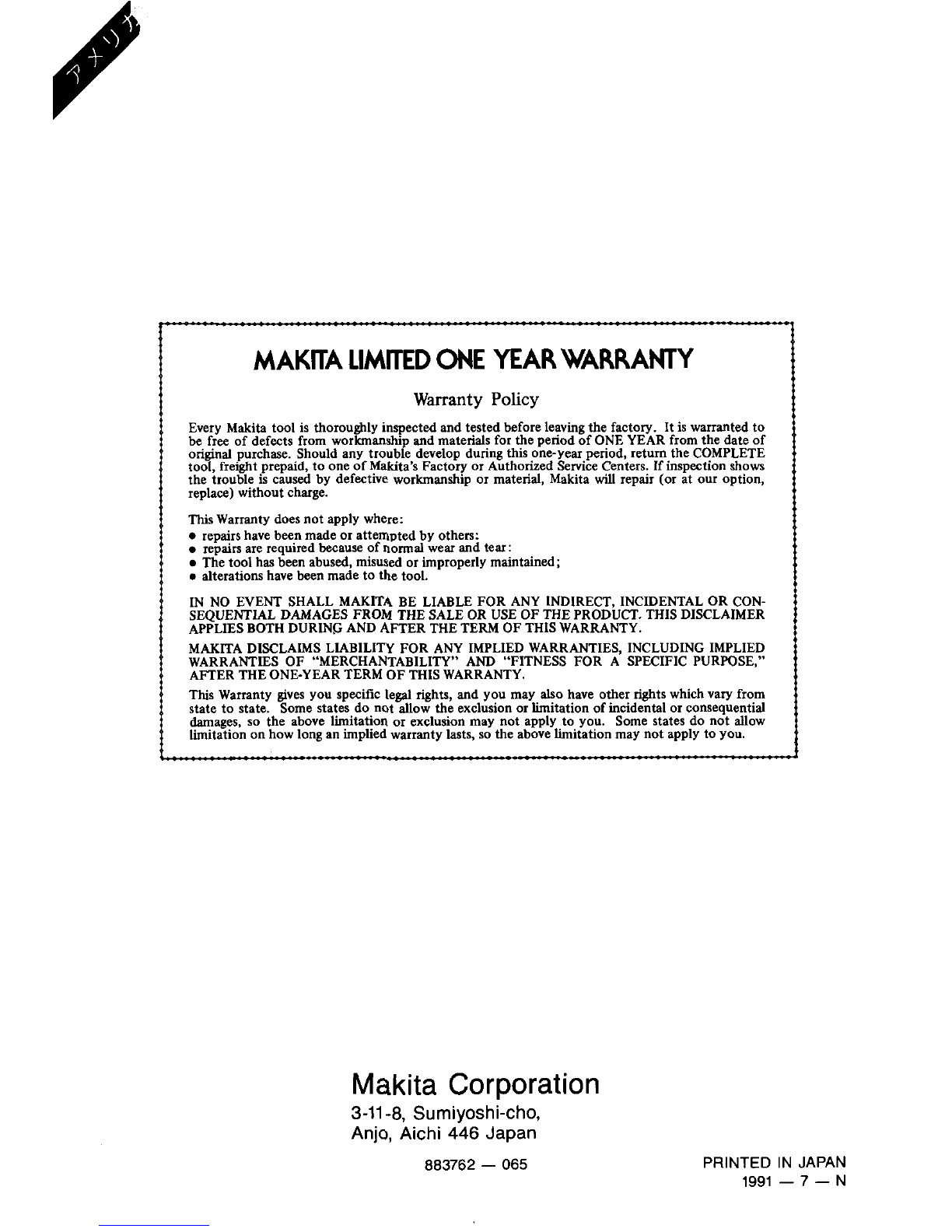

MAKITA LIMITED ONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thorou ly inspected and tested before leavingthe factory. It is warranted to
be free of defects from worfkishipand materials for the penod
of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, retum the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized ServiceCenters. If inspection
shows
the trouble is caused by defective workmanship or material, Makita will repair (or at our option,
replace) without charge.
This Warranty does not apply where:
repairs have been made orattempted by others:
repairs are required because of normal wear and tear:
The tool has been abused, misused or improperly maintained;
e alterationshave been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE OF THE PRODUCT. THIS DISCLAIMER
APPLIESBOTH DURING AND AFTER THE TERM OF THIS WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OFTHISWARRANTY.
r
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation
of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty
lasts, so the above limitationmay not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883762 - 065
PRINTED IN JAPAN
I991 - 7 - N
