Merlin E148M User manual

1. Programming - Merlin Security+ 2.0 door opener systems
The remote is preset for use with Merlin Security+ 2.0 systems, so for EVO door opener
models with this code, simply program in the usual manner. Refer to the WIRELESS
PROGRAMMING section in your Opener Operating Manual.
NOTE: If you are unsure what code has been set previously,
use the Security+ programming sequence on page 2.
1. Press & hold the button on the remote you wish to use.
2. Press & release the LEARN button on the opener.
3. Release the remote button when the opener light flashes.
The code has been learnt and the next press of the remote button should activate the door.

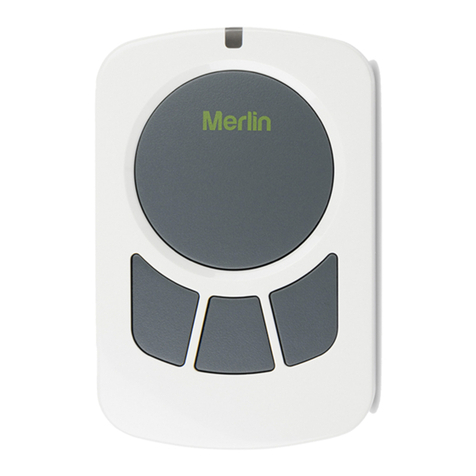

E148M - Four Button Wireless
Wall Mount Remote Control
Press and hold the
button on the remote
control you wish to use.
The LED indicator on
the transmitter flashes
continuously.
Press and
immediately release
the Learn button.
“click”
“click”
2 3
1
Initially: Locate the LEARN button on your particular opener and identify the button on
the remote you wish to use. Do not select a button already in use.
The Merlin Four Button Wireless Wall Mount Remote Control can be used with
both Merlin Security+ and Security+ 2.0 codes (dual function).
4 buttons are available and any button can be programmed with either code.
S P
1 2 3
123 2
LEARN
BUTTON
ROLLER DOOR OPENER
LEARN
BUTTON
LED
INDICATOR
SECTIONAL DOOR
OPENER
LEARN
BUTTON
LED
INDICATOR
DN UP PS
123
LEARN
BUTTON
LED
INDICATOR
OR
To prevent possible SERIOUS INJURY or DEATH:
•Do not ingest battery, Chemical Burn Hazard.
•This product contains a coin cell battery. If the coin cell battery
if swallowed, it can cause severe internal burns in just 2 hours
and lead to death.
•Dispose of used button batteries immediately and safely.
Flat batteries can still be dangerous
•Keep new and used batteries away from children.
•If the battery compartment does not close securely, stop
using the product and keep away from children.
•If you think batteries might have been swallowed or placed
inside any part of the body, seek immediate medical attention.
The opener light flashes
or 2 clicks are heard
when it has learnt the code

2. Programming - Merlin Security+ door opener systems
3
2
4
1
4-BUTTON REMOTES
Press and hold the button down until the
garage door starts to move. The remote
will operate from up to 3 car lengths away
on typical installations. Installations and
conditions vary, contact an installing dealer
for more information.
HOW TO USE THE REMOTE
Additional buttons on the remote can
be programmed to operate up to 3
devices such as additional garage door
openers, light controls, gate operators
or access control systems.
To do this you will need to enter the unique REMOTE PROGRAMMING sequence:
1. Enter the programming MODE on the remote by pressing and holding the left and right buttons simultaneously for around 5 seconds (fig 1).
Release when the remote LED stays ON continuously.
2. Press & release the LEARN button on your garage door opener briefly (fig 2). Within 30 seconds, the remote can now be programmed.
3. Select the button on the remote you wish to program and press once (fig 3). If the opener light flashes, the code has been learnt and step 4
can be performed. If not, press the selected button again until the opener light flashes, indicating the code has been learnt. At this point, do not
press this button any more.
4. Now press any one of the OTHER 3 buttons of the remote (fig 4). This LOCKS IN the code to the button selected in step 3 and the remote LED
turns OFF.
5. The next press of the button should activate the door, if not repeat the process.
CR2032
Use a screwdriver or
similar to pry open
the case as
shown
Remove the old battery.
Dispose of old batteries
properly.
Insert replacement
batteries positive side
up. Replace the
batteries with only
CR2032 coin cell
batteries.
Replace cover.
ONE YEAR LIMITED WARRANTY
114A5473A
THE REMOTE CONTROL BATTERY
The lithium battery should produce power for up to 3 years.
If the battery is low, the remote control's LED will not flash
when the button is pressed. To replace battery :
Chamberlain AustraliaPty Limited / Chamberlain NewZealand (Chamberlain), the manufacturer of Merlin®automac
garage door openers, warrants to the original consumer purchaser of this product that it is free from defect in materials
and/or workmanship for a period of 1 year from the date of purchase.
Chamberlain is commied to manufacturing and supplying high quality goods. As part of this commitment, we seek to
provide reliableservice and support forour goods and are pleased to provide you, the original purchaser, with this
Chamberlain Limited Warranty.
The benets given to you under this Chamberlain Limited Warranty are in addion to any rights and remedies that you may
have under Australian or New Zealand consumer protecon laws. Our goods come with guarantees that cannot be
excluded under the Australian Consumer Law, or New Zealand Consumer Guarantees Act 1993. You are entled to a
replacement or refund for a major failure and for compensaon for any other reasonably foreseeable loss or damage. You
are also entled to have for compensaon for any other reasonably foreseeable loss or damage. You are also entled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failuredoes not amount to a major
failure.
NOTE: In the event you need to return a button to Security+ 2.0 code, repeat the programming sequence outlined above.
professional
13
2
60s
120s
180s
O
–
MT600,MT800
MT1000
MR650,MR850
MRC950
MT3850
MT5580P
MR60,MR600/800,HE60R,
CR550,MLR550/750/CR500
MT60/MT60P,
ML700/750
MJ3800,
MJ3800R
open
force
operate
learn delete
open
MR1000
MT230
