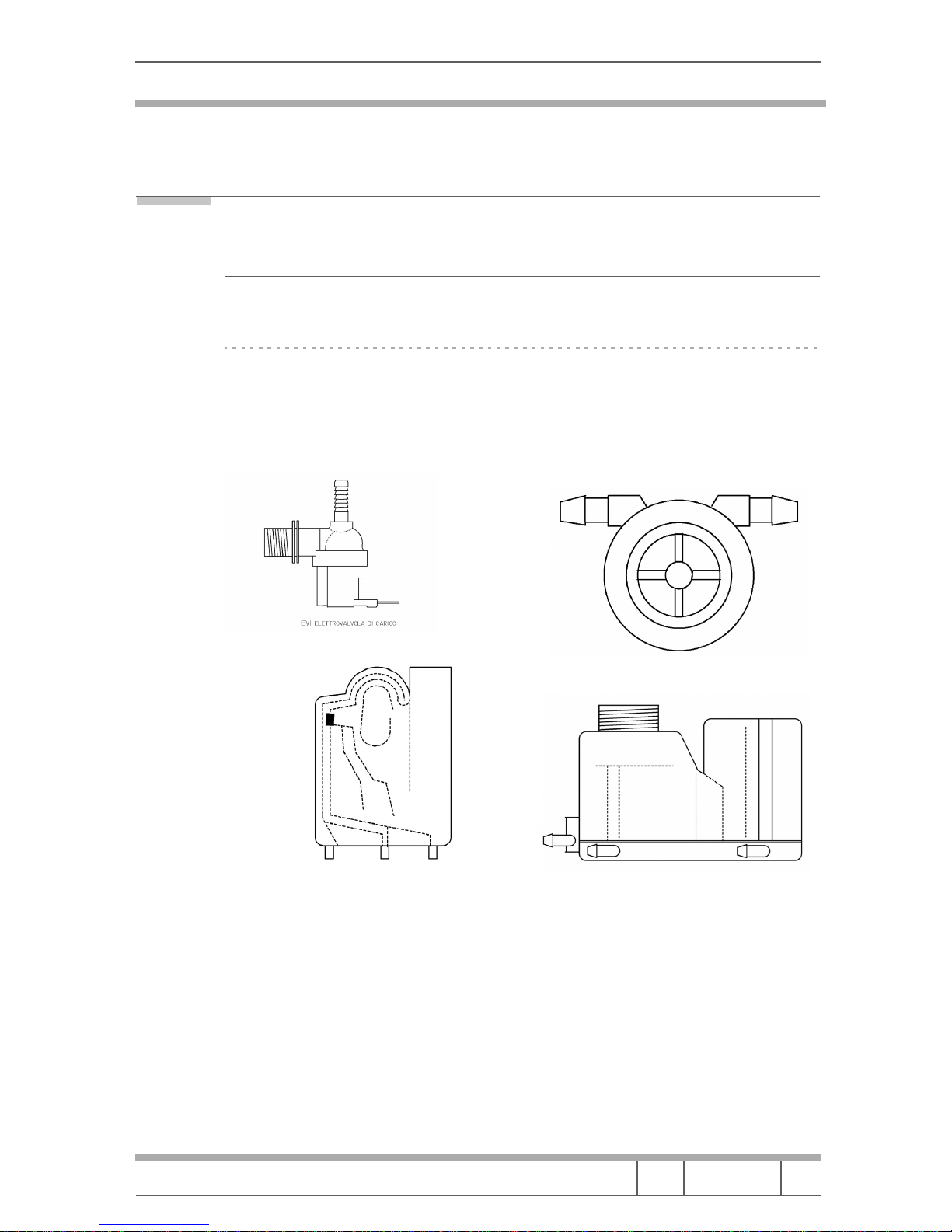

List of components
Fill solenoid 20
Water meter turbine 20
Air-break chamber 20
Water softener 20
Wash pump + 1/2 load solenoid 21
Wash pump + duo wash motor 22
Concealed heating element 22
Symmetrical microfilter 24
LED Card 32
LCD Card 32
Turbidity sensor 37
New dryer chamber 40
High pressure sensor 43
TR (open heating element) 44
Dispenser 45

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 6-54 Language Issue/Edition Page
1 EXTERNAL FEATURES
1.1 Programme selector
N.B. A DIWA 126 timer has been fitted in all machines with the 4 LEDs.
Programme
type + reset Indicator lights
cycle status ON-OFF light
Salt
indicator light
Programme
selector ON-OFF button
Programme selector,
delayed start button
Cycle status and delayed start
indicator lights

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 7-54 Language Issue/Edition Page
1.2 LED
Salt
indicator light
Half-load button Half-load indicator light
Programme
indicator light Programme
selector Start/Reset
button
Cycle status and delayed start
indicator lights Programme selector,
delayed start button On/Off light
On/Off
button

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 8-54 Language Issue/Edition Page

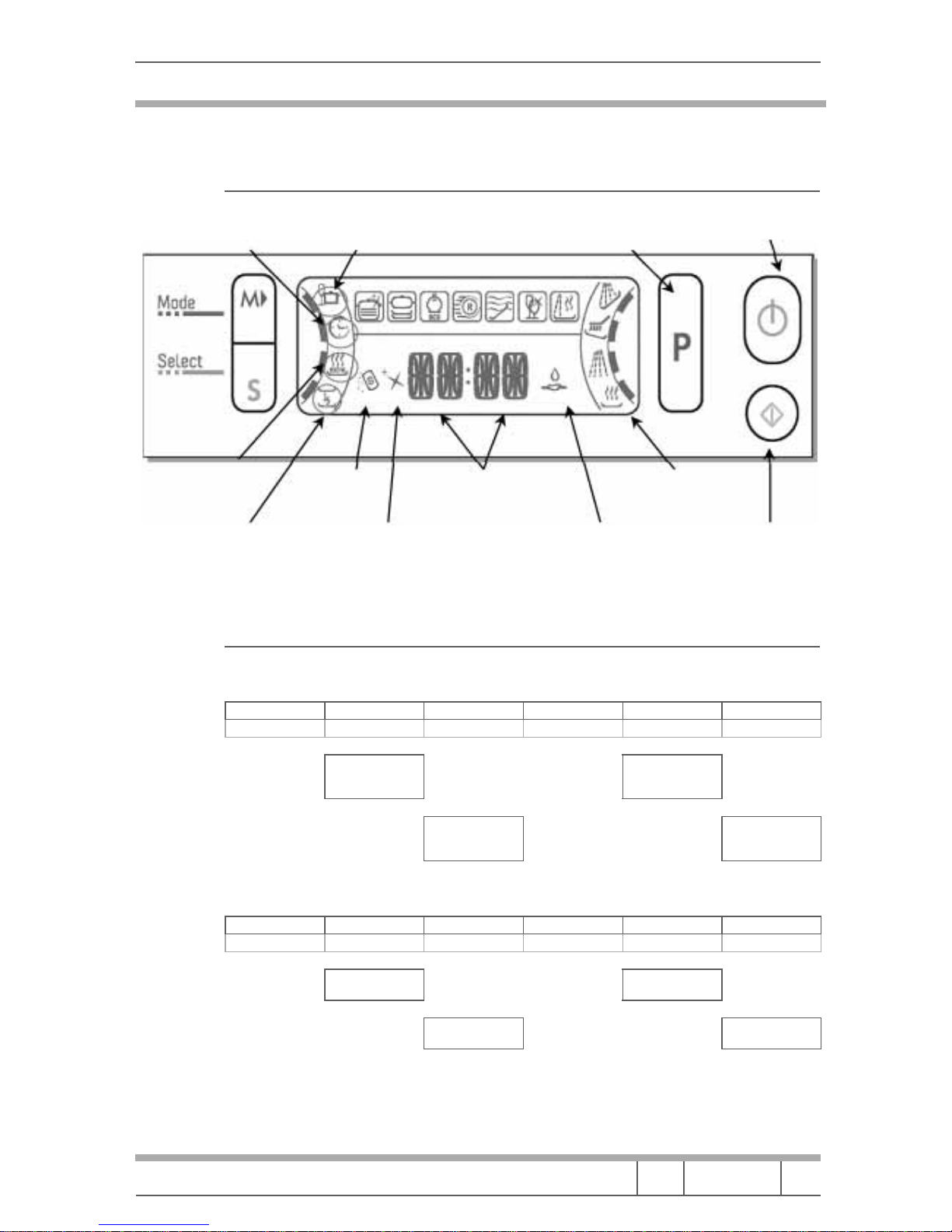

1.3 LCD
1.4 LVS free-standing range installation key
ARISTON
LL65TX
Dishwashers External features Width Performances Safety features Colour
L = 4 LEDs
D = LCD
X = Graphics display
Nothing = overflow
T = AcquaStop
6 = 60 cm
4 = 45 cm
Nothing = White
X = Stainless steel
N = Black
INDESIT
D63TYES
Dishwashers External features Width Performances Safety features Colour
Nothing = overflow
T = AcquaStop
6 = 60 cm
4 = 45 cm Nothing = White YES = Silver
Delayed start
indicator light Programme indicator light
AUTO DUO WASH Programme selector Stand-by
button
Start/Reset button
Cycle status
indicator light
Leakage indicator
light
Multifunction number
readout
Rinse aid indicator
light
Top/bottom rack
indicator light
Extra dry indicator
light Salt indicator
light

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 9-54 Language Issue/Edition Page
2 DESCRIPTION OF STANDARD CYCLE
The standard cycle comprises:
• one or more pre-rinses
• one wash cycle
• one cold or lukewarm rinse
• one hot rinse
• one drying cycle (see attached line drawing)
The pre-rinses remove larger food particles and are run with 5 grammes of
detergent. In cycles such as the intense wash, the pre-rinse will be heated.
The wash cycle is the stage in which food particles are removed through the
action of the enzymatic detergent and temperatures reached.
The rinse cycles eliminate any remaining dirt from plates as well as
preparing them for drying by dispensing the rinse aid and taking the
temperature over 60°C.

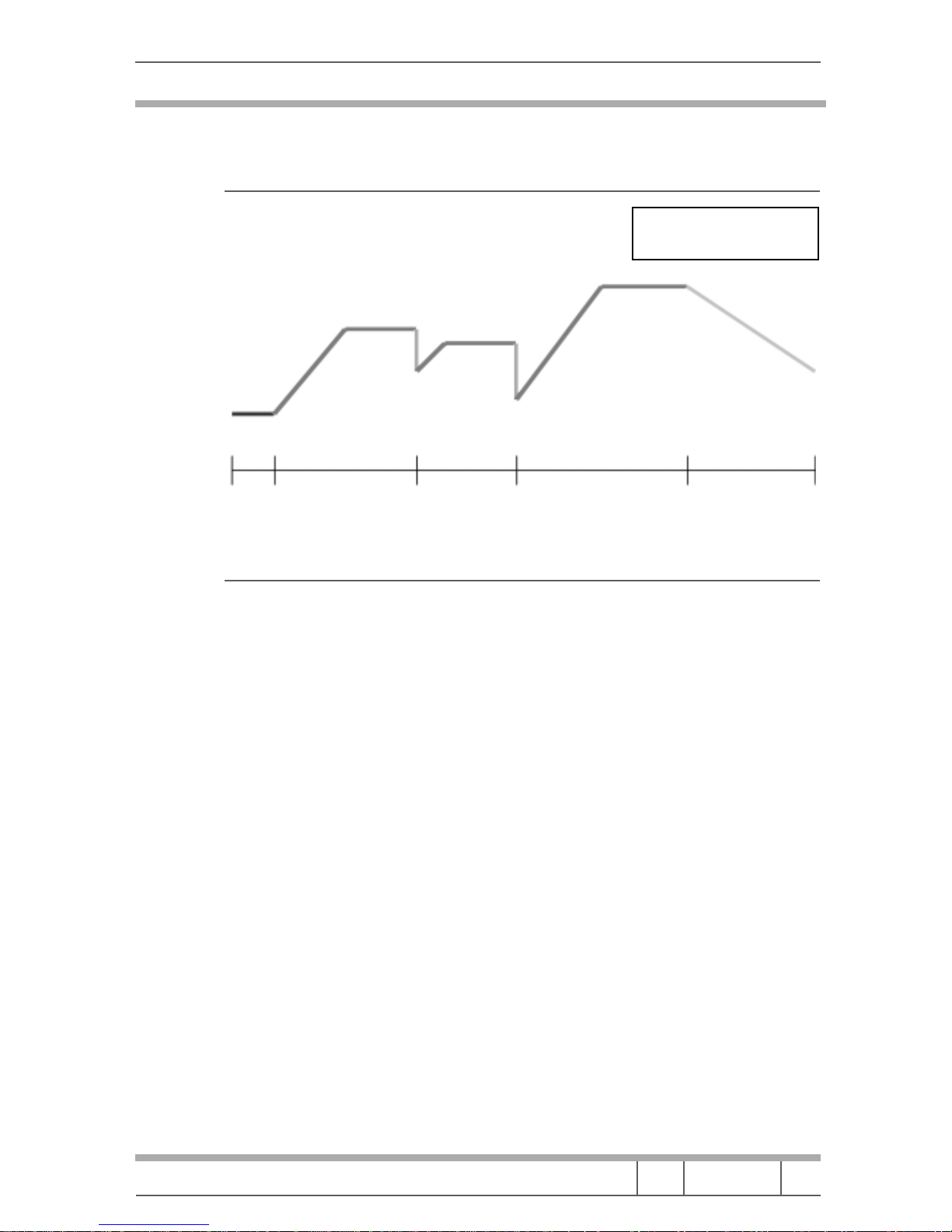

1. Chart 1 shows the temperatures reached throughout the cycle and when
the heating element switches on and off to reach the required temperature.
You will see the cold pre-rinse, wash with gradually increasing temperature
and hot-rinse stages.
time (min)
Variations in temperature during the cycle
heating element (KW)
temperature (C°)
Chart 1

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 10-54 Language Issue/Edition Page

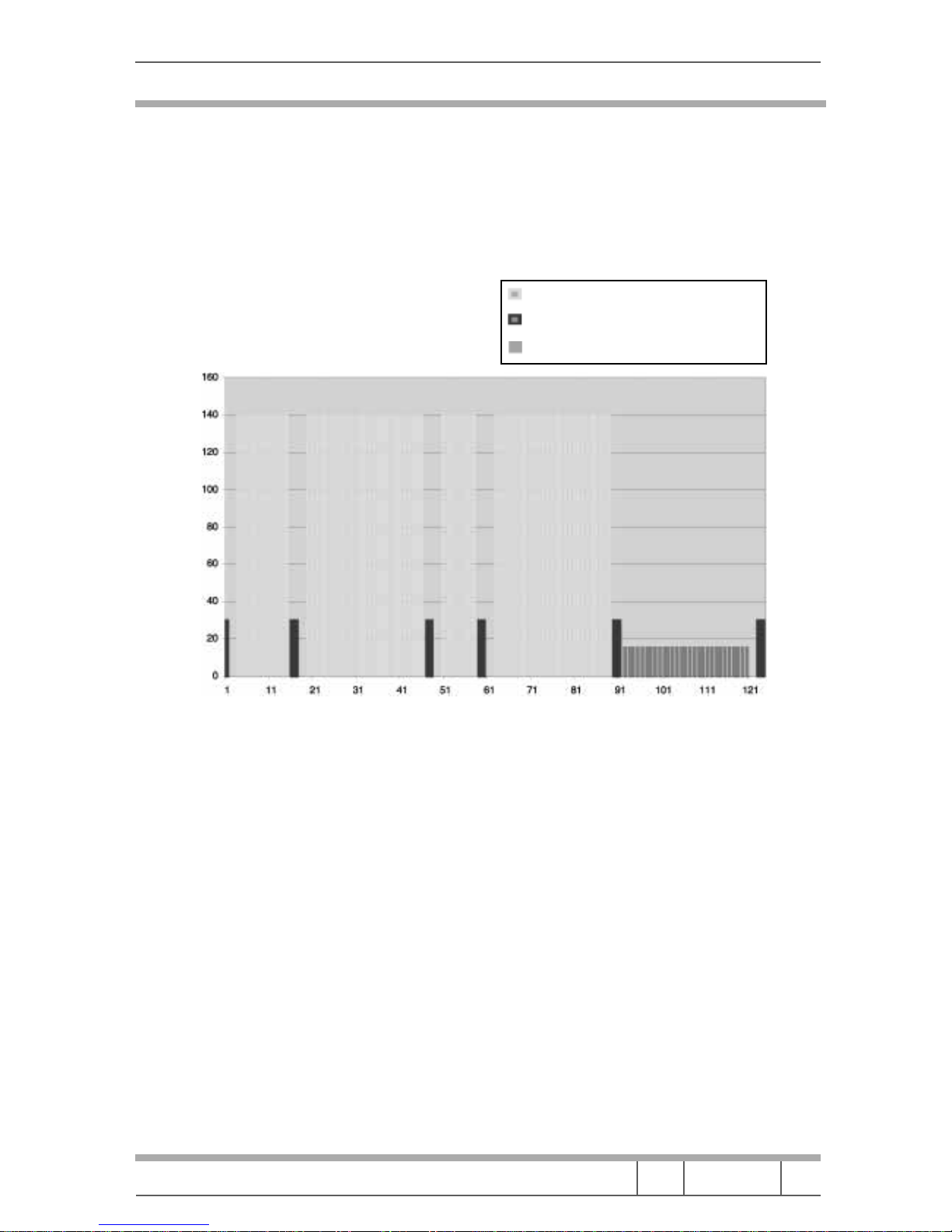

2. Chart 2 shows the activation of all motors:
a) motor pump
b) drain pump
c) fan (installed in models with LCD readout and graphics display)
pumps
time (min)
motor pump (required wattage)
drain pump (watts)
fan (watts)
activation (watts)
Chart 2

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 11-54 Language Issue/Edition Page
3. Chart 3 shows the activation of the dispenser, fill, regeneration and water
meter solenoid valves.
fill water fill valve
fill turbine
regeneration valve
dispenser
time (min)
activation
Chart 3

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 12-54 Language Issue/Edition Page

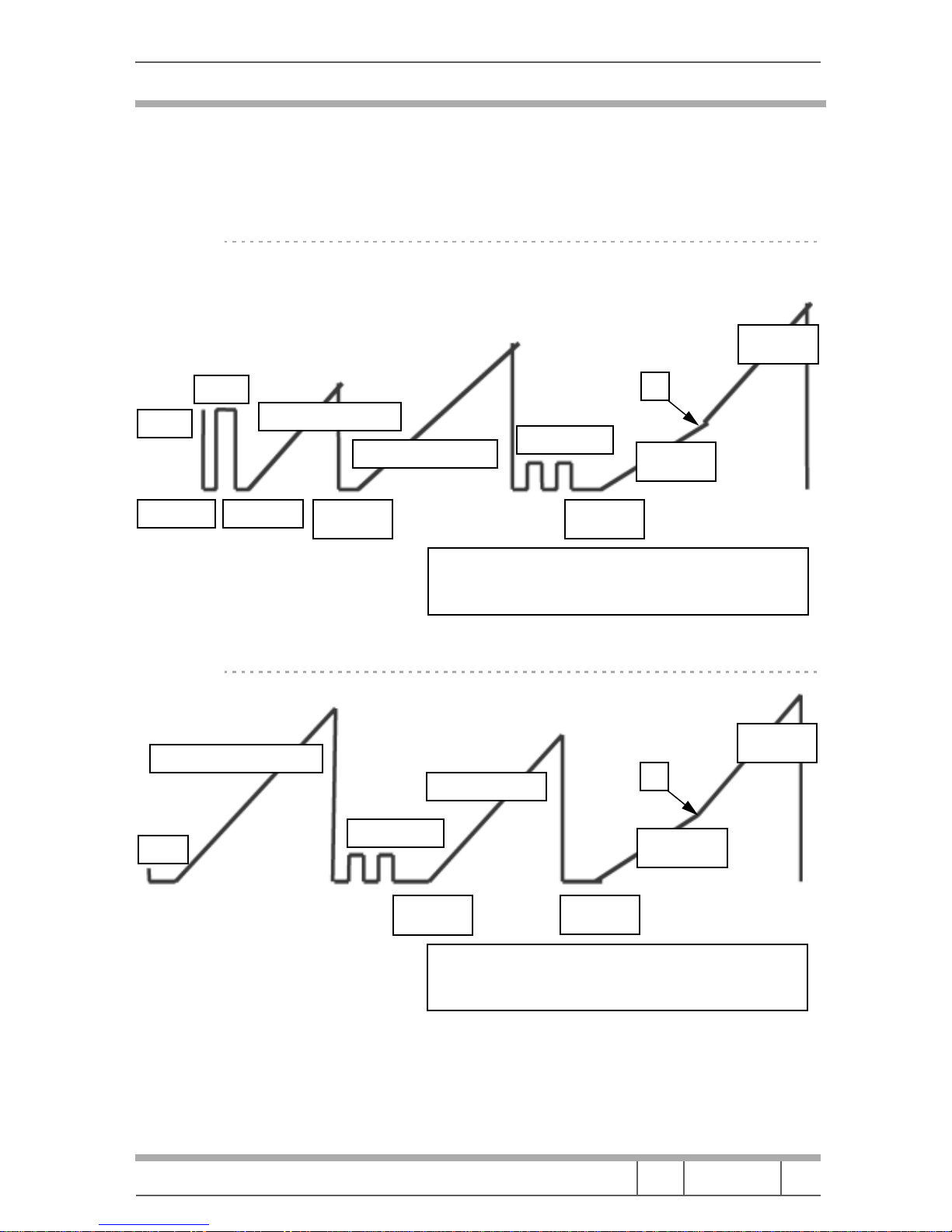

3 DESCRIPTION OF EVO3 CYCLES
3.1 Resetting a wash cycle
Switch the machine on, press the “P” key for 5 seconds and 4 beeps will sound.
3.2 Standard cycle
3.3 Glassware cycle
10 min. 26 min. 25 min. 10 min. (including wash)
1st pre-rinse 50°C wash. 70°C rinse Drying
Total litres filled = 16 l
Total time = 70 min.
Energy consumption = 1.25 KWh
Total litres filled = 16 l
Total time = 96 min.
Energy consumption = 1.16 KWh
26 min. 12 min. 24 min. 31 min.
52°C wash. 1st rinse 50°C 2nd rinse 65°CDrying

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 13-54 Language Issue/Edition Page
3.4 Duo Wash cycle
3.5 Auto Wash cycle
The auto cycle is the programme that enables the dishwasher to select the
best cycle for the soil level of the dishes.
The turbidity sensor is critical to the performance of this cycle. (see relative
section)
The sensor can distinguish soil values from 245 (completely clean water) to 0
(completely dirty water). The software powering the card can discriminate 10
different soil levels that correspond to the 10 dishwasher programmes.
As illustrated in the attached table (stages, times and temperatures table), the
dishwasher always carries out the 1st pre-rinse. This is necessary to clear the
tub of any residues from previous cycles, especially rinse aid.
The sensor measures the soil level at the start of the second stage. If the soil
reading is medium-high, the electronic control orders a second pre-rinse; if
the soil reading is low, the control skips the second pre-rinse and starts the
main wash cycle.
Depending on where the soil value falls within the sensor's range, the
software continues to alter the maximum wash temperature and the times
these temperatures are maintained during the pre-rinse, wash and rinse
cycles.
In the Auto Wash programme the dishes can be loaded at random in both
racks.
Total litres filled = 18 l
Total time = 108 min.
Energy consumption = 1.18 KWh
10 min. 38 min. 14 min. 21 min.
Pre-
rinse 1st rinse 2nd rinse 65°CDrying
25 min.
51°C wash.

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 14-54 Language Issue/Edition Page
The dishwasher will select the fastest cycle to effectively remove the grime
present in the machine.

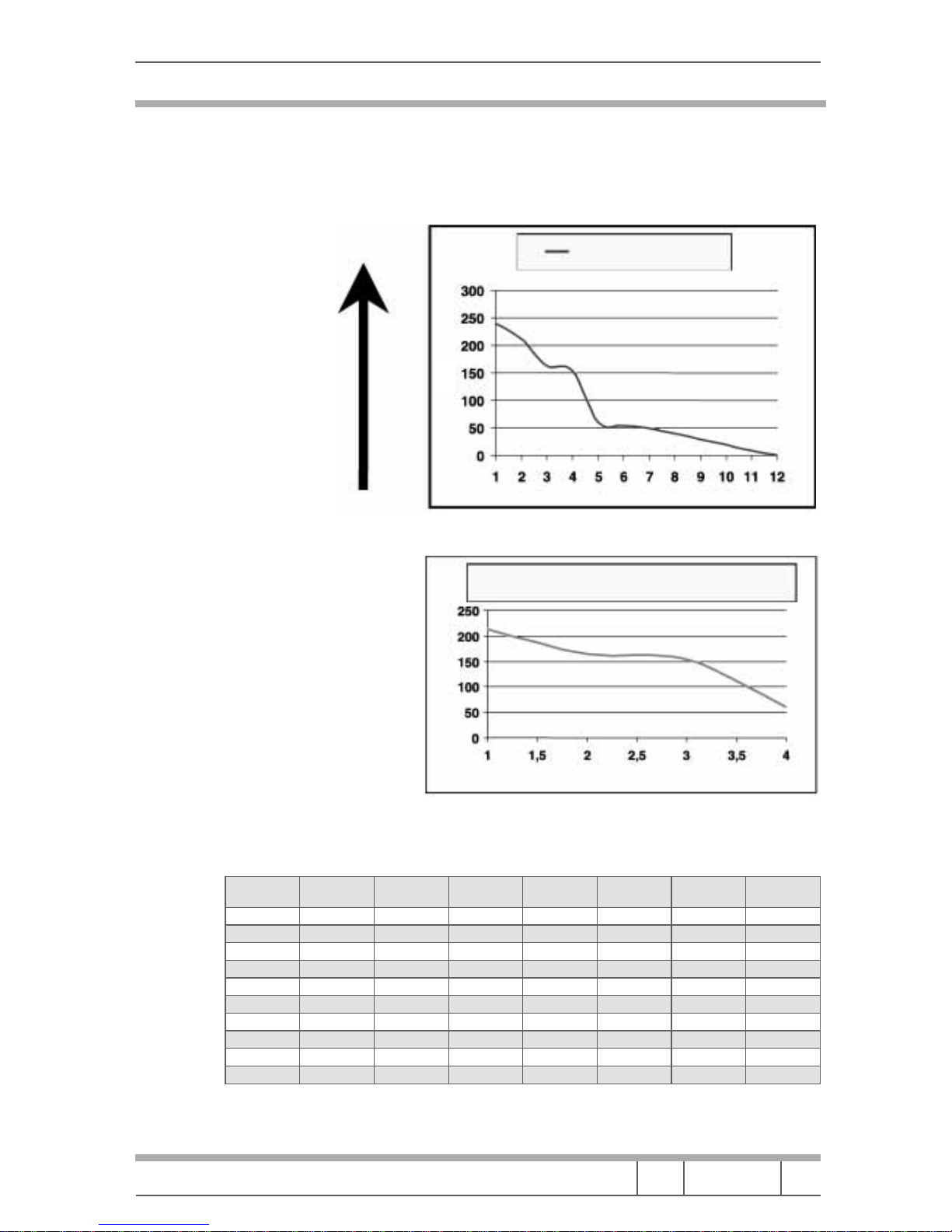

3.5.1 Table of stages, times and temperatures
TURBIDITY
VALUE PLACE SETTINGS 1ST PRE-RINSE 2ND PRE-RINSE MAX. WASH TEMP. WASH MAX.TEMP. HOT RINSE
245 110 mins NO 40°C8 mins 63°C20 mins
210 mins NO 45°C11 mins 63°C20 mins
310 mins NO 45°C20 mins 63°C20 mins
410 mins NO 48°C22 mins 63°C20 mins
510 mins NO 48°C22 mins 63°C25 mins
610 mins 648°C22 mins 63°C25 mins
710 mins 10 mins 48°C27 mins 63°C25 mins
810 mins 16 mins 48°C27 mins 63°C25 mins
910 mins 16 mins 48°C27 mins 63°C30 mins
0from 10 to 12 10 mins 16 mins 48°C32 mins 63°C30 mins
New sensor
S = 245
Clean dishes
S = 0
Heavilysoiled
dishes place settings
S
New sensor: lightly soiled
place settings
S

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 15-54 Language Issue/Edition Page
3.6 Super wash cycle
3.7 Eco cycle
Total litres filled = 23 l
Total time = 120 min.
Energy consumption = 1.4 KWh
36 min. 10 min. 5 min. 28 min.
65°C wash. 2°
Rinse 3°Rinse 66°CDrying
30 min.
1°Rinse
14 min.
40°C pre-rinse
Total litres filled = 16 l
Total time = 120 min.
Energy consumption = 1.05 KWh
18 min. 36 min. 24 min. 32 min.
2°
Pre-rinse 63°C rinse Drying
48°C wash.
1st
Pre-rinse
10 min.

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 16-54 Language Issue/Edition Page
3.8 Rapid cycle
3.9 Special guest cycle
3.10 Soak cycle
Total litres filled = 10 l
Total time = 25 min. no Extra
Dry (optional)
Energy consumption = 0.4 KWh
With extra dry the dishwasher
hot rinses at 63°C.
Time extended to 30 secs.
New consumption 0.8 KWh.
10 min.
Rinse Drying
with extradry
40°C wash.
15 min.
Total litres filled = 6 l
Total time = 35 min.
Energy consumption = 0.7 KWh
10 min.
Drying
67°C rinse
25 min.
Total litres filled = 6 l
Total time = 35 min.
Energy consumption = 0.7 KWh
10 min.
Cold rinse

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 17-54 Language Issue/Edition Page
3.11 Special Filter Cleaning cycle
The Filter Cleaning cycle can be started in two ways:
•if the pressure switch contacts do not close after water has filled i.e.
during the 2-minute pressure switch control, the filters will be cleaned.
•during each stage of the wash cycle, if the pressure sensor contacts stay
reset for at least 5 seconds.
Cycle start:
Drain + 1st fill
2.5l filled in-cycle
via the turbine
Check
pressure switch
2 litres filled via the TURBINE
between rinses
Motor pump ON
Check pressure switch
for 2 seconds
Fill until pressure switch
contacts close,
max 6 litres for 2 mins
Pressure switch
FILTER CLEANING PROGRAMME
Water level sensor / filter
cleaning alarm AL 058
(see table of alarms)
Confirm programme
During the wash cycle the
pressure switch
OPENS
The DW fills 4.2l during the 1st prerinse
(approx. 0.5lextra, taking into account water
deposited on dry dishes);
3.8 litres remain to be filled.

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 18-54 Language Issue/Edition Page
There are three different types of filter cleaning cycle depending on whether
the water pressure switch resets (or water pressure sensor < 0.15 bars) during
the pre-rinse, wash or rinse cycles.
Case 1: filter cleaning during pre-rinse
Case 2: filter cleaning during wash
6.5l filled 6.5l filled
Drain
Drain
Drainandfill
6.5 l Drainandfill 5.5 l
Jog-type
rinse 10’
1st wash impulses 16’
2nd wash impulses 24’Wash sump
Rinse to
70°C
1
If the sensor contacts open for at least 5 secs, after point 1 the
rinse is repeated. If the sensor contacts open during the 2nd rinse
(for at least 5 secs), after point 1 the dishwasher shows the filter
cleaning alarm.
If the sensor contacts open for at least 5 secs, after point 1 the
rinse is repeated. If the sensor contacts open during the 2nd rinse
(for at least 5 secs), after point 1 the dishwasher shows the filter
cleaning alarm.
Drainandfill
5.5 l
Drainandfill
6.5 l
Wash sump
Fill 2l
1st wash impulses 24 mins
2nd wash impulses
Jog-type rinse
10 mins
1
Rinse up to
70°C

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 19-54 Language Issue/Edition Page
Case 3: filter cleaning during rinse
1
Rinse to
70°C
Jog-type rinse
10 mins
Drainandfill
6.5l If the sensor contacts open for at least 5
secs, after point 1 the rinse is repeated.
If the sensor contacts open during the
2nd rinse (for at least 5 secs), after
point 1 the dishwasher shows the filter
cleaning alarm.

Merloni Elettrodomestici
DISHWASHER EVO3
Service manual EN 03-05-20/0 20-54 Language Issue/Edition Page
4 COMPLETE WATER LINE DIAGRAM
4.1 Composition
The dishwasher's water line can be split into three units depending on the
function performed, i.e.:
fill line including (components involved in water feed) the following devices:
a) fill solenoid
b) water meter turbine
c) air-break chamber
d) water softener
Fill solenoid Water meter turbine Air-break chamber Water softener
a) b)
c) d)
