Merloni FV 37 GB Instructions for and use User manual

Electric ventilated oven
Instructions for installation and use
FV 37 GB
FV 34D GB
A 2211

2
Congratulations on choosing an Ariston appliance, which you will find is dependable and easy to use.We recommend
that you read this manual for best performance and to extend the life of your appliance.Thank you.

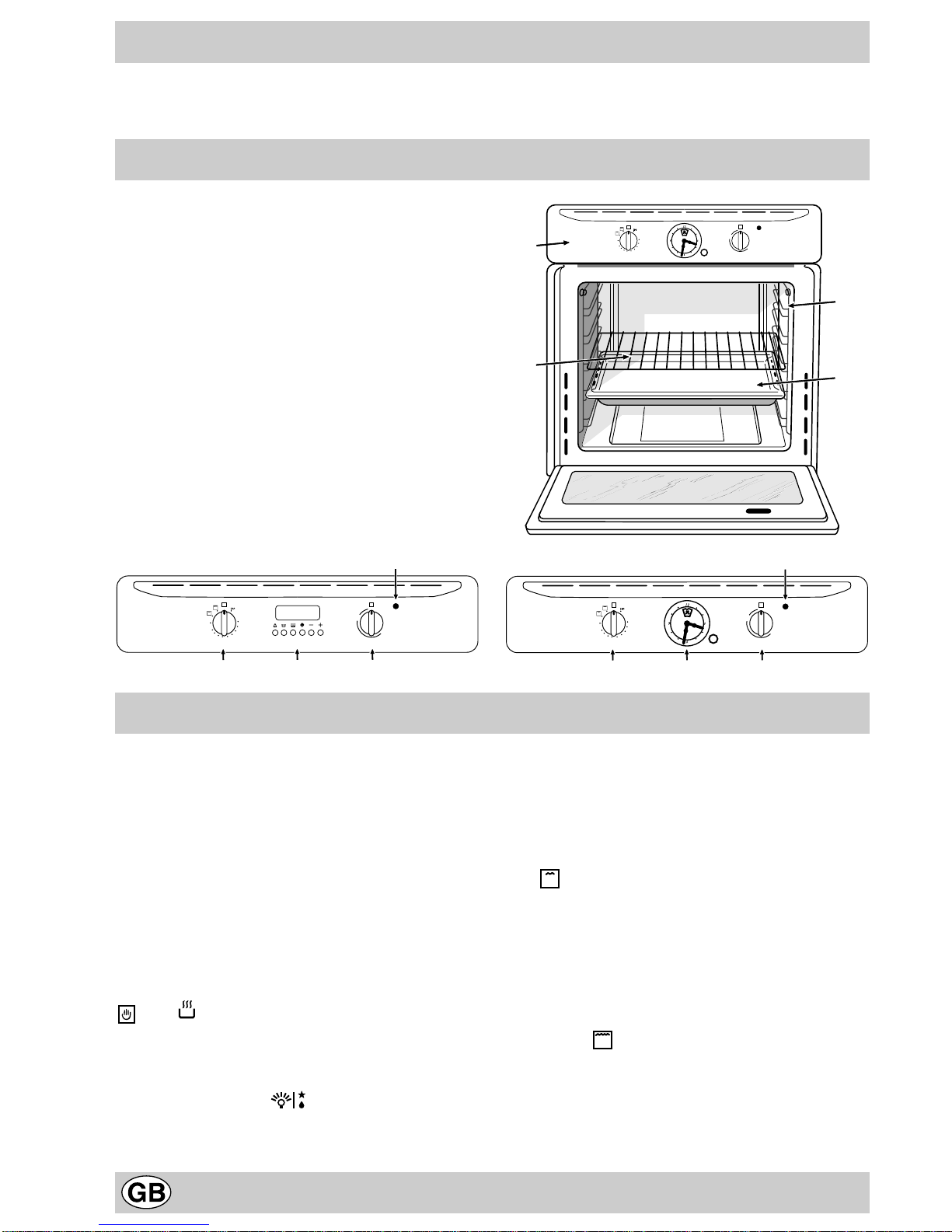

A. Control Panel
B. Knob for selecting the cooking features
C. Variable Grill Knob
D. Electronic Programer (only on a few models) - This
feature allows you to set the length and end cooking
time for any of the cooking features.It also has a timer
feature.
D1.Country Style Clock and Timer (only on a few
models).
E. Oven Light (only on certain models) - When the light
is on, it indicates that the oven is heating.It will turn off
when the temperature setting has been reached.
F. Drip pan
G. Oven Racks
H. Guides for sliding the racks or drip pan in and out
Close-up View
How To Use Your Appliance
The various cooking fetures offered by your oven can be
selectedusingthe "B"settingknoband variablegrill knob
(C) located on the control panel.
Attention: Thefirsttime youuse theovenwerecommend
thatyousetthethermostatonthehightestsettingandleave
the oven on for about a half of an hour with nothing in it.
Then, open the oven door and let the room air.The odour
that is often detected during this initial use is due to the
evaporationofsubstances used toprotectthe ovenduring
storage and until it is installed.
N.B.:Should theappliancebe equippedwithan electronic
programmer, to use the electric oven, just press button
(the symbol will appear on the display) before
selecting the desired cooking function.
Using the oven
When the oven control knob (B) is turned in a clockwise
direction to the symbol the fan and oven light will
comeonto assist inthedefrosting offrozenfood.Rotating
further to the complete range of temperatures shown on
the dial you can choose which is most suitable for the
food you are going to cook.The temperature is reached
automaticallyandcontrolled bytheoven thermostat (from
50°C to 240°C).
Note:Whilstusingtag ovenfor conventional cookingknob
(C) must be set with“MAX”inlinewiththe referencemark
on the control panel.
Grill
The top centre heating element will come on and the
rotisserie motor (if present) will be activated. On this
setting, food is cooked by the thermal radiation given off
inthedownwarddirectionbytheelectricheatingelement.
The very high temperature and direct heat of the grill
make it possible to brown meats on the surface while
locking in the juices to keep them tender.
Double Grill
Bothofthe topheatingelements turnonand therotisserie
motor (if present) is activated.
This over-sized grill has a completely new design, which
is the reason why cooking efficiency has increased by
50%. In addition, the double grill eliminates heat gaps in
the corners of the oven.
A
F
G
H
MAX
220
180 140
100
75
50
MAX
MIN
1/2
BDC
E
MAX
220
180 140
100
75
50
MAX
MIN
1/2
BD1C
E
MAX
220
180 140
100
75
50
MAX
MIN
1/2

3
Oven Light
The light comes on when the "B" knob is turned to the
setting.The light illuminates the oven and remains
on when any of the heating elements is turned on.
Forced AirVentilation
In order to reduce the external temperature of the oven,
somemodelshavebeenequippedwitha coolingfanwhich
comesonwhenthe"B" knobis turnedto acookingsetting.
Thefanremainson during the cookingprocessand aflow
of air can be heard exiting between the oven door and the
controlpanel.
Afteryouhavefinishedcooking,it a goodideato keepthe
fan on for a few minutes by setting the thermostat knob to
"•" in order to allow the oven to cool down rapidly.
3rd Oven Glass
This appliance conforms to all relevant European
Standards regarding surface temperatures, however, in
ordertofurther decreasethetemperatureofthe oven door
andreduceenergy consumption, asupplementary kithas
been made available as an optional extra. The fitting of
thiskitshouldbe considered, ifenergysavingisdesirable
or if young children may be present. To purchase the
supplementary kit code 053413 contact your nearest
Merloni Service Centre.
Warning
Only use the bottom shelf of the oven when using the
rotisserie to cook (where present). For all other types of
cooking, never use the bottom shelf and never place
anything on the bottom of the oven when it is in operation
becausethiscould damagethe enamel.Alwaysplaceyour
cookware (dishes, aluminium foil, etc. etc.) on the grate
provided with the appliance inserted especially along the
ovenguides.
Country Style Clock andTimer
Timer Feature
The timer operates by counting down a given period of
time.This feature does not, however, turn the oven on or
off.It merely emits an acoustical alarm when the time has
run out.
How to Set theTimer
Turn the knob until the indicator is set on the length of
timedesired(usingtheinside numbers).Thetimeisclearly
visible through the transparent window on the indicator
itself.
The timer will begin to count down immediately.
The sound will stop automatically after approximately 2
minutes and the timer will be set to the symbol (clock
function).
To turn off the buzzer, or to use only the clock, set the
indicator on the symbol.
How to Set the CurrentTime
The oven must be connected to the power supply.
Pull and turn the knob in the clockwise direction to set
the time.
N.B.: The clock is electric. Therefore, in the event of a
power outage, the clock will stop for the entire time the
ovenremains without power.Whenthepowercomes back
on, the clock must be reset to the current time

4
Electronic Cooking Programmer
The programmer makes it possible to preset the oven and
the grill in terms of:
• delay start with a preset length of time for cooking;
• immediate start with a preset length of time for cooking;
• timer.
Buttonfunctions:
:Timer with hour and minutes;
: Length of cooking time;
: End cooking time;
:Manual change;
:Change time (backwards);
:Change time (forwards).
How to Reset the Digital Clock
Aftertheappliancehasbeen connectedtothepowersource
or following a power outage, the clock display will begin to
blink and read:0:00
• Press the and buttons at the same time.Then
use (within 4 seconds) the and buttons to set
theexact time.
Use the button to move the time forwards.
Use the button to move the time backwards.
Manual Operation Mode for the Oven
After the time has been set, the programmer is automati-
cally set to manual mode.
Note: Press the button to return the oven to manual
mode after every "Automatic" cooking session.
Delayed StartTime with Preset Cooking Length
The length and the end cooking times must be set. Let us
suppose that the display shows 10:00.
1. Turn the oven control knob to the cooking setting and
temperature desired (example: convection oven at
200°C).
2. Press the and the use (within 4 seconds) the
and buttonstosetthelengthofthecookingtime. Let
us suppose that 30 minutes was set for the length of the
cooking time.In this case, the display will show:
Release the button, and within 4 seconds, the current time
willreappearwith the symboland"auto."
3. Press the button, and then use the and
buttons to set the end cooking time.Let us suppose that
it is 13:00
4. Release the button and the display will show the current
time within 4 seconds:
When "auto" is lighted, it indicates that the length and end
cooking time have been preset to operate in automatic
mode.At this point, the oven will turn on automatically at
12:30 in order to finish the cooking session within 30
minutes.When the oven is on, the symbol (cooking
pot) will appear on the display for the entire length of the
cooking process.The button can be pressed at any
time to display the setting for the length of the cooking
time, while the button can be pressed to display the
endcookingtime.
Atthe endof thecooking time,an acousticsignal will
sound.Press any button it turn it off (except the
and buttons).
ImmediateStartTimewith PresetCooking Length
Whenonly thelengthofthecookingtimeisset(points 1and
2 of the paragraph entitled, "Delayed StartTime with Preset
Cooking Length"), the cooking session starts immediately.
Cancelling a Preset CookingTime
Press the button, and use the button to set the time
to:
Then press the manual cooking mode button .
Timer Feature
The timer can be used to count down from a given length of
time.This featuredoes not control whentheoven comeson
orturnsoff,but, rather,itonly emitsanacoustic signalwhen
the preset time has run out.
Press the button, and the display will read:
Then use the and buttons to set the desired time.
Release the button, and the timer will start at that second.
The display will show the current time.
At the end of the preset time, an acoustic signal will sound,
which can be turned off by pressing any button (except the
and buttons), and the symbol will turn off.
Changingand CancellingSettings
• Thesettings canbe changedat anytimeby pressingthe
corresponding button and using the or button.
• Whenthelengthsettingforthecookingtimeiscancelled,
the end cooking time setting is also cancelled, and vice
versa.
• When in automatic cooking mode, the appliance will not
accept end cooking times prior to the start cooking time
proposed by the appliance itself.

5
Practical Cooking Advice
When using the oven, only one rack or drip pan should be
used at a time. The rack or pan should be inserted into
the bottom or top guides depending on whether the food
needs more heat from the top or bottom.
Preheating
If the oven must be preheated (this is generally required
for leavened foods), we recommend using the
"conventional" oven feature which makes it possible to
reach the temperature desired in a very short time. After
the oven has been preheated, the red indicator light (E)
will turn off.At this point, you can select the most suitable
setting to cook the dish.
Cooking Fish and Meat
Meat must weigh at least 1 Kg in order to prevent it from
drying out.When cooking white meat, fowl and fish, use
low temperature settings (150°C-175°C). For red meat
that should be well done on the outside while tender and
juicy in the inside, it is a good idea to start with a high
temperature setting (200°C-220°C) for a short time, then
turn the oven down afterwards.In general, the larger the
roast, the lower the temperature setting. Place the meat
on the centre of the rack and place the drip pan beneath it
to catch the fat.
Makesure thattherack isinserted sothat itisin thecentre
of the oven. If you would like to increase the amount of
heat from below, use the low rack heights. For savory
roasts (especially duck and wild game), dress the meat
with lard or bacon on the top.
Cooking Pastries
Always preheat the oven when cooking pastries. Do not
openthedoor inorderto preventthepastryfromdropping.
The batter or dough should not be too liquidy so that the
cooking time is not excessive.In general:
Pastry is too dry
Increase the temperature by 10°C and reduce the
cooking time.
Pastry dropped
Use less liquid or lower the temperature by 10°C.
Pastry is too dark on top
Place it on a lower rack, lower the temperature, and
increase the cooking time.
Cooked well on the inside but sticky on the outside
Use less liquid, lower the temperature, and increase the
cooking time.
The pastry sticks to the pan
Grease the pan well and sprinkle it with a dusting of
flour.
Beforecleaningyouroven,or performingmaintenance,
disconnect it from the power supply.
To extend the life of your oven, it must be cleaned
frequently, keeping in mind that:
• Theself-cleaningpanels (ifpresent)and theenameled
parts should be washed with warm water - abrasive
powdersand corrosivesubstances should beavoided;
• The inside of the oven should be cleaned immediately
after use with warm water and soap; the soap should
be rinsed away and the interior dried thoroughly;
• Stainless steel can be stained if it remains in contact
with agressive detergents (containing phosphorus) or
water with a high lime content. We recommend that
you rinse these parts thoroughly and dry them well
after cleaning. It is also a good idea to dry any water
spills;
• Never line the bottom of the oven with aluminium foil
because the buildup of heat will not only impede the
cooking process, but could also damage the enamel.
How to KeepYour Oven in Shape

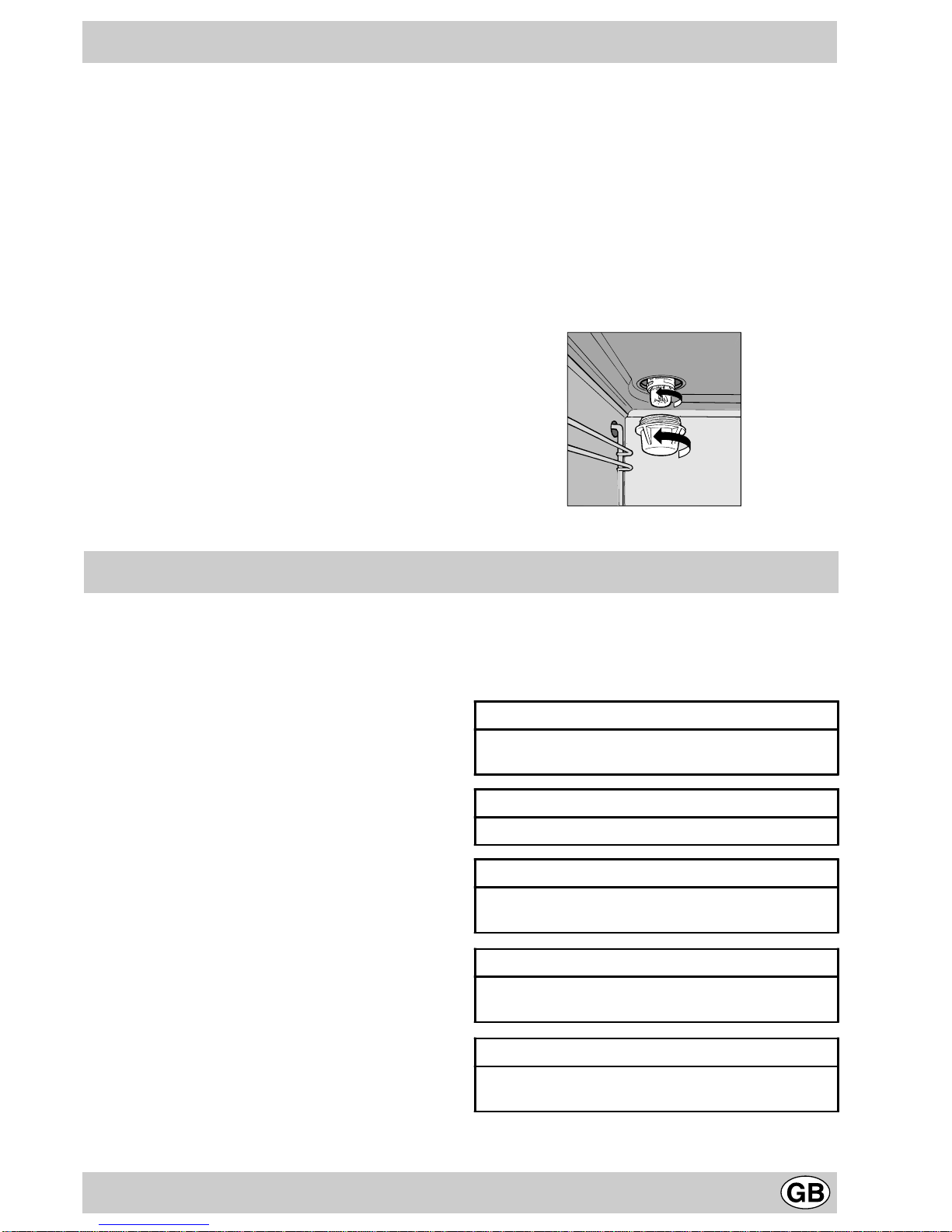

Replacing the Lamp in the Oven
• Cutoff the supply of power to the oven by turning off
the omni-polar switch connecting it to the mains, or by
removing the plug if it is accessible;
• Unscrew the glass cover attached to the lamp holder;
• Unscrew the lamp and replace it with another high-
temperature lamp (300°C) with the following
characteristics:
-Voltage:230/240V
- Wattage: 25W
- Socket:E14
• Remount the glass cover and reconnect the appliance
to the power supply.

6
Food to be cooked Wt.
(wt) Cooking position
of shelves from
bottom
Temperature
(°C) Variable
grill Pre-heating time
(min) Cooking
time
(min.)
Pasta
Lasagne 2.5 3 210 - 75-80
Cannelloni 2.5 3 210 MAX - 75-80
Oven-baked noodles 2.5 3 210 - 75-80
Meat
Veal 1.7 3 230 - 85-90
Chicken 1.5 3 220 - 110-115
Turkey 3.0 3 MAX MAX - 95-100
Duck 1.8 3 230 - 120/125
Rabbit 2 3 230 - 105/110
Pork 2.1 3 230 - 100/110
Lamb 1.8 3 230 - 90-95
Fish
Mackerel 1.1 3 210-230 - 55-60
Dentex 1.5 3 210-230 MAX - 60-65
Trout baked in paper 1.0 3 210-230 - 40-45
Pizza
Napolitan 1.0 3 MAX MAX 15 30-35
Cake
Biscuits 0.5 3 180 15 30-35
Tarts 1.1 3 180 MAX 15 30-35
Chocolate cake 1 3 200 15 45-50
Raised Cakes 1 3 200 15 50/55
Grill cooking
Toast n.° 4 4 10
Pork chops 1.5 4 MAX-MIN 30
Mackerel 1.1 4 35
Note: cooking times are approximate and may vary according to personal taste.
I used more than one level and they are not all at
the same cooking point
Use a lower temperature setting. It is not necessary to
remove the food from all the racks at the same time.
Using the Grill
Grilling may be carried out with a two stage heating
element situated in the top of the oven chamber. The
centre, or the complete area of the grill can be selected
byturningtheovencontrol knob(B)in aclockwisedirection
to align the symbols ( for the centre, for the com-
pletearea)with themarkon thecontrolpanel.Thevariable
temperature control (C) is positioned to right of the oven
knob. This knob will provide varying grill temperatures
when rotated from“max”to“min” and may be adjusted to
vary the level of heat at any time during the grilling
operation.
To operate the grill
1. Turn the oven control knob (B) clockwise until the
required grilling symbol is in line with the mark on the
control panel.The element is now“on”.
2. The variable grill control (C) can now be operated to
select the required heat.
When utilizing the grill, place the rack at the lower levels
(see cooking table).To catch grease or fat and prevent
smoke, place a drip pan at the bottom rack level.
Grilling must be done with the door partially open to
avoid increasing the grilling time.

7
• This appliance is designed for non-professional,
household use and its functions must not be changed.
• These instructions are only valid for the countries
whose symbols appear on the manual and the serial
number plate.
• The electrical system of this appliance may be used
safelyonlywhen itiscorrectly connectedtoan efficient
earthing system in complaince with the safety
standards currently in effect.
The following items are potentially dangerous,and,
therefore,appropriate measures must be taken to
prevent children and the disabled from coming into
contactwith them:
- Controls and the appliance in general;
- Packaging (bags, polystyrene, nails, etc.);
- The appliance immediately after use of the oven or
grill due to the heat generated;
- The appliance when no longer in use (potentially
dangerous parts must be made safe).
Avoidthe following:
- Touching the appliance with wet parts of the body;
- Using the appliance when barefoot;
- Pulling on the appliance or the supply cord to unplug it
from the electrical outlet;
- Obstructing the ventilation or heat dissipation slots;
- Allowing power supply cords for small appliances to
come into contact with the hot parts of the appliance;
- Exposing the appliance to atmospheric agents (rain,
sun);
- Using the oven for storage purposes;
- Using flammable liquids near the appliance;
- Using adaptors, multiple sockets and/or extension
cords;
- Attemptingtoinstall or repairtheappliance without the
assistance of qualified personnel.
Qualified personnel must be contacted in the
followingcases:
- Installation(following themanufacturer'sinstructions);
- When in doubt about operating the appliance;
- Replacingtheelectricaloutletwhen itisnot compatible
with the plug for the appliance.
Service Centres authorized by the manufacturer
must be contacted in the following cases:
- If in doubt about the soundness of the appliance after
removing it from the packaging;
- If the power supply cord has been damaged or needs
to be replaced;
- If the appliance breaks down or functions poorly; ask
for original spare parts.
It is a good idea to do the following:
- Only use the appliance to cook food, nothing else;
- Checkthe soundnessofthe applianceafterit hasbeen
unpacked;
- disconnect the appliance from the electrical mains if it
is not functioning properly and before cleaning or
performing maintenance;
- Whentheappliance is notusedforanextendedperiod
of time, cut off the supply of power and close the gas
cock (if present);
- Use cooking gloves to place cookware in the oven or
when removing it;
- Always grasp the oven door in the centre because the
ends may be hot due to the escape of hot air;
- Make sure that the control knobs are on the “•”/”o”
setting when the appliance is not in use;
- Cut the power supply chord after disconnecting it from
the mains when you decide not to use the appliance
any longer.
• The manufacturer will not be held liable for any
damages that might arise out of incorrect installation
or improper, incorrect or unreasonable use of the
appliance.
Safety Is A Good HabitTo Get Into
To maintain the EFFICIENCY and SAFETY of this appliance, we recommend:
• use only the MANUFACTURER Service
• use only ORIGINAL Spare Parts

8
Important: The power supply to the appliance must be
cut off before any adjustments or maintenance work is
done on it.

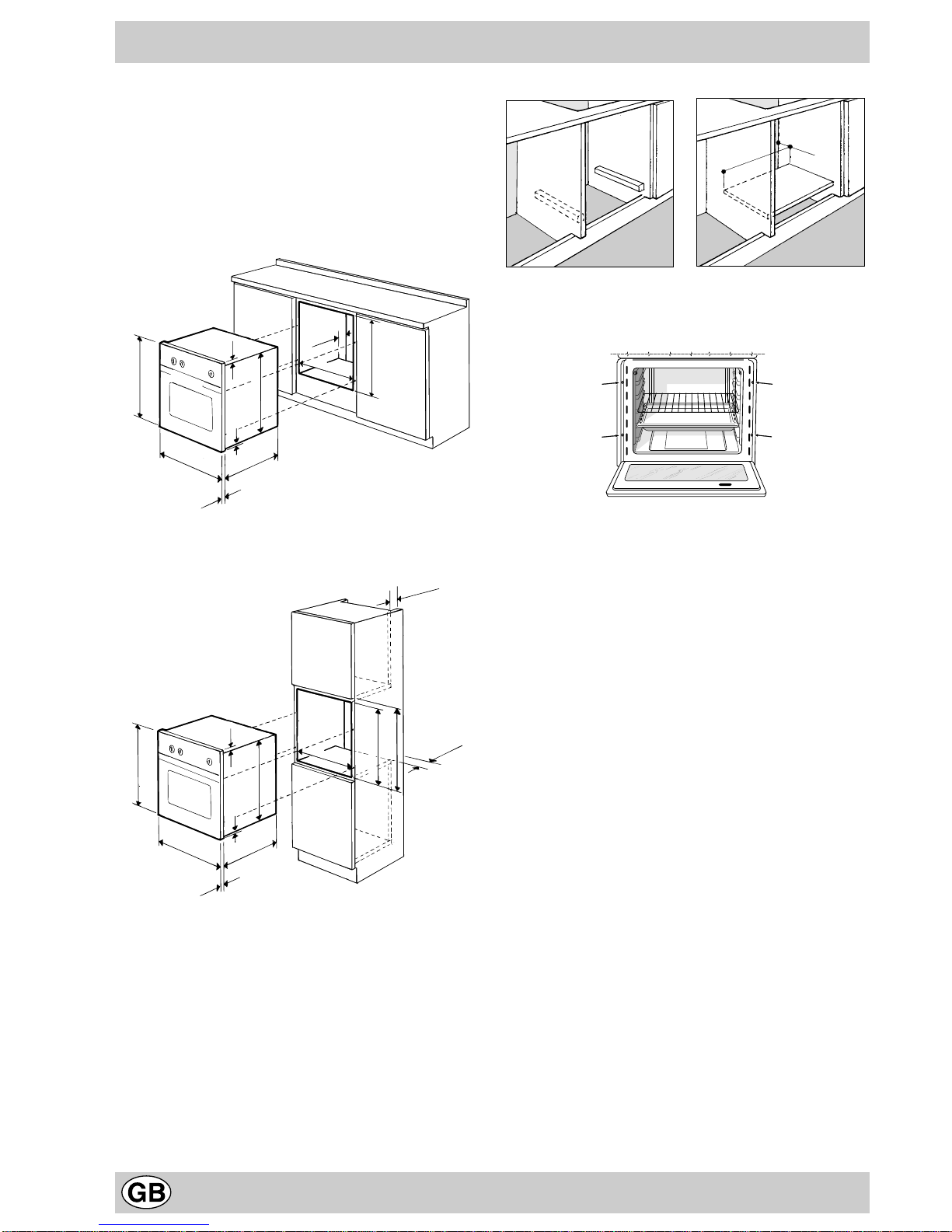

Installation of Built-in Ovens
In order to insure that the built-in appliance functions
properly, the cabinet containing it must be appropriate.
The figure below gives the dimensions of the cutout for
installation under the counter or in a cabinet wall unit.
595 mm.
595 mm.
20 mm. 543 mm.
5 mm.
567 mm.
23 mm.
593 mm.
45 mm.
558 mm.
595 mm.
595 mm.
20 mm. 543 mm.
5 mm.
567 mm.
23 mm.
575-585 mm.
558 mm.
595 mm.
45 mm.
min.
45 mm.
min.
In order to ensure adequate ventilation, the back panel of
the cabinet must be removed.Installing the oven so that it
restsontwo strips ofwoodispreferable.In thecasewhere
the oven rests on a continuous, flat surface, there must
be an aperture of at least 45 x 560 mm.
560 mm.
45 mm.
To fasten the oven to the cabinet, open the door of the
oven and fasten it by inserting the 4 wood screws into the
4 holes locate on the perimeter of the frame.
The panels of the adjacent cabinets must be made of
heatresistantmaterial.In particular,cabinetswithaveneer
exterior must be assembled with glues able to withstand
temperatures of up to 100°C.
In compliance with current safety standards, contact with
the electrical parts of the oven must not be possible once
it has been installed.
Allparts whichensure safeoperationoftheappliancemust
not be able to be removed without the use of a tool.
Electricalconnection
Ovenswith a three-polepowersupplycable aredesigned
tooperatewithalternated currentatthesupply frequency
and voltage indicated on the data plate or "tecnical
specifications" (located on the appliance). The earthing
conductor of the cable is the yellow-green conductor.
Two types of connection are provided:
Connection n° 1
Connecting the power supply cable to the mains.
Fit a normalized plug to the cable, which corresponds to
the load indicated on the data plate; if the cooker is
connected directly to the mains, an omnipolar circuit-
breaker with a minimum opening of 3 mm between the
contacts, suitable for the load indicated and complying
with current directives, must be installed between the
appliance and the mains (the earthing wire must not be
interruptedbythecircuit-breaker).Thepowersupply cable
must be positioned so that it does not exceed room tem-
perature by 50°C at any point of its length.Before making
the connection check that:
Installation

9
Technical Specifications
Inner Dimensions of the Oven: Width: 40.5 cm
Depth: 39 cm
Height: 32.5 cm
InnerVolume of the Oven: 51 Liters
EnergyConsumption: To reach 200°C: 0.5 kWh
To maintain the temp. at 200°C for 1 hour: 1.0 kWh
Total: 1.5 kWh
Voltage and Frequency of Power Supply:
230-240 V ~ / 50 Hz / 2100-2200 W
This appliance conforms with the following European
EconomicCommunity directives:
- 73/23/EEC of 19/02/73 (LowVoltage) and subsequent
modifications;
- 89/336/EEC of 03/05/89 (Electromagnetic
Compatibility) and subsequent modifications;
- 93/68/EEC of22/07/93 and subsequentmodifications.
•the circuit breakers or fuses of the home system can
support appliance load (see data plate);
•the power supply system has an efficient earthing
connection which complies with the provisions of
current regulations and the law;
•there is easy access to the socket or the omnipolar
circuit-breaker once the cooker has been installed.
N.B.: do not use reducers, adapters or shunts as these
could cause heating or burning.

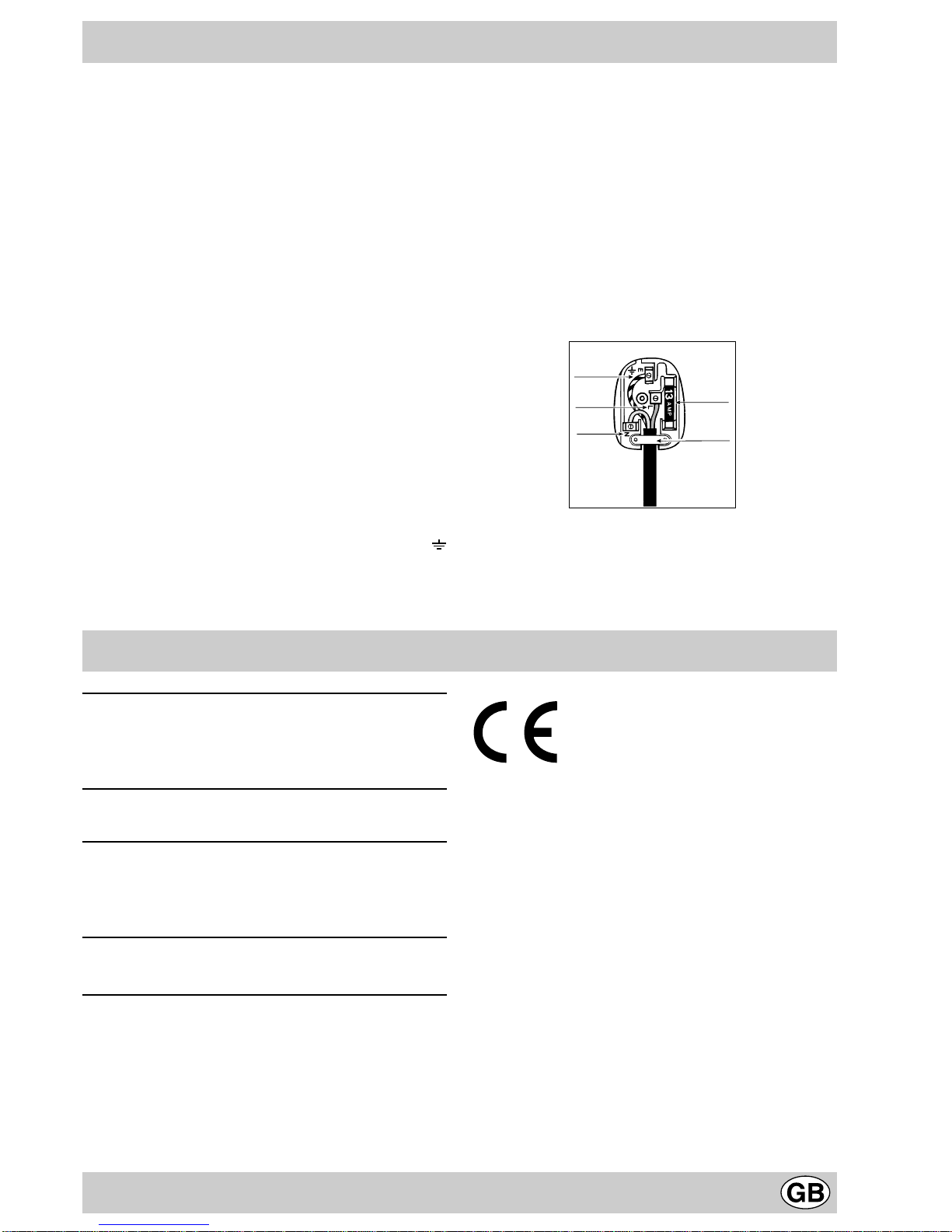

Connection n° 2
Disposing of the plug.
WARNING: THIS APPLIANCE MUST BE EARTHED.
Ensure that before disposing of the plug itself, you make
thepinsunusableso thatitcannot beaccidentally inserted
intoasocket.Instructions forconnectingcable toanalter-
native plug:
Important: the wires in the mains lead are coloured in
accordance with the following code:
Green &Yellow -Earth
Blue -Neutral
Brown -Live
If the colours of the wires in the mains lead do not
correspond with the coloured markings identifying the
terminals in your plug, proceed as follows.
Connect Green &Yellow wire to terminal marked“E” or
or coloured Green or Green &Yellow.
Connect Brown wire to terminal marked “L” or coloured
Red.Connect Bluewireto terminal marked“N”orcoloured
Black.If a 13 amp plug (BS 1363) is used it must be fitted
with a 13 amp fuse.
A 15 amp plug must be protected by a 15 amp fuse, either
in the plug or adaptor or at the distribution board.If you
are in any doubt about the electrical supply to your
machine, consult a qualified electrician before use.
How to connect an alternative plug
The wires in this mains lead are coloured in accordance
with the following code:
BLUE “NEUTRAL”(N)
BROWN “LIVE” (L)
GREEN AND YELLOW “EARTH”(E)
GREEN &
YELLOW
BROWN
BLUE
13 amp fuse
CROSS-BAR
CORD GRIP
Disposing of the appliance
When disposing of the appliance please remove the plug
by cutting the mains cable as close as possible to the
plug body and dispose of it as described above.

viale Aristide Merloni, 47 - 60044 Fabriano
tel.0732/6611 - telex 560196 - fax 0732/662954
www.Merloni.com
Nuovo forno da incasso "Elettrico ventilato" (GB)
02/00 - 195017988.08 Xerox Business Services - Docutech
This manual suits for next models
2
Table of contents
Other Merloni Oven manuals
Popular Oven manuals by other brands

Blodgett
Blodgett RE Series Installation operation & maintenance

Miele
Miele EBA 70 DG installation instructions

Cuisinart
Cuisinart TOB-60C Series INSTRUCTION AND RECIPE BOOKLET

Sears
Sears 8101 P432-60 installation instructions

Tricity Bendix
Tricity Bendix BS 615 SO Operating and installation instructions

Black & Decker
Black & Decker TRO4075B manual
