Daylight Sensor MS13 Version: A0
INSTRUCTION
Product Name:
Daylight Sensor
Model No.:
MS13
Issue Date:
February 21, 2021
Attention
1. The product shall be installed by a professional electrician. Please disconnect
the power before installation, wiring or changing the setting of by DIP switch
2. Please read the relevant contents of this manual carefully before using the
product.
3. This product is only suitable for indoor environment.
4. Ensure that the product is installed in a relatively dry and ventilated
environment.
5. Before the product is powered on, please confirm that the input voltage range
meets the requirements of the manual.
6. Keep out of reach of children.

Daylight Sensor MS13 Version: A0
Shenzhen Merrytek Technology Co.,Ltd
Add: No.17th Building, Dianda Guyuan Industrial Park, Mashantou, Matian, Guangming District, Shenzhen, China, 518106
Tel: [phone] Fax: [phone] Website: www.merrytek.com
All technical information is subject to the actual performance, merrytek reserves the right to final interpretation
page 2of 5

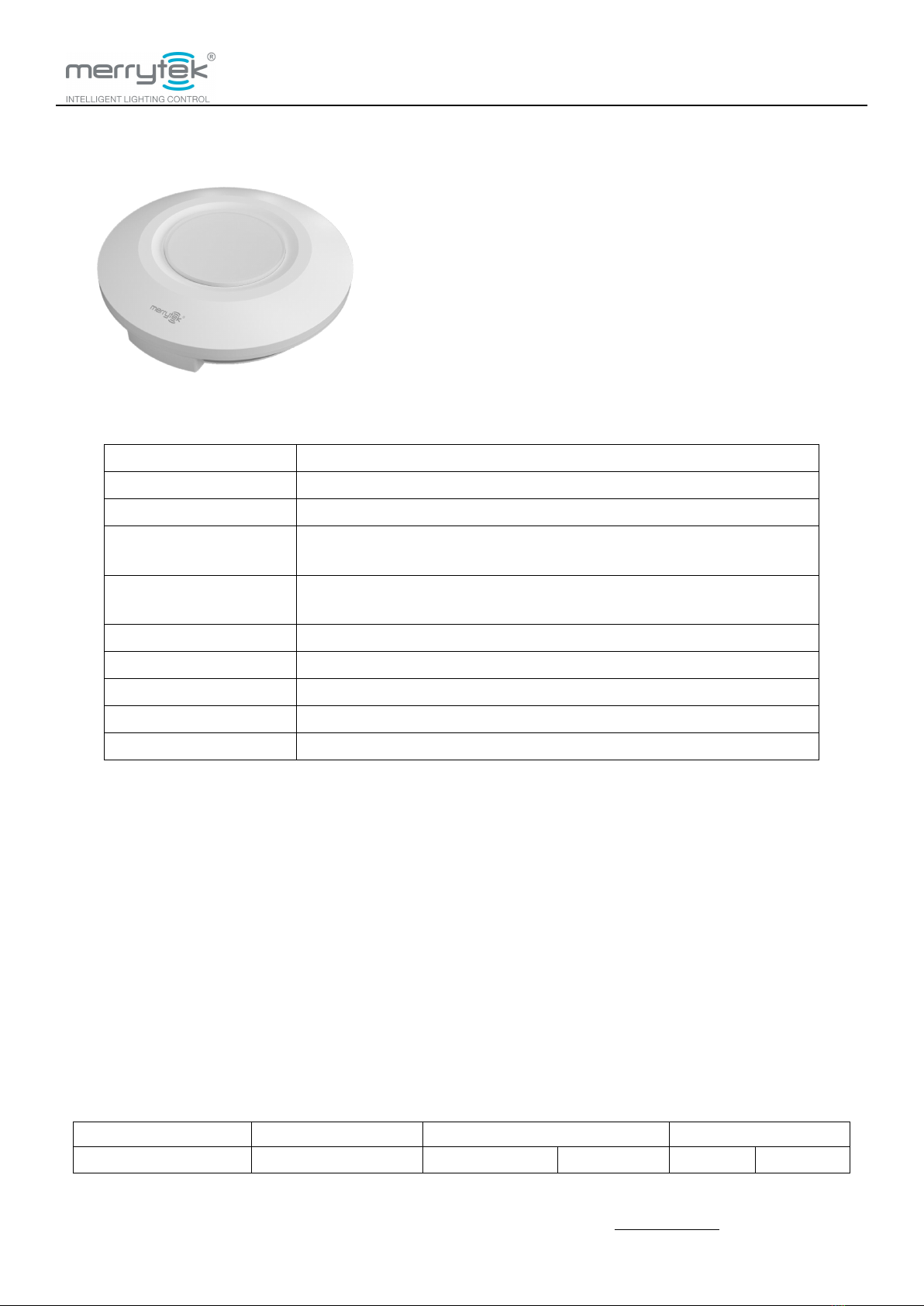

1. Feature
2. Parameters
3. Function
1) Along with DALI driver and lamps, MS13 realizes the self-adjusting daylight harvesting function.
2) After the successful setting with remote control or digital encoder, when the external light illuminance becomes
bright, the daylight sensor will lower the brightness of the lamp.When the external light illuminance becomes dark,
accordingly the light sensor will reduce the brightness of the lamp. The brightness is adjusted to make the light
illuminance value of the environment in a relatively constant state.
3) Daylight harvesting function setting method and steps with remote control: after the 5S product initialization,
DALI dimming is 100%, press DH MODE button of the remote control or long press the digital encoder 3S to enter
the daylight harvesting mode. The light illuminance of the mode can be adjusted to an appropriate brightness,
otherwise, it will automatically learn the current brightness as constant brightness after 3S.
4) Daylight harvesting function setting method and steps with digital encoder (DH/dimming)
rotate one grid right
rotate one grid left
long press 3S(switchable)
short press(switchable)
DIM+
DIM-
DH Mode
Override DH
Light On
Light Off
Operating Voltage Range
DC 9.5-24V (DALI bus powered）
Working Current
≤15mA
Control Method
dimming/switching instructions in DALI protocol
Daylight Harvesting
Setting
digital encoder and remote control
Daylight Detection Range
5-1200 Lux (collect the illuminance value of the ground directly below the
product at a height of 3m)
Installation Height
2.5-4.0m
Installation
surface-mounted
Wiring
screw terminal, diameter: 0.75-1.5mm2
Operating Temperature
-25℃...+50℃
Storage Temperature
-25℃...+80℃
1) Optical lens and photoelectric sensor are used to collect
light illuminance, high accuracy and fast response.
2) Compatible with remote control and digital encoder for
daylight harvesting setting.
3) Grouped broadcast and grouped settings are supported
with BCD encoder.
4) Independent surface mounting for convenient installation.
5) One sensor can control 64 DALI drives divided into
maximum 15 groups.

Daylight Sensor MS13 Version: A0
Shenzhen Merrytek Technology Co.,Ltd
Add: No.17th Building, Dianda Guyuan Industrial Park, Mashantou, Matian, Guangming District, Shenzhen, China, 518106
Tel: [phone] Fax: [phone] Website: www.merrytek.com
All technical information is subject to the actual performance, merrytek reserves the right to final interpretation
page 3of 5
Remote control
4. BCD Encoder Setting
Group selection
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
Group
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1) When select group 0, it is in broadcast mode (there can only be 1 daylight sensor on one bus in broadcast

Daylight Sensor MS13 Version: A0
Shenzhen Merrytek Technology Co.,Ltd
Add: No.17th Building, Dianda Guyuan Industrial Park, Mashantou, Matian, Guangming District, Shenzhen, China, 518106
Tel: [phone] Fax: [phone] Website: www.merrytek.com
All technical information is subject to the actual performance, merrytek reserves the right to final interpretation
page 4of 5
mode), all connected DALI drives are controlled synchronously. When it is divided into 1 to 15 groups, the host
computer needs to set the DALI drivers into the same group. There can be divided into up to 15 groups.
2) Within the maximum number LED driver that DALI daylight sensors can control, driver can be grouped freely
from 1 to 15 through the PC configuration software to match the 1-F value of the related daylight sensor.
5. Dimension (mm)
6. Wiring

Daylight Sensor MS13 Version: A0
Shenzhen Merrytek Technology Co.,Ltd
Add: No.17th Building, Dianda Guyuan Industrial Park, Mashantou, Matian, Guangming District, Shenzhen, China, 518106
Tel: [phone] Fax: [phone] Website: www.merrytek.com
All technical information is subject to the actual performance, merrytek reserves the right to final interpretation
page 5of 5
7. Structure
8. Installation Instruction
9. Initialization
After the 5S product initialization, DAIL dimming is 100%, press DH MODE button of the remote control or
long press the digital encoder 3S to enter the daylight harvesting mode.
10. Factory Settings
Group selection：0 group, broadcast mode, 100% brightness.
1. Use a slotted screwdriver in the preset
position of housing to pry the cover.
2. Use a tool to pry the sheet of threading
hole.
3. The thin piece on the side of housing
should be cut off to make it a wire groove
when exposed installing.
4. Connect wire on the terminal and set the
relevant parameters.
5. Fix product on the required mounting
face using matched screwdriver.
6. Make sure to fasten cover after
installing(prompted with an arrow).
