Meta Company Meta 2 User manual

Quick Start Guide

3
Immersive AR Begins Here
Congratulations on receiving your Meta 2 headset!
Use this guide to get started with your device setup.

4
Setting up your Headset
The following steps will show you how to
properly setup the software, power up
and plug in your Meta 2.
IMPORTANT
Please follow these steps in the proper
order to avoid any potential issues with
your headset.

Download Installer
Download Installer
5
1 of 5
Go to: metavision.com/getstarted
Download the SDK Installer and follow the setup instructions.

6
2 of 5
Connect the power cord to the wall.
For more information, visit metavision.com/support

7
3 of 5
Connect the opposite end of the power cord to the device.
The indicator light on the headset will show that the
headset is on.
For more information, visit metavision.com/support

AC Adapter
HDMI
(GPU)
USB
3.0
8
4 of 5

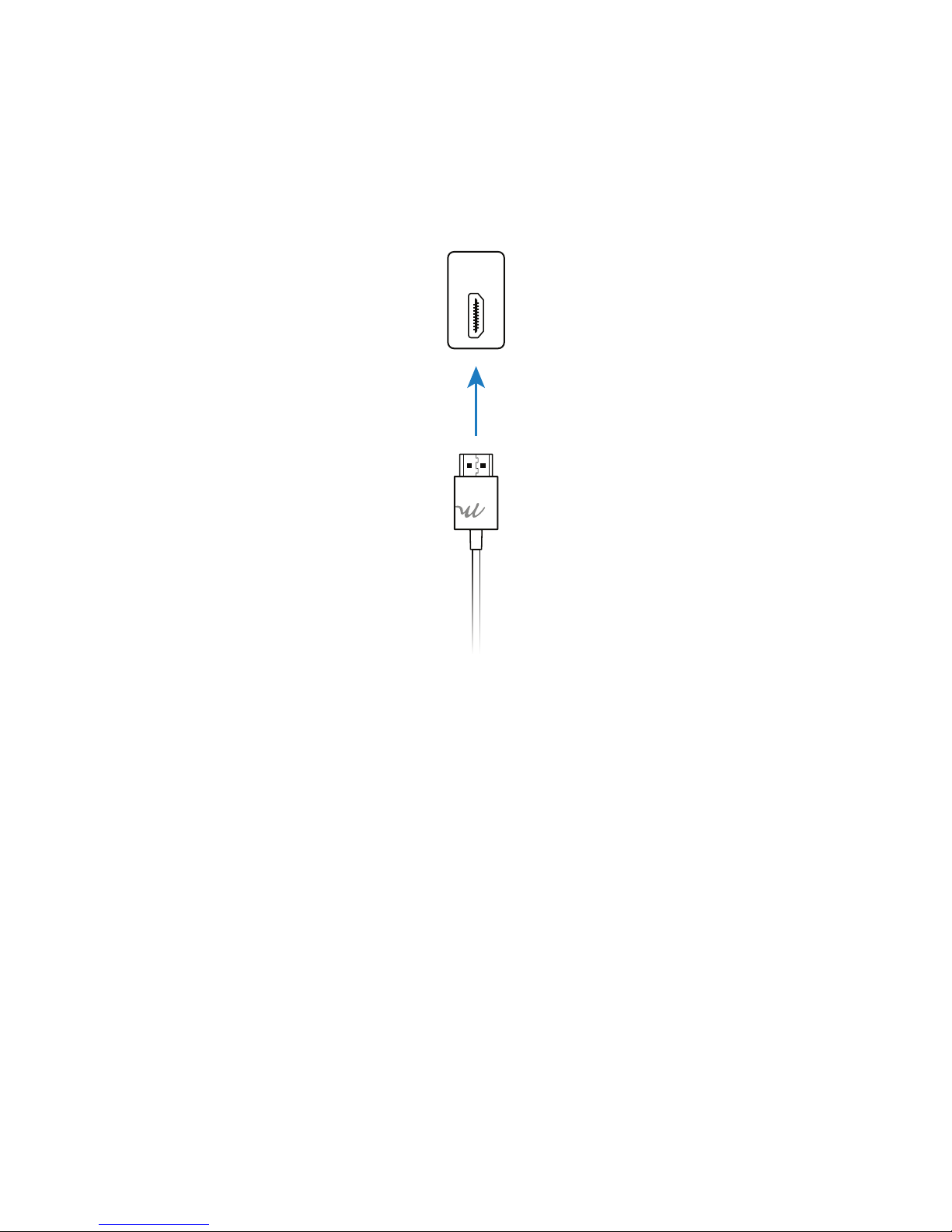

Connect the HDMI cable to the graphics card port.
If your display is not working, try switching HDMI ports.
For more information, visit metavision.com/support

AC Adapter
HDMI
(GPU)
USB
3.0
9
5 of 5

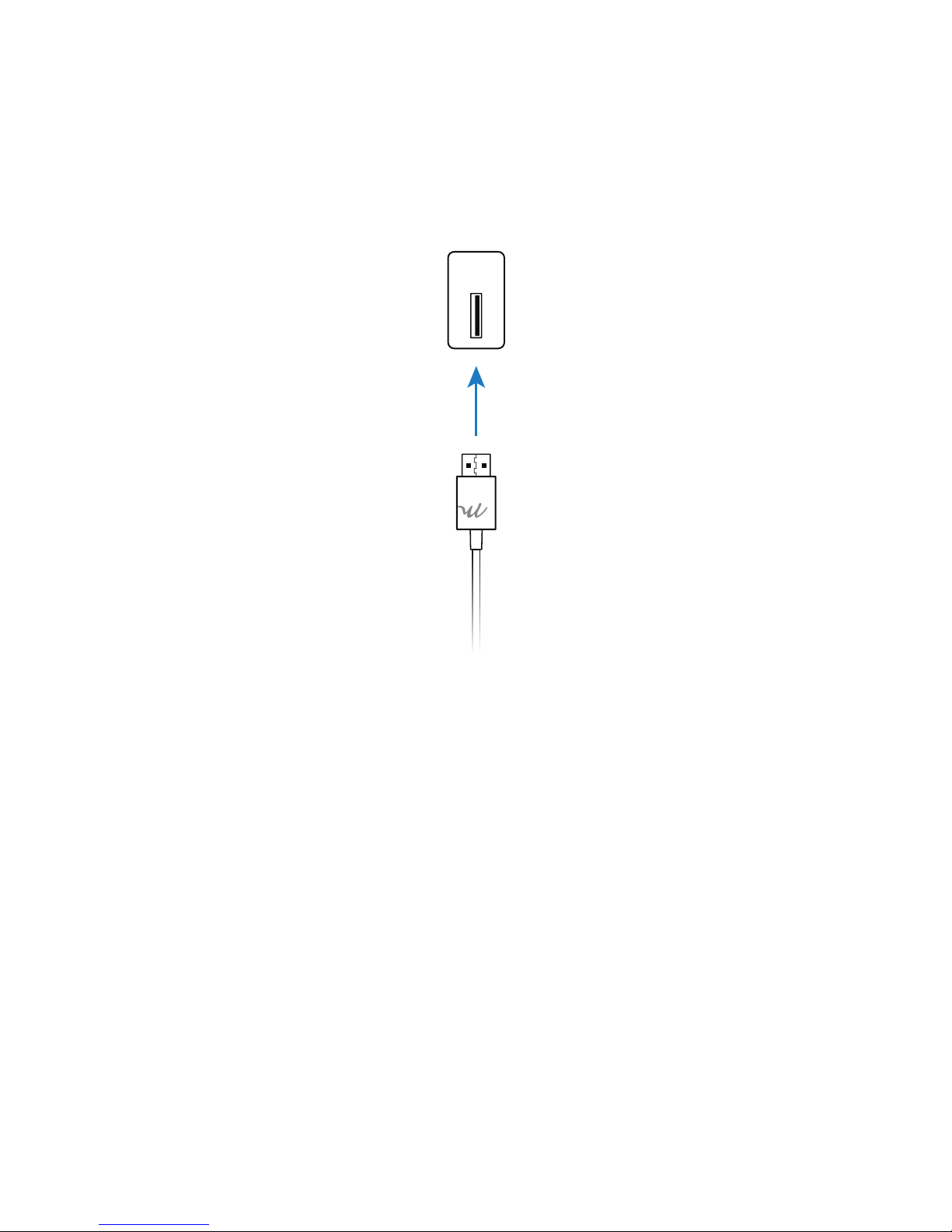

Connect the USB cable to a USB3 port.
If you experience problems, make sure you are
plugged in to USB 3.0.
For more information, visit metavision.com/support

10
Putting on Your Headset
The following steps will show you
how to properly t your headset for
optimum comfort.

11
© 2016 META COMPANY. INC.
1 of 3
To begin, adjust the back buckle and top strap
according to your comfort level.
For more information, visit metavision.com/t

12
© 2016 META COMPANY. INC.
2 of 3
Two different forehead pads are included for your ergonomic
comfort. Place the headset on your head so that the
forehead pad sits on top of your eyebrows.
Place the back buckle on the base of your skull.
For more information, visit metavision.com/t

13

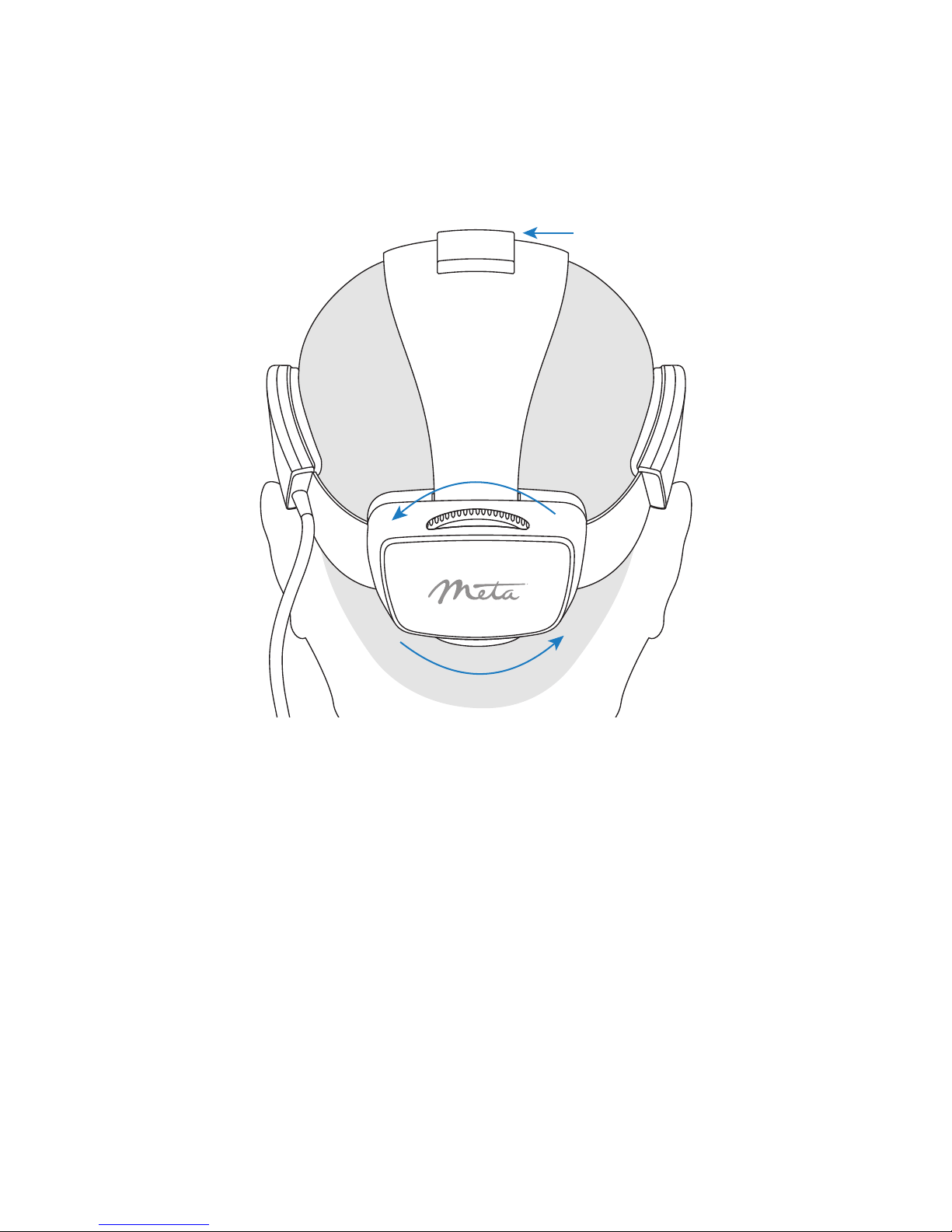

3 of 3
Tighten the back buckle and adjust the top strap as needed.
© 2016 META COMPANY. INC.
For more information, visit metavision.com/t

14
Get to Know Your Meta 2
The headset enables users to interact with 3D
holograms just like real objects, naturally extending
the capabilities of the human brain and hand.

15

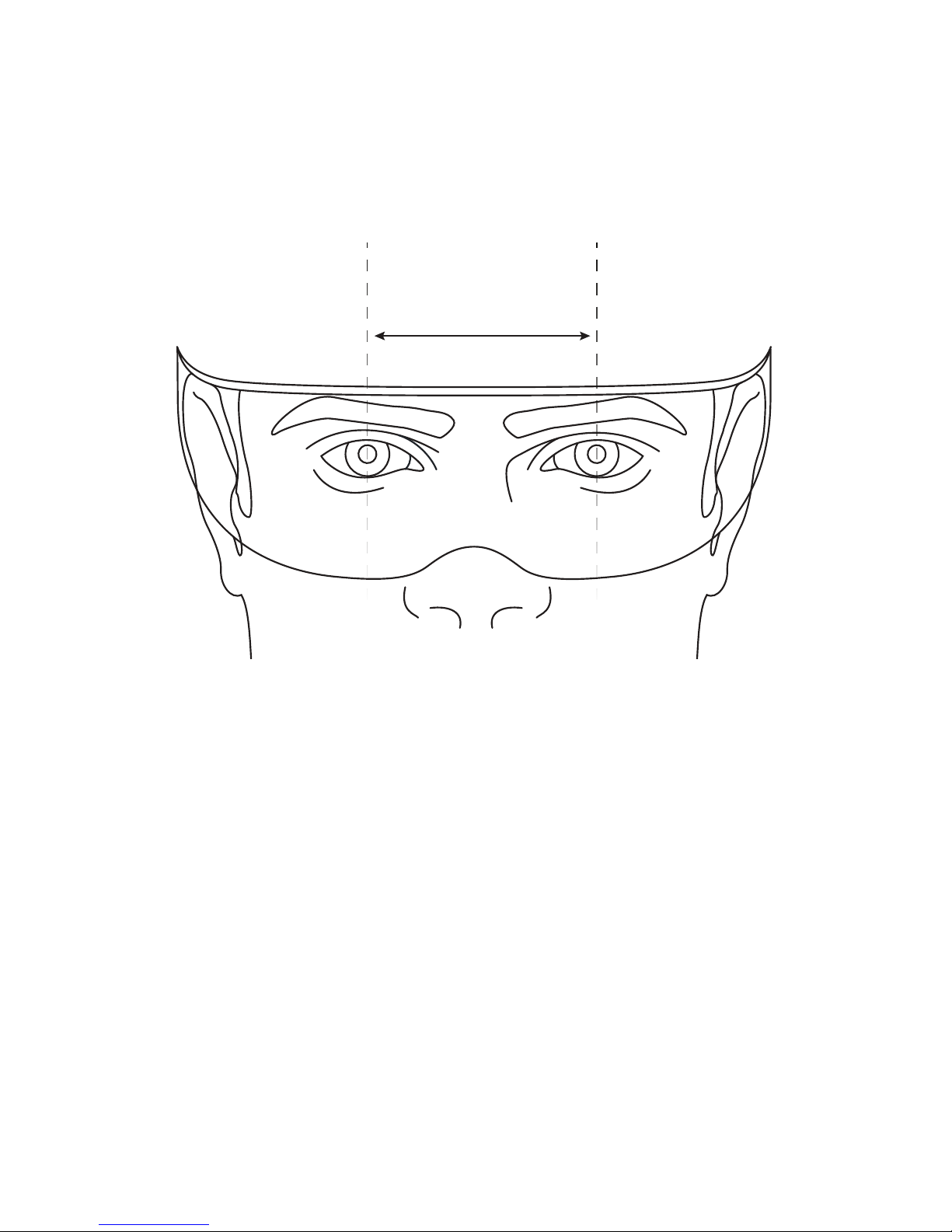

Eye Calibration
Use the Eye Calibration feature to ensure that you see
virtual objects clearly through the headset.
Each user can create different eye calibration proles,
which can be found by clicking on the Meta Utility icon
in the system tray.
For more information, visit metavision.com/calibration

16

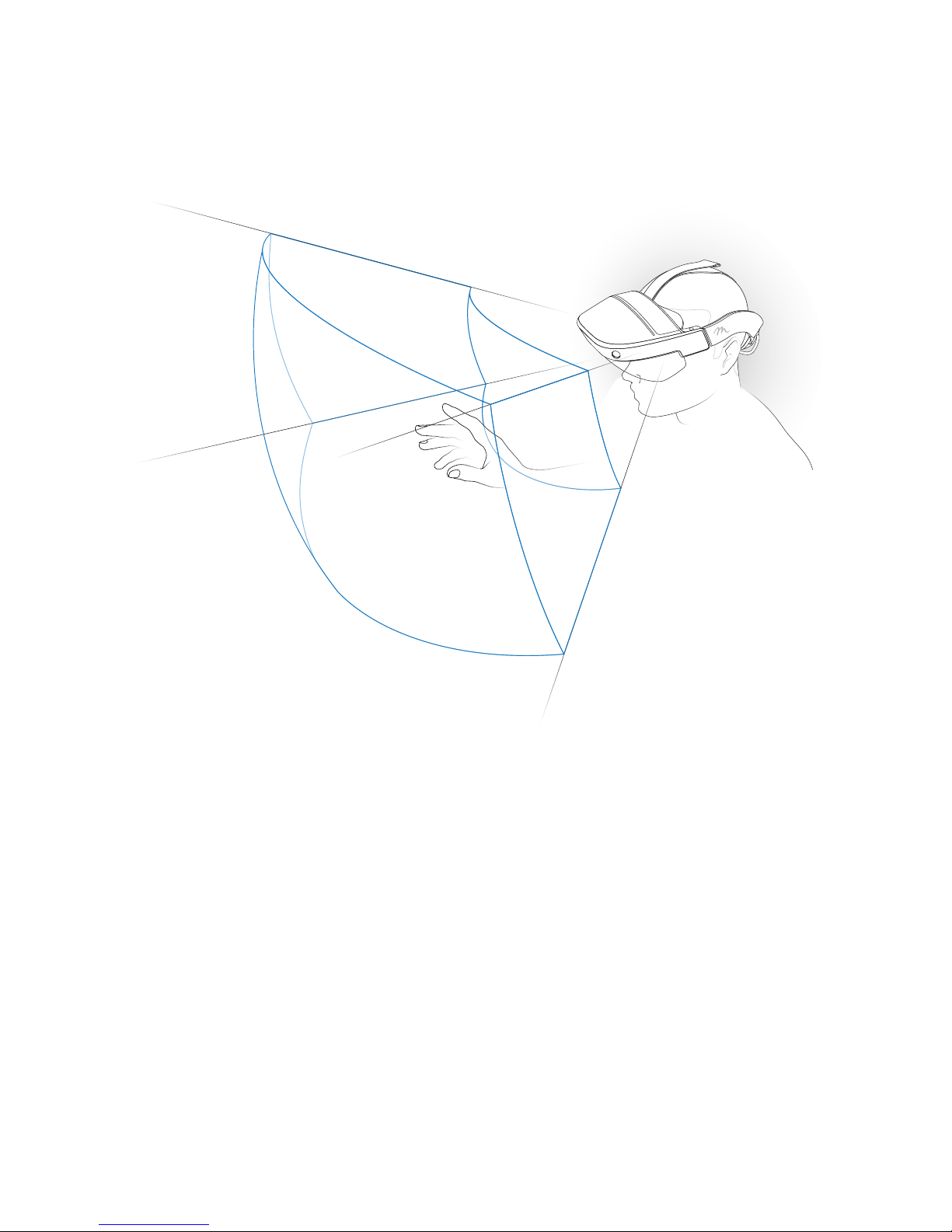

Field of View
The Meta 2 device enables you to interact with
holograms within a 90° eld of view.
However, gestures outside of the virtual area
represented in the gure above might not be
detected by your device.
For more information, visit metavision.com/fov

17
Environment and Surface Mapping
The Meta 2 scans your environment and tracks surfaces,
allowing you to place 3D virtual objects in the space around you.
For the best tracking experience, make sure you initiate the
device in an environment that has uniform lighting and contains
real-world objects.
For more information, visit metavision.com/mapping

18

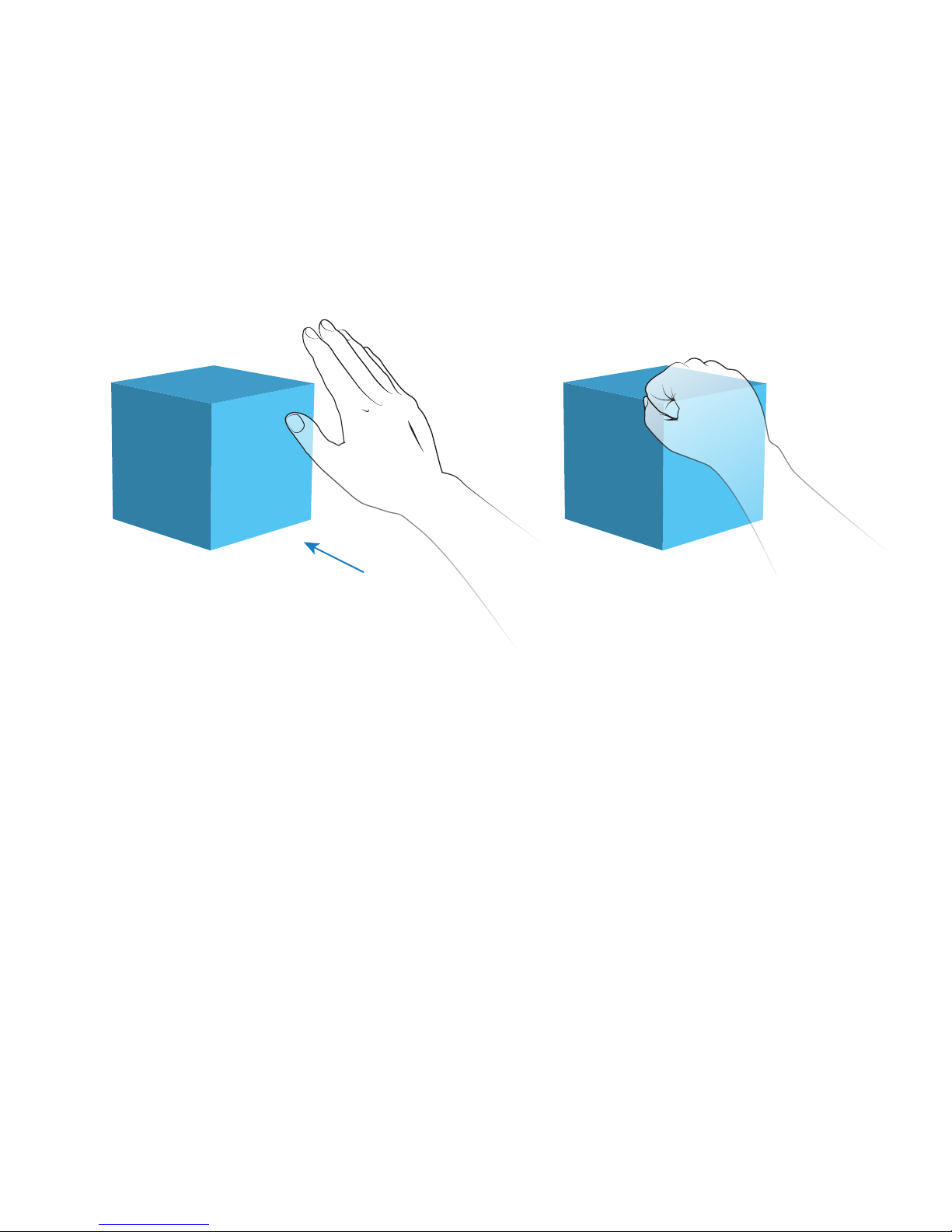

Hands Interactions
The Meta 2 supports direct object manipulation. To initiate a grab:
1. Move toward the object with your open hand
2. Grab the object by closing your hand
3. Move the object while keeping your hand closed
4. Release the object by opening your hand
For more information, visit metavision.com/hands

19

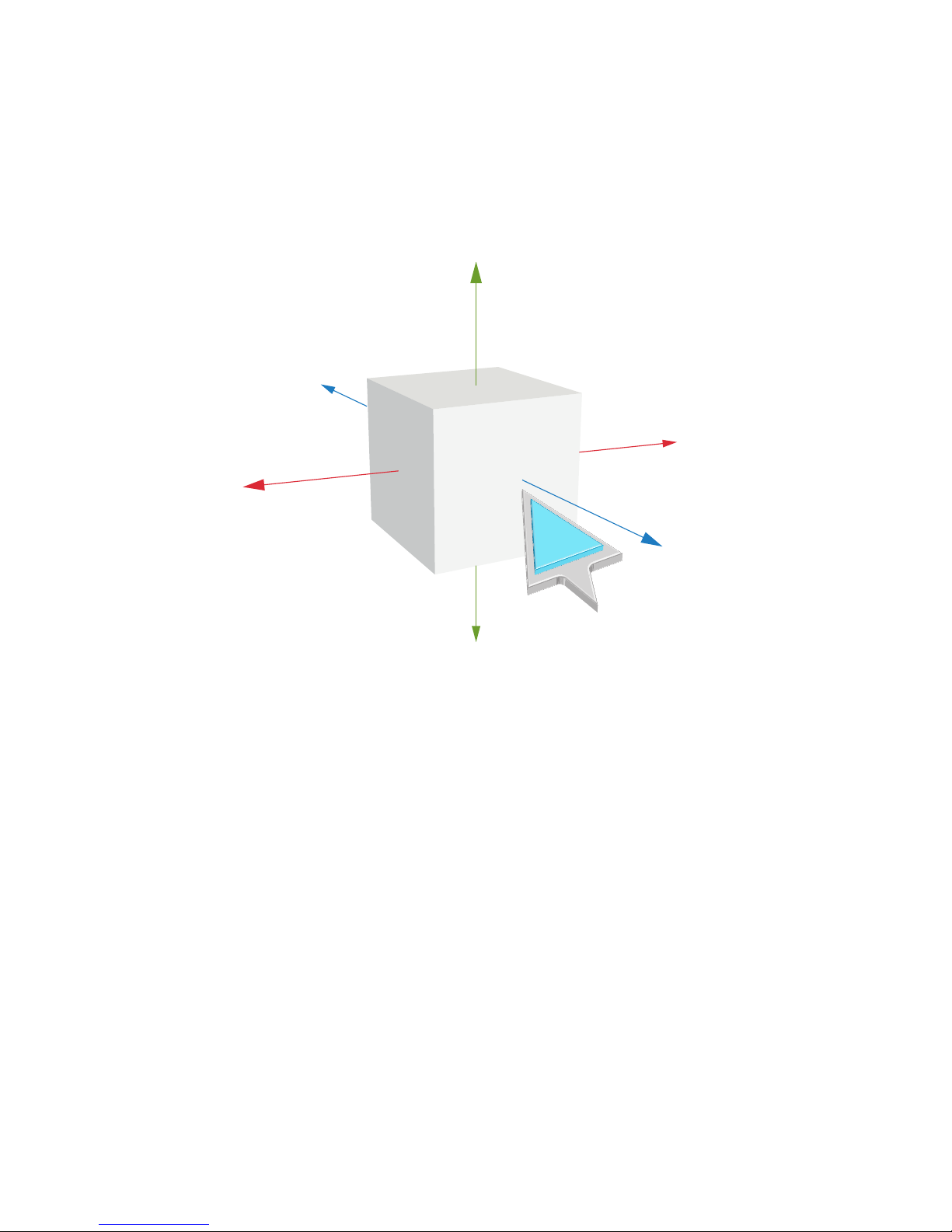

Mouse Interactions
The Meta 2 headset also supports mouse interactions.
For more information, visit metavision.com/mouse

20
Cleaning Tips
CAUTION: DO NOT USE ANY LIQUID ON THE VISOR ITSELF
Before you start cleaning your headset, make sure your
headset is unplugged.
Use the included microber carrying bag to wipe off
smudges and ngerprint residue on the visor. For plastic
parts, gently remove smudges with a dry or slightly damp
(water only) microber bag.
For more information, visit metavision.com/care
