Eachine EV100 User manual

Product Contents
Eachine EV100
Goggles *1 
Battery*1
Antenna*2
User Manuals*1
Debug Mode
Eachine EV100
NEW 5.8G FPV Goggles
User Manuals
White/Black
3 Racing Mode: 4/6/8 pilots
60-80MHz interval between adjacent channels
greatly decrease interference.
Racing Mode
Press "mode" button first and then powering on
goggles, enter debug mode (5300MHz). Requires
a corresponding vtx which support pitmode and
extra frequency 5300MHz.

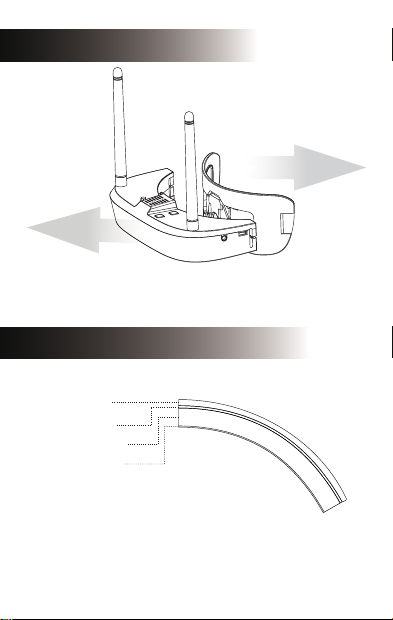

Detachable Patch
Snap joint assemblies allows easy
replacement and maintenance
Replaceable sponge
Patch
Velcro
Sponge
Flannel
Using Velcro as a bridge, sponge and flannel
can be easily replaced, and Velcro can be
used for a long time.
Battery
Controls Diagram
Band & Frequency table
Unit:MHZ
Racing mode frequency
OSD display
Regular mode:
Display values like: Band-r CH1 5658MHz
(refer to frequency table)
Racing mode:
Mode
Status description
Trouble Shooting
Eachine EV100
NEW 5.8G FPV Goggles
User Manuals
White/Black
No image, display is completelydark
▪No power supplied. Check power connections.
No image, display is glowingdark grey
▪If using wireless module, ensure RX is working.
If using AV in cable, check video source.▪
Ensure TX is on and camera connections solid▪
Ensure lens cap is removed from camera ▪
Complete white screen
▪LCD driver has failed and needs to be replaced under
warranty. Contact your retailer.
Short range
▪Ensure 5.8Ghz antenna were installed.
Power supply
3.5mm AV in/out
3.5mm Headphone jack
USB in
Turn on/off OSD
Mode/Brightness/Contrast
fan on/off
Focal length adjustment
IPD adjustment
To check battery level
Focal Length Adjustment
Thumbwheel is used to adjust focal length.
(+) means to increase diopter, (-) means to
decrease diopter.
IPD Adjustment
Independent control for both sides,adjust the range
of 58 ~ 68mm.
Slider is switch to adjust IPD. (+) means to
increase IPD,(-)means to decrease IPD.
Controls
Mode/Brightness/Contrast control
Mode : a.Debug mode: Press "mode" button and
power on, enter debug mode (5300MHz).
b.Racing mode:Long press "mode" button until first beep
to switch mode from 4 pilots/6 pilots/8 pilots. For example:
4 pilots/6 pilots/8 pilots/exit racing mode switching circularly.
d.Turn on/off RX: Long press "mode" button until third beep
to enter AV IN (RX OFF).
c.Auto search: Long press "mode" button until second beep
to enter auto search.
Brightness: Pressing forward/back increases/decreases
display brightness.( )32 level contrast for the LCD display, default level 28
Contrast: Pressing left/right decreases/increases
display contrast.( )32 level contrast for the LCD display, default level 28
Channel/Band select
Channel: short Press channel up/down buttons will cause
the channel to incrementallyincrease/decrease from
channels 1 to 8 (refer to frequency table).
Band : Press channel up/down buttons 3s will cause
the band to incrementallyincrease/decrease from band
A to H (refer to frequency table).
Low battery warning: Buzzer warning if input voltage
drops below 6.8V.
Turn on/off fan
AV In/Out
Adjustable focal length is perfect for myope under 400
degree and hyperope under 100 degree.
Gr ou n d Vi d eo Au dR Au L
3.5mm AV Connector
AV input & output
Support external HDMI to AV input
Support external DVR.
USB In
Channel/Band Selection
Turn on/off OSD: Press channel up/down buttons
simultaneously to turn on/off OSD.
▪For firmware upgrading.
▪Alternative power supply.
If multiple power sources are supplied at same time
(Like: power Bank and head strap battery)the goggles
will draw power from the highest voltage.
Mode
In this mode, the best results can be achieved
by using the supporting vtx.
Product specifications
8 2°Diagonal
Plastic optic module
58 to 68 mm (adjustable)
Under 400 degree of myopia and
Hyperopia 100 degree (adjustable)
Resolution : 720*540
NTCS/PAL auto selecting
User Controls:
Channel/Band selection
Mode selection (debug/racer)
Contrast/ brightness control
Turn on/off RX/fan/OSD
Accessories:
7.4V,1000mAh Li-po battery with
LED indicator
Can power the external DVR
3.5mm AV in/out port
Power in port
3.5mm stereo earphone port
USB in port
Lens wiping cloth
USB data cable
5.8G RP-SMA male antenna*2
7.4V, 1000mAh Li-po battery with
LED indicator
Frequency:
Dimensions:
Packaging:
4 pilots 5695 5769 5843 5917
6 pilots 5533 5613 5705 5785 5865 5945
8 pilots 5528 5582 5645 5705 5765 5825 5885 5945
Band
Band b
Band E
Band F
Band r
Band U
Band o
Band H
━
Band L
━
━
━
━
━
━
━
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
5865
Band A
━
5733
5705
5740
5658
5325
5474
5333
5653
5845
5752
5685
5760
5695
5348
5492
5373
5693
5825
5771
5665
5780
5732
5366
5510
5413
5733
5805
5790
5645
5800
5769
5384
5528
5453
5773
5785
5809
5885
5820
5806
5402
5546
5493
5813
5765
5828
5905
5840
5843
5420
5564
5533
5853
5745
5847
5925
5860
5880
5438
5582
5573
5893
5725
5866
5945
5880
5917
5456
5600
5613
5933
(One charging indicator light, one
power-checking button and four
power indicator lights)
It can simultaneously power the external DVR.
Battery charging
SMA*2
RP-SMA*2
USB data cable*1 USB charging port
USB charging with approved adapter
( USB:5V==1.5A or 2A)
Li-Po BATTERY PACK
7.4V 1000mAh(7.4Wh) with LED indicator
Made in china
Charge max rate of 1C(DC connector)
WARNING
Do not open the battery case
Do not use if signs of failure
Never leave batteries near fire or
high temperatures
Battery may balloon or catch fire if faulty
or improperly charged
Never leave a charging battery unattended
165*76*30mm
-10c°-40c°
FOV:
Type:
IPD:
Focal length :
Display:
Battery:
Interface:
Operation temperature :
Weight(not included battery): 180g
5.8GHZ 5333—5945MHZ
Sensitivity:
≤-93DB
235*120*70mm
14
5
23
6789
157G铜版纸⿊⽩正反印刷折页
折叠尺⼨:110*70mm
展开尺⼨:420*110mm
It is not recommended to charge the battery
via PC USB, since the insufficient current will
damagethe battery.
AV IN
Lenswiping cloth*1
10
Auto search display
AV IN display
172
