Crosscut, Mitre and Table saws from Metabo offer the
user the benefit of having three machines in one. The
KGT 300 allows the user to crosscut timbers to length
at 90° up to 120 mm in depth, then mitre all the way to
45° and cut up to 66 mm in depth. In table saw mode
the machine is ideally suited to ripping panels up to
55 mm in depth, e.g. when cutting panels to size for
laminate flooring. The KGT 501 is a larger version of this
machine with a maintenance free induction motor, ideal
for large timbers and on site use. Professional, precise
and robust. Metabo – the professionals brand.

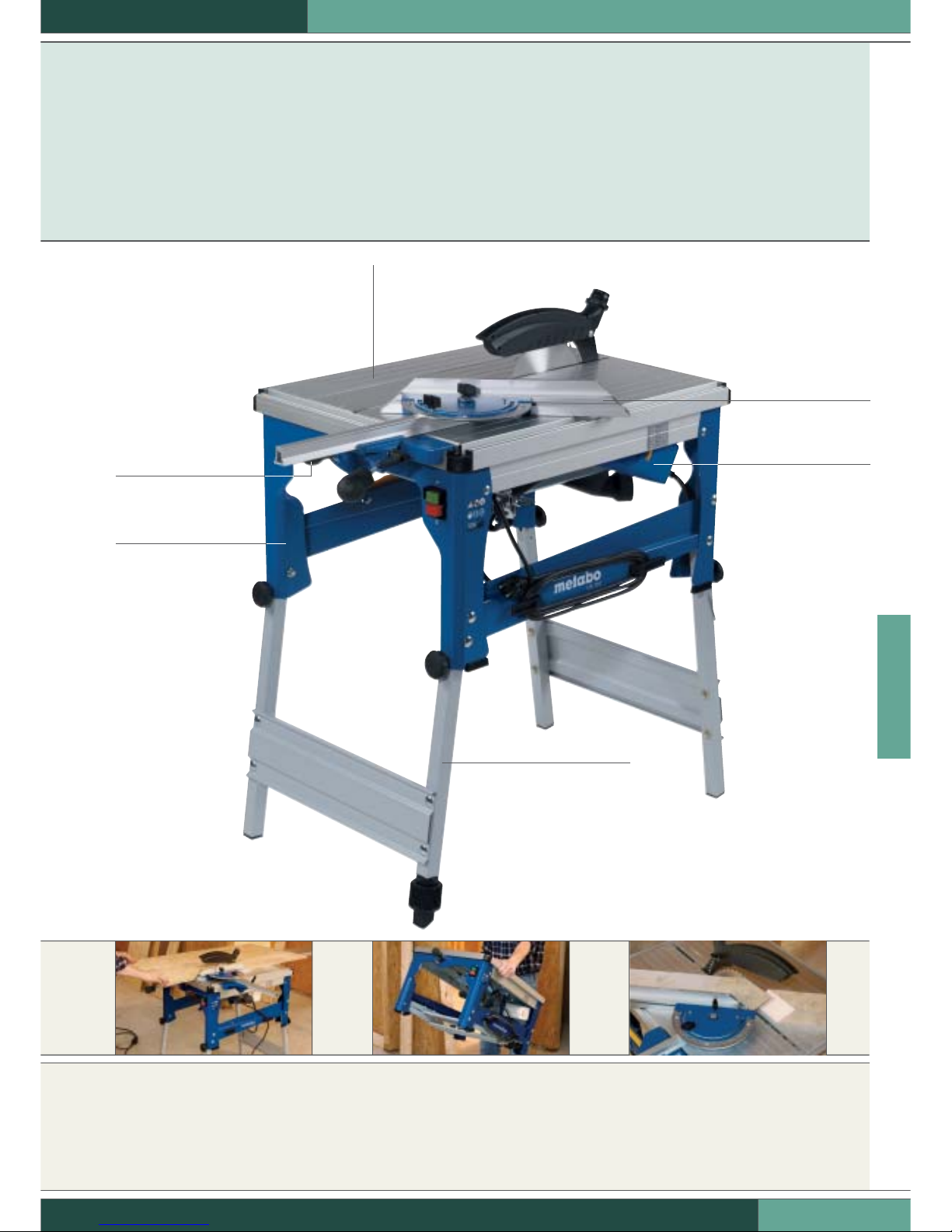

315 mm saw blade
Housing and holder allow the use
of a 315 mm blade. This enables
the clean cutting of timbres up to
a height of 120 mm.
Saw head can be tilted
Bevel up to 48° left and 45° right.
Due to the special position of the
motor, ideal cutting heights are
possible, both for cross-cutting and
table saw operation. The motor is no
longer in the way.
Particularly large
saw blade (315 mm),
ideal for processing panels,
laminates and high timbers up to
120 mm depth. 48 tooth blade.
Infinitely variable turntable
adjustment
mitre from 50° to the left to 60°
to the right.
Saw table
with large support
surface and sturdy
parallel fence.
Powerful 1.8 kW
universal motor
Soft start and stops
in 5.5 seconds.
Quick adjustment
of the table height
Light and sturdy
Low weight due to
aluminium die cast
construction. For easy
transportation.
e.g. KGT 300
CROSSCUT, MITRE AND TABLE SAWS

248 |

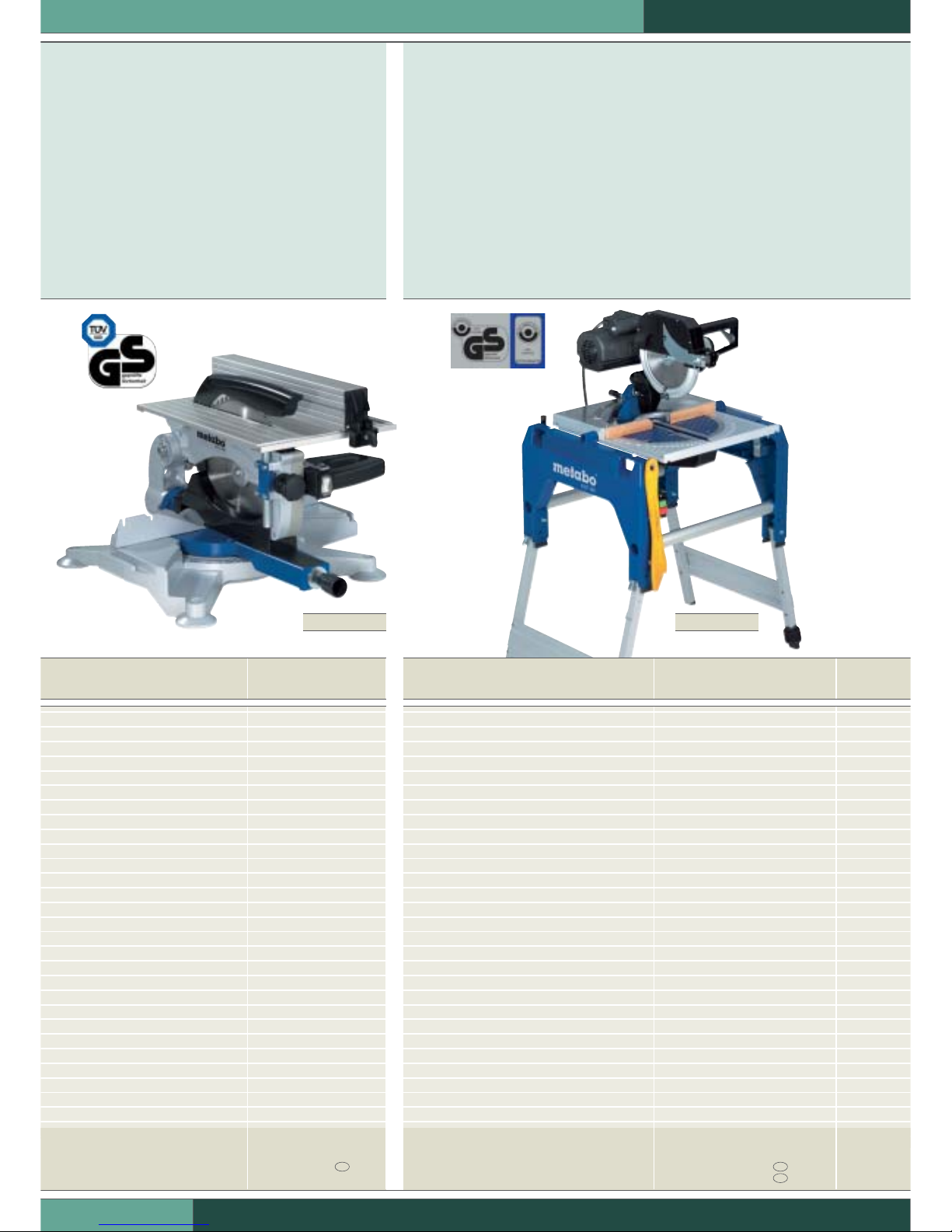

KGT 300 KGT 501
Comparative
device characteristics
Dimensions L x W x H 575 x 760 x 730 mm
Working height without stand 420 mm
Table size 345 x 473 mm
Cutting width - cross cutting
mode 90/45°
170 mm/112 mm
Cutting depth - cross cutting
mode 90/45°
100 mm/66 mm
Cutting height – table
mode 90°
55 mm
No load speed 3.400 /min
Cutting speed (maximum) 56 m/s
Saw blade Ø 315 x 30 mm
Adjustment options
- Turntable left (maximum) 50 °
- Turntable right (maximum) 60 °
Rated input power 1,8 kW
Output power 1 kW
Motor protection Circuit breaker
Weight 21 kg
Standard equipment Carbide saw blade
(48 teeth), chip hood,
parallel guide/ripping
fence, tool for saw blade
change
Type KGT 300
Order no. 0103300000 

Changeover from crosscut to table operation
in split seconds

Powerful universal motor, stops in 5.5 seconds

Low own weight for easy transport

Double mitre cuts up to 45° due to inclinable saw
head and integrated round table

Saw head can be beveled on both sides

Sturdy and precise aluminium cast construction

Integrated holder grooves for attaching table
length extension without tools

Sturdy parallel guide/ripping fence
Crosscut,
Mitre and Table Saw
KGT 300
Comparative
device characteristics
Dimensions L x W x H 620 x 663 x 878 mm
Working height without stand 457 mm
Table size 500 x 520 mm
Cutting width - cross cutting
mode 90/45°
210 mm/154 mm
Cutting depth - cross cutting
mode 90/45°
60 mm/45 mm
Cutting height – table
mode 90°
81 mm
No load speed 3.620 /min
Cutting speed (maximum) 42 m/s
Saw blade Ø 250 x 30 mm
Adjustment options
- Turntable left (maximum) 45 °
- Turntable right (maximum) 45 °
Rated input power 2 kW
Output power 1,5 kW
Motor protection Circuit breaker
Weight (including stand) 45 kg
Standard equipment Carbide saw blade (34 teeth),
chip hood, parallel guide/ripping
fence, foldable stand, tool for
saw blade change
Type KGT 501
Order no. 0102505018 

Combined mounting saws with three functions: Crosscut saw,
mitre saw and table saw

Changeover from crosscut to table operation in split seconds

Best cutting quality due to the torsion-free design

Absolutely collision-free work with every angle setting

Induction motor – quiet and maintenance-free, stops in 5.5 seconds

Electronic motor brake

Scale for infinitely variable angle adjustment and fine-adjustable
snap-lock at 90° and 45°

Sturdy and precise aluminium cast construction

Stand fixed to the machine: foldable legs for problem-free
work on the ground

Sturdy parallel guide/ripping fence
Crosscut,
Mitre and Table Saw
KGT 501
CROSSCUT, MITRE AND TABLE SAWS
EQUIPMENT FEATURES EQUIPMENT FEATURES
0103300039 GB 110 V 0102505042 GB
0102505034 GB
230 V
110 V

| 249
,
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
CROSSCUT, MITRE AND TABLE SAWS
Machine stand
Order no.
Universal machine stand
For ideal working
height and secure
base
Can also be used
on uneven surfaces
Collapsible,
with height
compensation
Suitable for: KS 210 C,
KGS 255, KGS 301,
KGS 303, KGS 305,
KGS 331, KGT 300
0910057529
Machine stand KSU 400
Machine stand
and table extension
in one sturdy
construction
Universal end
profile makes
it suitable for all the
conventional crosscut
saws of well-known
manufacturers
Sturdy legs with
height adjustment
Extensive range
of accessories
Max. total length 400 cm
Max. weight load in central
part 250 kg
Weight: 25 kg
For accessories for the
machine stand KSU 400,
see page 243
0910066110
Work clamps
Order no.
Work clamp
For the secure clamping
of smaller workpieces, plastic
or aluminium profiles
Suitable for: KGS 255, KGS 303,
KGS 305, KGT 300, KGT 501,
KS 210 C, KS 210 Lasercut
KGT 501 from model year 2003 on
0910057553
ACCESSORIES FOR KGT 300
Table length extensions
Order no.
Table length extension
right, steel
For the secure
supporting of long
workpieces
With length guide and
scale, up to 1,600 mm
Dimension slide for
repeating accuracy
Length: 1.140 mm
Width: 200 mm
0910058886
Table length extension left,
steel
For the secure supporting
of long workpieces
With length guide and
scale, up to 1,600 mm
Dimension slide for
repeating accuracy
Length: 1.000 mm
Width: 200 mm
0910058827
Order no.
Table length extension
right, steel
For the secure
supporting of long
workpieces
With length guide
and scale, extractable
up to 3,000 mm
Dimension slide for
repeating accuracy
Length: 1.140 mm
Width: 200 mm
0910058894
Table length extension left,
steel
For the secure
supporting of long
workpieces
With length guide
and scale, extractable
up to 3,000 mm
Dimension slide for
repeating accuracy
Length: 1.000 mm
Width: 200 mm
0910058835
Table length extension
right, aluminium
For the secure
supporting of long
workpieces
With length guide
and scale, extractable
up to 3,000 mm
Dimension slide for
repeating accuracy
Foldable and height-
adjustable support leg
Length: 1.130 mm
Width: 200 mm
0910057545
Table length extension left,
aluminium
For the secure
supporting of long
workpieces
With length guide
and scale, extractable
up to 3,000 mm
Dimension slide for
repeating accuracy
Foldable and height-
adjustable support leg
Length: 1.000 mm
Width: 200 mm
0910057537
Supplementary stops
Order no.
Supplementary stop
For the safe and tear-free
processing of small workpieces
and strips
Also particularly suitable
for tall workpieces
Suitable for: KGS 255,
KGS 303, KGT 300
0910059831
Suction adapter
Order no.
suction adapter
Suitable for: KGS 255, KGS 301,
KGS 303, KGS 305, KGT 300
0910059955
,
NEW
44 mm
diameter-Ø
35 mm
bore-Ø

250 |
CROSSCUT, MITRE AND TABLE SAWS
ACCESSORIES FOR KGT 501
Table length extensions
Order no.
Table length extension
For the secure
supporting of long
workpieces
With length guide
and scale, extractable
up to 2,800 mm
With extension profile
and 2 dimension slides
for repeating accuracy
Can be used left
and right for cutting
to length
Length: 1.000 mm
Width: 200 mm
0910053213
Sliding table
Order no.
Sliding table
Enables exact cuts,
even on larger workpieces
Sliding table on ball bearings
Cross-cut guide for cutting
to length up to 1,000 mm,
with dimension slide,
magnifier and adjustable
aluminium scale
Easy to mount and dismount
Cutting width 90°/45°: 650 mm/890 mm
Table size: 350 x 290 mm
Overall length: 1.170 mm
Base weight: 23 kg
0910053205
Guide length extension
for sliding tables
For use in the cross-cut guide
of the sliding table
Enables the cutting
to length of workpieces
of up to 2,000 mm
Adjustable scale made
of aluminium
0910055100
Mitre guides
Order no.
Mitre guide
For precise cross cuts
and angular cuts
With workpiece bearing
made of aluminium
Infinitely variable, both sides
adjustable, 90°-45°
Suitable for: KGT 500, KGT 501
0910009028
Positioning laser
Order no.
Positioning laser
For a perfect preview
of the sawing cut
The workpiece can
be positioned quickly
and securely for cutting
No more test cuts
Battery-powered line laser
Suitable for: KGS 301, KGS 331,
KGT 500, KGT 501
0910040553
Chip and dust extraction units
Order no.
Chip and dust extraction unit
For a cleaner work environment
and an unobstructed view of the
workpiece you want to cut
For connection to a chip and dust
extraction unit
Extraction nozzle Ø: 100 mm
Suitable for: KGT 500, KGT 501
0910009249

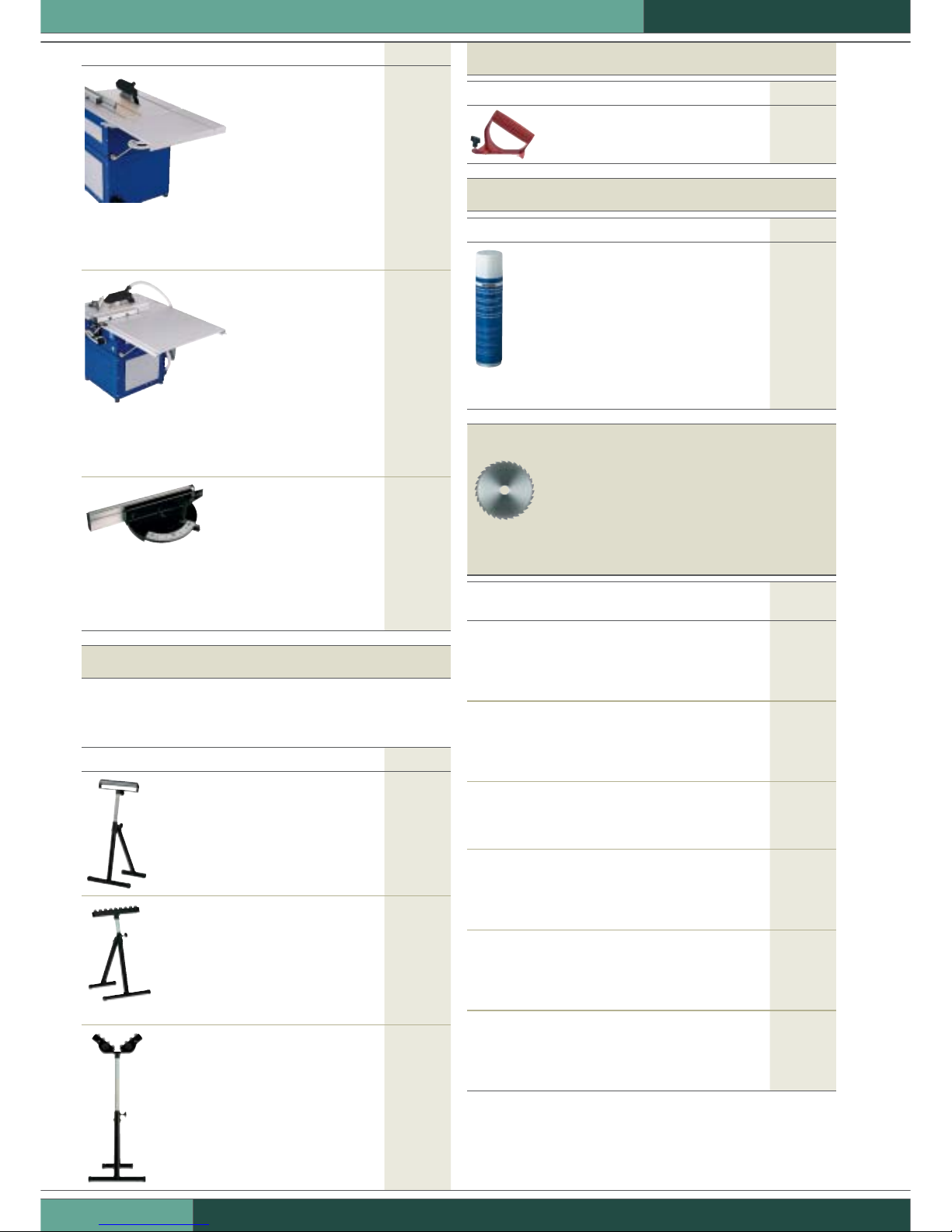

Roller stands
For supporting long workpieces when sawing,
moulding/routing, planing and drilling
Sturdy, height-adjustable and foldable
Order no.
Roller stand RS 420
Width: 400 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053353
Roller stand RS 420 G
Width: 520 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053345
Roller stand RS 420 W
Width: 420 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053361
Circular saw blades
Top cutting results thanks to teeth ground on all sides
and high accuracy of flatness and concentric running
Tungsten carbide blades: long tool life
thanks to use of unmixed carbide
Can be reground repeatedly
Made in Germany
Material Dimensions
mm
Tooth
pitch
Version Order no.
For KGT 501
Tungsten
carbide
250 x 2,8 x 30 34
Alternately bevel-
ground tips, Combo
secondary hole holder
6.28045
Tungsten
carbide
250 x 2,8 x 30 42
Alternately bevel-
ground tips, Combo
secondary hole holder
6.28046
Tungsten
carbide
250 x 2,8 x 30 80
Alternately bevel-
ground tips, Combo
secondary hole holder
6.28087
Tungsten
carbide
250 x 2,8 x 30 80
Flat tooth/
trapezoidal tooth,
5° neg.
6.28088
For KGT 300
Tungsten
carbide
315 x 2,8 x 30 20 Flat tooth,
Combo secondary
hole holder
6.28015
Tungsten
carbide
315 x 2,8 x 30 48 Alternately bevel-
ground tips, 0°
6.28057
Tungsten
carbide
315 x 2,8 x 30 84 Alternately
bevelground tips
6.28058
Tungsten
carbide
315 x 2,8 x 30 96 Flat tooth/
trapezoidal tooth,
5° neg.
6.28092

| 251
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
FLUSH-MOUNTED CIRCULAR SAWS
Quick conversion
The UK 333 can be converted to
a table saw. The universal fence
becomes a parallel stop for cutting
long workpieces.
Always mobile
The stand can be folded in easily.
The UK 333 is therefore easy to
transport and fits in every car.
Versatile cuts
The universal fence can be rotated by
180° for mitre and double-mitre cuts.
The saw blade can be inclined from
–1.5° to 46.5°; ideal for undercutting.
NO TEARS – NO EFFORT.
The basic principle is “pulling instead of pushing”. Tho-
se who have had to cut long, difficult or particularly
hard workpieces know that pulling is easier and clea-
ner than pushing. Considerably less teeth cut through
the wood, the cut can be controlled better and there are
less tears. At the same time, the flush-mounted circular
saw principle protects the saw blades, thus increasing
their service life significantly.
Absolutely flexible
Powerful universal
motor and speed
regulation by Metabo
VC electronics for
constant speed under
moderate loading.
Sturdy and firm
side parts made
of solid steel sheet.
Practical accessories
For example, table length
extension or sliding carriage
– easy to mount.
High quality
universal fence
for angle settings
from –90° to +90°.
Precise workpiece
support
Table-top made of
aluminium profiles.
333 mm pulling length
All normal laminated
floors and panels can
be cut in two completely
by up to 45°.
Always firm
Integrated, folding
stand with level com-
pensation for a firm base.
The machine can also be
operated when folded.
e.g. UK 333

252 |
UK 290
FLUSH-MOUNTED CIRCULAR SAWS
Flush-mounted circular saw
UK 290
Flush-mounted circular saw
UK 290 Set
COMMON FEATURES

The first mobile professional saw with the functions and
advantages of a crosscut and mitre saw, a flush-mounted
circular saw and a table saw

Three machines in one – mitre saw, flush-mounted
logging saw and table saw

Available as a complete set for performing a wide range
of work to a high quality

Quick assembly of the delivered accessories

Mobile due to low weight

Motor with overload protection and soft start technology

Reversible from mitre saw to table saw function in seconds

High quality, swivelling universal guide adjustable on all sides
of the machine table for mitre and parallel cutting

Infinitely swivel and height adjustable saw blade

Integrated, foldable stand with level adjustment for safety

Precise workpiece support made of aluminium profiles

Side part made of solid steel sheet

For single phase alternating current
Type UK 290 UK 290 Set
Order no. 0102900000 0192901000
Special advantages
Upgradable to a system circular saw 
Sliding table, table width and length
extension for precise sawing of large
work pieces

Comparative device characteristics
Dimensions L x W x H 674 x 478 x 878 mm 1.600 x 1.180 x 878 mm
Working height without stand 420 mm 420 mm
Table size 478 x 674 mm 478 x 674 mm
Cutting height 90/45° 60 mm/42 mm 60 mm/42 mm
No load speed 4.500 /min 4.500 /min
Rated load speed 3.800 /min 3.800 /min
Saw blade Ø 220 x 30 mm Ø 220 x 30 mm
Inclination range -1,5 - 46,5 ° -1,5 - 46,5 °
Cutting speed (maximum) 44 m/s 44 m/s
Chain length 290 mm 290 mm
Rated input power 1,8 kW 1,8 kW
Output power 1,2 kW 1,2 kW
Weight (including stand) 25 kg 52 kg
Standard equipment Carbide saw blade with alternately
bevel-ground tooth (36 teeth), foldable stand,
universal guide, splitting wedge, push stick,
chip extraction connections
Carbide saw blade with alternately
bevel-ground tooth (36 teeth), foldable stand,
universal guide, fence profile 700 mm,
splitting wedge, push stick, chip and dust
extraction unit, table length extension,
parallel guide/ripping fence, table length
extension, sliding table
NEW
UK 290 Set
NEW

| 253
UK 333
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
FLUSH-MOUNTED CIRCULAR SAWS
Flush-mounted circular saw
UK 333
Flush-mounted circular saw
UK 333 Set
UK 333 Set
COMMON FEATURES

The first mobile professional saw with the functions
and advantages of a crosscut and mitre saw,
a flush-mounted circular saw and a table saw

Available as a complete set for performing a wide
range of work to a high quality

Quick assembly of the delivered accessories

Mobile due to low weight

Powerful universal motor and speed regulation
with Metabo VC electronics

Motor with overload protection and soft start technology

Reversible from mitre saw to table saw function in seconds

High quality, swivelling universal guide adjustable on all
sides of the machine table for mitre and parallel cutting

Infinitely swivel and height adjustable saw blade

Integrated, foldable stand with level adjustment for safety

Flush-mounted light running slides made of aluminium
die cast with 8 ball bearings for maximum precision

Precise workpiece support made of aluminium profiles

Side part made of solid steel sheet

For single phase alternating current
Type UK 333 UK 333 Set
Order no. 0103330000 0193330000
Special advantages
Sliding table, table width and length
extension for precise sawing of large
work pieces

Comparative device characteristics
Dimensions L x W x H 760 x 585 x 900 mm 1.600 x 1.287 x 900 mm
Working height without stand 418 mm 418 mm
Table size 585 x 750 mm 585 x 750 mm
Cutting height 90/45° 70 mm/49 mm 70 mm/49 mm
No load speed 1.800 - 4.500 /min 1.800 - 4.500 /min
Rated load speed 4.500 /min 4.500 /min
Saw blade Ø 220 x 30 mm Ø 220 x 30 mm
Inclination range -1,5 - 46,5 ° -1,5 - 46,5 °
Cutting speed (maximum) 52 m/s 52 m/s
Chain length 333 mm 333 mm
Rated input power 2,2 kW 2,2 kW
Output power 1,5 kW 1,5 kW
Weight (including stand) 35,9 kg 63 kg
Standard equipment Carbide saw blade with alternately
bevel-ground tooth (36 teeth), foldable stand,
universal guide, splitting wedge,
cutting height indicator, push stick,
chip extraction connections
Carbide saw blade with alternately
bevel-ground tooth (36 teeth), foldable stand,
universal guide, fence profile 700 mm,
splitting wedge, cutting height indicator,
push stick, chip and dust extraction unit,
table length extension, parallel guide/ripping
fence, table length extension, sliding table

254 |

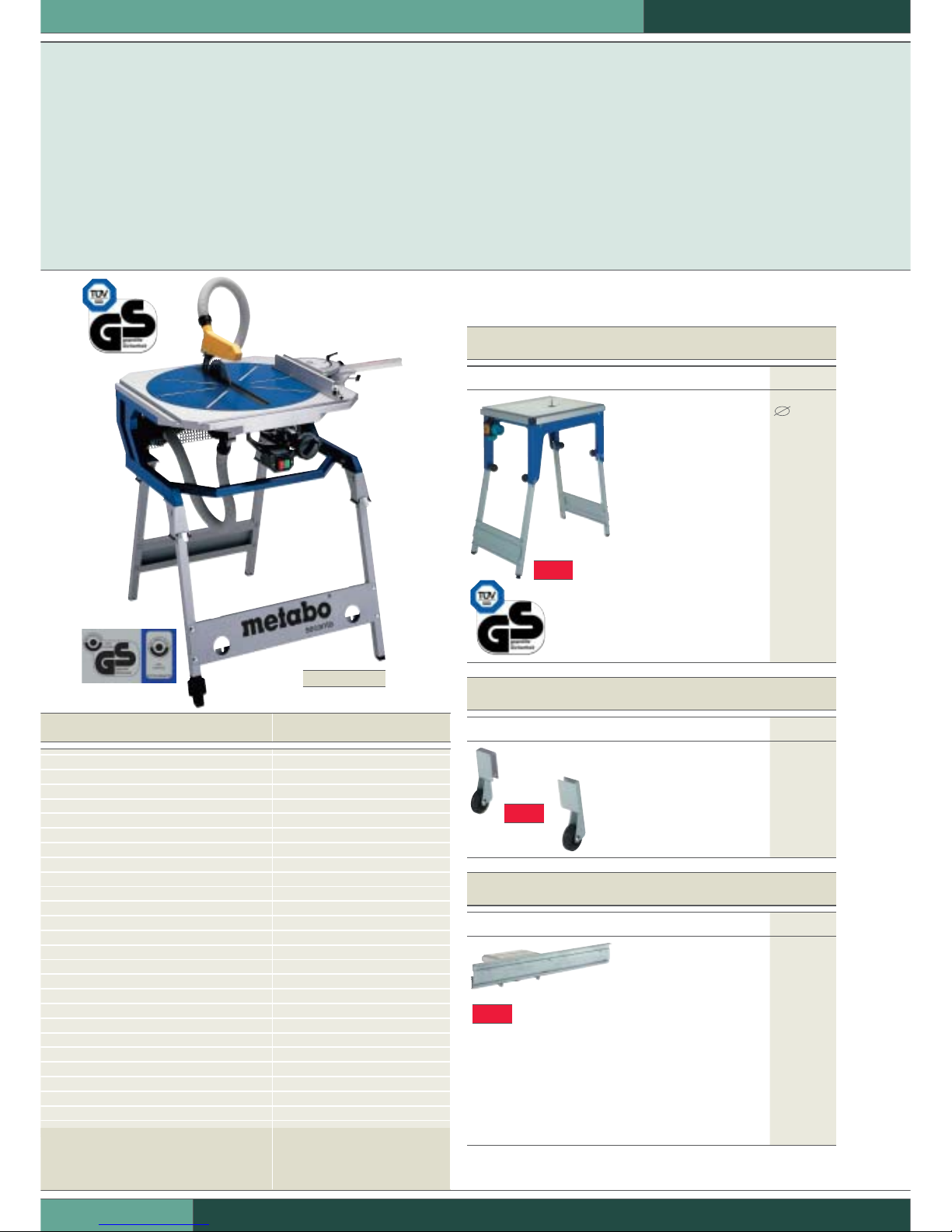

Secanta
Comparative device characteristics
Dimensions L x W x H 730 x 750 x 910 mm
Working height without stand 330 mm
Table size 750 x 730 mm
Cutting height 90/45° 70 mm/49 mm
Turntable diameter 650 mm
No load speed
Rated load speed 4.500 /min
Saw blade Ø 220 x 30 mm
Inclination range -2 - 47 °
Cutting speed (maximum) 52 m/s
Chain length 285 mm
Rated input power 1,8 kW
Output power 1,1 kW
Weight 28 kg
Weight (including stand) 32 kg
Standard equipment Carbide saw blade with
alternately bevel-ground tooth
(36 teeth), foldable stand,
universal guide, splitting wedge,
cutting height indicator,
push stick, chip extraction
connections, chip and dust
extraction unit
Type Secanta
Order no. 0102207009

The first mobile professional saw with the functions and
advantages of a crosscut and mitre saw, a flush-mounted
circular saw and a table saw

Extremely stable, light and mobile due to the magnesium
machine table

Mobile due to low weight

Motor with overload protection and soft start technology

Reversible from mitre saw to table saw function in seconds

Saw table rotatable by 180°, unique worldwide: reduced space
requirement for various applications and enables sawing on
smallest space

High quality, swivelling universal guide adjustable on all
sides of the machine table for mitre and parallel cutting

Infinitely swivel and height adjustable saw blade

Integrated, foldable stand with level adjustment for safety

Flush-mounted light running slides made of aluminium die cast
with 8 ball bearings for maximum precision

For single phase alternating current
Flush-mounted circular saw
Secanta
FLUSH-MOUNTED CIRCULAR SAWS
ACCESSORIES FOR UK 290 AND UK 333
Work benches
Order no.
Flexo 500 universal table
For the stationary
use of Metabo jig
saws, routers and
circular saws (when
using appropriate
accessories)
With foldable
stand and height
adjustment
Also usable as
a table extension
or work station in
combination with
the UK 290 or UK 333
Sturdy steel construction
and a large table top
made from continuous
strand casting
0910064304
Wheel Sets
Order no.
Wheel set
Easy and convenient
to transport
09100643631)
Sliding table
Order no.
Sliding table
Large and wide
work pieces can
be easily guided
through the
saw blade
Clean and precise
cutting results
Easy to mount and
dismount
Safe working conditions
Table size: 310 x 200 mm
Overall length: 1.225 mm
Base weight: 7,7 kg
09100643471)
NEW
NEW
NEW
1) standard equipment with UK 290 set and UK 333 set
EQUIPMENT FEATURES
GB

| 255
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
FLUSH-MOUNTED CIRCULAR SAWS
Table width extensions
Order no.
Table width extension
Increases the
supporting surface;
ideal for large boards
Enables cuts with
parallel guide of
up to 610 mm
Height adjustable
Length: 674 mm
Width: 501 mm
09100644011)
Table length extensions
Order no.
Table length extension
Practical cutting
lengths for longer
work pieces
Safe working
conditions
Length: 380 mm
Width: 476 mm
09100643121)
Parallel stops
Order no.
Parallel guide/
ripping fence
For long cuts or for
cutting large boards
Long attachment
profile for guiding the
work piece safely
09100637071)
Universal guides
Order no.
Universal guide
Can be used as a
spare or as a second
mitre guide
For mitre cuts and
double mitre cuts
Can be turned 180°
(2 x 90°)
Stop slide length: 450 mm
Suitable for: UK 333
0910063057
Splinter protection
Order no.
Splinter protection
(set=10 units)
Is used in front
of the saw blade and
minimises tears on
the recess side of the
workpiece
Suitable for: UK 333
0910062107
Chip and dust extraction units
Order no.
Chip and dust
extraction unit
Extraction at two
points: at chip box
and at the top on
the guard
Clear view of the
work piece
Cleaner working
environment
Extraction nozzle Ø: 100 mm
09100643711)
Work clamps
Order no.
Work clamp
For the secure
clamping of smaller
workpieces,
round stock,
plastic or
aluminium profiles
Suitable for using
with universal guide
Max. clamping
height 75 mm
0910064495
Work clamp
For the secure
clamping of smaller
workpieces,
round stock,
plastic or
aluminium profiles
Suitable for use
on the universal
guide and
sliding table
Also suitable for
the table length
extensions
Max. clamping
height 55 mm
Suitable for: UK 220,
UK 333
0910053124
Work clamp
UK 290/UK 333
For clamping
work pieces on to
the sliding table
0910064509
Saw blade depot
Order no.
NEW Saw blade depot
Saw blade depot
with measuring
tape, angle bevel
and pencil
To safely store
a maximum
of two circular
saw blades
up to Ø 254 mm
(Saw blades not
included)
Suitable for attaching
the Flexo 500 universal
table, the stands for
the UK 290, UK 333 flush-
mounted circular saws
Crosscut, mitre and table
saws.
0910064339
NEW
NEW
NEW
1) standard equipment with UK 290 set and UK 333 set
NEW
NEW
NEW
1) standard equipment with UK 290 set and UK 333 set

256 |
FLUSH-MOUNTED CIRCULAR SAWS
ACCESSORIES FOR UK 333 AND SECANTA
Sliding table
Order no.
Sliding table
Enables exact cuts,
even on larger
workpieces
Sliding table on
ball bearings
Cross-cut guide
for cutting to length
up to 1,000 mm,
with dimension slide,
magnifier and
adjustable
aluminium scale
Easy to mount and
dismount
Cutting width 90°/45°:
650 mm/890 mm
Table size: 350 x 290 mm
Overall length: 1.170 mm
Base weight: 23 kg
0910053205
Guide length extensions
Order no.
Guide length
extension
for sliding tables
For use in the
cross-cut guide
of the sliding table
Enables the
cutting to length
of workpieces of
up to 2,000 mm
Adjustable scale
made of aluminium
0910055100
Table length extensions
Order no.
Table length
extension
For the secure
supporting of long
workpieces
With length guide
and scale, extractable
up to 2,800 mm
With extension
profile and
2 dimension slides for
repeating accuracy
Can be used left and
right for cutting to
length
Foldable and height-
adjustable support leg
Length: 1.000 mm
Width: 200 mm
0910053213
Universal guides
Order no.
Universal guide
Can be used as
a spare or as
a second mitre
guide
For mitre cuts and
double mitre cuts
Can be turned 180°
(2 x 90°)
Stop slide
length: 500 mm
Suitable for:
Secanta
0910053574
Push block
Order no.
Push block
For the lateral
guiding of the
workpiece
0910057200
Spray for maintenance and care
Order no.
Spray for maintenance and care
Ideal for maintenance
and care of wood
processing machines
Contains silicon, prevents
saw dust from sticking,
e.g. to threaded rods or
sliding bearings
Increases the sliding quality
of the workpieces on the
machine table
High cleaning capacity
0911018691
Circular saw blades
Top cutting results thanks to teeth
ground on all sides and high accuracy
of flatness and concentric running
Tungsten carbide blades: long tool life
thanks to use of unmixed carbide
Can be reground repeatedly
Made in Germany
Material Dimensions
mm
Tooth
pitch
Version Order no.
For UK 290, UK 333, Secanta
Tungsten
carbide
220 x 2,6 x 30 36 Alternately
bevel-ground
tips
6.28042
Tungsten
carbide
220 x 2,6 x 30 48 Roof hollow
tooth
6.28043
Tungsten
carbide
220 x 2,6 x 30 80 Flat tooth/
trapezoidal
tooth
6.28084

| 257
PK 200 PK 255 - 3,4 DNPK 255 - 2,5 WN
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
PRECISION CIRCULAR SAWS
Special advantages
Powerful universal motor 
Table length extension and stand
included in the scope of delivery

For single phase alternating
current

For three phase current 
Comparative device characteristics
Dimensions L x W x H 540 x 430 x 330 mm 1.380 x 780 x 1.000 mm 1.380 x 780 x 1.000 mm
Table size 430 x 540 mm 660 x 760 mm 660 x 760 mm
Cutting height 90/45° 65 mm/45 mm 80 mm/53 mm 80 mm/53 mm
Rated load speed 4.000 /min 3.800 /min 3.800 /min
Cutting speed 44 m/s 50 m/s 50 m/s
Maximum cutting width
- With parallel guide/ripping fence 180 mm 300 mm 300 mm
Saw blade Ø 210 x 30 mm Ø 250 x 30 mm Ø 250 x 30 mm
Saw blade swivel range -1,5 - 46,5 ° 0 - 45 ° 0 - 45 °
Rated input power 1,7 kW 2,5 kW 3,4 kW
Output power 1 kW 1,9 kW 2,5 kW
Weight 21 kg 71 kg 71 kg
Standard equipment Carbide circular saw blade
(alternately bevel-ground tooth,
30 teeth), parallel guide/ripping
fence, mitre guide, chip extraction
connections, push stick
Carbide circular saw blade
(alternately bevel-ground tooth,
34 teeth), stand, parallel guide/
ripping fence, mitre guide,
table length extension, chip
extraction connections, push stick
Carbide circular saw blade
(alternately bevel-ground tooth,
34 teeth), stand, parallel guide/
ripping fence, mitre guide, table
length extension, chip extraction
connections, push stick
Type PK 200 PK 255 - 2.5 WN PK 255 - 3.4 DN
Order no. 0102001001 0102582209 0102582802
COMMON FEATURES

Demountable for large range of use

For mobile use

Inclinable saw blade

Lockable switch protects from unauthorised use

Large surface, anodised tables made of aluminium
extruded sections

Dustproof according to TRGS 553 by FPH

Extensive range of accessories
Precision circular saw
PK 200
Precision circular saw
PK 255 - 2.5 WN
Precision circular saw
PK 255 - 3.4 DN
0102001010 GB 230 V

258 |

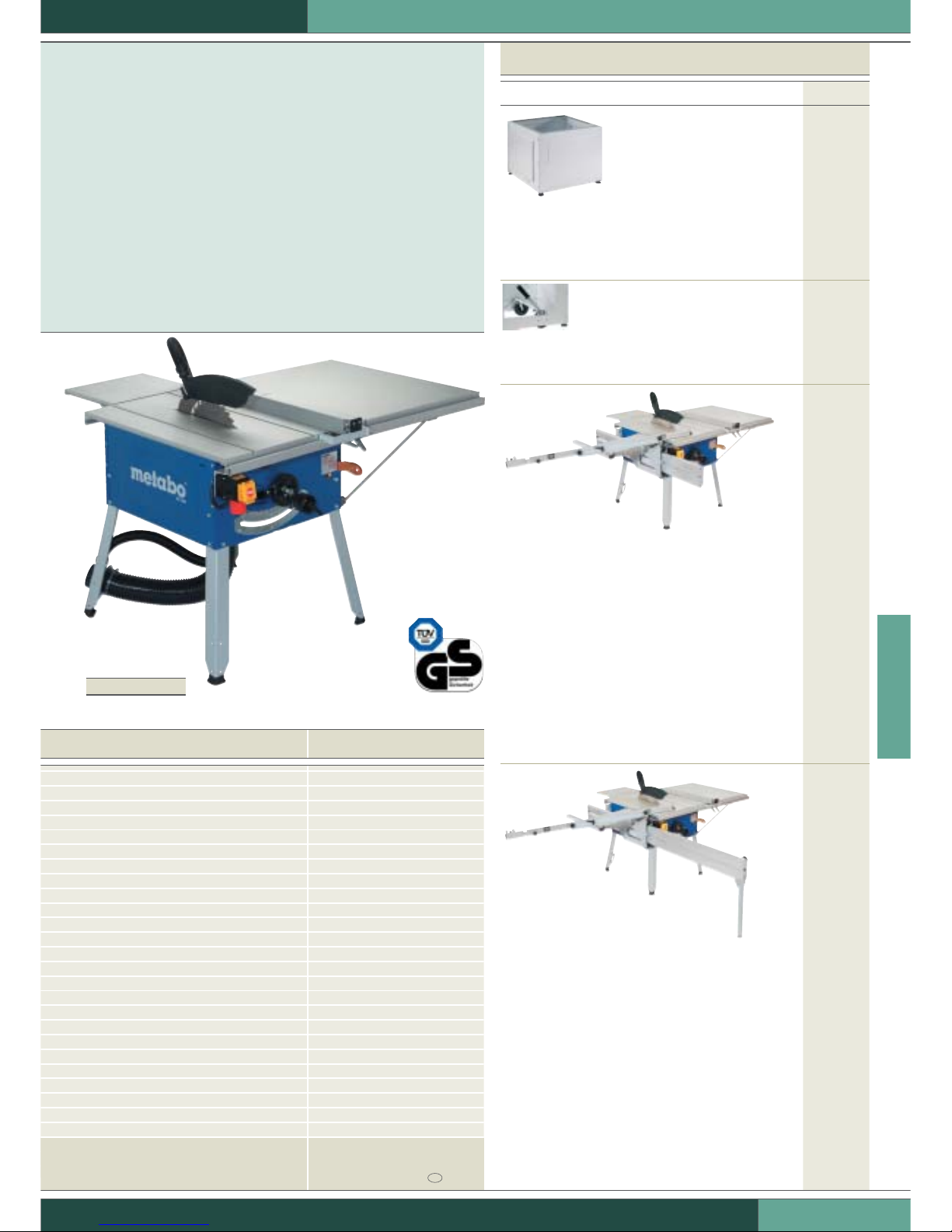

PK 255 - 3,4 DNPK 255 - 2,5 WN
PRECISION CIRCULAR SAWS
COMMON FEATURES

Demountable for large range of use

For mobile use

Powerful universal motor

Table length extension and stand included
in the scope of delivery

Inclinable saw blade

Lockable switch protects from unauthorised use

Large surface, anodised tables made of aluminium
extruded sections

Dustproof according to TRGS 553 by FPH

Extensive range of accessories
Special advantages
For single phase alternating current 
For three phase current 
Comparative device characteristics
Dimensions L x W x H 1.560 x 1.400 x 1.000 mm 1.560 x 1.400 x 1.000 mm
Table size 660 x 760 mm 660 x 760 mm
Cutting height 90/45° 80 mm/53 mm 80 mm/53 mm
Rated load speed 3.800 /min 3.800 /min
Cutting speed 50 m/s 50 m/s
Maximum cutting width
- With parallel guide/ripping fence 300 mm 300 mm
Saw blade Ø 250 x 30 mm Ø 250 x 30 mm
Saw blade swivel range 0 - 45 ° 0 - 45 °
Rated input power 2,5 kW 3,4 kW
Output power 1,9 kW 2,5 kW
Weight 74 kg 74 kg
Standard equipment Carbide circular saw blade (alternately bevel-
ground tooth, 34 teeth), stand, basic support
system (cutting width up to 700 mm), sliding
table for basic support system, sliding table
with support base, parallel guide/ripping
fence, mitre guide, table length extension,
chip extraction connections, push stick
Carbide circular saw blade (alternately bevel-
ground tooth, 34 teeth), stand, basic support
system (cutting width up to 700 mm), sliding
table for basic support system, sliding table
with support base, parallel guide/ripping
fence, mitre guide, table length extension,
chip extraction connections, push stick
... with base support system,
sliding table and table width
extension
Typ PK 255 - 2,5 WN PK 255 - 3,4 DN
Bestell-Nr. 0192552508 0192553407
System circular saw
PK 255 - 2.5 WN
System circular saw
PK 255 - 3.4 DN
GB GB

| 259
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
PRECISION CIRCULAR SAWS
ACCESSORIES FOR PK 200 AND PK 255
Machine stand
Order no.
Machine stand
For ideal working
height and
secure base
Easy to transport
Collapsible
Suitable for: PK 200
0910017047
Wheel Sets
Order no.
Wheel set
For easy transportation
For assembly on the
machine stand
Suitable for: PK 255
0910003313
Base support system
Order no.
Base support system
Necessary for the
mounting of sliding
tables, table length
extensions and table
width extensions
Fastening / locking
at the front and
rear side of the
machine housing
Length: 1,180 mm
Suitable for: PK 200
0910018450
Base support system
Necessary for the
mounting of sliding
tables, table length
extensions and table
width extensions
Fastening / locking
at the front and
rear side of the
machine housing
Length: 1,180 mm
Suitable for: PK 255
0910052411
Accessories for the basic support system
Order no.
Extension
Lengthens the
base support system
by 720 mm
Allows you to make
broader cuts at the
length guide of
up to 1,400 mm
Delivery includes
height-adjustable
support leg
0910050028
Support base
Additional support
leg for better support
of the base support
extension
Height adjustable
0910050036
Order no.
Sliding table
Enables exact cuts,
even on larger
workpieces
Left/right mounting
on the base support
system
Distance to the saw
blade can be adjusted
individually
Eccentric clamp - easy to
mount and remove
Cross-cut guide, length
700 mm, can be swivelled
by 47° in either direction
Suitable for: PK 200
Cutting width 90°/45°:
660 mm/910 mm
Table size: 540 x 240 mm
Overall length: 1.180 mm
0910018434
Sliding table
Enables exact cuts,
even on larger
workpieces
Left/right mounting
on the base support
system
Distance to the saw
blade can be adjusted
individually
Eccentric clamp - easy to
mount and dismount
Cross-cut guide, length
700 mm, can be swivelled
by 47° on both sides
Suitable for: PK 255
Cutting width 90°/45°:
900 mm/1.140 mm
Table size: 540 x 240 mm
Overall length: 1.550 mm
0910052420
Table width extension
The table width
extension increases
the supporting surface;
ideal for cutting boards
Enables cuts on
length guide
up to 700 mm width
When using a base
support extension,
cuts on the length
guide of up to
1,400 mm wide
are possible
Left/right mounting
on the base support
system
Suitable for: PK 200
Length: 585 mm
Width: 200 mm
0910018442
Table width extension Plus
The table width
extension increases
the supporting surface;
ideal for cutting boards
Enables cuts on
length guide
up to 700 mm width
When using a base
support extension,
cuts on the length
guide of up to
1,400 mm wide
are possible
Left/right mounting
on the base support
system
Suitable for: PK 255
Length: 835 mm
Width: 200 mm
0910064517

260 |
PRECISION CIRCULAR SAWS
Order no.
Table length extension
For the secure
supporting of long
workpieces
With height
adjustable
support leg and
auxiliary fence rail
Eccentric clamp -
easy to mount
and dismount
Front/rear mounting
on the base support
system
HC 333: Mounting
possible on both sides
of the dressing plates
Length: 1.000 mm
Width: 200 mm
0910018469
Other accessories
Order no.
Mitre guide
For precise cross cuts
and angular cuts
Infinitely variable,
both sides adjustable,
90°-45°
0910059963
Mitre guide
For precise cross cuts
and angular cuts
With workpiece bearing
made of aluminium
Infinitely variable, both sides
adjustable, 90°-45°
0910008048

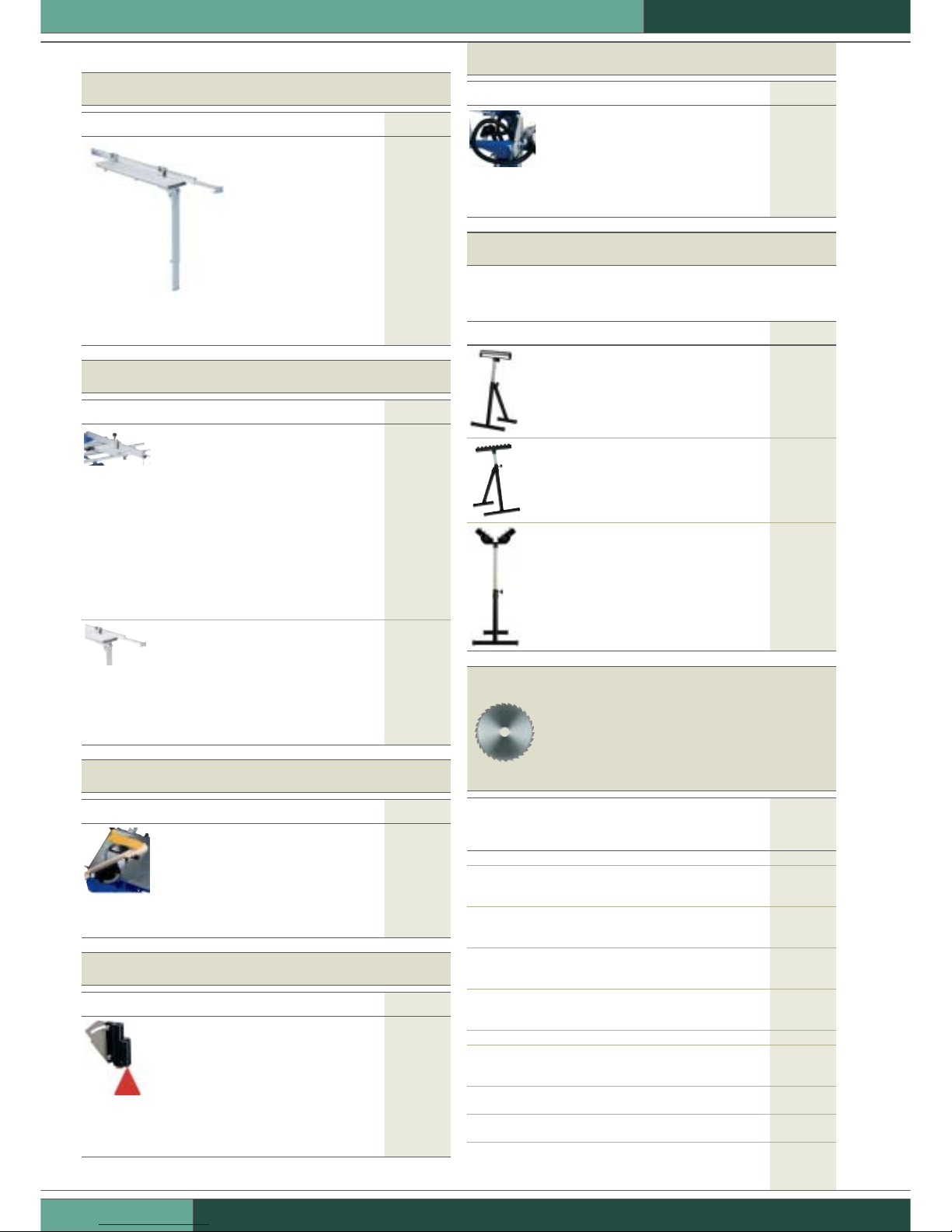

Roller stand RS 420
For supporting long workpieces
when sawing, moulding/routing,
planing and drilling
Sturdy, height-adjustable and foldable
With smooth-rolling special steel rollers
with a high load capacity
Width: 400 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053353
Roller stand RS 420 G
For supporting long workpieces
when sawing, moulding/routing,
planing and drilling
Sturdy, height-adjustable and foldable
With smooth-rolling chromium-plated
ball bearings
Also permits lateral movements
Ideal for panel material
Width: 520 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053345
Roller stand RS 420 W
For supporting long workpieces
when sawing, moulding/routing,
planing and drilling
Sturdy, height-adjustable and foldable
With smooth-rolling chromium-plated
ball bearings
Adjustable ball bearing gib
Also permits lateral movements
Ideal for panel material,
round or square workpieces
Width: 420 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053361
Push block
For the lateral guiding
of the workpiece
0910057200
Chip and dust extraction units
Order no.
Chip and dust extraction unit
For a cleaner work
environment and an
unobstructed view of the
workpiece you want to cut
For connecting to a chip
and dust extraction system
With this accessory,
the machine is dust-proof
Extraction nozzle Ø: 100 mm
Suitable for: PK 200
0910017608
Chip and dust extraction unit
For a cleaner work
environment and an
unobstructed view of the
workpiece you want to cut
For connecting to a chip
and dust extraction system
With this accessory,
the machine is dust-proof
Extraction nozzle Ø: 100 mm
Suitable for: PK 250 until 1993,
PK 255
0910014374
Circular saw blades
Top cutting results thanks to teeth
ground on all sides and high accuracy
of flatness and concentric running
Tungsten carbide blades: long tool
life thanks to use of unmixed carbide
Can be reground repeatedly
Made in Germany
Material Dimensions
mm
Tooth
pitch
Version Order no.
For PK 200
Tungsten
carbide
210 x 2,4 x 30 30 Alternately bevel-
ground tips
6.28036
Tungsten
carbide
210 x 2,4 x 30 42 Alternately bevel-
ground tips
6.28039
Tungsten
carbide
210 x 2,4 x 30 64 Alternately bevel-
ground tips
6.28081
Tungsten
carbide
210 x 2,4 x 30 40 Alternately bevel-
ground tips, 3°
6.28037
For PK 255
Tungsten
carbide
250 x 2,8 x 30 24 Alternately bevel-
ground tips
6.28012
Tungsten
carbide
250 x 2,8 x 30 34 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28045
Tungsten
carbide
250 x 2,8 x 30 42 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28046
Tungsten
carbide
250 x 2,8 x 30 60 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28049
Tungsten
carbide
250 x 3,2 x 30 60 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28050
Tungsten
carbide
250 x 2,8 x 30 80 Alternately bevel-
ground tips,
Combo secondary
hole holder
6.28087
Tungsten
carbide
250 x 2,8 x 30 80 Flat tooth/
trapezoidal tooth,
5° negative
6.28088

| 261
PK 300 - 4,2 DNB
SAWS
SPECIAL-PURPOSE
MACHINES
SYSTEMATIC
ORGANISATIONGARDEN
WOOD-PROCESSING
TECHNOLOGY
WATER-/PUMP
TECHNOLOGY
WELDING
TECHNOLOGY
COMPRESSED
AIR SYSTEMS
PRECISION CIRCULAR SAWS
Comparative device characteristics
Dimensions L x W x H 1.480 x 1.430 x 1.050 mm
Table size 710 x 900 mm
Cutting height 90/45° 104 mm/70 mm
Rated load speed 3.800 /min
Cutting speed 50 m/s
Maximum cutting width
- With parallel guide/ripping fence 340 mm
Saw blade Ø 300 x 30 mm
Saw blade swivel range 0 - 45 °
Rated input power 4,2 kW
Output power 3 kW
Weight 90 kg
Standard equipment Carbide saw blade with
alternately bevel-ground tooth
(28 teeth), stand, parallel guide/
ripping fence with magnifier,
table length extension, table
length extension, chip and dust
extraction unit, chip extraction
connections, push stick
Type PK 300 - 4.2 DNB
Order no. 0103004217

Demountable for large range of use

Powerful universal motor

Parallel guide/ripping fence with magnifier and Nonius
fine adjustment, double eccentric clamp

With table extension in length and width
for larger workpieces

Inclinable saw blade

Large and anodised aluminium table-top

Machine housing made of powder-coated,
torsion-resistant sheet steel

Dustproof according to TRGS 553 by FPH

Extensive range of accessories

For three phase current
Precision circular saw
PK 300 - 4.2 DNB
Accessories
Order no.
Cabinet base
For ideal working height and secure base
Robust, powder-coated sheet
steel construction
Working height: 920 mm
0910050435
Wheel set
For the easy transportation of the
machine mounted on the cabinet base
0910007262
Sliding table short
Enables exact cuts, even on
larger workpieces
Easy fastening of the sliding
table with snap locks
Guide profile made of thick-
walled aluminium and
galvanised round steels
Guided over four rollers
with ball bearings
Guide with mm division, extractable up to 2,600 mm
(telescope profile) with adjustable fence pointer
Cutting width 90°/45°: 610 mm/1.010 mm
Table size: 280 x 525 mm
Overall length: 1.500 mm
Base weight: 25 kg
0910003291
Sliding table long
Enables exact cuts, even on
larger workpieces
Easy fastening of the sliding table
with snap locks
Guide profile made of thick-walled
aluminium and galvanised round
steels with height-adjustable
support leg
Guided over four rollers
with ball bearings
Guide with mm division, extractable up to 2,600 mm
(telescope profile) with adjustable fence pointer
Cutting width 90°/45°: 1.260 mm/1.660 mm
Table size: 280 x 525 mm
Overall length: 2.300 mm
Base weight: 35 kg
0910003321
EQUIPMENT FEATURES
0103003138 GB 230 V

262 |
PRECISION CIRCULAR SAWS
Order no.
Table length extension
The table extension
increases the
supporting surface
(same width as
the work bench),
making it ideal for
cutting long pieces
of wood
Collapsible without
having to use tools
Length: 710 mm
Width: 570 mm
0910003330
Table width extension
The table width
extension increases
the supporting
surface; ideal for
cutting boards
Enables cuts
on length guide
up to 1,010 mm width
Collapsible
without having
to use tools
Length: 900 mm
Width: 710 mm
0910003305
Mitre guide
For precise cross
cuts and angular cuts
With workpiece
bearing made of
aluminium
Infinitely variable, both
sides adjustable, 90°-45°
PK 300: can be used
on the right and left
of the saw blade
0910008048
Roller stands
For supporting long workpieces when sawing,
moulding/routing, planing and drilling
Sturdy, height-adjustable and foldable
Order no.
Roller stand RS 420
With smooth-rolling
special steel rollers with
a high load capacity
Width: 400 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053353
Roller stand RS 420 G
With smooth-rolling
chromium-plated
ball bearings
Also permits lateral movements
Ideal for panel material
Width: 520 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053345
Roller stand RS 420 W
With smooth-rolling
chromium-plated ball bearings
Adjustable ball bearing gib
Also permits lateral movements
Ideal for panel material,
round or square workpieces
Width: 420 mm
Base weight: 100 kg
Height: 640 - 1.015 mm
0910053361
Push block
Order no.
Push block
For the lateral guiding
of the workpiece
0910057200
Spray for maintenance and care
Order no.
Spray for maintenance and care
Ideal for maintenance
and care of wood processing
machines
Contains silicon, prevents
saw dust from sticking,
e.g. to threaded rods
or sliding bearings
Increases the sliding
quality of the workpieces
on the machine table
High cleaning capacity
0911018691
Circular saw blades
Top cutting results thanks to teeth
ground on all sides and high accuracy
of flatness and concentric running
Tungsten carbide blades: long tool
life thanks to use of unmixed carbide
Can be reground repeatedly
Made in Germany
Material Dimensions
mm
Tooth
pitch
Version Order no.
Tungsten
carbide
300 x 2,8 x 30 28 Alternately
bevel-ground
tips,
Combo-
secondary
hole holder
6.28014
Tungsten
carbide
300 x 2,8 x 30 48 Alternately
bevel-ground
tips,
Combo-
secondary
hole holder
6.28051
Tungsten
carbide
300 x 3,2 x 30 60 Roof hollow
tooth,
Combo-
secondary
hole holder
6.28052
Tungsten
carbide
300 x 2,8 x 30 72 Alternately
bevel-ground
tips,
Combo-
secondary
hole holder
6.28053
Tungsten
carbide
300 x 2,8 x 30 96 Alternately
bevel-ground
tips,
Combo-
secondary
hole holder
6.28089
Tungsten
carbide
300 x 2,8 x 30 96 Flat tooth/
trapezoidal
tooth,
Combo-
secondary
hole holder
6.28090
