Metal Fusion King Kooker 4545KDN User manual

ASSEMBLY INSTRUCTIONS
AND USE AND CARE MANUAL
METAL FUSION, INC.
712 St. George Avenue.
Jefferson, LA 70121
If you have any problems or questions
Call Us Toll Free at
1-800-783-3885
7:30 AM to 3:30 P.M. CST • Monday through Friday
[phone]
www.kingkooker.com
MODEL/SERIAL # __________
FAILURE TO FOLLOW THESE INSTRUCTIONS
AND WARNINGS COULD RESULT IN FIRE, EXPLOSION, BURN HAZARD
OR CARBON MONOXIDE POISONING WHICH COULD CAUSE PROPERTY
DAMAGE, PERSONAL INJURY OR DEATH.
THE INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION
NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE
ASSEMBLING AND USING THE APPLIANCE. FOLLOW ALL WARNINGS AND
INSTRUCTIONS WHEN USING THE APPLIANCE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
OUTDOOR COOKERS
4545KDN AND 9090KDN
English

If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Ifodorcontinues,keepawayfromtheapplianceandimmediately
call your Fire Department.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE OR EXPLOSION
WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 feet (3.05m) of any structure,
combustible material or other gas cylinder. Do not locate this
appliance under ANY overhead construction.
3. Only use propane burning units outdoors. Risks include fire and
carbon monoxide fumes. Lack of ventilation can cause injury or
death.
4. Never operate this appliance within 25 feet (7.5m) of any flammable
liquids or vapors.
5. Do not fill cooking vessel beyond maximum fill line (if applicable).
6. Heated liquids and equipment remain at scalding temperatures
long after the cooking process. Never touch cooking appliance
until liquids have cooled to 100°F (38°C) or less.
7. If a fire should occur, keep away from the appliance and immediately
call your Fire Department. Do not attempt to extinguish an oil/
grease fire with water. When cooking, have a Type BC or ABC fire
extinguisher readily available. A Type BC or ABC fire extinguisher
may, in some circumstances, contain the fire.
2
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT IN
FIRE, EXPLOSION, BURN HAZARD OR CARBON MONOXIDE POISONING
WHICH COULD CAUSE PROPERTY DAMAGE,
PERSONAL INJURY OR DEATH.
DANGER
DANGER

3
1) This is an ATTENDED appliance. Do NOT leave this appliance unattended
while the burner is lit or while heating water or cooking food. Monitor the
appliance when hot after use [water above 100 ° F (38 ° C)]. Heated liquid and
equipment can remain at scalding temperatures long after cooking has
ended.
2) Keep children, pets and unauthorized persons away from the appliance at
all times.
3) The use of alcohol, prescription or non-prescription drugs may impair
your ability to properly assemble or safely operate this appliance. Do NOT
assemble or operate this appliance if using alcohol, prescription or non-
prescription drugs.
4) This appliance is for OUTDOOR use only. Do NOT use in a building, garage,
tent or any other enclosed area. Do NOT use in or on a recreational vehicle
or boat. NEVER use this appliance as a heater.
5) Do not locate this appliance under ANY overhead construction. Keep a
minimum clearance of 10ft. (3.05m) from the sides, front and back of the
appliance to ANY construction. Keep the area clear of ANY combustible
material. Do not use on or under ANY apartment or condo balcony or deck.
6) When cooking, the appliance must be on a level, stable noncombustible
surface such as brick, concrete or dirt. Not suitable are surfaces such as
wood, asphalt or plastic which may burn, blister or melt.
7) ALWAYS lock all 4 caster wheels before adding cooking liquid and lighting the
appliance.
8) Check all cooker fittings for leaks before each use. Do not use a flame
to check for gas leaks. Keep the fuel supply hose away from any heated
surfaces. Only the LP hose/regulator assembly specified by Metal Fusion,
Inc. should be used with this appliance.
9) This appliance is only intended for heating water (not oil or grease.) This
appliance is not for frying.
10) NEVER overfill the cooking pot with water. Follow instructions in this
manual for establishing proper water levels.
11) Never drop food or accessories into hot cooking liquid. Lower food and
accessories slowly into the cooking liquid in order to prevent splashing or
overflow. When removing food from the appliance, care shall be taken to avoid
burns from hot cooking liquids.
READ AND UNDERSTAND BEFORE USING THIS PRODUCT
Throughout this manual the words appliance, cooker, boiler, burner and stove will be
used interchangeably to refer to the King Kooker®Outdoor Cooker.

4
12) This appliance and pot, including handles and lids, gets dangerously hot in use.
Use well-insulated pot holders or oven mitts for protection from hot surfaces or
splatter from cooking liquids. Safety goggles are also recommended to protect
you from splatter. The water remains dangerously hot hours after use.
13) Do NOT place an empty cooking vessel on the appliance while in operation.
Use caution when placing anything in the cooking vessel while the appliance is
in operation. Never use a cooking vessel larger than the capacity and diameter
specified in this manual.
14) In the event of rain, snow, hail, sleet or other forms of precipitation while
cooking, cover the cooking vessel immediately and turn off the appliance
burners and gas supply. Do not attempt to move the appliance or cooking
vessel.
15) Do NOT move the appliance when in use. Allow the cooking vessel to cool to
100°F (38°C) before moving or storing.
16) Avoid bumping of or impact with the appliance to prevent contact with hot
appliance, spillage or splashing of hot cooking liquid.
17) See Use and Care section for LP Gas Cylinder Information. A 20 pound
(9 kg) cylinder should be used with this cooker. The LP-gas supply cylinder
used must have a protective collar and must be constructed and marked in
accordance with the specifications for LP-gas cylinders of the U. S. Department
of Transportation (DOT) or the National Standard of Canada, CAN/CSA-B339,
Cylinders, Spheres and Tubes for the Transportation of Dangerous Goods. Do
not store a spare LP-gas cylinder under or near this appliance. Never fill the
cylinder beyond 80% full. For proper vapor withdrawal, the 20 lb. (9 kg) cylinder
should be used in the proper upright position. Cylinder must be turned off while
not in use. Failure to follow these instructions and warnings could result in fire
or explosion which could cause property damage, personal injury or death.
18) This appliance is not intended for commercial use.
19) Use King Kooker
®
appliances only in accordance with state and local
ordinances, or in the absence of local codes, with the National Fuel Gas Code,
ANSIZ223.1/NFPA 54, Storage and Handling of Liquefied Petroleum Gases,
ANSI/NFPA 58 or CSA B149.1, Natural Gas and Propane Installation Code.
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT
IN FIRE, EXPLOSION, BURN HAZARD OR CARBON MONOXIDE POISONING
WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE
USING YOUR KING KOOKER®PRODUCT
TABLE OF CONTENTS
Warnings ......................................................................................................2-4
Table of Contents ................................................................................................ 5
Warranty........................................................................................................ 6
Owners Registration .............................................................................................7-8
Section I - Outdoor Cooker Assembly ............................................................................... 9
Contents ................................................................................................. 10

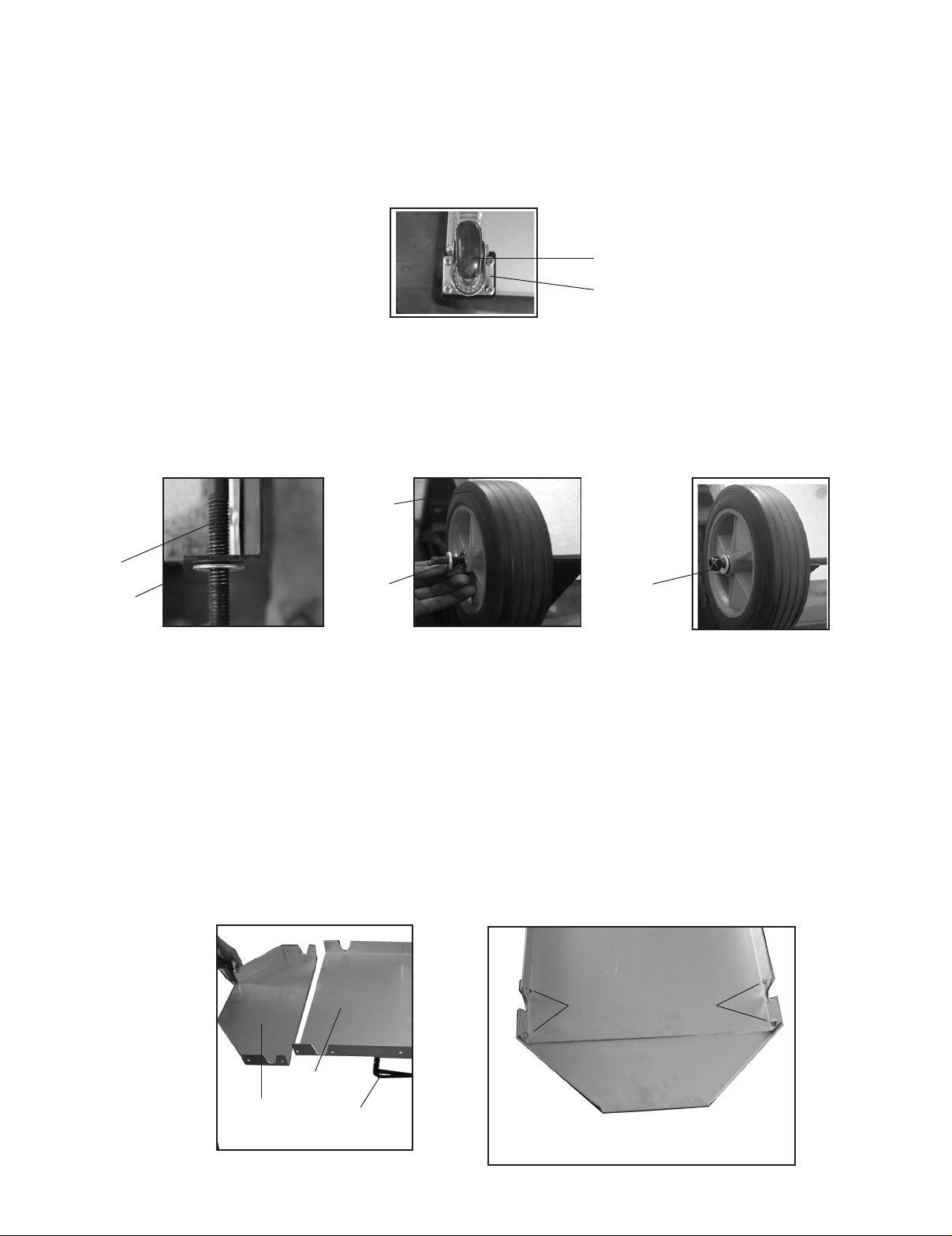

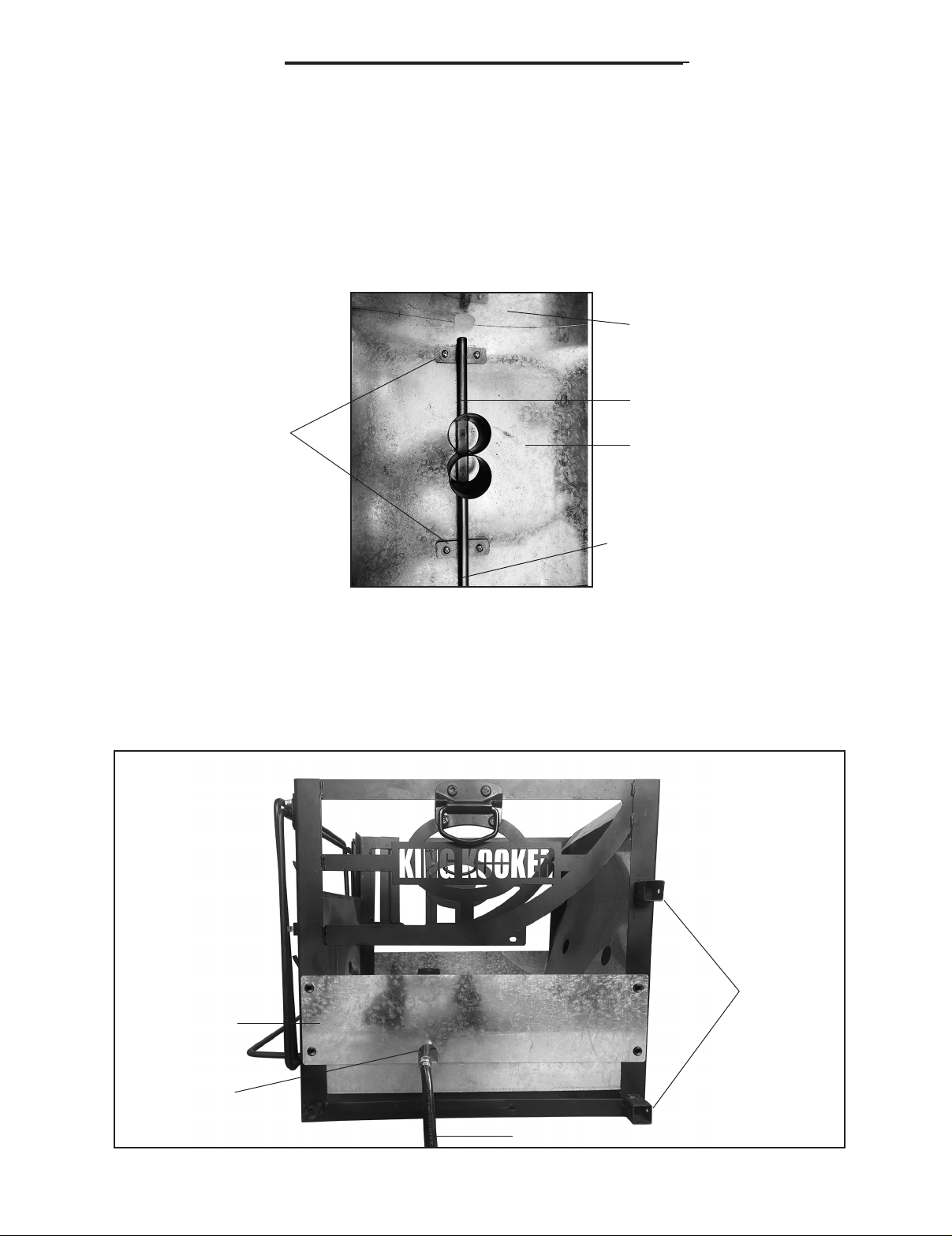

Assembly Instructions .....................................................................................11-15

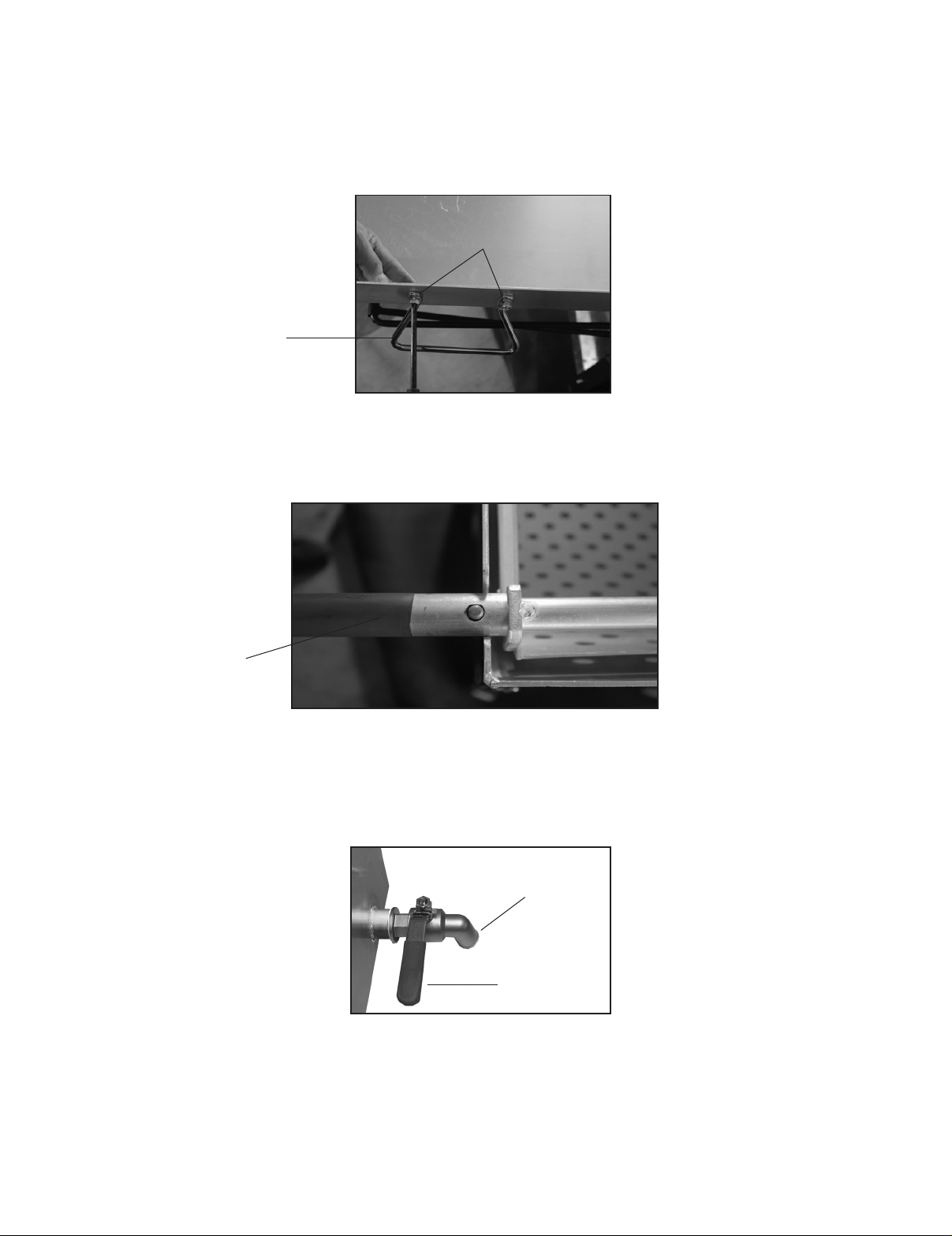

Adjustable Lid Support Rod Instructions.......................................................................16-17
Operation of Spigot Pot...................................................................................... 18
Section II - Use and Care ......................................................................................... 19
Determining Proper Fill Levels for Cooking Vessels ................................................................ 19
LP Gas Cylinder Information .................................................................................. 19
LP Cylinder Installation and Hose Connection Instructions........................................................... 20
Placement Instructions....................................................................................... 21
Leak Test Instructions ....................................................................................... 22
Lighting and Operating Instructions ............................................................................. 23
Turning Off and Storing the Cooker After Use .................................................................... 24
Maintenance of Outdoor Cookers and Accessories ................................................................ 24
Caring for Aluminum Cookware................................................................................ 25
Section III - Recipes ............................................................................................. 25
Boiled Crawfish ............................................................................................ 25
Section IV - Frequently Asked Questions and Answers ................................................................ 26
5
Congratulations on your purchase of your King Kooker® Outdoor Cooker. You will be delighted with
the variety of dishes you can prepare with your cooker. Use your imagination and
you can be a gourmet chef, surprising your friends and family with the wonderful meals you will
prepare. We have provided a few recipes on our website - www.kingkooker.com - to get you
started. There are a wide variety of seasonings/marinades available to experiment with and enjoy.
Cook with your King Kooker® and EAT LIKE A KING!

METAL FUSION, INC.
LIMITED ONE-YEAR WARRANTY
WHAT THIS WARRANTY COVERS
This warranty covers all components of this outdoor cooker to be free from defects in materials and workmanship,
with the exceptions stated below.
HOW LONG COVERAGE LASTS
This warranty runs for one year from the date of purchase. Please keep your receipt with this manual for future
reference.
WHAT IS NOT COVERED
This warranty does not cover the following:
Incidental and Consequential Damages.This warranty does not cover incidental and consequential
damages arising in any way out of the use of this outdoor cooker. The liability of Metal Fusion, Inc. is, in any
event, limited to the amount of the original purchase price of this outdoor cooker, and remains in force only
as long as the product remains in its original, as-built configuration. Some states do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to
you.
Neglectful Operation. This warranty does not cover any loss or damage arising in any way due to
the negligent operation of this outdoor cooker.
Altered, Repaired or Misused Equipment. This warranty does not cover any loss or damage
arising in any way out of the use of this outdoor cooker when it has been altered, repaired by persons other
than Metal Fusion, Inc., or when it has been abused or misused, or when it has been used other than in
accordance with the manufacturer’s operating instructions, including, without limitation, any damage to the
consumer’s pots because they were placed on a lit cooker while the pot is empty.
Other Assumed Responsibilities. Unless otherwise provided by law, this warranty does not cover
any responsibility or liability arising in any way out of the use of this product where that responsibility or
liability was purportedly assumed by any other person or agent.
Paint, Discoloration, and Rust. This warranty does not cover the paint on the outdoor cooker, as in
a normal use of the outdoor cooker, the paint will be burned off. Nor does this warranty cover discoloration
or rust to the cooker as these occurrences are part of the cooker’s normal wear and tear.
WHAT METAL FUSION, INC. WILL DO
Metal Fusion, Inc. will repair or replace any outdoor cooker that proves to be defective in materials or
workmanship. In the event repair is not possible or economically feasible, Metal Fusion, Inc. will replace your
outdoor cooker with an identical or substantially equivalent outdoor cooker. Metal Fusion, Inc. will perform
this service at no charge to you, except for the actual cost of shipping and handling the outdoor cooker or
replacement parts.
HOW TO GET SERVICE
In the event you have a problem or malfunction with your outdoor cooker, simply call Metal Fusion, Inc. at (800)
783-3885.
HOW STATE LAW APPLIES
This warranty gives you specific rights, and you may have other rights which vary from state to state.
6

7
OWNER’S REGISTRATION
Dear Customer,
Thank you for purchasing a King Kooker®! Please take a moment to fill out your
registration form and return it to us. We are always happy to hear suggestions and
comments from our customers about our products. Completion of this registration
allows us to contact you if the need arises. Please keep your receipt with your
instruction manual. It will be necessary as a proof of purchase for us to help you if
there is a problem with your cooker.
Name: __________________________________________________________
E-Mail: __________________________________________________________
Address: ________________________________________________________
________________________________________________________________
________________________________________________________________
Telephone:_______________________________________________________
Model#__________________________________________________________
Date of Purchase__________________________________________________
Place of Purchase _________________________________________________
Price Paid _______________________________________________________
Was this a gift _____ or did you _____ purchase it yourself?
________________________________________________________________
________________________________________________________________
Comments:
________________________________________________________________
________________________________________________________________
A SATISFIED CUSTOMER IS OUR MAIN GOAL. If you have any questions or
problems, please call us at 1-800-783-3885 before returning the product to the
point of purchase. Please have your receipt available when calling.
THANK YOU,
ENJOY YOUR COOKING EXPERIENCE.
CUT HERE

8
________________________
________________________
________________________
METAL FUSION, INC.
712 St. George Avenue
Jefferson, LA 70121
Place
Stamp
Here
FOLD
FOLD
TAPE HERE

9
SECTION I
OUTDOOR COOKER ASSEMBLY
THE USE AND CARE MANUAL MUST BE READ AND UNDERSTOOD
BEFORE USING THE APPLIANCE
Throughout this manual the words appliance, cooker, boiler, burner and stove will be
used interchangeably to refer to the King Kooker®Outdoor Cooker.
TOOLS REQUIRED:
SCREWDRIVER, ADJUSTABLE WRENCH, PIPE WRENCH
LEAK TESTING SOLUTION
1. Before assembling, check that all cooker components are included in the shipping carton. Identify
these cooker parts from the assembly drawing. Accessories may vary according to model. Check
the list of accessories on your cooker box.
(A)
(D)
(H)
(M)
(I)
(J)
(C)
(E)
(L)
(K)
(N)
(O)
(P)
(Q)
(R)
* Models may
vary from picture.
NOT PICTURED - Lighting Rod (B) - see pg. 23
Jet Tube With Installed Hose/Regulator (F) - see pg. 11
Side Heat Plate with Cutout (G) - see pg. 11

If any of the above parts are missing, contact Metal Fusion, Inc. at 1-800-783-3885 between the hours of
7:30 a.m. and 3:30 p.m. CST Monday through Friday for replacements.
2. Read assembly instructions, and understand sequence of assembly, before commencing to
assemble your cooker.
3. After reviewing assembly instructions, go to the Use and Care section of this manual for further
instructions.
10
PARTS LIST
(1) Cooker Stand - (A)
(1) Lighting Rod - (B)
(1) Pot with Basket and Lid - (C)
(1) Ball Valve Drainage Assembly - (D)
(2) Straight Basket Handles (Coated in Heat Resistent Red) - (E)
* Bolts and nuts for each component assembly group listed in red below.
(1) Jet Tube with Installed Hose/Regulator - (F)
(1) Side Heat Plate - (G)
(8) M6X10 - Phillips Head Bolts
(1) Seafood Chute - (K)
(2) Lid Handles (Coated in Heat Resistent Red) - (L)
(8) M6X12 - Hex Phillips Head Bolts
(8) M6 - Nuts
JET TUBE AND SIDE HEAT PLATE
ASSEMBLY LID HANDLES AND
SEAFOOD CHUTE ASSEMBLY
(2) Locking Caster Wheels (Red) - (H)
(8) M8X16 - Phillips Head Bolts
(8) M8 - Lock Nuts
(1) Axel with Threaded Ends - (I)
(2) Large Rubber Wheels - (J)
(4) M12 - Washers
(2) M12 - Nuts
COOKER FRAME WHEEL
ASSEMBLY
TANK RETENTION ASSEMBLY
(1) Tank Ring with installed Wing Bolt and
Extension Arm - (M)
(1) Tank Collar with Extension Arm - (N)
(1) Tank Collar Bracket - (O)
(1) Vertical Support Bar - (P)
(2) Horizontal Support Bars - (Q)
(4) M6X40 - Wing Bolts (Long)
(5) M6X14 - Wing Bolts (Short)
(7) M6 - Nuts
(2) Small Caster Wheels - (R)
(8) M6X10 - Phillips Head Bolts
(8) M6 - Lock Nuts

11
ASSEMBLY INSTRUCTIONS
1. Remove unit from box and remove the pot from the cooker frame. All packaging materials must be
removed before operation of the appliance.
2. JET TUBE ASSEMBLY -
Align the 4 holes on the mounting plates of the jet tube (F) to the 4 holes located on the metallic
plate at the base of the cooker frame. The jet tube and attached hose/regulator should extend out the
side of the cooker frame that does not have the side heat plate pre-installed (side heat plate will be
installed in the next step.) This side of the cooker frame also has the square receiver slots (see picture at
bottom of page.) Attach the jet tube to the plate with the 4 supplied bolts (M6X10). Tighten securely with
a phillips head screwdriver.
3. SIDE HEAT PLATE ASSEMBLY -
Locate the side heat plate (G) and align it with holes located on the sides of the cooker frame. The
cutout should be placed over the jet tube and the heat plate should be orientated to be on the outside of
the cooker frame when installed. Attach to cooker frame using 4 bolts (M6X10).
JET TUBE (F)
PRE-INSTALLED SIDE HEAT PLATE
(CUTOUT IN PLATE NOT USED)
* INSTALLED HOSE/REGULATOR AT END OF
JET TUBE IS NOT PICTURED. SEE GRAPHIC
BELOW FOR PICTURE OF HOSE/REGULATOR.
MOUNTING PLATES
SIDE HEAT
PLATE (G)
INSTALLED HOSE/REGULATOR
CUTOUT OVER
JET TUBE
METALLIC PLATE
SQUARE
RECEIVER
SLOTS

5.5. RUBBER WHEEL ASSEMBLY -
Insert the axel (I) through the holes in the angle iron legs on the side opposite of the installed
caster wheels (back of cooker). Place a at washer (M12) onto each end of the axel protruding on the
outside of the cooker stand. Push a large rubber wheel (J) onto each end of the axel. Place a at washer
(M12) onto each end of the axel protruding from the outside of the wheels. Place a black nut (M12) onto
each threaded end of the axel. Tighten the nuts with an adjustable wrench. Be careful to not
overtighten as the galvinized heat shield can be damaged. Also, overtightening can prevent the wheels
from turning properly.
4.4. CASTER WHEEL ASSEMBLY -
Turn the cooker stand upside down on a at surface so that the open cavity
where the pot will be placed is facing down and the bottom metallic heat plate is facing up. Locate the
square pads on the bottom of the front two legs. There should be 4 holes in these pads. Insert (4)
round phillips head bolts (M8X16) through the mounting holes in one of the red locking caster wheels
(H) and into the holes on the square pads. Screw (4) lock nuts (M8) onto the protruding bolts on the
other side. When all four bolts and lock nuts are installed tighten with an adjustable wrench and a
screwdriver. Repeat these steps for the other locking caster wheel (red).
12
6.6. POT PLACEMENT AND STAND ADJUSTMENT -
Flip the cooker stand over and lock the brake on the caster wheels. Place the pot onto the stand
so that the threaded drain pipe on the pot is located on the opposite side as the jet tube and attached
hose/regulator. At this point use a phillips head screwdriver and make sure all pre-assembled bolts are
tight and that none have loosened during shipping.
7.7. SEAFOOD CHUTE ASSEMBLY -
Position the lid support system so that the lid can lay at across it as shown (see page 17, Figure
4.) Align holes in seafood chute (K) with the front two holes on the side of the pot lid. The seafood chute
must be installed below the pot lid when the lid is open as shown. Attach the chute to the pot lid by
inserting (4) hex phillips head bolts (M6X12) into the aligning chute and pot lid holes. Next, put (4) nuts
(M6) on the protruding ends of the bolts and hand tighten. Once all four bolts and nuts are installed,
tighten securely with an adjustable wrench and a phillips head screwdriver.
LOCKING CASTER WHEEL (H)
LARGE
RUBBER
WHEEL (J)
M12
WASHER
M12
NUT
AXEL (I)
LID
M12 WASHER
SEAFOOD
CHUTE
(K)
LID SUPPORT
SYSTEM ASSEMBLED SEAFOOD CHUTE (K) AND LID
(VIEW FROM ABOVE)
M6X12 HEX
PHILLIPS HEAD BOLTS
AND M6 NUTS
SQUARE PAD

13
9.9. BASKET HANDLES ASSEMBLY -
Next, locate (2) straight basket handles (E) (coated in heat resistent red). Press the pins down
and slide the basket handles onto the basket lifting bar as shown. The pins should pop up to secure the
handles in place. Make sure the handles are oriented as shown.
8.8. LID HANDLES ASSEMBLY -
Leave the lid oriented so that it remains open and at. Locate the (2) lid handles (L) (coated in
heat resistent red.) Align the handles with the remaining (2) holes on each side of the lid. Insert (4) hex
phillips head bolts (M6X12) through the holes in the handles that align with the holes in the lid. Make
sure the handles are oriented so that they are down towards the oor when the lid is open. Screw (4)
nuts (M6) onto the protruding ends of the bolts. Once all nuts are installed, tighten with an
adjustable wrench and phillips head screwdriver.
10.10. BALL VALVE DRAINAGE ASSEMBLY -
Locate the ball valve drainage assembly (D). Screw the assembly into the pot’s threaded receiver
drain pipe (make sure that the rubber o-ring between the ball valve drainage assembly and the threaded
receiver remains in place). Tighten securely into pipe with a pipe wrench. Make sure the ball valve is in
the OFF/CLOSED position (see page 18), and that the nozzle end is oriented to pour down.
SPIGOT
VALVE IN
OFF/CLOSED
POSITION
* Models may
vary from picture.
LID HANDLE
(L)
M6X12 HEX
PHILLIPS HEAD BOLTS
AND M6 NUTS
STRAIGHT
BASKET HANDLE
(E)

14

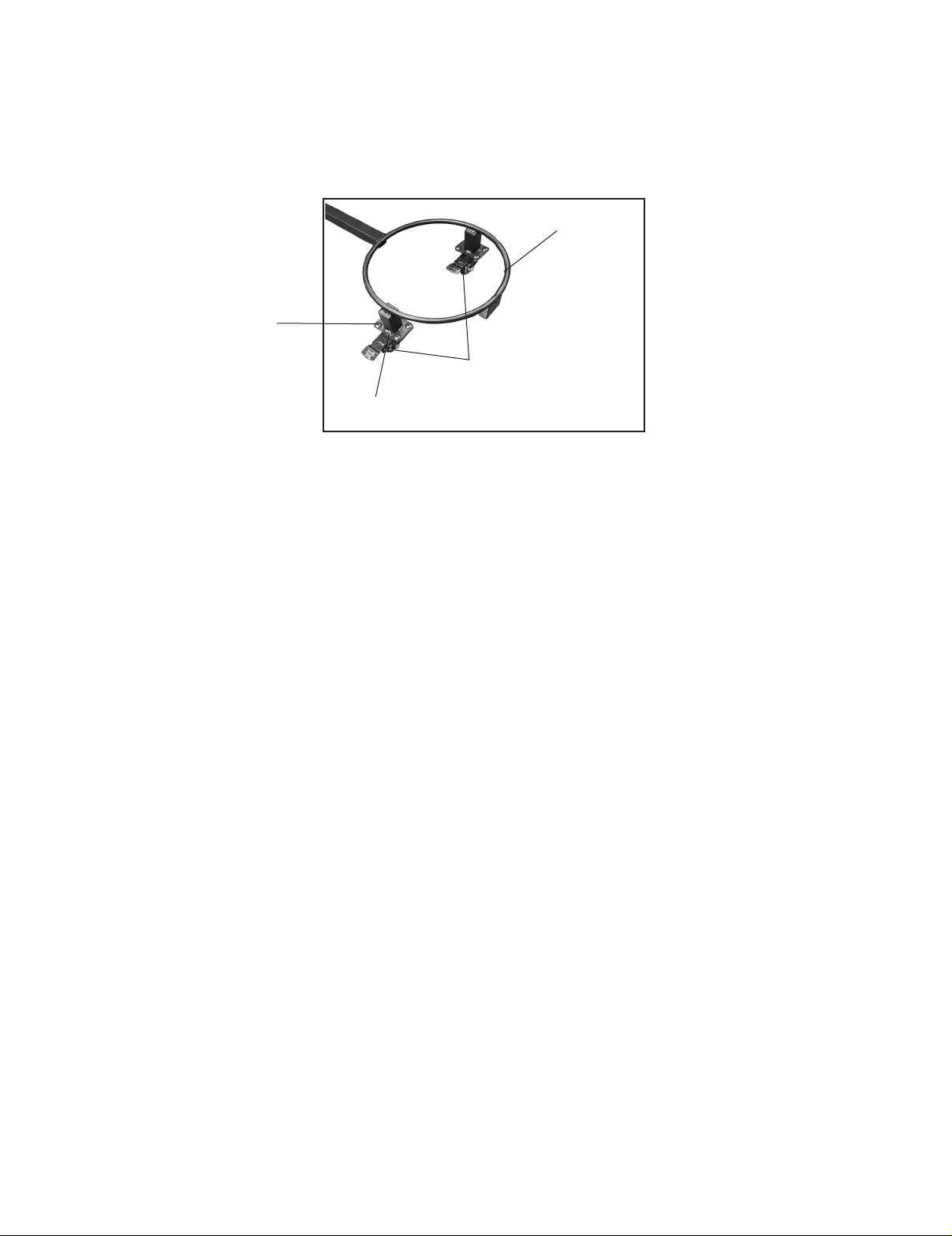

11.11. TANK RETENTION ASSEMBLY -
Use (8) phillips head bolts (M6X10) and (8) lock nuts (M6) to install the (2) small black caster wheels (R)
onto the bottom of the tank ring (M). (4) bolts and (4) lock nuts are needed per wheel. Align the holes on
the tank ring mounting plates and caster wheel mounting plates and insert bolt. Hand tighten with lock
nut. Repeat this step for the remaining 7 bolts/nuts. Once both wheels are installed, tighen all bolts/nuts
with a phillips head screw driver and an adjustable wrench.
TANK RING WITH
EXTENSION ARM (M)
SMALL CASTER
WHEELS (R)
M6X10 PHILLIPS
HEAD BOLTS AND
M6 LOCK NUTS
MOUNTING
PLATE
For the following tank retention assembly instructions, reference page 15 for detailed pictures of the
completed assembly.
Locate the square receiver slots on the side of the cooker stand, located on same side that has the jet
tube and attached hose/regulator. Insert the tank ring extension arm (M) into the bottom square receiver
slot on the cooker stand. Make sure caster wheels are oriented down towards the oor. Make sure that
the hole in tank ring extension arm is aligned with the hole in the square receiver slot. Use one (1) long
wing bolt (M6X40) and (1) nut (M6) to connect the tank ring arm to the cooker stand.
Insert the tank collar extension arm (N) into the top square receiver slot on the cooker stand. Make sure
that the hole in the tank collar extension arm is aligned with the hole in the square receiver slot. Use (1)
long wing bolt (M6X40) and (1) nut (M6) to connect the tank collar exension arm to the stand.
Locate the vertical support bar (P). This bar should have a bend in the middle. Align the holes at the top
and the bottom of this support bar with the holes located in the middle of the tank collar extension arm
(N) and the tank ring extension arm (M). Fasten together with (2) long wing bolts (M6X40) and (2) nuts
(M6). Do not overtighten.
Locate the two horizontal support bars (Q). Remove the nut that was used to fasten the vertical
support bar (P) to the tank ring extension arm (M) (the lower extension arm.) Align a hole of one of the
horizontal support bars (Q) with the protruding wing bolt end and fasten with the removed nut. Use (1)
short wing bolt (M6X14) and (1) nut (M6) to fasten the other end of this support bar to the
aligning hole at the bottom of the cooker stand. Attach the remaining horizontal support bar (Q) to the
hole in the middle of the vertical support bar (P) and the aligning hole on the cooker stand using 2 short
wing bolts (M6X14) and nuts (M6).

15
Locate the tank collar bracket (O) and attach it to the curved tank collar that extends from the tank collar
extension arm (N). Align the holes on each end of the tank collar bracket to the holes located on the tank
collar. Insert two short wing bolts (M6X14) through the holes and hand tighten into the nuts that are
pre-attached to the tank collar bracket (O).
The tank collar assembly and long silver wing bolt (pre-attached to tank ring) will be removed and
re-attached when installing an LP Gas Cylinder (see Use and Care section.)
(4) M6X40 WING BOLTS
(LONG)
(5) M6X14 WING
BOLTS
(SHORT)
(1) LONG WING
BOLT
(SILVER)
SQUARE RECEIVER SLOTS
TANK RING
EXTENSION ARM (M))
TANK COLLAR
EXTENSION ARM (N)
CURVED
TANK COLLAR
TANK COLLAR
BRACKET (O)
TANK RING
VERTICAL
SUPPORT BAR (P)
HORIZONTAL
SUPPORT BARS (Q)
* Models may
vary from picture.
Picture 1 - Rod & Ring Details
Picture 2 - Bolt Detals

16
ADJUSTABLE LID SUPPORT SYSTEM INSTRUCTIONS
Your cooker includes an adjustable rod system that can be used to support the pot’s lid when opened.
Food contents within the pot’s basket can be emptied onto the lid when supported by the support rod
system and then distributed into food trays or containers. The rod system can be adjusted so that the lid
when opened and resting on the lid support rod will either be in an “angled” or “straight” position.
CAUTION: When removing food from the appliance, care shall be taken to avoid burns from hot cooking
liquids and food. This appliance and pot, including handles and lids, gets dangerously hot in
use. Use well-insulated pot holders or oven mitts for protection from hot surfaces or splatter
from cooking liquids. Safety goggles are also recommended to protect you from liquid splatter.
ALWAYS set the adjustable lid support system to the desired position before lighting or using the
cooker.
See following illustrations for pictures of the adjustable lid support system in its’ storage, angled and
straight orientation. The lid support system consists of an “upper” bar that is connected to the
cooker frame and remains stationary, a “center” bar and a “lower” bar which rotates into position to form
a lid support. After reading the following lid support system position instructions, go to the Use and
Care Section of this manual for further instructions.
STORAGE POSITION
The adjustable lid support system should be in the storage position when removed from the
packaging. After use of lid support system in angled or straight positions, rotate “lower” bar
up and “center” bar down. Insert the two rods located between the “center” and “lower” bars
into the clamps as shown in Figure 1 above to return to the storage position.
CLAMPS
“LOWER” BAR FIGURE 1
“CENTER” BAR
“UPPER” BAR
* Models may
vary from picture.

17
ANGLED LID POSITION
To install the adjustable lid support system in the angled position, remove the rods from the clamps.
Rotate the “lower” bar downward and the “center” bar upward. Place the “lower” bar onto lower set of
tabs (2) which are attached to the cooker frame as shown in Figure 2 and Figure 3 above.
FIGURE 2 FIGURE 3
LOWER
TAB
LOWER TAB
STRAIGHT LID POSITION
To install the adjustable lid support system in the straight position, remove the rods from the clamps.
Rotate the “lower” bar downward and the “center” bar upward. Place the “lower” bar onto upper set of
tabs (2) which are attached to the cooker frame as shown in Figure 4 and Figure 5 above.
FIGURE 4
FIGURE 5
UPPER
TAB
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT
IN FIRE, EXPLOSION, BURN HAZARD OR CARBON MONOXIDE POISONING
WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
“LOWER”
BAR
“CENTER”
BAR
LOWER
TAB
“LOWER”
BAR
“CENTER”
BAR
UPPER
TAB
UPPER
TAB
* Models may
vary from picture.
* Models may
vary from picture.
* Models may
vary from picture.
* Models may
vary from picture.

OPERATION OF SPIGOT POT
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING THIS PRODUCT.
ALWAYS ALLOW COOKING LIQUID AND VALVEAND VALVE TO COOL BEFORE
OPERATING SPIGOTSPIGOT (BELOW 100°F (38°C)). COOKING LIQUID CAN REMAIN
DANGEROUSLY HOT HOURS AFTER USE. ALWAYS USE A THERMOMETER TO
CHECK TEMPERATURE OF THE COOKING LIQUID BEFORE OPERATING THE
SPIGOT.
OPERATING INSTRUCTIONS FOR SPIGOT POT :
1. Before adding cooking liquid, make sure valve is in the OFF/Closed position as pictured
in Figure 1 below. To close spigot, slide locking sleeve up on handle and turn valve
clockwise until it stops. Once released the locking sleeve will slide into locked position.
2. NEVER open the valve during use or before the liquid has cooled below 100°F (38°C).
3. Upon completion of cooking, allow cooking liquid to cool before operating the valve
(below 100°F (38°C)).
4. To open spigot, slide locking sleeve up on handle and turn valve counterclockwise to the
ON/OPEN position. See below Figure 2.
5. Clean the pot as per instructions on pg 25 .
6. Always close the spigot valve after cleaning.
18
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT
IN FIRE, EXPLOSION, BURN HAZARD OR CARBON MONOXIDE POISONING
WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
SPIGOT
VALVE IN
ON/OPEN POSITION
FIGURE 2
SPIGOT
VALVE IN
OFF/CLOSED
POSITION
Locking Sleeve
Locking Sleeve FIGURE 1

19
SECTION II
USE AND CARE
Throughout this manual the words appliance, cooker, boiler, burner and stove will be used
interchangeably to refer to the King Kooker®Outdoor Cooker.
READ AND UNDERSTAND BEFORE USING THIS APPLIANCE
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT IN FIRE,
EXPLOSION, BURN HAZARD OR CARBON MONOXIDE POISONING WHICH COULD CAUSE
PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
LP GAS CYLINDER INFORMATION
King Kooker® Outdoor Cookers are manufactured for use with 20lb. (9 kg) LP Gas Cylinders.
Important information to remember about LP Gas cylinders include:
1. Always read and follow the cylinder manufacturer’s instructions.
2. Make sure that the gas cylinder is not overfilled. The maximum weight of a properly filled 20 lb.
(9 kg) LP gas cylinder is approximately 38 lbs (17 kg). Never fill the cylinder beyond 80% full.
3. Make sure that the cylinder valve has the proper connection for a Type 1 appliance fitting.
4. Do not store a spare LP gas cylinder under or near this appliance.
5. Disconnect the cylinder from the cooker for storage.
6. Store the cylinder out of the reach of children.
7. Do not use or store the cylinder in a building, garage or enclosed area.
8. Always use a 20 lb. (9 kg) cylinder in the proper upright position for the proper vapor withdrawal.
It should also be stored and transported in the upright position.
9. The cylinder must have a protective collar to protect the cylinder valve.
10. Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of
dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps
or plugs may result in leakage of propane.
11. Cylinder must be turned OFF while not in use.
ALWAYS READ AND FOLLOW THESE AND THE CYLINDER MANUFACTURER’S INSTRUCTIONS.
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT IN FIRE,
EXPLOSION, BURN HAZARD OR CARBON MONOXIDE POISONING WHICH COULD CAUSE
PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
DETERMINING PROPER FILL LEVELS FOR COOKING VESSELS
This appliance is only intended for heating water (not oil or grease.) This appliance is not for frying.
Never overfill the cooking vessel with water. Never fill a pot beyond the maximum fill
line. If the pot being used does not have a maximum fill line, follow these instructions to determine
the amount of cooking liquid to be used:
a. Place the food product in or on the holder.
b. Place the food product and holder into the empty vessel.
c. Fill the vessel with water just until the food product is completely submerged. There must
be a minimum of 3 inches (7.5 cm) between the water level and top of the vessel.
d. Remove the food product from the vessel and either mark the water level on the side
of the vessel or measure the amount of water in the vessel.
e. Remove the water and completely dry the vessel and the food product.
f. This is the amount of cooking liquid the vessel is to be filled with to cook the food product.

20
LP CYLINDER INSTALLATION AND
HOSE CONNECTION INSTRUCTIONS
1. Loosen and remove the long silver wing bolt attached to the tank ring. Remove the tank
collar bracket from the tank collar by loosening the two short wing bolts. Place the LP gas
cylinder into the tank ring as shown above. Re-attach the tank collar bracket to the tank collar
with the two short wing bolts. Insert and hand tighten the long silver wing bolt to the tank ring to
secure the LP gas cylinder.
2. Check that your hose assembly valve is set to not allow gas flow. Turn the regulator control
counterclockwise until it stops. This is the OFF position.
3. Attach the regulator to the cylinder valve by turning the Type 1 fitting clockwise. Hand tighten
with the regulator positioned upright.
4. Before lighting the cooker, check that the jet pipes and orifice(s) are free from obstruction. The
orifice(s) under the jet tube should be positioned pointing up directly through the tube as per
Figure 1. Both situations must be corrected if necessary before lighting to prevent flashback.
* Models may vary
from picture.
ADJUSTABLE
REGULATOR
TYPE 1
CONNECTION
BRASS
ADAPTER
20 LB.
LP GAS
CYLINDER
TANK
COLLAR
BRACKET
TANK
RING
ORIFICE
TOP OF
JET PIPE
FIGURE 1
