Metal Fusion King Kooker OUTDOOR COOKER User manual

WARNING
®
ASSEMBLY INSTRUCTIONS
AND
USE AND CARE MANUAL
THE INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION
NECESSARY FOR THE PROPER ASSEMBLY AND SAFE USE OF THE APPLIANCE.
READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE
ASSEMBLING AND USING THE APPLIANCE. FOLLOW ALL WARNINGS AND
INSTRUCTIONS WHEN USING THE APPLIANCE.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
METAL FUSION, INC.
712 St. George Avenue.
Jefferson, LA 70121
For Questions and Information
Call Us Toll Free at
1-800-783-3885
7:30 AM to 3:30 P.M. CST • Monday through Friday
[phone]
www.kingkooker.com
OUTDOOR COOKERS
CAST COOKER
MODEL/SERIAL # __________
FAILURE TO FOLLOW THESE INSTRUCTIONS
AND WARNINGS COULD RESULT IN FIRE, EXPLOSION OR BURN HAZARD
WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
36825GAkk 3/29/06 9:49 AM Page 1

FFOORRYYOOUURRSSAAFFEETTYY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call your Fire Department.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE OR EXPLOSION
WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
1. Never operate this appliance unattended.
2. Never operate this appliance within 10 feet or 3.05m of any
structure, combustible material or other gas cylinder.
3. Never operate this appliance within 25 feet or 7.5 m of any
flammable liquids.
4. Do not fill cooking vessel beyond maximum fill line.
5. When cooking with oil/grease, never allow the oil/grease to get
hotter than 350˚F (177˚C). If the temperature exceeds 350˚F (177˚C)
or if oil begins to smoke, immediately turn the burner or gas
supply OFF.
6. Heated liquids remain at scalding temperatures long after the
cooking process. Never touch cooking appliance until liquids
have cooled to 100˚F or 38˚C or less.
7. If a fire should occur, keep away from the appliance and
immediately call your Fire Department. Do not attempt to
extinguish an oil/grease fire with water.
2
WARNING
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE,
EXPLOSION OR BURN HAZARD WHICH COULD CAUSE PROPERTY
DAMAGE, PERSONAL INJURY OR DEATH.
WARNING
DANGER
DANGER
36825GAkk 3/29/06 9:49 AM Page 2

3
1) This is an ATTENDED appliance. Do NOT leave this appliance unattended
while heating oil, grease or water, or cooking food. Monitor the appliance
when hot after use [oil, grease or water above 100˚ F (38˚C)]. Heated liquid
can remain at scalding temperatures long after cooking has ended.
2) Keep children and pets away from the appliance at all times.
3) The use of alcohol, prescription or non-prescription drugs may impair your
ability to properly assemble or safely operate this appliance. Do NOT
assemble or operate this appliance if using alcohol, prescription or non-
prescription drugs.
4) This appliance is for OUTDOOR use only. Do NOT use in a building, garage
or any other enclosed area. Do NOT use in or on a recreational vehicle or
boat. NEVER use this appliance as a heater.
5) Do not locate this appliance under ANY overhead construction. Keep a
minimum clearance of 10 feet from the sides, front and back of the
appliance to ANY construction. Keep the area clear of any combustible
material.
6) When cooking, the fryer/boiler must be on a level, stable noncombustible
surface in an area clear of combustible material. An asphalt surface
(blacktop) may not be acceptable for this purpose.
7) Keep the fuel supply hose away from any heated surfaces.
8) When cooking with oil or grease, the thermometer provided MUST be used.
Follow instructions in this manual for proper installation and use of
thermometer. If the thermometer supplied with the fryer/boiler has been
lost or damaged, a replacement thermometer specified by Metal Fusion,
Inc. shall be obtained before using the appliance.
9) If the temperature exceeds 350˚F or 177˚C or if oil begins to smoke,
immediately turn the burner or gas supply OFF and wait for the temperature
to decrease to less than 350˚F or 177˚C before relighting burner according
to the instructions in this manual.
10) When cooking with oil/grease, have a Type BC or ABC fire extinguisher
readily available. In the event of an oil/grease fire, do not attempt to
extinguish with water. Immediately call the Fire Department. A Type BC or
ABC fire extinguisher may, in some circumstances, contain the fire.
11) NEVER overfill the cooking pot with oil, grease or water. Follow
instructions in this manual for establishing proper oil, grease or water
levels.
WARNING
READ AND UNDERSTAND BEFORE USING THIS PRODUCT
(Throughout this manual the words appliance, cooker, fryer/boiler, burner and stove will
be used interchangeably to refer to the King Kooker®Outdoor Cooker.)
36825GAkk 3/29/06 9:49 AM Page 3

4
12) Introduction of water or ice from any source into the oil/grease may cause
overflow and severe burns from hot oil and water splatter. When frying with
oil/grease, all food products MUST be completely thawed and towel dried
before being immersed in the fryer.
13) Never drop food or accessories into hot cooking liquid. Lower food and
accessories slowly into the cooking liquid in order to prevent splashing or
overflow. When removing food from the appliance, care shall be taken to avoid
burns from hot cooking liquids.
14) This appliance and pot, including handles and lids, gets dangerously hot in
use. Use well-insulated pot holders or oven mitts for protection from hot
surfaces or splatter from cooking liquids. Safety goggles are also
recommended to protect you from oil splatter. The oil remains dangerously hot
hours after use.
15) Do NOT place an empty cooking vessel on the appliance while in operation. Use
caution when placing anything in the cooking vessel while the appliance is in
operation. Never use a cooking vessel larger than the capacity and diameter
speciified in this manual.
16) In the event of rain, snow, hail, sleet or other forms of precipitation while
cooking with oil/grease, cover the cooking vessel immediately and turn off the
appliance burners and gas supply. Do not attempt to move the appliance or
cooking vessel.
17) Do NOT move the appliance when in use. Allow the cooking vessel to cool to
100˚F or 38˚C before moving or storing.
18) Avoid bumping of or impact with the appliance to prevent spillage or splashing
of hot cooking liquid.
19) See Use and Care section for LP Gas Cylinder Information. A 20 pound cylinder
should be used with this cooker. The LP-gas supply cylinder used must have a
protective collar and must be constructed and marked in accordance with the
specifications for LP-gas cylinders fo the U. S. Department of Transportation
(DOT) or the National Standard of Canada,
CAN/CSA-B339, Cylinders, Spheres
and Tubes for the Transportation of Dangerous Goods.
Do not store a spare LP-
gas cylinder under or near this appliance. Never fill the cylinder beyond 80%
full. For proper vapor withdrawal, the 20 lb. Cylinder should be used in the
proper upright position. Failure to follow these instructions and warnings could
result in fire or explosion which could cause property damage, personal injury
or death.
20) This appliance is not intended for commercial use.
21) Use King Kooker
®
appliances only in accordance with state and local
ordinances, or in the absence of local codes, with the National Fuel Gas Code,
ANSIZ223.1/NFPA 54, Storage and Handling of Liquefied Petroleum Gases,
ANSI/NFPA 58 or CSA B149.1, Natural Gas and Propane Installation Code.
WARNING
FAILURE TO COMPLY WITH THESE WARNINGS AND INSTRUCTIONS CAN
RESULT IN FIRE, EXPLOSION OR BURN HAZARD WHICH COULD CAUSE
PROPERTY DAMAGE, PERSONAL INJURY AND DEATH.
36825GAkk 3/29/06 9:49 AM Page 4

READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE USING YOUR KING KOOKER®PRODUCT
TABLE OF CONTENTS
Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Table of Contents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Owners Registration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-8
Section I - King Kooker®Outdoor Cooker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cast Cooker Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-11
KKDFF30T Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CS8T Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Assembly Instructions for 2500 Basket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Assembly Instructions for Bolt Together Cooker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13
Assembly Instructions for Bolt Together Cooker with Welded Top Ring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Assembly Instructions for Bolt Together Work Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Casting Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
CS01 Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
1803PKP Work Table Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CS28 Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Camp Stove Leg Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Fry Basket Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Directions for Using the King Kooker Steamer/Fryer Stand and Steamer Plate and Lifting Handle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Model #TWT Worktable Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Section II - Use and Care of King Kooker®Outdoor Cookers and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connection Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Leak Test Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Placement Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
LP Gas Cylinder Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Instructions For Using a Thermometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Lighting Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-23
Special Precautions For Using Outdoor Cookers For Deep Frying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Turning Off and Storing the Cooker after Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Maintenance Of Outdoor Cookers And Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Caring For Aluminum and Cast Iron Cookware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
Section III - Cooking Specialties . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Deep Fried Turkey Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
Injecting Techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
King Kooker®Steamer Package Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
2004NIMF Outdoor Chef’s Hot Tub Instructions/ 2024 Bolt Together Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-32
Operation of Spigot Pot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Section IV - Recipes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Boiled Seafood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Blackened Fish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Barbecued Shrimp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
King Kooker®Beans . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
King Kooker®12 Qt. Dutch Oven Jambalaya. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Fried Seafood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Deep Fried Turkey. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Deep Fried Turkey Breast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fried Chicken . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fried Onion Rings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Fried Mushrooms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Deep Fried Boston Butt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
King Kooker®Wings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Steamed Clams and Mussels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Steamed Crab, Shrimp, and Lobster. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Section V - Frequently Asked Questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5
36825GAkk 3/30/06 2:33 PM Page 5

6
METAL FUSION, INC.
LIMITED ONE-YEAR WARRANTY
WHAT THIS WARRANTY COVERS
This warranty covers all components of this outdoor cooker to be free from defects in materials and
workmanship, with the exceptions stated below.
HOW LONG COVERAGE LASTS
This warranty runs for one year from the date of purchase. Please keep your receipt with this manual
for future reference.
WHAT IS NOT COVERED
This warranty does not cover the following:
Incidental and Consequential Damages. This warranty does not cover incidental and
consequential damages arising in any way out of the use of this outdoor cooker. The liability of
Metal Fusion, Inc. is, in any event, limited to the amount of the original purchase price of this
outdoor cooker, and remains in force only as long as the product remains in its original, as-built
configuration. Some states do not allow the exclusion or limitation of incidental or consequential
damages, so the above limitation or exclusion may not apply to you.
Neglectful Operation. This warranty does not cover any loss or damage arising in any
way due to the negligent operation of this outdoor cooker.
Altered, Repaired or Misused Equipment. This warranty does not cover any loss or
damage arising in any way out of the use of this outdoor cooker when it has been altered, repaired
by persons other than Metal Fusion, Inc., or when it has been abused or misused, or when it has
been used other than in accordance with the manufacturer’s operating instructions, including,
without limitation, any damage to the consumer’s pots because they were placed on a lit cooker
while the pot is empty.
Other Assumed Responsibilities. Unless otherwise provided by law, this warranty does
not cover any responsibility or liability arising in any way out of the use of this product where that
responsibility or liability was purportedly assumed by any other person or agent.
Paint, Discoloration and Rust. This warranty does not cover the paint on the outdoor
cooker, as in a normal use of the outdoor cooker, the paint will be burned off. Nor does this
warranty cover discoloration or rust as these occurrences are part of the cooker’s normal wear and
tear.
WHAT METAL FUSION, INC. WILL DO
Metal Fusion, Inc. will repair or replace any outdoor cooker that proves to be defective in materials or
workmanship. In the event repair is not possible or economically feasible, Metal Fusion, Inc. will
replace your outdoor cooker with an identical or substantially equivalent outdoor cooker. Metal Fusion,
Inc. will perform this service at no charge to you, except for the actual cost of shipping and handling
the outdoor cooker or replacement parts.
HOW TO GET SERVICE
In the event you have a problem or malfunction with your outdoor cooker, simply call Metal Fusion, Inc.
at [phone].
HOW STATE LAW APPLIES
This warranty gives you specific rights, and you may have other rights which vary from state to state.
36825GAkk 3/29/06 9:49 AM Page 6

7
OWNER’S REGISTRATION
Dear Customer,
Thank you for purchasing a King Kooker®! Please take a moment to fill out
your registration form and return it to us. We are always happy to hear
suggestions and comments from our customers about our products. Completion of
this registration allows us to contact you if the need arises. Please keep your
receipt with your instruction manual. It will be necessary as a proof of purchase for
us to help you if there is a problem with your cooker.
Name: __________________________________________________________
Address: ________________________________________________________
________________________________________________________________
________________________________________________________________
________________________________________________________________
Model# __________________________________________________________
Date of Purchase __________________________________________________
Place of Purchase __________________________________________________
Price Paid ________________________________________________________
Was this a gift _____ or did you _____ purchase it yourself?
________________________________________________________________
________________________________________________________________
Comments:
________________________________________________________________
________________________________________________________________
A SATISFIED CUSTOMER IS OUR MAIN GOAL. If you have any questions or
problems, please call us at 1-800-783-3885 before returning the product to the
point of purchase. Please have your receipt available when calling.
THANK YOU,
ENJOY YOUR COOKING EXPERIENCE.
®
Ê
36825GAkk 3/29/06 9:49 AM Page 7

8
________________________
________________________
________________________
METAL FUSION, INC.
712 St. George Avenue
Jefferson, LA 70121
Place
Stamp
Here
FOLD
FOLD
TAPE HERE
36825GAkk 3/29/06 9:49 AM Page 8

TOOLS REQUIRED:
TORQUE WRENCH or ADJUSTABLE WRENCH, LEAK TESTING SOLUTION
1. Before assembling, check that all cooker components are included in the shipping carton. Identify
these cooker parts from the assembly drawing. Accessories such as pots may vary according to
model. Check the list of accessories on your cooker box. The following parts are considered
essential and should be included in your package regardless of model number.
Required Parts Lists:
Cooker Stand, Cast Burner(s), Hose and Regulator, Thermometer(s)
If any of the above parts are missing, contact Metal Fusion, Inc. at 1-800-783-3885 between the
hours of 7:30 a.m. and 3:30 p.m. CST Monday through Friday for replacements.
2. Read assembly instructions, and understand sequence of assembly, before commencing to
assemble your cooker.
3. NOTE: The hose to burner connection will be one of the following:
Figure 1) Hose with male fitting and adjustable regulator.
Figure 2) Hose with female fitting and adjustable regulator.
Figure 3) Hose with male or female fitting and needle valve with non-adjustable pressure
regulator.
Figure 4) Double hose with male fittings and needle valves with non-adjustable pressure regulator.
9
SECTION I
OUTDOOR COOKER ASSEMBLY
THE USE AND CARE MANUAL MUST BE READ AND UNDERSTOOD
BEFORE USING THE APPLIANCE
(Throughout this manual the words appliance, cooker, fryer/boiler, burner and stove will be
used interchangeably to refer to the King Kooker®Outdoor Cooker.)
COOKING POT
VENTURI TUBE
1/8 MALE PIPE THREAD
BURNER
ADJUSTABLE REGULATOR
TYPE 1
CONNECTION
NO
AIR SHUTTER

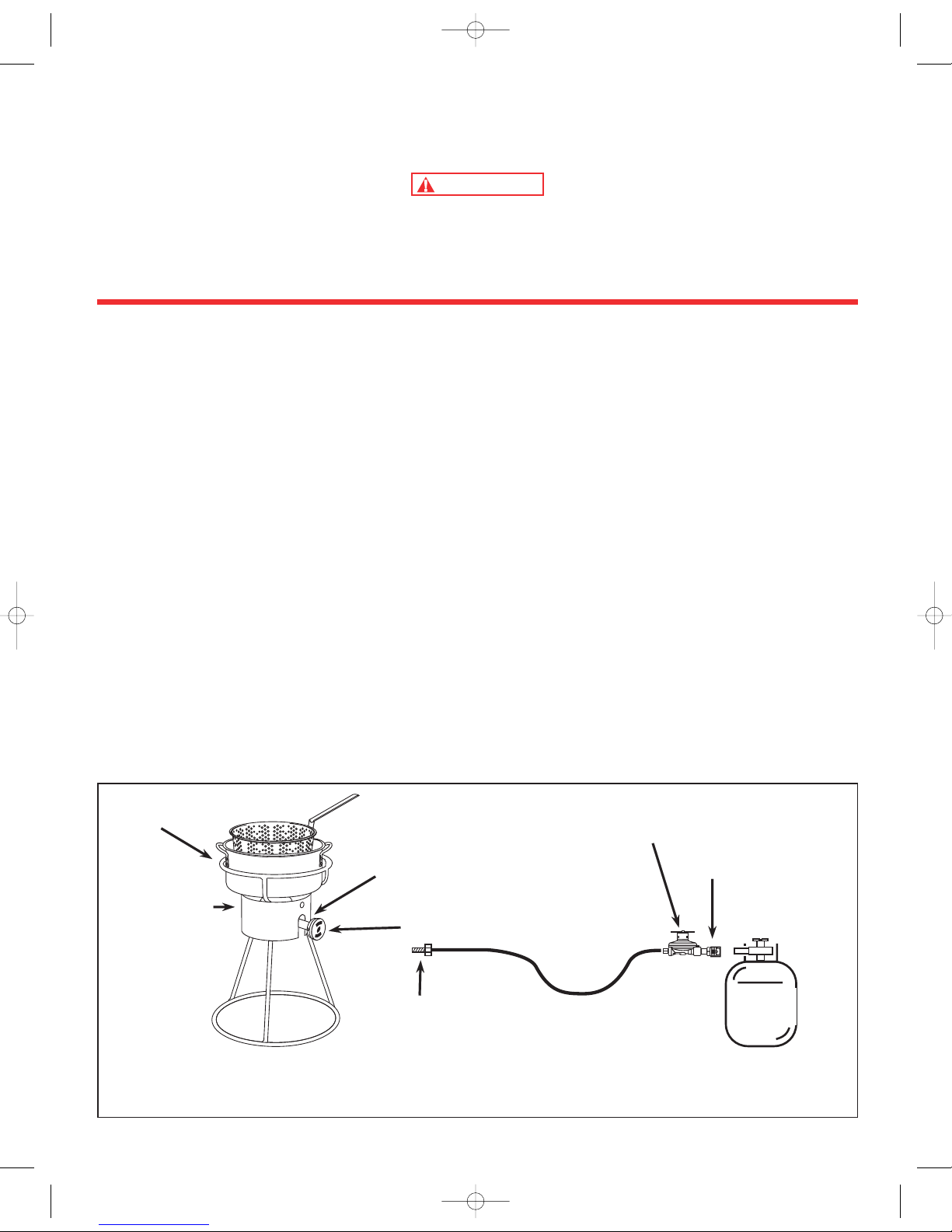

Figure 1 HOSE WITH MALE FITTING AND ADJUSTABLE REGULATOR.
•
WARNING
Tighten the hose fitting into the venturi with a torque wrench, up to a torque of 95 to 105 lb./in.
Alternatively, hand tighten securely and then, using a wrench, tighten an additional 1-1 1/2 turns.
20 lb. LP
Gas Cylinder
36825GAkk 3/29/06 9:49 AM Page 9

10
COOKING POT
3/8 FEMALE
FLARE SWIVEL
BURNER
ADJUSTABLE REGULATOR
TYPE 1 CONNECTION
NO
HALF UNION
VENTURI TUBE
AIR
SHUTTER
COOKING POT
1/8 MALE PIPE THREAD
BURNER
NEEDLE VALVE
TYPE 1 CONNECTION
PRESSURE REGULATOR
NON-ADJUSTABLE
VENTURI TUBE
AIR SHUTTER

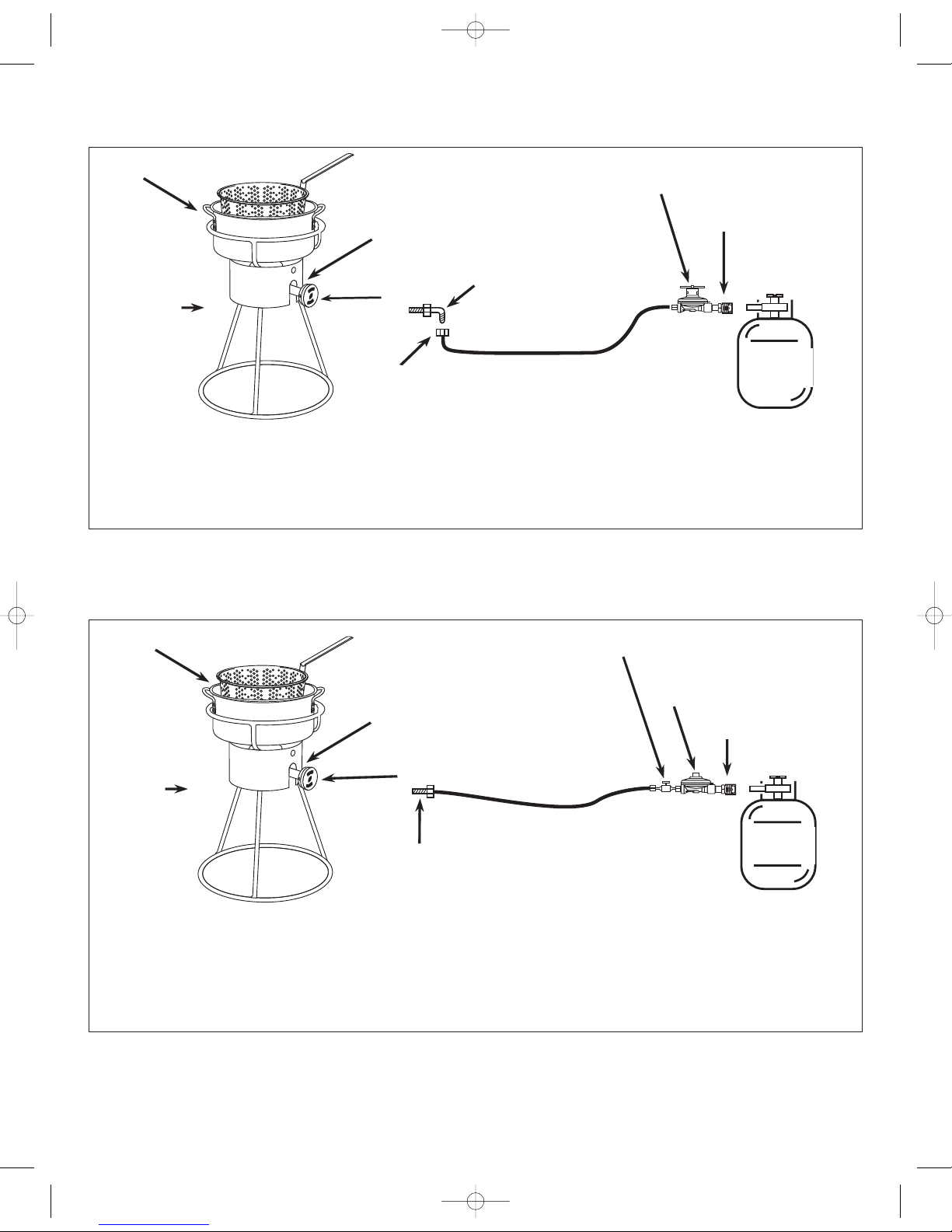

Figure 2 HOSE WITH FEMALE FITTING AND ADJUSTABLE REGULATOR.
Figure 3 HOSE WITH MALE OR FEMALE FITTING AND NEEDLE VALVE WITH
NON-ADJUSTABLE PRESSURE REGULATOR.
The air shutter and half union as pictured should already be assembled to the casting. Check that
fitting is tightened to the venturi tube and that the elbow points downward. Tighten the hose fitting
onto the half union with a torque wrench, up to a torque of 95 to 105 lb./in. Alternatively, hand
tighten securely and then, using a wrench, tighten an additional 1-1 1/2 turns.
If your cooker has a needle valve and a non-adjustable pressure regulator as above with a 1/8 male
pipe thread, refer to directions in Figure 1.
If your cooker has a needle valve and a non-adjustable pressure regulator as above, but a 3/8
female flare swivel, refer to the directions for Figure 2.
20 lb. LP
Gas Cylinder
20 lb. LP
Gas Cylinder
36825GAkk 3/29/06 9:49 AM Page 10

KKDFF30T ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED:
ADJUSTABLE WRENCH
1. Place top half of unit on bottom half of unit as pictured.
2. Insert four long bolts through holes in top and bottom of unit.
Wrench tighten with supplied nuts.
3. Attach each wheel to the bottom half of the unit as pictured
using the supplied axels/nuts.
4. Attach the cylinder heat plate onto the crossbar as pictured
using two short bolts. Wrench tighten with supplied nuts.
5. Insert threaded ends of cylinder collar
into crossbar as pictured.
Wrench tighten with supplied nuts.
6. Attach the tank ring to the bottom half of
the unit as per diagram using the U clips
which are welded to the outside of the
frame.
7. Refer to Figure 4 above for hose
assembly instructions.
8. Go to the Use and Care Section of this
manual for further instructions. 11

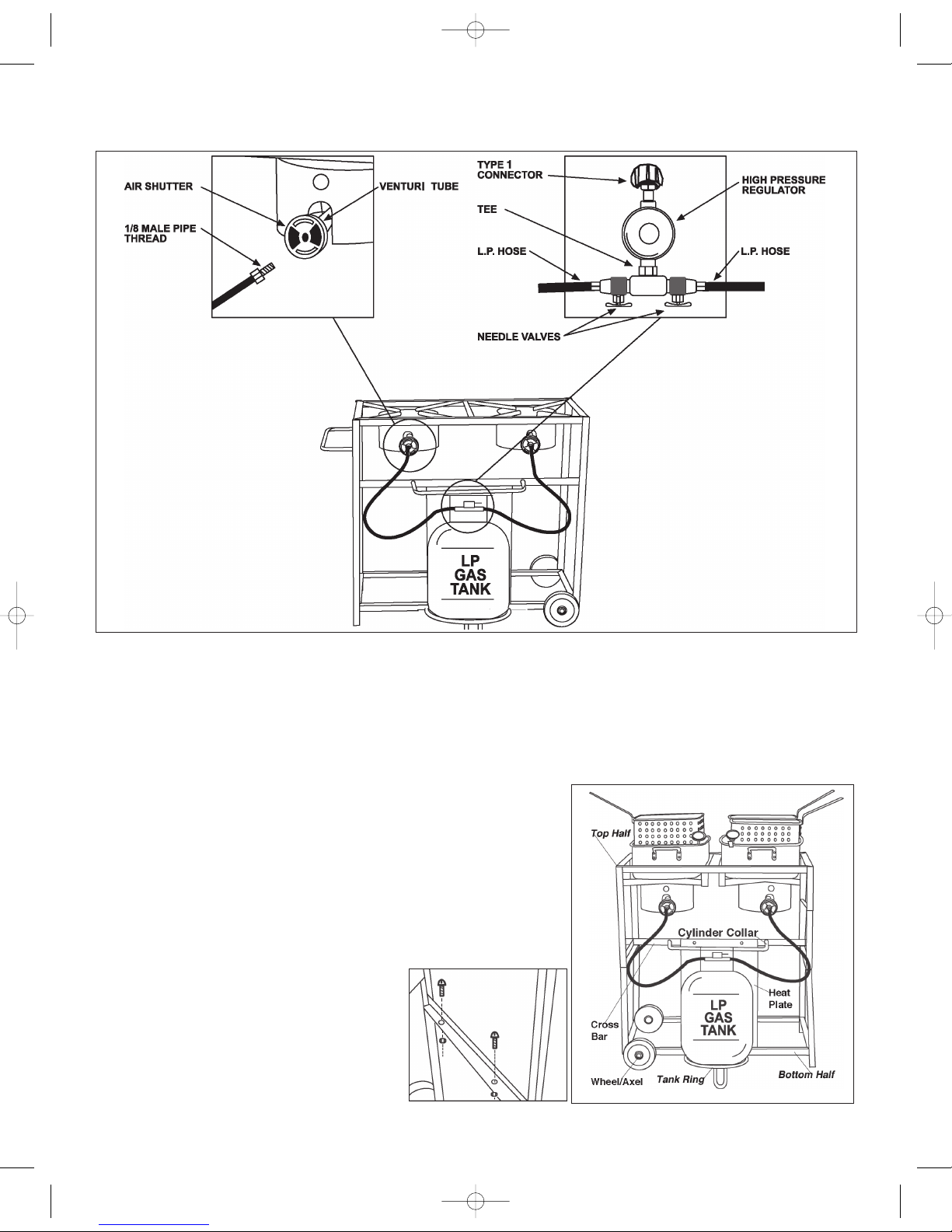

Figure 4 DOUBLE HOSE WITH MALE FITTINGS AND NEEDLE VALVES WITH NON-
ADJUSTABLE PRESSURE REGULATOR.
Tighten the hose
fittings into the venturis
with a torque wrench,
up to a torque of 95 to
105 lb./in.
Alternatively, hand
tighten securely and
then, using a wrench,
tighten an additional
1-1 1/2 turns.
NOTE: If your cooker has attachable legs or work table, or requires additional
construction, follow the assembly instructions for these before proceding to the Use and
Care Section.
4. Go to the Use and Care Section for further instructions.
36825GAkk 3/29/06 9:49 AM Page 11

12
CS8T ASSEMBLY INSTRUCTIONS
REQUIRED TOOLS: ADJUSTABLE WRENCH
1. This cooker has four legs with crossbars and two stablizer bars.
2. Flip the legs into the standing position.
3. Hook each stabilizer bar over the crossbar on the leg
opposite it. The hook on the end of the bar must be pressed
down around the crossbar so that the leg is locked into
position. Always recheck that both hooks are in place before
lighting the cooker or placing cooking equipment on top of
the cooker.
4. Attach a foot extension to each of the four legs. Place the
hole on one of the foot extensions on the outside of the hole
at the bottom of a leg.
5. Place a bolt through the holes on the leg and foot extension
and secure with a nut from the bolt package.
6. Follow the same procedure to attach a foot extension to
each of the remaining three legs.
7. Refer to Figure 4, pg. 11 for hose assembly instructions.
8. Go to the Use and Care Section of this manual for further
instructions. Foot Extensions

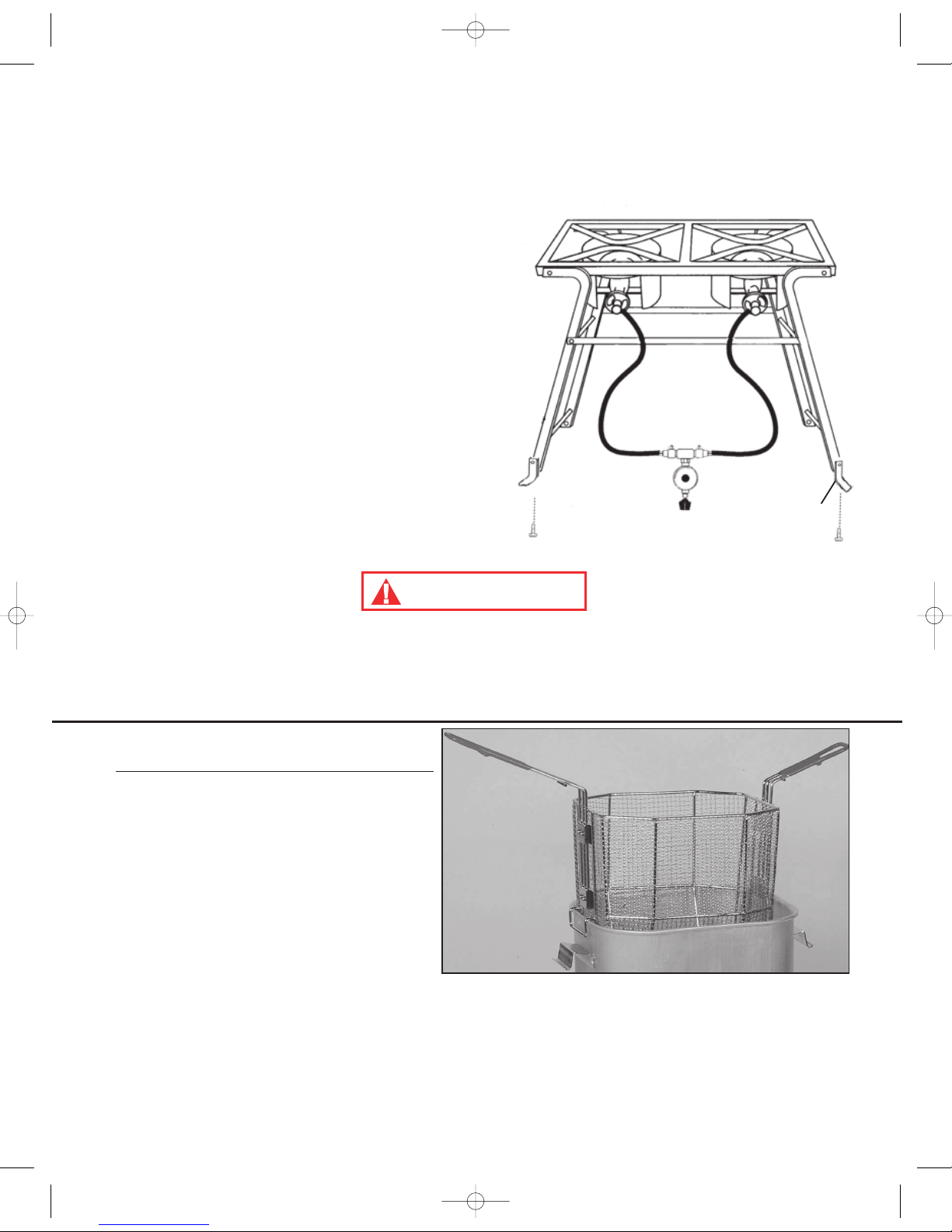

2500 FRY BASKET ASSEMBLY INSTRUCTIONS
TOOLS REQUIRED: Screwdriver
Parts List:
Fry Basket with Mounting Plates (1)
Long Handle (1)
Short Handle (1)
Bolts and Washers (8)
Assembly:
1) Locate side of basket with attached clip for attaching basket to side of pot. Locate the
“long” handle. Align the four holes on the handle to four holes on the mounting plate of
basket. Attach using four bolts/washers.
2) Locate “short” handle . On opposite side of basket from “long” handle, attach “short”
handle to basket using same method as above.
3) Go to the Use and Care section of this manual for further instructions.
FAILURE TO INSTALL FOOT EXTENSIONS OR LOCK STABILIZER BARS ONTO
CROSSBARS CAN INCREASE THE RISK OF THE UNIT TIPPING. FOOT EXTENSIONS
AND STABILIZER BARS MUST BE ATTACHED SECURELY AS PER THE ABOVE
INSTRUCTIONS BEFORE OPERATING THE COOKER!
WARNING
36825GAkk 3/30/06 2:33 PM Page 12

13
/Air Shutter
Screwdriver
3) Go to pg. 14 for Installation of Casting.
3) Go to pg. 14 for Installation of Casting.
36825GAkk 3/29/06 9:49 AM Page 13

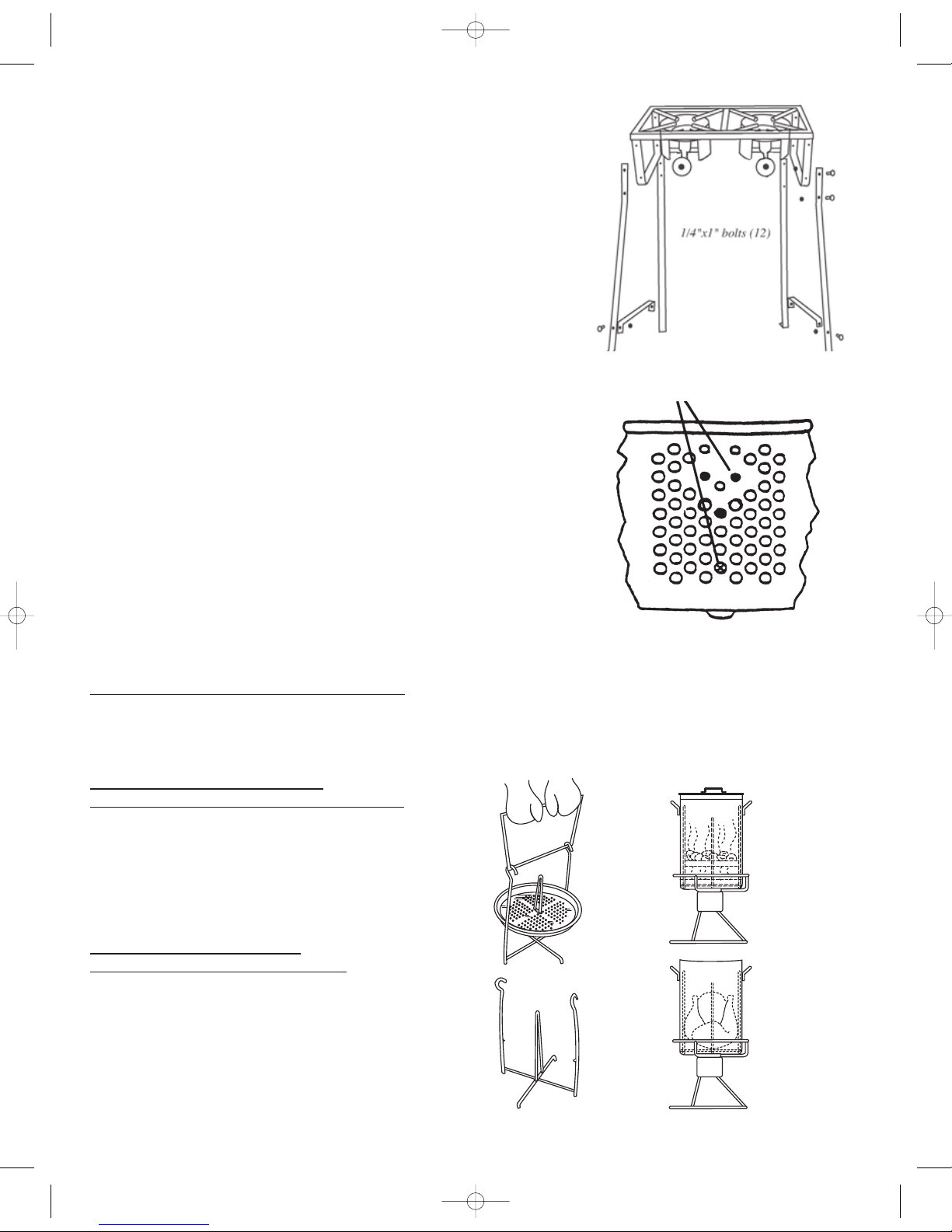

ASSEMBLY INSTRUCTIONS FOR BOLT TOGETHER WORK TABLE
1) Assemble the four bolts, nuts and washers in table top/legs, as per diagram, wrench tighten.
2) Assemble the two bolts, nuts, and washers in table top/curved flat bar connection
piece, wrench tighten.
3) Assemble bolt, nut, and washer from curved flat bar connection to outer part of recessed top ring of
burner, wrench tighten.
4) Installation of casting directions are below. If casting has already been installed go to the Use and
Care section of this manual for further information.
Installation of Casting
14
6) Go to the Use and Care section of this manual for further information.
36825GAkk 3/29/06 9:49 AM Page 14

15
CS01 Assembly Instructions
REQUIRED TOOLS: Adjustable Wrench
CS01 Parts List:
(1)Top Frame
(1)Casting/Air Shutter
(1)Hose/Regulator
(1)Thermometer
(4)Leg
(1)Bottom Shelf
(2)Side Work Shelf
(2)Support Bracket wtih U Clips
1) Review the contents in your package. Make sure all listed components for your model are included.
2) Remove top nut from casting bolt. Leave bottom nut attached and tightened. Flip cooker frame
upside down. Insert casting through the shroud opening with the bolt pointed up. Place the
casting bolt through the hole in the flat bar. Reinstall nut to casting bolt. Tighten. Turn frame
right side up. Check to see if the casting is pointing straight up and is sturdy.
3) Install the four legs into the top frame by matching the numbers on the legs to the numbers on
the leg receivers (for example: 1 to 1, 2 to 2, etc...) Snap in leg bolts through receiving holes on
frame. Make sure the leg bolts pop completely out and legs are locked in position.
4) Install bottom shelf into shelf clips on legs.
5) Hang side work shelves onto top frame using the U clips welded to frame. Attach support brackets to
side work shelves and bottom shelf as per diagram by fitting the U clip of one end of support
bracket to bottom of side shelf and the other end to the side of bottom shelf as pictured above.
6) Refer to Figure 1 pg. 9 for hose assembly instructions. Then go to the Use and Care Section of this manual for further
instructions.
1803PKP Work Table Assembly Instructions
Cooker
Frame
Work Table
1) Place edge of work table into U-clip receivers
on cooker frame to attach the work table
assemby to the cooker. See Picture.
2) Go to the Use and Care Section of this
manual for further information.
36825GAkk 3/29/06 9:49 AM Page 15

CS28
CS28 Assembly Instructions Assembly Instructions
Required Tools: Adjustable Wrench
Parts List:
(1) Cooker Frame
(2) Castings/Air Shutters
(1) Manifold Assembly
(1) Hose/Regulator
(4) Legs
(1) Windguard Shield
(2) Deep Fry Thermometers
(1) Locking Bracket
(1) Locking Bolt, (2)Washers and (2)Nuts
1) Review the contents in your package. Make sure all listed components for your model are
included.
2) Remove nuts from casting bolts. Flip the cooker frame upside down. Insert castings through the
shroud openings with the bolts pointed up. Place the casting bolts through the hole in the flat bar.
Reinstall nuts to casting bolts. Tighten. Turn frame right side up. Check to see if the castings are
pointing straight up and are sturdy.
3) Install the four legs into the top frame as pictured above. Snap in leg bolts through the receiving
holes on the frame. Make sure the leg bolts pop completely out and legs are securely locked in
position.
4) To attach windguard shield to the top frame, align the windguard shield to top frame as per above
diagram. Slide windguard into receiving U Clips welded to the cooker frame.
5) Locate the manifold assembly. Align the two male swivel fittings on the manifold to the venturi
tubes on the castings. Hand tighten the male swivel fittings into the castings. Once tightened, use an
adjustable wrench to tighten the swivel fittings an additional 1 to 1 1/2 turns.
6) Locate the hose/regulator. Tighten the hose fitting onto the manifold, as pictured above, with a
torque wrench, up to a torque of 95 to 105 lb./inch. Alternatively, hand tighten securely and then,
using a wrench, tighten an additional 1 to 1 1/2 turns.
7) Go to to the Use and Care section of this manual for further instructions.
8) For storage purposes a locking bracket and bolt are provided with this unit. After the cooker has
completely cooled, remove the windguard shield and legs. Lay the cooker upside down on a flat
surface. Wrench tighten locking bolt into the nut on center support. Fold windguard and place it long
side up across the center of the cooker with the locking bolt through the center hole. Place the legs
on top of the windguard alternating each foot in opposite directions. Place the locking bracket across
the four legs and over the locking bolt. Screw the washer, locking washer, nut and wingnut over the
locking bolt. Tighten to hold securely in place.
Leg
Windguard
Manifold Assembly
16
36825GAkk 3/29/06 10:53 AM Page 16

CAMP STOVE LEG ASSEMBLY
Required Tools: Adjustable Wrench
1. Match the holes in each leg with corresponding holes in
cooker.
2. Slide 1/4” x 1” bolt through each of the twelve holes. These
should be directed inward as in the illustration so that the
nuts will be on the inside of the assembly.
3. Screw 1/4” nut onto each bolt and wrench tighten. Make
certain every bolt and nut assembly is completely
tightened so the unit will stand sturdily with no sway when
the unit is upright.
4. Go to the Use and Care section of this manual for further
information.
FRY BASKET HANDLE ASSEMBLY
Required Tools: Adjustable Wrench and Screwdriver
1. Attach handle by inserting bolts (round head to inside of
pan) into holes indicated in black. Also insert bolt
(round head to inside of pan) into hole indicated with an
“X”. Apply nuts and tighten. (This bolt helps hold the
basket away from pot when hooking it on the side of
the pot to drain oil from food.)
17
Insert Bolts in marks as instructed
KING KOOKER STEAMER/FRYER STAND WITH STEAMER PLATE AND LIFTING HANDLE
Directions for using the Lifting Handle: The Lifting Handle is a rectangular shaped chrome accessory.
The top is the longest side and the next longer side (the welded side) is the bottom. Place the bottom
side over the hooks on the top of both sides of the stand as pictured below. Wearing mitts for protection,
lift the stand using two hands and slowly lower or raise the stand into or out of the pot for cooking.
Placement when Steaming with
the King Kooker Steamer Stand and Plate
Place the center slot of the steamer plate
over the center prong on the steamer stand
and balance the plate on the two side
prongs of the stand. Arrange the food on the
steamer plate as desired. Refer to p. 28 for
additional steaming instructions.
Placement when Frying with
King Kooker Poultry Frying Stand
Place the turkey or chicken on the
center prong of the frying stand with
the legs up. Do not use steamer
plate when frying. Refer to p. 26 of the
Instruction Manual for additional
directions for frying poultry.
®
®
36825GAkk 3/29/06 9:49 AM Page 17

18
MODEL #TWT WORKTABLE ASSEMBLY
Required Tools: Adjustable Wrench
This unit is designed to be used as a worktable for the preparation of turkeys for frying and for
draining afterwards. It is not intended for any other use. It is to be used only with Deep Fryer
Turkey Packages. This worktable assembly is NOT for use with Model #3018.
1. Stand worktable and cooker
side by side, as in the
illustration, on a level, sturdy,
non-combustible surface.
2. Hold the side of the worktable
with the brackets next to the
cooker. Line up one pair of the
holes in a bracket so that one
hole is above the cooker ring
and one is below. Choose to
use the pair of holes which will
allow the worktable to be level.
Some models of cookers will
use the top sets of holes in the
brackets, while some models
work best with the lower sets
of holes. Make sure that the
work surface will be flat when
assembly is complete.
3. Slide the U-bolts around the
top ring of the cooker and
through the holes in one of the
brackets. Do the same for the
other bracket.
4. Screw one of the 1/4” wing nuts onto each end of a threaded U-bolt and wrench tighten. Make
certain that each U-bolt and wing nut assembly is tightened so that the unit will stand sturdily with
no sway when the unit is attached.
5. Go to the Use and Care section of this manual for further information.
36825GAkk 3/29/06 9:49 AM Page 18

CONNECTION INSTRUCTIONS
1. Check that your 20 lb. LP gas cylinder is not over-filled. The maximum weight of a properly filled
cylinder is approximately 38 lbs.
2. Verify that the cylinder valve has the proper connection for a Type 1 Connection.
3. Check that your hose assembly is set to not allow gas flow. If you have an adjustable regulator,
turn the regulator control counterclockwise until it stops. This is the OFF position. If you have a
non-adjustable regulator with manual valve(s), turn the manual valve(s) clockwise until it stops.
This is the OFF position.
4. Attach the regulator to the cylinder valve by turning the Type 1 fitting clockwise. Hand tighten with
the regulator positioned upright. Refer to the appropriate assembly diagram for the appliance,
pages 9-11, Figure 1-4.
5. Perform the Leak Test:
LEAK TEST
Before lighting the appliance, a thorough leak test must be satisfactorily completed using a
non-ammonia soapy water solution (50% non-ammonia soap and 50% water). This is to be
applied with a small brush to all gas joints after the cylinder valve is opened (no more than 1/2
turn). If bubbles are seen, indicating a leak, turn off the cylinder and tighten the leaking connection
until a further leak test shows no leaks.
If tightening the connection does not stop the leak, call Metal Fusion, Inc. [phone], for
assistance.
DO NOT USE UNTIL REPAIRS ARE MADE
6. Before lighting the cooker, check that the venturi tube is free of obstruction and that the orifice is
properly threaded into the venturi tube as per instructions in Figure 1,2, 3, or 4 pages 9-11. Both
situations must be corrected if necessary before lighting to prevent flashback.
19
SECTION II
USE AND CARE
(Throughout this manual the words appliance, cooker, fryer/boiler, burner and stove will be used
interchangeably to refer to the King Kooker®Outdoor Cooker.)
36825GAkk 3/29/06 9:49 AM Page 19

1. Appliance
must be in
open area
with at least
10 feet of
space on all
sides. Keep
the appliance
area clear
and free from
combustible
materials,
gasoline and
other flammable vapors and liquids.
2. There must be no combustibles or roof overhead.
3. For models with a tank ring for cylinder retention,
place the cylinder base inside the ring as per Figure
2. The prongs that extend from the cart handle should
bracket the cylinder’s collar. For all other models
keep 24 inches of space between the LP gas cylinder
and the appliance as per Figure 1.
4. The LP gas cylinder and appliance must be located
so that any wind is blowing the heat of the appliance
away from the propane cylinder. This also helps fire
prevention by blowing the flames of a grease fire
away from the propane cylinder.
5. Center the pot over the burner on the cooker. Do
NOT use any pot larger than the recommended size
for your cooker as listed below:
Model # Maximum Pot Size Diameter
86PKT, 110B, 2004NIMF One 32 qt. pot 12” x 14”
CS8T, CS03, CS2T, CS2TLP, Two 30 qt. pots 16”x12 3/8”
82/82T, 82/82HDWT, KKDFF 30 Two 30 qt. pots 16” x 12 3/8”
3025, 3026A, 3026B One 30 qt. pot / One 9 qt. pot 16” x 12 3/8” / 5”x13”
All Other Models One 30 qt. pot 16” x 12 3/8”
20
LP GAS CYLINDER INFORMATION
King Kooker®Outdoor Cookers are manufactured for use with LP Gas Cylinders. Important
information to remember about LP Gas cylinders include:
1. Always read and follow the cylinder manufacturer’s instructions.
2. Make sure that the gas cylinder is not overfilled. The maximum weight of a properly filled 20 lb.
LP gas cylinder is approximately 38 lbs. Never fill the cylinder beyond 80% full.
3. Make sure that the cylinder valve has the proper connection for a Type 1 appliance fitting.
4. Do not store a spare LP gas cylinder under or near this appliance.
5. Disconnect the cylinder from the cooker for storage.
6. Store the cylinder out of the reach of children.
7. Do not use or store the cylinder in a building, garage or enclosed area.
8. Always use a 20 lb. cylinder in the proper upright position for the proper vapor withdrawal. It
should also be stored and transported in the upright position.
9. The cylinder must have a protective collar to protect the cylinder valve.
ALWAYS READ AND FOLLOW THESE AND THE CYLINDER MANUFACTURER’S INSTRUCTIONS.
FAILURE TO FOLLOW THESE INSTRUCTIONS AND WARNINGS COULD RESULT IN FIRE, EXPLOSION,
OR BURN HAZARD WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY OR DEATH.
WARNING
20 lb. LP
Gas Cylinder
PLACEMENT INSTRUCTIONS
FIGURE 1
FIGURE 2
Refer to diagram for proper cylinder placement and
hose routing. Operate this appliance only with the
propane cylinder installed onto the tank ring and hoses connected to the
appliance as per diagram. Placement of the propane cylinder in a location other
than the tank ring or improper hose routing can result in fire or explosion which
could cause property damage, personal injury or death.
36825GAkk 3/29/06 9:49 AM Page 20
