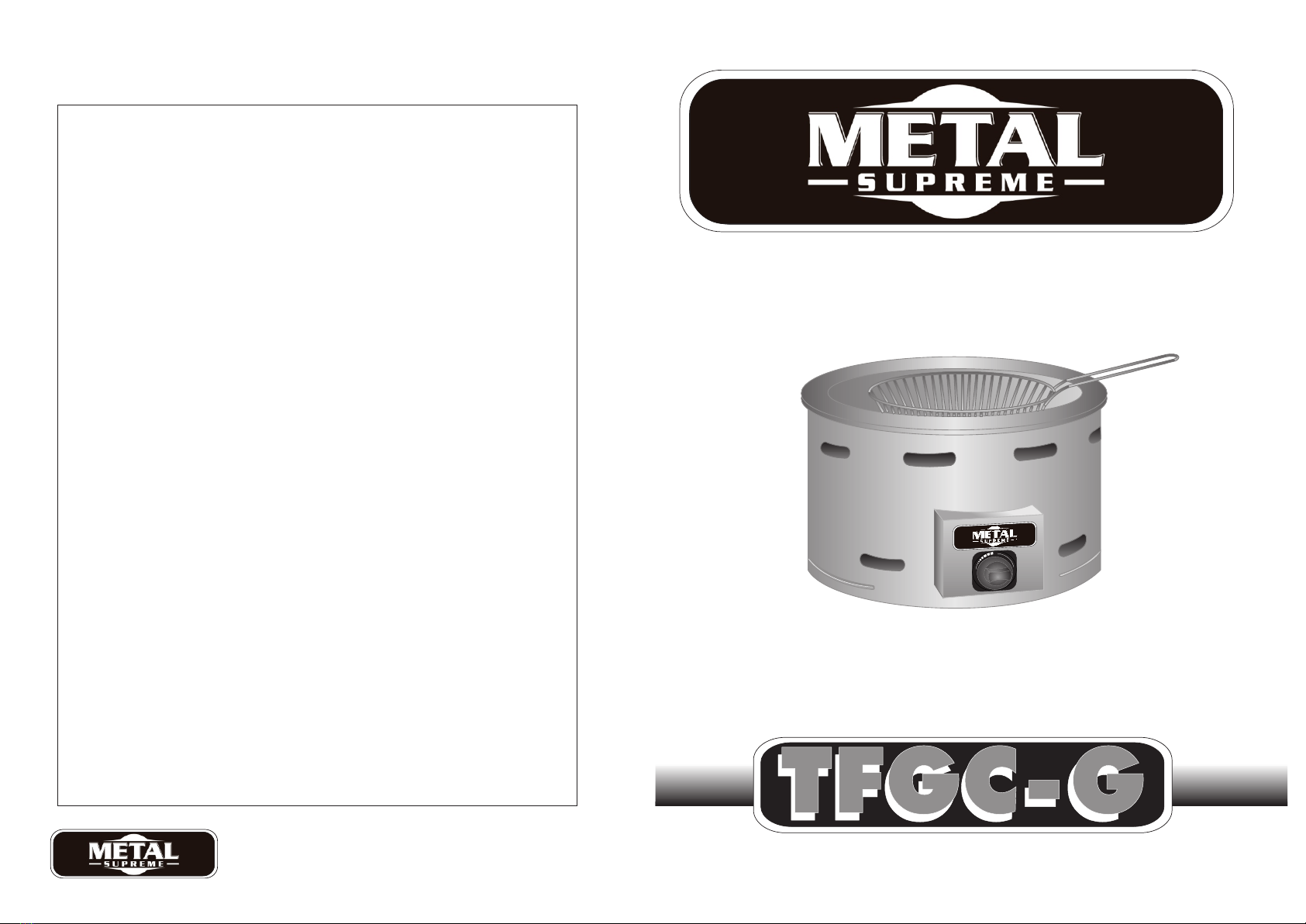

METAL SUPREME TFGC-G Series User manual

TFGC-G-85.112.00703-A
GAS FRYER - MODEL: TFGC-G-85.112.00703-A
-Please read these instructions carefully before operating this appliance.
SAFETY
-Install your equipment in area well ventilated, to eliminate the gases generated by the combustion.
-It’s recommended to leave at least 15 cm of free space around the equipment.
-DO NOT install the equipment next to combustible materials.
-The installation has to comply to the safety standards.
-As metallic parts are good conductors of heat, let them cool before any maintenance.
-WARNING! Hot oil can cause burns. Spilling oil can cause severe burns. Do not move fryer without
draining all the oil from the tank.
-Do not overfill basket. Carefully load them into hot oil. A danger of surge boiling can also occur if the food
to be fried is excessively wet or the frying basket is too full.
OPERATION
-The equipment is supplied with a Gas Line Tap which operates the inlet of gas.
-There is also a Burner gas tap to adjust the power of the flame (turn 1/4 to maximum flame and turn
1/2 to minimum flame).
-Incorporated to the Tap there is a safety device that will let open the gas only if it is pressed and
turned counterclockwise.
-To start the equipment do the following:
1. Fill the container with 14.3 lbs (7 liters) of quality oil (fat).
2. Be sure that the Burner Gas Tap is turned off.
3. Open the burner drawer.
4. Light a fire flame.
5. Open the Gas Line Tap.
6. Bring the flame next to the pilot burner until it lights.
7. Close the burner drawer.
8. Press and turn 1/4 counterclockwise the Tap Knob to light the main burner.
9. Let the Tap Knob in the maximum flame position for at least 20 minutes and the
equipment is ready for use.
10. Adjust the gas tap to operating desired temperature.
-To turn off the burner turn the Tap Knob completely clockwise.
CLEANING PROCEDURE
- The cleaning procedure should be done daily after the use.
- To clean, use only a soapy damp cloth in all parts, avoiding excess of water.
- It is not recommended the use of any abrasive material.
MAINTENANCE
- Always maintain your equipment clean and in perfect operation conditions, those providences, will
help your equipment to last longer.
- To guarantee a good performance, we recommended an annual revision of the equipment.
INSTRUCTION MANUAL
METAL SUPREME, LLC
3705 NW, 115th Ave Unit 8
Doral, FL 33178
[email protected]
[phone]
LOW
OFF
HI

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
6.109-3
86.024-3
6.208-3
40.113-3
2.208-3
40.112-3
6.212-3
1.342-3
352
566
604
6.203-3
385-3
6.205-3
2.546-3
2.545-3
18.987-3
6.209-3
21.288-3
22.012-3
18.029-3
22.008-3
22.009-3
22.010-3
Basket
Container
Cabinet
Burner’s Cone
Gas Injection Device
Burner’s Base
Paper Washer
Plate
Screw
Screw
Nut
Drawer
Screw
Gas Pipe
Nut
Gas Connection
Gas Tap
Installation Box
Knob
Pilot Burner
Pilot Gas Pipe
Nut
Metal Ring
Pilot Injection Device
11
13
12
6
7
9
10
1
2
3
19
18
14
15
16
17
13
4
5
Item Code Description
GAS FRYER (TFGC-G) GAS FRYER (TFGC-G)
20
21
22 23 24
8
Technical Data
Power (BTU/h)
Weight (kg/lbs)
Dimension WxHxD (cm/in)
45000
5.0/11.0
48/19 x 29/11.5 x 58/23
TFGC-G-85.112.00703-A
