Kogan KAMTARICOKA User manual

14-IN-1 AIR FRYER
& MULTI-COOKER
KAMTARICOKA

Multi-cooker Function
a
Multi cooker function controls
b
Multi cooker indicator
c
Individual function indicators
d
Display
e
Temperature indicator
f
Time indicator
Steps for Usage
1. Connect power.
2. Press a function button to select it.
3. Toggle between temperature and time.
4. Adjust either temperature or time as selected.
5. Press to put the multi-function cooker in Keep Warm mode.
6. Press to set a delay before cooking starts (e.g. for Rice\Steam\Stew\Slow cook).
7. Press to begin operation. Press during operation to pause/resume. Long press (3
seconds) to quit the program and return to standby mode.
When in standby mode, press and hold temperature/time for 5 seconds to switch between
Celsius and Fahrenheit.
OVERVIEW

Air Fryer Function
a
Air fryer function controls
b
Air fryer indicator
c
Individual function indicators
d
Display
e
Temperature indicator
f
Time indicator
Steps for Usage
1. Connect power and place the cover on top
2. Press a function button to select it.
3. Toggle between temperature and time.
4. Adjust either temperature or time as selected.
5. Press to begin operation. Press during operation to pause/resume – here you can
remove the lid to check or turn food before replacing the lid and resuming. Long
press (3 seconds) to quit the program and return to standby mode.
When in standby mode, press and hold temperature/time for 5 seconds to switch between
Celsius and Fahrenheit.

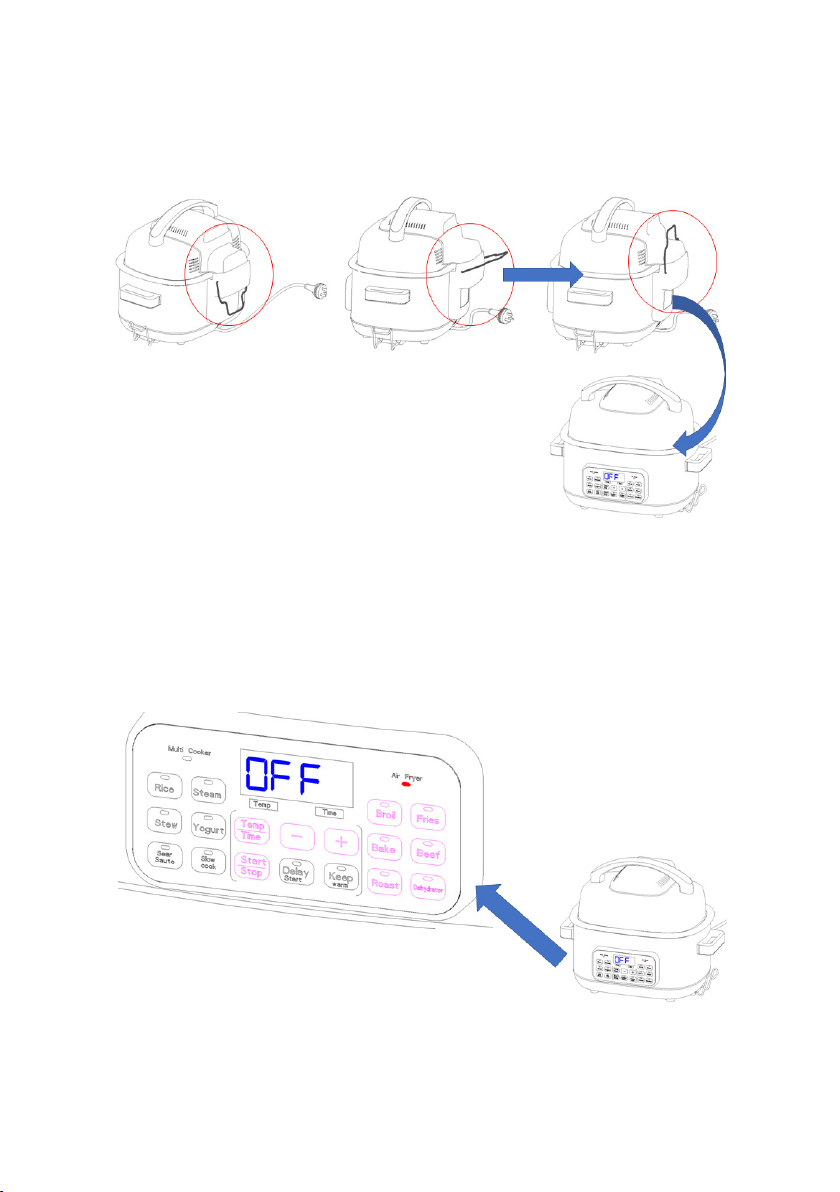

Air Fryer Assembly

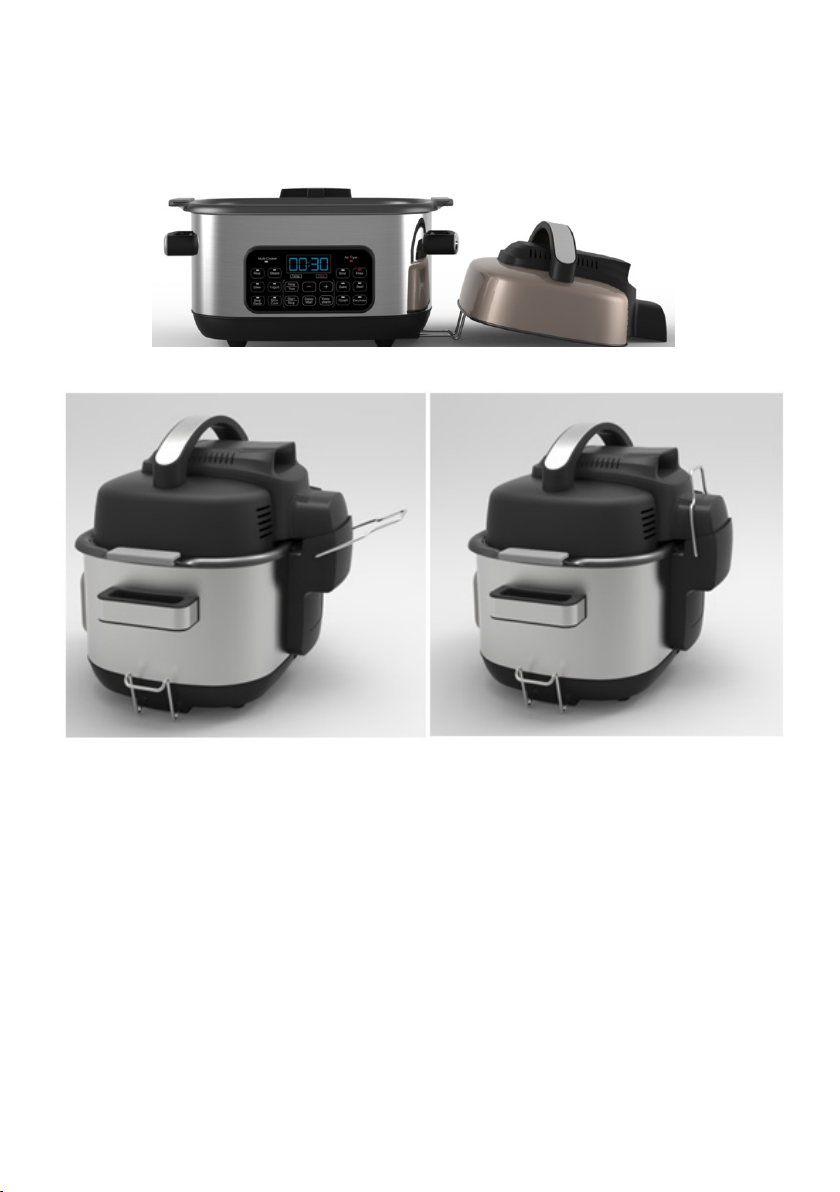

Before using air fryer functions, fit the air cover on the pot inside the body and use the latch
to close the appliance firmly as per the images below.

Multi-cook Function
In this cooking mode, only the bottom heating plate H2 (220-240V 1250W) is heated and
the bottom NTC T2 is sensitive to the temperature of the bottom outside of the inner pot.
The glass cover can be used for the multi cooker function. For the Sear/Saute function, the
glass cover is not required.
Rice:
1. Select the Rice function and the screen will display "——：——".
2. Press the Start/Stop button and the machine will beep and run the program.
The display will show a countdown in the last 10 minutes of the program.
3. When the program is finished, the machine will beep and enter Keep Warm for 2
hours before beeping again and entering standby.
Steam:
1. Select the Steam function and the screen will display the default time: adjust as
required.
2. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
3. When the program is finished, the machine will beep and enter Keep Warm for 2
hours before beeping again and entering standby.
Function
Default
Temp. Range
Time Range
Keep Warm
Delay Start
Rice
— — : — —
N/A
N/A
Default 2h
Y
Steam
0:15
N/A
0:01–2:00
Default 2h
Y
Stew
2:00
N/A
0:15–4:00
10h
Y
Yogurt
Step 1: Heat
Step 2: 8:00
N/A
Step 1: N/A
Step 2: 3:00–24:00
N/A N
Sear/Saute
200°C, 0:30
120-220°C
0:05–1:00
N/A
N
Slow Cook
4:00
N/A
0:30–24:00
Default 10h
Y
Keep Warm
10:00
N/A
1:00–10:00
-
Y
Delay Start
1:00
N/A
1:00–24:00
-
-
OPERATION

Stew:
1. Select the Stew function and the screen will display the default time: adjust the
time as required.
2. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
3. When the program is finished, the machine will beep and enter Keep Warm for 10
hours before beeping again and entering standby.
Yogurt:
1. Select the Yogurt function and the screen will display "HEAT".
2. Press the Start/Stop button and the machine will begin sterilisation, heating to
82°C.
3. When the temperature reaches 82°C, the screen will flash "HEAT" while beeping.
At this time, the milk temperature is very high and the milk should be cooled before
yogurt, probiotics or lactic acid bacteria are added.
4. Press the Start/Stop button and the screen will display the default time of 8:00,
counting down as it enters the yogurt fermentation state.
5. When the program is finished, the machine will beep and enter standby.
To run the program for extra time, you can press the Yogurt twice and adjust the default
time as required.
Sear/Saute:
1. Select the Yogurt function and the screen will display the default temperature and
start flashing: adjust as required.
2. Press Temp/Time to switch to Time: adjust as required.
3. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
4. When the program is finished, the machine will beep and enter standby.
Slow cook:
1. Select the Slow Cook function and the screen will display the default time and
start flashing: adjust as required.
2. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
3. When the program is finished, the machine will beep and enter Keep Warm for 10
hours before beeping again and entering standby.

Keep Warm:
1. Select the Slow Cook function and the screen will display the default time and
start flashing: adjust as required.
2. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
3. When the program is finished, the machine will beep and enter standby.
Delay Start:
1. After setting the temperature and time of the selected function, press Delay Start
and the screen will display a default pre-set time and start flashing. (The function
indicator and "Delay Start" indicator will remain on).
2. Adjust the time as required and press Start/Stop: the machine will beep and count
down to the set time. When the set time is reached, the machine will continue with
the programmed function.
Air Fryer Function
During this cooking mode, the heating pipe H1 (220-240V 1300W) at the top and the
heating plate H2 (220-240V 1250W) at the bottom are heated alternately. The motor at the
top (220-240V 30W) works according to the requirements of each function. The top NTC T1
is responsible for sensing the air temperature at the top and the bottom NTC T2 is
responsible for sensing the temperature at the bottom of the inner pot and the outside.
Function
Default
Temp. Range
Time Range
Broil
00:10
-
0:10–1:00
Fries
200°C 00:20
150-200°C
0:01–0:30
Bake
170°C 01:00
120-220°C
0:10–4:00
Beef
200°C 00:20
120-220°C
0:05–1:00
Roast
200°C 00:45
120-220°C
0:10–3:00
Dehydrate
65°C 02:00
40-90°C
0:15–24:00

Broil:
1. Select the Broil function and the screen will display the default time: adjust as
required.
2. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
3. When the program is finished, the machine will display “DONE” for 2 minutes
before entering standby.
Fries:
1. Select the Fries function and the screen will display the default temperature and
start flashing: adjust as required.
2. Press Temp/Time to switch to Time: adjust as required.
3. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
4. When the program is finished, the machine will display “DONE” for 2 minutes
before entering standby.
Bake:
1. Select the Bake function and the screen will display the default temperature and
start flashing: adjust as required.
2. Press Temp/Time to switch to Time: adjust as required.
3. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
4. When the program is finished, the machine will display “DONE” for 2 minutes
before entering standby.
Beef:
1. Select the Beef function and the screen will display the default temperature and
start flashing: adjust as required.
2. Press Temp/Time to switch to Time: adjust as required.
3. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
4. When the program is finished, the machine will display “DONE” for 2 minutes
before entering standby.

Roast:
1. Select the Roast function and the screen will display the default temperature and
start flashing: adjust as required.
2. Press Temp/Time to switch to Time: adjust as required.
3. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
4. When the program is finished, the machine will display “DONE” for 2 minutes
before entering standby.
Dehydrate:
1. Select the Dehydrate function and the screen will display the default temperature
and start flashing: adjust as required.
2. Press Temp/Time to switch to Time: adjust as required.
3. Press the Start/Stop button and the machine will beep and begin to preheat.
Once preheating is complete, it will beep again and show the time remaining.
4. When the program is finished, the machine will display “DONE” for 2 minutes
before entering standby.
Multi-cooker Function
1. Remove all packaging material and place the machine on the flat table.
2. Ensure inner pot, accessories and glass lid are clean.

3. Cover the glass lid, then connect the cooker to power: the Multi Cooker indicator
will illuminate when it is ready to use.

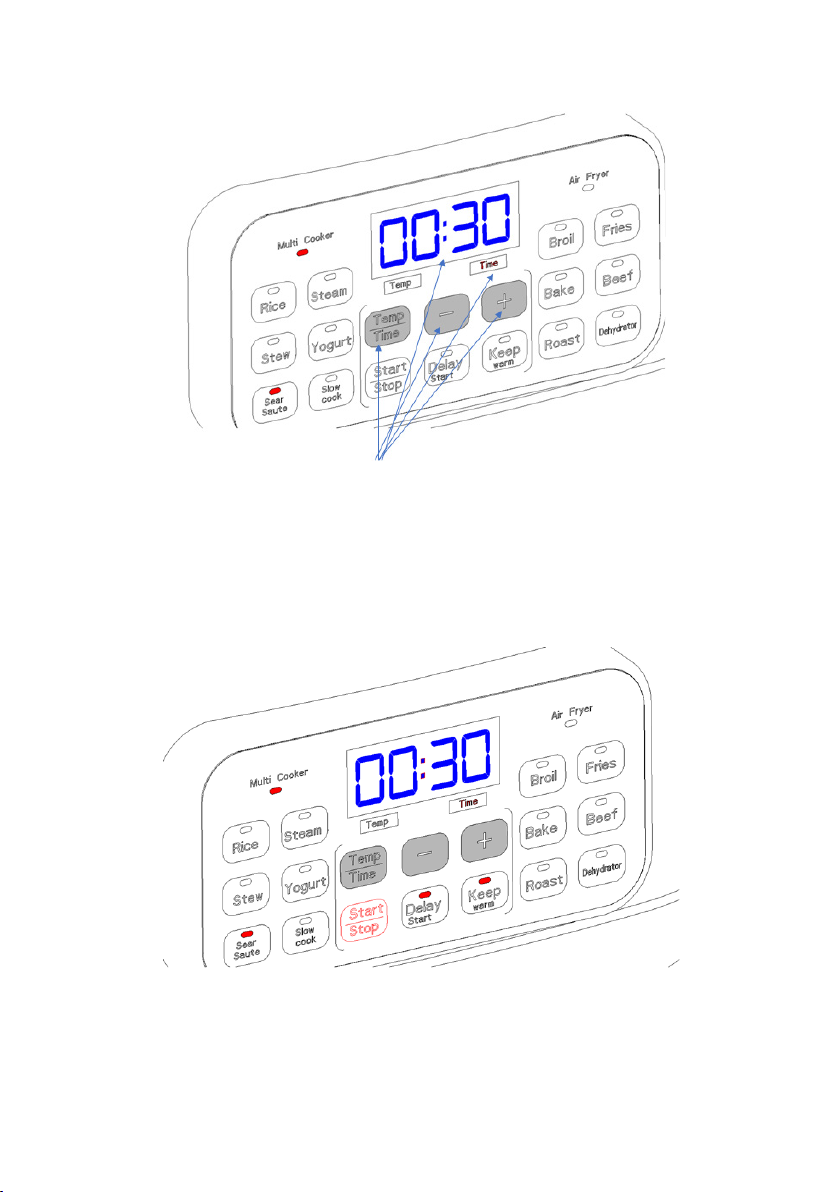

4. To select a function, press the relevant button (“Sear/Saute” in the below
example)
Once the function has been selected, the LED will display the default
temperature and the Temp indicator will turn on.
Press + / - to adjust temperature and press the Temp/Time button to confirm:
the Time indicator will turn on.

Press + / - to adjust time and press the Temp/Time button to confirm.
5. Press Start/Stop to begin.
To delay start, press “Delay Start” after setting the time and temperature, then
press + and - to set the desired delay and then press Start/Stop to begin. The
countdown will be displayed on the screen and the function will begin after the
countdown has finished.
6. For the Rice, Steam, Stew and Slow cook functions, the unit will automatically
enter the “Keep Warm” state. To disable, press “Keep Warm” to toggle the setting
off after selecting the function.

Function Default
TEMP
range
Time range
Keep
Warm
Delay
Start
RICE
- -:- -
N/A
10m
2H
Y
STEAM 00:15 N/A
1m-2h (1m intervals)
short press: 1m
long press: 5m
2H
Y
STEW
02:00
N/A
15n-4h (5m intervals)
10H
Y
Yogurt 1st stage: HEAT:
2nd stage: 08:00 N/A
1st stage: N/A
2nd stage:3-24h
(30m intervals)
/ N
Sear/Saute
200°C
120-
200°C
5m-1h (5m intervals) / N
00:30
10°C
/step
SLOW
COOK 4:00 N/A
30m-24h (30m intervals)
Short press: 30m
long press: 1h
10H
Y
KEEP
WARM
10:00 N/A 1-10h (30m intervals) /
Y
Delay Start
10:00
N/A
1-24h (30m intervals)
/
N
Note:
The air fryer lid cannot be used while using the multi cooker function.

Air fryer function
Add the rack and any food to be fried, then shut the lid and lock in place with the latch as
shown below:
1. Select one of the following functions: Broil, Fries, Bake, Beef, Roast and
Dehydrator.

2. Set the time and temperature and press Start/Stop button: the unit will begin
preheating with a countdown.
To check the food while preheating:
•Press Start/Stop button to pause
•Undo the latch and open the lid
•Shut the lid and close the latch tightly, then press Start/Stop again to resume
countdown
Program overview
Function
Default
Temp range
Time range
Keep Warm
Delay Start
Broil
/
；
00:10
/
10min-1h
N/A N/A
Fries
200°C 00
:
20
150-200°C
1-30min
Bake
170°C
01
:
00
120-200°C
10min-2h
Beef
200°C
00
:
20
120-200°C
1-30min
Roast
200°C
00
:
45
120-200°C
10min-1h
Dehydrator
65°C 02
:
00
40-90°C
15min-24h

Need more information?
We hope that this user guide has given you
the assistance needed for a simple set-up.
For the most up-to-date guide for your product,
as well as any additional assistance you may require,
head online to help.kogan.com
