METROLOGIC INSTRUMENTS, INC.

IS1650 FocusE™

Area Imaging Bar Code Scanner

Installation and User’s Guide

work may be reproduced, transmitted, or stored in any form or by any means

without prior written consent, except by reviewer, who may quote brief

passages in a review, or provided for in the Copyright Act of 1976.

Trademarks

Metrologic is a registered trademark of Metrologic Instruments, Inc.

Products identified in this document are hereby acknowledged as

trademarks, registered or otherwise, of Metrologic Instruments, Inc. or their

respective companies.

TABLE OF CONTENTS

INTRODUCTION

Product Overview ............................................................................................. 1

Key Product Features....................................................................................... 1

Applications and Protocols ............................................................................... 2

Scanner and Accessories................................................................................. 3

Design Specifications ....................................................................................... 6

BASE MODEL CHARACTERISTICS

IS1650 Scanner................................................................................................ 8

Components.................................................................................................. 8

Dimensions ................................................................................................... 9

Caution and Serial Labels ........................................................................... 10

INSTALLATION

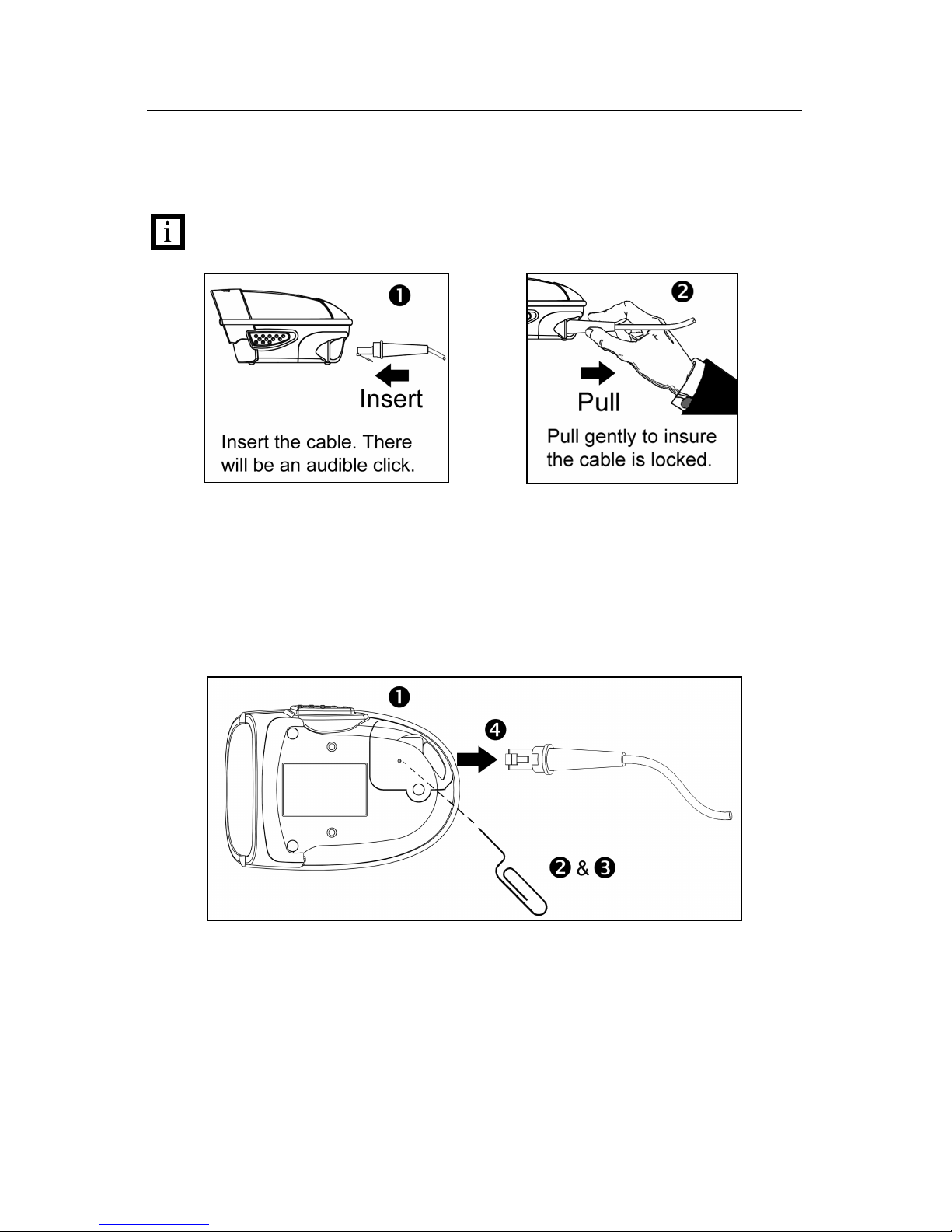

The PowerLink Cable ..................................................................................... 11

Cable Installation (Interface Specific) ............................................................. 12

RS232 IS1650-14........................................................................................ 12

Keyboard Wedge IS1650-47 ....................................................................... 13

Stand Alone Keyboard IS1650-47............................................................... 14

IBM 46xx IS1650-106.................................................................................. 15

Low Speed USB IS1650-38 (Integrated)..................................................... 16

Full Speed USB IS1650-106 (Integrated).................................................... 16

Flex Stand Installation .................................................................................... 17

SCANNER CONFIGURATION

Configuration Modes ...................................................................................... 19

Bar Codes ................................................................................................... 19

MetroSet2.................................................................................................... 19

Serial Configuration..................................................................................... 19

Upgrading the Firmware................................................................................. 20

SCANNER OPERATION

Modes of Operation........................................................................................ 21

Audible Indicators........................................................................................... 22

iii

TABLE OF CONTENTS

Visual Indicators ............................................................................................. 23

Failure Modes................................................................................................. 24

Depth of Field by Minimum Bar Code Element Width .................................... 25

IR Activation Range........................................................................................ 26

MAINTENANCE

Daily Maintenance.......................................................................................... 27

TROUBLESHOOTING GUIDE

Troubleshooting Symptom / Solution Chart.................................................... 28

DEFAULT SETTINGS

Communication Parameters........................................................................... 32

SCANNER AND CABLE TERMINATIONS

Scanner Pinout Connections .......................................................................... 36

Cable Connector Configurations .................................................................... 38

PATENTS...................................................................................................43

LIMITED WARRANTY...................................................................................44

INDEX .......................................................................................................45

CONTACT INFORMATION AND OFFICE LOCATIONS........................................47

INTRODUCTION

PRODUCT OVERVIEW

The IS1650 is a high performance area imaging bar code scanner that utilizes a

high-resolution CMOS imaging sensor for unrivaled image quality. The IS1650 is

the choice of 2D imaging scanners that delivers superior performance for

presentation and fixed-mount applications. The IS1650 employs Omniplanar,

Inc.’s SwiftDecoder™ software, for reliable decoding of all 1D and 2D bar code

symbologies.

Omnidirectional scanning capabilities and an extended depth of field provides

aggressive scanning of all standard 1D, RSS, PDF417, microPDF, Composite,

Matrix and Postal Codes symbology types. In addition, the IS1650 scanner

supports OCR (A, B, & MICR).

The IS1650 provides a built-in object detection sensor (IR) that instantly turns on

the scanner when an object is presented within the scanner’s field of view.

Whether fixed mount or in stand, the IS1650 delivers aggressive, convenient

hands-free scanner. Firmware updates are easily loaded into Flash memory.

KEY PRODUCT FEATURES

The IS1650 is equipped with a multitude of standard features including:

•Automatic Scanning Operation

•Supports Multiple Interfaces Including USB and Keyboard Wedge

•Custom Edit the Bar Code Data

•OPOS and JPOS System Compatible

•User Replaceable Cables

•Sunrise 2005 Compliant

•RoHS Compliant

•Supports Customer Software Plug-Ins

INTRODUCTION

APPLICATIONS AND PROTOCOLS

The model number on each scanner includes the scanner number and factory

default communications protocol.

SCANNER VERSION

IDENTIFIER COMMUNICATION PROTOCOL(S)

14 RS232 (TX, RX, RTS, CTS, DTR)

38 Low Speed USB and RS232 Transmit/Receive

47 Keyboard Wedge, Stand-Alone Keyboard and

RS232 Transmit/Receive

IS1650 -

106 IBM 46xx, Full Speed USB, and

RS232 Transmit/Receive

The IS1650-47 with a built-in PC Keyboard Wedge Interface is designed for

Keyboard emulation use only. Many RS232 configurable functions are also

available as keyboard wedge functions.

The following are the most important selectable options specific to the keyboard

wedge.

Keyboard Type

•**AT (includes IBM® PS2 models 50, 55, 60, 80)

•IBM PS2 (includes models 30, 70, 8556)

Keyboard Country Type

•*USA •Italian •Swiss

•Belgian •Japanese •Swedish/Finnish

•French •Russian Cyrillic •Turkish

•German •Slovenian •United Kingdom

•Hungarian •Spanish

** For additional information on the IS1650’s default settings refer to

pages 32-35. For information on how to change the default settings, refer to

help files in MetroSet2 or the MetroSelect Single-Line Configuration Guide

(MLPN 00-02544).

INTRODUCTION

SCANNER AND ACCESSORIES

BASIC KIT

Part # Description

IS1650 Area Imaging Bar Code Scanner

00-02544 MetroSelect®Single-Line Configuration Guide*

00-02281 Area Imaging Supplemental Configuration Guide*

00-02287 IS1650 Series Area Imaging Bar Code Scanner

Installation and User’s Guide*

* Also available for download on the Metrologic website - www.metrologic.com

OPTIONAL ACCESSORIES

Part # Description

AC to DC Power Transformer

Regulated 5.2VDC @ 1 AMP output.

46-00525 120V United States

46-00526 220V-240V Continental European

46-00870 220V-240V United Kingdom

46-00528 220V-240V Australia

46-00529 220V-240V China

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

SCANNER AND ACCESSORIES

OPTIONAL ACCESSORIES

Part # Description

IS1650 Scanner Interface Specific Cables

59-59000-3 RS232 PowerLink Cable with Built in Power Jack

2.2 m (7.3 ft.) straight, black

59-59002-3 Keyboard Wedge PowerLink Cable with Adapter Cable

2.2 m (7.3 ft.) straight, black

59-59020-3 Stand Alone Keyboard PowerLink Cable

2.2 m (7.3 ft.) straight, black

59-59313-N-3 USB Power/Communication Cable,

2.9 m (9.5 ft.) straight, black

MVC-3M106S-

IB9

Metrologic Voltage Converter (MVC) Cable*

±12VDC to +5.2VDC, 2.1m (7.0 ft.) straight, black

* Contact a Metrologic customer service representative for additional

information on the MVC cable series and the host connections available.

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

SCANNER AND ACCESSORIES

OPTIONAL ACCESSORIES

Part # Description

00-02001 IS1650 Series Stand Installation Guide

46-00710 Flex Stand, Kit

Flex Stand, Kit Components

a. Stand Base...............................................................................Qty. 1

b. Flexible Shaft............................................................................Qty. 1

c Flexible Shaft Cover .................................................................Qty. 1

d. Scanner Cradle.........................................................................Qty. 1

e. 1/4” – 20 x 1/2” Flat Head Phillips ............................................Qty. 2

f. #8 Round Head Wood Screw ....................................................Qty. 2

Other items may be ordered for the specific protocol being used. To order additional items,

contact the dealer, distributor or call Metrologic’s Customer Service Department at

1-800-ID-METRO or 1-800-436-3876.

INTRODUCTION

DESIGN SPECIFICATIONS

IS1650 DESIGN SPECIFICATIONS

OPERATIONAL

Light Source: LED 645 nm

Pulse Duration: 1 ms to 8 ms

Maximum Output

of an Osram LED: Maximum 85 mA emits 3,120 mlm

Depth of Scan Field: 0 mm – 254 mm (0" – 10") for

0.330 mm (13 mil) Bar Code at Default Setting

49 mm W x 19 mm H (1.9” W x 0.8” H) at 20 mm (0.8”)

Field of View: 264 mm x 106 mm (10.4” W x 4.2” H) at 280 mm (11.0”)

Minimum Bar Width: 0.127 mm (5.0 mil)

Long Range: 0 mm – 203 mm (0" – 8") from Window

Infrared Activation: Short Range: 0 mm – 101 mm (0" – 4") from Window

Decode Capability:

Autodiscriminates All Standard 1-D, RSS, PDF417,

microPDF, MaxiCode, Data Matrix, QR Code, UCC, EAN

Composites, Postals, Aztec, *OCR (A, B, MICR)

(Image Transfer) – BMP, TIFF, or JPEG output

*Optional Decode Capability

System Interfaces:

PC Keyboard Wedge, RS232 (FULL & TTL),

IBM 468X/469X, Stand Alone Keyboard,

USB (Low/Full Speed)

Print Contrast: 20% Minimum Reflectance Difference

Number Characters Read: Up to 80 Data Characters on 1D;

1850 Text Characters for PDF417

Beeper Operation: 7 tones or no beep

Blue Unit Powered, Ready to Scan

White Good Read

Indicators (LED)

Default Settings:

Yellow In Stand

MECHANICAL

Height: 62 mm (2.44”)

Width: 80 mm (3.15”)

Depth: 116 mm (4.57")

Weight: 204 g (7.2 oz.)

Termination: 10 pin modular RJ45

Specifications are subject to change without notice.

INTRODUCTION

DESIGN SPECIFICATIONS (CONT.)

IS1650 DESIGN SPECIFICATIONS

ELECTRICAL

Input Voltage: 5.0VDC ± 0.25V

Peak = 2 W (Typical)

Operating = 1.65 W (Typical)

Power:

Idle / Standby = 800 mW (Typical)

Peak = 400 mA (Typical)

Operation = 330 mA (Typical)

Current:

Idle / Standby = 160 mA (Typical)

DC Transformer: Class 2; 5.2VDC @ 1 AMP

For Regulatory Compliance information, see pages 40- 42

ENVIRONMENTAL

Operating = 0°C to 40° (32° to 104°F)

Temperature:

Storage = -40°C to 60°C (-40°F to 140°F)

Humidity: 0% to 95% Relative Humidity, Non-Condensing

Light Levels: Up to 100,000 Lux (9,290 Footcandles)

Shock: Designed to withstand 1.0 m (3.3 ft.) drops

Contaminants: Sealed to resist airborne particulate contaminants

Ventilation: None required

Specifications are subject to change without notice.

BASE MODEL CHARACTERISTICS

IS1650 SCANNER

Components

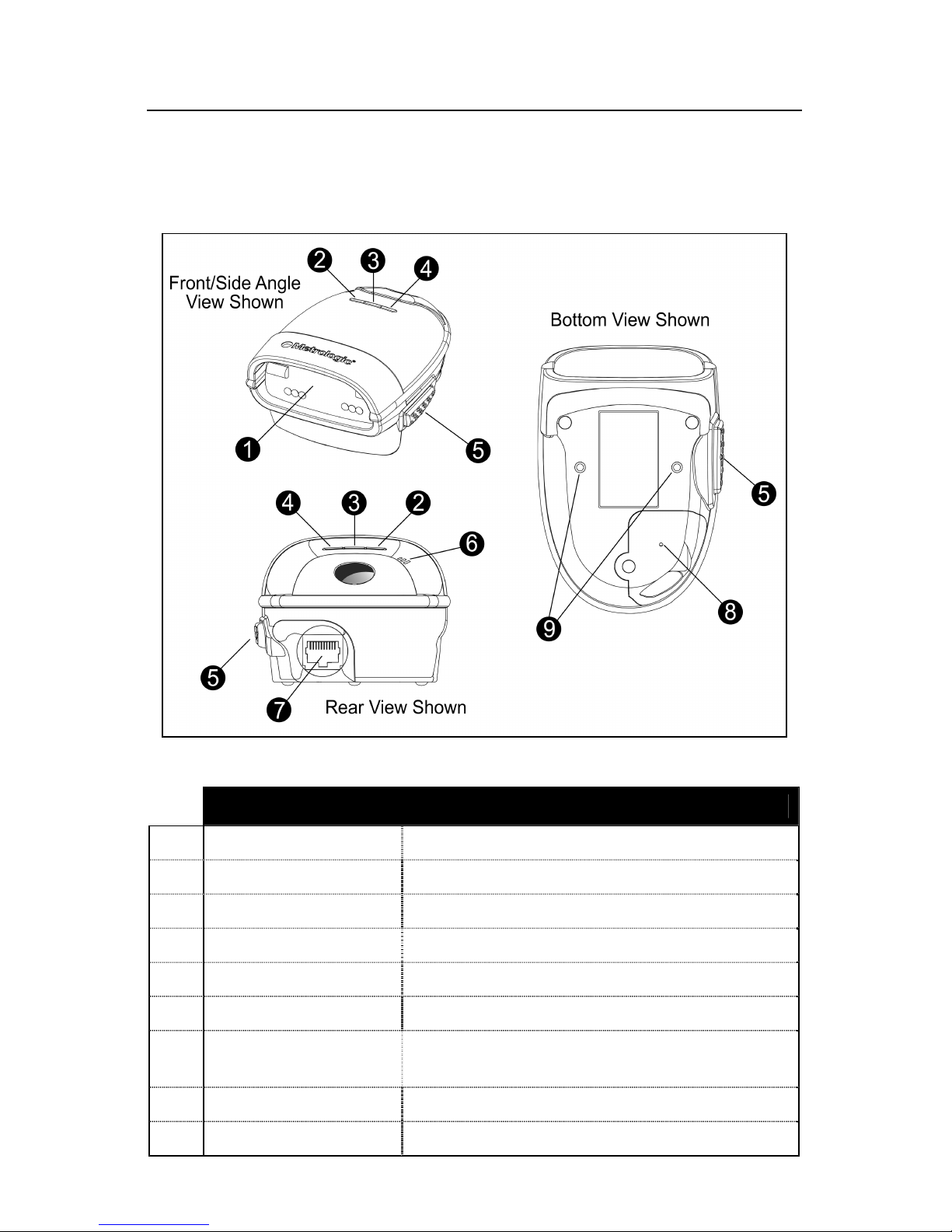

Figure 1. Scanner Components

Item Description

1 Red Window LED Aperture

2 Blue LED See Visual Indicators (on page 23)

3 White LED See Visual Indicators (on page 23)

4 Yellow LED See Visual Indicators (on page 23)

5 Trigger Initiates Bar Code Read

6 Speaker See Audible Indicators (on page 22)

7 Cable Connection

10-pin RJ45, Female Socket,

See Scanner Pinout Connections (on page 36)

8 Cable Release See The PowerLink Cable (on page 11)

9 M3 Mounting Holes M3 Mounting Holes for Mounting Scanner

BASE MODEL CHARACTERISTICS

IS1650 SCANNER

Dimensions

Figure 2. Scanner Dimensions

Figure 3. M3 Mounting Hole Dimensions

Caution:

The depth of each mounting hole is 12 mm (0.5”). For fixed mount, the mounting

screws should not be over-tightened or go deeper than 10 mm (0.4”) passing the

bottom surface of the unit. Going further may cause serious damage to the unit

and void the manufacturer warranty.

BASE MODEL CHARACTERISTICS

IS1650 SCANNER

Caution and Serial Number Labels

Each scanner has a label located on the bottom of the unit, as well as text

embedded into the bottom casing. This label provides the unit’s model number,

date of manufacture, serial number, CE and caution information. The following

figure gives an example of the label/text and their location.

Figure 4. Label Samples and Location

Caution:

To maintain compliance with applicable standards, all circuits connected to the

scanner must meet the requirements for SELV (Safety Extra Low Voltage)

according to EN/IEC 60950-1.

To maintain compliance with standard CSA-C22.2 No. 60950-1/UL 60950-1 and

norm EN/IEC 60950-1, the power source should meet applicable performance

requirements for a limited power source.

INSTALLATION

THE POWERLINK CABLE

Connecting

Important: If the PowerLink cable is not fully ‘latched’, the unit can

power intermittently.

Figure 5. Figure 6.

Disconnecting

Before removing the cable from the scanner, Metrologic recommends that the

power on the host system is off and the power supply has been disconnected

from the PowerLink cable.

Figure 7. Releasing the PowerLink Cable

1. Locate the small ‘pin-hole’ on the bottom of the unit near the cable.

2. Bend an ordinary paperclip into the shape shown above.

3. Insert the paperclip (or other small metallic pin) into the small ‘pin-hole’.

4. There will be a faint ‘click’. Pull gently on the strain-relief of the

PowerLink cable to remove the cable from the unit.

INSTALLATION

CABLE INSTALLATION (INTERFACE SPECIFIC)

RS232 IS1650-14

1. Turn off the host device.

2. Plug the male 10-pin RJ45 end of

the PowerLink cable into the 10-pin

socket on the IS1650. There will be

an audible click when the connector

lock engages.

3. Connect the 9-pin D-type connector

of the communication cable to the

proper COM port of the host device.

4. Plug the power supply into the

power jack on the PowerLink cable.

Check the AC input

requirements of the power

supply verify the voltage

matches the AC outlet. The

outlet must be located near the

equipment and be easily

accessible.

5. Connect the power supply

transformer to an appropriate AC

power outlet.

6. The IS1650 will start to initialize. All LEDs (yellow, white, and blue) will light

for approximately 2 seconds then start to alternately flash. When the

scanner has finished initializing the LEDs will stop flashing and the unit will

beep three times indicating that the scanner is ready for use.

7. Turn on the host device.

Plugging the scanner into a port on the host system does not guarantee

that scanned information will be communicated properly to the host

system. The scanner is shipped from the factory configured with default

settings. Please refer to the MetroSelect Single-Line Configuration

Guide (MLPN 00-02544) or MetroSet2’s help files for instructions on

changing the scanner’s configuration. In addition, please check that the

scanner and host system are using the same communication protocol.

See SELV Power caution statement located on page 10 of this manual.

Figure 8.

INSTALLATION

CABLE INSTALLATION (INTERFACE SPECIFIC)

Keyboard Wedge IS1650-47

1. Turn off the host device.

2. Plug the 10-pin RJ45 male end of the

PowerLink cable into 10-pin socket on

the IS1650. There will be an audible

click when the connector lock

engages.

3. Disconnect the keyboard from the

host device.

4. Connect the “Y” ends of the

communication cable to the

keyboard and keyboard port on the

host device.

If necessary, use the male/female

adapter cable supplied with the

scanner for proper connections.

5. Plug the external power supply

(required) into the power jack on the

PowerLink cable.

Check the AC input requirements

of the power supply to verify the

voltage matches the AC outlet.

The outlet must be located near

the equipment and be easily

accessible.

6. Connect the power supply transformer to an appropriate AC power outlet.

7. The IS1650 will start to initialize. All LEDs (yellow, white, and blue) will light

for approximately 2 seconds then start to alternately flash. When the

scanner has finished initializing the LEDs will stop flashing and the unit will

beep three times indicating that the scanner is ready for use.

8. Turn on the host device.
