MECABLITZ 34 AF-3 M
Operating instructions

Foreword
Dear Customer,
We thank you for your confidence in our meca-
blitz MB 34 AF-3M.
The MB 34 AF-3M flashgun has been especial-
ly designed for Minolta system cameras of the
Dynax series. IMPORTANT: Never mount the
flashgun in the accessory shoe of any other
system camera, otherwise the flashgun’s foot
or the camera’s accessory shoe can be dest-
royed! The dedicated contacts in the foot of the
MB 34 AF-3M only support the controlling
commands of Minolta system cameras.
The following pages give details for the correct
operation of the mecablitz flashgun and summari-
ze its fields of application.
Please read these operating instructions carefully,
even if, at first sight, some points may not appear
to
be of interest. Our design work placed
particular
value on ensuring that operation of the mecablitz is
as simple
as possible, but it should be noted that
the system cameras for which the flashgun is
intended offer a great diversity of capabilities.
We wish you much pleasure with your new Metz
flashgun in conjunction
with a Minolta Dynax
system camera to light up the darkest points, and
for creative flash lighting.
1

Contents
1. Safety instructions . . . . . . . . . . . . . . . . .23
2. Preparing the mecablitz for use . . . . . . .24
2.1 Power supply . . . . . . . . . . . . . . . . . . . . . .24
2.2 Loading and replacing the batteries . . . . . .24
2.3 Automatic flashgun cut-out circuit . . . . . . .25
2.4 Mounting/Removing the mecablitz . . . . . . .25
3. Setting the mecablitz into operation . . .26
3.1 Preconditions . . . . . . . . . . . . . . . . . . . . . .26
3.2 Switching the flashgun on and off . . . . . . .26
4. Flashgun instructions to the camera . . .27
4.1 Flash-ready indication . . . . . . . . . . . . . . . .27
4.2 Automatic flash sync speed control . . . . . .27
4.3 Correct-exposure indication . . . . . . . . . . .27
4.4 Information displayed in the
camera’s viewfinder . . . . . . . . . . . . . . . . .28
5. TTL flash control . . . . . . . . . . . . . . . . . . .29
6. Flash synchronisation . . . . . . . . . . . . . . .30
6.1 Normal synchronisation . . . . . . . . . . . . . . .30
6.2 Slow-synchronisation . . . . . . . . . . . . . . . .30
6.3 Second curtain synchronisation . . . . . . . . .31
7. Flash in the individual camera modes . .32
8. Autofocus measuring flash . . . . . . . . . . .33
9. Flash techniques and flash functions . .34
9.1 Automatic fill-in flash . . . . . . . . . . . . . . . .34
9.2 Exposure correction . . . . . . . . . . . . . . . . .34
10.
Lighting and attachments . . . . . . . . . . . .35
11. Care and maintenance -
Manual firing button
Troubleshooting . . . . . . . . . . . . . . . . . . .36
12. Technical data . . . . . . . . . . . . . . . . . . . . .37
Lighting distances . . . . . . . . . . . . . . . . . .38
2

1. Safety instructions
•NEVER fire a flash in the immediate vicinity of
the eyes! Flash fired directly in front of the eyes
ofapersonoranimalcandamagetheretinaand
leadto severevisual disorders- evenblindness!
• Spent batteries should be immediately remo-
ved. Chemicals leaking out of spent batteries
will damage the flashgun.
• Do not short-circuit batteries! DANGER OF
EXPLOSION!
• Batteries should not be exposed to excessive
heat, for instance sunshine, fire and the like!
•NEVER throw spent batteries in a fire!
• Do not expose the flashgun to dripping or
splashing water!
• Protect the flashgun against excessive heat and
high humidity levels! Do not keep the flashgun
in the glove compartment of a car!
• In the event of flash shots with full light output
observe an interval of at least 3 minutes after a
series of 20 flashes. This will protect the flash-
gun against overload.
•
NEVER place material that is impervious to light
in front of, or directly
on, the reflector screen.
The reflector screen must be perfectly clean
when a flash is fired. The high energy of the
flash light will burn the material or damage the
screen if this is not observed!
•NEVER dismantle the flashgun! DANGER: HIGH
VOLTAGE! There are
no components inside the
flashgun that can be repaired by a layperson.
Disposal of batteries
Do not dispose of spent batteries with domestic
rubbish.
Please return spent batteries to collecting points
should they exist in your country!
3

4
2. Preparing the mecablitz for use
2.1 Power supply
The flashgun can only be operated with 2 CR2-type lithi-
um batteries. This type of battery can be stored for many
years with practically no loss of energy, thus making it
ideal for occasional amateur flash photography.
Batteries have become discharged or spent
when recycling takes more than 60 seconds.
The batteries should be removed from the
mecablitziftheflashgunisnotgoingtobeused
for a prolonged period.
2.2 Loading and exchanging batteries
• Turn off the flashgun with the main switch.
• Press the unlocking catch, slide the battery
compartment lid to the right and fold open (see
fig. 1).
• Insert the batteries according to the indicated
battery symbols.
The supplied lithium batteries are expendables
and, as such, are not subject to our warranty pro-
visions.
After the batteries have been inserted, fold down
the battery compartment lid, and push to the left
until it engages audible with the unlocking catch.
☞
☛
➭
Fig. 1: Unlocking and exchanging batteries

2. Preparing the mecablitz for use
5
When loading the batteries ensure correct pola-
rity.Incorrectlyloadedbatteriescandestroythe
flashgun! All batteries must be of the same
make and have the same charge level.
Exhau-
sted batteries must not be thrown into the
dustbin! Contribute to the protection of the
environment and discard exhausted batteries
at the appropriate disposal points.
2.3 Automatic flashgun switch-off
To avoid accidental battery discharge the flashgun
automatically switches itself off to save power
approximately 8 minutes after
- the flashgun was switched on
- the last flash was fired
- tripping the camera release, or
- switching on the camera light metering system.
The green flash-ready indicator is turned off.
To turn on the mecablitz again switch the main
switch OFF and then ON. The flashgun should
always be turned off if it is not being used.
2.4 Mounting/Removing the flashgun
• Turn off the mecablitz.
• Press the unlocking catch at the back of the
mecablitz (see fig. 2).
• Slide the mounting foot into the camera’s
mounting shoe.
•
Always turn off the flashgun before it is removed.
• Press the unlocking catch at the back of the
mecablitz (fig. 2) and withdraw from the camera.
☞
Fig. 2: Unlocking catch
☛

6
3. Setting the mecablitz into operation
3.1 Preconditions
The mecablitz must only be used with TTL
flash controlled cameras!
The sensor of TTL flash controlled cameras
measures the light reaching the film through
the camera lens and instantly cuts out the
flash when the film has been correctly expo-
sed. Please refer to the camera’s operating
instructions to find out whether your camera
features this function.
A full-power flash is fired if the camera does
not feature TTL flash control!
In other words: Without TTL flash control, the
mecablitz fires an unmeasured flash at maximum
output.
If there is a flashgun integrated in the camera it
must be switched off or completely folded
down when the mecablitz is used.
Ǻ
Fig. 3: Switching the flashgun on and off
OFF ON
3.2 Switching the flashgun on and off
Set the main switch in the ON position to turn on
the flashgun. The green flash-ready indicator
lights up to indicate flash readiness.
Set the main switch in the OFF position to turn off
the flashgun.

4. Flashgun instructions to the camera
The mecablitz transmits different signals and
messages to the camera when it is connected to
the camera and is switched on.
4.1 Flash-ready indication
The green light on the mecablitz illuminates
when the flash capacitor is fully primed, thereby
indicating flash readiness. This means that flash
can be used for the next exposure. The flash rea-
diness signal is transmitted to the camera where it
is indicated by a corresponding display in the
camera’s viewfinder. On some cameras (depen-
ding on the model) the shutter is automatically
changed to flash sync speed when flash readiness
is reached. The flash will not be fired if the shutter
is released before the flash ready light illuminates
with the result that the exposure may be incorrect
if the camera control circuit has already changed
overto flashsync speed. Please refer tothe came-
ra’s operating instructions for further details.
4.2 Automatic flash sync speed control
Most system cameras automatically change to
flash sync speed when flash readiness is reached.
The flash sync shutter speeds may vary between
1/30th and 1/300th second, depending on the
cameramodel.Pleaserefertothecamera’sopera-
ting instructions for further details.

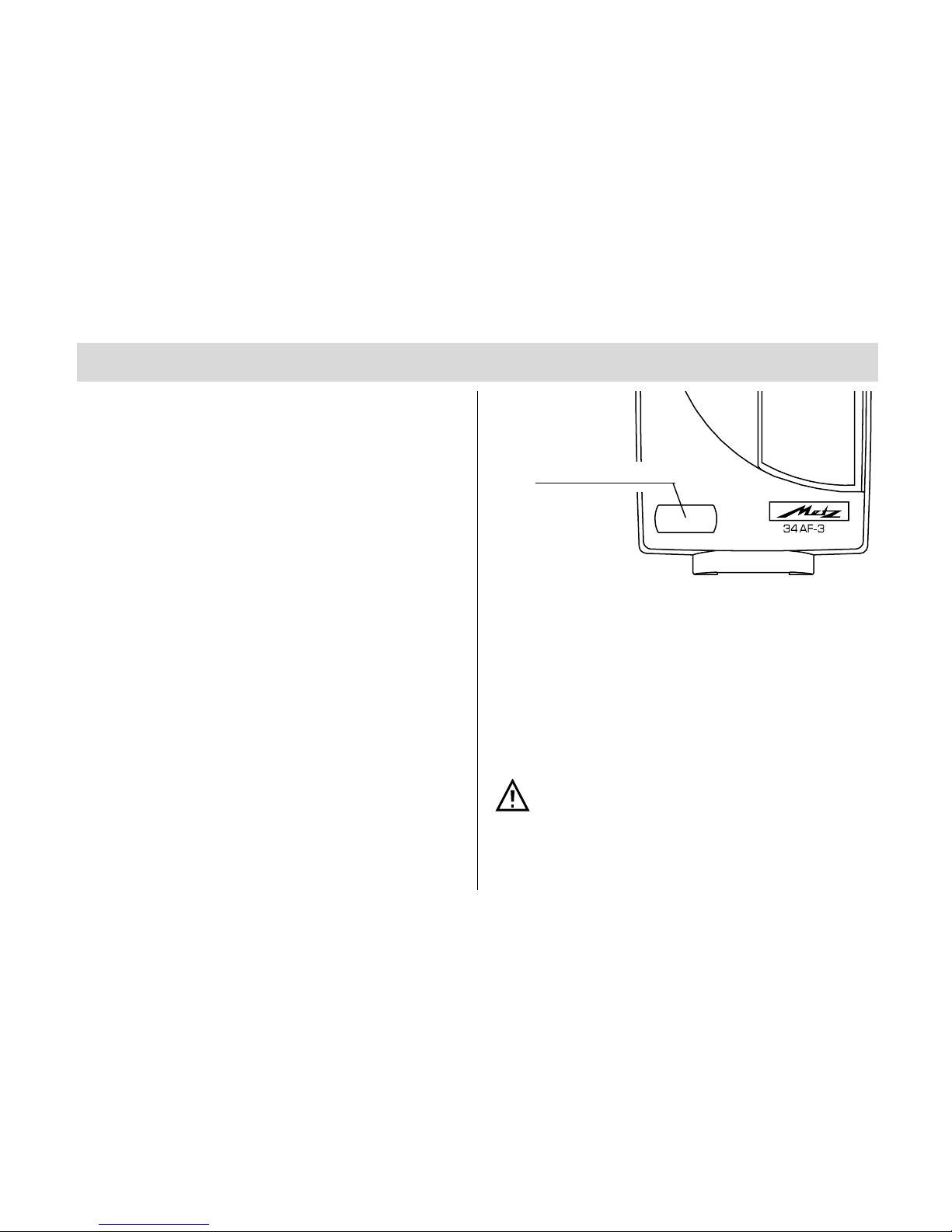

4.3 Correct-exposure indication (see fig. 4)
The red correct exposure light briefly illuminates
when flash exposure was correct. At the same
time the mecablitz sends an o.k. signal to the
camera for display in the viewfinder.
Please refer to the camera’s operating instructions
for further details.
7

4. Flashgun instructions to the camera
8
Fig. 4: Exposure o.k.
Permanently
2)
The flashgun is primed and
illuminated
ready for firing
or blinks slowly
1)
Permanently The flashgun is primed and
illuminated
2)
ready for firing
or blinks slowly
1)
blinks 2) T he light output was sufficient
blinks rapidly
1)
for correct exposure
Camera models: 3xi / 2xi / SPxi / 5000i / 3000i
blinks The flashgun is being primed
blinks slowly
The flashgun is primed and
ready for firing
blinks rapidly The light output was sufficient
for correct exposure
4.4 Information displayed in the camera’s viewfinder
Camera models 8000i 1)/ 7000i 1)/ 700si 2)
9xi 2)/ 7xi 2)/ 5xi 2)
Displays in Meaning
viewfinder
Permanently The flashgun will be triggered as
illuminated soon as the release is pressed.

5. TTL flash control
The mecablitz receives its information exclusively
from the connected TTL-controlled camera.
Exposure measurement in TTL mode (TTL =
through-the-lens) is completed by the camera’s
sensor. This sensor measures the light reaching
the film through the camera lens. An electronic
control circuit within the camera transmits a stop
signal to the flashgun as soon as the film has been
exposed by the correct amount of light; the flash is
then instantly cut out.
The advantage of the TTL mode is that all factors
influencing the exposure of the film (such as fil-
ters, change of aperture or variable aperture
zooms)are taken intoaccount. Youneed notworry
about adjustment of the light output. The camera’s
electronic system automatically defines the requi-
red amount of light. You can also utilize various
metering facilities
(e.g. spot , matrix or centre-
weighted overall readings)
offered by some came-
ras.
The table on page 37 gives the maximum range
for the selected aperture. The minimum lighting
distance is approx. 15% of the maximum thres-
hold range.
If the actual distance is shorter than the
minimum lighting distance, then this may
result in overexposure.
The speed of films to be exposed under
TTL flash control must be between ISO
25/15°* and ISO 1000/31°. Correct expo-
sures cannot be guaranteed with other
film speeds.
Astrip offilmmust beloadedin thecamera iftests
are to be conducted in TTL flash mode. The effec-
tive flash range can only be checked by the cor-
rect-exposure display (o.k.) if the flash is triggered
by the camera and not with the manual release on
the flashgun!
* With automatic film speed setting (DX): ISO 32/16°
9

6. Flash synchronisation
Different modes of flash synchronisation are pos-
sible, depending on the camera model. Please
refer to the camera’s operating instructions to find
out how the individual modes of synchronisation
are set on the camera.
6.1 Normal synchronisation
This mode is available with all TTL cameras, and it
is suitable for most flash shots. With normal
synchronisation, switching to the camera’s flash
sync shutter speed is automatic. The shutter
speedmay varyfrom 1/30thand 1/300thseconds,
depending on the camera model. Please refer to
the camera’s operating instructions for further
details.
6.2 Slow-synchronisation
Some cameras feature specific exposure pro-
grams for slow-synchronisation.
Flash shots at low lighting levels and fast shutter
speeds (normal flash sync speed) can often result
in overexposed subjects in front of a very dark
back-ground.
The slow-sync function allows the use of slow
shutter speeds right up to 30 seconds, to signifi-
cantly enhance the background as a result of the
extra ambient light. Such shots require a tripod to
prevent camera shake. Please refer to the came-
ra’s operating instructions for further details.
10

6. Flash synchronisation
6.3 Second curtain synchronisation (REAR)
Some cameras offer the facility of second shutter
curtain synchronisation.
With normal synchronisation, the flash is fired pre-
cisely after the opening of the first shutter curtain.
When using slow shutter speeds, and with moving
objects, this would result in an unnatural rendition
of light traces.
With second curtain or rear curtain synchronisati-
on,the flash isfired asthe exposure is ending, just
before the second curtain covers the film again.
This makes the light trail behind the moving
objects instead of appearing in front of them, and
renders a more natural looking picture.
11
First curtain Second curtain

7. Flash in the individual camera modes
Auto program mode with flash (P-function)
In this mode, the camera automatically activates
the flash function when the ambient light level is
too low, it automatically adjusts the aperture and
shutter speed, and triggers the flash when the
shutter release is pressed.
The flashgun is not triggered in the creative
program modes PA/PS!
Triggering control
On some cameras the flash will not be fired when
the prevailing light is sufficient for an exposure in
normal mode. The exposure is then completed
with the settings indicated in the display field.
Please refer to the camera’s operating instructions
for further details.
Activating the flash manually
(manual fill-in flash)
Although the camera automatically activates the
flash whenever the prevailing light conditions
make this necessary, it is still possible to trigger
the mecablitz manually. Please refer to the came-
ra’s operating instructions for the description of
this function.
Flash in the A, S and M modes
With aperture priority (A), shutter priority (S) and
manual mode (M), a flash will be fired with each
shot if the mecablitz has been switched on. Came-
ra operation in these three modes is the same as
without flash.
With one exception: A shutter speed faster than
the camera’s flash sync speed cannot be selected.
Please refer to the camera’s operating instructions
for further details.
12

8. Autofocus measuring flash
The integrated AF red-light beam of the mecablitz
supports the automatic focusing of autofocus TTL
cameras. When the prevailing light is insufficient
for automatic focusing, the mecablitz will project a
pattern
of red vertical stripes onto the subject as
soon as the camera’s release
is lightly touched (or
is activated by the eye-start system of cameras of
the xi series). The camera’s autofocus system
then focuses the picture by this striped pattern.
Notes:
• When the camera’s autofocus system is on, the
electronic circuit will automatically activate the
autofocus measuring flash whenever the
prevailing light is insufficient for the exposure.
•
Depending on the prevailing ambient light, either
the AF illuminator of the camera or that of the
flashgun will be activated whenever the autofo-
cus measuring facility becomes necessary.
• The range of the autofocus measuring flash
depends on the speed of the lens (maximum
aperture)! With an f/1.8 standard lens of 50 mm
focal length, the range is approx. 6-10 m (depen-
dingon the sensitivityof the camera’sAFsensor).
•Only the central AF sensor is supported
Low-speed lenses, e.g. with an aperture of
f/5.6or f/8(suchas zoomlenses), significant-
ly restrict the range of the autofocus
measuring flash!
13
Fig. 5: AF red-light beam
AF red-light beam

14
9. Flash techniques and flash functions
9.1 Fill-in flash
Normally, the automatic flash function (P-function)
will automatically fire the flash in daylight when
shooting against the light. However, the camera
may well measure sufficient ambient light so that
the flash firing circuit is not activated (see page
32). The mecablitz still enables
the user to activate
the fill-in flash function manually when the camera
would shoot the picture without flash (see also
page 32 „Activating
the flash manually“). Observe
the corresponding displays in the camera’s view
-
finder. Please refer to the camera’s operating
instructions for further details.
Fill-in flash in daylight will soften harsh shadows
and diminish the contrast, thereby producing a
more balanced exposure when shooting against the
light. The camera’s computer-controlled metering
system automatically selects the shutter speed,
working aperture and light output in such a manner
that both the main subject in the foreground as well
as the background are uniformly exposed.
9.2 Exposure correction
Various cameras enable the user to influence the TTL
exposure control.
Accordingly, the camera’s expo-
sure settings can be corrected by up to ± 3 aper-
tures (in half f-stop settings).
PLEASE NOTE: Do not forget to switch off
this function when it is no longer required!
Please refer to the camera’s operating instructions
for further details.
Fig. 6: Fill-in flash in daylight (left without, right with fill-in flash
☞

15
10. Lighting and attachments
Your mecablitz provides full and even illumination
of normal 24 x 36 mm negatives when using len-
ses of 35 mm focal length and longer.
A wide-angle diffuser is supplied with the flash-
gun to increase the coverage if you wish to use a
28 mm wide-angle lens.
A telephoto attachment (identified with a „T“) is
included for telephoto lenses of 85 mm focal length.
PLEASE NOTE: The use of the wide-angle diffu-
ser diminishes the effective range of the flash!
Mounting and removing the attachments
The attachment is swivelled into the bayonet
mount (see fig. 7). Turn the attachment clockwise
and insert the guiding edge into the case gap.
T o remove turn the attachment beyond the retaining
spring (see fig.) and withdraw the attachment.
Fig. 7: Mounting and removing the attachments
guiding edge
case gap

16
11. Care and maintenance - Troubleshooting
Remove grime and dust with a soft, dry cloth. Do
not use cleaning agents as these could damage
the plastic parts.
Forming the flash capacitor
The flash capacitor incorporated in the flashgun
undergoes a physical change when the flashgun is
not switched on for prolonged periods. For this
reasonit isnecessary to switch on theflashgun for
approx. 10 minutes every 3 months and to fire a
few flashes The batteries must supply sufficient
power to light up the flash-ready light within one
minute after the flashgun was switched on.
Manual firing button
An uncontrolled flash can be fired with the manual
firing button (see fig. 8)
Troubleshooting:
If the flashgun does not work as it should in the
individual modes, then proceed as follows:
• Switch off the flashgun with the main switch.
• Remove the rechargeable or dry-cell batteries
for a brief period, and then load them again.
Fig. 8: Manually firing button
☛

17
1,4
W N T W N T W N T W N T W N T W N T W N T W N T
8
11
16
22
32
45
10
14
20
28
40
56
12
17
24
34
48
67
5,5
8
11
16
22
32
7
10
14
20
28
40
8,5
12
17
24
34
48
4
5,5
8
11
16
22
5
7
10
14
20
28
6
8,5
12
17
24
34
2,8
4
5,5
8
11
16
3,5
5
7
10
14
20
4,2
6
8,5
12
17
24
2
2,8
4
5,5
8
11
2,5
3,5
5
7
10
14
3
4,2
6
8,5
12
17
1,4
2
2,8
4
5,5
8
1,8
2,5
3,5
5
7
10
2,1
3
4,2
6
8,5
12
1
1,4
2
2,8
4
5,5
1,2
1,8
2,5
3,5
5
7
1,4
2,1
3
4,2
6
8,5
0,7
1
1,4
2
2,8
4
0,9
1,2
1,8
2,5
3,5
5
1
1,4
2,1
3
4,2
6
ISO
25/15°
50/18°
100/21°
200/24°
400/27°
800/30°
2 2,8 4 5,6 8 11 16
Table for max. lighting distance max. distance in m
12. Technical data
Guide number ISO 100/21°: 34 (with telephoto attachment)
28 (without attachment)
20 (with wide-angle diffuser)
Lighting for 35mm camera from 35 mm focal length
onwards, with wide-angle attachment from 24 mm, and with
telephoto attachment from 85 mm focal length onwards.
Colour temperature: approx. 5600 °K
Synchronization: Low-voltage IGBT firing
Flash duration: 1/250 s ...1/45000 s
Number of flashes: Flash recycling time:
ca. 100 ca. 6 s at full light output
Lighting: Rectangular
Without attachment: horiz. approx. 56°, vertical approx. 40°
With W-diffuser: horiz. approx. 75°, vertical approx. 55°
With T-attachment: horiz. approx. 25°, vertical approx. 18°
Weight: approx. 160 g
Dimensions: 61 mm x 102 mm x 35 mm
Items delivered:
Flashgun, attachments (W-diffuser/T = telephoto
attachment), Operating Instructions, 2 batteries CR2.

18
400
[m] W – 20%
T +20%
5710142028
200 3,557101420
100 2,53,5571014
50 1,82,53,55710
ISO
118 5,6 4 2,8 2
This table indicates a section of the most im-
portant maximum lighting distances in different
ISO/aperture combinations.
The sticker can be applied to the back of the
flashgun.
Lighting distances
400
[m] W – 20%
T +20%
5710142028
200 3,557101420
100 2,53,5571014
50 1,82,53,55710
ISO
118 5,6 4 2,8 2
400
[ft] W – 20%
T +20%
162333466592
200 111623334665
100 81116233346
50 6811162333
ISO
118 5,6 4 2,8 2
