MEWOI MEWOI-PTS600 User manual

Industrial Digital Endoscope
MEWOI-PTS600
User Manual
www.mewoi.com

CONTENT
I. Product Overview...................................................................... 1
II. Applications............................................................................... 1
III. Main Features ........................................................................... 1
IV. Safety and Maintenance ........................................................... 2
V. Battery....................................................................................... 3
VI. Functions................................................................................... 3
VII. Instructions................................................................................ 4
VIII. Languages Setting .................................................................... 6
IX. Instructions for Use ................................................................... 7
X. Technical Specification.............................................................. 8
IX.Accessories..................................................................................... 8

-1-
I. Product Overview
MEWOI-PTS600 Digital Video Recording Endoscope is a portable,
hand-held, multifunctional inspection system featuring a 5 inch
high definition full color LCD screen with powerful recording
capability; users can capture images (JPG) or videos (AVI) on the
TF card. With ergonomic and robust design, users can control all
the keys with one hand easily, and silicon buttons offers extra
comfort. The built-in 3500mAh rechargeable lithium battery
provides up to 4 working hours. This device integrates with high
brightness illumination, backlight on buttons and auxiliary LED
lights for camera probe, so that the instrument can be used in
normal environment and even dark environments.
The camera tipped probe is interchangeable; it can connect to
different probes with different lengths, diameters, view angels and
focal lengths for different uses.
II. Applications
This premier tool is an economical solution for:
1, Automotive / Diesel Repair and Maintenance.
2, Inspection of hard-to-reach or hard-to-see area or
equipment.
3, Plumbing, construction, restoration applications.
4, Science Education.
5, Outdoor Exploration.
III. Main Features
1, View live inspection video instantly on the 5 inch color LCD
screen
2, Photo taking and Video Capturing.
3, 2x zoom and 180°image flip monitor.
4, 5.5mm or optional diameter camera with high sensitivity for

-2-
Low-light 720P HD camera chip in the tip.
5, Interchangeable camera.
6, Powerful LEDs assisting dark area work.
7, High capacity rechargeable lithium battery.
IV. Safety and Maintenance
Warning!!! , Please read all safety warnings and all instructions
before using this product.
1, Keep the tool dry, clean, free from oil, water, gas or other
materials causing corrosion.
2, Keep work area clean and well lit.
3, This appliance is not intended for use by persons with limited
physical, sensory or mental capabilities.
4, This appliance is not intended for medical use or personal
physical, sensory or mental capabilities.
5, Keep bystanders, children away while operating the tool.
6, Do not overreach, keep proper footing and balance at all times.
7, Please do not violently hit the camera probe, and do not
imprudently pull the cable.
8, When the product is used in the environment with sharp staff,
please be careful to prevent the probe's waterproof protective layer
from being scratched during usage.
9, The camera probe adopts materials which are not resistant to
high temperature. When checking the vehicle engine, please
ensure that temperature inside the engine drops to the normal
temperature.
10, If the device is damaged, do not disassemble it by yourself.
Please contact the seller or the agent where you bought it to get
repair service.

-3-
V. Battery
1, Only use 5V indoor home use USB charger to charge the
device.
2, Please charge the device at least once every 3 months if it is left
unused for a long time to prevent damage to the battery.
3, This device can work while charging.

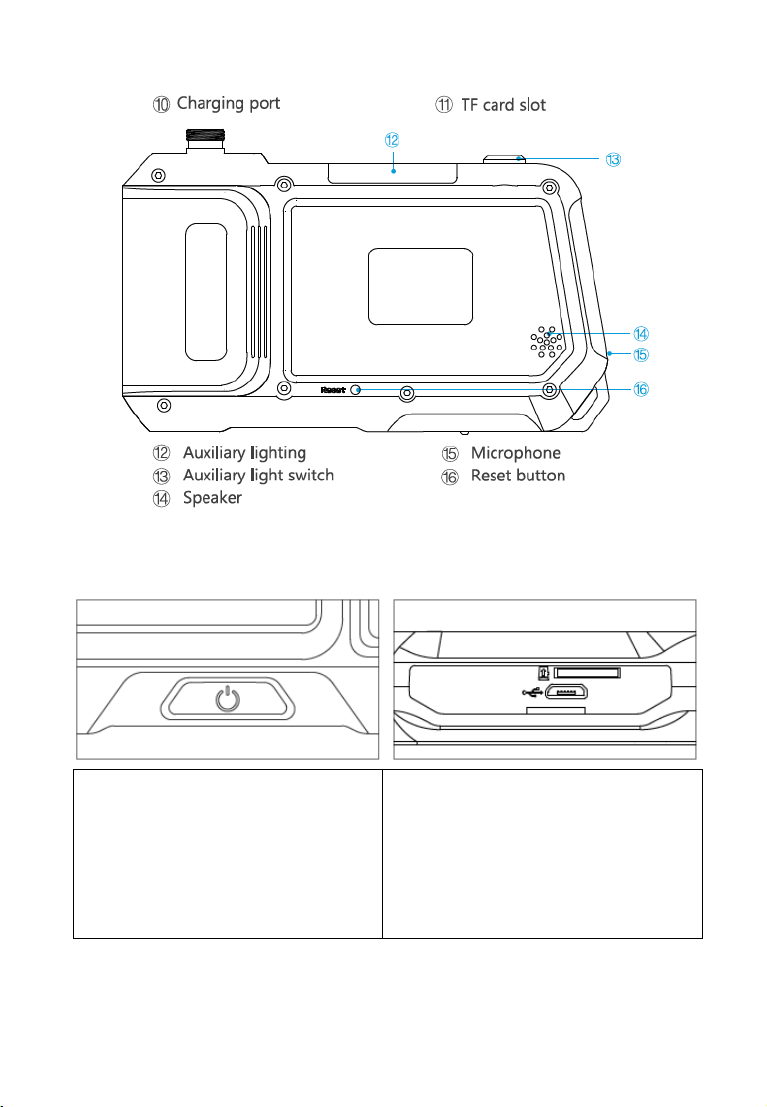

VI. Functions

-4-
VII. Instructions
Long press the power button to
turn on/off the device
The device is equipped with a
TF memory card, which is
preinstalled You can press
memory card in card slot to
eject it. Please use card reader
to View or copy photos and
videos in the device.

-5-

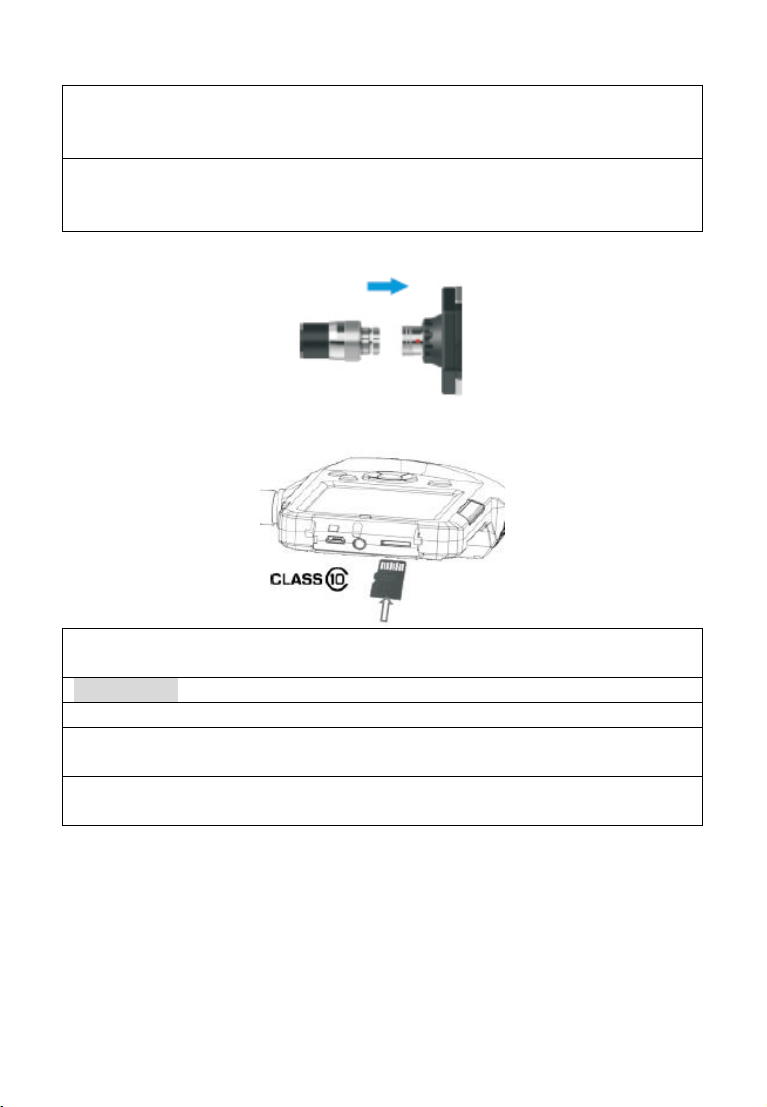

1, Connect soft cable port with the host port (indicating the
alignment of the mark) and turn it clockwise until it locks.
2, Note: Connect camera probe before turning on device. Restart
device after replacing camera probe.
Insert card: Power off the device, and insert the TF card according
to this chart.
Warning!!!, Please power off the device when insert the TF Card.
1, Please make sure the card is insert correctly
2, This device requires Class 10 high speed TF card and it will not
be able to work properly with Class 4 low speed card.
3,Do not use excessive force when inserting or removing the TF
card to prevent damages of card slot structure.

-6-
VIII. Languages Setting
The default language is English, and the system supports English,
Chinese, German, French, Spanish, Italian, Russian, and Japanese.
Setting path:
Press the setting button to enter setting page, Select Language on setting
page, press up and down keys to select the languages you need, press ok
to save your choice.

-7-

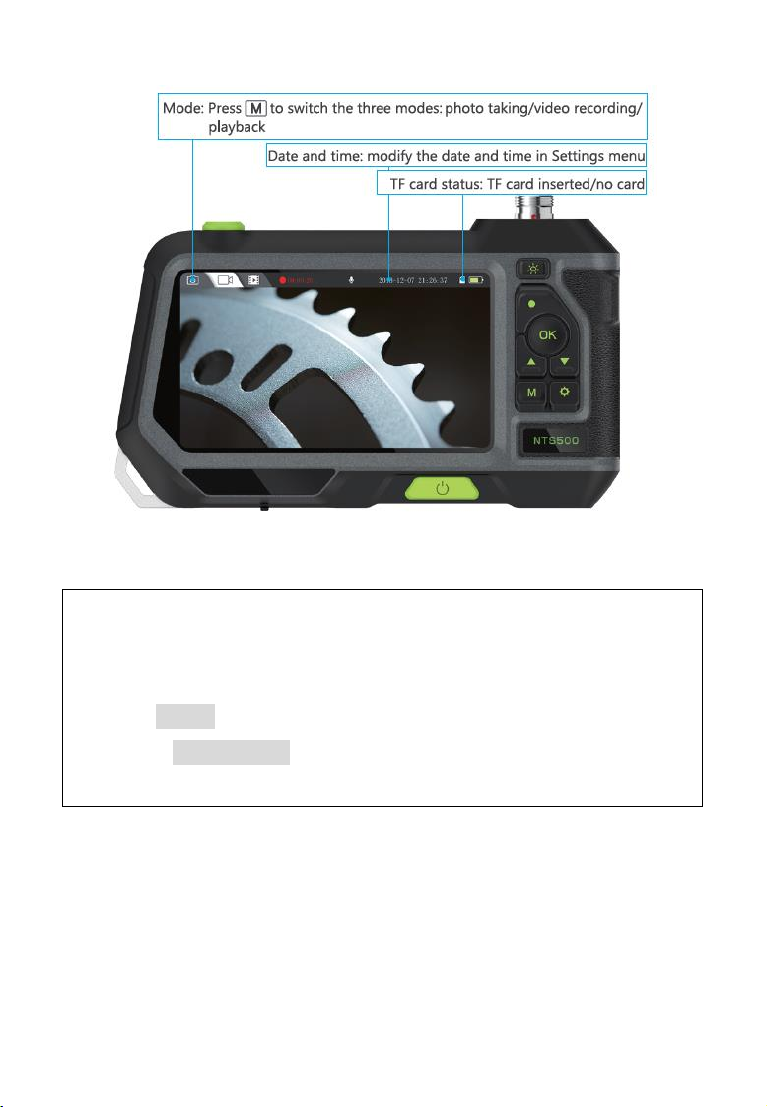

IX. Instructions for Use

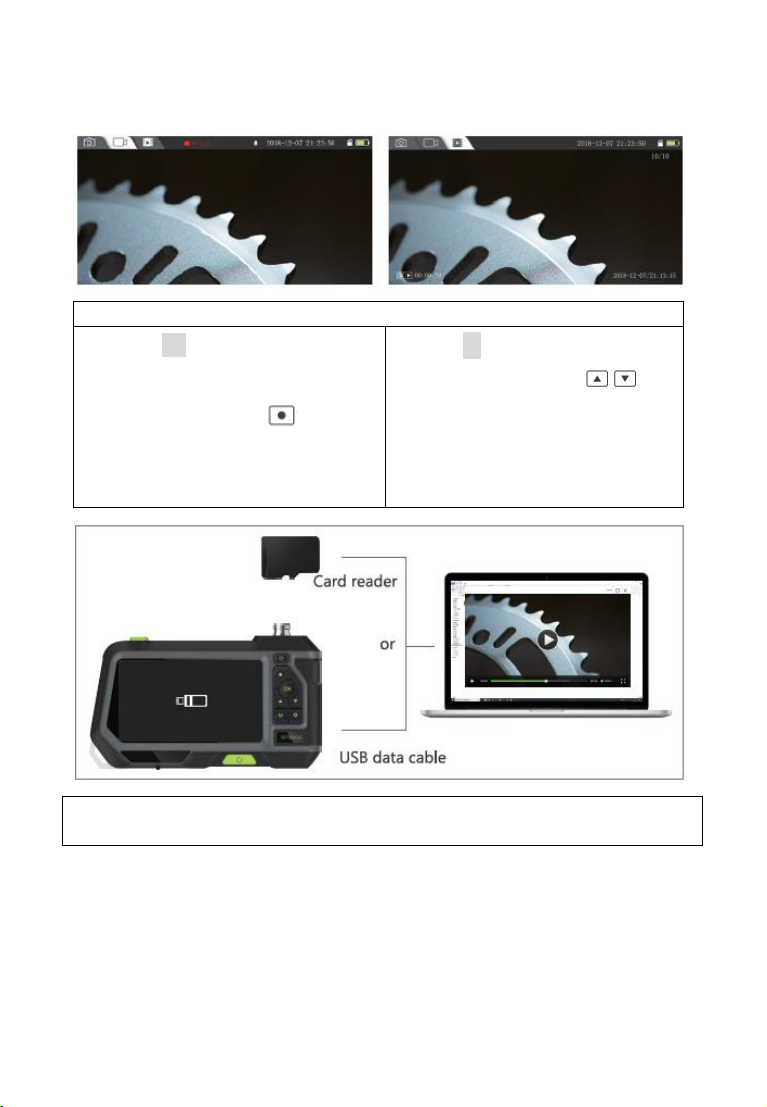

Photo taking/Video Capturing/Playback
Press “M”to switch to the
photo taking or video recording
mode, and press to take
photo or start recording.
Click“M”button to switch to
Playback. Press to
select photo or video to view.
And press setting to delete
photo or video.
You can use a TF Card reader to copy data directly or use a USB
cable to connect to a computer for copying.

-8-
X. Technical Specification
Monitor:
Screen Type:
5 inch Color LCD
Screen Resolution
1280*720 pixels
Supported probe
resolution
1280*720,1980*1080 pixels
Video Recording
Resolution
1280*720 pixels
Image Capturing
Resolution
1280*720, 1920*1080 pixels
Ports
Micro-USB, TF Card Slot
LED Flashlight
The device integrates 4 high-brightness LED
lights
Battery
3500mAh rechargeable Lithium Battery
Operating
Temperature
32°to 113°F(0°-45°C)
Charging time
3-4hours(If USB5V 1ACharger)
Battery Capacity
2-4hours
Languages
English,Chinese,German,French,Spanish,Italia
n,Russian,Japanese
Contents
Digital Endoscope
1pc
User Manual
1pc
Probe
1pc
Accessories
Pick up hock,magnet,mirror
Micro-USB Cable
1pc,3.9mm no Accessories
IX. Accessories
Digital Endoscope
1pc
User Manual
1pc
Probe
1pc
Accessories
Pick up hock,magnet,mirror
Micro-USB Cable
1pc,3.9mm no Accessories
