WAGO 750-502 User manual

Fieldbus Independent
I/O Modules
2 DO DC 24 V 2.0 A, High-Side
Switching
750-502
Manual
Version 1.0.3

ii • General
WAGO-I/O-SYSTEM 750
I/O Modules
Copyright ©2006 by WAGO Kontakttechnik GmbH & Co. KG
All rights reserved.
WAGO Kontakttechnik GmbH & Co. KG
Hansastraße 27
D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]
Web: http://www.wago.com
Technical Support
Phone: [phone] – 5 55
Fax: [phone] – 85 55
E-Mail: [email protected]
Every conceivable measure has been taken to ensure the correctness and com-
pleteness of this documentation. However, as errors can never be fully ex-
cluded, we would appreciate any information or ideas at any time.
E-Mail: [email protected]
We wish to point out that the software and hardware terms as well as the
trademarks of companies used and/or mentioned in the present manual are
generally trademark or patent protected.

Content • iii
WAGO-I/O-SYSTEM 750
I/O Modules
Content
1Important Comments ................................................................................. 4
1.1 Legal Principles........................................................................................4
1.1.1 Copyright............................................................................................. 4
1.1.2 Personnel Qualification .......................................................................4
1.1.3 Intended Use ........................................................................................4
1.2 Symbols....................................................................................................5
1.3 Number Notation......................................................................................5
1.4 Safety Notes .............................................................................................6
1.5 Scope ........................................................................................................6
2I/O Modules ................................................................................................. 7
2.1 Digital Output Module ............................................................................. 7
2.1.1 750-502 [2 DO DC 24 V 2.0 A, High-Side Switching].......................7
2.1.1.1 View................................................................................................7
2.1.1.2 Description......................................................................................7
2.1.1.3 Display Elements ............................................................................8
2.1.1.4 Schematic Diagram.........................................................................9
2.1.1.5 Technical Data ..............................................................................10
2.1.1.6 Process Image ...............................................................................11

4 • Important Comments
Legal Principles
WAGO-I/O-SYSTEM 750
I/O Modules
1 Important Comments
To ensure fast installation and start-up of the units described in this manual,
we strongly recommend that the following information and explanations are
carefully read and abided by.
1.1 Legal Principles
1.1.1 Copyright
This manual is copyrighted, together with all figures and illustrations
contained therein. Any use of this manual which infringes the copyright
provisions stipulated herein, is not permitted. Reproduction, translation and
electronic and photo-technical archiving and amendments require the written
consent of WAGO Kontakttechnik GmbH & Co. KG. Non-observance will
entail the right of claims for damages.
WAGO Kontakttechnik GmbH & Co. KG reserves the right to perform
modifications allowed by technical progress. In case of grant of a patent or
legal protection of utility patents all rights are reserved by WAGO
Kontakttechnik GmbH & Co. KG. Products of other manufacturers are always
named without referring to patent rights. The existence of such rights can
therefore not be ruled out.
1.1.2 Personnel Qualification
The use of the product detailed in this manual is exclusively geared to
specialists having qualifications in PLC programming, electrical specialists or
persons instructed by electrical specialists who are also familiar with the valid
standards. WAGO Kontakttechnik GmbH & Co. KG declines all liability
resulting from improper action and damage to WAGO products and third party
products due to non-observance of the information contained in this manual.
1.1.3 Intended Use
For each individual application, the components supplied are to work with a
dedicated hardware and software configuration. Modifications are only
permitted within the framework of the possibilities documented in the
manuals. All other changes to the hardware and/or software and the non-
conforming use of the components entail the exclusion of liability on part of
WAGO Kontakttechnik GmbH & Co. KG.
Please direct any requirements pertaining to a modified and/or new hardware
or software configuration directly to WAGO Kontakttechnik GmbH & Co.
KG.

Important Comments • 5
Symbols
WAGO-I/O-SYSTEM 750
I/O Modules
1.2 Symbols
Danger
Always abide by this information to protect persons from injury.
Warning
Always abide by this information to prevent damage to the device.
Attention
Marginal conditions must always be observed to ensure smooth operation.
ESD (Electrostatic Discharge)
Warning of damage to the components by electrostatic discharge. Observe
the precautionary measure for handling components at risk.
Note
Routines or advice for efficient use of the device and software optimization.
More information
References on additional literature, manuals, data sheets and INTERNET
pages
1.3 Number Notation
Number Code Example Note
Decimal 100 normal notation
Hexadecimal 0x64 C notation
Binary '100'
'0110.0100'
Within ',
Nibble separated with dots

6 • Important Comments
Safety Notes
WAGO-I/O-SYSTEM 750
I/O Modules
1.4 Safety Notes
Warning
Switch off the system prior to working on bus modules!
In the event of deformed contacts, the module in question is to be replaced, as
its functionality can no longer be ensured on a long-term basis.
The components are not resistant against materials having seeping and
insulating properties. Belonging to this group of materials is: e.g. aerosols,
silicones, triglycerides (found in some hand creams).
If it cannot be ruled out that these materials appear in the component
environment, then additional measures are to be taken:
- installation of the components into an appropriate enclosure
- handling of the components only with clean tools and materials.
Attention
Cleaning of soiled contacts may only be done with ethyl alcohol and leather
cloths. Thereby, the ESD information is to be regarded.
Do not use any contact spray. The spray may impair the functioning of the
contact area.
The WAGO-I/O-SYSTEM 750 and its components are an open system. It
must only be assembled in housings, cabinets or in electrical operation
rooms. Access must only be given via a key or tool to authorized qualified
personnel.
The relevant valid and applicable standards and guidelines concerning the
installation of switch boxes are to be observed.
ESD (Electrostatic Discharge)
The modules are equipped with electronic components that may be destroyed
by electrostatic discharge. When handling the modules, ensure that the
environment (persons, workplace and packing) is well grounded. Avoid
touching conductive components, e.g. gold contacts.
1.5 Scope
This manual describes the Digital Output Module 750-502
2 DO DC 24 V 2.0 A, High-Side Switching of the modular WAGO-I/O-
SYSTEM 750.
Handling, assembly and start-up are described in the manual of the Fieldbus
Coupler. Therefore this documentation is valid only in the connection with the
appropriate manual.

750-502 [2 DO DC 24 V 2.0 A, High-Side Switching] • 7
View
WAGO-I/O-SYSTEM 750
I/O Modules
2 I/O Modules
2.1 Digital Output Module
2.1.1 750-502 [2 DO DC 24 V 2.0 A, High-Side Switching]
2-Channel Digital Output Module DC 24 V 2.0 A,
short-circuit-protected, high-side switching
2.1.1.1 View
13 14
++
--
13 14
C
D
B
A
750-502
DO 2
Power jumper contacts
Data contacts
DO 2
24V
0V
DO 1
DO 1
Status
Status

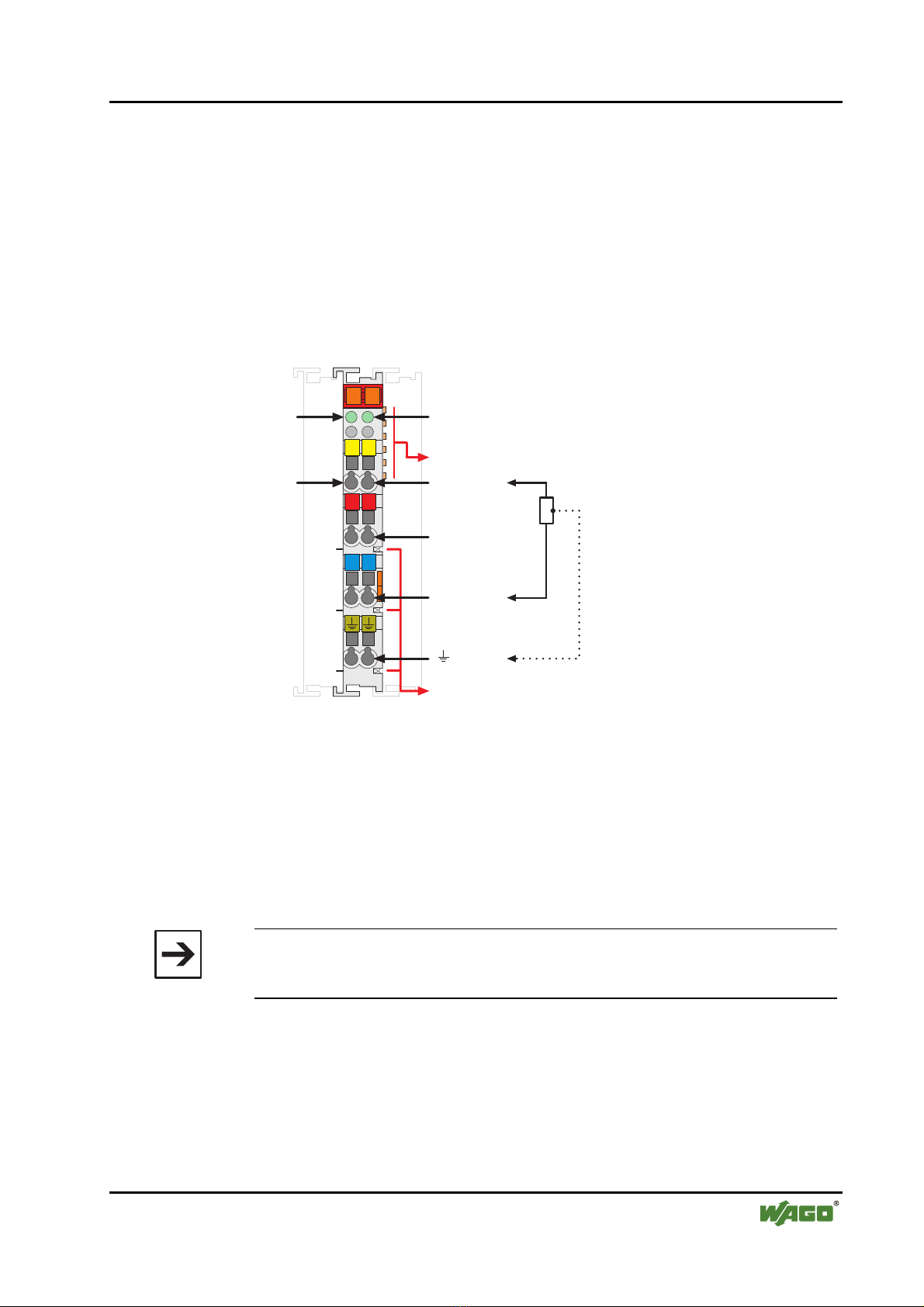

Fig. 2.1.1-1: 4-Channel Digital Output Module 750-502 g050200e
2.1.1.2 Description
The connected load is switched via the digital output from the control system.
The module has two output channels. Two actuators with ground (earth) wire
may be directly connected to signal output DO 1, 0 V and PE (earth potential)
or signal output DO 2, 0 V and PE.
Note
For the connection of inductive loads a protected circuit, e. g. a recovery
diode, has to be switched parallel to this load.
The output channels are electrically short-circuit-protected and high-side
switching. Which means that the status of the output channels is "high" if the
output channels switch to the 24 V supply voltage for the field side.
The supply voltage for the field side is derived from an adjacent supply
module by means of power jumper contacts.

8 • 750-502 [2 DO DC 24 V 2.0 A, High-Side Switching]
Display Elements
WAGO-I/O-SYSTEM 750
I/O Modules
In case of the 2 A modules it is possible to operate single channels at higher
load currents, however always verify that the total current does not exceed 4 A
per module. This is possible to maximally 3 A per channel.
Example: 2x2A (standard); 1x3.0A; 1x1.0A (total current: 4 A).
The status of the two output channels is indicated via green status LEDs.
An optocoupler is used for electrical isolation between the bus and the field
side.
Any configuration of the output modules is possible when designing the
fieldbus node. Grouping of module types is not necessary.
The field side supply voltage of 24 V for the output module is derived from
adjacent I/O modules or from a supply module.The supply voltage for the
field side is made automatically through the individual I/O modules by means
of power jumper contacts.
Note
The maximum current of the internal power jumper contacts is 10 A. When
configuring the system it is important not to exceed the maximum/sum
current. However, if such a case should occur, another supply module must be
added.
Attention
In case of overloads a supply module with fuse (750-601) must be connected
on the line side to protect the output modules!
The output module 750-502 can be used with all couplers/controllers of the
WAGO-I/O-SYSTEM 750.

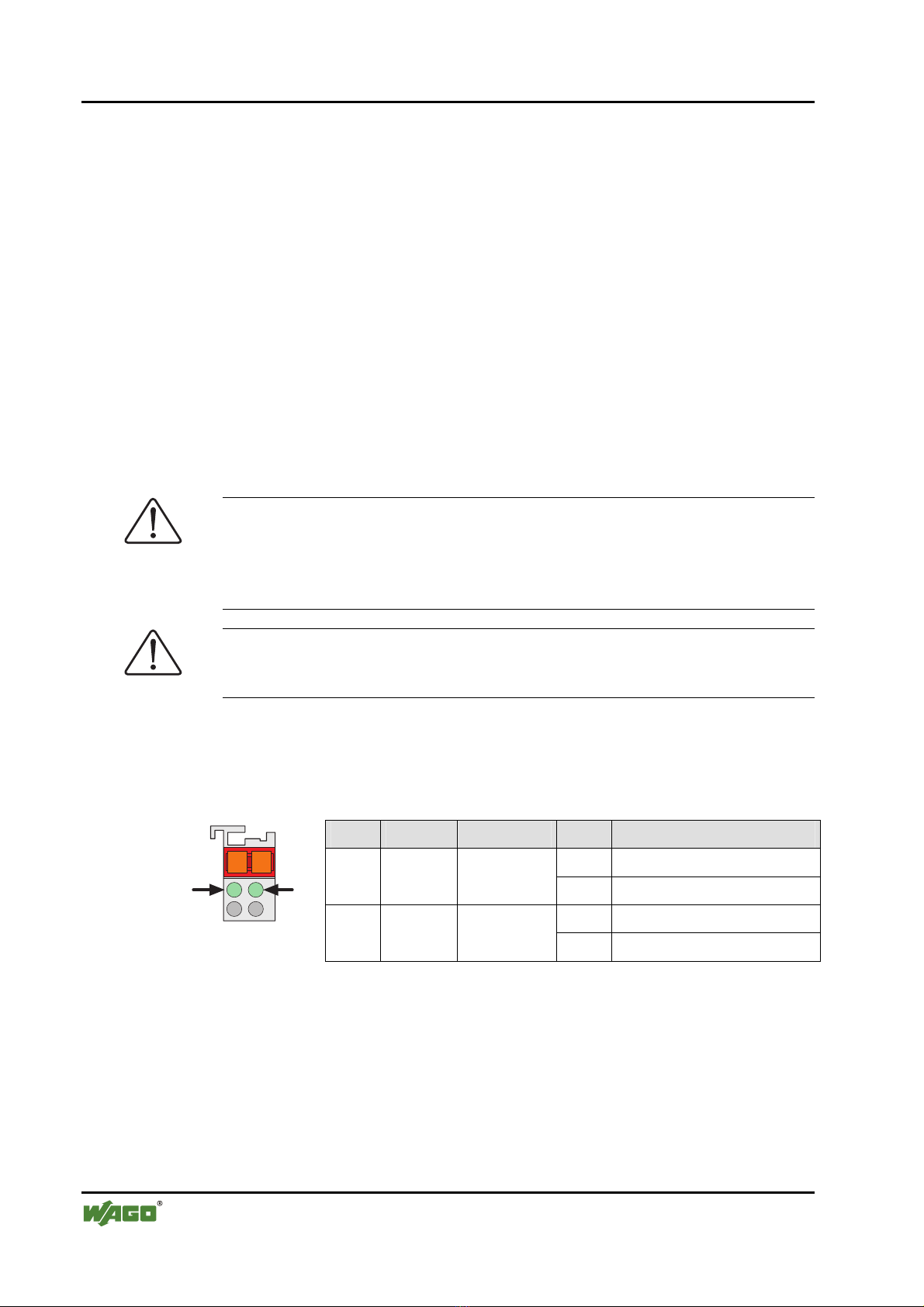

2.1.1.3 Display Elements
LED Channel Designation State Function
off Output DO 1: not active
A
green 1 Status
DO 1 on Output DO 1: active
off Output DO 2: not active
13 14
C
D
B
A
C
A
Fig. 2.1.1-2: Display
Elements g050102x
C
green 2 Status
DO 2 on Output DO 2: active

750-502 [2 DO DC 24 V 2.0 A, High-Side Switching] • 9
Schematic Diagram
WAGO-I/O-SYSTEM 750
I/O Modules
2.1.1.4 Schematic Diagram
1
2
3
4
5
6
7
8
750-501
DO 1 DO 2
24V
0V
DO
0V
270pF
10nF
DO
10nF
24V
10nF
Fig. 2.1.1-3: 2-Channel Digital Output Module 750-502 g050201e

10 • 750-502 [2 DO DC 24 V 2.0 A, High-Side Switching]
Technical Data
WAGO-I/O-SYSTEM 750
I/O Modules
2.1.1.5 Technical Data
Module Specific Data
Number of outputs 2
Current consumption (internal)max. 3.5 mA
Voltage via power jumper contacts DC 24 V (-25 % ... +30%)
Type of load resistive, inductive, lamps
Switching rate max. 2.5 kHz
Reverse voltage protection yes
Output current 2.0 A
Short-circuit limitation typ. PWM 35 A (44 A peak)
Energy dissipation Wmax.
(unique switching off)
1.7 J
Lmax. = 2 Wmax. /I²
Isolation 500 V (System/Field)
Current consumption typ.(field side) 15 mA/ module + load
Internal bit width 2 Bit out
Dimensions (mm) W x H x L 12 x 64* x 100
* from upper edge of 35 DIN rail
Weight ca. 50 g
Standards and Regulations (cf. Chapter 2.2 of the Coupler/Controller Manual)
EMC-Immunity to interference (CE) acc. to EN 50082-2 (96)
EMC-Emission of interference (CE) acc. to EN 50081-1 (93)
EMC-Immunity to interference
(Ship building)
acc. to Germanischer Lloyd (97)
EMC-Emission of interference
(Ship building)
acc. to Germanischer Lloyd (97)

750-502 [2 DO DC 24 V 2.0 A, High-Side Switching] • 11
Process Image
WAGO-I/O-SYSTEM 750
I/O Modules
Approvals (cf. Chapter 2.2 of the Coupler/Controller Manual)
CULUS (UL508)
ABS (American Bureau of Shipping)
BV (Bureau Veritas)
DNV (Det Norske Veritas) Cl. B
GL (Germanischer Lloyd) Cat. A, B, C, D
KR (Korean Register of Shipping)
LR (Lloyd's Register) Env. 1, 2, 3, 4
NKK (Nippon Kaiji Kyokai)
RINA (Registro Italiano Navale)
CULUS (UL1604) Class I Div2 ABCD T4A
KEMA II 3 G EEx nA II T4
Conformity Marking
More Information
Detailed references to the approvals are listed in the document "Overview
Approvals WAGO-I/O-SYSTEM 750", which you can find on the CD ROM
ELECTRONICC Tools and Docs (Item-No.: 0888-0412)
or in the internet under:
www.wago.com !Documentation !WAGO-I/O-SYSTEM 750 !
System Description
2.1.1.6 Process Image
Output bit B1 B0
Meaning controls DO 2
Channel 2
controls DO 1
Channel 1

WAGO Kontakttechnik GmbH & Co. KG
Postfach 2880 • D-32385 Minden
Hansastraße 27 • D-32423 Minden
Phone: [phone] – 0
Fax: [phone] – 1 69
E-Mail: [email protected]
Internet: http://www.wago.com
