Mi-T-M ABS 80 User manual

Mi-T-M®Gasoline Air Compressor Manual 1
GASOLINE
30/80 GALLON INDUSTRIAL
AIR COMPRESSOR
OPERATOR'S MANUAL
CAUTION
RISK OF INJURY! READ ENTIRE MANUAL
BEFORE OPERATING! THIS MANUAL IS AN IMPORTANT
PART OF THE AIR COMPRESSOR AND MUST REMAIN
WITH THIS UNIT WHEN YOU SELL OR RENT IT!
©Copyright 2008, Mi-T-M Corporation® Form #37-1033-E/S-120508

2 Mi-T-M®Gasoline Air Compressor Manual
table of contents
INTRODUCTION ........................................................................................................................................3
IMPORTANT ...........................................................................................................................................3
INSPECTION..............................................................................................................................................3
SAFETY WARNINGS ............................................................................................................................. 4-7
RISK OF EXPLOSION OR FIRE.......................................................................................................4
RISK OF BURSTING .......................................................................................................................5
RISK TO BREATHING......................................................................................................................6
RISK OF BURNS .............................................................................................................................6
RISK OF FLYING OBJECTS ............................................................................................................7
RISK FROM MOVING PARTS.......................................................................................................... 7
RISK FROM NEGLIGENCE .............................................................................................................7
RISK OF AIR COMPRESSOR DAMAGE .........................................................................................7

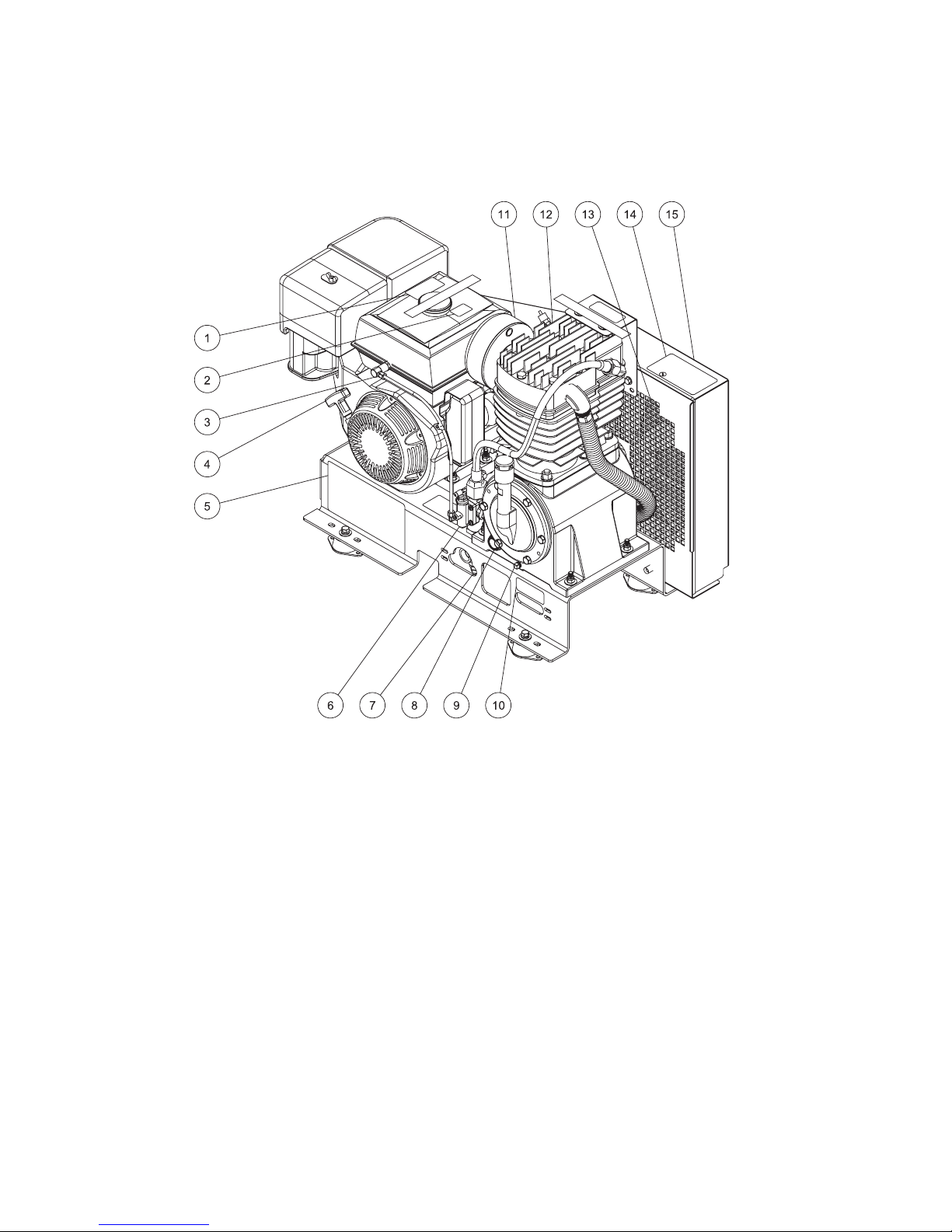

FEATURES DRAWINGS ........................................................................................................................ 8-9
FEATURES REVIEW ......................................................................................................................10
PREPARATION.........................................................................................................................................13
INITIAL SET-UP .............................................................................................................................13
LOCATION .....................................................................................................................................13
GASOLINE ENGINE ......................................................................................................................13
PRE-START CHECKLIST............................................................................................................... 14
OPERATION.............................................................................................................................................15
START-UP......................................................................................................................................15
SHUTDOWN..................................................................................................................................15
MAINTENANCE .......................................................................................................................................15
MAINTENANCE CHART ................................................................................................................16
TROUBLESHOOTING........................................................................................................................ 17-18
WARRANTY .............................................................................................................................................19

Mi-T-M®Gasoline Air Compressor Manual 3
IMPoRtant!
A "DANGER, WARNING or CAUTION" safety warning will be surrounded by a "SAFETY ALERT BOX". This
box is used to designate and emphasize Safety Warnings that must be followed when operating this air
compressor. Accompanying the safety warnings are "Signal Words" which designate the degree or level of
hazard seriousness. The "Signal Words" used in this manual are as follows:
DanGeR: InDIcates an IMMInently hazaRDous sItuatIon whIch, If not avoIDeD, wIll
Result In Death oR seRIous InjuRy.
waRnInG: InDIcates a PotentIally hazaRDous sItuatIon whIch, If not avoIDeD,
coulD Result In Death oR seRIous InjuRy.
cautIon: InDIcates a PotentIally hazaRDous sItuatIon whIch, If not avoIDeD May
Result In MInoR oR MoDeRate InjuRy oR DaMaGe to the aIR coMPRessoR.
The symbols set to the left of this paragraph are "Safety Alert Symbols". These symbols are used to call
attention to items or procedures that could be dangerous to you or other persons using this equipment.
ALWAYS PROVIDE A COPY OF THIS MANUAL TO ANYONE USING THIS EQUIPMENT. READ ALL
INSTRUCTIONS IN THIS MANUAL AND ANY INSTRUCTIONS SUPPLIED BY MANUFACTURERS OF
SUPPORTING EQUIPMENT BEFORE OPERATING THIS AIR COMPRESSOR AND ESPECIALLY POINT
OUT THE "SAFETY WARNINGS" TO PREVENT THE POSSIBILITY OF PERSONAL INJURY TO THE
OPERATOR.
InsPectIon
Unbox the air compressor and write in the serial number in the space provided below. Inspect for signs of
obvious or concealed freight damage. Be sure that all damaged parts are replaced and any mechanical
problems are corrected prior to the operation of the air compressor.
seRIal nuMbeR_________________________________
Mi-T-M® Corporation, 8650 Enterprise Drive, Peosta, IA 52068
563-556-7484 / 800-553-9053 / Fax [phone]
Monday - Friday 8:00 a.m. - 5:00 p.m. CST
Please have the following information available for all service calls:
1. Model Number
2. Serial Number
3. Date and Place of Purchase
IntRoDuctIon
Congratulations on the purchase of your new Mi-T-M®Air Compressor! You can be assured your Mi-T-M Air
Compressor was constructed with the highest level of precision and accuracy. Each component has been
rigorously tested by technicians to ensure the quality, endurance and performance of this air compressor.
This operator's manual was compiled for your benet. By reading and following the simple safety, installa-
tion and operation, maintenance and troubleshooting steps described in this manual, you will receive years
of troublefree operation from your new Mi-T-M Air Compressor. The contents of this manual are based on
the latest product information available at the time of publication. Mi-T-M reserves the right to make chang-
es in price, color, materials equipment, specications or models at any time without notice.

4 Mi-T-M®Gasoline Air Compressor Manual
Hazard Potential Consequence Prevention
IMPORTANT SAFETY INSTRUCTIONS
RIsK of
eXPlosIon oR fIRe
Serious injury or death may
occur from normal sparks in
the engine ignition system or
engine exhaust/mufer.
Injury or death may occur as a
result of improper fueling.
Serious injury may occur if
any air compressor ventilation
openings are restricted, causing
the air compressor to overheat
and start a re.
Always operate air compressor
outdoors in a well ventilated
area free of ammable vapors,
combustible dust, gases or other
combustible materials.
DO NOT SMOKE if spraying am-
mable material. Locate the air
compressor at least 20 feet away
from the spray area. (An addi-
tional hose may be required.)
Do not smoke while lling engine
fuel tank.
Never ll the engine fuel tank
while the engine is running or
hot. Allow the engine to cool two
minutes before refueling.
Do not refuel indoors or in a
poorly ventilated area.
Always refuel slowly to avoid the
possibility of spilled fuel which
may cause a risk of re.
Do not operate the unit if gaso-
line is spilled. Wipe the air com-
pressor clean and move it away
from the spill. Avoid creating
any ignition until the gasoline has
evaporated.
Do not store the air compressor
near an open ame or any equip-
ment such as a stove, furnace,
water heater, etc. which utilizes a
pilot light or sparking device.
A spark arrester must be added
to the mufer of this engine if it is
to be used on any forest covered,
brush covered or grass covered
unimproved land. The arrester
must be maintained in effective
working order by the operator.
Never place objects against or on
top of air compressor. Operate
air compressor at least 12 inches
away from any wall or obstruction
that would restrict proper ventila-
tion.
READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR

Mi-T-M®Gasoline Air Compressor Manual 5
Hazard Potential Consequence Prevention
Serious injury or death may
occur from an air tank explo-
sion if air tanks are not properly
maintained.
Serious injury may occur from
an air compressor malfunc-
tion or exploding accessories if
incorrect system components,
attachments or accessories are
used.
Serious injury or death may
occur if system safety's are not
properly maintained.
Serious injury or death may oc-
cur from the battery.
Drain air tank daily or after each
use to prevent moisture buildup
in the air tank.
If air tank develops a leak,
replace the air tank immedi-
ately. Never repair, weld or make
modications to the air tank or its
attachments. Use only genuine
Mi-T-M® repair parts for your air
compressor.
Never make adjustments to the
factory set pressures.
Never exceed manufacturers
maximum allowable pressure rat-
ing of attachments.
Because of extreme heat, do not
use plastic pipe or lead tin sol-
dered joints for a discharge line.
Never use air compressor to
inate small, low pressure objects
such as toys.
Safety Pressure Relief Valves
should never be altered, modi-
ed, removed or made inopera-
tive. If the device fails, replace
immediately with genuine manu-
facturer replacement part.
When the battery is being ac-
tivated, hydrogen and oxygen
gases in the battery are extremely
explosive. Keep open sparks and
ames away from the battery at
all times, especially when charg-
ing the battery.
Be certain to disconnect the
battery ground terminal before
servicing. When disconnecting
the cable from the battery, start
with the negative terminal, and
when connecting them start with
the positive cable.
When charting the battery remove
the battery vent plugs
Use only a voltmeter or hydrom-
eter to check battery charge.
DO NOT jump start the battery
unless both batteries are of equal
voltage and amperage.
RIsK of buRstInG
IMPORTANT SAFETY INSTRUCTIONS

6 Mi-T-M®Gasoline Air Compressor Manual
Hazard Potential Consequence Prevention
RIsK of buRns
Serious injury or death could
occur from inhaling gas engine
exhaust which contains carbon
monoxide- a poisonous gas that
can kill you. You CAN NOT smell
or see this gas.
Sprayed materials such as
paint, paint solvents, paint re-
mover, insecticides, weed kill-
ers, etc. contain harmful vapors
and poisons.
Serious injury or death could
occur from inhaling compressed
air. The air stream may contain
carbon monoxide, toxic vapors
or solid particles.
Serious injury could occur from
touching exposed metal parts.
These areas can remain hot for
some time after the air com-
pressor is shutdown.
.
Never us a Gasoline Air Com-
pressor in enclosed or partially-
enclosed spaces. Gasoline Air
Compressors can produce high
levels of carbon monoxide very
quickly. When you use a Gasoline
Air Compressor, remember that
you cannot smell or see carbon
monoxide. Even if you can't smell
exhhaust fumes, you may still be
exposed to carbon monoxide.
If you start to feel sick, dizzy or
weak while using this unit, get
to fresh air right away. Do not
delay. The carbon monoxide from
gasoline engine exhaust can
rapidly lead to full incapacitation
and death.
If you experience serious symp-
toms, get medical attention
immediately. Inform medical staff
that carbon monoxide poisoning
is suspected. If you experienced
symptoms while indoors, have
someone call the re department
to determine when it is safe to
re-enter the effected area.
Operate air compressor only in
a well ventilated area. Follow
all safety instructions provided
with the materials you are spray-
ing. Use of a respirator may be
required when working with some
materials.
Never inhale air from the air com-
pressor either directly or from a
breathing device connected to
the air compressor.
Never allow any part of your
body or other materials to make
contact with any exposed metal
parts on the air compressor.
Never allow any part of your body
to contact the engine mufer or
adjacent areas.
IMPORTANT SAFETY INSTRUCTIONS
RIsK to bReathInG

Mi-T-M®Gasoline Air Compressor Manual 7
Hazard Potential Consequence Prevention
RIsK of flyInG
objects
RIsK fRoM MovInG
PaRts
RIsK fRoM neGlI-
Gence
RIsK of aIR coMPRes-
soR DaMaGe
Soft tissue damage can oc-
cur from the compressed air
stream.
Serious injury can occur from
loose debris being propelled at
a high speed from the com-
pressed air stream
Risk of bodily injury from mov-
ing parts.
Risk of injury from negligent
use.
Risk of major repair.
Always wear safety glasses to
shield the eyes from ying debris.
Never point the air stream at any
part of your body, anyone else or
animals.
Never leave pressurized air in
the air compressor. Shut off air
compressor and relieve pres-
sure when storing or attempting
maintenance.
Always maintain a safe distance
from people and animals while
operating the air compressor.
Do not move the air compressor
while air tank is under pressure.
Do not attempt to move the air
compressor by pulling on the
hose.
Before performing maintenance,
always turn off air compressor.
Bleed pressure from the air hose
and disconnect spark plug wire
to prevent engine from starting
unexpectedly. All repairs to the
air compressor should be made
by an Authorized Service person.
Do not operate without protec-
tive covers/guards. Always turn
off air compressor before remov-
ing any guard. Replace dam-
aged covers/guards before using
the air compressor.
Never allow children or adoles-
cents to operate this air com-
pressor!
Stay alert-watch what you are
doing. Do not operate the air
compressor when fatigued or
under the inuence of alcohol or
drugs.
Know how to stop the air com-
pressor. Be thoroughly familiar
with controls.
Do not operate air compressor
without an air lter.
Do not operate air compressor in
a corrosive environment.
Always operate the air compres-
sor in a stable, secure position
to prevent air compressor from
falling.
Follow all maintenance instruc-
tions listed in this manual.
IMPORTANT SAFETY INSTRUCTIONS

8 Mi-T-M®Gasoline Air Compressor Manual
MI-T-M GASOLINE AIR COMPRESSOR FEATURES
(TWO STAGE)
ABS BASE MOUNT FEATURES 111108
1. Decal- Warning: Hot Surfaces
2. Decal- Warning: Risk of Fire
3. Engine Throttle Control
4. Engine
5. Decal- Danger/Warning Caution
6. Pilot Valve
7. Pressure Relief Valve
8. Pump Oil Sight Glass
9. Pump Oil Drain
10. Decal- Warning: Hot
11. Air Filter
12. Air Compressor Pump
13. Ventilation Openings
14. Decal- Operations
15. Beltguard
ABS BASE MOUNT

Mi-T-M®Gasoline Air Compressor Manual 9
ABS 30 GAL HORIZONTAL FEATURES 111108
MI-T-M GASOLINE AIR COMPRESSOR FEATURES
(TWO STAGE)
1. Decal- Warning: Hot Surfaces
2. Decal- Warning: Risk of Fire
3. Engine
4. Engine Throttle Control
5. Decal- Danger/Warning/Caution
6. Pilot Valve
7. Pressure Relief Valve
8. Pressure Gauge- Tank PSI
9. Pressure Regulator
10. Pump Oil Sight Glass
11. Pump Oil Drain
12. Pressure Gauge- Outlet PSI
13. Decal- Warning: Hot
14. Air Filter
15. Air Compressor Pump
16. Ventilation Openings
17. Decal- Operations
18. Beltguard
ABS 80 GALLON HORIZONTAL
ABS 30 GALLON HORIZONTAL
ABS 80 GAL HORIZONTAL FEATURES 111108

10 Mi-T-M®Gasoline Air Compressor Manual
safety RelIef valve: This valve is designed to prevent system failures by reliev-
ing pressure from the system when the compressed air reaches a predetermined level.
The valve is preset by the manufacturer and must not be modied in any way. To verify
the valve is working properly, pull on the ring. Air pressure should escape. When the
ring is released, it will reseat.
PIlot valve: When the toggle is in the upright position, all air from the air com-
pressor is vented through the discharge mufer. This gives an easy start feature.
For normal operation, the toggle is in the 90° position.
aIR IntaKe fIlteR: This lter is designed to clean air coming into the pump. To en-
sure the pump continually receives a clean, cool, dry air supply this lter must always
be clean and ventilation opening free from obstructions. Replace lter element when
necessary.
oIl fIll PoRt/vent: Pour oil into the Oil Fill Port/Vent when required.
oIl sIGht Glass: The Oil Sight Glass displays the oil level in the pump. The oil
level should be at the center of the Oil Sight Glass. If low, add SAE 30W non-deter-
gent oil.
aIR coMPRessoR PuMP: A two stage compressor pump uses two different size cylinders with the intake
valve of the second smaller cylinder linked to the exhaust valve of the rst larger cylinder. On the down
stroke of the large cylinder, air is drawn through the intake valve while the exhaust valve remains closed.
On the upstroke, air is compressed, the intake valve closes and compressed air is forced out through the
exhaust valve, into the inter cooler and through the intake valve of the second smaller cylinder on its down
stroke. On the upstroke of the smaller cylinder, the intake valve closes and the compressed air is com-
pressed a second time and forced out the exhaust valve into the discharge line, through the tank check valve
and into the air tank.
aIR tanK PRessuRe GauGe: The air tank pressure gauge indicates the re-
serve air pressure in the air tank (s).
PRessuRe ReGulatoR: The air pressure coming from the air tank is con-
trolled by the regulator knob. Turn the pressure regulation knob clockwise to
increase discharge pressure, and counterclockwise to decrease discharge pres-
sure.
outlet PRessuRe GauGe: The outlet pressure gauge indicates the air pres-
sure available at the outlet side of the regulator. This pressure is controlled by the
regulator and is always less or equal to the air tank pressure.
aIR tanK DRaIn valve: The drain valve is used to remove moisture from the
air tank(s) after the air compressor is shut off. NEVER attempt to open the drain
valve when more than 10 PSI of air pressure is in the air tank! To open the drain
valve, turn the knob counterclockwise.
EXPLODED VIEW & EXPLANATION OF AIR COMPRESSOR FEATURES
OIL FILL PORT
OIL SIGHT GLASS

Mi-T-M®Gasoline Air Compressor Manual 11
NOTES

12 Mi-T-M®Gasoline Air Compressor Manual
WARNING
THE FOLLOWING PAGES CONTAIN OPERATING AND MAINTENANCE INSTRUCTIONS.
DO NOT ATTEMPT TO OPERATE THIS AIR COMPRESSOR UNTIL YOU HAVE READ AND
UNDERSTOOD ALL SAFETY PRECAUTIONS AND INSTRUCTIONS LISTED IN THIS MANUAL.
INCORRECT OPERATION OF THIS UNIT CAN CAUSE SERIOUS INJURY!!
DO NOT ALTER OR MODIFY THIS EQUIPMENT IN ANY MATTER!

Mi-T-M®Gasoline Air Compressor Manual 13
InItIal set-uP:
1. Read safety warnings before setting-up air compressor.
2. Ensure the oil level in the air compressor pump is adequate. If low, add SAE 30W non-detergent oil.
waRnInG RIsK of eXPlosIon oR fIRe causInG seRIous InjuRy oR Death!
Do not allow the enGIne oR MuffleR to coMe In contact wIth flaMMable vaPoRs,
coMbustIble Dust, Gases oR otheR coMbustIble MateRIals. a sPaRK May cause
a fIRe.
when usInG the aIR coMPRessoR foR sPRay PaIntInG, Place the aIR coMPRessoR as
faR away fRoM the woRK aRea as PossIble, usInG eXtRa aIR hoses If neeDeD.
locatIon:
1. In order to avoid damaging the air compressor, do not incline the air compressor transversely or longitudinally
more than 10°.
2. Place air compressor at least 12 inches away from obstacles that may prevent proper ventilation. Do not
place air compressor in an area:
-where there is evidence of oil or gas leaks.
-where ammable gas vapors or materials may be present.
-where air temperatures fall below 32°F or exceed 104°F.
-where extremely dirty air or water could be drawn into the air compressor.
GasolIne enGIne:
DanGeR RIsK of eXPlosIon oR fIRe causInG seRIous InjuRy oR Death! Do not sMoKe
whIle fuelInG!
Do not fIll fuel tanK whIle aIR coMPRessoR Is RunnInG oR hot. allow aIR
coMPRessoR anD enGIne to cool Down foR two MInutes befoRe RefuelInG.
Do not fIll fuel tanK to PoInt of oveRflowInG. allow aPPRoXIMately 1" of tanK
sPace foR fuel eXPansIon.
1. Review "Risk of Fire or Explosion" pg. 4 before fueling.
2. Read the engine manual accompanying this air compressor for correct engine start-up maintenance
procedures.
3. Read and understand the safety labels located on the air compressor.
4. A minimum of 86 octane fuel is recommended for use with this air compressor. Do not mix oil with
gasoline.
5. Use of clean, fresh, lead free gasoline is recommended. See Engine manual for recommended fuel.
6. Check the engine oil level before starting. (See engine manual.)
7. Fill the fuel tank according to the engine manual instruction.
8. Refer to the engine manual for all necessary maintenance and adjustments.
waRnInG RIsK of eXPlosIon oR fIRe causInG seRIous InjuRy oR Death!
Do not Place unIt In an aRea wheRe flaMMable Gas vaPoRs May be PResent. a
sPaRK coulD cause an eXPlosIon oR fIRe.
always stoRe fuel away fRoM the aIR coMPRessoR whIle It Is RunnInG oR hot.
PREPARATION

14 Mi-T-M®Gasoline Air Compressor Manual
waRnInG RIsK of asPhyXIatIon! Do not oPeRate In an encloseD aRea. use thIs
PRoDuct only In well ventIlateD aReas! the eXhaust fRoM the enGIne contaIns
caRbon MonoXIDe, a PoIsonous, oDoRless anD InvIsIble Gas. bReathInG the
Gas can cause seRIous InjuRy, Illness anD PossIble Death.
waRnInG RIsK of boDIly InjuRy!
neveR atteMPt to oPen the aIR tanK DRaIn valve when MoRe than 10 PsI of aIR
PRessuRe Is In the aIR tanK!
PRe-staRt checKlIst:
1. Make sure the Engine Switch is in the "OFF" position.
2. Check oil level. Add if necessary.
3. Make sure the Safety Relief Valve is working correctly.
4. Make sure all guards and covers are in place and securely mounted.
5. Remove any moisture in the air compressor air tank. NEVER attempt to open the Air Tank Drain Valve when
more than 10 PSI of air pressure is in the air tank! Remove excessive pressure with an air tool, then open
the Air Tank Drain Valve in the bottom of the air tank. Close tightly when drained.
PREPARATION

Mi-T-M®Gasoline Air Compressor Manual 15
staRt-uP:
1. Read safety warnings before performing operation.
2. Flip the toggle on top of the Pilot Valve to the upright position. This provides a loadless start. The air
compressor will unload and allow easier engine start-up.
3. Start the engine. (Refer to the Engine Manual accompanying this unit.)
4. When the engine has run for 1-2 minutes, ip toggle back to the original position.
5. Units with a pressure regulator: set pressure by adjusting the Pressure Regulator counterclockwise for less
pressure and clockwise for more pressure.
6. If you notice any unusual noise or vibration, stop the air compressor and refer to "Troubleshooting".
shutDown:
1. To stop the air compressor, move the Engine Switch to the "Off" position. (Refer to the Engine Manual
accompanying this unit.)
2. Drain air from the air tank by releasing air with an attached air tool or by pulling on the Safety Relief
Valve.
3. Once the Air Tank Pressure is under 10 pounds, open the drain valve under the air tank to drain any
moisture.
4. Allow the air compressor to cool down.
5. Wipe air compressor clean and store in a safe, non-freezing area.
MaIntenance
Read the instruction manual before performing maintenance. The following procedures must be performed
when stopping the air compressor for maintenance or service.
1. Turn off air compressor.
2. Disconnect spark plug wire from engine.
3. Open all drains.
4. Wait for the air compressor to cool before starting service.
OPERATION

16 Mi-T-M®Gasoline Air Compressor Manual
*The pump oil must be changed after the rst 50 hours of operation and every 200 hours or 3 months, which-
ever comes rst.
The engine oil must be changed after the rst 8 hours of operation and every 50 hours or 3 months, which-
ever comes rst.
Every 2 years, an Authorized Service Technician should check the check valve, intake valves and delivery
valves.
AC Gas Maintenance Chart
MAINTENANCE CHART
PROCEDURE DAILY WEEKLY MONTHLY 200 HOURS
Check pump oil level X
Check engine oil level X
Oil leak inspection X
Check engine air filter X
Drain condensation in air tank (s) X
Inspect guards/covers X
Check for unusual noise/vibration X
Check for air leaks X
Clean exterior of compressor X
Inspect air filter X
Inspect belt X
Check safety relief valve X
Change pump oil * X
Replace air filter X
Check engine spark plug X
MAINTENANCE CHART

Mi-T-M®Gasoline Air Compressor Manual 17
TROUBLESHOOTING
syMPtoM
Engine will not start.
Noisy operation.
Pressure drop in air tank or
rapid pressure loss when air
compressor is shut off.
Insufcient pressure at air tool
or accessory.
PRobable cause
Various engine problems.
Low engine oil level.
Loose engine pulley or pump
ywheel.
Lack of oil in the pump.
Carbon deposits on pistons or
valves.
Bearing, piston or connecting rod
failure.
Air leaks at connections.
Air leak in air tank.
Defective Pilot Valve.
Pressure Regulator not turned to
high enough pressure or defec-
tive.
Restricted air intake .
Air leaks or restrictions.
Hose or hose connections are too
small or long.
Slipping belt.
Air compressor is not large
enough for air requirement.
Restriction in Pilot Valve.
ReMeDy
Refer to the engine manual accompa-
nying your air compressor.
Engine is equipped with an Oil Alert
System which will not allow the en-
gine to start if oil level is low. Add oil,
if needed.
Tighten pulley and or ywheel.
Add correct amount of oil. Check for
bearing damage.
Remove cylinder head and inspect.
Clean or replace.
STOP THE AIR COMPRESSOR!
Contact Mi-T-M Customer Service.
Allow air compressor to build pres-
sure to the maximum allowed. Turn
off and brush a soapy water solution
onto all connections. Check connec-
tions for air bubbles. Tighten the con-
nections where leaks are present.
Air tank must be replaced. Do not
attempt to repair air tank!
Clean or replace.
Adjust Pressure Regulator to proper
setting or replace.
Clean or replace Air Intake Filter.
Check for leaks and repair.
Replace with larger hose or connec-
tors.
Tighten or replace.
Check the accessory air requirement.
If it is higher than the CFM or pres-
sure supply to the air compressor,
use a larger air compressor.
Clean or replace.

18 Mi-T-M®Gasoline Air Compressor Manual
TROUBLESHOOTING
syMPtoM
Air leaks from Safety Relief
Valve
Air leaks at pump.
Air blowing from Air Intake
Filter.
Moisture in discharge air.
Excessive oil consumption or
oil in hose.
Oil has milky appearance.
PRobable cause
Possible defective Safety Relief
Valve.
Excessive air tank pressure.
Defective gaskets.
Defective inlet (reed) valve.
Condensation in air tank caused
by high level of atmospheric hu-
midity or air compressor is not run
long enough.
Restricted Air Intake Filter.
Air compressor on unlevel sur-
face.
Crankcase overlled with oil.
Wrong viscosity.
Plugged oil dipstick vent.
Plugged crankcase breather.
Oil leaks.
Worn piston rings or scored cyl-
inder.
Water in oil due to condensation.
ReMeDy
Operate Safety Relief Valve manually
by pulling on ring. If it still leaks, it
should be replaced.
Clean, reset or replace Pilot Valve.
Torque head bolts: Single Stage= 17
ft./lbs. Two Stage= 33 ft./lbs.
Contact Mi-T-M Customer Service.
Run air compressor a minimum of
one hour to prevent condensation
buildup. Drain air tank after every
use. Drain air tank more often in hu-
mid weather and use an air line lter.
Clean or replace.
Do not incline the air compressor
more than 10° in any direction while
running.
Drain oil. Rell to proper level with
SAE-30W non-detergent oil.
Drain oil. Rell to proper level with
SAE-30W non-detergent oil.
Clean.
Clean or replace.
Torque head bolts: Single Stage= 17
ft./lbs. Two Stage= 33 ft./lbs.
Contact Mi-T-M Customer Service.
Change oil and move air compressor
to a less humid environment.
