1. Scope ofapplication
This manual includes household portable power station performance, technical, requirements,
test methods and precaution. The specification shall be applied to household portable power
station which is manufactured by Mica Power Co.,Ltd
2. Model
AS330
3. Specification
No Items Parameter Standard
1 Model AS330
2 Battery type Li-ion 18650 cell 3.7V/2600mAh
3Rated
Capacity 290Wh
4 Min Capacity 290Wh
5 Output
USB output port 3*QC3.0 3*USB 5V3.1A
1* Type C 5V3A
USB output port
working time
＞25h
DC output port 2*DC 9~ 12.6V±0.5V/5A
DC output port working
time
＞5h
AC output port AC 220V 50Hz/AC110 60Hz 330W
Pure Sine Wave（Universal socket）
Car output port DC 12V/10A(120W max)
Car output port working
time
＞2.5h
Wireless Charging 5V1A
Reverse charging
protectio
n
Yes
6 Charging
Charging voltage 12V/18V
Charging Current 10A
Charging Time About 8h
7Self-consump On working 200mA

Lithium Battery Expert 15 Years
3
tion On standby 5mA
8 Dimensions L*W*H 205x155x165cm
9 Weight net weight 3.22KG
10
Range of
Working
Temperature
Charging：10℃～40℃
Discharging：0℃～75℃
11
Range of
Storage
Temperature
Less than 1 year -20℃～+25℃
Less than 3 months -20℃～+45℃
Less than 1 month -20℃～+60℃
4. Circuit Protection
No Items Parameter Standard
1Over-charging
Protection
Protection Voltage 4.25V
Recovery voltage 4.15V
Protection delay time 2s
2Over-dischargi
ng Protection
Protection Voltage 2.8V
Recovery voltage 3.0V
Protection delay time 2s
3Over-current
Protection
discharge over-current protection 20A
discharge over-current protection
delay time
1s
4Short-circuit
Protection Recovery conditions
Recharge after short circuit
release
5Balanced loop
Balanced start voltage 4.19V
Balanced current 127mA
5. Electricity DisplayStatus
LED screen display.

L
ithium Battery Expert 15 Years
5
6. Mechanical Characteristic and Safety Test
No Items Requirem
ents Test method Standard
1
Storage performance
Test The new
fully
charged
battery
After rest period 30 days at
23°C±2°C environment,
discharge to 8V according
to the standard discharge
method, recorded all the
remaining capacity.
Remaining
capacity≥90% of
Rated capacity
2
High Temperature
Storage Test The new
fully
charged
battery
After the battery was stored
at 60°C for one week, then
cycle standard charge and
standard discharge for three
weeks to test the recovery
capacity. The battery is
rested for 10 minutes after
charging and rested for 20
minutes after discharge.
No leakage,
capacity recovery
rate ≥80% of rated
capacity
3
Constant temperature
and humidity test The new
fully
charged
battery
After the battery was stored
at temperature of 60°Cand
humidity of 95% for 168
hours, then cycle standard
charge and standard
discharge for three weeks to
test the recovery capacity.
The battery is rested for 10
minutes after charging and
rested for 20 minutes after
discharge.
No leakage, No
corrosion, capacity
recovery rate ≥80%
of rated capacity
After the battery was stored
at temperature of 65°C for 8
hours, rest period 3 hours
then discharge, After the
battery was stored at
4Temperature shock The new
fully
charged
battery
temperature of -20℃for 8
hours to
standard discharge, then
cycle standard charge and
standard discharge for three
weeks to test the recovery
capacity. The battery is
rested for 10 minutes after
charging and rested for 20
minutes after discharge.
No leakage,
capacity recovery
rate ≥80% of rated
capacity
-10℃discharge
Discharge performan
ce test at different The new
The battery is charged at
23 °C± 2 °Cand
capacity is 70% of
rated capacity

L
ithium Battery Expert 15 Years
6
5temperatures fully
charged
battery
discharged at -10 °C,
0°C,23°C,60°Cdifferent
temperature
0℃discharge
capacity is 80% of
rated capacity
23℃discharge
capacity is 100% of
rated capacity
60℃discharge
capacity is 95% of
rated capacity
6
Vibration
Test
The new fully
charged battery
After standard charge, the battery
is to be fixed on the vibrating
table and tested as following
conditions:
Amplitude: 1.6mm
Frequency:10Hz ～55Hz
(sweep:1Hz/min)
Direction:X/Y/Z axis for
30mins.The battery to be tested in
three mutually perpendicular to
each axis.
No fire,No
explosion , No
leakage
7DropTest
The new fully
charged battery
After standard charge, freely drop
from a height of 1m to the 20mm
thick board.
No fire,No
explosion , No
leakage
7. Performance Test
7.1 Standard test conditions
Thetestproductmustbeanewproductthathasnotbeenshippedformorethanonemonthandthe
battery has not been cycle charge and discharge more than 5 times. Unless otherwise specified, the tests in
this specification shall be under the following conditions: Temperature：23℃±2℃;
Relative humidity：45%～85%RH;
Atmospheric pressure：86kPa～106kPa;
7.2 MeasurementApparatus
⑴Dimension Measuring Instrument
The dimension measuring shall be implemented by instruments with equal or more precision scale of
0.01mm;
⑵Voltmeter Standard class specified in the national standard or more sensitive class having inner

7
Lithium Battery Expert 15 Years
impedance not less than 10kΩ/V
⑶Ammeter
Standard class specified in the national standard or more sensitive class. Total external resistance
including ammeter and wire is less than 0.01Ω
⑷The resistance test method is the AC impedance method (AC 1kHz LCR). The resistance
is not a constant value and varies with temperature and saturation of the state of charge, and related to
lengthand capacityof the cable.
⑸All testing equipment and measuring instruments must be inspected by the certification institutes;
⑹Battery test system current accuracy should be within ±0.1%, constant pressure accuracy within
±0.5%, timing accuracy within ±0.1%;
⑺The temperature measuring instrument should not be lower than ±0.5°C;
7.3 Appearance
There shall be no such defect as scratch, flaw, crack, rust, leakage, which may adversely affect commercial
value of household portable power station.
7.4 Standard Discharge
⑴Discharging the battery at 0.5C constant current to 8V, @ 23 ℃±2 ℃；
⑵Unless otherwise specified, the battery is rested for 10 minutes after charging and rested for 20 minutes
afterdischarge.
8. Functional Description
8.1 ACoutput：
⑴Press theAC output button;
⑵The AC output indicator shows blue and can be loaded. If the indicator is off and the buzzer sounds, theAC
output is faulty.
8.2 DCoutput：Connect the load to DC ports directly. When there is no load, the DC port
is in the sleepstate.
8.3 Droneoutput：Connectthe drone portto the drone charger directlybypressing the
positive and negativepoles.
8.4 DCinput：Connect the charging adapter andAC socket to the charging port of the portable

8
Lithium Battery Expert 15 Years
power station for charging, the battery indicator shows the power when charging; disconnect all loads
when charging;

9
Lithium Battery Expert 15 Years

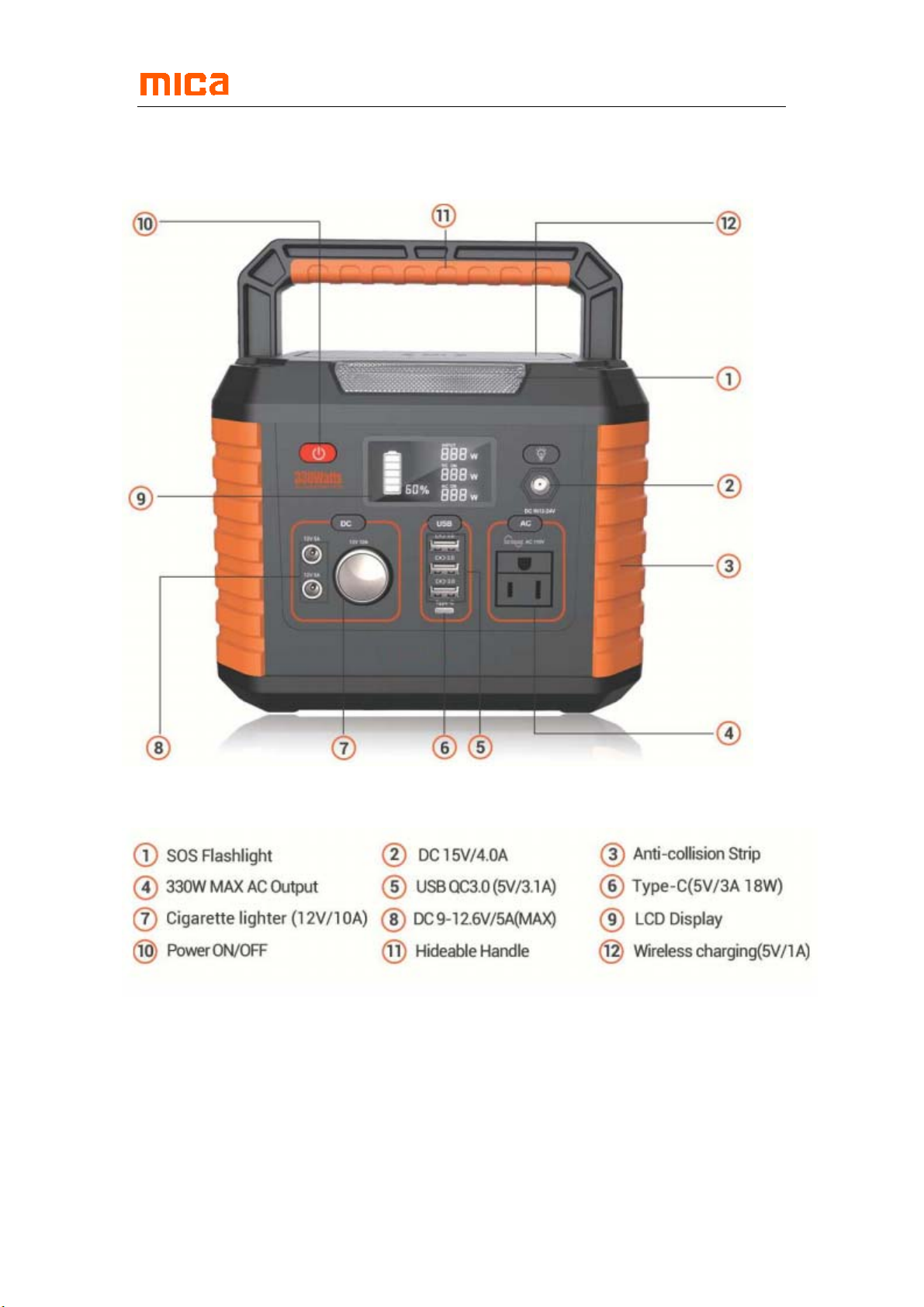

9. Structure diagram

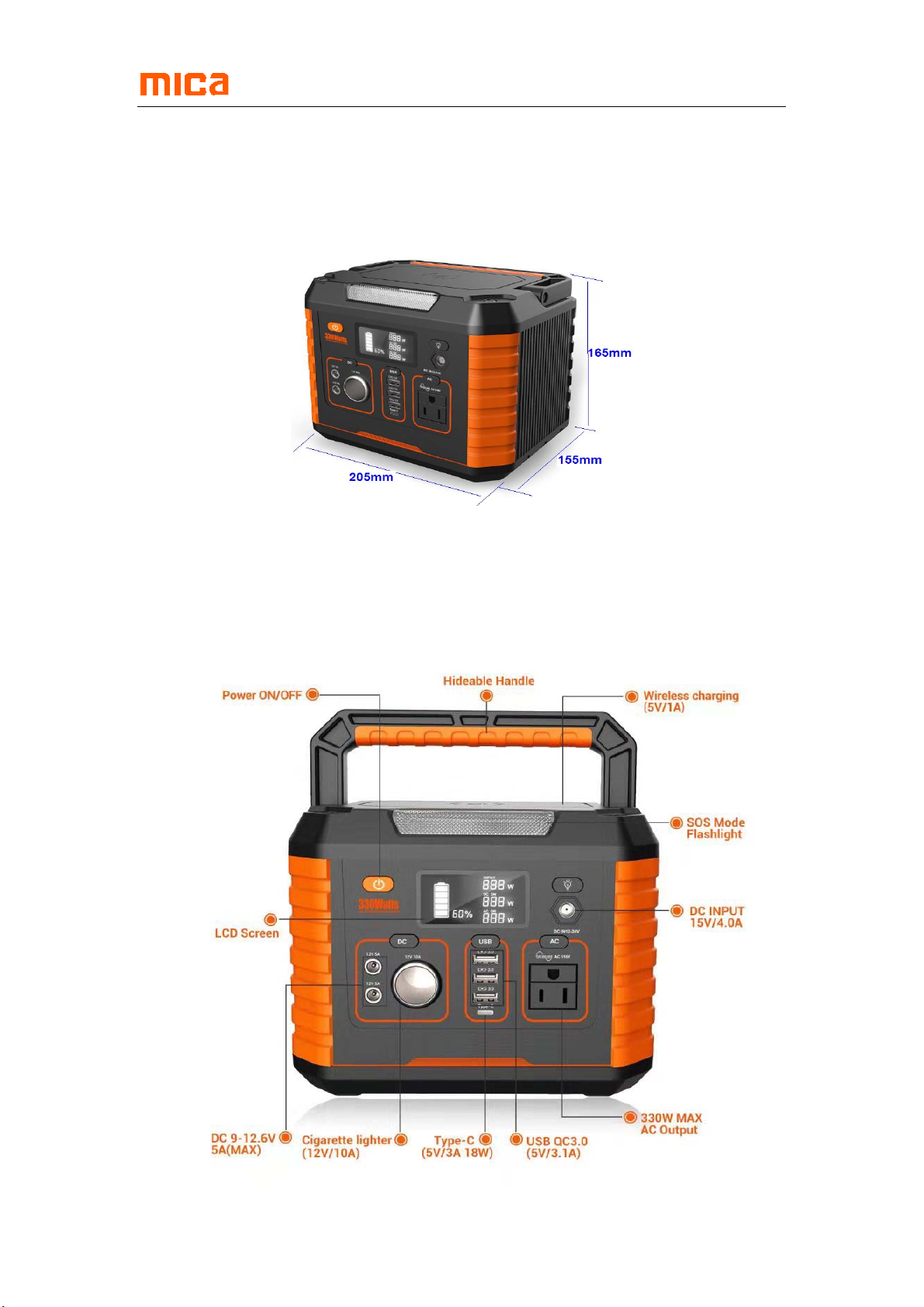

L：205.5mm * W：155mm * H：165mm

1
0
Lithium Battery Expert 15 Years
10. Accessories List
No Name Model Unit Quantity Remark
1Portable power
station AS330
PCS 1version：
02
2 Adapter 60W PCS 1optional
11.Charging Instructions
11.1 The charging current and charging voltage can’t exceed the max values specified
in this specification.
11.2 The design of the charger shall meet the requirements of this specification.
11.3 If the current or voltage beyond the ranges of requirementsof this
specification may cause problems with cell discharge, mechanical and safety
performance.
12.Warning
12.1 Please don’t put the battery into fire or heat the battery, do not storethe battery
at high temperature environment.
12.2 Pleasedon’t reverse polarityof the batteryor plug the batteryintothe power
outlet directly.
12.3 Please don’t store the battery with wires and electrodes of the battery or
other metal materials together.
12.4 Please don’t Sting, hitting, throwing trampling the household portable power station.
12.5 Please don’t disassemble the household portable power station
12.6 Please don’t put the battery into the water, it should be placed in a cool
and dry environment during the preservationprocess.
12.7 Please don’t use the battery in hot sunlight may cause the batteryto overheat.
12.8 Please use specific charger to charging
12.9 Please don’t discharge continuouslyduring charging.
12.10 Replacement the batteryshould be done by the battery manufacturer or
equipment supplier
12.11 The battery may be damaged during shipment. If the battery be found to be

1
1
Lithium Battery Expert 15 Years
abnormal,damaged, deformed, leakage etc, do not use the battery anymore. Please keep the battery away from
fire sources to avoid fire and explosion.
12.12 Performance will be reduced, even if it is stored for a long time without being used.
If the charging, discharging, and temperature are not within the specified range of requirement, Will reduce
batterylife or cause leakage and damaged. If can't charge for a long time and charging
method is correct ,you needto replace the battery.
12.13 The batteryshould be stored in a greenhouse and should be charged to 30%to 60%.
If stored for a long time, it is recommended to charge once everysix months toprevent
over‐discharge of the battery.
13.Other
(1) If the customer needs to use this product for equipment other than those specified in
this document, or if this product is used under conditions other than those specified in this
document, please contact us in advance because specific experimental tests are required to
verify the performance and securityof this product under the conditions ofuse.
(2) Our company will not be liable for any accidents if use this product under conditions
other than those specified in this documents.
(3) If necessary, our company will inform the customer in writing about the improvement
measures for the correct operationand use of this product.
Any matters not mentioned in this manual must be determined through mutual negotiation. The information
contained in this document (including changes without prior notice) is for reference only and cannot be used as a
warrantyor statement of quality. For unresolved issues, please consult your nearest marketing office or distributor.
The supplier reserves the right to amend and improve the design, model and specifications without prior notice.
