Micca Mplay User manual

Attention Customers!

Thank you for purchasing a Micca product. Should

you have any enquiries or need assistance, please

contact our technical support team before

contacting the store for assistance: email

supp[email protected].

Most common questions and answers regarding this

product can be found at the following FAQ:

http://content.miccastore.com/faq

Quick Start Guide

IMPORTANT – If the image on the TV shows “No Signal”, looks discolored

or distorted, this means the Micca MPLAY has not been set to the correct

TV System mode in the settings menu. When using the MPLAY’s component

video output, the player’s video out output mode must be set to HD Mode. When

using MPLAY’s composite video output, the player’s video output mode must be

set to NTSC Composite.

Wrong Output Mode Correct Output Mode

When the output mode is incorrect, the image might be too distorted to see the

Settings menu. In this case, press the <SET> button on the remote, then press

the <TV Mode> button repeatedly to cycle the Micca MPLAY through its output

modes until the correct mode is selected.

IMPORTANT – If a MP4/AVI/MOV movie will not play on the Micca MPLAY, it

is most likely encoded in an unsupported format. Please check the following FAQ

for additional information: http://content.miccastore.com/node/130

IMPORTANT – The Micca MPLAY supports all USB flash drives or hard disk

drives up to 2TB in capacity. The drive must be uncompressed FAT32 or

NTFS and not use the GUID partition table. Please check the following FAQ for

additional information: http://content.miccastore.com/node/159

IMPORTANT!

For your personal safety, please read the following instructions carefully.

To reduce the risk of fire, electrical shock or damage to the player, do not

expose this device to humidity, rain, sand or excessive heat (caused by

heating equipment or direct sunlight).

Use the player in a well ventilated environment to ensure proper cooling.

Do not open the player beyond which is required to install the internal hard

disk drive, as there is risk of electric shock. Contact a professional for repair.

Please follow the instructions enclosed with the player for key operation and

maintenance.

Usage Notice

Before plugging in this device, make sure your power supply voltage matches

the product. The working voltage of this player is marked on the AC power

adapter. Only use the AC power adapter that is supplied with this device.

Do not touch the socket with a wet hand.

Turn off the power when the device will not be used.

Do not place heavy objects on top of the player.

Do not use strong solvents to clean the surface of the player such as alcohol,

benzene, or thinner.

I. General Introduction

Thank you for purchasing a Micca product.

The Micca MPLAY is a standalone digital media player. It is capable of playing

digital videos, music and pictures stored on SD/SDHC/MMS flash cards, as well

as USB 2.0 compliant storage devices such as USB drives, or portable hard disk

drives. The Micca MPLAY supports a wide range of media file formats, allowing

its users to enjoy digital contents anywhere in the home.

Play Media Files on All TVs and HDTVs

The Micca MPLAY works with all NTSC and PAL televisions, from older analog

TVs to the newest plasma and LCD HDTVs. Everything you need is provided so

there are no extra cables to buy. Its component video output provides 720p video

output with excellent image quality.

Perfect Throughout the House

The Micca MPLAY is costs less than a DVD player and is much more versatile

than due to its capability to playback a wide range of video and audio formats

from common storage devices. It is therefore the perfect replacement for aging

DVD players. It’s so affordable, put one anywhere there is a TV!

Compact and Convenient

The Micca SLIM is exceptionally compact, smaller than a paperback novel, and

takes up very little space. There is no need for a dedicated shelf. Its user

interface is fast, responsive, and intuitive to use. It can easily be used to play

movies and photos on a big screen TV without a computer.

II. Features and Specifications

The Micca MPLAY offers the following key features and specifications

•720P high definition component video output

•Compatible with all NTSC/PAL TVs and HDTVs, including

CRT/LCD/Plasma/Projection

•Plays a wide range of popular media formats

•Fast, responsive, and easy to navigate user interface

•Convenient auto resume and continuous multi-file playback

•Play media files from USB hard drives, USB flash drives, or

SD/SDHC/MMC flash cards

•Full function IR remote control in addition to on-device buttons

•Ultra compact and portable for use in the home or on the go.

File Type Video Codec Audio Codec Notes

Video

*.AVI MPEG4, DivX,

Xvid MP3, AAC, AC-3,

PCM

720 x 576 Max

*.MP4, *.MOV MPEG4 AAC, AC-3, OGG

*.VOB (DVD) MPEG2 AC-3, MPEG,

PCM

*.MPG, *.DAT MPEG1/2 MPEG MP3

*.RMVB, *.RM RealVideo RealVideo, AAC,

MP3 1024 x 576 Max

*.3GP MPEG4 AAC 640 x 480 Max

Audio

*.MP3 MPEG Layer-3 32kbps-320kbps

*.WMA Windows Media

Audio 32kbps-192kbps


*.JPG, *.GIF, *.BMP,

*.PNG JPG 7800 x 5280

Max

III. Item Check List

Before starting, check that the following items have been included with your

Micca MPLAY. If anything is missing, contact your retailer.

Micca MPLAY Media Player

IR Remote Control

3.5mm to 3 RCA Component Video Cable

3.5mm to 3 RCA AV Output Cable

5.0VDC AC Power Adapter

IV. MPLAY Device Layout

The Micca MPLAY has built-in buttons for performing basic playback controls

without the IR remote control. The buttons from left to right are: Enter, Return, Up,

Down, Left, and Right. These buttons serves as the same functions as the

following IR remote control buttons:







Maps to OK button



Maps to Stop/Return button







Maps to Up button







Maps to Down button







Maps to Left button







Maps to Right button

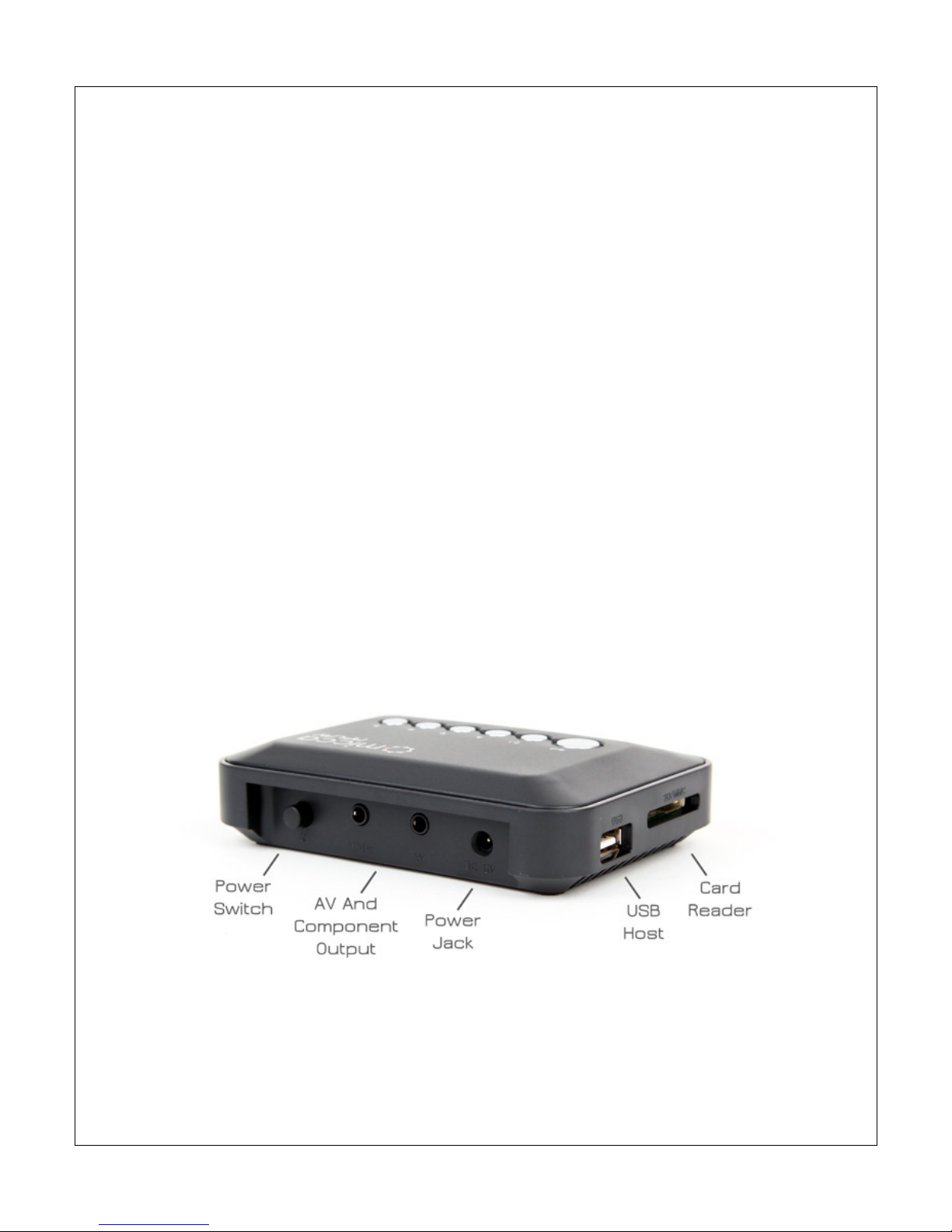

The back of the MPLAY has the following items:

•Master Power Switch – Turns the MPLAY on or off without using the IR

remote control. When this switch is Off, the MPLAY cannot be turned on

with the remote. When this switch is On, the MPLAY can be turned on or

put into standby mode with the IR remote.

•AV Output Connection – Outputs stereo audio and composite video signal

for use with analog TVs. Only use the AV cable that was supplied with the

MPLAY to ensure correct polarity.

•YPrPb Component Connection – Outputs 720p video signal for use with

HDTVs. Note that this connection contains video signals only. The AV Out

connection must be used to provide audio. Only use the component cable

that was supplied with the MPLAY to ensure correct polarity.

•DC 5V – DC power input. Use only the AC adapter that was supplied with

the MPLAY to ensure correct voltage, current, and polarity. Incorrect AC

adapter usage can cause damage to the MPLAY.

V.IR Remote Control

The Micca MPLAY is equipped with an IR remote control. While the player’s

built-in buttons can be used to navigate and select files for playback, the remote

control is designed to provide more comprehensive access to all of the player’s

features and functions.

Buttons on the remote control are laid out in a logical and familiar manner. The

specific function of each button will be described in the relevant sections in which

they are used.

The remote control requires a CR2025 3V Lithium battery for operation. To

install battery, slide open the battery compartment cover on the back of the

remote. Ensure that the battery is inserted in the correct polarity as indicated in

the battery compartment.

When not planning to use the remote for a long period, remove the battery from

the remote to prevent damage from potential battery leakage.

Do not use batteries of different types as this may lead to

damage to the batteries and remote, and injury to the user.

The remote is most effective when used within 20ft of the Micca MPLAY player,

and within a 60-degree angle with respect to the IR remote sensor on the player.

Strong ambient lighting may degrade the effective range and angle of the remote.

Batteries typically last for 1 year with normal use. If the batteries become too

weak, the remote’s effective range will be decreased dramatically and its

operation may become intermittent. When this happens, replace the batteries.

VI. Connecting the Micca MPLAY

A. Power

Only use the supplied AC power adapter to provide 5.0VDC power to the Micca

MPLAY. Using a different power adapter may damage the player. Do not cut off

power to the device while the unit is turned on as this may cause serious damage

to attached storage devices and result in data loss.

The MPLAY has a master power switch on the back. During normal use, set this

switch to on and use the remote to turn the MPLAY on or put it into standby

mode. Set this switch to off if not planning to use the MPLAY for a long time to

conserve power. Make sure that the player is in standby mode before

disconnecting power.

B. AV Output

The Micca MPLAY can be connected to analog TVs through its AV Out

connector. Only use the supplied 3.5mm-to-RCA AV cable to ensure correct

signal polarity and avoid damage to the player and TV/display.

The RCA cable connectors are color coded to match the AV input on TVs and

display devices as follows:

Red

Right Audio Channel

White

Left Audio Channel

Yellow

Composite Video

The Micca MPLAY must be set to NTSC or PAL Composite mode for the analog

AV output to function. If there is no picture displayed after connecting the AV

Output and turning on the Micca MPLAY, press the <Setup> button on the

remote and then press the <TV Mode> button to switch between output modes

until the correct mode has been selected. There will be a short delay when

switching output modes so please wait a few seconds between presses of the

<TV Mode> button.

C. Component Video Output

The Micca MPLAY can be connected to HDTVs through its YPrPb (Component)

video connector. The Micca MPLAY’s component video output resolution is fixed

at 1280x720p. The component video output only contains video signals, thus the

AV Output cable must be used at the same time for audio signals. Only use the

supplied 3.5mm-to-RCA AV and Component cables to ensure correct signal

polarity and avoid damage to the player and TV/display.

The RCA cable connectors are color coded to match the AV input on TVs and

display devices as follows:

Green

Component Y Signal

Blue

Component Pb Signal

Red

Component Pr Signal

Red

Right Audio Channel

White

Left Audio Channel

The Micca MPLAY must be set to HD Mode for the component connection to

output a correct signal. If the picture looks distorted, press the <Setup> button on

the remote and then press the <TV Mode> button to switch between output

modes until the correct mode has been selected. There will be a short delay

when switching output modes so please wait a few seconds between presses of

the <TV Mode> button.

VII. Micca MPLAY Startup

When powered on, the Micca MPLAY displays a brief loading screen and then

the [Home] screen. By default the [Home] screen will have the [Setup] icon plus

icons representing compatible storage devices found during start up.

During start up the Micca MPLAY configures attached storage devices in the

following order: external USB drive, SD card, internal hard disk drive. The

storage device icons on the [Home] screen are arranged in this same order. The

internal hard disk drive, if installed and properly partitioned and formatted, will be

represented by a [USB] icon.

It is possible to remove and insert external USB devices or SD cards with the

Micca MPLAY powered on. Displayed storage device icons will adjust

automatically.

Use the <







>and <







>buttons on the remote to highlight a storage device and

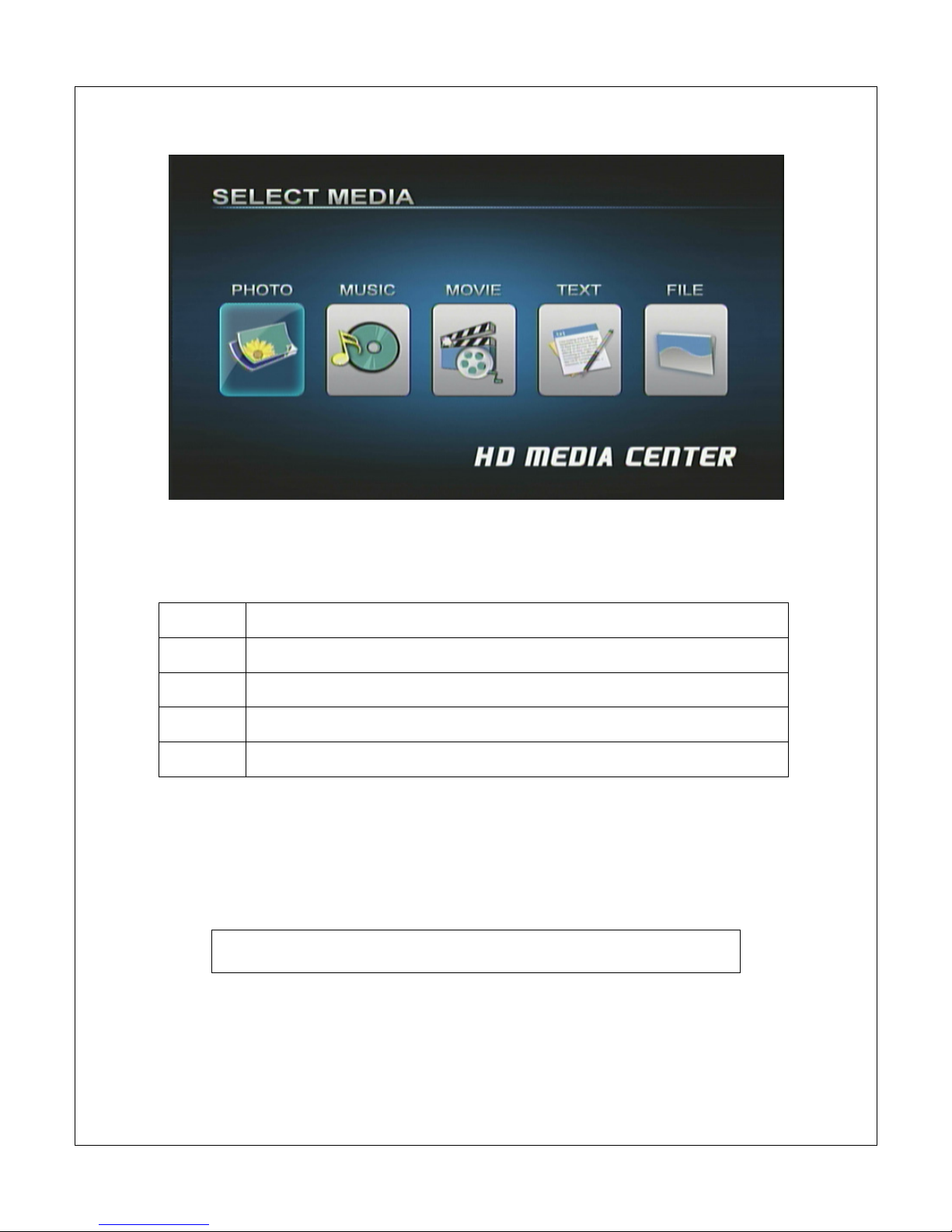

press the <OK> button to select it and bring up the [Select Media] screen.

The [Select Media] screen presents five icons for access to different types of

media files on the selected storage device:

Movie

Navigate and playback compatible video files

Music

Navigate and playback compatible audio files


Navigate and display compatible picture files.

Text

Navigate and display .TXT files

File

Navigate and playback all compatible files

Use the <







>and <







>buttons on the remote to highlight the desired media

type and press the <OK> button to select it. Refer to sections for individual

media types for additional information.

Use the <Photo>, <Music>, and <Movie> buttons on the remote

to quickly switch between media playback modes.

VIII. Movie Mode

In Movie mode, the Micca MPLAY displays a file/folder directory on the left side

of the screen, and a preview box on the right. Navigate the files and folders to

locate video files you wish to play. Use the <







>and <







>buttons to highlight a

compatible video file and press the <OK> button on the remote control to play it.

By default, the Micca MPLAY will continuously and repeatedly play all video files

in a folder in alphabetical order until stopped or turned off.

Quickly jump to movie mode by pressing the <Movie> button on

the remote control.

NOTE: Only files with compatible video file extensions AVI, MPG, MP4, MOV,

VOB, MPG, DAT, RM, RMVB, and 3GP are visible in the file/folder directory.

Video files with incompatible file extensions, such as MKV or WMV will are not

visible. Video files with compatible file extensions but incompatible codec such

as H.264 will not play and will generate an error when full screen playback is

attempted.

In movie mode, the following navigation controls are available while browsing the

file/folder directory:







Go up one folder level, currently preview video stops







Enter the highlighted folder, no effect if a file is highlighted







Highlight the previous file or folder, currently preview video stops







Highlight the next file or folder, currently preview video stops







Play the highlighted file full screen

In movie mode, the following playback controls are available while playing a

video file full screen:







Rewind the current playing video file in 2X, 3X, or 4X speeds







Fast forward the current playing video file in 2X, 3X, or 4X speeds







Skip back to the previous video file







Skip forward to the next video file







Pause or play the current video file







Stop playing the current file and return to file/folder directory

AUD

Changes the audio track (If more than one is available)

VOL+

Increase playback volume

VOL-

Decrease playback volume

Mute

Mute playback volume

OSD

Toggle the on screen display menu

Zoom

Zoom in on the current video in at 2X, 4X, or 8X magnification. During

zoom, the <



>, <



>, <



>and <



>buttons can be used to scroll.

SUB

Displays available subtitles, toggles subtitle text size between normal

or 2X. Subtitle files in the .SRT or .SUB file format are supported and

should be placed in the same folder as the video file.

16:9/4:3

Toggles between various playback aspect ratios

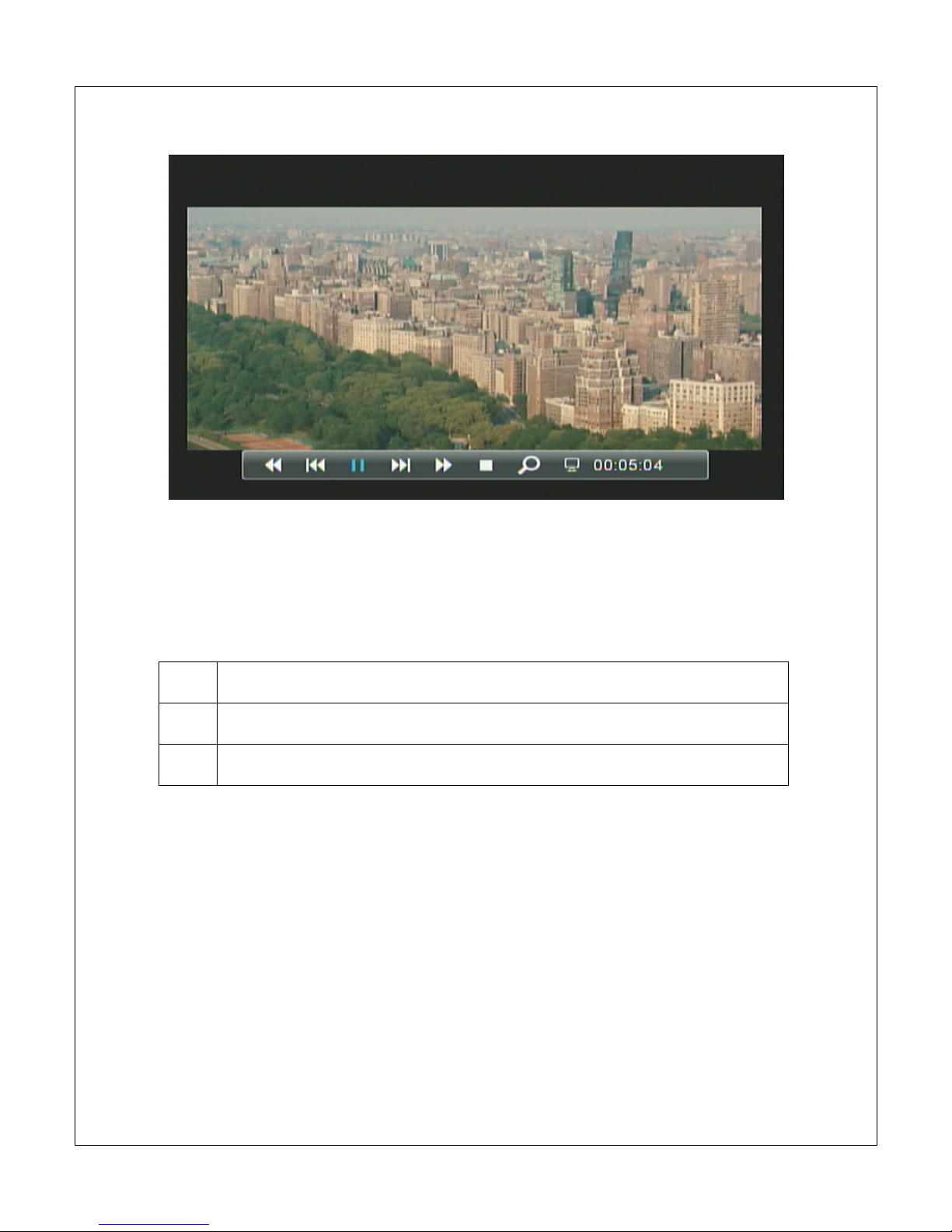

Display the on screen display menu

The on screen display menu presents a selection of playback control icons on

screen. The menu contains navigation icons for Rewind, Skip Back, Skip

Forward, Fast Forward, Play/Pause, Stop, Zoom, and jump-to time mark. With

the on screen display visible, the following controls are available:







Highlight icon to the left







Highlight icon to the right

Execute the highlighted playback control command

To jump to a time mark in the current video, press the <OSD> button to bring up

the on screen display menu. Use the <



>and <



>buttons on the remote

control to highlight the hour, minute, or second section. Use the <







>and <







buttons on the remote to enter the desired time mark. When finished, press the

<OK> key on the remote to jump to the entered time mark.

IX. Music Mode

In Music mode, the Micca MPLAY displays a file/folder directory on the left side

of the screen, and a playback box on the right. Navigate the folders to locate

music files you wish to play. Highlight a compatible audio file and it will

automatically start to play after a short delay. By default, the Micca MPLAY will

continuously and repeatedly play all music files in a folder in alphabetical order

until stopped or turned off.

Quickly jump to music mode by pressing the <Music> button on

the remote control.

NOTE: Only files with compatible music file extensions MP3 and WMA are visible

in the file/folder directory.

In music mode, the following navigation and playback controls are available while

browsing the file/folder directory:







Go up one folder level, currently playing music stops







Enter the highlighted folder, no effect if a file is highlighted







Highlight the previous file or folder, currently playing music stops







Highlight the next file or folder, currently playing music stops







Rewind the current playing music file in 2X, 4X, or 8X speeds







Fast forward the current playing music file in 2X, 4X, or 8X speeds







Skip back to the previous music file







Skip forward to the next music file







Pause or play the currently highlighted music file







Stop playing the current music file

VOL+

Increase playback volume

VOL-

Decrease playback volume

Mute

Mute playback volume

X.Photo Mode

In Photo mode, the Micca MPLAY will locate all photos on the current storage

device, arrange them in alphabetical order by folder and file name, and display all

photos as thumbnails in a 3-by-5 grid.

Navigate the thumbnails to locate photos you wish to view using the <



>, <



>,

<



>and <



>buttons. To view a photo full screen, press the <OK> button on

the remote control after highlighting it.

Quickly jump to picture mode by pressing the <Photo> button

on the remote control.

NOTE: Only files with compatible picture file extensions JPG, GIF, PNG, and TIF

are visible in the thumbnail grid.

In picture mode, the following navigation controls are available while browsing

thumbnails:







Highlight the picture to the left of current photo







Highlight the picture to the right of current photo







Highlight the photo above the current photo







Highlight the photo below the current photo







Go back one full screen







Go forward one full screen







Go back one full screen







Go forward one full screen







Start a slideshow beginning with the highlighted photo

Display the highlighted photo full screen

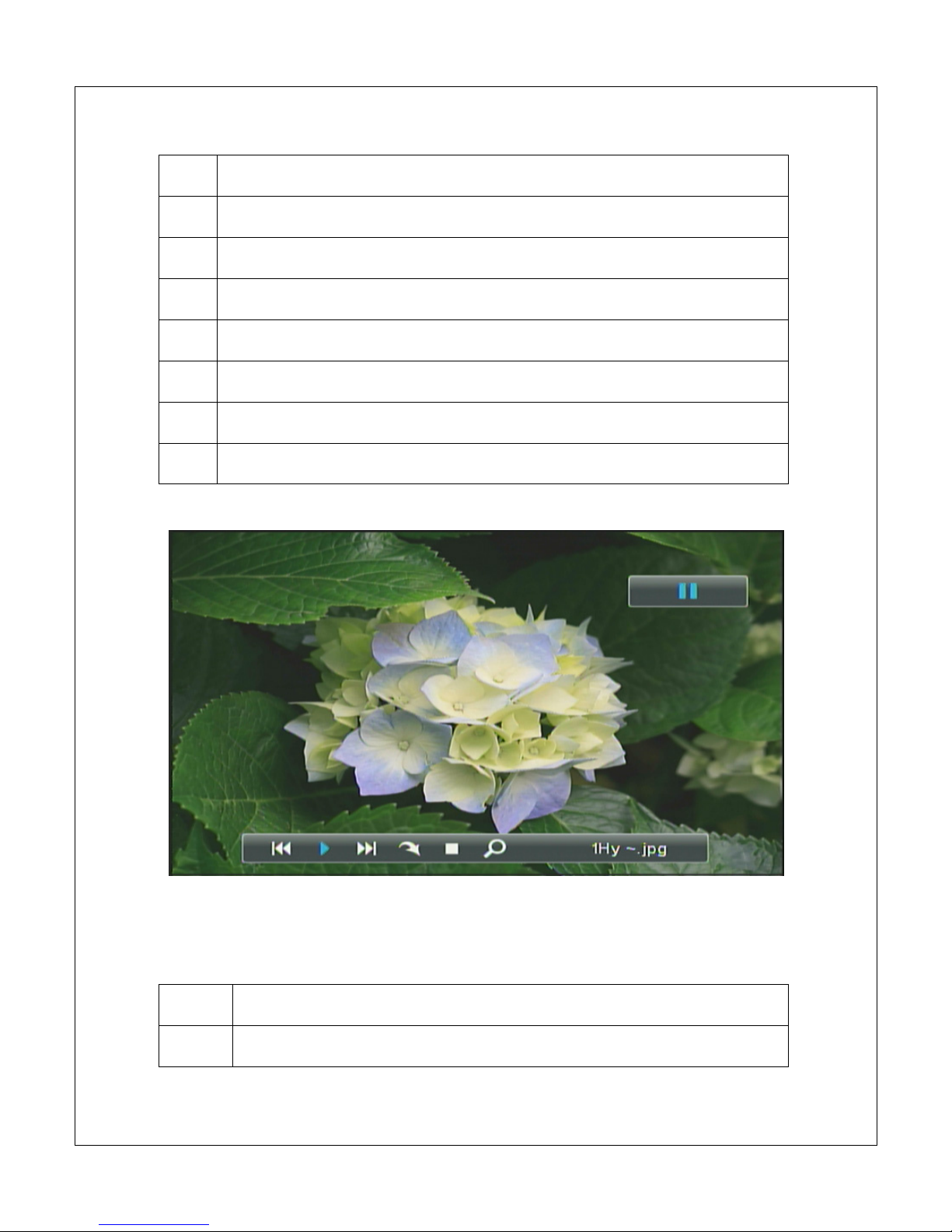

In picture mode, the following display controls are available while viewing a photo

file full screen:







View the previous photo







View the next photo

Table of contents

Other Micca Portable Multimedia Player manuals

Micca

Micca EP600 G2 User manual

Micca

Micca EP5000B User manual

Micca

Micca Slim User manual

Micca

Micca Speck User manual

Popular Portable Multimedia Player manuals by other brands

Kenwood

Kenwood HD30GB9 operating instructions

Polaroid

Polaroid PMP280-4 user guide

Directed Video

Directed Video DP1020 Owner's installation guide

Aigo

Aigo MP5-E898 user manual

Escient

Escient FireBall MP-100 Reference

MP-Man

MP-Man MP244 instruction manual

GoVideo

GoVideo PVP4040 Pocket Cinema brochure

E-matic

E-matic EM102VIDBL manual

Logik

Logik LOG OIII 4GB user guide

Bush

Bush MPK4230BUK user manual

Zune

Zune 8GB quick guide

Shiro

Shiro VJ user guide

Grundig

Grundig MPixx 1450 manual

Epson

Epson P5000 - Digital AV Player user guide

Cowon

Cowon PLENUE L user manual

AEG

AEG MMS 4207 Instruction manual & guarantee

Megxon

Megxon M1 quick start guide

Craig

Craig CMP621F owner's manual

Micca mplay User manual

Popular Portable Multimedia Player manuals by other brands
