823 0103 000
11-11 SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D
11SPARE PARTS LIST
WHEN ORDERING PARTS
* Use the digit numbers from the "Part No." columns in this spare parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model_________________________ Serial no._______________________________
www.advance-us.com
Part number 823 0103 000 P06

823 0103 000 11-11
2
SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D
WIRING DIAGRAMS
Single motor version - Grounded
Double motor version - Grounded

823 0103 000
11-11 SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D
3
DESCRIPTION
DESCRIPTION PLAN
Wiring diagrams and overview 2
Body 4
Brush parts 6
Filters 8

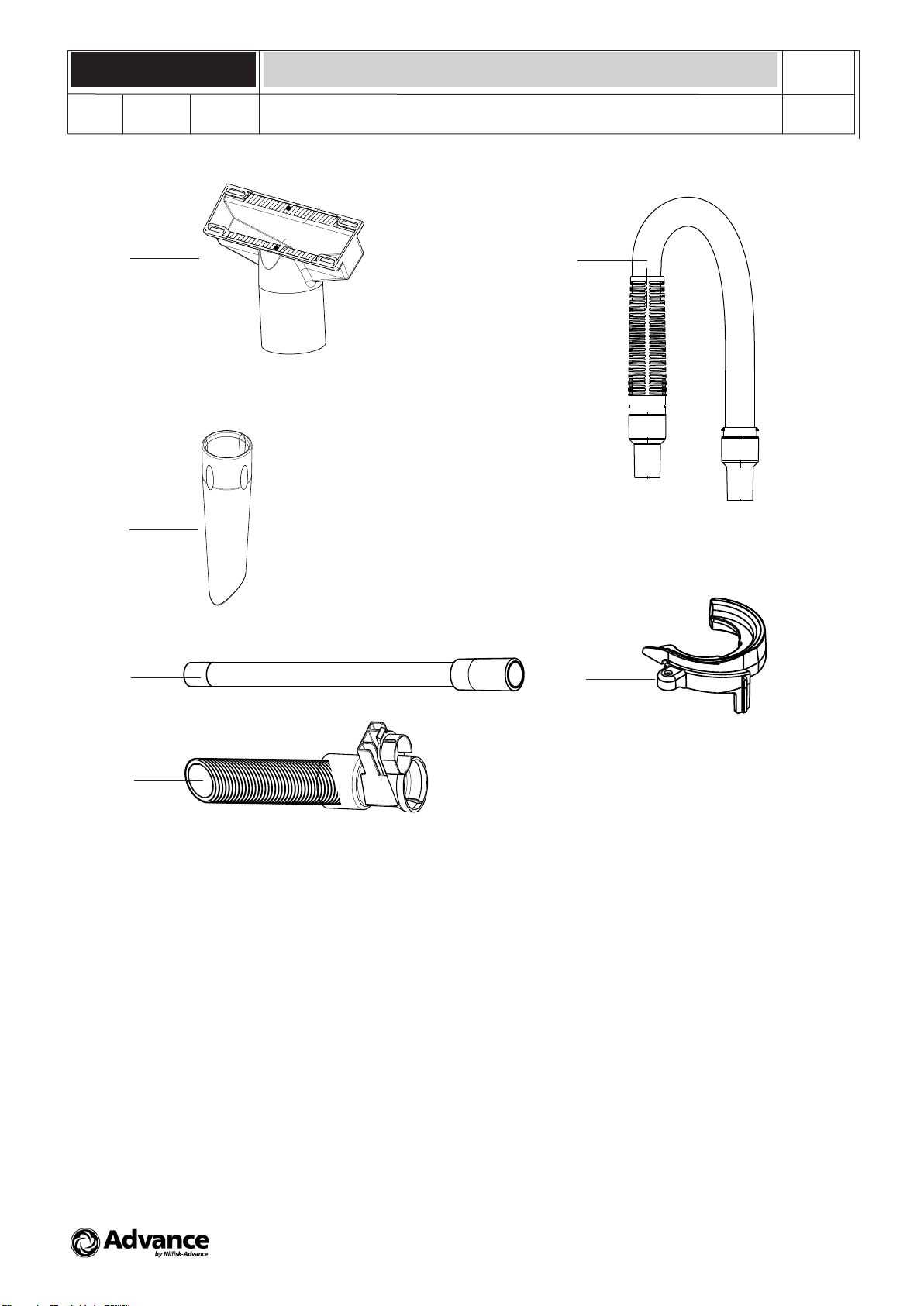

Nozzle and tube 10

823 0103 000 11-11
4
SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

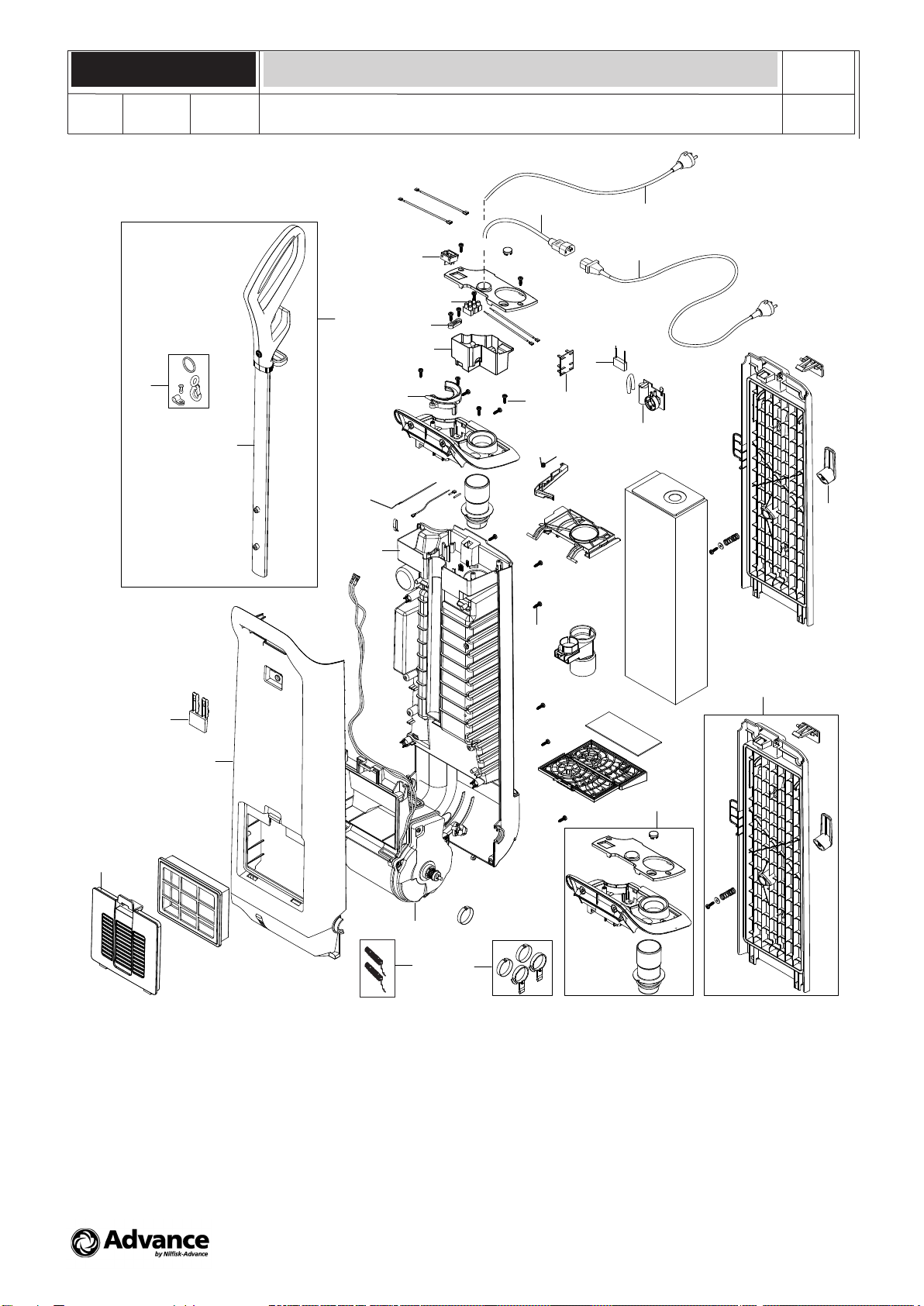

BODY
1
5
3
2
4
6
14
13
11
12
15
16
18
17
9
7
8
10
19
20
21
20
22
23
24
25

823 0103 000
11-11 SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D
5
BODY
Item Part No. Qty. Description Note EAN Code
1 147 0833 500 1 HANDLE COMPLETE For all spectrum models
except 12H
7319519663266
2 147 0965 500 1 COVER EXHAUST FILTER.GREY 7319519663303
3 147 0847 500 1 COVER BODY FRONT. GREY 7319519664539
4 147 0864 510 1 MOTOR CASETTE 110-120V 7319519662924
5 147 1326 500 1 CARBON BRUSH KIT 2 pcs. 7319519664591
6 147 0927 500 1 JOINT BASE TO BODY W RING 7319519670639
7 147 0842 500 1 COVER TOP KIT. GREY 7319519663273
8 147 0857 500 1 LID CPL. GREY 7319519663327
9 147 0852 500 1 HOOK FOR CORD 7319519663341
10 147 0850 500 1 COVER BODY REAR 7319519663297
11 140 5496 510 1 SWITCH UL KIT 7319519631739
12 056 1014 060 1 ANTI-STRAIN CLIP BLACK 7319519352368
13 147 0843 500 1 ELECTRIC BOX 7319519662979
14 147 1062 500 1 HOLDER TUBE 7319519663587
15 140 7024 500 1 BOARD ANTI STATIC Not for US versions 7319519632590
16 140 8166 010 1 CAPACITOR Not for US versions 7319519603712
17 147 0987 500 1 BAG FULL DEVICE 7319519675108
18 140 3859 640 1 CORD SET US/TW 15M YELLOW 7319519663570
19 82240100 1 TERMINAL BLOCK 3-POLE For grounded versions 7319519493078
20 140 9214 040 1 SCREW PTK TORX 40x14MM FZB Packet contains 22 screws 7319519418606
21 107401794 1 MUSTANG BUTTON BLACK 5703887107569
22 107403706 1 CORD RELIEF KIT 12H 12H 5703887113874
23 107403708 1 PIGTAIL SET US Spectrum 12H 12H 5703887113867
24 107403709 1 EXTENSION CORD Spectrum 12H 12H 5703887113850
25 107404752 1 HANDLE KIT WITH CORD RESTRAINT For Spectrum 12H only 5703887113591
Note!
> Means: New or changed part number or and changed specification

823 0103 000 11-11
6
SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D
BASE
1
2
3
4
67
8
9
10
11
12
13
5
14
15
16

823 0103 000
11-11 SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D
7
BASE
11-12
Item Part No. Qty. Description Note EAN Code
1 147 0924 500 1 COVER BRUSH HOUSE. GREY 12”, Single 7319519664492
1 147 0924 600 1 COVER BRUSH HOUSE. GREY 12”, Dual 7319519664508
1 147 0925 500 1 COVER BRUSH HOUSE.GREY 15”, Single 7319519663105
1 147 0925 600 1 COVER BRUSH HOUSE. GREY 15”, Dual 7319519663624
1 147 0926 500 1 COVER BRUSH HOUSE GREY 18”, Dual 7319519664515
>2 107404751 1 BUMPER KIT 12H SPECTRUM 12H 7319519663211
2 147 0886 500 1 BUMPER KIT 12 INCH/305 7319519663211
2 147 0889 500 1 BUMPER KIT 15 INCH/355 7319519663136
2 147 0892 500 1 BUMPER KIT 18 INCH/455 7319519663235
3 147 0992 500 1 SUPPORT BRUSH KIT 12INCH 7319519663150
3 147 0992 510 1 SUPPORT BRUSH KIT 15INCH 7319519663167
3 147 0992 520 1 SUPPORT BRUSH KIT 18INCH 7319519663174
4 147 0935 500 1 PEDAL W SHAFT AND SPRING 7319519670646
5 147 0901 500 1 ROLLER KIT 7319519663242
6 147 0988 500 1 BRUSH SHOE 12 INCH/305 7319519663181
6 147 0989 500 1 BRUSH SHOE 15/355 7319519663198
6 147 0990 500 1 BRUSH SHOE 18/455 7319519663204
7 147 0885 500 1 CHASSIS 12 INCH /305 7319519663129
7 147 0888 500 1 CHASSIS 15 INCH/355 7319519663228
7 147 0891 500 1 CHASSIS 18 INCH/455 7319519663143
8 147 0898 500 1 WHEEL KIT 7319519663259
9 147 0906 500 1 CLUTCH AND BEARING KIT 7319519663068
10 147 0944 500 1 COVER 7319519663037
11 147 0930 500 1 BRUSH 12 INCH/305 7319519663006
11 147 0930 510 1 BRUSH 15 INCH/355 7319519663013
11 147 0930 520 1 BRUSH 18 INCH/455 7319519663020
12 147 0913 500 1 BEARING 7319519663044
13 147 0905 500 1 DRIVE BELT KIT 7319519663051
14 147 0905 510 1 DRIVE BELT KIT DOUBLE MOTOR 7319519664881
15 147 0984 510 1 MOTOR CASETTE 100-120V With Circuit Board and
Micro Switch
7319519662955
>15A 147 1170 500 1 MICRO SWITCH KIT for motor 147 0984 510 5715492087617
16 107401947 1 PCB 120V KIT 5703887108900
16 107401946 1 PCB 230V KIT 5703887108917
Note!
> Means: New or changed part number or and changed specification

823 0103 000 11-11
8
SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D

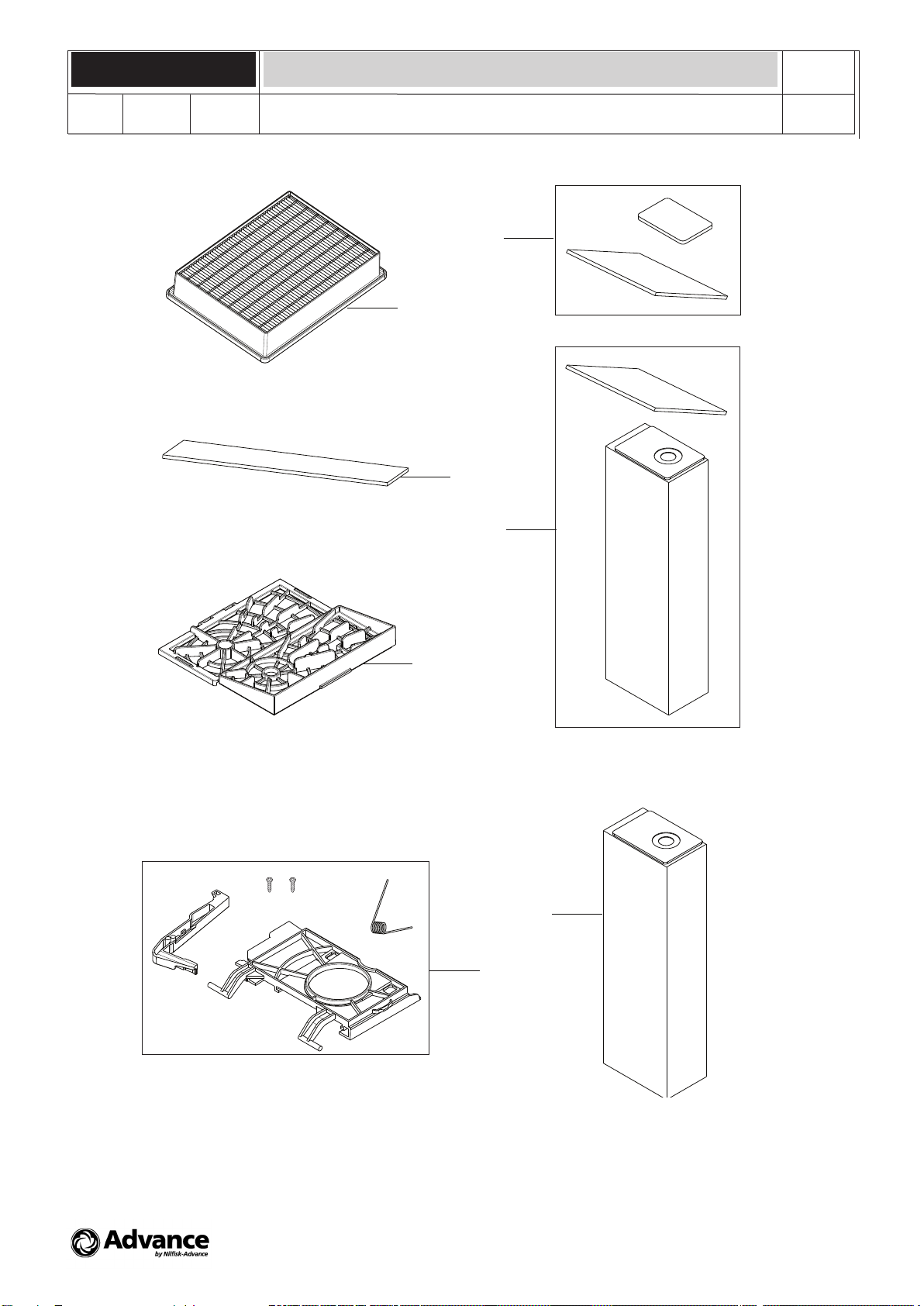

FILTERS 10-01
x10
x2
1
3
2
6
5
4
7
x1
x3

823 0103 000
11-11 SPECTRUM 12H, 12S, 12P, 12D, 15S, 15P, 15D, 18D
9
FILTERS
10-01
Item Part No. Qty. Description Note EAN Code
1 147 1250 600 1 HEPA-FILTER. H13 7319519664522
2 147 0966 500 1 EXHAUST FILTER 7319519663365
3 147 0958 500 1 HOLDER PRE FILTER KIT With 1 pre lter 7319519663402
4 147 0854 500 1 HOLDER DUST BAG KIT 7319519663396
5 147 0960 500 1 PRE FILTER KIT 1 x anti smell paper
3 x pre-lters
7319519663389
6 147 1058 500 1 DUST BAG 408X78 10-P 10 bags, 2 pre-lters 7319519663372
7 147 1059 500 1 DUST BAG REUSEABLE 7319519664577
