OPERATION SERVICE PARTS CARE
Wet/Dry
Pump Out
Vacuum
Model: C39175-05
C39175-06
C39175-15
C39175-20
Optional Squeegee
Assembly: 470400

1

2

3
USER MAINTENANCE INSTRUCTIONS
All service and repair should be performed by a qualified vacuum service representative or electrician. No user
serviceable components are employed in the electrical vacuum lid head assembly. No lubrication of the motor is
required.
CORD STORAGE
While not in use storage can be accomplished by winding cord around motor lid assy. Cord should be completely
unwound from LidAssy. during operation.
Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left
outdoors, or dropped into water, return to service center.
Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners.
Do not run appliance over cord. Keep cord away from heated surfaces.
Do not unplug by pulling cord. To unplug, grasp the plug, not the cord.
Do not handle plug or appliance with wet hands.
Always unplug the machine when removing the head off the tank. This equipment should be stored indoors and not
exposed to rain.

4

5

6

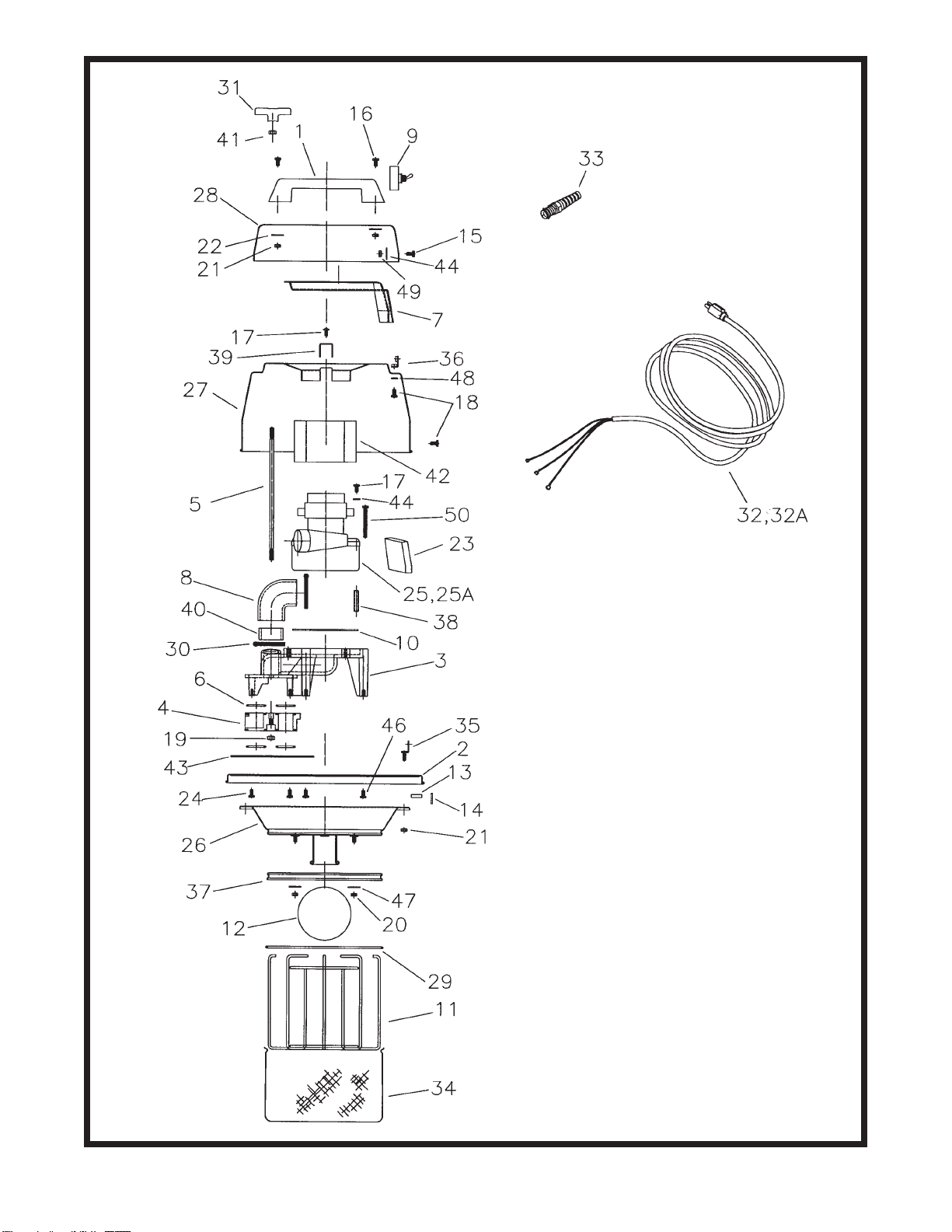

Parts Listings
ITEM NO. PART NO. QUANTITY DESCRIPTION
1 460000 1 Handle Lid
2 310001PTD 1 Lid Assembly
3 310004MCH 1 Valve Body
4 310006MCH 1 Valve Port
5 310007PLT 1 Valve Handle Rod
6 310008 4 O-Ring Buna
7 310009 1 Cooling Duct
8 310017 1 Hose
9 380002 1 Switch, Toggle
10 380035 1 Gasket
11 380045CTD 1 Cage Float Assembly
12 380046 1 Ball
13 480052 1 Gasket, Rubber
14 480053 1 Ring, Rubber Locating
15 710154 3 SCR-MC 10-32x.37 ST PL
16 711203 2 BLT-HH 1/4-20 x .62
17 711124 3 SCR-ST-B 10 x .37
18 710177 3 BLT-HH 1/4-20 x 2.50
19 711379 1 Nut-Flanged Wizz 5/16-18
20 712667 4 Nut-Hex 1/4-20 SS Nyloc
21 711425 7 Nut-Flanged Wizz 1/4-20
22 711519 2 WSR-Flat .25 x 1.01 x .06
23 760235 1 Air Seal Foam
24 712536 4 SCR-THMS 10-24 x .62 SS
25 740232 1 Vacuum Motor 115V
25A 740429 1 Vacuum Motor 240V
26 750801 1 Water Shut-Off Adapter
27 310002PTD 1 Motor Cover Pumper
28 310003PTD 1 Motor Cooling Top Cover
29 760260 1 Spring
30 760859 2 Clamp, Hose
31 310034 1 Knob, Adj.
32 381020 1 Cord, Gry Ste 16-3 50’
32A 740600 1 Cord HO5 50’
33 833237 1 Strain Relief w/Nut
34 760234 1 Filter Bag
35 832106 6 Mounting Tab
36 830782 3 Mounting Bracket Lid
37 760231MCH 1 Ring, Bag Retaining
38 809858 3 Spacer
39 310031 2 Bracket Housing
40 101015 1 Ring, Rubber
41 711391 1 Nut 3/8-16
42 380064 1 Ring, Foam
43 310033 1 Washer Plate 12 SS
44 711553 3 Washer-Internal Lock #10
45 715086 1 Decal, Warning to Avoid
46 712565 2 SCR-MC 1/4-20x.62 SS
47 712761 4 Washer-Flat
48 711554 3 Washer-Internal Lock
49 711310 2 Nut-Hex 10-32 ST PL
50 711220 3 BLT-HH 1/4-20x2.50 ST PL
*** 310240 1 Lid Asy Comp Pumper 240V
*** 310115 1 Lid Asy Comp Pumper

7

8

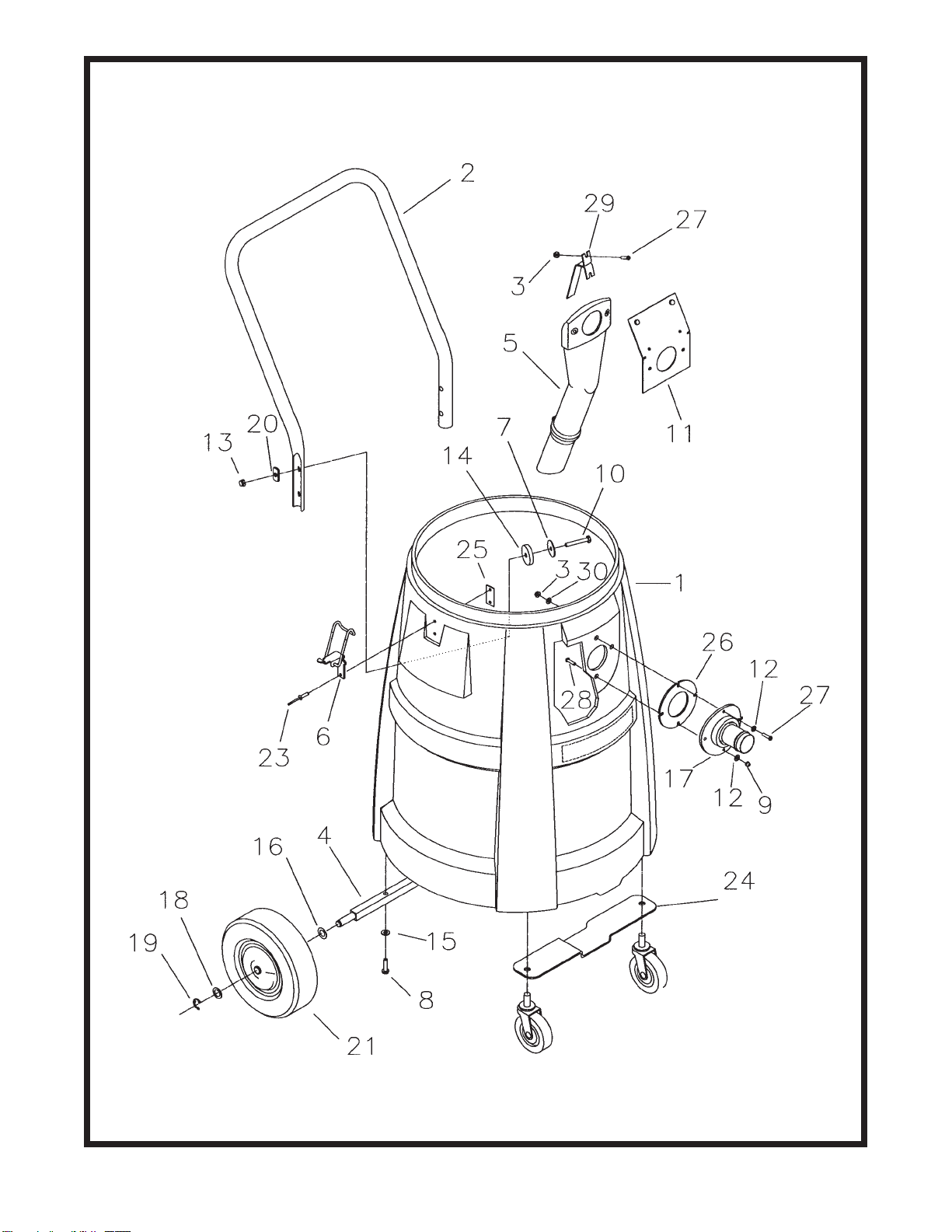

Parts Listings
Item No. Part No. Qty. Description
1 310021 1 Tank 20 Gal., Poly
1A 310026 1 Tank 15 Gal., Poly
2 390031 1 Handle
3 712638 2 Nut Hex 10/24 SS
4 390033 1 Axle
5 310016 1 Downtube Asy 20G Pumper
5A 310028 1 Downtube Asy 15G Pumper
6 390035 6 Latch 390 Series
7 712761 4 Flat Washer
8 710182 2 SCR-MC 1/4-20 x 1.00 STPL
9 712904 1 Acorn Nut
10 712541 4 SCR 1/4-20 x 1.00 SS
11 310012 1 Rubber Flap
12 712320 4 Nylon Washer
13 711352 4 Acorn Nut
14 828980 4 Gasket
15 711505 2 Flat Washer
16 711524 2 Wave Washer
17 310010 1 Intake Asy.
18 711594 2 Flat Washer
19 711713 2 Retaining E-Ring
20 711444PLT 4 Weldnut
21 900008 2 8” Dia. Wheel
22 804457 2 3” Caster
23 828893 24 Pop Rivet
24 310035 1 Backing Plate 11G
25 833831 6 Clamp Back Plate
26 390087 1 Gasket Diecut
27 712532 3 SCR-MC 10-24 x 1.00 SS
28 712824 1 SCR-THMS 10-24 x .75 STPL
29 310018 1 Deflector Bracket
30 712764 1 Flat Washer
*** 310015 1 Tank Asy 15GRC MMAN Pumper
*** 310020 1 Tank Asy 15GRC MMAN Pumper

9

10

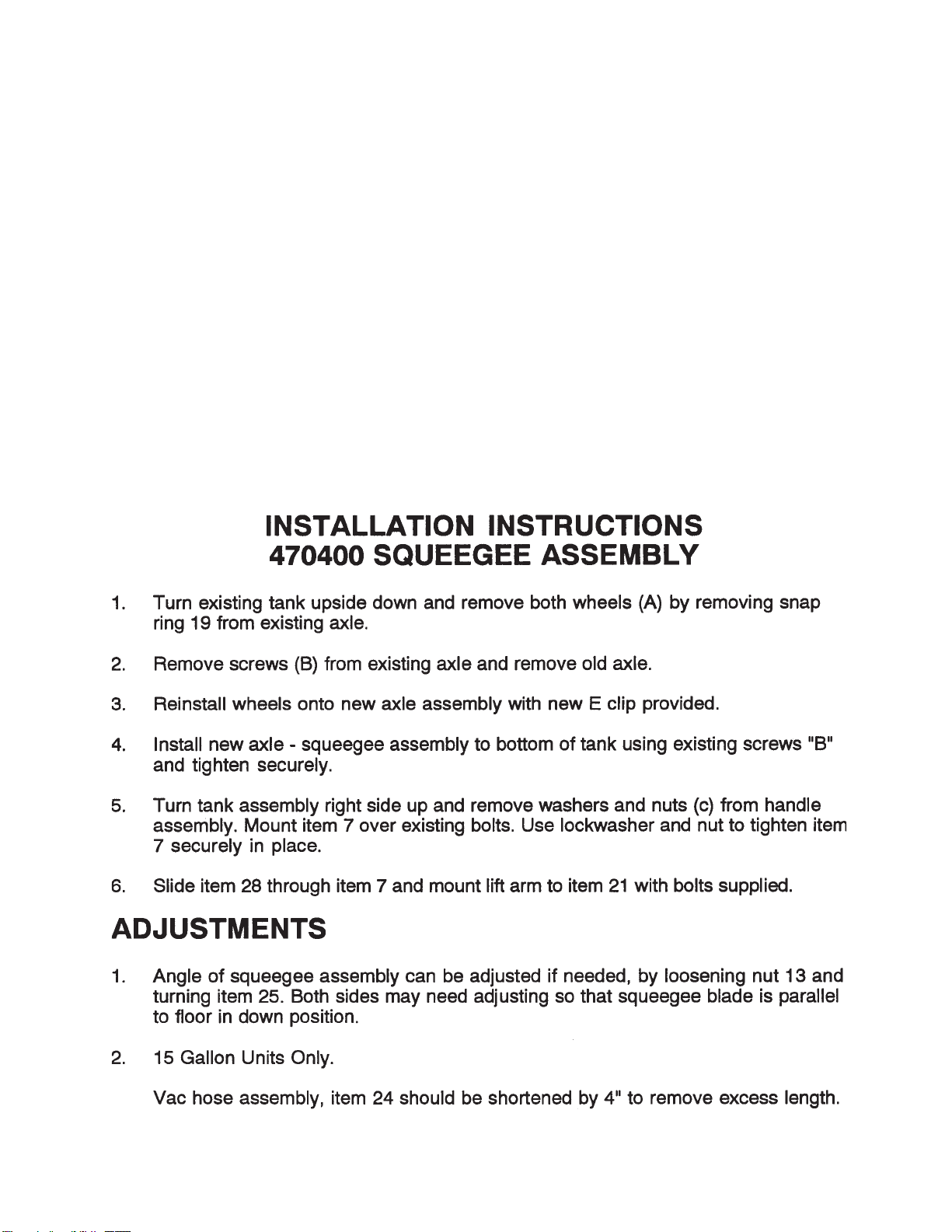

Parts Listings
Item No. Part No. Qty. Description
1 430085 2 Squeegee Bumper Wheel
2 430073 1 Gasket
3 430078 1 U-Profile
4 430079 1 Band (Squeegee Bar)
5 11-145 1 Squeegee Blade
6 470001 1 Rear Brace
7 470005 1 Lever Lock Asy
8 470007 1 Axle Squeegee Asy
9 430074 6 Adjusting Knob
10 711203 4 BLT-HH 1/4-20x.62
11 711206 2 BLT-HH 1/4-20x.87 STPL
12 711377 2 Nut-Lock 1/4-20
13 711420 2 Nut-Hex Jam 5/16-18 STPL
14 711505 2 WSR-Flat 1/4
15 711506 2 WSR-Flat 5/16 STPL
16 711524 6 WSR-Wave
Item No. Part No. Qty. Description
17 711544 6 WSR-Helical 1/4
18 711594 6 WSR-Flat
19 711713 6 Retaining Ring - E
20 712041 2 BLT-Sder 1/4-20 x .44 x .37
21 750137 1 Bkt Arm Squeegee Asy Left
22 750138 1 Bkt Arm Squeegee Asy Rt
23 750139 1 Squeegee Mtg Bkt Assy
24 762382 1 Vac Hose Asy
25 750689 2 Stud Adjusting
26 762256PLT 2 Nut, Adj LH
27 762257PLT 2 Nut, Adj RH
28 807384 1 Rod Handle
29 807385 1 Knob Handle
30 829052 2 Flanged Bushing
31 710389 2 SCR-MC 1/4-20x2.00 ST PL
32 712517 4 SCR-MC 8/32
33 430076 2 Squeegee End Cap

LIMITED WARRANTY
Minuteman International, Inc. warrants to the original purchaser/user that this product is free from defects in workmanship and
materials under normal use and service for a period of three years from date of purchase. In addition, Minuteman International,
Inc. will, at its option, honor labor warranty claims for the first 12 months from date of sale, provided such claims are submitted
through and approved by factory authorized repair stations. Minuteman International, Inc. will, at its option, repair or replace
without charge, except for transportation costs, parts that fail under normal use and service when operated and maintained in
accordance with the applicable operation and instruction manuals.
This warranty does not apply to normal wear, or to items whose life is dependent on their use and care, such as belts, cords,
switches, hoses, rubber parts, electrical motor components or adjustments. Parts not manufactured by Minuteman International,
Inc. such as engines, batteries, battery chargers, hydraulic pumps, and tires are covered by and subject to the warranties and/
or guarantees of their manufacturers. Please contact Minuteman International, Inc. for procedures in warranty claims against
these manufacturers.
Special warning to purchaser — Use of replacement filters and/or prefilters not manufactured by Minuteman International,
Inc. or its designated licensees, will void all warranties expressed or implied.
A potential health hazard exists without exact original equipment replacement.
All warranteed items become the sole property of Minuteman International, Inc. or its original manufacturer, whichever the case
may be.
Minuteman International, Inc. disclaims any implied warranty, including the warranty of merchantability and the warranty of
fitness for a particular purpose. Minuteman International, Inc. assumes no responsibility for any special, incidental or consequential
damages.
This limited warranty is applicable only in the U.S.A. and Canada, and is extended only to the original user/purchaser of this
product. Customers outside the U.S.A. and Canada should contact their local distributor for export warranty policies. Minuteman
International, Inc. is not responsible for costs or repairs performed by persons other than those specifically authorized by
Minuteman International, Inc. This warranty does not apply to damage from transportation, alterations by unauthorized persons,
misuse or abuse of the equipment, use of non-compatible chemicals, or damage to property, or loss of income due to malfunctions
of the product.
If a difficulty develops with this machine, you should contact the dealer from whom it was purchased.
This warranty gives you specific legal rights, and you may have other rights which vary from state to state. Some states do not
allow the exclusion or limitation of special, incidental or consequential damages, or limitations on how long an implied warranty
lasts, so the above exclusions and limitations may not apply to you.
World Headquarters Minuteman Canada, Inc.
Minuteman International, Inc. 2210 Drew Road
111 South Rohlwing Road Mississauga, Ontario
Addison, Illinois 60101 L5S 1B1
[phone] [phone] 987575
FAX [phone] FAX [phone] Printed in U.S.A.
