Micro Innovations WJ-HD200/32 User manual

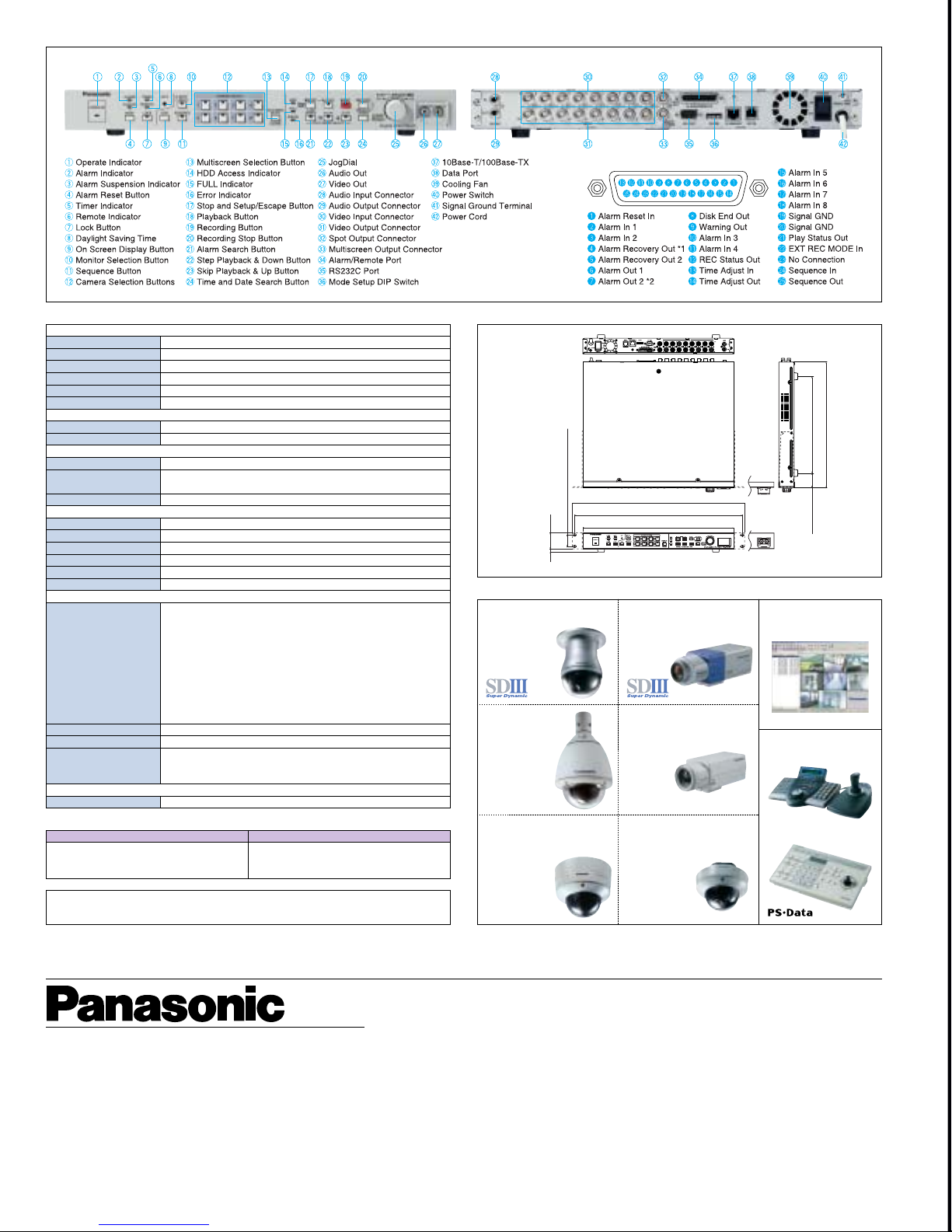

SPECIFICATIONS
Front View Rear View
Alarm/Remote Connection
MAJOR OPERATING CONTROLS & TERMINALS
5
1
480(18-7/8")
467(18-3/8")
420(16-9/16")
10
(3/8")
44
(1-3/4")
32(1-1/4")(Mounting Pitch)
40(1-9/16") 270(10-5/8")
350(13-3/4")
Unit: mm (inches)
APPEARANCE
General
Power Source Required 120 V AC, 60 Hz
Power Consumption 45 W
Ambient Operating Temperature
+5 °C - +45 °C (41 °F - 113 °F)
Ambient Operating Humidity Less than 85 %
Dimensions
420 mm (W) x 44 mm (H) x 350 mm (D) [16-9/16" (W) x 3-7/16" (H) x 13-3/4" (D)]
Weight 5.2 kg (11.4 lbs.)
Input
Video Input
1.0 V[p-p]/75 ΩComposite video signal with 75 ΩAutomatic Termination / Looping through (x8)
Audio Input –10 dB 10 kΩunbalanced, RCA standard jack
Image Process
Compression System JPEG
Pixel Rate Normal; 720H x 240V (Effective pixels 672H x 224V)
SIF; 352H x 240V
Refresh Rate 30 FPS maximum
Output
Video Output 1.0 V[p-p]/75 ΩComposite video signal/Looping through (x8)
Video Output Front Panel 1.0 V[p-p]/75 ΩComposite video signal (x1)
Audio Output –10 dB 600 Ωunbalanced, RCA standard jack (x1)
Audio Output Front Panel –10 dB 600 Ωunbalanced, RCA standard jack (x1)
Spot Monitor Output 1.0 V[p-p]/75 ΩComposite video signal (x1)
Multiscreen Monitor Output 1.0 V[p-p]/75 ΩComposite video signal (x1)
Control Port
Alarm/Remote Port 25-pin Full Pitch D-sub connector (x1)
Alarm Input 1-8, Alarm Reset Input, EXT REC Input, Time Adjust Input, Sequence
Input: Low-active, Non-voltage N.O. Contact, ≥100 ms
Alarm Recovery Output 1, Disk End Status Output, Time Adjust Output,
Warning Output, REC Status Output, Sequence Output: Low-active, Open-collector,
24 V DC 100 mA max.
Alarm Output 1, Play Status Output: Low-active, Open-collector,
12 V DC 100 mA max.
Alarm Output 2: High-active, 12 V 4.7 kΩ
Alarm Recovery Output 2: High-active, 12 V DC 220 Ω
RS-485 (PS • Data) 6-conductor modular jack (RJ-11)
RS-232C 9-pin D-sub connector
10/100BASE-TX Port 10Base-T and 100Base-TX, 8-conductor modular jack (RJ-45)
Protocol Installed: TCP/IP, HTTP, FTP, SMTP, SNMP, DNS, DDNS
Security: Password-protected
Hard Disk Drive
Built-in 320GB (160GB x 2), or 160GB x 1
WJ-HD220/32 WJ-HD220/16
• 8-channel camera inputs • 8-channel camera inputs
• 320GB HDD •
160GB HDD, and 1 drive bay for optional HDD unit
• Built-in Ethernet port • Built-in Ethernet port
OPTIONAL COMPONENTS & ACCESSORIES
Digital Disk Recorders
WJ-HD220 Series
WJ-HD220/32 (320GB HDD)
WJ-HD220/16 (160GB HDD)
Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All photographs and menus are simulated and shown for the purpose of explanation. Actual images may differ.
• Weights and dimensions are approximate. • Specifications are subject to change without notice. • This product is subject to export control regulations.
Weather Proof &
Vandal Resistant
Color Dome Camera
WV-CW864A
Super Dynamic III
Color Dome Camera
WV-CS954
Super Dynamic III
Color Surveillance Cameras
WV-CP480 Series
1/3-type DSP
Color CCD Cameras
WV-CP240 Series
Vandal Proof
Super Dynamic II Color Cameras
WV-CW474A Series
Vandal Proof
Color Cameras
WV-CW244 Series
System Controllers
WV-CU650
WV-CU360C
FTP Viewer Software
WV-AS20
(Lens: option)
(Lens: option)
Trademarks •Microsoft, Windows and Windows NT are registered trademarks of
Microsoft Corporation in the U.S. and/or other countries.
Printed in Japan
WJ-JHHD220C(2P-520B)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada [phone]
PANASONIC PUERTO RICO INC.
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
San Gabriel Industrial Park, 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 [phone]
Panasonic System Solutions Company
Unit Company of Panasonic Corporation of North America
Security Systems
Website : www.panasonic.com/security
For Customer Support : call 1.877.733.3689
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Zone Office
Eastern : Three Panasonic Way, Secaucus, New Jersey 07094
Central : 1707 N.Randal Road, Elgin, IL 60123
Southern : 1225 Northbrook Parkway, Suwanee, GA 30024
Western : 6550 Katella Ave., Cypress, CA 90630
STANDARD PRODUCT CONFIGURATIONS
For up to eight cameras, with up to 320GB of storage, Ethernet compatible.

All photographs and menus are simulated and shown for the purpose of explanation. Actual images may differ.
SYSTEM EXAMPLES
Digital Disk Recorder WJ-HD220
Internet
Ethernet (10Base-T/ 100Base-TX)
PC
PC
LAN/WAN
WV-CU360C
WV-CS954 x 4 WV-CP480 x 4
Color Monitor
Multi
screen
Spot
WV-CS954 x 2 WV-CP480 x 2 WV-CW244 x 2WV-CW864A x 2
Color Monitor
Multi
screen
Spot
Digital Disk Recorder WJ-HD220
WV-CU650
Standard Network Features
• Live Monitoring
• Recording
• Playback recorded image
• Camera Control
• Time & Date / List Search
• Image storage on a PC
• Alarm notification
• Setup
The WJ-HD220 Series are equipped with a 10Base-T/100Base-TX interface as standard equipment,
allowing remote control from a Microsoft®Internet Explorer browser via the Internet, an LAN or WAN.
FTP Viewer Software WV-AS20 (optional)
Installation of the optional WV-AS20 software allows you to
download image data stored in the WJ-HD220 Series.
• Up to 10 WJ-HD220 Series
Digital Disk Recorders can
be registered.
• Images can be automatically
downloaded at pre-set times.
• The zoom feature enlarges
images up to 5x.
Loaded with Handy Surveillance Features
Multi-language Capability
The OSD Setup, installation menus and HTML can be displayed in seven
languages: English, German, French, Italian, Spanish, Russian*, and Chinese*.
*Russian and Chinese in HTML only
Simultaneous Recording, Playback, Live or Network
Recording continues during playback, live monitoring, and network operations.
Electronic Zoom
Both played back and live images can be zoomed 2x or 4x* to examine details.
*2x only in SIF Mode
Motion Detector Feature
Sensor detects movement in the area under surveillance and automatically displays
the scene.
Embedded date and time
stamp display
Embedding the date and time in the
JPEG image enhances reliability.
When used as evidence, it strengthens
criminal cases.
Alarm List Tab
Camera Select Button
Multi-screen Select Button
LIVE SEQUENCE Button
CAMERA CONTROL VIEW Button
SETUP MENU Button
TIME & DATE SEARCH Button
Recorder Control Buttons
Network Status Display Channel Number Display (CH) Recorder Status Display
Main Control Panel
Setup is Simple
Just click on the setup menu
button and the menu opens. The
menu makes it easy to select the
WJ-HD220 Series and network
settings you need.
Alarm List Search Feature
Use date, time and camera channel to
quickly search a list of up to 9,999 alarms.
Basic System Network System
High image quality with minimal degradation no matter how many times you record and play back. No need to change and store tapes, so costs are lower.
Quick retrieval of exactly the scenes you want. Plus, full-featured surveillance capability. This advanced hard disk storage system makes recording simple, and easy.
Stores up to about three (3) years of continuous input from
up to eight cameras (NORMAL 720H x 240V Mode, Normal Recording Mode, 0.1 FPS)
The WJ-HD220/32 comes with a 320GB hard disk
as standard equipment. That’s enough storage for
up to about three (3) years (1,080 days) of
continuous image data input* from eight cameras.
Once installed, addressing is automatic.
No additional operations are required.
The WJ-HD220/16 comes with a 160GB hard disk
as standard equipment, with the option of adding
a second 160GB disk. *See the DISK DATA REFERENCE CHART at the foot of this page.
Twice as long in SIF Mode
The WJ-HD220 Series also support SIF (352H x 240V) Mode, which reduce image
data volume by half, thus doubling the number of days / hours of data that the hard
disk can store.
Coaxial cabling supports direct control of cameras
Connecting the WJ-HD220 Series
directly to Panasonic PTZ cameras
through channels 1 to 4 allows
direct control of cameras with the
System Controllers WV-CU650 or
WV-CU360C (optional).
Cache captures images before sensor signals movement
Pre-Alarm Screen
This feature allows you to view images from up to five seconds before alarm
signals are received from external sensors or motion detectors.
When multiple alarms are received, images from all alarmed cameras are captured.
Choose Multi-screen or Spot Monitor / or Both
On the back of the WJ-HD220 Series you will find two monitor output
connectors, one for a Spot Monitor and one for a Multi-screen Monitor. The
Multi-Screen Monitor allows
you to view images from
several cameras at once.
*Independent Spot and Multi Monitor
outputs allow monitoring of images from
individual cameras.
1ch
WV-CU650 WJ-HD220
2ch
Panasonic PTZ Cameras
3ch 4ch 5ch 6ch 7ch 8ch
Camera 1 Camera 2
Camera 3 Camera 4
Camera 5
123
456
78
Camera 6
Camera 7 Camera 8
8-windowSpot*
(With sequencing)
4 images in tiled windows
x 2 image panes
Camera 1
Camera
3
Alarm 3 Alarm 4 Alarm Reset
Camera
3
Camera
3
Camera
4
Camera
3
Camera
4
Camera
3
Camera
4
Sensor Signal
received
Recording Start
Camera
3
Camera
4
Camera
1
Camera
2
Camera
3
Camera
4
Camera
1
Camera
2
Camera
3
Camera
4
Camera
1
Camera
2
Camera
3
Camera
4
Recording Live Monitoring
Instantly retrieve the scenes you want to see
Search & Playback
Direct (Time & Date) Search
Enter year, month, day and time. The
system plays back the closest image to
the date and time you specify.
List Search
Display list of times when alarm signal
was received. Just click on the one you
want to play back.
Easy back-up with a VCR
The front panel is equipped with a video output connector. To
copy images stored in the WJ-HD220 Series, hook up a VCR,
video camera or printer.
Time-lapse Images
This feature allows you to pre-set each camera to capture images at pre-determined
intervals.
Multi-Screen Monitor Display
Pixels : 720H x 240V NORMAL Mode Pixels : 720H x 240V NORMAL Mode
Pixels : 352H x 240V SIF Mode Pixels : 352H x 240V SIF Mode
DISK DATA REFERENCE CHART NTSC Color Video Signal, 320GB, Audio Signal: Off
(FPS : Frame Per Second)
(above figures are approximately, actual recording time may differ.)
(Hours)
Recording Hours 48 72 96 120 180 240 480 960
1,440 2,160 4,320 6,480 8,640
25,920
Mode (Days) (2) (3) (4) (5) (7.5) (10) (20) (40) (60) (90) (180) (270) (360)
(1,080)
Extended FPS – – 30.0 – 15.0 10.0 6.0 3.0 – – 0.5 – – 0.1
Normal FPS – 30.0 – – – 10.0 5.0 – – 1.0 0.5 – – 0.1
Fine FPS – 30.0 – 15.0 10.0 7.5 3.0 2.0 – 1.0 0.5 – 0.1 –
Super Fine FPS 30.0 – – 15.0 10.0 7.5 3.0 – 1.0 – – – 0.1 –
MODE
Recording Hours 120 180 240 480 960 1,440 2,160 4,320
6,480 8,640
34,560 43,200 51,840 60,480
Mode (Days) (5) (7.5) (10) (20) (40) (60) (90) (180) (270) (360)
(1,080) (1,800) (2,160) (2,520)
Extended FPS – 30.0 15.0 10.0 6.0 3.0 – 1.0 – 0.5 – – – 0.1
Normal FPS – – 15.0 10.0 5.0 3.0 2.0 1.0 – 0.5 – – 0.1 –
Fine FPS 30.0 – 15.0 7.5 – 3.0 2.0 1.0 – 0.5 – 0.1 – –
Super Fine FPS 30.0 – 15.0 7.5 – 2.0 – – 0.5 – 0.1 – – –
MODE
(FPS : Frame Per Second)
MODE
Capture Rate FPS 30.0 15.0 10.0 7.5 6.0 5.0 3.0 2.0 1.0 0.5 0.1
Extended Hours 105 210 310 420 520 630 1,050 1,580 3,160
6,320
31,640
Normal Hours 87 175 260 350 430 520 870 1,310 2,630
5,270 26,370
Fine Hours 79 155 230 310 390 470 790 1,180 2,370
4,740
23,700
Super Fine Hours 63 125 185 250 310 370 630 940 1,890
3,790
18,950
(Hours)
Capture Rate FPS 30.0 15.0 10.0 7.5 6.0 5.0 3.0 2.0 1.0 0.5 0.1
Extended Hours 210 420 630 840 1,050 1,260 2,100 3,160 6,320
12,650 63,290
Normal Hours 175 350 520 700 870 1,050 1,750 2,630 5,270
10,540 52,740
Fine Hours 155 310 470 630 790 940 1,580 2,370 4,740 9,480
47,410
Super Fine Hours 125 250 370 500 630 750 1,260 1,890 3,790 7,580
37,900
MODE

SPECIFICATIONS
Front View Rear View
Alarm/Remote Connection
MAJOR OPERATING CONTROLS & TERMINALS
5
1
480(18-7/8")
467(18-3/8")
420(16-9/16")
10
(3/8")
44
(1-3/4")
32(1-1/4")(Mounting Pitch)
40(1-9/16") 270(10-5/8")
350(13-3/4")
Unit: mm (inches)
APPEARANCE
General
Power Source Required 120 V AC, 60 Hz
Power Consumption 45 W
Ambient Operating Temperature
+5 °C - +45 °C (41 °F - 113 °F)
Ambient Operating Humidity Less than 85 %
Dimensions
420 mm (W) x 44 mm (H) x 350 mm (D) [16-9/16" (W) x 3-7/16" (H) x 13-3/4" (D)]
Weight 5.2 kg (11.4 lbs.)
Input
Video Input
1.0 V[p-p]/75 ΩComposite video signal with 75 ΩAutomatic Termination / Looping through (x8)
Audio Input –10 dB 10 kΩunbalanced, RCA standard jack
Image Process
Compression System JPEG
Pixel Rate Normal; 720H x 240V (Effective pixels 672H x 224V)
SIF; 352H x 240V
Refresh Rate 30 FPS maximum
Output
Video Output 1.0 V[p-p]/75 ΩComposite video signal/Looping through (x8)
Video Output Front Panel 1.0 V[p-p]/75 ΩComposite video signal (x1)
Audio Output –10 dB 600 Ωunbalanced, RCA standard jack (x1)
Audio Output Front Panel –10 dB 600 Ωunbalanced, RCA standard jack (x1)
Spot Monitor Output 1.0 V[p-p]/75 ΩComposite video signal (x1)
Multiscreen Monitor Output 1.0 V[p-p]/75 ΩComposite video signal (x1)
Control Port
Alarm/Remote Port 25-pin Full Pitch D-sub connector (x1)
Alarm Input 1-8, Alarm Reset Input, EXT REC Input, Time Adjust Input, Sequence
Input: Low-active, Non-voltage N.O. Contact, ≥100 ms
Alarm Recovery Output 1, Disk End Status Output, Time Adjust Output,
Warning Output, REC Status Output, Sequence Output: Low-active, Open-collector,
24 V DC 100 mA max.
Alarm Output 1, Play Status Output: Low-active, Open-collector,
12 V DC 100 mA max.
Alarm Output 2: High-active, 12 V 4.7 kΩ
Alarm Recovery Output 2: High-active, 12 V DC 220 Ω
RS-485 (PS • Data) 6-conductor modular jack (RJ-11)
RS-232C 9-pin D-sub connector
10/100BASE-TX Port 10Base-T and 100Base-TX, 8-conductor modular jack (RJ-45)
Protocol Installed: TCP/IP, HTTP, FTP, SMTP, SNMP, DNS, DDNS
Security: Password-protected
Hard Disk Drive
Built-in 320GB (160GB x 2), or 160GB x 1
WJ-HD220/32 WJ-HD220/16
• 8-channel camera inputs • 8-channel camera inputs
• 320GB HDD •
160GB HDD, and 1 drive bay for optional HDD unit
• Built-in Ethernet port • Built-in Ethernet port
OPTIONAL COMPONENTS & ACCESSORIES
Digital Disk Recorders
WJ-HD220 Series
WJ-HD220/32 (320GB HDD)
WJ-HD220/16 (160GB HDD)
Important – Safety Precaution: carefully read the operating instructions and installation manual before using this product.
– Panasonic can not be responsible for network performance and/or other manufacturer products that reside on the network.
• All photographs and menus are simulated and shown for the purpose of explanation. Actual images may differ.
• Weights and dimensions are approximate. • Specifications are subject to change without notice. • This product is subject to export control regulations.
Weather Proof &
Vandal Resistant
Color Dome Camera
WV-CW864A
Super Dynamic III
Color Dome Camera
WV-CS954
Super Dynamic III
Color Surveillance Cameras
WV-CP480 Series
1/3-type DSP
Color CCD Cameras
WV-CP240 Series
Vandal Proof
Super Dynamic II Color Cameras
WV-CW474A Series
Vandal Proof
Color Cameras
WV-CW244 Series
System Controllers
WV-CU650
WV-CU360C
FTP Viewer Software
WV-AS20
(Lens: option)
(Lens: option)
Trademarks •Microsoft, Windows and Windows NT are registered trademarks of
Microsoft Corporation in the U.S. and/or other countries.
Printed in Japan
WJ-JHHD220C(2P-520B)
DISTRIBUTED BY:
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3 Canada [phone]
PANASONIC PUERTO RICO INC.
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
San Gabriel Industrial Park, 65th Infantry Ave. KM. 9.5 Carolina, P.R. 00985 [phone]
Panasonic System Solutions Company
Unit Company of Panasonic Corporation of North America
Security Systems
Website : www.panasonic.com/security
For Customer Support : call 1.877.733.3689
Executive Office : Three Panasonic Way 2H-2, Secaucus, New Jersey 07094
Zone Office
Eastern : Three Panasonic Way, Secaucus, New Jersey 07094
Central : 1707 N.Randal Road, Elgin, IL 60123
Southern : 1225 Northbrook Parkway, Suwanee, GA 30024
Western : 6550 Katella Ave., Cypress, CA 90630
STANDARD PRODUCT CONFIGURATIONS
For up to eight cameras, with up to 320GB of storage, Ethernet compatible.
