MicrohDJ PLASMAWAVE 1 RGB User manual

Introduction
Thank you for purchasing the MICROH PLASMAWAVE 1 RGB effect xture.
For your own safety and knowledge, please read this manual before installing or
operating the device. This manual covers the important information on installation
and applications. Please install and operate the xture according to instructions.
Meanwhile, please keep this manual for future reference.
The MICROH PLASMAWAVE effect xture is manufactured following CSA
standards, complying with international standard DMX512 protocol. This xture
is applicable but not limited to large scale live performances, theater, studio,
nightclubs and discos.
The MICROH PLASMAWAVE laser features a RGB laser effect. Please carefully
unpack it when you receive the xture and check if it was damaged during the
transportation.
Please check whether the following items are included inside the box:
Item Quantity
PLASMAWAVE 1 RGB xture 1
Power cord 1
User Manual 1

Safety Instructions
CAUTION!
ELECTRIC SHOCK WARNING!
USE EXTREME CAUTION WHEN HANDLING WIRES.
This device has been delivered in safe working condition. In order to maintain this
condition and to ensure safe operation, it is absolutely necessary for the user to
follow the safety instructions and warning notes written in this user manual.
Important:
Damage caused by the disregard of this user manual are not subject to warranty.
The dealer will not accept liability for any resulting defects or problems.
If the device has been exposed to temperature changes, do not switch it on
immediately. The arising condensation could damage the device. Leave the device
switched off until it has reached room temperature, and is dry.
This device falls under protection-class I, therefore it is essential that the device be
grounded. The electrical connection must be carried out by a qualied technician.
The device should only be used with rated voltage and frequency. Make sure that
the available voltage is not higher than 120V as stated at the end of this manual.
Make sure the power cord is never crimped or damaged in any way, as this could
cause shock and damage. If your power cord is damaged in any way, please
purchase a new cable from your local MICROH dealer. Always disconnect power,
when the device is not in use or before cleaning it. Never pull out the plug by
tugging the power cord.
During initial start-up, some smoke or smell may arise. This is a normal process,
and does not necessarily mean that the device is defective. It should decrease
gradually. Please do not project the beam onto combustible substances.
Fixtures cannot be installed on or near combustible substances. Keep more than
50cm distance from wall for proper ventilation and air ow. If your xture is or has
become damaged in any way, it shall be exclusively replaced or repaired by the
manufacturer to avoid any hazard.
CAUTION!
Never touch the device during operation!
The housing may heat up!
CAUTION!
Never look directly into light source,
as sensitive persons may suffer from an epileptic shock.
CAUTION!
The electric connection must only be carried out by a qualied electrician

Mounting and Installation
Caution: For added protection, mount the xtures in areas outside walking paths,
seating areas, or in areas were the xture might be reached by unauthorized
personnel. Before mounting the xture to any surface, make sure that the
installation area can hold a minimum point load of 10 times the device’s weight.
Fixture installation must always be secured with a secondary safety attachment,
such as an appropriate safety cable. Never stand directly below the device when
mounting, removing, or servicing the xture.
Whether installing inverted on a truss / ceiling or set on a at level surface (see
illustration below). Be sure this xture is kept at least 0.5m (1.5 ft.) away from any
ammable materials (decoration etc.). Always use and install the supplied safety
cable as a safety measure to prevent accidental damage and/or injury in the event
the clamp fails.
Mounting Points: Overhead mounting requires extensive experience, including
calculating working load limits. A knowledge of the installation material being
used and periodic safety inspection of all installation material and the xture are
all imperative and should only be performed by a qualied technician. Improper
installation can result in bodily injury and damage.
Be sure to complete all rigging and installation procedures before connecting the
main power cord to the appropriate wall outlet.
Clamp Mounting: The MICROH PLASMAWAVE 1 RGB provides a unique
mounting bracket assembly that integrates 2 brackets to be used to mount on
a truss or the oor. When mounting this xture to truss, be sure to secure an
appropriately rated clamp to the included bracket tted through the center hole.
As an added safety measure, be sure to attach at least one properly rated safety
cable to the xture.

Regardless of the rigging option you choose for your MICROH PLASMAWAVE,
always be sure to secure your xture with a safety cable. The xture provides a
built-in rigging point for a safety cable on the hanging bracket as illustrated above.
Be sure to only use the designated rigging point for the safety cable and never
secure a safety cable to a carrying handle.
Proper Usage: This product is for overhead mounting only. For safety purposes,
MICROH DJ recommends mounting lighting effect products on steady elevated
platforms or sturdy overhead supports using suitable hanging clamps. In all cases,
use safety cables. Obtain appropriate mounting hardware from your lighting ven-
dor.
International laser safety regulations require that laser products must be oper-
ated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical
separation between the oor and the lowest laser light. Additionally, 3 meters of
horizontal separation is required between laser light and audience or other public
spaces.
CAUTION!
Use of controls, adjustments, or procedures other than those specied in this
user manual may result in hazardous radiation exposure.

DMX512 Control Data Connection:
This xture complies with international USITT DMX standards and can be used
with a 3 pin DMX connector. Plug in the provided 3 pin XLR cable to the female
3-pin XLR output of your controller and the other side to the male 3-pin XLR input
of the LED battery par light. To connect the units to DMX, you must daisy chain
the xtures together as referred in the diagram below. Always end your DMX-512
connection with a DMX terminator
For installations where the DMX cable has to run a long distance, or is in an
electrically noisy environment, it is recommended to use a DMX terminator. This
helps in preventing corruption of the digital control signal by electrical noise. The
DMX terminator is simply an XLR a 120 120 Ω resistor connected between pins
2 and 3, which is then plugged into the output XLR socket of the last xture in the
chain. Please see illustrations below:
ILDA Control Mode
• This unit has the ILDA DB25 port, and it can be controlled by the PC, There is auto
transform set in the inside of the unit to transform the ILDA and pre programmed
show. When connecting with the 25 pin cable, the unit will be control by PC,
when disconnect the unit, it will be pre programmed program control.
• In theory, as long as the ILDA DB25 is connected, It can control this unit. In
the reality, some laser software may not control this unit. Pins 4 and 17 on the
output of the card are not connected. In fact this is an easy problem. As long
as you connect them. It can control this unit.

Setup Menu
Mode Function
Signal 001
Slave
Mirror SY:N , SX:N SY:Y, SX:Y
Auto
Laser universal
Burst grating
Laser lumia
Scanned Beam
Laser 30
Mixed 5 effect
Sound
Mixed 5 effect
Burst grating
Laser lumia
Scanned Beam
Laser 30
Mixed 5 effect
Sensitivity
DMX Channel Modes
DMX chart with ILDA control connected
Channel Value Description
CH01 Grating rotation
000-004 No grating rotation
005-127 Clockwise grating rotation
128-133 No grating rotation
134-255 Counter-clockwise grating rotation
CH02 Grating effect
000-031 Laser 3D effect
032-063 Scanned beam effect (pattern effect)
064-095 Laser lumia effect
096-127 Scanned beam effect (pattern effect)
128-159 Burst grating effect
160-191 Scanned beam effect (pattern effect)
192-223 Laser universal effect
224-255 Scanned beam effect (pattern effect)

DMX chart with ILDA control NOT connected
Channel Function Value Description
CH01 Mode 000-018 Laser Off
019-036 AUT - Auto show with mixed 5 effect
037-054 A3D - Laser 3D effect auto show
055-072 AUB - Scanned beam effect auto show
073-090 AUL - Laser lumia effect show
091-108 AUN - Burst grating effect show
109-126 AUO - Laser universal effect auto show
127-144 SOU - Sound show with mixed 5 effect
145-162 S3D - Sound show with laser 3D
163-180 SOB - Sound show with scanned beam
181-198 SOL - Sound show with laser lumia
199-216 SON - Sound show with burst grating
217-234 SOO - Sound show with laser universal
235-255 DMX Mode
CH02 Group 000-051 01 Group patterns
052-103 02 Group patterns
104-155 03 Group patterns
156-207 04 Group patterns
208-255 05 Group patterns
CH03 Pattern 000-255 Every 16 for 1 group, total 16 patterns
CH04 Colour 000-007 Original
008-015 Red
016-023 Green
024-031 Yellow
032-039 Blue
040-047 Purple
048-055 Light Blue
056-063 White
064-111 Colour rolling
112-159 Colour jumping
160-127 Colour moving
128-207 Colour chase
208-255 Strobe (slow to fast)

Channel Function Value Description
CH05 Clipping 000 Full pattern without clipping
001-127 0%-99% xed pattern clipped
128-255 Clipping speed (slow to fast)
CH06 Zooming 000-127 100%-5% xed pattern zoomed
128-69 Zoom IN
170-209 Zoom OUT
210-255 Alternately zooming
CH07 Zoom
speed 000-255 Fast to slow
CH08 Y axis
rolling
000-127 0-359 degree xed Y axis rolled
128-191 Clockwise rolling
192-255 Counter-clockwise rolling
CH09 Roll speed 000-255 Fast to slow
CH10 X axis
rolling
000-127 0-359 degree xed X axis rolled
128-191 Clockwise rolling
192-255 Counter-clockwise rolling
CH11 Roll speed 000-255 Fast to slow
CH12 Z axis
rolling
000-127 0-359 degree xed Z axis rolled
128-191 Clockwise rolling
192-255 Counter-clockwise rolling
CH13 Roll speed 000-255 Fast to Slow
CH14 Y axis
moving
000-127 128 different xed positions on X axis
128-191 Clockwise moving
192-255 Counter-clockwise moving
CH15 Move
speed 000-255 Fast to slow
CH16 X axis
moving
000-127 128 different xed positions on Y axis
128-191 Clockwise moving
192-255 Counter-clockwise moving
CH17 Move
speed 000-255 Fast to slow
CH18 Grating
rotation
000-004 No grating rotating
005-127 Clockwise grating rotating
128-133 No grating rotating
134-255 Counter-clockwise grating rotating
DMX chart ILDA control NOT connected (cont.)

Channel Function Value Description
CH19 Different
effects
000-031 Laser 3D effect
032-063 Scanned beam effect (pattern effect)
064-095 Laser Lumia effect
096-127 Scanned beam effect (pattern effect)
128-159 Burst grating effect
160-191 Scanned beam effect (pattern effect)
192-223 Laser universal effect
224-255 DO NOT USE*
*May cause GOBO misalignment. Restart unit.
DMX chart ILDA control NOT connected (cont.)

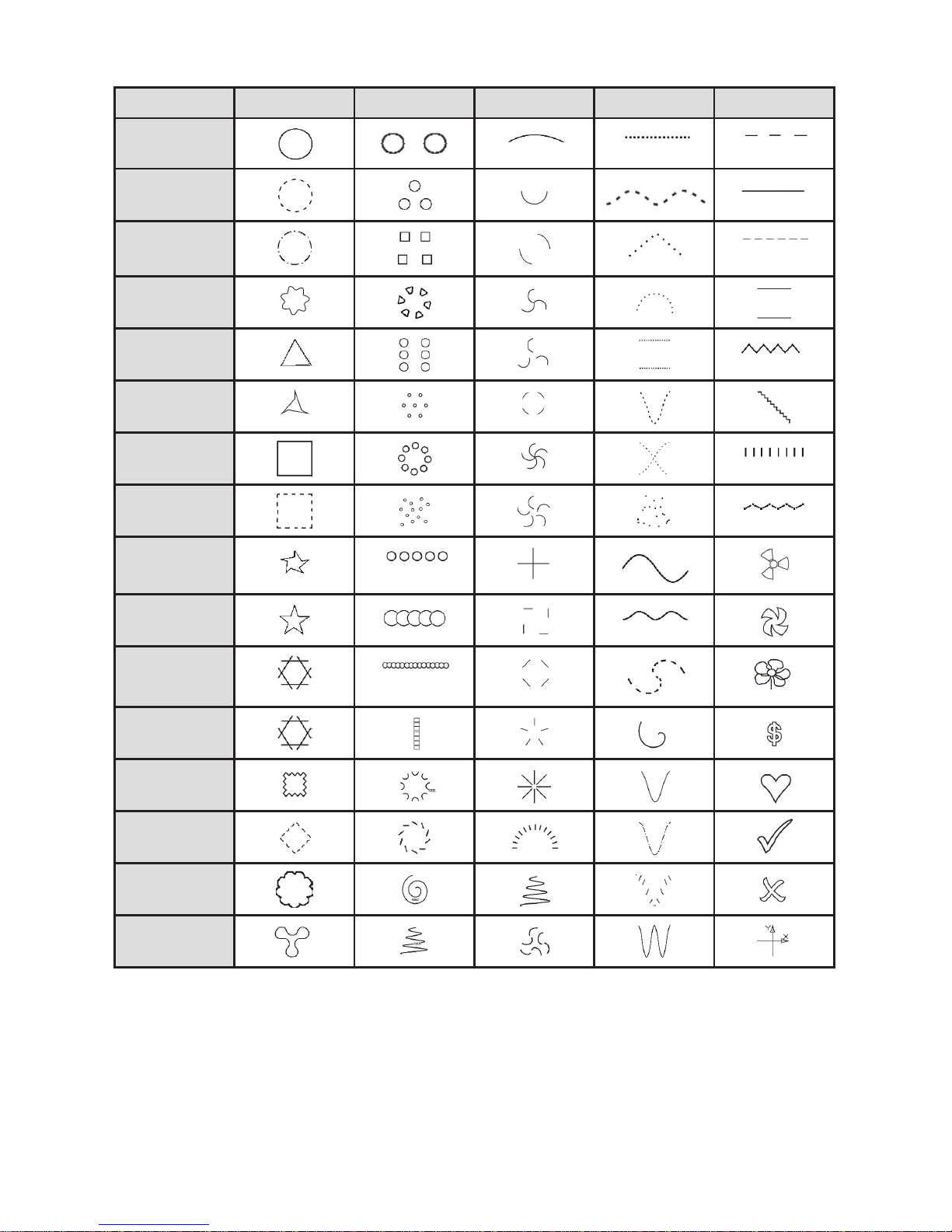

Laser Images
DMX 1 2 3 4 5
000-015
016-031
032-047
048-063
064-079
080-095
096-111
112-127
128-143
144-159
160-175
176-191
192-207
208-223
224-239
240-255

Key Features
• 19 channel DMX-512
• 7 Built-in program with speed adjustment
• 6 Sound modes
• Red, Green, and Blue diodes
• 3D images
• Warranty: 1 YEAR limited warranty
Specications
Range: 120V 60Hz
Rated Power: 50W
Fuse: 3A
Red Diode: 638nm - 300mw
Green Diode: 532nm - 150mw
Blue Diode: 450nm - 600mw
Scanner: 20K
Power Input: Switched
Modes: Auto, DMX, ILDA, Sound Active
DMX Channels: 19CH
Fixtures Size: 340 x 250 x 150mm
Net Weight: 4.5Kg
Gross Weight: 5.5Kg

Maintenance And Cleaning
The following points have to be considered during the inspection:
1. All screws for installing the device or parts of the device must be tightly
connected, and must not be corroded.
2. There must not be any deformations on the housing, colour lenses,  xations or
installation spots (ceiling, suspension, trussing).
3. Mechanically moved parts must not show any traces of wearing and must not
rotate with unbalances.
4. The electric power supply cables must not show any damage, material fatigue
or sediments.
Further instructions depending on the installation spot and usage must be handled
by a skilled installer or technician. Any safety issues must be resolved.
CAUTION!
Disconnect power before servicing.
In order to keep the  xture in good condition and extend the life, we suggest regular
cleaning to the  xture.
1. Clean the inside and outside lens each week to avoid the light output from
darkening due to accumulation of dust, dirt, etc.
2. Clean the fan each week.
3. A detailed electrical check by approved technician every three months is
advised. Ensure the circuit contacts are in good condition.
We recommend a frequent cleaning of the device. Please use a moist, lint-free
cloth. Never use alcohol or solvents.
There are no serviceable parts inside the device. Please refer to the instructions
under “Installation instructions”.
Should you need any spare parts, please order genuine MICROH parts from your
local dealer.

PLEASE NOTE:
All information for this product is subject to change without notice!
