USER’S MANUAL
SDA 6000
Teletext Decoder
with Embedded
16-bit Controller
Edition March 1, 2001
6251-557-1

For questions on technology, delivery and prices please contact the Micronas Offices in Germany
or the Micronas GmbH Companies and Representatives worldwide:
see our webpage at http://www.micronas.com
SDA 6000
Revision History: Current Version: 2000-06-15
Previous Version: 08.99
Page Subjects (major changes since last revision)
Complete Update of Controller & Peripheral Spec --> Detailed Version
ASC: Autobaud Detection Feature included
IC: New Description
GPT: New Description
IIC changed to I2C

Contents
Overview

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
A-3 Micronas
1Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 3
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 7
1.2 Logic Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
2 Pin Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
2.1 Pin Diagram (top view) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
2.2 Pin Definitions and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 4
3 Architectural Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
4 C16X Microcontroller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
4.1 Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 3
4.2 Memory Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 5
4.3 On-Chip Microcontroller RAM and SFR Area . . . . . . . . . . . . . . . . . . . . 4 - 7
4.3.1 System Stack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9
4.3.2 General Purpose Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 9
4.3.3 PEC Source and Destination Pointers . . . . . . . . . . . . . . . . . . . . . . . 4 - 10
4.3.4 Special Function Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 11
4.4 External Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 12
4.4.1 SDRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 13
4.4.2 External Static Memory Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 13
4.5 External Bus Interface (EBI). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 13
4.5.1 Memory Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 16
4.5.2 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 19
4.5.3 Crossing Memory Boundaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 23
4.6 Central Processing Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 24
4.6.1 Instruction Pipelining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 26
4.6.2 Bit-Handling and Bit-Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 32
4.6.3 Instruction State Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 33
4.6.4 CPU Special Function Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 34
5 Interrupt and Trap Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 3
5.1 Interrupt System Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 3
5.1.1 Interrupt Allocation Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 4
5.1.2 Hardware Traps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 6
5.2 Operation of the PEC Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 13
5.2.1 Prioritization of Interrupt and PEC Service Requests . . . . . . . . . . . 5 - 20
5.2.2 Saving the Status during Interrupt Service . . . . . . . . . . . . . . . . . . . 5 - 22
5.2.3 Interrupt Response Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 23
5.2.4 PEC Response Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 25
5.2.5 Fast Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 27
5.3 Trap Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 28
5.3.1 External Interrupt Source Control . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 33
6 System Control & Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 3

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
A-4 Micronas
6.1 System Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 3
6.1.1 Behavior of I/Os during Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 5
6.1.2 Reset Values for the Controller Core Registers . . . . . . . . . . . . . . . . . 6 - 5
6.1.3 The Internal RAM after Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 5
6.2 System Start-up Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 5
6.3 Register Write Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 8
6.4 Power Reduction Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 12
6.5 Dedicated Pins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 15
6.6 XBUS Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 17
6.7 Watchdog Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 17
6.8 Bootstrap Loader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 21
6.9 Identification Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 23
6.9.1 System Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 23
6.9.2 CPU Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 26
6.10 Parallel Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 27
7 Peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 3
7.1 General Purpose Timer Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 3
7.1.1 Functional Description of Timer Block 1 . . . . . . . . . . . . . . . . . . . . . . 7 - 3
7.1.1.1 Timer Concatenation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 14
7.1.2 Functional Description of Timer Block 2 . . . . . . . . . . . . . . . . . . . . . 7 - 19
7.1.2.1 Core Timer T6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 20
7.1.2.2 Auxiliary Timer T5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 21
7.1.2.3 Timer Concatenation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 22
7.1.3 GPT Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 26
7.1.4 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 37
7.2 Real-time Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 39
7.2.1 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 39
7.2.2 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 41
7.3 Asynchronous/Synchronous Serial Interface . . . . . . . . . . . . . . . . . . . . 7 - 46
7.3.1 Asynchronous Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 49
7.3.1.1 Asynchronous Data Frames . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 51
7.3.1.2 Asynchronous Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 53
7.3.1.3 Asynchronous Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 54
7.3.2 Synchronous Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 56
7.3.2.1 Synchronous Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 57
7.3.2.2 Synchronous Reception . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 58
7.3.2.3 Synchronous Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 58
7.3.3 Baud Rate Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 59
7.3.3.1 Baud Rates in Asynchronous Mode . . . . . . . . . . . . . . . . . . . . . . 7 - 60
7.3.3.2 Baud Rates in Synchronous Mode . . . . . . . . . . . . . . . . . . . . . . . 7 - 63
7.3.4 Autobaud Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 63
7.3.4.1 Serial Frames for Autobaud Detection . . . . . . . . . . . . . . . . . . . . . 7 - 64

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
A-5 Micronas
7.3.4.2 Baud Rate Selection and Calculation . . . . . . . . . . . . . . . . . . . . . 7 - 67
7.3.4.3 Overwriting Registers on Successful Autobaud Detection . . . . . 7 - 69
7.3.5 ASC Hardware Error Detection Capabilities . . . . . . . . . . . . . . . . . . 7 - 70
7.3.6 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 71
7.3.7 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 72
7.4 High Speed Synchronous Serial Interface . . . . . . . . . . . . . . . . . . . . . . 7 - 82
7.4.1 Full-Duplex Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 86
7.4.2 Half Duplex Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 89
7.4.3 Continuous Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 90
7.4.4 Port Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 91
7.4.5 Baud Rate Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 91
7.4.6 Error Detection Mechanisms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 92
7.4.7 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 95
7.5 I2C-Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 99
7.5.1 Operational Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 100
7.5.2 The Physical I2C-Bus Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 100
7.5.3 Functional Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 103
7.5.4 Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 105
7.6 Analog Digital Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 118
7.6.1 Power Down and Wake Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 119
7.6.2 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 119
8 Clock System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 3
8.1 General Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 3
8.2 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 4
9 Sync System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3
9.1 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3
9.1.1 Screen Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 3
9.1.2 Sync Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 5
9.2 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 6
10 Display Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 3
10.1 General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 3
10.2 Screen Alignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 3
10.3 Layer Concept . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 5
10.3.1 Overlapped Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 6
10.3.2 Embedded Layers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 8
10.3.3 Transparency in Screen Background Area . . . . . . . . . . . . . . . . . . . 10 - 9
10.4 Input and Output Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 11
10.4.1 Input Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
10.4.2 Output Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 13
10.5 Initialization of Memory Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 17
10.5.1 Transfer Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 17

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
A-6 Micronas
10.5.2 Transfer Areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 20
10.5.3 Italic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 25
10.6 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 27
10.6.1 Special Function Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 27
10.7 Description of Graphic Accelerator Instructions . . . . . . . . . . . . . . . . . 10 - 30
10.7.1 Screen Attributes (SAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 32
10.7.2 Startaddress of Layer 1 (FBR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 35
10.7.3 Size of Layer 1 (FSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 35
10.7.4 Startaddress of Layer 2 (DBR) . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 36
10.7.5 Size of Layer 2 (DSR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 36
10.7.6 Display Coordinates of Layer 2 (DCR) . . . . . . . . . . . . . . . . . . . . . 10 - 37
10.7.7 Contents of CLUT (CLR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 38
10.7.8 Clipping Coordinates (CUR and CBR) . . . . . . . . . . . . . . . . . . . . . . 10 - 38
10.7.9 Source Descriptor for Data Transfer (SDR) . . . . . . . . . . . . . . . . . . 10 - 40
10.7.10 Source Size of Transferred Memory Area (TSR) . . . . . . . . . . . . . . 10 - 41
10.7.11 Destination Size of Transferred Memory Area (TDR) . . . . . . . . . . 10 - 42
10.7.12 Offset of Transferred Memory Area (TOR) . . . . . . . . . . . . . . . . . . 10 - 43
10.7.13 Attributes of Transfer (TAR) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 44
11 D/A Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 3
11.1 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 3
12 Slicer and Acquisition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 3
12.1 General Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 3
12.2 Slicer Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 3
12.2.1 Distortion Processing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 5
12.2.2 Data Separation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 6
12.3 H/V-Synchronization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 6
12.4 Acquisition Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 6
12.4.1 FC-Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 7
12.4.2 Interrupts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 8
12.4.3 VBI Buffer and Memory Organization . . . . . . . . . . . . . . . . . . . . . . . 12 - 8
12.5 Register Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 9
12.5.1 RAM Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 12
12.5.2 Recommended Parameter Settings . . . . . . . . . . . . . . . . . . . . . . . . 12 - 25
13 Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 3
13.1 Register Description Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 3
13.2 CPU General Purpose Registers (GPRs) . . . . . . . . . . . . . . . . . . . . . 13 - 4
13.3 Registers ordered by Context . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 5
13.4 Registers Ordered by Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 13
13.4.1 Registers in SFR Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 14
13.4.2 Registers in ESFR Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 15
14 Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 3

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
A-7 Micronas
14.1 Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 3
14.2 Operating Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 3
14.3 DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 4
14.4 Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 10
14.5 Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 - 11

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
B-1 Micronas

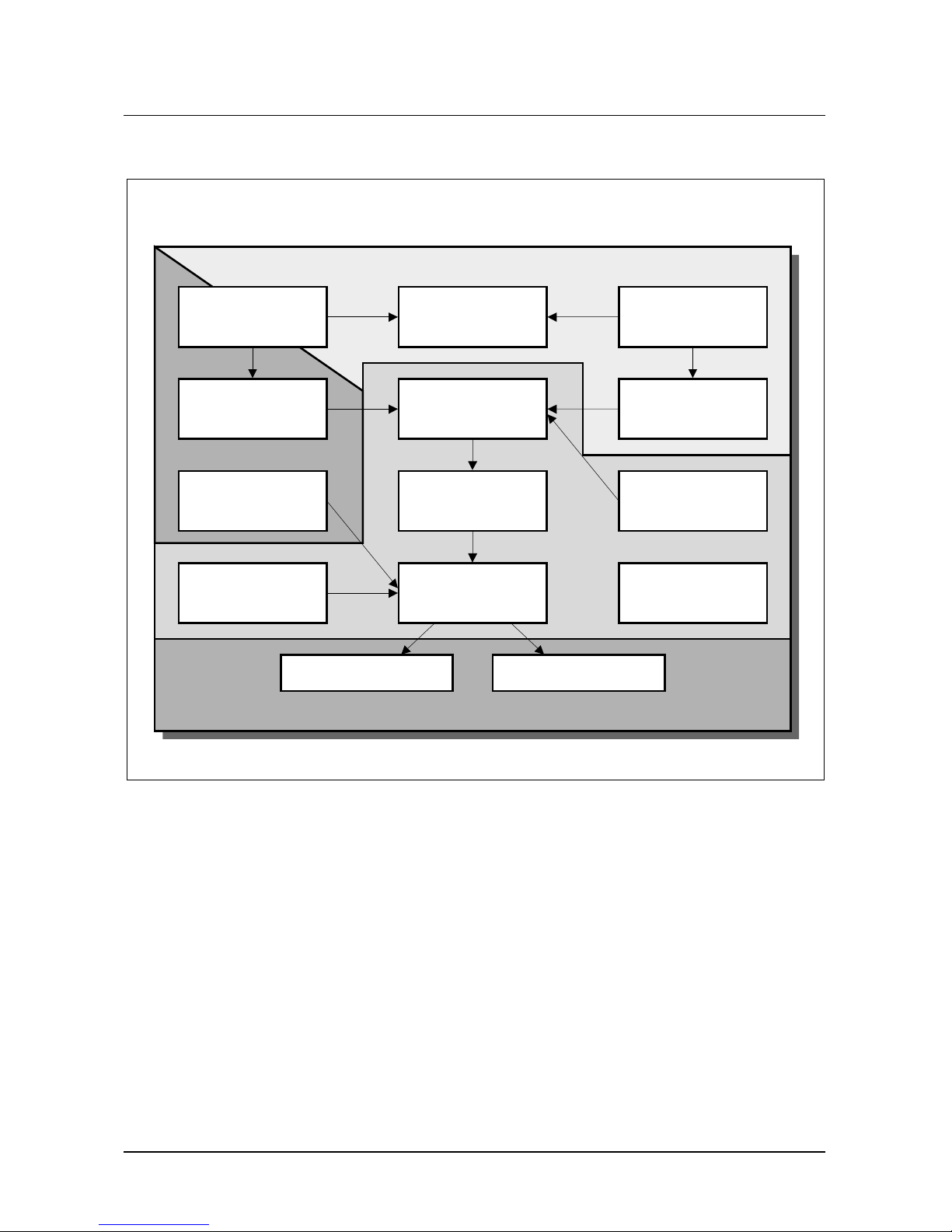

Figure 1-1 M2 Tool Flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 5
Figure 1-2 Logic Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 - 9
Figure 2-1 Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 - 3
Figure 3-1 M2 Top Level Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 3
Figure 4-1 M2 Memory Path Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 6
Figure 4-2 Storage of Words, Byte and Bits in a Byte Organized Memory . . . . 4 - 7
Figure 4-3 Internal RAM Areas and SFR Areas . . . . . . . . . . . . . . . . . . . . . . . . 4 - 8
Figure 4-4 Location of the PEC Pointers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 11
Figure 4-5 External Memory Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 14
Figure 4-6 Interlocked Access Cycles to ROM and SDRAM. . . . . . . . . . . . . . 4 - 15
Figure 4-7 Interlocked Access Cycles to two SDRAM Banks . . . . . . . . . . . . . 4 - 16
Figure 4-8 Memory Mapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 17
Figure 4-9 Four-Phase Handshake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 21
Figure 4-10 CPU Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 25
Figure 4-11 Sequential Instruction Pipelining . . . . . . . . . . . . . . . . . . . . . . . . . . 4 - 28
Figure 4-12 Standard Branch Instruction Pipelining . . . . . . . . . . . . . . . . . . . . . 4 - 28
Figure 4-13 Cache Jump Instruction Pipelining. . . . . . . . . . . . . . . . . . . . . . . . . 4 - 29
Figure 4-14 Addressing via the Code Segment Pointer . . . . . . . . . . . . . . . . . . 4 - 42
Figure 4-15 Addressing via the Data Page Pointers . . . . . . . . . . . . . . . . . . . . . 4 - 44
Figure 4-16 Register Bank Selection via Register CP. . . . . . . . . . . . . . . . . . . . 4 - 45
Figure 4-17 Implicit CP Use by Short GPR Addressing Modes . . . . . . . . . . . . 4 - 46
Figure 5-1 Priority Levels and PEC Channels. . . . . . . . . . . . . . . . . . . . . . . . . 5 - 10
Figure 5-2 Mapping of PEC Offset Pointers into the Internal RAM . . . . . . . . . 5 - 19
Figure 5-3 Task Status Saved on the System Stack . . . . . . . . . . . . . . . . . . . . 5 - 22
Figure 5-4 Pipeline Diagram for Interrupt Response Time . . . . . . . . . . . . . . . 5 - 23
Figure 5-5 Pipeline Diagram for PEC Response Time . . . . . . . . . . . . . . . . . . 5 - 26
Figure 6-1 State Machine for Security Level Switching . . . . . . . . . . . . . . . . . . 6 - 11
Figure 6-2 Transitions between Idle Mode and Active Mode . . . . . . . . . . . . . 6 - 14
Figure 6-3 WDT Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 18
Figure 6-4 Bootstrap Loader Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 22
Figure 6-5 Portlogic Register Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 27
Figure 7-1 Structure of Timer Block 1 Core Timer T3 . . . . . . . . . . . . . . . . . . . . 7 - 4
Figure 7-2 Block Diagram of Core Timer T3 in Timer Mode . . . . . . . . . . . . . . . 7 - 7
Figure 7-3 Block Diagram of Core Timer T3 in Gated Timer Mode. . . . . . . . . . 7 - 7
Figure 7-4 Block Diagram of Core Timer T3 in Counter Mode . . . . . . . . . . . . . 7 - 8
Figure 7-5 Block Diagram of Core Timer T3 in Incremental Interface Mode. . . 7 - 9
Figure 7-6 Interfacing the Encoder to the Microcontroller . . . . . . . . . . . . . . . . 7 - 10
Figure 7-7 Evaluation of the Incremental Encoder Signals . . . . . . . . . . . . . . . 7 - 11
Figure 7-8 Evaluation of the Incremental Encoder Signals . . . . . . . . . . . . . . . 7 - 12
Figure 7-9 Block Diagram of an Auxiliary Timer in Counter Mode . . . . . . . . . 7 - 13
Figure 7-10 Concatenation of Core Timer T3 and an Auxiliary Timer. . . . . . . . 7 - 15
Figure 7-11 GPT1 Auxiliary Timer in Reload Mode. . . . . . . . . . . . . . . . . . . . . . 7 - 16
Figure 7-12 GPT1 Timer Reload Configuration for PWM Generation . . . . . . . . 7 - 17

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
B-2 Micronas
Figure 7-13 Auxiliary Timer of Timer Block 1 in Capture Mode. . . . . . . . . . . . . 7 - 18
Figure 7-14 Structure of Timer Block 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 19
Figure 7-15 Block Diagram of Core Timer T6 in Timer Mode . . . . . . . . . . . . . . 7 - 21
Figure 7-16 Concatenation of Core Timer T6 and Auxiliary Timer T5. . . . . . . . 7 - 22
Figure 7-17 Timer Block 2 Register CAPREL in Capture Mode . . . . . . . . . . . . 7 - 23
Figure 7-18 Timer Block 2 Register CAPREL in Reload Mode . . . . . . . . . . . . . 7 - 24
Figure 7-19 Timer Block 2 Register CAPREL in Capture-And-Reload Mode . . 7 - 25
Figure 7-20 RTC Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 39
Figure 7-21 RTC Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 40
Figure 7-22 Block Diagram of the ASC0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 47
Figure 7-23 ASC Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 48
Figure 7-24 Asynchronous Mode of Serial Channel ASC0 . . . . . . . . . . . . . . . . 7 - 50
Figure 7-25 Asynchronous 8-Bit Frames. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 51
Figure 7-26 Asynchronous 9-Bit Frames. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 52
Figure 7-27 IrDA Frame Encoding/Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 53
Figure 7-28 Fixed IrDA Pulse Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 55
Figure 7-29 RXD/TXD Data Path in Asynchronous Modes. . . . . . . . . . . . . . . . 7 - 56
Figure 7-30 Synchronous Mode of Serial Channel ASC0 . . . . . . . . . . . . . . . . . 7 - 57
Figure 7-31 ASC0 Synchronous Mode Waveforms . . . . . . . . . . . . . . . . . . . . . 7 - 59
Figure 7-32 ASC0 Baud Rate Generator Circuitry in Asynchronous Modes. . . 7 - 61
Figure 7-33 ASC0 Baud Rate Generator Circuitry in Synchronous Mode . . . . 7 - 63
Figure 7-34 ASC_P3 Asynchronous Mode Block Diagram . . . . . . . . . . . . . . . . 7 - 64
Figure 7-35 Two-Byte Serial Frames with ASCII ‘at’ . . . . . . . . . . . . . . . . . . . . . 7 - 65
Figure 7-36 Two-Byte Serial Frames with ASCII ‘AT’ . . . . . . . . . . . . . . . . . . . . 7 - 66
Figure 7-37 ASC0 Interrupt Generation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 72
Figure 7-38 SFRs and Port Pins Associated with the SSC0 . . . . . . . . . . . . . . . 7 - 83
Figure 7-39 Synchronous Serial Channel SSC0 Block Diagram. . . . . . . . . . . . 7 - 84
Figure 7-40 Serial Clock Phase and Polarity Options . . . . . . . . . . . . . . . . . . . . 7 - 86
Figure 7-41 SSC0 Full Duplex Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 87
Figure 7-42 SSC Half Duplex Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 90
Figure 7-43 SSC0 Baud Rate Generator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 91
Figure 7-44 SSC0 Error Interrupt Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 93
Figure 7-45 I2C Bus Line Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 100
Figure 7-46 Physical Bus Configuration Example . . . . . . . . . . . . . . . . . . . . . . 7 - 102
Figure 7-47 SFRs and Port Pins Associated with the A/D Converter . . . . . . . 7 - 118
Figure 8-1 Clock System in M2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 - 3
Figure 9-1 M2’s Display Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 4
Figure 9-2 Priority of Clamp Phase, Screen Background
and Pixel Layer Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 - 11
Figure 10-1 Display Regions and Alignments . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 4

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
B-3 Micronas
Figure 10-2 Behavior of Blank Pin for Consecutive Frames
in ‘Meshed’Regions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 5
Figure 10-3 Priority of Layers in Overlapped Layer Mode. . . . . . . . . . . . . . . . . 10 - 6
Figure 10-4 Priority of Layers in Embedded Layer Mode . . . . . . . . . . . . . . . . . 10 - 9
Figure 10-5 Format of 1-bitplane Bitmap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
Figure 10-6 Format of 2-bitplane Bitmap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
Figure 10-7 Format of 4-bitplane Bitmap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
Figure 10-8 Format of 8-bitplane Bitmap. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 13
Figure 10-9 Overview on SRU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 13
Figure 10-10 2-bit Pixel Format for Use in Frame Buffer . . . . . . . . . . . . . . . . . 10 - 14
Figure 10-11 8-bit Pixel Format for Use in Frame Buffer . . . . . . . . . . . . . . . . . 10 - 14
Figure 10-12 16-bit Pixel Format (4:4:4:2/TTX) for Use in Frame Buffer . . . . . 10 - 15
Figure 10-13 Internally Generated Flash Signals in Different Flash Phases. . . 10 - 16
Figure 10-14 16-bit Pixel Format (5:6:5) for Use in Frame Buffer . . . . . . . . . . . 10 - 16
Figure 10-15 Overview of GA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 17
Figure 10-16 Use of Register Settings to Specify Source Area . . . . . . . . . . . . 10 - 22
Figure 10-17 Use of Register Settings to Specify Destination
and Clipping Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 25
Figure 10-18 Result for a Non-italic Transferred Memory Area
in Frame Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 25
Figure 10-19 Result for a Italic Transferred Memory Area in Frame Buffer . . . 10 - 26
Figure 10-20 Result for an Italic Transferred Memory Area
at D/A Converter Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 26
Figure 10-21 Organization of GAIs in the External SDRAM . . . . . . . . . . . . . . . 10 - 30
Figure 10-22 GAI Instruction Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 31
Figure 12-1 Block Diagram of Digital Slicer and Acquisition Interface . . . . . . . 12 - 4
Figure 12-2 VBI Buffer: General Structure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 - 9
Figure 14-1 H/V - Sync-Timing (Sync-master mode) . . . . . . . . . . . . . . . . . . . 14 - 10
Figure 14-2 VCS -Timing (Sync-master mode) . . . . . . . . . . . . . . . . . . . . . . . . 14 - 10

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
C-1 Micronas
Preface
M2 is a 16-bit controller based on Infineon’s C16x core with embedded teletext and
graphic controller functions. M2 can be used for a wide range of TV and OSD
applications. This document provides complete reference information on the hardware
of M2.
Organization of this Document
This Users Manual is divided into 14 chapters. It is organized as follows:
•Chapter 1, Overview
Gives a general description of the product and lists the key features.
•Chapter 2, Pin Description
Lists pin locations with associated signals, categorizes signals according to function,
and describes signals.
•Chapter 3, Architectural Overview
Gives an overview on the hardware architecture and explains the dataflow within M2.
•Chapter 4, C16X Microcontroller
Gives a detailed explanation of the 16-bit ←C architecture.
•Chapter 5, Interrupt and Trap Functions,
Explains the powerful C166 Interrupt facilities.
•Chapter 6, System Control & Configuration
Describes how to configure and control the complete ←C system and the Power
Management Unit.
•Chapter 7, Peripherals
Describes the peripherals (serial buses and timers modules) of the micro.
•Chapter 8 & 9, Clock System & Sync System
Describes how clocks & syncs for the display generator are generated.
•Chapter 10 & 11, Display Generator and D/A Converter
Explains the architecture and programming possibilities of the unit which generates
the RGB signals.
•Chapter 12, Acquisition and Slicer
Describes features and functionality of the data caption unit.
•Chapter 13, Register Overview
Summarizes all HW-registers of M2.
•Chapter 14, Electrical Characteristics
Lists all important AC and DC values and the maximum operating conditions of M2.

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
C-2 Micronas
Related Documentation
For easier understanding of this specification it is recommended to read the
documentation listed in the following table. Moreover it gives an overview of the software
drivers which are available for M2.
Document Name Document Purpose
Appl. Note “Initialization and
Bootstraploader of M2”
System integration support

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
Overview
1 - 3 Micronas
1Overview
M2 is designed to provide absolute top performance for a wide spectrum of teletext and
graphic applications in standard and high end TV-sets and VCRs. M2 contains a data
caption unit, a display unit and a high performance Infineon C16x based microcontroller
(so that M2 becomes a one chip TV-controller) an up to level 3.5 teletext decoder and
display processor with enhanced graphic accelerator capabilities. It is not only optimized
for teletext usage but also, due to its extremely efficient architecture, can be used as a
universal graphic engine.
M2 is able to support a wide range of standards like PAL, NTSC or applications like
Teletext, VPS, WSS, Chinatext, Closed Caption and EPG (Electronic Program Guide).
With the support of a huge number of variable character sets and graphic capabilities a
wide range of OSD applications are also open for M2.
A new flexible data caption system enables M2 to slice most data, making the IC an
universal data decoder. The digital slicer concept contains measurement circuitries that
help identify bad signal conditions and therefore support the automatic compensation of
the most common signal disturbances. M2’s enhanced data caption control logic allows
individual programming, which means that every line can carry an individual service to
be sliced and stored in the memory.
The display generation of M2 is based on frame buffer technology. A frame buffer
concept displays information which is individually stored for each pixel, allowing greater
flexibility with screen menus. Proportional fonts, asian characters and even HTML
browsers are just some examples of applications that can now be supported.
Thus, with the M2, the process of generation and display of on-screen graphics is split
up into two independent tasks. The generation of the image in the frame buffer is
supported by a hardware graphics accelerator which frees the CPU from power intensive
address calculations. The graphics accelerator ‘prints’the characters, at the desired
‘screen’position, into the frame buffer memory based on a display list provided by the
software.
The second part of the display generator (the screen refresh unit) then reads the frame
buffer according to the programmed display mode and screen refresh rate and converts
the pixel information into an analog RGB signal.
Furthermore, M2 has implemented an RGB-DAC for a maximum color resolution of
state-of-the-art up to 65536 colors, so that the complete graphic functionality is
implemented as a system on chip. The screen resolution is programmable up to SVGA,
to cover today’s and tomorrow’s applications, only limited by the available memory
(64 Mbit) and the maximum pixel clock frequency (50 MHz).
The memory architecture is based on the concept of a unified memory - placing program
code, variables, application data, bitmaps and data captured from the analog TV signal’s
vertical blanking interval (VBI) in the same physical memory. M2’s external bus interface

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
Overview
1 - 4 Micronas
supports SDRAMs as well as ROMs or FLASH ROMs. The organization of the memory
is linear, so that it is easy to program the chip for graphic purposes.
The SW development environment “MATE”is available to simplify and speed up the
development of the software and displayed information. MATE stands for: M2 Advanced
Tool Environment. Using MATE, two primary goals are achieved: shorter Time-to-Market
and improved SW qualitiy. In detail:
•Re-usability
•Target independent development
•Verification and validation before targeting
•General test concept
•Documentation
•Graphical interface design for non-programmers
•Modular and open tool chain, configurable by customer
MATE usesavailableC166 microcontrollerfamilystandard tools as well as a
dedicated M2 tools.

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
Overview
1 - 5 Micronas
Figure 1-1 M2 Tool Flow
M2 - the 16 Bit MC, TTX/EPG/TeleWeb, High End OSD Engine
Linker/Locator
Embedded System M2
RTOS
PC Simulator + EVA Board
C166-Available
Debugging
UEB11114
Object Library Manager
info M2 formatted data,
Converter Display data
Object Code
C Compiler
New Tool Generation
Simulator
User Interface
Dedicated
M2 Libraries
Object Editor
User Interface
C Sources
Generator
C Code
Events and
Action Editor
SIE-MATE Tool Concept:
Fast Prototyping on the PC

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
Overview
1 - 6 Micronas
Standard Tool Chain
For the M2 software development (documentation, coding, debugging and test) the
Infineon C166 microcontroller family standard tools can be used: These are ASCII editor,
structogram editor, compiler, assembler, linker. Debugging is supported by low-priced
ROM-Monitor debuggers or the OCDS (On Chip Debug Support) debugger.
M2 Dedicated Tools
Special tools are primarily available for platform independent M2 software development
and secondly to generate data and control code for the M2 graphical user interface (GDI)
without having knowledge of M2 hardware. These are:
•Display Generator Simulator
•Teletext Data Slicer Simulator
•GDI (Graphical Device Interface)
•Teletext Decoder and Display Software for Level 1.5 and Level 2.5
•Mate Display Builder for management, editing, handling and generation of all
necessary data to display OSD’s
•Evaluation Board Simulator to connect a C166 EVA Board to the M2 simulation
The M2 software is written in ANSI-C to fulfil the platform independent development. The
ported software is code and runtime optimized. The layers of the modular architecture
are separated by application program interfaces which ensure independent handling of
the modules.

1 - 7 Micronas
Type Package
SDA 6000 P-MQFP-128-2
Teletext Decoder with Embedded 16-bit Controller
M2
Version 2.1 CMOS
P-MQFP-128-2
SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
Overview
1.1 Features
General
•Level 1.5, 2.5, 3.5 WST Display Compatible
•Fast External Bus Interface for SDRAM (Up to
8 MByte) and ROM or Flash-ROM (Up to 4 MByte)
•Embedded General Purpose 16 Bit CPU (Also used
as TV-System Controller, C16x Compatible)
•Display Generation Based on Pixel Memory
•Program Code also Executable From External
SDRAM
•Embedded Refresh Controller for External SDRAM
•Enhanced Programmable Low Power Modes
•Single 6 MHz Crystal Oscillator
•Multinorm H/V-Display Synchronization in Master or Slave Mode
•Free Programmable Pixel Clock from 10 MHz to 50 MHz
•Pixel Clock Independent from CPU Clock
•3⌠6 Bits RGB-DACs On-Chip
•Supply Voltage 2.5 and 3.3 V
•P-MQFP-128 Package
Microcontroller Features
•16-bit C166-CPU Kernel (C16x Compatible)
•60 ns Instruction Cycle Time
•2 KBytes Dual Ported IRAM
•2 KBytes XRAM On-chip
•General Purpose Timer Units (GPT1 and GPT2).
•Asynchronous/Synchronous Serial Interface (ASC0) with IrDA Support. Full-duplex
Asynchronous Up To 2 MBaud or Half-duplex Synchronous up to 4.1 MBaud.

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
Overview
1 - 8 Micronas
•High-speed Synchronous Serial Interface (SSC). Full- and Half-duplex synchronous
up to 16.5 Mbaud
•3 Independent, HW-supported Multi Master/Slave I2C Channels at 400 Kbit/s
•16-Bit Watchdog Timer (WDT)
•Real Time Clock (RTC)
•On Chip Debug Support (OCDS)
•4-Channel 8-bit A/D Converter
•42 Multiple Purpose Ports
•8 External Interrupts
•33 Interrupt Nodes
Display Features
•OSD size from 0 to 2046 (0 to 1023) pixels in horizontal (vertical) direction
•Frame Buffer Based Display
•2 HW Display Layers
•Support of Double Page Level 2.5 TTX in 100 Hz Systems
•Support of Transparency for both Layers Pixel by Pixel
•User Programmable Pixel Frequency from 10.0 MHz to 50 MHz
•Up to 65536 Displayable Colors in one Frame
•DMA Functionality
•Graphic Accelerator Functions (Draw Lines, Draw and Fill Rectangle, etc.)
•1, 2, 4 or 8-bit Bitmaps (up to 256 out of 4096 colors)
•12 bit/16 bit RGB Mode for Display of up to 65535 Colors
•HW-support for Proportional Characters
•HW-support for Italic Characters
•User Definable Character Fonts
•Fast Blanking and Contrast Reduction Output
Acquisition Features
•Two Independent Data Slicers (One Multistandard Slicer + one WSS-only Slicer)
•Parallel Multi-norm Slicing (TTX, VPS, WSS, CC, G+)
•Four Different Framing Codes Available
•Data Caption only Limited by available Memory
•Programmable VBI-buffer
•Full Channel Data Slicing Supported
•Fully Digital Signal Processing
•Noise Measurement and Controlled Noise Compensation
•Attenuation Measurement and Compensation
•Group Delay Measurement and Compensation
•Exact Decoding of Echo Disturbed Signals

SDA 6000 PRELIMINARY DATA SHEET
Version 2.1
Overview
1 - 9 Micronas
1.2 Logic Symbol
Figure 1-2 Logic Symbol
UEL11115
SS
V
DD(3.3 V)
V
XTAL1 Address
16 Bit
XTAL2
RSTIN
CVBS1A
CVBS1B
CVBS2
R
G
B
COR
BLANK
HSYNC
VSYNC
RD
WR
CSROM
CSSDRAM
MEMCLK
UDQM
LDQM
CLKEN
16 Bit
Data
Port 2
8 Bit
15 Bit
Port 3
6 Bit
Port 4
6 Bit
Port 5
7 Bit
Port 6
4 Bit
JTAG
SS
V
DD(2.5 V)
V
M2
