Micronics 60/66MHz User manual

M5Pi PCI/ISA
60/66MHz Pentium Processor
System Board Manual
Document Number: 06-00096-05, Rev. 1B
October 1994
221 Warren Ave., Fremont, CA 94539-7085

Copyright Notices
Micronics Computers, Inc.
The information contained in the M5Pi system board manual has been
carefully checked and is believed to be accurate. Micronics assumes no
responsibility for any inaccuracies that may be contained in this document.
Micronics makes no commitments to update or to keep the information in this
manual at a current level when changes are made to the product.
Micronics reserves the right to make improvements to this document and/or
product at any time and without notice.
All Rights Reserved. No part of this document may be photocopied, repro-
duced, translated, or reduced to any medium or machine form without prior,
written consent from Micronics.
COPYRIGHT (C) 1994, Micronics Computers, Inc.
Portions of the Manual
Portions of this manual were copied (with permission) from Phoenix Tech-
nologies, Ltd. and Micro Computer Systems, Inc. All rights reserved.
Trademarks
IBM is a registered trademark of International Business Machines. Microsoft,
Microsoft Word, Windows are registered trademarks of Microsoft Corpora-
tion. Intel and PCI are registered trademarks of Intel Corporation. UNIX is a
registered trademark of AT&T Corporation. Lotus 1-2-3 is a registered
trademark of Lotus Development Corp. MCS is a trademark of Micro
Computer Systems. All other product names mentioned herein are used for
identification purposes only and may be the trademarks of their respective
companies.
ii

iii
Micronics Quick Installation
We know that many experienced people prefer to read as little of the documen-
tation as possible. If this sounds like you, here’s the short form:
1. Ground yourself to prevent damaging static discharge, then remove
the M5Pi from its packaging.
2. Configure and verify the system board’s jumper settings. (See
Jumper Settings in Chapter 2)
3. Install the CPU and the system memory (Chapter 3).
4. Install the system board into the system case and make all necessary
case connections.
5. Install any ISA and PCI peripherals (Chapter 3).
6. Turn the computer on and press <Ctrl>, <Alt>, and <s>
simultaneously after you see the screen below.
8. Set the time and date. Adjust the BIOS settings to match your
configuration. If installing an IDE drive, select the IDE device you wish

iv
to configure. Press <Enter> with Auto selected and the BIOS will
automatically configure the drive for you. (See Chapter 4)
9. After you have configured the Main Setup menu, make any desired
setting configurations in the Advanced and Security menu. When
finished, go to the exit screen, select “Save Changes and Exit,” and you
are finished with the BIOS configuration (Chapter 4).

v
Contents
Introduction ......................................................................1-1
Features ..................................................................................... 1-2
SoftwareCompatibility ............................................................... 1-2
Configuring the M5Pi .......................................................2-1
StaticElectricity .......................................................................... 2-1
OfficeEnvironment ..................................................................... 2-1
M5PiComponents ..................................................................... 2-2
JumperSettings .......................................................................... 2-3
Installing the M5Pi, System Memory, CPUs and
Peripherals ........................................................................3-1
InstallationoftheM5Pi ............................................................... 3-2
Tools Required......................................................................................... 3-2
EquipmentRequired................................................................................. 3-2
SystemMemory ......................................................................... 3-3
SIMMs Supported ................................................................................... 3-3
Upgrading Rules ...................................................................................... 3-3
CommonMemory Configurations............................................................ 3-4
Installing the SIMMs............................................................................... 3-5
Removing SIMMs.................................................................................... 3-5
InstallingaCPU.......................................................................... 3-6
InstallingaPCIPeripheral Card .................................................. 3-7
InstallinganISAPeripheralCard ................................................ 3-8
The BIOS Setup Utility......................................................4-1
Configuration .............................................................................. 4-1
InitialBootUp ............................................................................ 4-1
Setup ......................................................................................... 4-2
RunningtheSetupProcedure ...................................................... 4-3
Setting theCMOS Parameters .................................................... 4-4
Setting the CMOS Main Screen............................................................... 4-4
System Time and Date ............................................................................. 4-4
Diskette Drive A or B............................................................................... 4-4

vi
HardDisk1-4(IDEDrivesOnly) .............................................................. 4-4
Base Memory and Extended Memory ...................................................... 4-4
Video Card................................................................................................ 4-5
Keyboard ................................................................................................. 4-5
SettingtheCMOSExtendedScreen ........................................... 4-5
Serial Port A ............................................................................................. 4-5
SerialPortB ............................................................................................. 4-6
ParallelPort .............................................................................................. 4-6
Secondary IDE ......................................................................................... 4-6
Onboard Floppy....................................................................................... 4-6
Swap Floppies.......................................................................................... 4-6
Boot Sequence......................................................................................... 4-6
Cache State .............................................................................................. 4-6
1stPCI Device.......................................................................................... 4-6
SystemBIOS ............................................................................................ 4-6
VideoBIOS............................................................................................... 4-7
Option ROM ............................................................................................ 4-7
Re-ConfiguringYourComputer................................................... 4-7
POST Messages .............................................................. A-1
Beep Codes...................................................................... B-1
Hard Disk Drive Types..................................................... C-1
Specifications .................................................................. D-1
EnvironmentalSpecifications .......................................................D-2
Temperature Range ................................................................................. D-2
RelativeHumidity ................................................................................... D-2
BatteryDisposal .........................................................................D-3
FCCWarningStatement ............................................................. F-1
Glossary .....................................................................................G-1
LimitedWarranty .......................................................................W-1
Non-Warranty Service...............................................................W-2

vii
List of Figures
Figure2-1: M5PiSystem Board ...................................................................... 2-2
Figure3-1: Installinga 72-PinSIMM.............................................................. 3-5
Figure3-3: Installinga PCIPeripheral Card .................................................... 3-7
Figure 3-5: Installing an ISA Card .................................................................. 3-8
Figure4-1: Power-UpScreen .......................................................................... 4-2
Figure4-2: CMOSMain Screen...................................................................... 4-3
Figure4-3: CMOSExtended Screen ............................................................... 4-5
Figure4-4: ExitPop-up Screen........................................................................ 4-8
List of Tables
Table2-1: CPUSpeed Selection ..................................................................... 2-3
Table2-2: Video Selection .............................................................................. 2-3
Table 2-3: PCI IDE Selection ........................................................................... 2-3
Table 2-4: PCIIDEIRQ14Selection ................................................................ 2-3
Table2-5: Secondary IDEControllerIRQ Selection ....................................... 2-4
Table2-6: IDE DMAChannel Selection ......................................................... 2-4
Table 2-7: Parallel Port IRQ Selection ............................................................. 2-4
Table2-8: Parallel PortDMA Channel Selection ............................................ 2-5
Table2-9: Flash ROMSelection ..................................................................... 2-5
Table 2-10: BIOS Reset ................................................................................... 2-5
Table 2-11: Reserved Jumper Settings............................................................ 2-6
Table 2-12: Case and Peripheral Connections ................................................ 2-7
Table3-1: Common MemoryConfigurations.................................................. 3-4

viii

1Introduction
Congratulations for choosing the Micronics M5Pi! The M5Pi is a high-
performance system board designed to be a foundation for serious
computer applications.
The M5Pi is a 60/66 MHz Pentium based board and is one of the most
powerful Intel-based products on the market.
The M5Pi comes with many built in features. These include support for
four IDE hard drives, support for two floppy drives, a bi-directional
parallel port, and two high speed serial ports.
Micronics builds all products to exacting standards, using the highest
quality components available. We are proud to provide this system
board and hope it brings you years of reliable service.

Features
The M5Pi includes the following features:
mPentium processor support for 60MHz or 66MHz processors.
mTwo 32-bit PCI slots, four ISA slots, and one shared (PCI or ISA) slot.
m256K of L2 write-back cache.
mSupports up to 128MB of on-board system memory.
mPrimary PCI Mode 3 IDE controller (supports two drives).
mSecondary ISA IDE controller (supports two drives).
mFloppy controller for two floppy drives (Supports 2.88MB, 1.44MB,
1.2MB, 720K, and 360K floppy drives).
mTwo high speed NS16550 compatible serial ports.
mBi-directional parallel port that is EPP and ECP compatible (see
Specifications).
mUpgradeable Flash Phoenix BIOS.
Software Compatibility
The M5Pi system board has been thoroughly tested for compatibility with a
variety of operating systems and environments, including:
mWindows, Windows for Workgroups, and Windows NT
mOS/2
mSCO UNIX and Open Desktop
mNovell Netware
mMS-DOS
mPC-DOS
mNeXTStep 3.2
Micronics M5Pi System Board Manual
1-2

2Configuring the M5Pi
Although the M5Pi system board is packaged in protective materials, it
is important to use care while unpacking and setting up.
Static Electricity
The M5Pi is shipped from the factory in an antistatic bag. To reduce the
possibility of damage, it is important to neutralize any accumulated
static charges on your body before handling the board. The best way to
do this is to ground yourself using a special wrist or ankle strap. If you
do not have a strap, you should touch both of your hands to a safely
grounded object. After you have grounded yourself, ground the M5Pi
via the solder pads surrounding one of its mounting holes.
Once the M5Pi is removed from its packaging, place it on top of the
antistatic bag. Carefully inspect the board for damage which may have
occurred during shipment.
Office Environment
Make sure the finished computer system is in an area with good ventila-
tion. The system should not be in direct sunlight, near heaters, or
exposed to moisture, dust, or dirt.

Micronics M5Pi System Board Manual
2-2

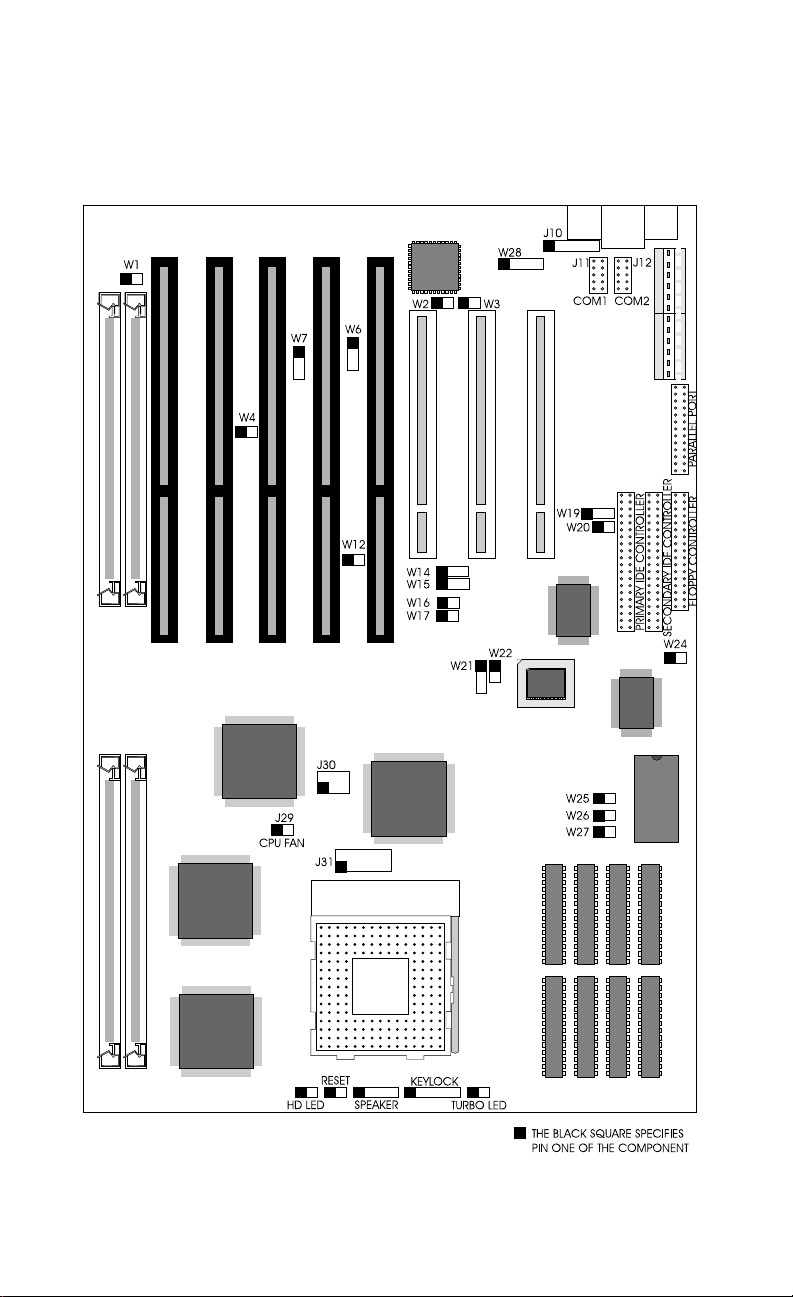

M5Pi Components
Figure 2-1 M5Pi System Board

Jumper Settings
Table 2-1 lists the jumper settings to select the speed of the CPU installed in
your system.
Speed
Jumper 60MHz (default) 66MHz
W25 close open
W26 open close
W27 close open
Table 2-1 CPU Speed Selection
Table 2-2 lists the jumper settings to select the type of video installed.
Jumper Function Setting
W3 color (default)
monochrome close open
Table 2-2 Video Selection
Table 2-3 lists the jumper settings to enable or disable the PCI IDE controller.
Jumper Function Setting
W20 PCI IDE enabled (default)
PCI IDE disabled open close
Table 2-3 PCI IDE Selection
Table 2-4 lists the jumper settings to set the PCI IDE hard disk controller’s
IRQ. Leave this set to IRQ14 unless you are using a SCSI controller and need
to free up an unnecessary IRQ, or if you want to use the ISA IDE controller as
the primary IDE controller.
Jumper Function Setting
W15 IRQ14 (default)
IRQ15 1-2 2-3
Table 2-4 PCI IDE IRQ14 Selection
2-3
Jumper Settings

2-4
Micronics M5Pi System Board Manual
Table 2-5 lists the jumper settings to set the secondary IDE controller’s IRQ.
If you set this for IRQ14, you must disable the PCI IDE controller (Table 2-4).
Jumper Function Setting
W14 IRQ15 (default)
IRQ14 2-3 1-2
Table 2-5 Secondary IDE Controller IRQ Selection
Table 2-6 lists the jumper settings to select the DMA channel for the IDE port.
Jumper Function Setting
W16 DMA Channel 6
DMA not used (default) close open
W17 DMA Channel 6
DMA not used (default) close open
Table 2-6 IDE DMA Channel Selection
Table 2-7 lists the jumper settings to set the parallel port’s IRQ.
Jumper Function Setting
W4 IRQ7 (default)
IRQ5 open close
W19 IRQ7 (default)
IRQ5 close open
Table 2-7 Parallel Port IRQ Settings

2-5
Jumper Settings
Table 2-8 lists the jumper settings to select a DMA channel for the parallel
port.
Jumper Function Setting
W6 DMA Channel 1
DMA Channel 3
DMA not used (default)
1-2
2-3
open
W7 DMA Channel 1
DMA Channel 3
DMA not used (default)
1-2
2-3
open
Table 2-8 Parallel Port DMA Channel Selection
Table 2-9 lists the jumper settings for programming the Flash ROM.
Jumper Function Setting
W22 Flash ROM programming disabled (default)
Flash ROM programming enabled open close
Table 2-9 Flash ROM Selection
Table 2-10 lists the jumper settings to reset the CMOS to its default settings.
Resetting the CMOS will clear all settings.
Jumper Function Setting
W24 Clear CMOS
Normal (default) close open
Table 2-10 BIOS Reset

Micronics M5Pi System Board Manual
2-6
Table 2-11 lists reserved jumper settings. Do not reconfigure these jumpers.
Jumper Function Setting
W1 Normal (default)
For Micron DRAM only open close
W2 Reserved open
W8 Reserved 1-2
W9 Reserved 1-2
W12 PS/2 Mouse does not use IRQ12 (AT Version)
PS/2 Mouse uses IRQ12 (PS/2 Version) open close
W13 Reserved 1-2
W18 Reserved 1-2
W21 Reserved 2-3
J30 Reserved (60 MHz only) open
J31 Reserved- do not modify
Table 2-11 Reserved Jumper Settings

Table 2-12 lists the jumper settings for case and peripheral connections.
Jumper Function Notes
J19 PCI IDE Connector Primary
J20 ISA IDE Connector Secondary
J21 Floppy Connector
J18 Parallel Port Connector Can be disabled at the
CMOS configuration screen.
J12 Serial Port (Com1) Can be disabled at the
CMOS configuration screen.
J11 Serial Port (Com 2) Can be disabled at the
CMOS configuration screen.
J9 AT Keyboard AT Version only
J8 & J15 PS/2 Mouse and Keybd. PS/2 Version only
J10 Ext. Keyboard 1- Clock(Keybd), 2-Data,
3-N/C, 4-Ground, 5-VCC
J16 & J17 Power Supply Connector
J34 Hard Disk LED 1-+5V DC, 2-Ground
J35 Reset
J38 Turbo LED 1-+5V DC, 2-Ground
J37 Keylock/Power LED 1-Power; 2-N/C; 3-Ground;
4-Keyboard Lock; 5-Ground
J36 Speaker Connector 1-Speaker; 2-N/C;
3-Ground; 4-5V DC
J29 12V Fan Connector 1-+12V DC, 2-Ground
Table 2-12 Case and Peripheral Connections
Jumper Settings
2-7

3Installing the M5Pi, System
Memory, CPUs and Peripherals
This section explains how to install the M5Pi system board, SIMMs,
CPUs, and peripherals.
Warning:
Before installing or removing any peripherals or components, make
sure you have a clear work space and that you adhere to all anti-static
precautions described on page 2-1. Micronics recommends only
trained technicians operate on the system board. Damage which
occurs to the board while adding or removing peripherals or compo-
nents may void the warranty.
If problems arise while installing peripherals, contact the computer
outlet where you purchased the peripheral or Micronics’ Technical
Support Department.

Installation of the M5Pi
The installation of the M5Pi system board depends on the type of case you
use. The M5Pi is a Baby AT size system board and you should be able to
install it in most cases.
Prior to installing the M5Pi, make sure you have a clear work space available
and adhere to all anti-static precautions.
If you are unfamiliar with installing a system board, Micronics highly recom-
mends you read the computer user’s manual or contact your dealer’s technical
support department.
Tools Required
Micronics recommends using the following tools to install the M5Pi:
mSmall Phillips screwdriver.
mTweezers or a pair of needle-nose pliers.
mTray (to hold loose screws).
Equipment Required
Micronics recommends using the following equipment with the M5Pi for a
typical configuration:
mChassis with standard hardware.
mA high quality power supply capable of providing continuous power
within a 5 volt range, plus or minus 5% (eg. 4.75 to 5.25). A power
filter may be used with a noisy AC power source..
mPS/2 compatible keyboard (PS/2 version).
mAT-compatible keyboard (AT version).
mEight ohm speaker (included with most chassis).
mStandard ribbon cables for internal connections.
mStandard power cord (grounded).
mHeat sink with cooling fan (required).
Micronics M5Pi System Board Manual
3-2

3-3
Installing System Memory and Add-On Peripherals
System Memory
System memory devices, commonly known as SIMMs (Single Inline Memory
Modules), are necessary to operate the M5Pi system board. The M5Pi has
four SIMM sockets and can be upgraded to 128 Megabytes of RAM. This
section will explain the type of SIMMs supported, list the rules of adding
memory to the M5Pi, give some examples of common memory configurations,
and show how to physically install the new SIMMs.
SIMMs Supported
The M5Pi supports the following 72 pin, 60 or 70ns SIMMs:
4MB (1Mx36)
8MB (2Mx36)
16MB (4Mx36)
32MB (8Mx36)
Note:
For long term reliability, Micronics recommends using SIMMs with tin-plated
contacts. The use of gold-plated contacts may conflict with the tin alloy of the
SIMM socket.
Upgrading Rules
The following is a list of rules to follow when upgrading SIMMs. If you
follow these rules, your upgrade should be trouble-free:
mUse 70ns or faster SIMMs. Anything slower will not keep up with
the Pentium processor.
mUpgrade SIMMs two at a time. These SIMMs must be the same size
and preferably from the same manufacturer. To add 16MB of
memory to the system board, install two 8MB SIMMs into bank 0
and bank 1.
mWhen installing SIMMs, start with ‘bank 0’ and work your way up
(0,1,2,3).
