2 Introduction
Thank you for choosing the MicroSys MPX-S32V234 module. This manual should
help you to get the best performance and details out all of its features.
2.1 Safety and Handling Precautions
ALWAYS use the correct type and polarity of the power
supply!
DO NOT exceed the rated maximum values for the power
supply! This may result in severe permanent damage to
the unit, as well as possible serious injury.
ALWAYS keep the unit dry, clean and free of foreign
objects. Otherwise, irreparable damage may occur.
Parts of the unit may become hot during operation. Take
care not to touch any parts of the circuitry during
operation to avoid burns, and operate the unit in a well-
ventilated location. Provide an appropriate cooling
solution as required.
ALWAYS take care of ESD-safe handling!
Many pins on external connectors are directly connected
to the CPU or other ESD sensitive devices.
Make or break ANY connections ONLY while the unit is
switched OFF.
Otherwise, permanent damage to the unit may occur,
which is not covered by warranty.
There is no separate SHIELD connection.
All the metal sheaths of shielded connectors are
connected to GND.
Also, all mounting holes of the carrier board are
connected to GND.
The module’s mounting holes are not connected to GND
Take this into account when handling and mounting the
unit.
Table 3 Safety and Handling Precautions

miriac SBC-S32V234 User Manual
V 1.0
6/40
© MicroSys Electronics GmbH 2018
2.2 Short Description
The miriac MPX-S32V234 is a member of the MPX module family, based on NXP’s
S32V234 vision processing MPU
It targets the evaluation of the main interfaces of the S32V234 processor
2.3 Ordering Information
The MPX-S32V234 System-on-Module (SoM) is available in the following configu-
rations:
Part No.
Title
Description
854901
miriac MPX-S32V234 SoM
NXP S32V234@1GHz CPU, 2GB
DDR3L, standard temp 0C to +70C
854902
miriac MPX-S32V234 SoM
same as 854901, but with extended
temp -40C to +70C
854903
miriac MPX-S32V234 SoM
same as 854901, except CPU contains
Cryptographic Service Engine
2.4 Board Preparation
■Make sure the BMD switch, located on the MPX-S32V module, is set properly
in order to select the correct boot source.
For more details see chapter 4.2 Boot Mode Configuration
■Make sure the GPU switch, located on the MPX-S32V234 module, is set
properly in order to select the correct GPU supply.
For more details see chapter 5.5 Switches

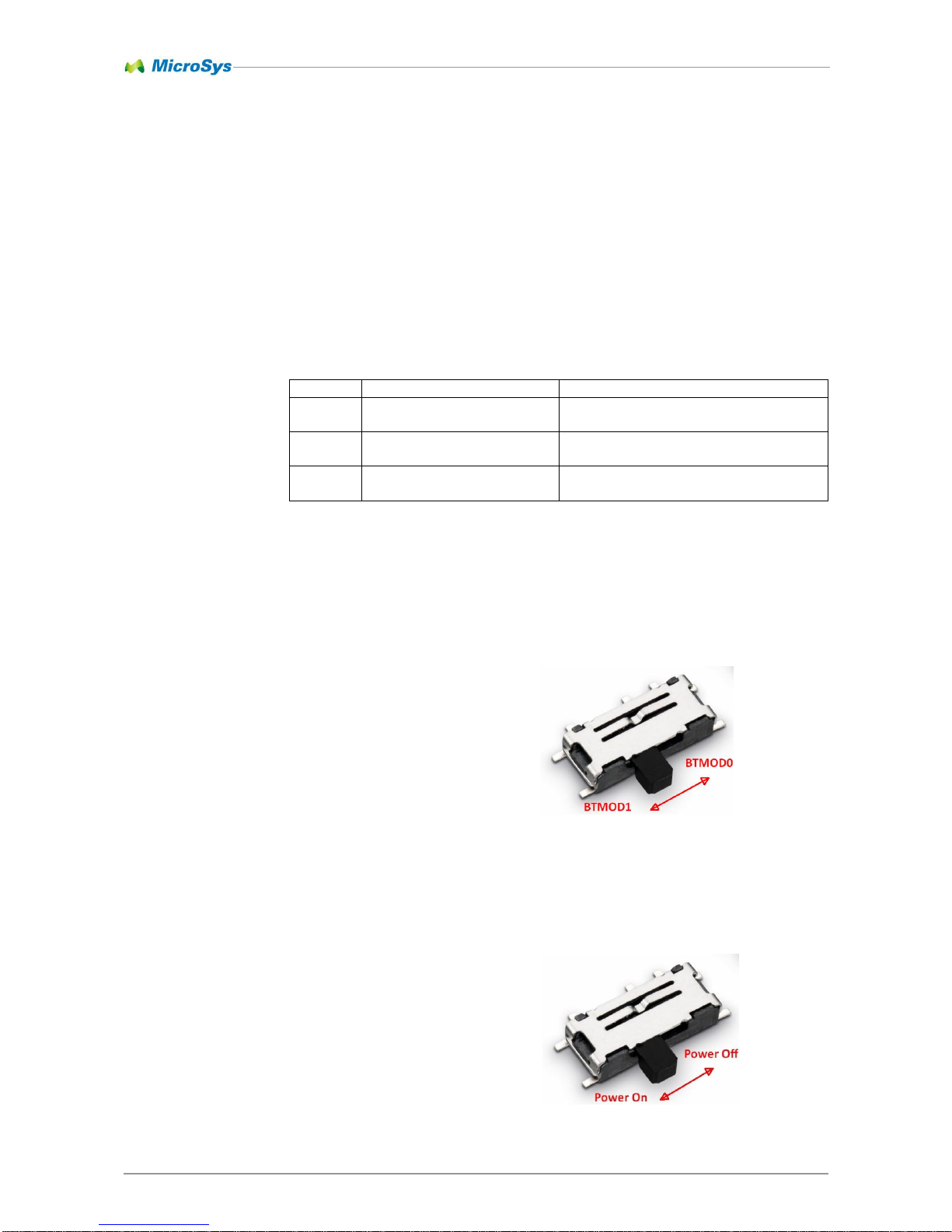

Figure 1: BMD Switch
Figure 2: GPU Switch

miriac SBC-S32V234 User Manual
V 1.0
7/40
© MicroSys Electronics GmbH 2018
2.5 Software
When ordering MPX-S32V234 SoMs they are delivered with a version of U-Boot in
the onboard eMMC which was used in the factory to test the module on MicroSys'
CRX-32V carrier.
Assuming you are intending to mount the module on your own carrier, then you will
need to modify U-Boot accordingly.
The SBC-S32V234 (which is the MPX-S32V234 module mounted on the CRX-32V
carrier) is supported by NXP's automotive Linux BSP for S32. You can download
the latest Linux BSP from:
https://source.codeaurora.org/external/autobsps32/auto_yocto_bsp/
This should serve as your starting point for modifying U-Boot and Linux.
NXP has a release cadence of once every 3 months. As of December 2018, the
current release is BSP 19.0

miriac SBC-S32V234 User Manual
V 1.0
8/40
© MicroSys Electronics GmbH 2018
3 Module Description
This section describes all parts of the MPX-S32V234 module.

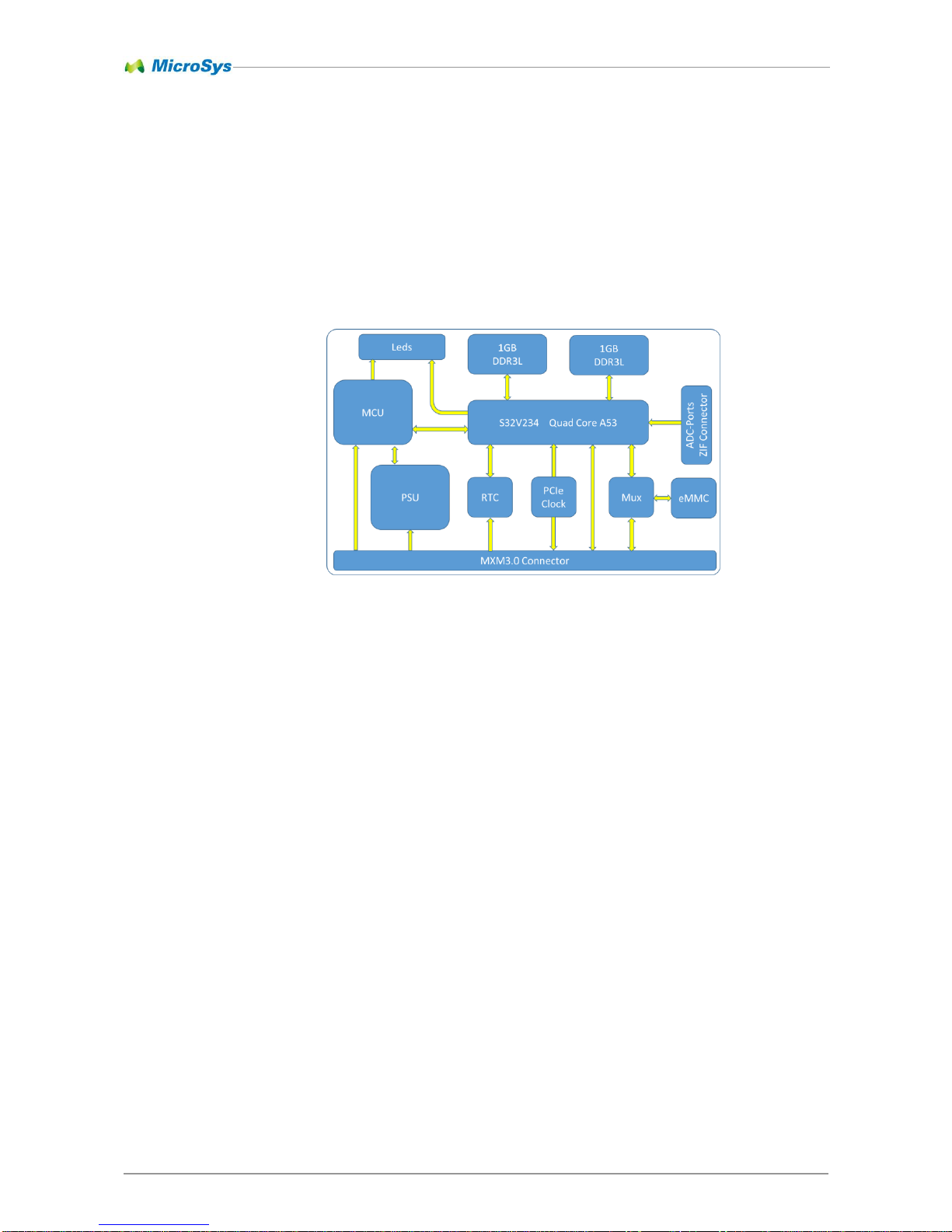

3.1 Block Diagram MPX-S32V234 Module

miriac SBC-S32V234 User Manual
V 1.0
9/40
© MicroSys Electronics GmbH 2018
3.2 Feature Overview
Feature
Type
Description
CPU
NXP S32V234
Core Clock 1GHz
Quad-Cortex®-A53
Single-Cortex®-M4
SDRAM
Dual 32-bit DDR3L
interface
2 x up to 1GByte
up to 1066MT/s
Mass Storage
8-bit eMMC
16 GByte
PCI Express
via MXM Connector
Rev.2.0
5Gbps
Lane x1
RC/EP
100MHz Clock Source
I2C support
Removable Media
via MXM Connector
For microSD cards
4/8-bit support
Ethernet
via MXM Connector
RGMII
Grahics Output
via MXM Connector
Parallel 24-bit
Video Input
MIPI-CSI-A
4 Lanes + Clock
MIPI-CSI-B
4 Lanes + Clock
Serial Interfaces
via MXM Connector
UART0
via MXM Connector
UART1
CAN Interface
via MXM Connector
CAN0
via MXM Connector
CAN1
RTC
Time/Date
PCF85263A
external backup
Board Control
S9KEAZN64A
Voltage supervision
Reset logic
Boot configuration
Status LED
Switches
Sliding Swicthes
RCON/Serial Select
GPU Power ON/Off
Indicators
LEDs
MCU Status
Reset Status
User GPIO1
User GPIO2
Connectors
Module Connectors
ADC Channel 0-7
MCU Programming Port
314-pin MXM Conncetor

miriac SBC-S32V234 User Manual
V 1.0
10/40
© MicroSys Electronics GmbH 2018
3.3 Mechanical Dimensions
3.3.1 MPX-S32V234 Module

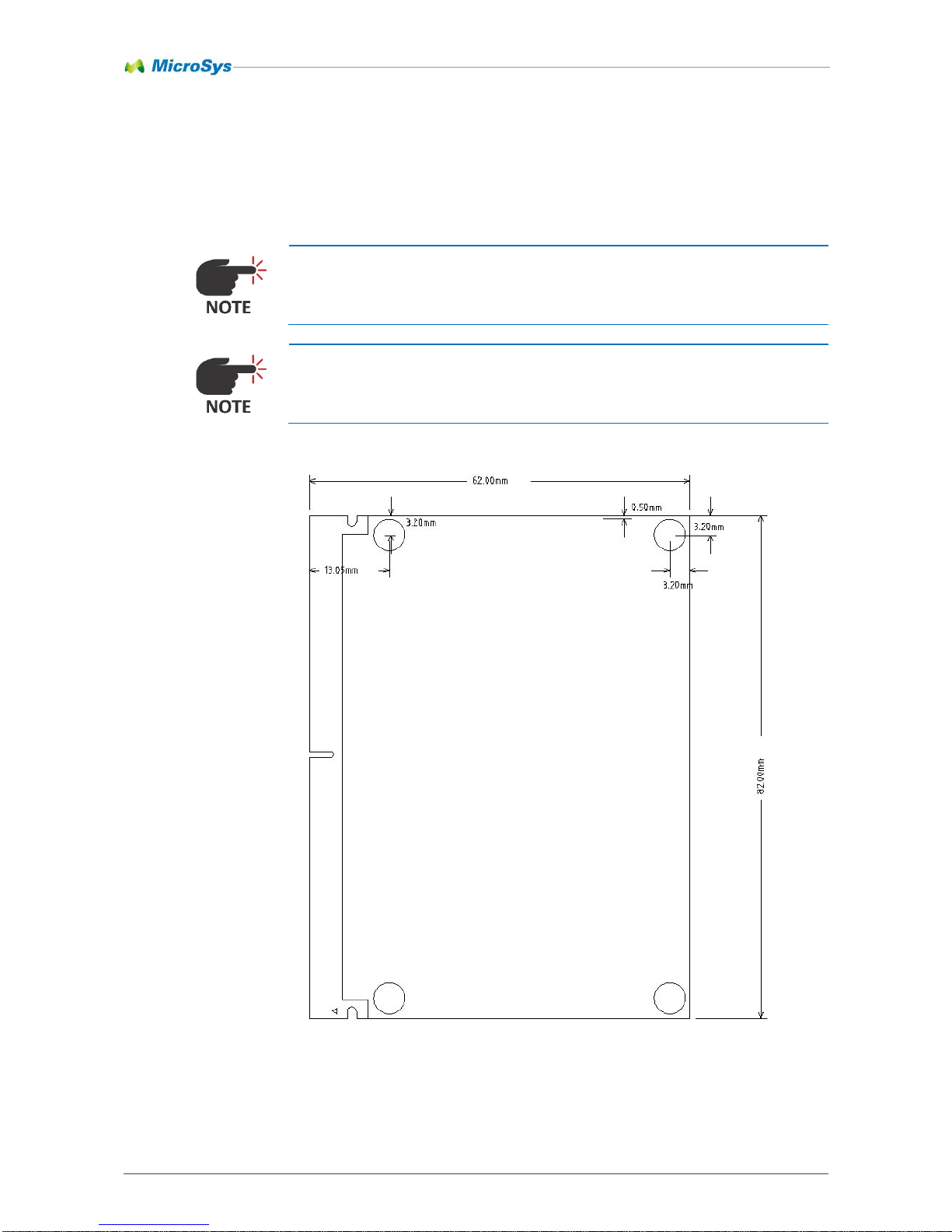

The following drawing shows the mechanical outline of the MPX-S32V234 module
that is plugged into the CRX-S32V carrier board.
This drawing is not to scale.
For 3D data files please contact MicroSys.
Figure 3 Mechanical Dimensions

miriac SBC-S32V234 User Manual
V 1.0
11/40
© MicroSys Electronics GmbH 2018
3.4 Module Top Side
3.5 Module Bottom Side

miriac SBC-S32V234 User Manual
V 1.0
12/40
© MicroSys Electronics GmbH 2018
3.7 System Environment
3.7.1 Temperature Ratings
The MPX-S32V234 contains parts with the following ambient, junction or case
temperature ratings. Due to these limits, the system function is only guaranteed, if
none of them are exceeded at any time. The MPX-S32V234 requires an adequate
heatsink.
Part
Tmin
Tmax
C-0402-NP0-Series
-55°C
125°C
C-0402-X5R-Series
-55°C
85°C
C-0402-X7R-Series
-55°C
125°C
C-0603-226-X5R-Z
-55°C
85°C
C-0603-X7R-Series
-55°C
125°C
C-0805-X7R-Series
-55°C
125°C
C-1206-X7R-Series
-55°C
125°C
C-EEEFK1H331AQ
-55°C
105°C
CML-744-227
-40°C
125°C
CML-744-233-670
-40°C
85°C
D-B320A-13-F
-55°C
150°C
D-BAS70
-65°C
150°C
D-BAT54S
-55°C
125°C
D-SD2114S040S5R0
-55°C
125°C
FB-742-792-XXX
-55°C
125°C
HEADER-2.54-180-M-1X2
-40°C
125°C
HEADER-2.54-180-SM-1X5
-40°C
163°C
IC-BTS462T
-40°C
150°C
IC-DSC1001CI2-027.0000
-40°C
85°C
IC-DSC557-0344FI1
-40°C
85°C
IC-FT232RQ
-40°C
85°C
IC-IR347xMTRPBF
-40°C
125°C
IC-KSZ9031RNXIA
-40°C
85°C
IC-MAX4886ETO
-40°C
85°C
IC-MC33662BLEF
-40°C
125°C
IC-MT41K256M16HA-107-IT
-40°C
95°C
IC-MTFC16GAKAENA-4M-IT
-40°C
85°C
IC-NCV8715SQ50T2G
-40°C
125°C
IC-PCA9517ADP
-40°C
85°C
IC-PCF85263ATL
-40°C
85°C
IC-PS32V234CMN0VUB
-40°C
125°C
IC-REF3030AIDBZ
-40°C
125°C

miriac SBC-S32V234 User Manual
V 1.0
13/40
© MicroSys Electronics GmbH 2018
Part
Tmin
Tmax
IC-S9KEAZN64AMLH
-40°C
85°C
IC-SN74LVC1G125DCK
-40°C
125°C
IC-SN74LVC244ARGYR
-40°C
125°C
IC-TPS22920LYZP
-40°C
85°C
IC-TPS51200DRC
-40°C
85°C
IC-TPS5433xDDAR
-40°C
150°C
IC-TPS70933DBV
-40°C
125°C
L-744-311-220
-55°C
125°C
L-744-383-56033
-40°C
85°C
L-744-383-57068
-40°C
85°C
LD-155124xx73200
-40°C
85°C
PCB-ADP-8065-01
-40°C
85°C
PCB-MPX-S32V234-02
-40°C
85°C
R-0402-Serie
-55°C
155°C
R-0603-Serie
-55°C
155°C
R-0805-Serie
-55°C
155°C
R-1206-Serie
-55°C
155°C
R-2010-Serie
-55°C
155°C
ST-WE-687-118-140-22
-25°C
85°C
SW-WE-450-404-015-514
-40°C
85°C
T-BSS138LT1
-55°C
150°C
T-FDT434P
-55°C
150°C
T-PDTA114YT
-55°C
150°C
T-PDTC123JT
-65°C
150°C
XT-FT13A-40.00000/8-20-20/48
-40°C
85°C
3.7.2 Power Dissipation
Component
max.Temperature
Power Dissipation
CPU
Tj125° C
7W
DDR
Tc95° C
1.5W
Core Regulator
Tj125° C
1.2W
DDR Regulator
Tj125° C
0.3W
(j=junction, c=case, a=ambient)

miriac SBC-S32V234 User Manual
V 1.0
14/40
© MicroSys Electronics GmbH 2018
3.8 Power Supply
3.8.1 Input Supply Rating
The MPX-S32V234 module runs from a single power supply with the following
ratings:
Input Voltage Operating Range:
12V DC +/-25%
Typical Current Consumption
( room temperature / U-Boot prompt):
0,40A @12V
The input of the MPX-S32V234 system is not protected against wrong polarity and
over-current
DO NOT exceed the rated maximum values for the power
supply! This may result in severe permanent damage to
the unit, as well as possible serious injury.

miriac SBC-S32V234 User Manual
V 1.0
15/40
© MicroSys Electronics GmbH 2018
3.8.2 Power-Up
During a power-up sequence, the MCU first checks the input voltage to be within
their necessary limits. After that, the POL (Point Of Load) regulators on the module
will be activated. Any regulators on the carrier board should track the correspond-
ing voltages on pins B15 and B16 of the module connector. If all module voltages
are o.k. the reset sequence will be started. If there is no external reset request, e.g.
via RSTIN# from the reset key, the RESET# will be released after 100ms. A low
level on the RSTIN# line extends this time. During normal operation, a falling edge
at RSTIN# initiates a reset sequence for the whole system, which is at least 100ms
long. As long the reset line is low, the system will be held in the reset state. If the
signal is released, the CPU will fetch its power-up configuration and starts up with
its BIST and/or boot sequence. The RSTOUT# signal will directly follow the state of
the RESET# signal. As long the RSTOUT# is active all connected devices must be
held in a reset state in order not to block the power-up configuration settings.

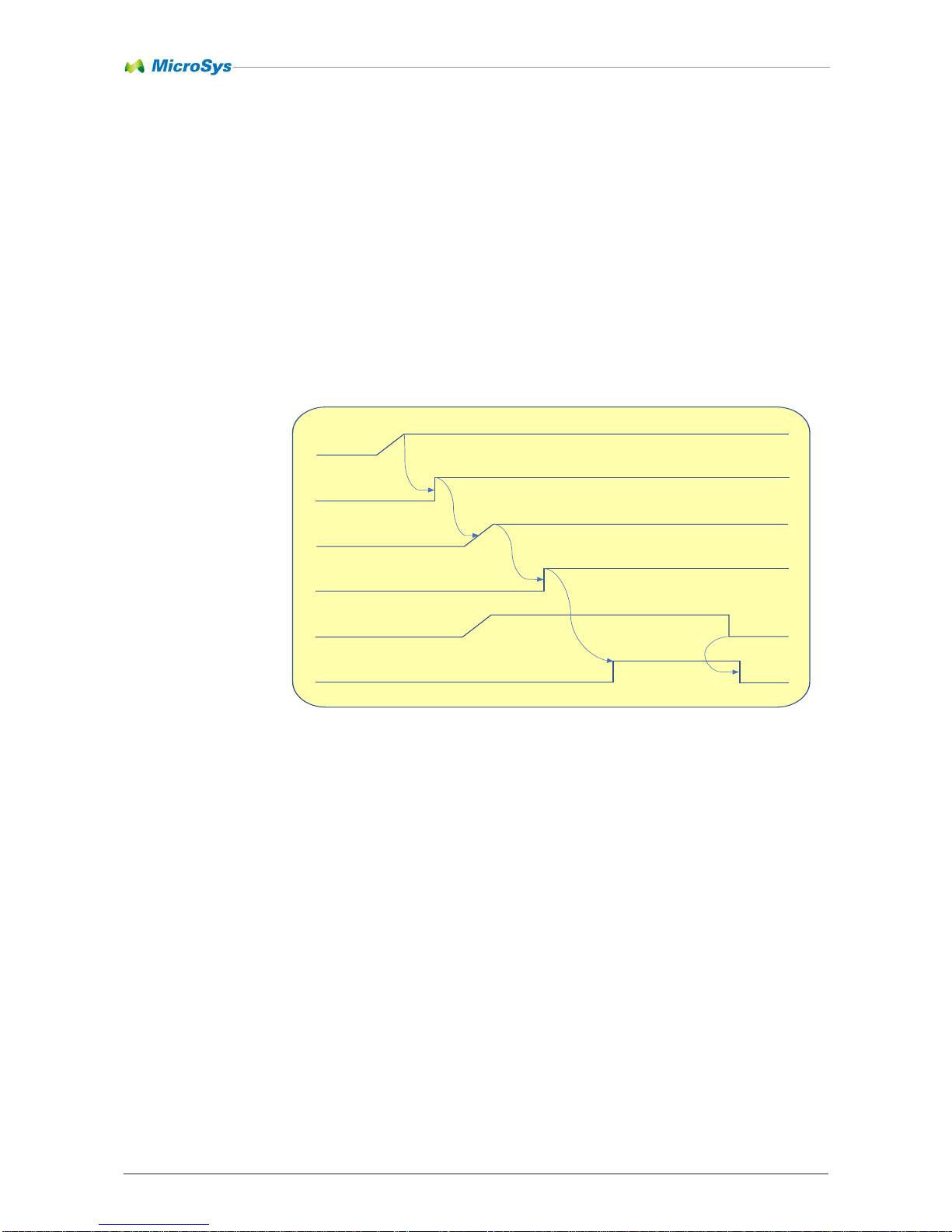

+12V
PWEN
V(intern)
RSTIN#
RSTOUT#
PORST#
If the MCU detects any overvoltage, it will turn off all internal point of load regula-
tors.

miriac SBC-S32V234 User Manual
V 1.0
16/40
© MicroSys Electronics GmbH 2018
3.9 Reset Structure
Signal Name
Function
Type
RSTIN#
System Global Reset Input
4K7 Pullup
RSTOUT#
System Global Reset Output
Totem Pole
PORST#
Power-On Reset for CPU
Totem Pole
RESET#
Reset for CPU
Open Drain
M0RST#
Reset for Memory Bank 0
Totem Pole
M1RST#
Reset for Memory Bank 1
Totem Pole
( # denotes an active low signal )
Table 3-3 Reset signal overview
Figure 3-3 Reset Structure

miriac SBC-S32V234 User Manual
V 1.0
17/40
© MicroSys Electronics GmbH 2018
4 System Core, Boot Configuration
4.1 Processor NXP S32V234
The S32V234 is a vision processing MPU with four ARM® Cortex®-A53 cores and
a single Cortex-M4 core. The four CPU cores run at a maximum clock speed of
1000MHz.
Figure 4-7 Processor Block diagram

miriac SBC-S32V234 User Manual
V 1.0
18/40
© MicroSys Electronics GmbH 2018
4.2 Boot Mode Configuration
The MPX-S32V234 module offers several different boot modes to choose from.
The settings can be done via the sliding switch BMD on the module and two
BOOT-SEL signals on the MXM connectorr according to the following table.
The switch BMD sets the BMODE[0] and BMODE[1] signals of the CPU to low,
while the two configuration resistors BMD0 and BMD1 are used to set a fixed low
value on these lines.
The BMD, BMD0 and BMD1 parts are located on the MPX-S32V234 module.
green denotes the default configuration
Note 1) BMD0 and BMD1 are soldered resistors (size 0402) and not intended to be
changed by user.
Shown positions set the corresponding BTMOD0/1 line to low. BTMOD0 controls
the CPU configuration port PC9, i.e. BOOTMOD(0), while BTMOD1 is connected to
the CPU configuration port PC10, i.e. BOOTMOD(1).
Boot Mode
BMD-Switch
BMD01)
BMD11)
Serial Download, virgin device
No function
installed
installed
Serial Download, virgin device
Position 0
removed
installed
Serial Download, prog. device
Position 1
removed
installed
RCON Boot, if no fuses
Position 0
installed
removed
Serial Download, prog. device
Position 1
installed
removed
RCON Boot, no fuses
Position 0
removed
removed
Serial Download, prog. device
Position 1
removed
removed
Figure 4: BMD Switch
Figure 6: Position BTM1=low
Figure 5: Position BTM0=low

miriac SBC-S32V234 User Manual
V 1.0
19/40
© MicroSys Electronics GmbH 2018
4.3 BOOT-SEL Signals
The two signals BOOT-SEL1 and BOOT-SEL2 located on the MXM connector
B130 and B131 allow the following default boot modes, when the BMD switch is set
to position RCON. If the BMD switch is set to serial download, these signals have
no function.
If the eMMC or the SDHC are to be used after previously having booted from the
other device, then BOOT-SEL1 must be set correctly and the “mmc rescan” com-
mand must be executed from within U-Boot. The “mmc info” command will then
show the new active storage device.
BOOT-SEL1
BOOT-SEL2
Boot Device
high
high
Cortex A53 via SDHC-A
low
high
Cortex A53 via eMMC
high
low
Cortex M4 via SDHC-A
low
low
Cortex M4 via eMMC

miriac SBC-S32V234 User Manual
V 1.0
20/40
© MicroSys Electronics GmbH 2018
4.4 Power-Up Configuration
The S32V234 is configured during power-up by the state of 32 I/O signals, which
are controlled by the MCU. Within the MCU, the four most popular RCON boot
configurations are implemented and can be selected via the BOOT DIP switch
located on the carrier board.
These configurations are only valid, if the Boot Mode Configuration is set to RCON Boot!
Signal
RCON
Port
eSDHC Mode
eMMC Mode
FLXR-TENB
RCON[0]
PA[7]
0
0
FLXR-TXD
RCON[1]
PA[8]
0
0
FLXR-RXD
RCON[2]
PA[9]
0
0
UART0-RXD
RCON[3]
PA[11]
0
0
UART0-TXD
RCON[4]
PA[12]
0
1
UART1-RXD
RCON[5]
PA[13]
0
0
UART1-TXD
RCON[6]
PA[14]
0
1
I2C0-SDA
RCON[7]
PA[15]
1
1
I2C0-SCL
RCON[8]
PB[0]
0
0
I2C1-SDA
RCON[9]
PB[1]
0
0
I2C1-SCL
RCON[10]
PB[2]
0
0
I2C2-SDA
RCON[11]
PB[3]
0
1
SPI0-SCK
RCON[12]
PB[5]
0
0
SPI0-SOUT
RCON[13]
PB[6]
0
0
SPI0-SIN
RCON[14]
PB[7]
0
0
SPI0-CS0#
RCON[15]
PB[8]
0
1
SPI1-SCK
RCON[16]
PB[9]
0
1
SPI1-SOUT
RCON[17]
PB[10]
0
0
SPI1-SIN
RCON[18]
PB[11]
0
0
SPI1-CS0#
RCON[19]
PB[12]
0
0
SPI2-SCK
RCON[20]
PB[13]
0
0
SPI2-SOUT
RCON[21]
PB[14]
1
1
SPI2-SIN
RCON[22]
PB[15]
0
0
SPI2-CS0#
RCON[23]
PC[0]
0
0
SPI3-SCK
RCON[24]
PC[1]
0
0
SPI3-SOUT
RCON[25]
PC[2]
0
0
SPI3-SIN
RCON[26]
PC[3]
0
0
SPI3-CS0#
RCON[27]
PC[4]
0
0
FXT0-CH0
RCON[28]
PC[5]
0
0
FXT0-CH1
RCON[29]
PC[6]
0
0
FXT0-CH2
RCON[30]
PC[7]
0
0
FXT0-CH3
RCON[31]
PC[8]
1
1
