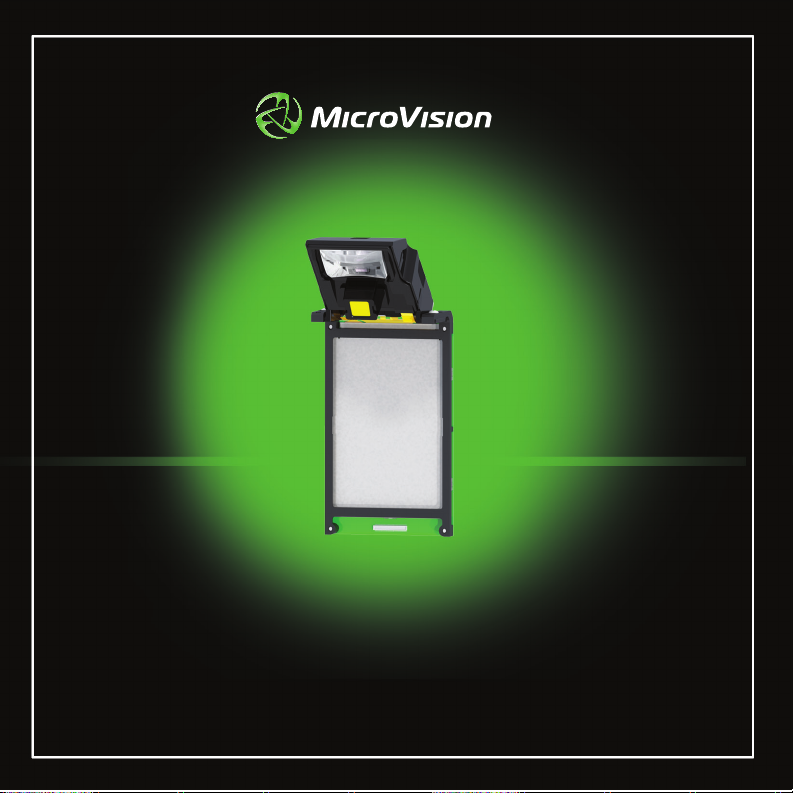

MicroVision MV-2407sti-411 User manual

QUICK START GUIDE
MV-2407sti-411
Short Throw Interactive
PicoP®Scanning Engine
STARTER KIT

MV-2407sti-411
SHORT THROW INTERACTIVE PICOP®SCANNING ENGINE
STARTER KIT
The MV-2407sti-411 is part of MicroVision’s development platform for
PicoP®scanning technology, a scanning engine solution based on
MicroVision’s proprietary laser beam scanning technology.
This kit is a prototype produced by MicroVision to demonstrate
interactive display functionality and enable application development.
It is not intended to represent a consumer-ready end product.
Finished form factor, industrial design, run time, user interface,
auxiliary features, and any other commercial product considerations
should be addressed as part of bringing a product to market to suit
target audiences and differentiation requirements.

SAFETY INFORMATION, CLASS 3R
The MV-2407sti unit embeds a CLASS 3R LASER PROJECTOR
MODULE and complies with IEC 60825-1: 2014 (edition 3). This
device also complies with 21 CFR 1040.10 and 1040.11 except for
deviations pursuant to Laser Notice No. 56 dated May 08, 2019.
The following safety labels are affixed at the factory.
DO NOT REMOVE THESE LABELS

CAUTIONS & WARNINGS
All users of the MV-2407sti Starter Kit must read this
guide before operating the unit.
Warnings regarding use and care of the MV-2407sti Unit:
The MV-2407sti is a Class 3R Laser Product.
- Do not stare at the beam.
- Avoid direct eye exposure.
Use of controls, adjustments of performance other than those specied in this Quick Start Guide or
User Guide may result in hazardous laser radiation exposure.
SERVICE & MAINTENANCE
THERE ARE NO OPERATOR SERVICEABLE PARTS INSIDE
MV-2407sti Starter Kit
For preventative maintenance or repair of performance-related
issues, the system must be returned to MicroVision.
See the Warranty in this Quick Start Guide for contact information to initiate a return.
- Do not remove label or enclosure around the projector module.
- Do not separate the optical module from the electronics module.
The optical module and electronics module have been calibrated together. Swapping optical and
electronics modules may damage the MEMS mirror and will invalidate the laser product classication
certication for the module and will invalidate any warranties that may apply.

MV-2407sti KEY
1DC Power In
2Micro-HDMI Video In
3Micro-USB2 Port (Touch Events)
4Micro-USB2 Port (Module Control)
5USB Type A Port
6Power Button
7Audio Jack
IN THE BOX
1. MV-2407sti-411 Starter Kit
2. Power supply
3. Micro-USB cable (x2)
4. Micro-HDMI cable
2
6
3
5
4
7
1

DIRECTIONS
Download the End User License Agreement full documentation and Software
Development Kits (SDKs) for MV-2407sti-xxx at:
https://github.com/microvision-inc/Interactive_Projection
Consult the bar code label on the box for your specic model.
Connecting to the Starter Kit:
1. Power: Connect the 12 Volt power adapter to the 1 barrel power connector and to a wall
supply.
2. Display: Connect Micro-HDMI video cable from the
2
Micro-HDMI input on the
System Interface Board to a HDMI output on the host system.
3. Interactivity: Connect Micro-USB cable from the
3
Micro-USB2 connector on the
System Interface Board to a Type-A USB2 port on the host system. This USB interface
is used to transmit Human Interface Device (HID) touch events to the host device and
the USB port will enumerate as USB Touch input device to Android, Linux, or
Windows 10 host system.
4. Control (Optional): Connect Micro-USB cable from the
4
Micro-USB2 connector on
the System Interface Board to a Type-A USB2 port on the host system. This USB
interface can be used to control the PicoP Scanning Engine from the host system
utilizing MicroVision’s SDKs.
Power On/Off:
1. Turn on the system power by pressing the
6
power button.
2. Turn off the system power by pressing the
6
power button.

SERVICE AND SUPPORT
For questions and support please contact MicroVision Customer Service by
e-mail at
customerservice@microvision.com
Engineering and development support are not included with the purchase
of the MV-2407sti. For expanded support services beyond basic
troubleshooting, please contact your MicroVision sales representative.
NOTICE AND LIMITED WARRANTY
MV-2407sti STARTER KIT IMPORTANT NOTICE
The enclosed MV-2407sti Starter Kit is a “Prototype” intended for use for ENGINEERING DEVEL-
OPMENT OR EVALUATION PURPOSES ONLY and is not considered by MicroVision, Inc., to be
t for commercial use. As a Prototype, this device may not meet the technical requirements of the
European Union directive on electromagnetic compatibility.
The user assumes all responsibility and liability for proper and safe handling of the unit. Also be
aware that the enclosed unit may not be regulatory compliant or agency certied (such as FCC,
UL, CE, etc.) with the exception of IEC 60825-1 Laser Safety. MicroVision assumes no liability for
application assistance, customer’s product design, or software performance.
Subject to the terms of the MicroVision End User License Agreement found in the downloadable
User Guide at https://github.com/microvision-inc MicroVision grants Customer a limited, non-
transferable, non-exclusive license to use MicroVision software and rmware in connection with
the use of the Prototypes. MicroVision is not selling any MicroVision software or rmware to
Customer. Customer is not licensed to use MicroVision software or rmware in connection with any
other application or for any purpose other than evaluation of the Prototype.

Contact Information. If you have any questions, please contact MicroVision Customer Service
Limited Warranty. MicroVision warrants that the Prototype will be free of defects in material and
workmanship for ninety (90) days from the delivery date. MicroVision will at its option, repair or
replace the Prototype or refund the purchase
price paid by Customer for the defective Prototype.
The repaired or replaced parts or Prototype
may include new, reconditioned or re-manufactured
parts and equipment at MicroVision’s option. Such repair, replacement or refund shall be the
sole remedy of Customer in the event of MicroVision’s breach of this limited warranty. All costs
associated with shipment to MicroVision for warranty service, including but not limited to freight,
duties, insurance and customs fees are Customer’s responsibility. MicroVision will pay the
freight costs associated with the return shipment to Customer. Duties, insurance, customs and
any other fee are Customer’s responsibility. The method of shipment will be at MicroVision’s
discretion. Repair or replacement of any parts or equipment does not extend the period of
warranty. If a component MicroVision bought from a third party fails and the component is still
covered by a warranty from a third party, MicroVision will take reasonable action to pass that
warranty on to customer. THIS LIMITED WARRANTY IS MICROVISION’S ONLY WARRANTY.
MICROVISION EXPLICITLY DISCLAIMS ANY AND ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE WARRANTIES OF MERCHANTABI-
LITY, FITNESS FOR A PARTICULAR PURPOSE, AND INFRINGEMENT.
The warranty considerations by MicroVision set-forth above do not cover, and MicroVision
will have no obligations hereunder if any non-conformance is caused in whole or in part by
(a) accident, transportation, neglect, misuse, exposure to extreme temperatures or excessive
dust or moisture, alteration, modication or enhancement of the Prototype(s), (b) incorporation,
interfacing, attachment of any feature, program, or device to the Prototype(s) by a person or
entity other than MicroVision, (c) use of the Prototype(s) for other than the specic purpose
for which the Prototype(s) are designed or (d) any use of the Prototype(s) not in accordance
with a guide or user manual. MicroVision does not warrant that the Prototype or associated
software will run error free or without interruptions or will operate with third party applications.

MicroVision is not liable for loss of data or down time. MicroVision is not responsible
for resolving software issues caused by Customer Components or third party software.
LIMITATION OF LIABILLITY. IN NO EVENT WILL MICROVISION BE LIABLE TO CUSTOMER
FOR ANY LOST PROFITS, LOST OPPORTUNITIES, OR ANY OTHER INCIDENTAL OR
CONSEQUENTIAL DAMAGES, REGARDLESS OF THE FORM OF ACTION, BASIS OF THAT
CLAIM, OR THE THEORY UNDER WHICH THE CLAIM IS PRESENTED, EVEN IF THAT
PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO EVENT WILL
MICROVISION BE LIABLE TO CUSTOMER FOR ANY DAMAGE OR LOSS IN EXCESS OF
THE TOTAL PURCHASE PRICE PAID FOR THE PROTOTYPE(S). IN NO EVENT WILL
MICROVISION BE LIABLE FOR ANY CLAIM AGAINST IT BY ANY THIRD PARTY.

SPECIFICATIONS MATRIX
Category Characteristic Specification
Display
Performance
Display Technology Laser beam scanning technology
Input Resolutions 1280 x 720
Output Resolution 1280 x 640
Brightness
Enhanced Brightness
65 lumens
80 lumens (typical video content)
Color Depth 24-bit true color, 16.7M colors
Aspect Ratio 16:9
Throw Ratio ~1:1.5
Focus Range 0.2 m - 1.0 m
Display Refresh Rate 70 Hz
Sequential Contrast >80,000:1
Brightness Uniformity >70%
Color Gamut (rel. sRGB) >220%
Start-up Time <3 seconds from power off
<0.1 seconds from ready state
Interactivity
Performance
Interactive Sensing Technology Scanning LiDAR
Interactivity Depth Range 0.2 m - 0.5 m
Sensing Field of View Coincident with projection display
Multi-touch Android, Linux: 10 points
Windows: 1 point
Virtual Touch Function Multi-touch on tabletop of wall

Category Characteristic Specification
Scanning Engine Optical Module Size 33.9 x 38.1 x 55.9 mm
Electronics Size ~50 x 83 mm
Video Input Interface MIPI-DSI Version 1.2
Touch Event Interface USB2 HID Class
Control Interface UART (with MicroVision SDK)
Starter Kit Video Input Interface HDMI Version 1.3
Touch Event Interface USB2 HID Class
Control Interface USB2 (with MicroVision SDK)
Power Single Supply Input Voltage 12.0V
Display Power @ 27% Video Image
4.9-5.5 W
Sensing Power <1.5W
Environmental Storage Temperature -30°C ...+70°C
Light Source Laser Diodes Red: ~638 nm
Green: ~520 nm
Blue: ~450 nm
IR: ~830 nm
Laser Safety Classication Class 3R Laser Product IEC 60825 Ed. 3
Model Numbers Scanning Engine PSE-0407sti-411
Starter Kit MV-2407sti -411
SPECIFICATIONS MATRIX

© 2019 MicroVision, Inc. All rights reserved.
MicroVision®and PicoP®are registered trademarks of MicroVision, Inc.
All other trademarks are property of their respective owners.
DB0140007, Revision A.1, October 2019
Table of contents
Popular Lighting Equipment manuals by other brands

Intertek
Intertek Acme Solat Impulse user manual

Big Red Rooster

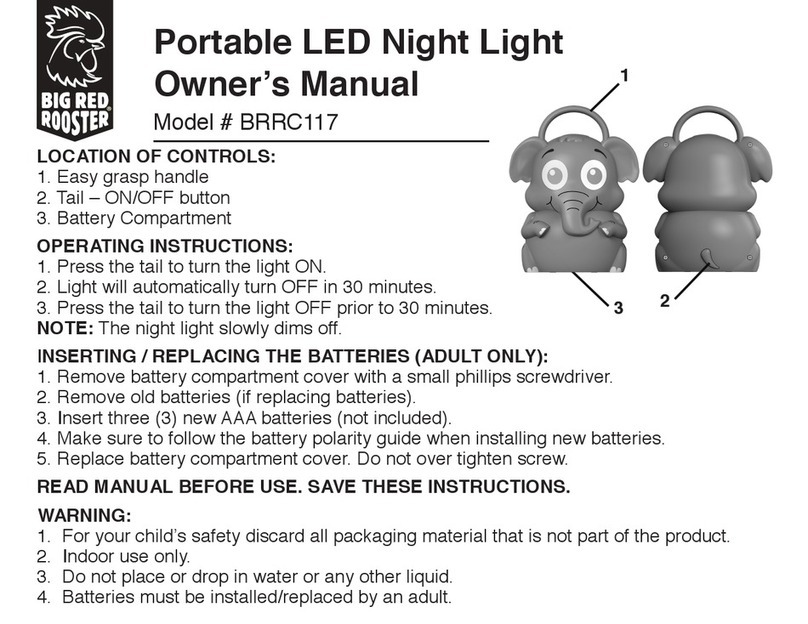

Big Red Rooster BRRC117 owner's manual
