Midas RTE-V830-PC User manual

RTE-V830-PC
User's Manual
Midas lab

RTE-V830-PC USER’S MANUAL
1
REVISION HISTORY
Date of enforcement Revision Page Description
November 28, 1995 0.9 Preliminary issue
December 25, 1995 0.91 6, 7,...
9, 10 Correction of error in which SW1 was written as SW2
and vice versa
Correction of error related to descriptions about SW1
(1-2 and 3-4) settings
February 5, 1996 0.92 14 Correction of errors in tables in Sections 6.1 and 6.2
November 23, 1996 1.01e 16
21
Correction of errors in tables in Sections 6.2
(bit2-bit0 in port0 )
Correction of errors in tables in Sections 7

RTE-V830-PC USER’S MANUAL
2
CONTENTS
1. INTRODUCTION ...............................................................................................................4
1.1. NUMERIC NOTATION..............................................................................................4
2. FEATURES AND FUNCTIONS..........................................................................................5
3. BOARD CONFIGURATION...............................................................................................6
3.1. RESET SWITCH (SWRESET)..................................................................................6
3.2. POWER SUPPLY CONNECTOR (JPOWER) ...........................................................6
3.3. SWITCH 1 (SW1)......................................................................................................6
3.4. SWITCH 2 (SW2)......................................................................................................7
3.5. LED...........................................................................................................................7
3.6. TEST PINS (TP)........................................................................................................7
3.7. SERIAL CONNECTOR (JSIO)...................................................................................8
3.8. CPU TEST PINS (J1)................................................................................................8
3.9. CLOCK SOCKET (OSC1) .........................................................................................8
3.10. DRAM-SIMM SOCKETS ...........................................................................................9
3.11. ROM SOCKETS........................................................................................................9
4. INSTALLATION AND USE..............................................................................................10
4.1. BOARD SETTING...................................................................................................10
4.2. INSTALLATION ON THE ISA BUS..........................................................................11
4.3. STANDALONE USE OF THE BOARD ....................................................................12
5. HARDWARE REFERENCES...........................................................................................13
5.1. MEMORY MAP .......................................................................................................13
5.2. I/O MAP ..................................................................................................................14
6. SYSTEM-I/O....................................................................................................................15
6.1. UART/TIMER (SCC2691)........................................................................................15
6.2. PIO (µPD71055)......................................................................................................15
6.3. OTHER PORTS ......................................................................................................19
7. JEXT BUS SPECIFICATION...........................................................................................21
8. OTHER CPU RESOURCES.............................................................................................23
8.1. RESET-...................................................................................................................23
8.2. NMI-........................................................................................................................23
9. MULTI MONITOR............................................................................................................24
9.1. MONITOR WORK RAM..........................................................................................24
9.2. INTERRUPTS .........................................................................................................24

RTE-V830-PC USER’S MANUAL
3
9.3. _INIT_SP SETTING ................................................................................................24
9.4. REMOTE CONNECTION........................................................................................24
10. RTE COMMANDS ...........................................................................................................25
10.1. HELP (?) .................................................................................................................25
10.2. INIT.........................................................................................................................25
10.3. VER ........................................................................................................................25
10.4. INB, INH, AND INW ................................................................................................25
10.5. OUTB, OUTH, AND OUTW.....................................................................................26
10.6. DCTR COMMAND...................................................................................................26
10.7. ITCR COMMAND....................................................................................................26
10.8. PLLCR COMMAND.................................................................................................26
10.9. CMCR COMMAND..................................................................................................26
11. APPENDIX DRAM TIMING............................................................................................27
11.1. DRAM INTERFACE OVERVIEW ............................................................................27
11.2. SIGNAL DESCRIPTIONS........................................................................................27
11.3. 32-BIT BUS MODE (SINGLE READ, NORMAL)......................................................28
11.4. 32-BIT BUS MODE (SINGLE READ, HIT)...............................................................29
11.5. 32-BIT BUS MODE (SINGLE READ, NOHIT)..........................................................30
11.6. 32-BIT BUS MODE (SINGLE WRITE, NORMAL)....................................................31
11.7. 32-BIT BUS MODE (SINGLE WRITE, HIT).............................................................32
11.8. 32-BIT BUS MODE (SINGLE WRITE, NOHIT)........................................................33
11.9. 32-BIT BUS MODE (BURST READ, INTERLEAVE)................................................34
11.10. 32-BIT BUS MODE (BURST WRITE, INTERLEAVE)............................................35
11.11. 32-BIT BUS MODE (BURST READ, NONINTERLEAVE)......................................36
11.12. 32-BIT BUS MODE (BURST WRITE, NONINTERLEAVE)....................................37
11.13. 16-BIT BUS MODE (SINGLE READ).....................................................................38
11.14. 16-BIT BUS MODE (SINGLE WRITE)...................................................................40
11.15. 16-BIT BUS MODE (BURST READ, INTERLEAVE)..............................................41
11.16. 16-BIT BUS MODE (BURST WRITE, INTERLEAVE)............................................42
11.17. 16-BIT BUS MODE (BURST READ, NONINTERLEAVE)......................................43
11.18. 16-BIT BUS MODE (BURST WRITE, NONINTERLEAVE)....................................44

RTE-V830-PC USER’S MANUAL
4
1. INTRODUCTION
This manual describes the RTE-V830-PC, which is an evaluation board for the V830, NEC's
CPU. With the RTE-V830-PC, it is possible to develop and debug programs, and evaluate the
CPU performance, using the GreenHills Multi debugger. Communication with this debugger is
carried out using the IBM-PC/AT ISA bus or RS-232C serial interface. It is also possible to
expand memory and I/O units using local bus connectors provided on the evaluation board.
1.1. NUMERIC NOTATION
This manual represents numbers according to the notation described in the following table.
Hexadecimal and binary numbers are hyphenated at every four digits, if they are difficult to read
because of many digits being in each number.
Number Notation rule Example
Decimal
number Only numerals are indicated. "10" represents number 10 in decimal.
Hexa-
decimal
number
A number is suffixed with letter H. "10H" represents number 16 in decimal.
Binary
number A number is suffixed with letter B. "10B" represents number 2 in decimal.
Number Notation Rules

RTE-V830-PC USER’S MANUAL
5
2. FEATURES AND FUNCTIONS
The overview of each function block of the RTE-V830-PC is shown below.
V830
ISA Bus
Local Bus
ISA BUS I/F
JEXT
CONNECTOR
OR
D-RAM
S-RAM
ROM
TIMER/SIO
Internal
Control
OR
RS-232C
CONNECTOR
OR
PIO
USER
HW
RTE-V830-PC Block Diagram
Features
•ROM: 256 Kbytes (64K x 16-bit EPROM x 2)
•SRAM: 512 Kbytes (64K x 16-bit SRAM x 4)
•DRAM: 8, 16, or 32 Mbytes (standard of 8 Mbytes) installed in two 72-pin SIMM sockets
•RS-232C port (9-pin D-SUB connector)
•Communication function supported using the ISA bus of a PC/AT or compatible
•Local bus connector for user-installed expansion equipment
•Processor pin connector enabling measurement of all CPU signals
•External reset switch provided on the rear panel
•Connection pins for ROM in-circuit debugger

RTE-V830-PC USER’S MANUAL
6
3. BOARD CONFIGURATION
The physical layout of the major components on the RTE-V830-PC board is shown below. This
chapter explains each component.
RTE-V830-PC Board Top View
3.1. RESET SWITCH (SWRESET)
SWRESET is a reset switch. Pressing this switch causes the CPU to be reset.
3.2. POWER SUPPLY CONNECTOR (JPOWER)
When this board is to be used as a standalone, that is, without being inserted in an ISA bus slot,
the board should be supplied with power from an external power supply by connecting it to the
JPOWER connector.
The external power should be one rated as listed below.
Voltage: 5 V
Current: Maximum of 2 A (excluding the current supplied to the JEXT
connector)
Mating connector: Type A (5.5 mm in diameter)
Polarity:
GND
GND
+5V
+5V
[Caution] When attaching an external power supply to the board, be careful about its
connector polarity. When inserting the board into the ISA bus slot, do not attach the JPOWER
connector to an external power supply.
3.3. SWITCH 1 (SW1)
SW1 is a switch for general-purpose input ports. When SW1 is in the OFF position, it
represents 1. When it is in the ON position, it represents 0. See Section 6.2 for details.
SW2
SCC/
TIMER
SW RESET
JPOWER
JEXT
JSIO
PLD
PIO
SW1
PLD
PLD
PLD
PLD
ROM
(D16-31)
ROM
(D0-15)
RAMRAM
V830
J1(1-36)
J1(37-72)
J1(73-108)
J1(109-144)
TP
OSC1
1pin
SIM-72pin X 2
POWER
CS0
CS1
CS2
CS3
TOVER

RTE-V830-PC USER’S MANUAL
7
3.4. SWITCH 2 (SW2)
SW2 is a switch for selecting the I/O address of the ISA bus. Switch contacts 1 to 8
corresponds to ISA addresses A4 to A11, respectively (A12 to A15 are fixed at 0). This means
that the I/O address that can be selected ranges between 000xH and 0FFxH. When a switch
contact is open, it corresponds to 1. When it is closed, it corresponds to 0.
SW2 contact 12345678
ISA address A4 A5 A6 A7 A8 A9 A10 A11
SW2-to-ISA Address Correspondence
3.5. LED
The LEDs are used to indicate statuses, as listed below.
LED Description
POWER Lights when power is supplied to the RTE-V830-PC board.
CS0 Lights when the CS0 pin of the CPU is active (low).
CS1 Lights when the CS1 pin of the CPU is active (low).
CS2 Lights when the CS2 pin of the CPU is active (low).
CS3 Lights when the CS3 pin of the CPU is active (low).
TOVER Lights when a time-out occurs.
LED Indication
3.6. TEST PINS (TP)
Test pins are used to connect a ROM in-circuit debugger. They accept control signals from
the ROM in-circuit debugger. The following table lists the signal name and function related to
each test pin.
Signal Input/
output Function
RESET- Input When a low level is supplied to this test pin, the CPU is reset. A
reset request signal from the ROM in-circuit debugger is
connected to the test pin. The test pin is pulled up with 1kΩ.
NMI- Input When a low level is supplied to this test pin, an NMI signal is given
to the CPU. This signal can be masked by software. An NMI
request (break request) signal from the ROM in-circuit debugger is
connected to the test pin. The test pin is pulled up with 1kΩ.
GND –––This test pin is at a ground level. The ground level of the ROM
in-circuit debugger is connected to the test pin.
Test Pin Functions

RTE-V830-PC USER’S MANUAL
8
3.7. SERIAL CONNECTOR (JSIO)
JSIO is a connector for the RS-232C interface controlled by the serial controller (SCC2691). It
is a 9-pin D-SUB connector (D-SUB9) generally used with the PC/AT. All signals at this
connector are at RS-232C level. Its pin arrangement and signal assignment are shown and
listed below.
For connection signals connected to the host computer, the table gives the wirings for both the
D-SUB9 pins and D-SUB25 pins on the host side. (These are general cross-cable wirings.)
1
9
8
7
6
5
4
3
2
JSIO Pin Arrangement
Pin Signal name Input/
output Connector pin number on the host side
D-SUB9 D-SUB25
1NC
2RxD(RD) Input 3 2
3TxD(SD) Output 2 3
4DTR(DR) Output 1, 6 6, 8
5GND 5 7
6DSR(ER) Input 4 20
7RTS(RS) Output 8 5
8CTS(CS) Input 7 4
9NC
JSIO Connector Signals
3.8. CPU TEST PINS (J1)
The CPU test pins are connected to the corresponding CPU pins. The test pin numbers
correspond to the CPU pin numbers on a one-to-one basis. The test pins can be used to
handle CPU signals for test purposes.
3.9. CLOCK SOCKET (OSC1)
The OSC1 socket is connected to an oscillator used to supply clock pulses to the CPU. The
V830 uses a PLL for system clock generation. The SW1-7 setting specifies the frequency of
the oscillator connected to the OSC1 socket. The frequency must be half or one-third the
internal clock frequency.
The oscillator connected to the OSC1 socket must be of an 8-pin DIP type (half type).
[Caution] When you have to cut an oscillator or crystal pin for convenience, be careful not to
cut it too short, or otherwise the frame (housing) of the oscillator or crystal may touch a tine in
the socket, resulting in a short-circuit occurring.

RTE-V830-PC USER’S MANUAL
9
3.10. DRAM-SIMM SOCKETS
The RTE-V830-PC has DRAM-SIMM sockets used to install two 4 Mbytes (standard) of SIMMs.
Each socket can hold a 72-pin 4-, 8-, or 16-Mbyte SIMM (known as a module for DOS/V
machines), so it is easy to expand the capacity of DRAM. Select SIMM chips that meet the
access timing requirements listed in a table elsewhere. The selected SIMM chips must be of
the same model. The capacity of installed SIMMs can be detected using a PIO port. (See
Section 6.2.)
3.11. ROM SOCKETS
The RTE-V830-PC has ROM sockets to hold 40-pin ROM chips to provide standard 128 Kbytes
(64K x 16 bits). When the ROM chips used here are to be replaced, the access time should be
150 ns or less.

RTE-V830-PC USER’S MANUAL
10
4. INSTALLATION AND USE
The RTE-V830-PC board is designed to be installed in the ISA bus slot of a PC/AT or compatible
(hereafter called the PC). However, it can also be used as a standalone, if it is powered from
an external power supply. When the board is used for testing purposes or with the Multi
debugger, communication software called RTE for Windows must be installed in the PC. Refer
to the RTE for Windows Installation Manual for installation and test methods.
4.1. BOARD SETTING
The RTE-V830-PC board has DIP switches. The DIP switches can be used to set up the
evaluation board. The switch layout is shown below.
Switches on the RTE-V830-PC Board
SW2 is a switch for selecting the I/O address of the ISA bus. Switch contacts 1 to 8 correspond
to ISA addresses A4 to A11, respectively (A12 to A15 are fixed at 0). This means that the I/O
address that can be selected ranges between 000xH and 0FFxH. When a switch contact is
open, it corresponds to 1. When it is closed, it corresponds to 0. Generally, SW2 is set to any
value between 20xH and 3FxH.
SW2
contact 12345678
Address A4 A5 A6 A7 A8 A9 A10 A11 I/O address
ON/
OFF 0000010 0 020xH (factory-set)
SW2-to-ISA I/O Address Correspondence
SW1 is a switch for general-purpose input ports. For the Multi monitor in the factory-installed
ROM, SW1 is used to set the RS-232C baud rate and profiler timer period.
SW1
contact 1 2 Baud rate
Setting ON
OFF
ON
OFF
ON
ON
OFF
OFF
Not used
38400 baud
19200 baud
9600 baud (factory-set)
Baud Rate Setting
SW2
SCC/
TIMER
SWRESET
JPOWER
JEXT
JSIO
PLD
PIO
SW1
PLD
PLD
PLD
PLD
ROM
(D16-31)
ROM
(D0-15)
RAMRAM
V830
J1(1-36)
J1(37-72)
J1(73-108)
J1(109-144)
TP
OSC1
1pin
SIM-72pin X 2
POWER
CS0
CS1
CS2
CS3
TOVER

RTE-V830-PC USER’S MANUAL
11
SW1
contact 3 4 Profiler period
Setting ON
OFF
ON
OFF
ON
ON
OFF
OFF
Timer is not used.
200 Hz 5 ms
100 Hz 10 ms
60 Hz 16.67 ms (factory-set)
Profiler Period Setting
Contacts 5 and 6 of SW1 are not used for the Multi monitor (they are fixed at OFF).
SW1
contact 7CMODE (V830 pin)
Setting ON
OFF Triple mode Double mode
CMODE Setting
SW1
contact 8SIZE16 (V830 pin)
Setting ON
OFF 32-bit mode 16-bit mode
SIZE16 Setting
4.2. INSTALLATION ON THE ISA BUS
When the RTE-V830-PC is installed in the ISA bus slot of the PC, power (+5V) is supplied from
the ISA bus to the board. In addition, the ISA bus can be used for communication with the
debugger, so programs are down-loaded at high speed.
The RTE-V830-PC can be installed in the ISA bus slot according to the following procedure.
•Set the I/O address of the PC using a DIP switch on the board. Be careful not to specify
the same I/O address as used for any other I/O unit. See Section 4.1 for switch setting.
‚Turn off the power to the PC, open its housing, and confirm the ISA bus slot to be used. If
the slot is equipped with a rear panel, remove the rear panel.
ƒInsert the board into the ISA bus slot. Make sure that the board does not touch any
adjacent board. Fasten the rear panel of the board to the housing of the PC with screws.
„Turn on the power to the PC, and check that the POWER-LED on the board lights. If the
LED does not light, turn off the PC power immediately, and check the connection. If
the system does not start normally (for example, if an error occurs during installation of a
device driver), it is likely that the set I/O address is the same as one already in use.
Reconfirm the I/O address of the board by referring to the applicable manual of the PC or
the board.
…When the system turns out to be normal, turn off the PC power again, and put back its
housing.

RTE-V830-PC USER’S MANUAL
12
4.3. STANDALONE USE OF THE BOARD
When the RTE-V830-PC is used as a standalone rather than being installed in the PC, it
requires an external power supply. In addition, communication with the debugger is supported
only by the RS-232C interface. This configuration is useful when the host debugger used with
the board is not one in the PC/AT or compatible as well as when the board is used for hardware
confirmation and expansion.
The RTE-V830-PC can be used as a standalone according to the following procedure.
•Get an RS-232C cable for connection with the host and an external power supply (+5 V, 1
A) on hand. Especially for the power supply, watch for its voltage and connector polarity.
In addition, attach spacers to the four corners of the board, so it will not pose any problem
wherever it is installed. See Sections 3.7 and 3.2 for RS-232C cable connection and the
power supply connector, respectively.
‚Set the RS-232C baud rate using a DIP switch on the board. See Section 4.1 for switch
setting.
ƒConnect the board to the host via an RS-232C cable. Also connect an external power
supply to the JPOWER connector, then check that the POWER-LED on the board lights.
If the LED does not light, turn off the power immediately, and check the connection.

RTE-V830-PC USER’S MANUAL
13
5. HARDWARE REFERENCES
This chapter describes the hardware of the RTE-V830-PC.
5.1. MEMORY MAP
The memory assignment of the board is shown below.
0000-0000
4FFF-FFFF
8000-0000
4000-0000
7E00-0000
0000-0FFF
CS0 space
6000-0000
6010-0000
6020-0000
600F-FFFF
601F-FFFF
60FF-FFFF
80FF-FFFF
C000-0000
BFFF-FFFF
61FF-FFFF
6200-0000
6FFF-FFFF
XE80-0000
XE7F-FFFF
XE00-0000
XEFF-FFFF
XF00-0000
XFFB-FFFF
XFFC-0000
FE00-1000
XFFF-FFFF
FFFF-FFFF
Image of XE7F-
0000 to XE00-
0000
Image of
XFFC-0000 to
XFFF-FFFF
Access
inhibited
CS1 space
CS2 space
CS3 space (*1)
DRAM
Reserved
SRAM
EXT-BUS
SYSTEM-I/O
ROM
0000-1000
0FFF-FFFF
2FFF-FFFF
2000-0000
3000-0000
Built-in data RAM
3FFF-FFFF
CS1 space
CS2 space
CS3 space
7000-0000
7DFF-FFFF
5FFF-FFFF
5000-0000
6000-0000
6FFF-FFFF
7FFF-FFFF
Access
inhibited
Access
inhibited
Access
inhibited
FDFF-FFFF
FE00-0000
FE00-0FFF
CS0 space
Built-in instruction
RAM
Cacheable
area
Cacheable
area
Un-
cacheable
area
Cacheable
area
6100-0000
Access
inhibited
Reserved
X000-0000
XFFF-FFFF
X000-0000
X1FF-FFFF
X200-0000
XFFF-FFFF
Image of X000-
0000 to X1FF-
FFFF
*1 Access to the CS3 space at 3000-0000 to 3FFF-FFF is
inhibited.

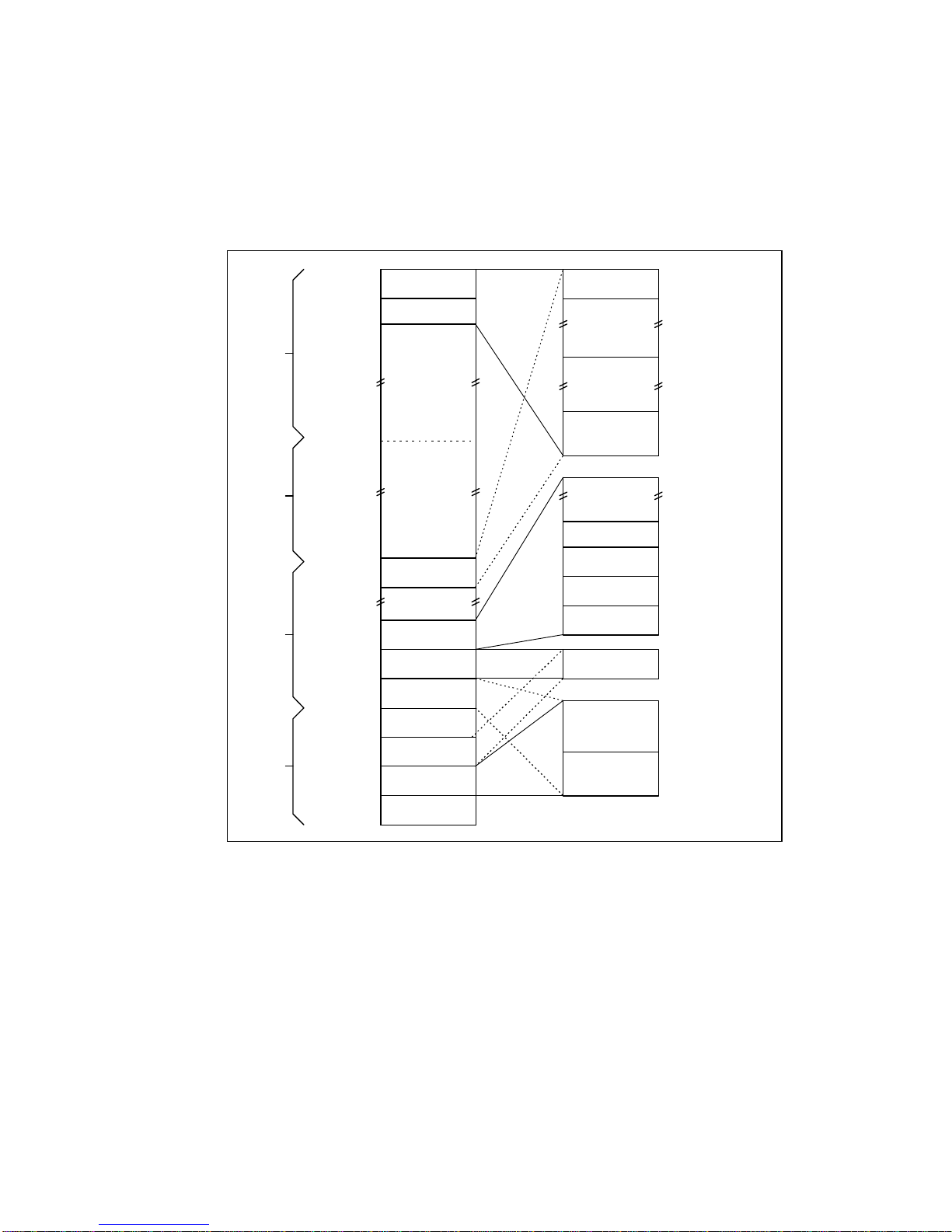

Memory Map
DRAM spaces (0000-0000H to 01FF-FFFFH and 4000-0000H to 41FF-FFFFH)
These are spaces in 72-pin SIMM chips mounted on the RTE-V830-PC board. Two 4-Mbyte
SIMM chips are used in a standard configuration. They can be replaced with 8- or 16-Mbyte
SIMM chips for memory expansion. It is possible to specify RAS, CAS, and precharge
widths. (See Section 6.2.)
Reserved and access-inhibited spaces
Do not attempt to access these spaces.

RTE-V830-PC USER’S MANUAL
14
EXT-BUS space (6010-0000H to 601F-FFFFH)
This space is used for a hardware expansion board connected to the JEXT connector on the
RTE-V830-PC. See Chapter 7 for details of the EXT-BUS.
SYSTEM-I/O space (6100-0000H to 61FF-FFFFH)
This space is assigned to I/O devices for controlling each function on the board. It acts as
memory-mapped I/O units. See Chapter 6 for details..
SRAM space (FE00-0000H to FE07-FFFFH and 7E00-0000H to 7E07-FFFFH)
This space is provided in SRAM on the board. Its capacity is 512 Kbytes. SRAM can be
accessed with no wait state. Wait states can be specified for read and write cycles
separately. (See Section 6.2.)
ROM space (FFFC-0000H to FFFF-FFFFH and 7FFC-0000H to 7FFF-FFFFH)
This space is provided in ROM on the board. Its storage capacity is 256 Kbytes. Ten wait
states are inserted in a ROM access cycle during ready signal control. If the external bus
clock frequency is 50 MHz, the access time of the ROM must be 150 ns or less.
The standard ROM chip that is factory-set contains the Multi monitor.
5.2. I/O MAP
The I/O space in the V830-CPU is not used by the RTE-V830-PC. The I/O registers used for
control purposes are allocated in the memory-mapped SYSTEM-I/O space.

RTE-V830-PC USER’S MANUAL
15
6. SYSTEM-I/O
SYSTEM-I/O is an I/O device mapped in a memory space. The I/O devices include the
UART/TIMER, PIO, and ISA bus interface. (No description about the ISA bus interface is
included.)
6.1. UART/TIMER (SCC2691)
The SCC2691 UART receiver/transmitter LSI chip produced by PHILIPS Signetics is used as the
UART/TIMER. Because the SCC2691 has a 3-character buffer in the receiver section, it is
possible to minimize chances of an overrun error occurring during reception. Moreover, a
3.6864 MHz oscillator is connected across the X1 and X2 pins. It, in conjunction with a 16-bit
counter in the SCC2691, enables measurement of about 271 ns to 17.8 ms.
Each register in the SCC2691 is assigned as listed below. Refer to the applicable SCC2691
manual for the function of each register.
Address Read access Write access
6100-0400h MR1, MR2 MR1, MR2
6100-0404h SR CSR
6100-0408h Reserved CR
6100-040Ch RHR THR
6100-0410h Reserved ACR
6100-0414h ISR IMR
6100-0418h CTU CTUR
6100-041Ch (CTL) CTLR
SCC2691 Register Mapping
The general-purpose output pin (MPO) and input pin (MPI) are used as RTS (RS) and CTS (CS),
respectively. DTR (DR) and DSR (ER) are controlled by the PIO. See Section 6.2 for details.
The SCC2691 is reset at a system reset (see Section 8.1).
6.2. PIO ( µ PD71055)
The µPD71055 produced by NEC is installed as a PIO. The µPD71055 is compatible with the
i8255 produced by Intel. It has three parallel ports. These ports are used for various types of
control. Each register of the PIO is assigned as listed below.
Address Read access Write access
6100-0800h PORT0 PORT0
6100-0804h PORT1 PORT1
6100-0808h PORT2 PORT2
6100-080Ch --------- COMMAND REG
PIO Register Mapping
The PIO ports are reset at a system reset. When reset, all these ports are set as input, so the
signal state of bits used for output is set to a high level, using a pull-up resistor. The following
table lists the way each port is used.

RTE-V830-PC USER’S MANUAL
16
Bit7 Bit6 Bit5 Bit4 Bit3 Bit2 Bit1 Bit0
PORT0 SRAMRD
WIDE1 SRAMRD WIDE0 SRAMWR WIDE1 SRAMWR WIDE0 INTERLEAVE Reserved field 1
Output
PORT1 PCWIDE1 PCWIDE0 RDCAS
WIDE1 RDCAS WIDE0 WRCAS WIDE0 MINRASWIDE[2..0]
Output
PORT2 PD[2..1] TOVERF- DSR- DTR- NMIMASK TOVERCLR- Reserved
field 1
Input Output
PIO Bit Assignment
The following paragraphs detail each port bit.
Port 0: Internal control port (output).....61000800h
P07 P06 P05 P04 P03 P02 P01 P00
SRAMRD
WIDE1 SRAMRD WIDE0 SRAMWR WIDE1 SRAMWR WIDE0 INTERLEAVE Reserved
Reserved field 1: All the three bits in this field are reserved for the system. Once they are
initialized to 1, do not change them.
INTERLEAVE: This bit specifies whether to use the noninterleave emulation mode.
When the bit is 1, the DRAM is put in the normal mode. When it is 0,
the DRAM is put in the noninterleave emulation mode.
SRAMWRWIDE1..0: These bits specify the number of wait states to be inserted in an SRAM
write cycle.
SRAMWRWIDE1 SRAMWRWIDE0 Function
0 0 No wait state is inserted in an SRAM write cycle.
0 1 One wait state is inserted in an SRAM write cycle.
1 0 Two wait states are inserted in an SRAM write cycle.
1 1 Three wait states are inserted in an SRAM write cycle.
SRAMRDWIDE1..0: These bits specify the number of wait states to be inserted in an SRAM
read cycle.
SRAMRDWIDE1 SRAMRDWIDE0 Function
0 0 No wait state is inserted in an SRAM read cycle.
0 1 One wait state is inserted in an SRAM read cycle.
1 0 Two wait states are inserted in an SRAM read cycle.
1 1 Three wait states are inserted in an SRAM read cycle.

RTE-V830-PC USER’S MANUAL
17
Port 1: DRAM access condition setting output port (input).....61000804h
P17 P16 P15 P14 P13 P12 P11 P10
PRCWIDE
1PRCWIDE 0RDCAS WIDE1 RDCAS WIDE0 WRCAS WIDE0 MINRAS WIDE2 MINRAS WIDE1 MINRAS WIDE0
MINRASWIDE2..0: These bits specify the minimum RAS width for DRAM operations.
RASWIDE
2RASWIDE
1RASWIDE 0Function
0 0 0 This bit combination shall not be specified.
0 0 1 This bit combination shall not be specified.
0 1 0 The minimum RAS width is specified to be two CPU bus
clock cycles.
0 1 1 The minimum RAS width is specified to be three CPU bus
clock cycles.
1 0 0 The minimum RAS width is specified to be four CPU bus
clock cycles.
1 0 1 This bit combination shall not be specified.
1 1 0 This bit combination shall not be specified.
1 1 1 This bit combination shall not be specified.
WRCASWIDE0: This bit specifies the CAS width for DRAM write operations.
WRCASWIDE0 Function
0The CAS width for a write operation is specified to be one CPU bus clock
cycle.
1The CAS width for a write operation is specified to be two CPU bus clock
cycles.
RDCASWIDE1..0: These bits specify the CAS width for DRAM read operations.
RDCASWIDE1 RDCASWIDE0 Function
0 0 This bit combination shall not be specified.
0 1 The CAS width for a read operation is specified to be one
CPU bus clock cycle.
1 0 The CAS width for a read operation is specified to be two
CPU bus clock cycles.
1 1 The CAS width for a read operation is specified to be three
CPU bus clock cycles.

RTE-V830-PC USER’S MANUAL
18
PRCWIDE1..0: These bits specify the precharge width for DRAM operations.
PRCWIDE1 PRCWIDE0 Function
0 0 This bit combination shall not be specified.
0 1 The precharge width is specified to be one CPU bus clock
cycle.
1 0 The precharge width is specified to be two CPU bus clock
cycles.
1 1 The precharge width is specified to be three CPU bus clock
cycles.
Port 2: Internal control port (output).....61000808h
P23 P22 P21 P20
DTR- NMIMASK TOVERFCLR- Reserved
field 1
Reserved field 1: The bit in this field is reserved for the system. Once the bit is initialized to 1,
do not change it.
TOVERCLR-: This is a control bit used to clear TOVERF- in bit 5 of port 2. It should be
initialized to 1 and usually kept to be 1. When TOVERF- is to be cleared,
the bit should be rest to 0, then set back to 1.
NMIMASK: This bit is used to mask an NMI signal input to the CPU. When the bit is 1,
the NMI signal is masked at a gate. The bit should be initialized to 1.
When an NMI becomes acceptable, the bit should be reset to 0. In the Multi
monitor, it is initialized to 1.
DTR-: This bit controls the DTR signal output from the JSIO connector. The
inverted state of this bit is converted to the RS-232C level and output to the
JSIO connector.
Port 2: Internal control port (input).....61000808h
P27 P26 P25 P24
PD2 PD1 TOVERF- DSR-
DSR-: This bit indicates the state of the DSR signal input from the JSIO connector. The
state of this bit represents the inverted state of the DSR signal at the JSIO
connector.
TOVERF-: This bit becomes 0, when 30 or more bus cycles occur to result in a time-out. The
flag is cleared (to 1), using bit 1 (TOVERCLR-) of port 2.
PD[2..1]: PD[2..1] of a DRAM (72-pin SIMM) chip mounted on the board can be read-
accessed. The states of these bits indicate the size of the DRAM area. The
following table lists the relationships between PD[2..1] and the DRAM capacity.

RTE-V830-PC USER’S MANUAL
19
PD[2] PD[1] DRAM capacity
0 0 4 Mbytes
0 1 Reserved
1 0 16 Mbytes
1 1 8 Mbytes
PD[2..1] and DRAM Capacity
Ports 0 to 2: Control ports.....6100080Ch
Ports 0, 1, and 2 belong to the µPD71055. These ports are initialized by writing to the indicated
location.
6.3. OTHER PORTS
Port 3: 7-segment LED display data output port (output).....61000C00h
P17 P16 P15 P14 P13 P12 P11 P10
DPseg Gseg Fseg Eseg Dseg Cseg Bseg Aseg
Port 4: DIP SW1 state read port (input).....61000C04h
P17 P16 P15 P14 P13 P12 P11 P10
SW1-8 SW1-7 SW1-6 SW1-5 SW1-4 SW1-3 SW1-2 SW1-1
SIZE16B CMODE no use no use TIM1 TIM0 BPS1 BPS0
SW1-[8..1]: The states of SW1 mounted on the board can be read-accessed. SW1-1
corresponds to contact 1 of SW1, and SW1-2 corresponds to contact 2 of SW1,
and so on. When a switch is ON, the corresponding bit is 0, and when it is OFF,
the corresponding bit is 1.
BPS1 BPS0 Baud rate
ON ON 9600 bps
ON OFF 19200 bps
OFF ON 38400 bps
OFF OFF don’t use
A
B
C
D
E
F
G
DP
