Middle Atlantic Products UPS-IPCARD User manual

I-00453 Rev B
UPS SERIES
Network Interface Card
UPS-IPCARD
User’s Manual

Page 2
TABLE OF CONTENTS
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 4
INSTALLATION GUIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 - 9
WEB INTERFACE (REMOTE MANAGEMENT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 - 42
RESET TO DEFAULT SETTING/RECOVER FROM A FORGOTTEN PASSWORD . . . . . . . . . . . 43
FIRMWARE UPGRADE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 - 47
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
APPENDIX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 - 50

Page 3
INTRODUCTION
Overview
The Middle Atlantic Network Interface Card allows for remote monitoring and control of a UPS attached to a
network. After installing the hardware and configuring an IP address, the user can access, monitor, and
control the UPS from anywhere in the world. Simply use a web browser such as Internet Explorer or Firefox
to access your UPS. Servers and workstations can be protected by the UPS utilizing the Power Manager to
gracefully shutdown when signaled by the Network Interface Card.
Features
zReal time UPS monitoring
zRemote management and configuration of UPS via Web Browser or NMS
zAuto-shutdown to protect servers/workstations from data lose due to power failure
zSchedule shutdown/start-up/reboot of the UPS via remote control
zEvent logging to trace UPS operational history
zData logging for analyzing power conditions
zEvent notification via email and SNMP traps
zSupport TCP/IP, UDP, SNMP/HTTP, NTP, DNS, SMTP protocol
zSNMP MIB provided
zQuick installation and user friendly interface
zUser upgradeable firmware via FTP
zSecurity management provided
System Requirements
•A computer with a Windows or Linux Operating System (for optional Power Manager Client)
•An Ethernet connection to an existing network
•NMS (Network Management Station) compliant with SNMP (for optional NMS management)

Page 4
Middle Atlantic
Network
Interface Card
PC Protected by Middle Atlantic
Products
Power Manager
Remote NMS/Web
Browser
Supported
UPS
Server Protected by Middle
Atlantic Products
Power Manager
Workstation Protected by Middle
Atlantic Products
Power Manager
APPLICATION
UNPACKING
Inspect the Network Management Card upon receipt. The package should contain the following:
•Middle Atlantic Network Interface Card.
•Middle Atlantic Products Power Manager CD with software and user manuals.
SLOT
CARD

Page 5
INSTALLATION GUIDE
Step 1 - Hardware Installation
1)Turn off the UPS before removing the expansion port cover on the UPS.
2)Remove the two retaining screws from the expansion port cover and remove the cover.
3)Install the Middle Atlantic UPS-IPCARD into the expansion port.
4)Re-install and tighten the retaining screws.
5)Connect the Ethernet cable to the LAN port on the Middle Atlantic UPS-IPCARD.
6)Turn on the UPS.

Page 6


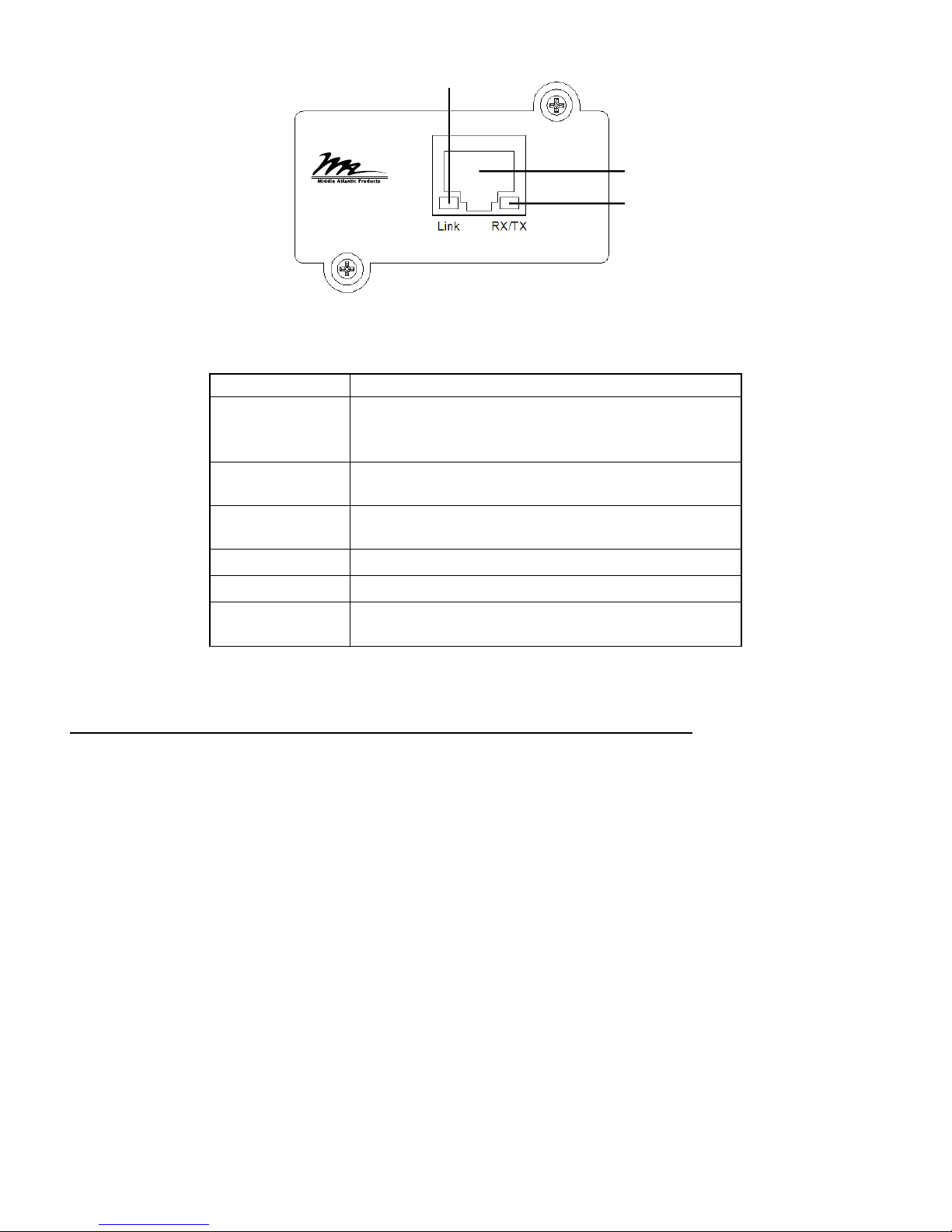

LINK Indicator
Ethernet connector
RX/TX Indicator












Definitions for LED Indicators

Link LED color Condition
Off
The Network Management Card is not
connected to the Network/or the Network
Interface Card Power is off.
On(Yellow) The Network Interface Card is connected to
the Network.
RX/TX LED
color
Off The Network Interface Card power is off.
On(Green) The Network Interface Card power is on.
Flashing - Receiving/transmitting data packet.
- Reset finished.

Step 2 - Configure the IP address for the Middle Atlantic Network Interface Card.
Method 1: Using the Middle Atlantic Power Device Network Utility Tool
1) Install the Middle Atlantic Power Device Network Utility Tool from the included CD. It is located
on the CD in the \software folder. Double click the “Middle Atlantic UPS-IPCARD Setup Utility”
installation file, “MAP_SNMP_Setup.msi” to begin the installation.
2) After installation is complete, run the “Middle Atlantic UPS-IPCARD Setup Utility” program. Under
“All Programs”, select “Middle Atlantic UPS-IPCARD Setup Utility.”
3) The main dialog of the “Middle Atlantic UPS-IPCARD Setup Utility” program is shown in Figure
1. The configuration tool will display all Middle Atlantic network cards of present on the same
network. The "Refresh" button is used to search the entire local network for SNMP cards.

Page 7
Figure 1. The main window of the “Middle Atlantic UPS-IPCARD Setup Utility” program.
4) Select the SNMP card you are setting up. Click on the Tools menu and select “Device Setup” or double
click the SNMP card you want to configure.
5) You can modify the IP Address, Subnet Mask, and Gateway address for the Device MAC Address
listed in the Device Network Settings window, as shown in Figure 2. The default IP Address is
192.168.20.177, the default Subnet Mask is 255.255.255.0.
Figure 2 - The SNMP card-setting window
6) To modify the IP Address, Subnet Mask, or Gateway Address, enter the new addresses into the
corresponding fields.

Page 8
7) You will need to enter a User Name and Password for the SNMP card in the authentication window, as
shown in Figure 3. *Default user name: admin; Default password: admin
Figure 3 - Authentication window
8) If IP address is successfully set, you will see a message that the IP set up is OK, as shown in Figure 4.
Figure 4 - Setup IP Address successfully message

Page 9
Method 2: Using a command prompt
1) Obtain the MAC address from the label on the Network Interface Card labels on top. Each Interface
card has a unique MAC address.
2) Use the ARP command to set the IP address.
Example:
To assign the IP Address 192.168.20.240 for the Network Interface Card, which has a MAC
address of 00-0C-15-00-00-01 you will type in the following command prompt from a PC connected
to the same network as the Network Interface Card.
1. Type in “arp-s 192.168.20.240 00-0C-15-00-00-01” then press Enter.
3) Use the Ping command to assign a size of 123 bytes to the IP.
1. Type in “ping 192.168.20.240 -1 123” then press Enter
2. If the replies are received, your computer can communicate with the IP address.
To select an IP address for the Network Interface Card, please refer to Appendix 1.

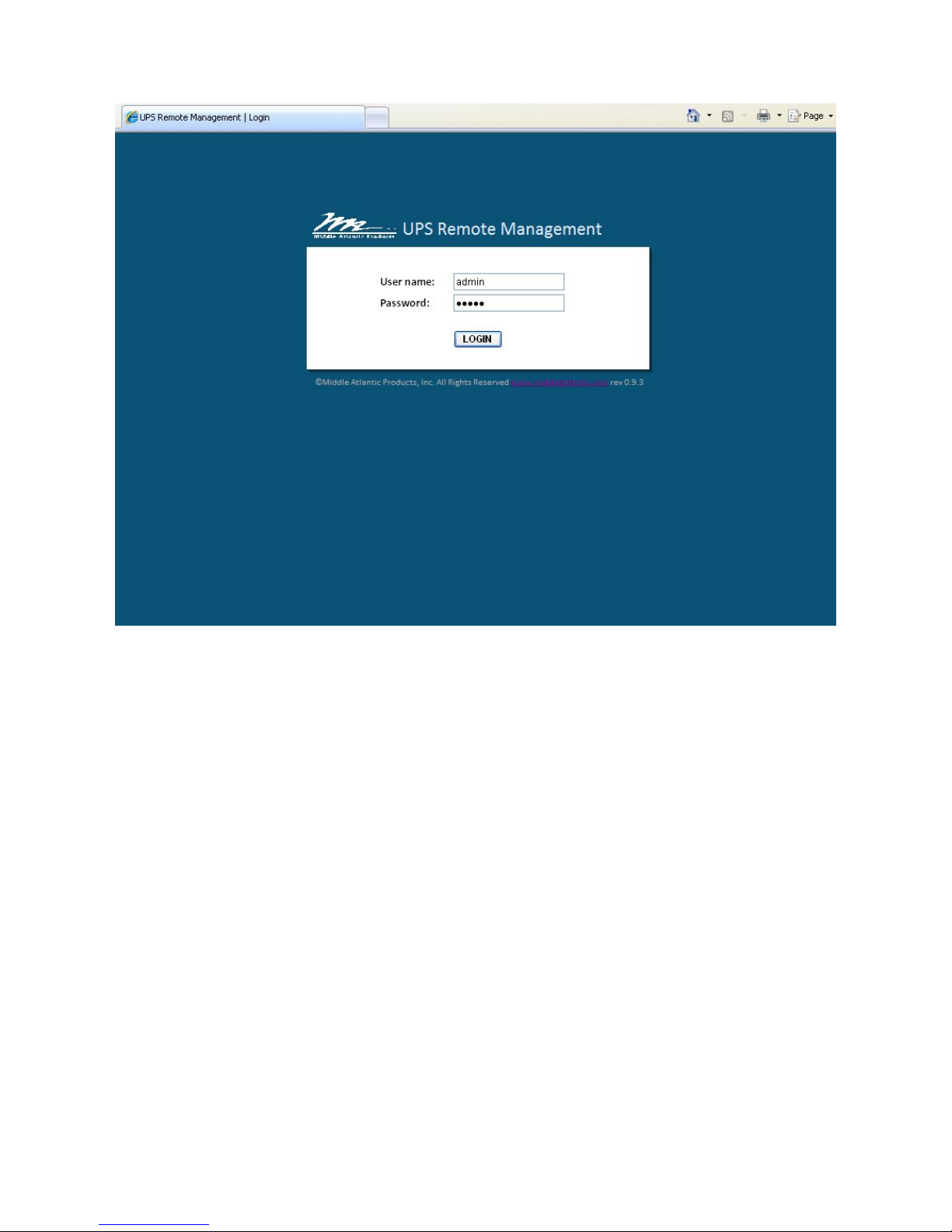

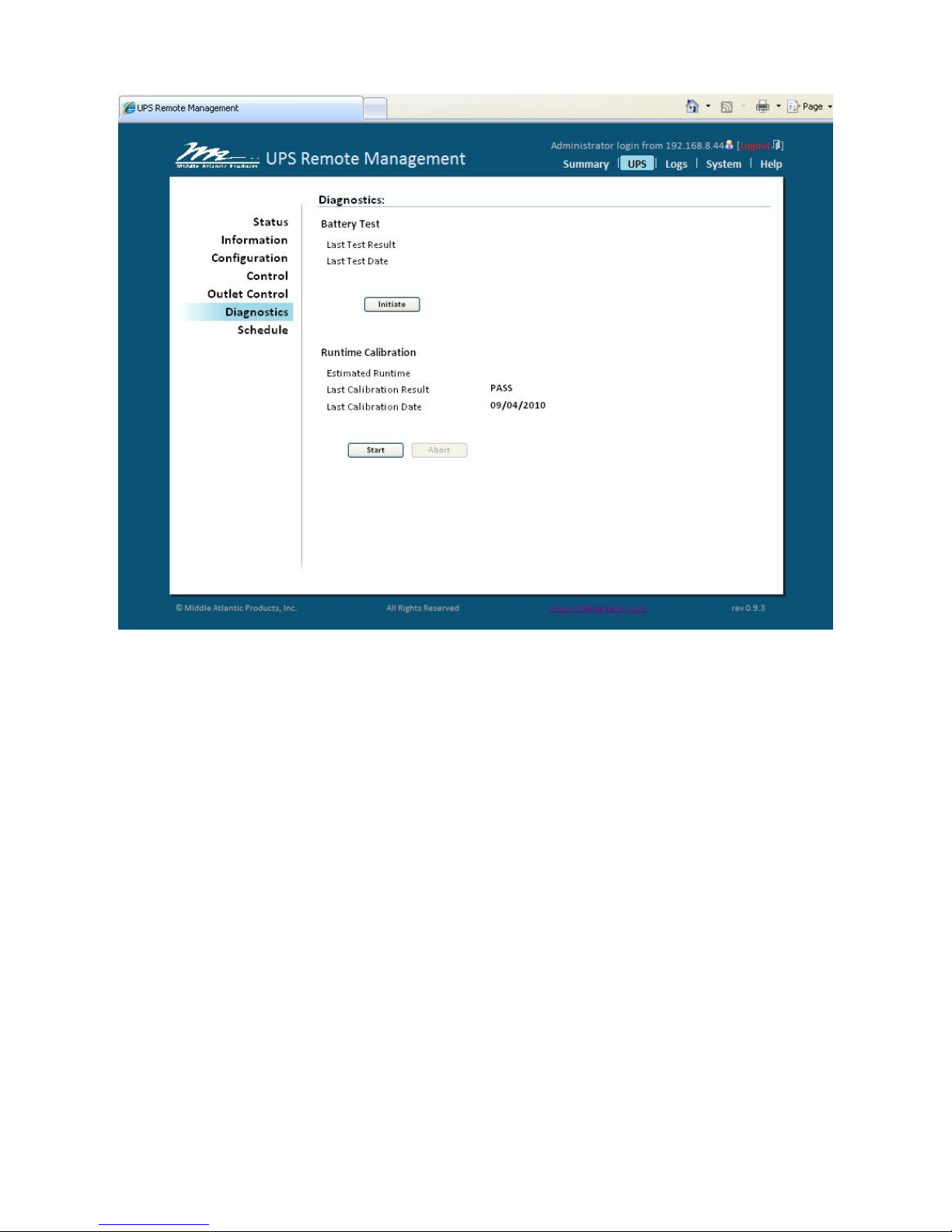

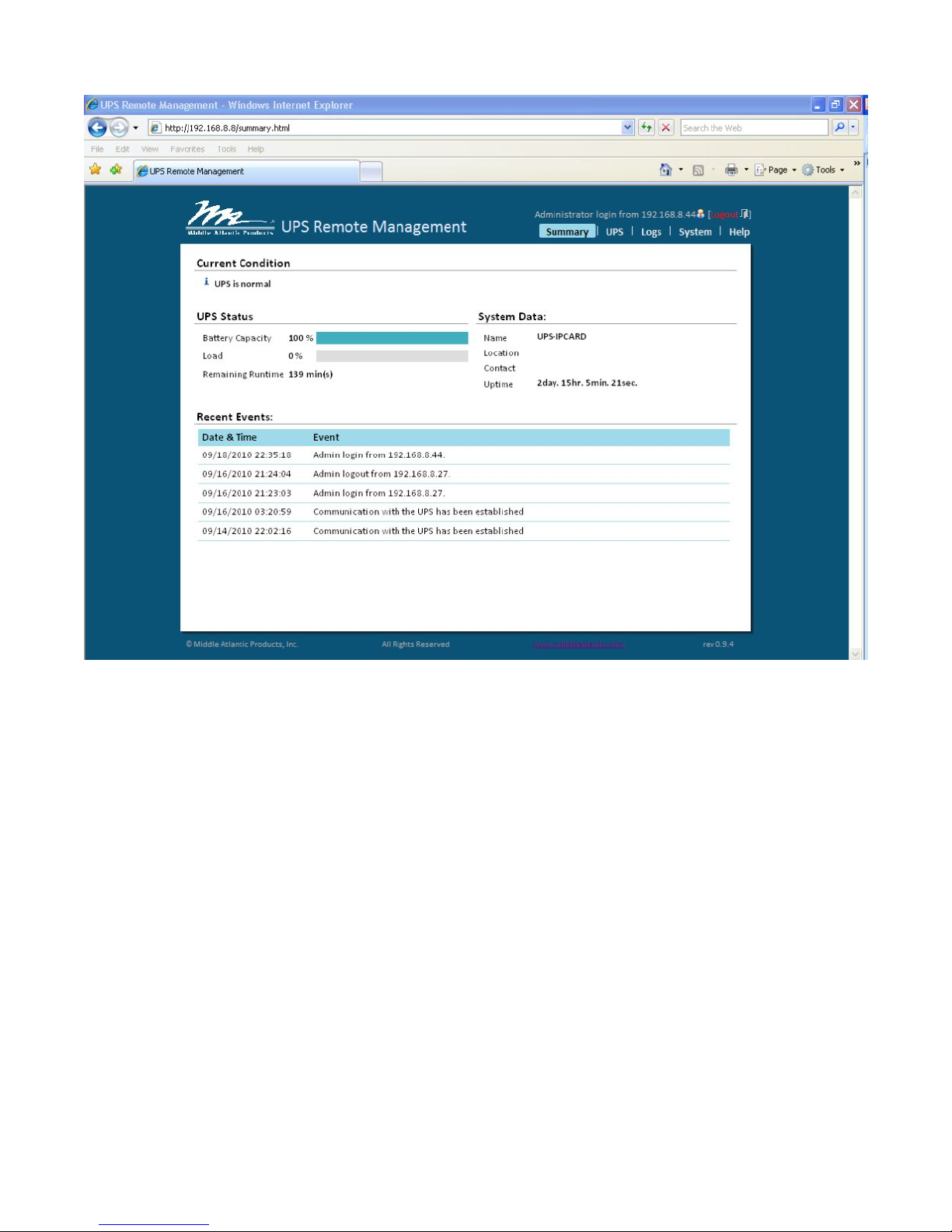

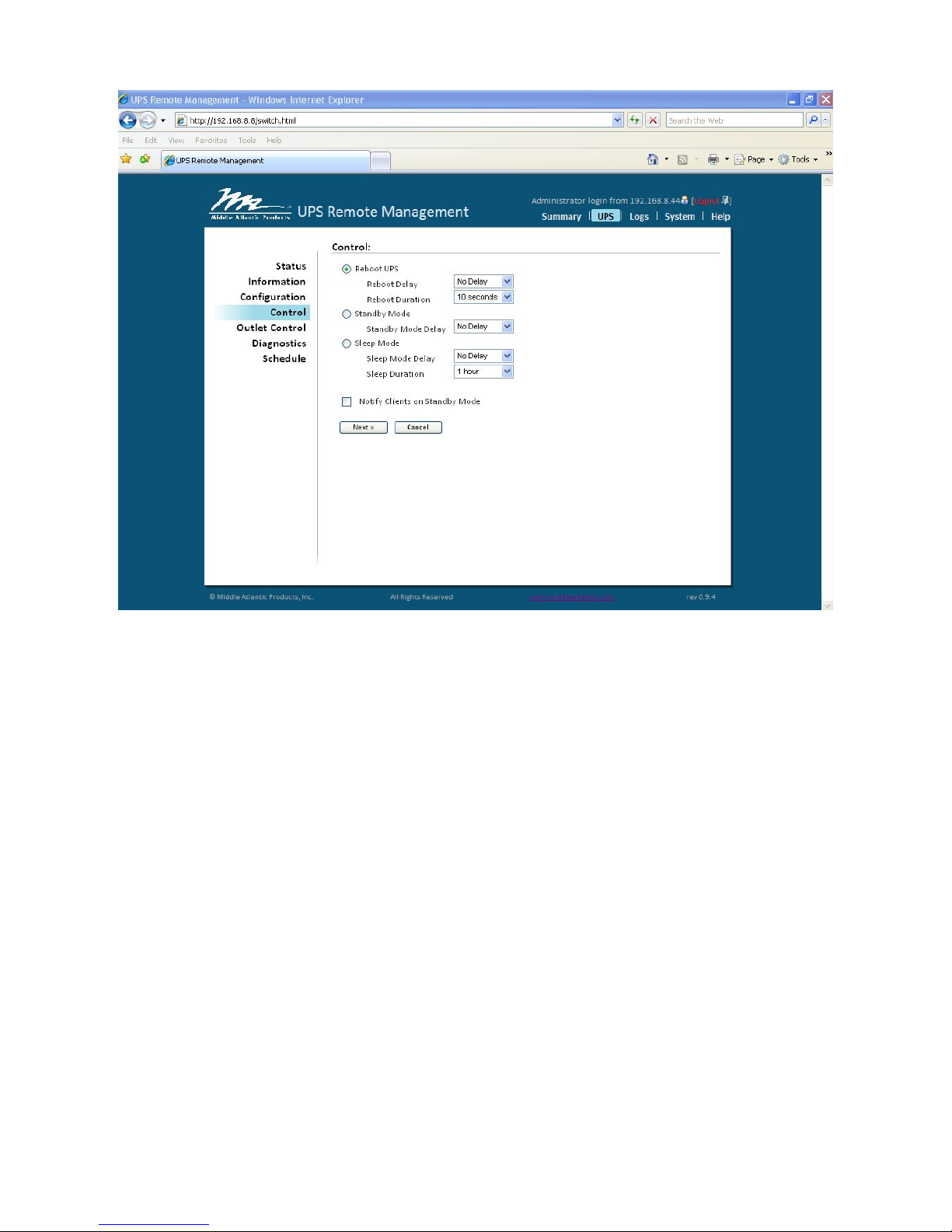

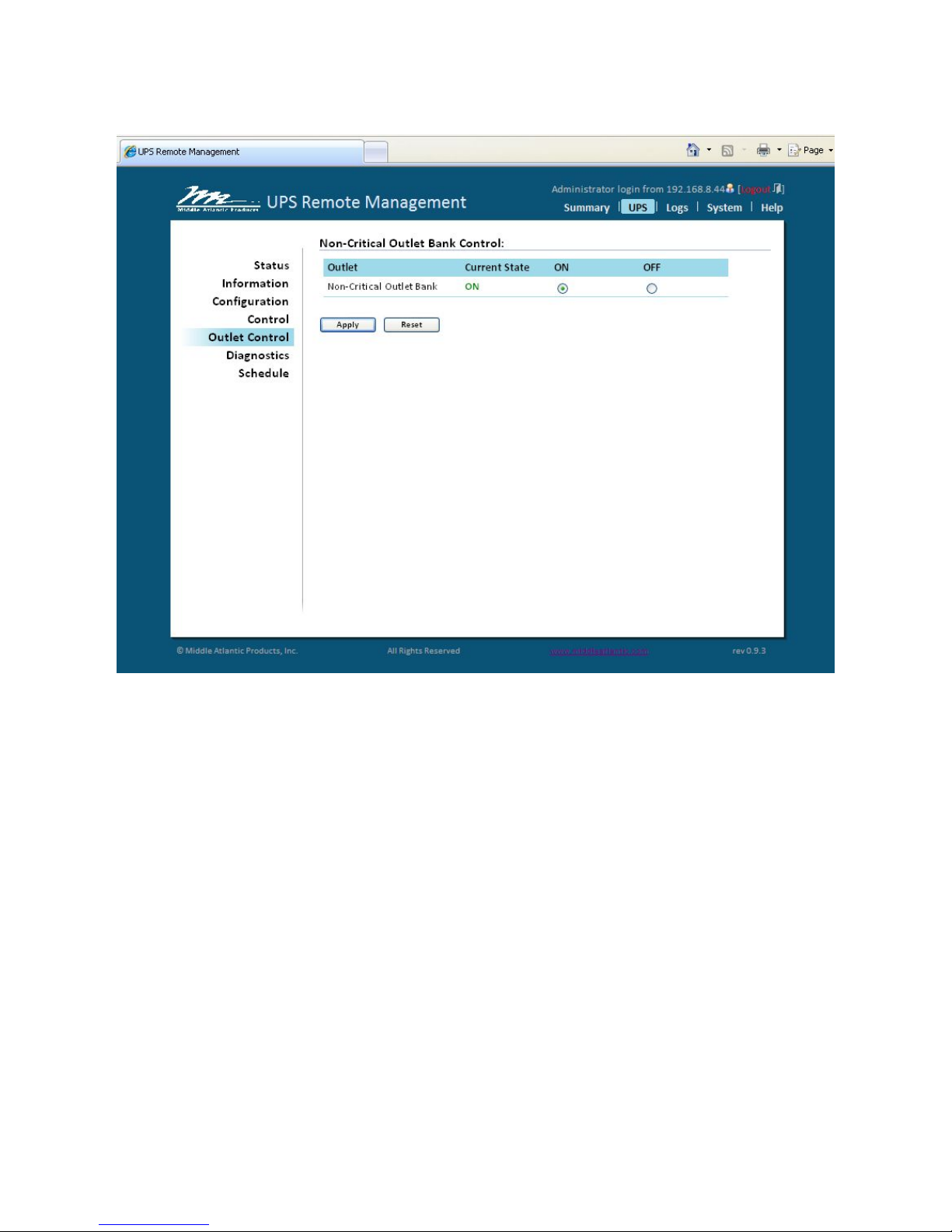

UPS REMOTE MANAGEMENT LOGIN
UPS REMOTE MANAGEMENT LOGIN:
There are two user account types.
- Administrator (default username: admin; default password: admin)
- Viewer (default username: guest; default password: guest)
The Administrator can access and control all functions, including enable/disable of the Viewer account.
The Viewer’s access allows them read permissions for all functions but they cannot control or change any settings.
