Midea MM720C2AT-SM User manual

Microwave Oven
INSTRUCTION MANUAL
EN
Read these instructions
carefully before using your
microwave oven, and keep
it carefully.
If you follow the instructions,
your oven will provide you
with many years of good
service.
230V~50Hz, 1050
Oven Capacity: 20 Liter
MM720C2AT-SM

PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
01
(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or
tamper with the safety interlocks.
(b) Do not place any object between the oven front
face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged,
the oven must not be operated until it has been
repaired by a competent person.
SPECIFICATIONS
2
ADDENDUM
If the apparatus is not maintained in a good state
of cleanliness, its surface could be degraded and
aect the lifespan of the apparatus and lead to a
dangerous situation.
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
230V~50Hz
1050W
20L
255mm
Approx. 10.03 kg
700W
MM720C2AT-SM
440mmx346mmx259mm

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
WARNING
02
3
1. Read and follow the specific:"PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
2. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision
or instruction concerning use of the appliance in a
safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children
unless they are older than 8 and supervised.
Children less than 8 years of age shall be kept away
unless continuously supervised.
3. Keep the appliance and its cord out of reach of
children less than 8 years.
4. If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.( For
appliance with type Y attachment).
5. WARNING: Ensure that the appliance is switched o
before replacing the lamp to avoid the possibility of
electric shock.

4
6. WARNING: It is hazardous for anyone other than a
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave
energy.
7. WARNING: Liquids and other foods must not be
heated in sealed containers since they are liable to
explode.
8. When heating food in plastic or paper containers,
keep an eye on the oven due to the possibility of
ignition.
9. Only use utensils that are suitable for use in
microwave ovens.
10. If smoke is emitted, switch o or unplug the
appliance and keep the door closed in order to
stifle any flames.
11. Microwave heating of beverages can result in
delayed eruptive boiling, therefore care must be
taken when handling the container.
12. The contents of feeding bottles and baby food jars
shall be stirred or shaken and the temperature
checked before consumption, in order to avoid
burns.
13. Eggs in their shell and whole hard-boiled eggs
should not be heated in microwave ovens since
they may explode, even after microwave heating
has ended.
14. The oven should be cleaned regularly and any food
deposits removed.

5
16. The appliance must not be installed behind a
decorative door in order to avoid overheating.
(This is not applicable for appliances with
decorative door.)
17. Only use the temperature probe recommended
for this oven. (for ovens provided with a facility to
use a temperature-sensing probe.)
18. The microwave oven shall not be placed in a
cabinet unless it has been tested in a cabinet.
19. The microwave oven must be operated with the
decorative door open. (for ovens with a decorative
door.)
20. This appliance is intended to be used in household
and similar applications such as:
-sta kitchen areas in shops, oces and other
working environments;
-by clients in hotels, motels and other residential
type environments;
-farm houses;
-bed and breakfast type environments.
21. The microwave oven is intended for heating food
and beverages. Drying of food or clothing and
heating of warming pads, slippers, sponges, damp
cloth and similar may lead to risk of injury, ignition
or fire.
15. Failure to maintain the oven in a clean condition
could lead to deterioration of the surface that
could adversely aect the life of the appliance and
possibly result in a hazardous situation.

6
23. The appliance shall not be cleaned with a steam
cleaner.
24. The appliance is intended to be used freestanding.
25. The rear surface of appliances shall be placed
against a wall.
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
22. Metallic containers for food and beverages are not
allowed during microwave cooking.

DANGER
Electric Shock Hazard Touching some of the internal
components can cause serious personal injury or
death. Do not disassemble this appliance.
TO REDUCE THE RISK OF INJURY TO
PERSONS GROUNDING INSTALLATION
03
WARNING
Electric Shock Hazard Improper use of the gro
unding can result in electric shock.
Do not plug into an outlet until appliance is properly
installed and grounded.
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current.
This appliance is equipped with a cord having a
grounding wire with a grounding plug.
The plug must be plugged into an outlet that is
properly installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood or if doubt exists as to whether the
appliance is properly grounded.
If it is necessary to use an extension cord, use only
a 3-wire extension cord.
1. A short power-supply cord is provided to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.
7

2. If a long cord set or extension cord is used:
1) The marked electrical rating of the cord set or
extension cord should be at least as great as
the electrical rating of the appliance.
2)The extension cord must be a grounding-type
3-wire cord.
3)The long cord should be arranged so that it will
not drape over the counter top or tabletop
where it can be pulled on by children or tripped
over unintentionally.
8

CLEANING
UTENSILS CAUTION
04
Be sure to unplug the appliance from the power
supply.
1. Clean the cavity of the oven after using with a
slightly damp cloth.
2. Clean the accessories in the usual way in soapy
water.
3. The door frame and seal and neighbouring parts
must be cleaned carefully with a damp cloth when
they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the oven door glass since they can
scratch the surface, which may result in shattering
of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls
that the food cooked can touch: Place half a lemon
in a bowl, add 300ml (1/2 pint) water and heat on
100% microwave power for 10 minutes. Wipe the
oven clean using a soft, dry cloth.
Personal Injury Hazard
It is hazardous for anyone other than a competent
person to carry out any service or repair operation
that involves the removal of a cover which gives
protection against exposure to microwave energy.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave
oven."
9

10
There may be certain non-metallic utensils that are
not safe to use for microwaving. If in doubt, you can
test the utensil in question following the procedure
below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven
Materials to be avoided in microwave oven
Remarks
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
Plastic foam may melt or contaminate the liquid inside when
exposed to high temperature.
Wood will dry out when used in the microwave oven and may
split or crack.
May cause a fire in the oven.
May cause arcing and could cause a fire in the oven.
Metal shields the food from microwave energy. Metal trim may
cause arcing.
Remarks
Follow manufacturer’s instructions. The bottom of browning
dish must be at least 3/16 inch (5mm) above the turntable.
Incorrect usage may cause the turntable to break.
Dinnerware
Glass jars
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic wrap
Thermometers
Plastic
Glassware
Aluminum tray
Metal or metal-
trimmed utensils
Metal twist ties
Wood
Plastic foam
Paper bags
Food carton with
metal handle
Utensils
Utensils
Browning dish
Microwave-safe only. Follow manufacturer's instructions.
Do not use cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most
glass jars are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no
metallic trim.
Do not use cracked or chipped dishes.
Use for short–term cooking/warming only. Do not leave oven
unattended while cooking.
Microwave-safe only. Follow the manufacturer’s instructions.
Should be labeled "Microwave Safe". Some plastic containers
soften, as the food inside gets hot. "Boiling bags" and tightly
closed plastic bags should be slit, pierced or vented as
directed by package.
Microwave-safe only. Use to cover food during cooking to
retain moisture. Do not allow plastic wrap to touch food.
Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Use as a cover to prevent splattering or a wrap for steaming.
Use to cover food for reheating and absorbing fat. Use with
supervision for a short-term cooking only.
Follow manufacturer’s instructions. Do not close with metal tie.
Make slits to allow steam to escape.
11

12
SETTING UP YOUR OVEN
05
A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray
Turntable ring assembly
Instruction Manual
1
1
1
Turntable Installation
F
G
A
C B
ED
Glass
tray
Turntable
shaft
Turntable ring assembly
Hub (underside) a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Remove all packing material and accessories. Examine the oven for any damage such
asdents or broken door. Do not install if oven is damaged.
Cabinet: Remove any protective film foundon the microwave oven cabinet surface.
Do not remove the light brown Mica coverthat is attached to the oven
cavity toprotect the magnetron.
Countertop Installation

13
INSTALLATION & OPERATION
06

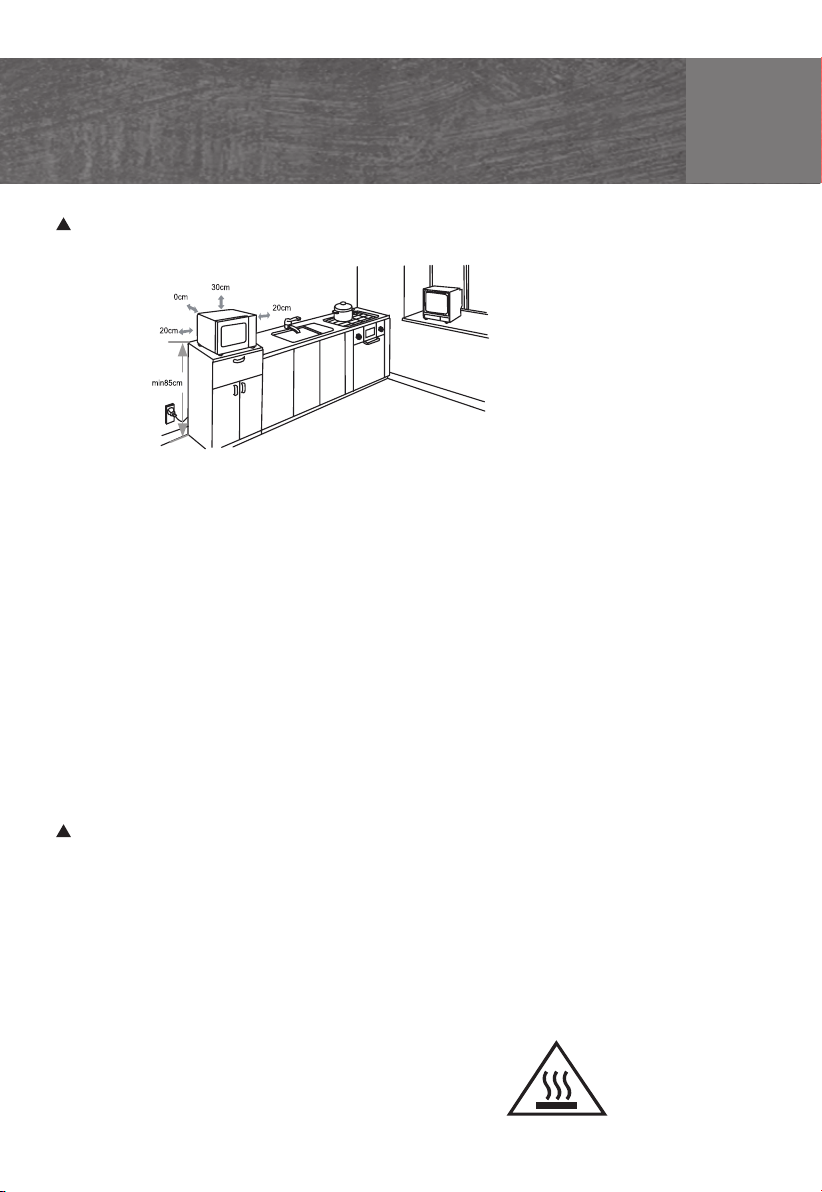

Select a level surface that provide enough open
space for the intake and/or outlet vents.
1. The minimum installation height is 85cm.
2. The rear surface of appliance shall be placed
against a wall. Leave a minimum clearance of 30cm
above the oven, a minimum clearance of 20cm is
required between the oven and any adjacent walls.
3. Do not remove the legs from the bottom of the
oven.
4. Blocking the intake and/or outlet openings can
damage the oven.
5. Place the oven as far away from radios and TV as
possible. Operation of microwave oven may cause
interference to your radio or TV reception.
Plug your oven into a standard household outlet.
Be sure the voltage and the frequency is the same
as the voltage and the frequency on the rating label.
WARNING: Do not install oven over arange cooktop
or other heat-producing appliance. If installed near
or over a heat source, the oven could be damaged
and the warranty would be void.
The accessible surface may be
hot during operation.

14
Function/Power
Control Panel and Features
Operation Instructions
Output Application
Notice: When removing food from the oven, please ensure that the oven
power is switched o by turning the clock switch to 0 (zero).
Failure to do so, and operating the microwave oven without food in
it, can result in overheating and damage to the magnetron.
Power
Timer
To set cooking power by turning the
power knob to desired level.
To set the time of cooking by turning
the timer knob to desired time per
your food cooking guide.
The microwave oven will
automatically start cooking after
power level and time are set.
After the cooking time is up, the unit
will "Dong" to stop.
If the unit is not in use, always set
time to"0".
1
5
4
3
2
17% micro.
33% micro.
55% micro.
77% micro.
100% micro.
Soften ice cream
Soup stew, soften butter or defrost
Stew, fish
Rice, fish, chicken, ground meat
Reheat, milk, boil water, vegetables, beverage
Low
M. Low(Defrost)
Med.
M. High
High

TROUBLE SHOOTING
07
According to Waste of Electrical and Electronic Equipment (WEEE)
directive, WEEE should be separately collected and treated. If at any
time in future you need to dispose of this product please do NOT
dispose of this product with household waste. Please send this
product to WEEE collecting points where available.
15
Trouble Possible Cause Remedy
(4)Door not closed well. Close door well. Oven does not heat
.
Test outlet with other
electrical appliances.
(3)Trouble with outlet.
Oven can not be started
(1)Power cord not
plugged in tightly.
Unplug. Then plug again
after 10 seconds.
Normal
Oven started accidentally
with no food in
Dim oven light In low power microwave cooking. oven light may
become dim. lt is normal.
Steam accumulating on door,
hot air out of vents
In cooking, steam may come out of food. Most will
get out from vents. But some may accumulate on
cool place like oven door.lt is normal.
Microwave oven interfering
TV reception
Radio and TV reception may be interfered when
microwave oven operating. lt is similar to the
interference of small electrical appliances, like
mixer, vacuum cleancer, and electric fan.
lt is normal.
It is forbidden to run the unit without any food
inside. It is very dangerous.
(2)Fuse blowing or
circuit breaker
works.
Replace fuse or reset circuit
breaker (repaired by
professional personnel
of our company)
PN:16170000A81122
