Midea AM823ABV User manual

www.midea.com
user manual
Microwave oven
Before first using, please
read the instruction
manual carefully and
keep it. The design and
specifications of
products are subject to
change without prior
notice due to the policy
of continuous product
upgrades.
EN
Capacity: 23 Liter
230V~50Hz, 800W
AM823ABV
AM823ABV
Distributed by:
Midea Electric Trading (Singapore) Co. Pte Ltd
158 Cecil Street, #07-01/02 Singapore 069545

(a) Do not attempt to operate this oven with the door
open since this can result in harmful exposure to
microwave energy. It is important not to break or tamper
with the safety interlocks.
(b) Do not place any object between the oven front face
and the door or allow soil or cleaner residue to accumulate
on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the
oven must not be operated until it has been repaired by
a competent person.
ADDENDUM
If the apparatus is not maintained in a good state of
cleanliness, its surface could be degraded and affect the
lifespan of the apparatus and lead to a dangerous situation.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Specifications
Model:
Rated Voltage:
Rated Input Power(Microwave):
Rated Output Power(Microwave):
Oven Capacity:
Turntable Diameter:
External Dimensions:
Net Weight:
AM823ABV
230V~50Hz
23L
270mm
485 405 293mm
Approx. 13 kg
1250W
800W
2

To reduce the risk of fire, electric shock, injury to
persons or exposure to excessive microwave oven
energy when using your appliance, follow basic
precautions, including the following:
IMPORTANT SAFETY INSTRUCTIONS
WARNING
the manufacturer, its service agent or similarly qualified
persons in order to avoid a hazard.( For appliance with
type Y attachment)
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY".
4. If the supply cord is damaged, it must be replaced by
1. Read and follow the specific:"PRECAUTIONS TO
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children unless they are older than 8
2. This appliance can be used by children aged from 8
3. Keep the appliance and its cord out of reach of children
less than 8 years.
and supervised. Children less than 8 years of age shall be
kept away unless continuously supervised.
before replacing the lamp to avoid the possibility of
electric shock.
5. WARNING: Ensure that the appliance is switched off
3

.ovens
and keep the door closed in order to stifle any flames.
delayed eruptive boiling, therefore care must be taken
when handling the container.
shall be stirred or shaken and the temperature checked
before consumption, in order to avoid burns.
12.The contents of feeding bottles and baby food jars
13. Eggs in their shell and whole hard-boiled eggs should
not be heated in microwave ovens since they may
explode, even after microwave heating has ended.
deposits removed.
14. The oven should be cleaned regularly and any food
11. Microwave heating of beverages can result in
keep an eye on the oven due to the possibility of ignition.
in sealed containers since they are liable to explode.
could lead to deterioration of the surface that could
15. Failure to maintain the oven in a clean condition
7. WARNING: Liquids and other foods must not be heated
10. If smoke is emitted, switch off or unplug the appliance
competent person to carry out any service or repair
operation that involves the removal of a cover which
gives protection against exposure to microwave energy.
6. WARNING: It is hazardous for anyone other than a
8. When heating food in plastic or paper containers,
9. Only use utensils that are suitable for use in microwave
adversely affect the life of the appliance and possibly
result in a hazardous situation.
16. The appliance must not be installed behind a
applicable for appliances with decorative door.)
decorative door in order to avoid overheating. (This is not
4

-by clients in hotels, motels and other residential type
environments;
-farm houses;
-bed and breakfast type environments.
beverages. Drying of food or clothing and heating of
warming pads, slippers, sponges, damp cloth and similar
may lead to risk of injury, ignition or fire.
21.The microwave oven is intended for heating food and
and similar applications such as:
-staff kitchen areas in shops, offices and other working
environments;
decorative door open. (for ovens with a decorative door.)
18.The microwave oven shall not be placed in a cabinet
unless it has been tested in a cabinet.
this oven.(for ovens provided with a facility to use a
17.Only use the temperature probe recommended for
temperature-sensing probe.)
allowed during microwave cooking.
cleaner.
19.The microwave oven must be operated with the
22. Metallic containers for food and beverages are not
23. The appliance shall not be cleaned with a steam
24.The appliance is intended to be used freestanding.
20.This appliance is intended to be used in household
READ CAREFULLY AND KEEP FOR FUTURE
REFERENCE
a wall.
25.The rear surface of appliances shall be placed against
5

To Reduce the Risk of Injury to Persons
Grounding Installation
DANGER
Electric Shock Hazard
Touching some of the
internal components can
cause serious personal
injury or death. Do not
disassemble this
appliance.
WARNING
Electric Shock Hazard
Improper
use of the grounding
can
result in electric shock.
Do not plug into an outlet
until appliance is properly
installed and grounded.
This appliance must be
grounded. In the event of
an electrical short circuit,
grounding reduces the
risk of electric shock by
providing an escape wire
for the electric current.
This appliance is equipped
with a cord having a
grounding wire with
a grounding plug. The
plug must be plugged into
an outlet that is properly
installed and grounded.
Consult a qualified
electrician or serviceman
if the grounding instructions
are not completely
understood or if doubt exists
as to whether the appliance
is properly grounded.
If it is necessary to use an
extension cord, use only
a 3-wire
1. A short power-supply cord
is provided to reduce the risks
resulting from becoming
entangled in or tripping over a
longer cord.
2. If a long cord set or extension
cord is used:
1)The marked electrical rating
of the cord set or extension cord
should be at least as great as
the electrical rating of the
appliance.
2)The extension cord must be
a grounding-type 3-wire cord.
3)The long cord should be
arranged so that it will not drape
over the counter top or tabletop
where it can be pulled on
by children or tripped over
unintentionally.
extension cord.
6

CLEANING
Be sure to unplug the appliance from the power supply.
1. Clean the cavity of the oven after using with a slightly damp
cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be
cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers
to clean the oven door glass since they can scratch the surface,
which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the
food cooked can touch: Place half a lemon in a bowl, add 300ml
(1/2 pint) water and heat on 100% microwave power for 10
minutes. Wipe the oven clean using a soft, dry cloth.
UTENSILS
CAUTION
Personal Injury Hazard
It is hazardous for
anyone other than a
competent person to
carry out any service
or repair operation that
involves the removal of
a cover which gives
protection against
exposure to microwave
energy.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
7

Materials you can use in microwave oven
Utensils Remarks
Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Plastic
Plastic wrap
Dinnerware
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
8

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system
F
G
A
C B
ED
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass tray 1
Turntable ring assembly 1
Instruction Manual 1
Hub (underside)
Glass tray
Turntable ring assembly
a. Never place the glass tray upside down. The glass
tray should never be restricted.
b. Both glass tray and turntable ring assembly must
always be used during cooking.
c. All food and containers of food are always placed
on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or
breaks, contact your nearest authorized service
center.
Turntable Installation
Turntable shaft
9

Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Countertop Installation
Cabinet: Remove any protective film found
on the microwave oven cabinet surface.
Do not remove the light brown Mica cover
that is attached to the oven cavity to
protect the magnetron.

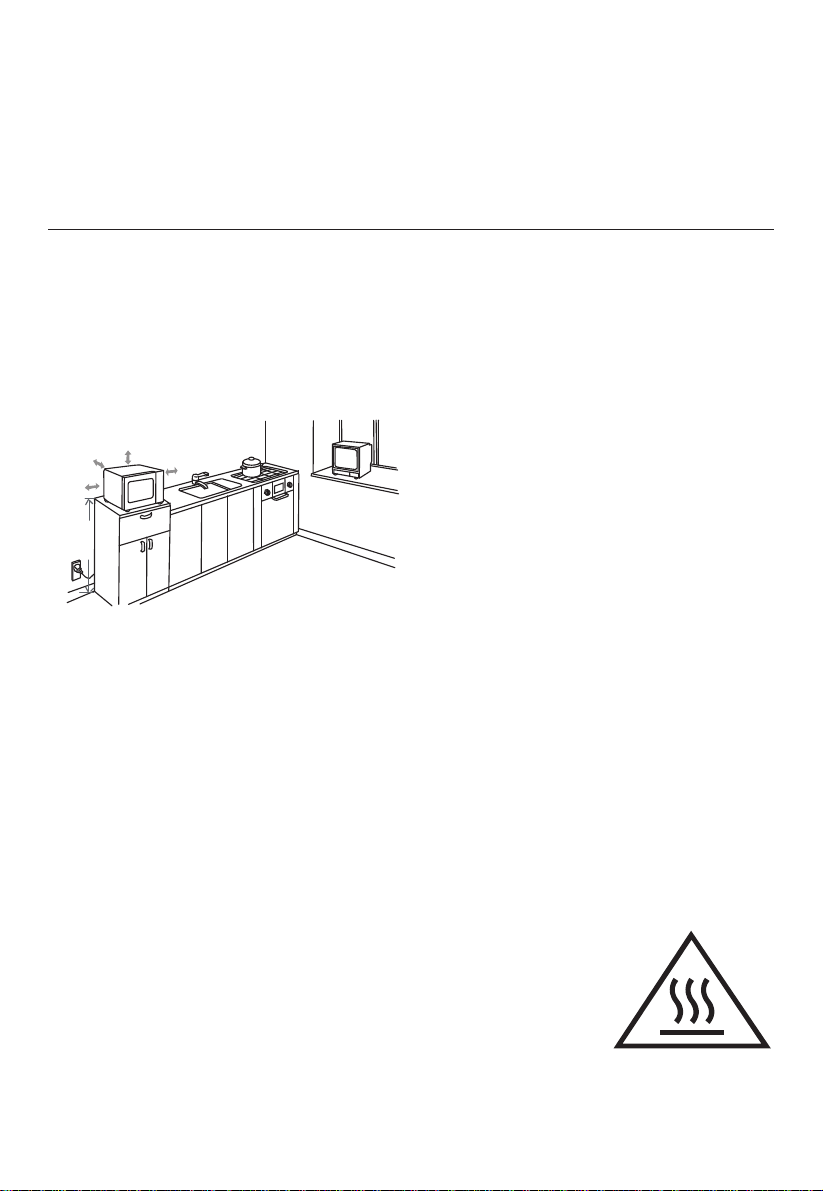

Installation
1.Select a level surface that
provide enough open space
for the intake and/or outlet
vents.
(1) The minimum installation
height is 85cm.
(2) The rear surface of
appliance shall be placed
against a wall.
Leave a minimum clearance
of 30cm above the oven, a
minimum clearance of 20cm
is required between the oven
and any adjacent walls.
(3) Do not remove the legs
from the bottom of the oven.
(4) Blocking the intake and/
or outlet openings can
damage the oven.
(5) Place the oven as far
away from radios and TV
as possible. Operation of
microwave oven may
cause interference to your
radio or TV reception.
2. Plug your oven into a
standard household outlet.
Be sure the voltage and
the frequency is the same
as the voltage and the
frequency on the rating
label.
WARNING: Do not install
oven over a range cooktop
or other heat-producing
appliance. If installed near
or over a heat source, the
oven could be damaged
and the warranty would be
void.
20cm
30cm
20cm
min85cm
0cm
The accessible
surface may be
hot during operation.
10

2. Microwave Cooking
This microwave oven uses modern electronic control to adjust cooking parameters
to meet your needs better for cooking.
When the microwave oven is electrified,the oven will display "0:00", buzzer will ring once.
3) Press " CLOCK ", the minute figures will flash.
5) Press " CLOCK ":" will flash,
the " "indicator will go out.The clock setting has been finished.
Note: 1) If the clock is not set, it would not function when powered.
2) During the process of clock setting, if you press " STOP ", the oven
will go back to the previous status automatically.
1) Press " CLOCK " once, the hour figure flash;
OPERATION INSTRUCTION
NOTE: the step quantities for the adjustment time of the coding switch are as follow:
0---1 min : 5 seconds
1---5 min : 10 seconds
5---10 min : 30 seconds
10---30 min : 1 minutes
30---95 min : 5 minutes
Microwave Power Chart
1) Press the " MICROWAVE " key once, and "P100" will flash.
2) Press " MICROWAVE" or press " "and " " to select the microwave
power from100% to 10%. "P100", "P80", "P50", "P30", "P10" will display in order.
3) Press "START/+30SEC./CONFIRM " to confirm.
4)Press " " or " "to adjust the cooking time.
(The time setting should be 0:05- 95:00.)
5) Press " START/+30SEC./CONFIRM " to start cooking.
2) Press " "or " " to adjust the hour figures,the input time should be within 0--23.
4) Turn " "or " " to adjust the minute figures, the input time should be within 0--59.
Microwave Power 80% 50% 30% 10%
100%
Display P100 P80 P50 P30 P10
1.Clock Setting
repeatedly
" to finish clock setting.
11

4. Defrost By Weight
1) Press " WEIGHT DEFROST " once, the screen will display "dEF1".
2) Press " "or " " to select the food weight. The range of weight is 100-2000g.
3) Press " START/+30SEC./CONFIRM " key to start defrosting.
5. Defrost By Time
6.Multi-Stage Cooking
Two stages can be maximumly set. If one stages is defrosting, it be put in the first
stage automatically. The buzzer will ring once after each stage and the next stage will begin.
Note: Auto menu cannot be set as one of the multi-stage.
1) Press "TIME DEFROST" once, the screen will display "dEF2".
3) Press "START/+30SEC./CONFIRM " key to start defrosting.
2) Press " "or " " to select the cooking time.The maximum time is 95 minutes.
Example: if you want to defrost the food for 5 minutes, then to cook with 80%
microwave power for 7 minutes. The steps are as following:
1) Press "TIME DEFROST " once, the screen display "dEF2".
2) Press " "or " " to adjust the defrost time of 5 minutes;
3) Press"MICROWAVE" once, the screen will dispaly "P100".
4) Press " " or " "to choose microwave power till "P80" display;
5) Press "START/+30SEC./CONFIRM" to confirm, the screen will display "P80".
6) Press " "or " " to adjust the cooking time of 7 minutes;
7) Press "START/+30SEC./CONFIRM" to start cooking.
will
1) In waiting state, press " START/+30SEC./CONFIRM " key to cook with 100% power level
for 30 seconds. Each press on the same key can increase 30 seconds. The maximum
cooking time is 95 minutes.
2) During the microwave and the defrost by time process,
press "START/+30SEC./CONFIRM" to increase the cooking time.
"first and then press " "or" " to choose the
cooking time directly. After choosing the time, press "START/+30SEC./CONFIRM" to
start cooking. The microwave power is 100%.
3) In waiting states, press the"
cooking
3. Speedy Cooking
12

7. Kitchen Timer
1) Press " " once, the screen will display 00:00.
2) Press " " or " " to enter the correct timer.
(The maximum cooking time is 95 minutes)
3) Press " START/+30SEC./CONFIRM " to confirm setting, clock indicator will be lighted.
4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times.
If the clock be set(24-hour system), the screen will display the current time.
Note: The kitchen Time is differ from 24-hour system,Kitchen Timer is a timer.
KITCHEN TIMER
8. Auto Menu
1) In waiting state, press " " first and then press " " or " " to choose the menu
from "A-1" to "A-8".
2) Press "START/+30SEC./CONFIRM " to confirm the menu you choose.
3) Press " "or" " to choose the food weight.
4) Press "START/+30SEC./CONFIRM " to start cooking.
5) After cooking finish, the buzzer sounds five times.The screen display "0:00".
If the time has been set, current time will be displayed.
1 Inquiring Function
1) In cooking state of microwave MICROWAVE " the current
power will be displayed
2) During cooking state, press "CLOCK
It will be displayed for
Lock: In waiting state, press " STOP " for 3 seconds, there will be a long beep
denoting entering the children-lock state and the current time will display if the
time has been set, otherwise, the screen will display " ".And lock icon will light.
Lock quitting: In locked state, press " STOP " for 3 seconds, there will be a long
"beep" denoting that the lock is released.
" to check the current time.
, press "
for 3 seconds.
3 seconds.
9. Lock Function for Children
0.
13

Menu Weight Display
A-2
Meat
A-3
Vegetable
A-5
Potato
A-4
Pasta
A-6
Fish
A-8
Popcorn
200 g
400 g
250 g
350 g
450 g
200 g
300 g
400 g
50g(with 450 ml cold water)
100g(with 800 ml cold water)
200 g
400 g
600 g
250 g
350 g
450 g
1 cup(120 ml)
2 cups(240 ml)
3 cups(360ml)
50 g
85 g
100 g
A-1
Pizza
A-7
Beverage
200
400
250
350
450
200
300
400
50
100
200
400
600
250
350
450
1
2
3
50
85
100
The menu chart:
1
1) The buzzer will sound once when you press the" "or" " key at the beginning.
2) "START/+30SEC./CONFIRM" must be pressed to continue cooking if the door is opened
during cooking;
3) Once the cooking programme has been set , "START/+30SEC./CONFIRM" is not pressed
in 1minute. The current time will be displayed. The setting will be cancelled.
4) The buzzer sounds once by efficient press, inefficient press will be no responce.
1. Specification
14

According to Waste of Electrical and Electronic Equipment
(WEEE) directive, WEEE should be separately collected and
treated. If at any time in future you need to dispose of this
product please do NOT dispose of this product with household
waste. Please send this product to WEEE collecting points
where available.
It is forbidden to run the unit without any food inside.
It is very dangerous.

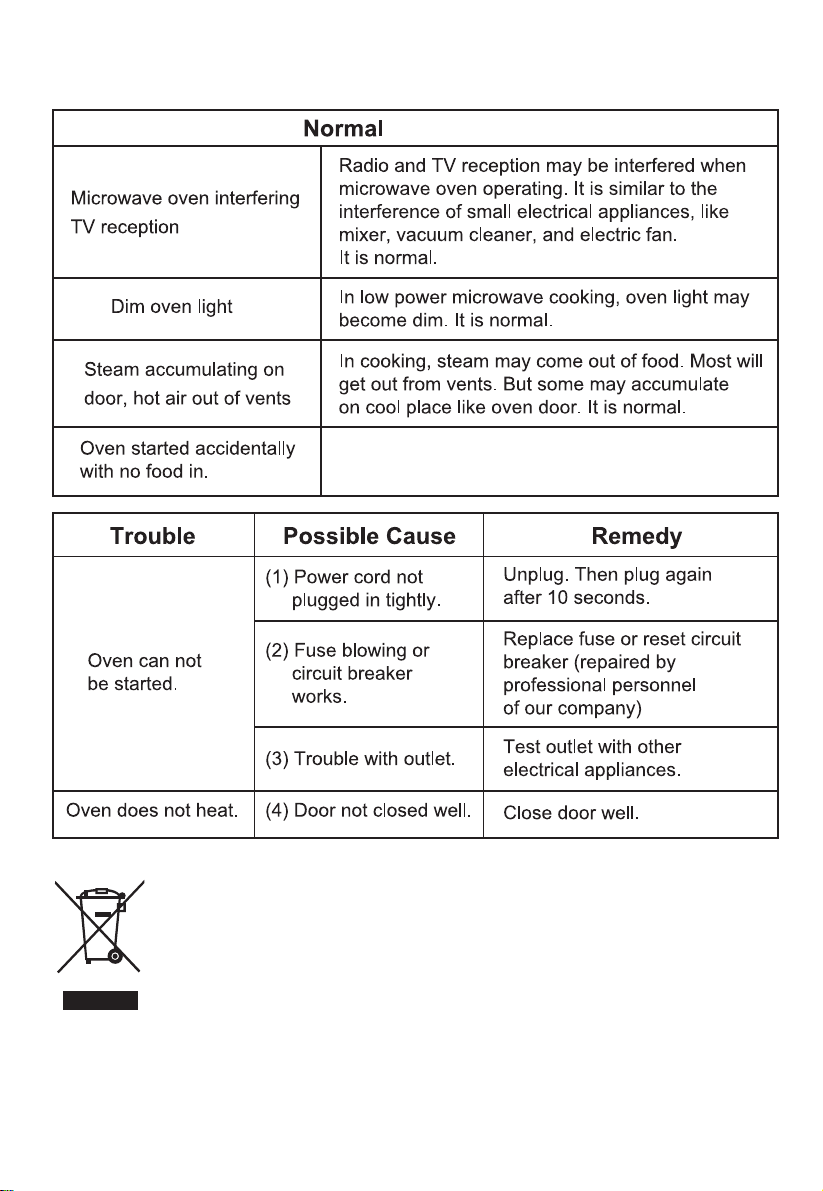

Trouble shooting
PN:16170000A77847
15

Midea Electric Trading (Singapore) Co. Pte Ltd
158 Cecil Street,
#07-01/02 Singapore 069545
Save on your postage and get FREE 3-months labour warranty
extension when you register your warranty via midea.com.sg
