Midea TM034D3GE-P0H User manual

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
Model:TM034D3GE-P0H

PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since open door
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil
or cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that
the oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
Specifications
Model:
Rated Voltage:
Rated Input Power (Microwave):
Rated Output Power (Microwave):
TM034D3GE-P0H
120V~ 60Hz
1500W
1000W

3
1. Read all instructions before using the appliance.
2. Read and follow the specific: " PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY" found on page 2.
3. This appliance must be grounded. Connect only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 5.
4. Install or locate this appliance only in accordance with the provided installation
instructions.
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary when used by children.
8. Do not operate this appliance if it has a damaged cord or plug, if it is not working
properly, or if it has been damaged or dropped.
9. This appliance should be serviced only by qualified service personnel. Contact nearest
authorized service facility for examination, repair, or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for example,
near a kitchen sink, in a wet basement, near a swimming pool, or similar location.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surface.
14. Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven that comes together on closing the door,
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
combustible materials are placed inside the oven to facilitate cooking.
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, or shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including
the following:

4
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
5) Use extreme care when inserting a spoon or other utensil into the container.
18. Oversized food or oversized metal utensils should not be inserted in a microwave/
toaster oven as they may create a fire or risk of electric shock.
19. Do not clean with metal scouring pads. Pieces can burn off the pad and touch
electrical parts involving a risk of electric shock.
20. Do not use paper products when appliance is operated in the toaster mode.
21. Do not store any materials, other than manufacturer's recommended accessories, in
this oven when not in use.
22. Do not cover racks or any other part of the oven with metal foil. This will cause over-
heating of the oven.
23. Clean Ventilation Hoods Frequently - Grease should not be allowed to accumulate on
hood or filter.
24. When flaming foods under the hood, turn the fan on.
25. Use care when cleaning the vent-hood filter. Corrosive cleaning agents, such as lye-
based oven cleaners, may damage the filter.
26. Suitable for use above both gas and electric cooking equipment.
SAVE THESE INSTRUCTIONS

5
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding
reduces the risk of electric shock by providing an escape wire for the electric current.
This appliance is equipped with a cord having a grounding wire with a grounding plug.
The plug must be plugged into an outlet that is properly installed and grounded.
WARNING - Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely understood, or if doubt exists as to whether the appliance is properly
grounded. If it is necessary to use an extension cord, use only a 3-wire extension
cord that has a 3-blade grounded plug, and 3-slot receptacle that will accept the
plug on the appliance. The marked rating of the extension cord shall be equal to or
greater than the electrical rating of the appliance.
DANGER - Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
Do not disassemble this appliance.
WARNING - Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet
until appliance is properly installed and grounded.
1. A short power-supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is
exercised in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least
as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top
or tabletop where it can be pulled on by children or tripped over unintentionally.

6
1. Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
2. When there is interference, it may be reduced or eliminated by taking the following
measures:
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven and receiver
are on different branch circuits.
RADIO INTERFERENCE
UTENSILS
CAUTION - Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pouches should be pierced before cooking.
See the instructions on "Materials you can use in microwave oven or to be avoided in
microwave oven."
There may be certain non-metallic utensils that are not safe to use for microwaving.
If in doubt, you can test the utensil in question following the procedure below.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the
utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave
cooking.
4. Do not exceed 1 minute cooking time.
This device complies with part 18 of the FCC Rules.

Materials you can use in microwave oven
Utensils Remarks
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Plastic
Plastic wrap
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Dinnerware
term
7

8
FEATURES
Oven Features
1 Control Panel
The door must be securely latched for the microwave
to operate.
2 Waveguide cover DO NOT REMOVE.
3 Drawer Microwave Menu Label.
4 Drawer Sealing Surfaces.
5 Drawer Light.
6 Drawer Microwave Guides
7 Vent .
8 Name Plate.
Open the Drawer Microwave fully. The label is beyond
the back wall of the microwave cavity facing up from the
flat surface.

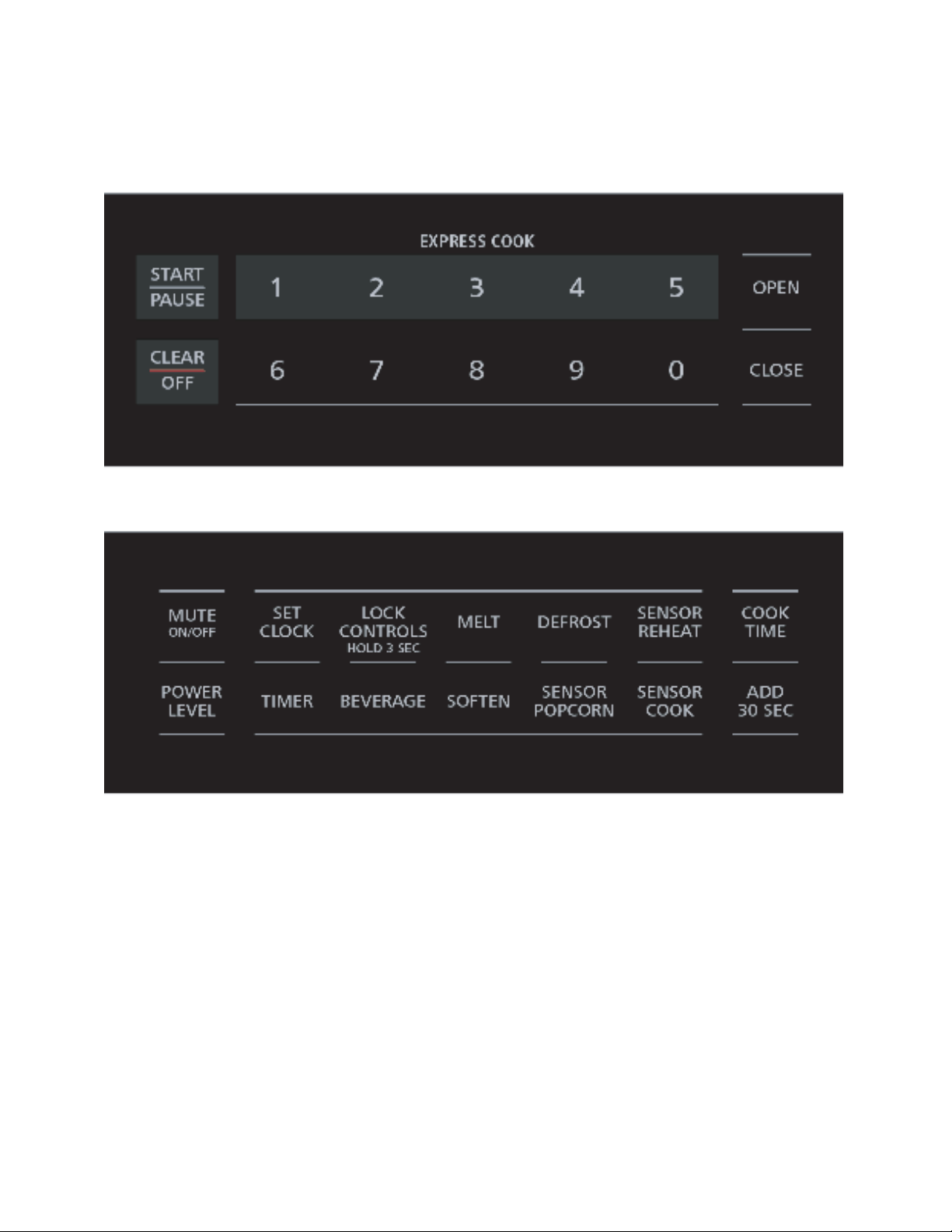

CONTROLS
You can microwave by time or with the convenience features.
Control buttons’ functions are explained on the following pages.
OVEN FEATURES
9

POWER LEVEL
The power level may be entered or changed immediately after entering the feature time for Cook Time the power level
may also be changed during the cooking.
1. Press Cook Time and enter cooking time.
2. Press the Power Level button and select power level
1-10.
3. Press the Start/Pause button to start cooking.
Variable power levels add flexibility to microwave cooking.
The power levels on the microwave oven can be compared
to the surface units on a range. Each power level gives
you microwave energy a certain percent of the time. Power
level 7 is microwave energy 70% of the time. Power level
3 is energy 30% of the time. Most cooking will be done on
Power level 10 which gives you 100% power.
Power Level 10 will cook faster but food may need more
frequent stirring, rotating or turning over. A lower setting
will cook more evenly and need less stirring or rotating of
the food.
Some foods may have better flavor, texture or appearance
if one of the lower settings is used. Use a lower power
level when cooking foods that have a tendency to boil
over, such as scalloped potatoes.
Rest periods (when the microwave energy cycles off) give
time for the food to “equalize” or transfer heat to the inside
of the food. An example of this is shown with power level
3—the defrost cycle. If microwave energy did not cycle off,
the outside of the food would cook before the inside was
defrosted.
Here are some examples of uses for various power levels:
Power Level 10: Fish, bacon, vegetables, heating liquids.
Med-High 7: Gentle cooking of meat and poultry; baking
casseroles and reheating.
Medium 5: Slow cooking and tenderizing for stews and
less tender cuts of meat.
Low 2 or 3: Defrosting; simmering; delicate sauces.
Warm 1: Keeping food warm; softening butter.
OVEN FEATURES
10

MULTI-STAGE COOKING
At most 2 stages can be set for cooking. In multi-stage
cooking, if one stage is defrosting, then defrosting shall be
placed at the first stage automatically.
NOTE: Auto cooking cannot work in the multi-stage
cooking.
Example: if you want to cook with 80% microwave power
for 5 minutes + 60% microwave power for 10 minutes. The
cooking steps are as following:
1. Press Time Cook once, then press “5”,”0”,”0” to set the
cooking time;
2. Press Power once,then press “8” to select 80%
microwave power.
3. Press Time Cook once,then press “1”,”0”,”0”,”0” to set
the cooking time;
4. Press Power once,then press “6” to select 60%
microwave power.
5. Press Start/Pause.
COOK TIME
Allows you to microwave for any time up to 99 minutes and 99 seconds.
1. Press Cook Time.
2. Enter cooking time.
3. The power level is automatically set to 10. If you want
to reduce it, press Power Level and select a level from
1 to 9.
4. Press Start/Pause.
You may open the door during Cook Time to check the
food. Close the door and press Start/Pause to resume
cooking.
TIME FEATURES
11

COOKING GUIDE FOR COOK TIME
NOTE: Use power level 10 (High) unless otherwise noted.
VegetableAmountTime Comments
Asparagus
(fresh spears)
(frozen spears)
1 lb.
10-oz. package
4 to 7 min.,
Med-High (7)
4 to 7 min.
In 1¼-qt. oblong glass baking dish, place 1/4 cup water.
Rotate dish after half of time.
In 1-qt. casserole.
Beans
(fresh green)
frozen green)
(frozen lima)
1 lb. cut in half
10-oz. package
10-oz. package
10 to 14 min.
3 to 5 min.
3 to 5 min.
In 1¼-qt. casserole, place 1/2 cup water.
In 1-qt. casserole, place 2 tablespoons water.
In 1-qt. casserole, place 1/4 cup water.
Beets
(fresh, whole) 1 bunch 16 to 21 min. In 2-qt. casserole, place 1/2 cup water.
Broccoli
(fresh cut)
(fresh spears)
(frozen, chopped)
(frozen spears)
1 bunch (1¼ to 1¼ lbs.)
1 bunch (1¼ to 1¼ lbs.)
10-oz. package
10-oz. package
5 to 9 min.
7 to 10 min.
4 to 7 min.
4 to 7 min.
In 2-qt. casserole, place 1/2 cup water.
In 2-qt. oblong glass baking dish, place 1/4 cup water.
Rotate dish after half of time.
In 1-qt. casserole.
In 1-qt. casserole, place 3 tablespoons water.
Cabbage
(fresh)
(wedges)
1 medium head (about 2 lbs.) 6 to 9 min.
5 to 9 min.
In 1¼- or 2-qt. casserole, place 1/4 cup water.
In 2- or 3-qt. casserole, place 1/4 cup water.
Carrots
(fresh, sliced)
(frozen)
1 lb.
10-oz. package
4 to 8 min.
3 to 7 min.
In 1¼-qt. casserole, place 1/4 cup water.
In 1-qt. casserole, place 2 tablespoons water.
Cauliflower
(flowerets)
(fresh, whole)
(frozen)
1 medium head
1 medium head
10-oz. package
7 to 10 min.
7 to 14 min.
3 to 7 min.
In 2-qt. casserole, place 1/2 cup water.
In 2-qt. casserole, place 1/2 cup water.
In 1-qt. casserole, place 2 tablespoons water.
Corn
(frozen kernel)10-oz. package 2 to 6 min.
In 1-qt. casserole, place 2 tablespoons water.
Corn on the cob
(fresh)
(frozen)
1 to 5 ears
1 ear
2 to 6 ears
2-1/4 to 4 min. per
ear
3 to 6 min.
2 to 3 min. per ear
In 2-qt. oblong glass baking dish, place corn. If corn is
in husk, use no water; if corn has been husked, add 1/4
cup water. Rearrange after half of time.
Place in 2-qt. oblong glass baking dish. Cover with
vented plastic wrap. Rearrange after half of time.
Mixed vegetables
(frozen)10-oz. package 5 to 7 min.
In 1-qt. casserole, place 3 tablespoons water.
Peas
(fresh, shelled)
(frozen)
2 lbs. unshelled
10-oz. package
7 to 9 min.
2 to 6 min.
In 1-qt. casserole, place 1/4 cup water.
In 1-qt. casserole, place 2 tablespoons water.
Potatoes
(fresh, cubed,
white)
(fresh, whole,sweet
or white)
4 potatoes
(8 oz. each)
1 (8 oz.)
2 (8 oz. each)
3
4
7 to 9 min.
4 to 6 min.
7 to 9 min.
10 to 12 min.
14 to 16 min.
Peel and cut into 1 inch cubes. Place in 2-qt. casserole
with 1/2 cup water. Stir after half of time.
Pierce with cooking fork. Place in the oven, 1 inch
apart, in circular arrangement. Let stand 5 minutes.
Spinach
(fresh)
(frozen, chopped
and leaf)
10 to 16 oz.
10-oz. package
3 to 6 min.
3 to 6 min.
In 2-qt. casserole, place washed spinach.
In 1-qt. casserole, place 3 tablespoons water.
Squash
(fresh, summer and
yellow)
(winter, acorn or
butternut)
1 lb. sliced
1 to 2 squash
(about 1 lb. each)
5 to 9 min.
5 to 9 min.
In 1¼-qt. casserole, place 1/4 cup water.
Cut in half and remove fibrous membranes. In 2-qt.
oblong glass baking dish, place squash cut-side-down.
TIME FEATURES
12

If the weight of food is stated in
pounds and ounces, the ounces must
be converted to tenths (.1) of a pound.
Ounces Pounds
1–2 .1
3 .2
4–5 .3
6–7 .4
8 .5
9–10 .6
11 .7
12–13 .8
14–15 .9
WEIGHT DEFROST
Weight defrost automatically sets the defrosting times and
power levels to give even defrosting results for meats, poultry
and fish weighing up to six pounds.
1. Press Defrost (display must show Weight Defrost).
2. Using the conversion guide, enter food weight. For
example, press pads 1 and 2 for 1.2 pounds (1 pound,
3 ounces).
3. Press Start/Pause.
There is a cooking guide located on the inside front of the
oven.
●Remove meat from package and place on microwave-
safe dish.
●When the oven signals, turn the food over. Remove
defrosted meat or shield warm areas with small pieces of
foil.
●After defrosting, most meats need to stand 5 minutes to
complete defrosting. Large roasts should stand for about
30 minutes.
TIME DEFROST
Time Defrost allows you to defrost for a selected length of time. See the Defrosting Guide for suggested
times.
1. Press Defrost twice (display must show Time Defrost).
2. Enter defrosting time.
3. Press Start/Pause.
When the oven signals, turn food over and break apart
or rearrange pieces for more even defrosting. Shield
any warm areas with small pieces of foil. The oven will
continue to defrost if you don’t open the door and turn the
food.
Power level is automatically set at 3, but can be changed.
You can defrost small items quickly by raising the power
level after entering the time. Power level 7 cuts the total
defrosting time in about half; power level 10 cuts the total
time to approximately 1/3. However, food will need more
frequent attention than usual.
A dull thumping noise may be heard during defrosting. This
is normal when oven is not operating at High power.
Defrosting Tips
• Foods frozen in paper or plastic can be defrosted in
the package. Closed packages should be slit, pierced
or vented AFTER food has partially defrosted. Plastic
storage containers should be partially uncovered.
• Family-size, prepackaged frozen dinners can be
defrosted and microwaved. If the food is in a foil
container, transfer it to a microwave-safe dish.
• For more even defrosting of larger foods, such as roasts,
use Defrost Weight. Be sure large meats are completely
defrosted before cooking.
• Foods that spoil easily should not be allowed to sit out for
more than one hour after defrosting. Room temperature
promotes the growth of harmful bacteria.
•When defrosted, food should be cool but softened in all
areas. If still slightly icy, return to the microwave very
briefly, or let it stand for a few minutes.
TIME AND AUTO FEATURES
13

DEFROSTING GUIDE
Food Time Comments
Breads, Cakes
Bread, buns or rolls (1 piece)
Sweet rolls (approx. 12 oz.)
1/4 min.
1 to 3 min. Rearrange after half of time.
Fish and Seafood
Fillets, frozen (1 lb.)
Shellfish, small pieces (1 lb.)
6 to 9 min.
3 to 7 min. Place block in casserole. Turn over and break up after first half of time.
Fruit
Plastic pouch—1 or 2
(10-oz. package)
2 to 5 min.
Meat
Bacon (1 lb.)
Franks (1 lb.)
Ground meat (1 lb.)
Roast: beef, lamb, veal, pork
Steaks, chops and cutlets
4 to 8 min.
4 to 8 min.
7 to 9 min.
7 to 9 min. per lb.
4 to 8 min. per lb.
Place unopened package in oven. Let stand 5 minutes after defrosting.
Place unopened package in oven. Microwave just until franks can be
separated. Let stand 5 minutes, if necessary, to complete defrosting.
Turn meat over after first half of time.
Use power level Warm (1).
Place unwrapped meat in cooking dish. Turn over after first half of time and
shield warm areas with foil. After second half of time, separate pieces with
table knife. Let stand to complete defrosting.
Poultry
Chicken, broiler-fryer, cut up
(21¼2to 3 lbs.)
Chicken, whole (21¼2to 3 lbs.)
Cornish hen
Turkey breast (4 to 6 lbs.)
14 to 19 min.
22 to 26 min.
7 to 12 min. per lb.
3 to 8 min. per lb.
Place wrapped chicken in dish. Unwrap and turn over after first half of
time. After second half of time, separate pieces and place in cooking dish.
Microwave 2 to 4 minutes more, if necessary. Let stand a few minutes to
finish defrosting.
Place wrapped chicken in dish. After first half of time, unwrap and turn
chicken over. Shield warm areas with foil. To complete defrosting, run cool
water in cavity until giblets can be removed.
Place unwrapped hen in oven breast-side-up. Turn over after first half of
time. Run cool water in cavity until giblets can be removed.
Place unwrapped breast in microwave-safe dish breast-side-down. After
first half of time, turn breast-side-up and shield warm areas with foil. Defrost
for second half of time. Let stand 1 to 2 hours in refrigerator to complete
defrosting.
EXPRESS COOK
This is a quick way to set cooking time from 1-5 minutes.
Press one of the Express Cook pads (from 1-5) for 1-5
minutes of cooking at power level 10. For example, press
the 2pad for 2 minutes of cooking time.
The power level can be changed as time is counting down.
Press Power Level and enter 1-10.
NOTE: Express Cook function pertains to pads 1-5 only.
ADD 30 SEC
It will add 30 seconds to the time counting down each time
the pad is pressed. Each touch will add 30 seconds, up to 99
minutes and 99 seconds.
The oven will start immediately when pressed.
TIME AND AUTO FEATURES
14

SENSOR POPCORN
1. If you want to cook a package that is less than 1.75
oz or more than 3.5 oz, use Cook Time and follow
the instructions on the package. Place the package of
popcorn in the center of the microwave.
2. Press Popcorn to select ounces and then press Start/
Pause. If the popcorn is not to your satisfaction, do not
use the Popcorn button again to continue cooking. Use
the Cook Time button for further cooking.
Do not open the oven door until time is counting down.
If the door is opened before time is counting down 4 beeps
are emitted while the display will Scroll & Cycle “SENSOR
ERROR “ until Clear/ Off is pressed.
The sensor cook will be cancelled as well. If the Door is
opened during the counting down, close it and press Start/
Pause immediately.
HUMIDITY SENSOR
The Sensor Features detect the increasing humidity released during cooking. The oven automatically adjusts the cooking
time to various types and amounts of food.
Do not use the Sensor Features twice in succession on the
same food portion—it may result in severely overcooked
or burnt food. Be sure to let the oven cool down for 5-10
minutes before starting the next sensor cook.
If food is undercooked after the countdown, use Cook
Time for additional cooking time.
■The proper containers and covers
are essential for best sensor
cooking.
■Always use microwave-safe
containers and cover them with
lids or vented plastic wrap. Never
use tight sealing plastic containers
- they can prevent steam from
escaping and cause food to
overcook.
■Be sure the outside of the cooking
containers and the inside of the
microwave oven are dry before
placing food in the oven. Beads
of moisture turning into steam can
mislead the sensor.
SENSOR FEATURES
Covered
Vented
Dry off dishes so they don’t
mislead the sensor.
15

SENSOR REHEAT
The Reheat feature reheats servings of previously cooked foods or a plate of leftovers.
3. Press Sensor Reheat.
4. Using the cooking guide below, enter food code. For
example, 1 for Pasta.
5. Press Start/Pause. The oven signals when steam is
sensed and the time remaining begins counting down.
Do not open the oven door until time is counting down.
If the door is opened before time is counting down 3
beeps are emitted while the display will Scroll & Cycle
“SENSOR ERROR “ until Clear/ Off is pressed. The
sensor cook will be cancelled as well. If the Door is
opened during the counting down, close it and press
Start/ Pause immediately.
After removing food from the oven, stir, if possible,
to even out the temperature. If the food is not
hot enough, use Cook Time to reheat for more
time. Reheated foods may have wide variations in
temperature. Some areas may be extremely hot.
It is best to use Cook Time for these foods:
• Bread products.
• Foods that must be reheated covered.
• Foods that need to be stirred or rotated during reheating.
• Foods calling for a dry look or crisp surface after
reheating.
SENSOR COOK
To use the Sensor Cook feature:
1. Press the Sensor Cook button to select Food code.
2. Press Start/ Pause. The oven signals when steam is
sensed and the time remaining begins counting down.
Do not open the oven door until time is counting down.
If the door is opened before time is counting down 3
beeps are emitted while the display will Scroll & Cycle
“SENSOR ERROR “ until Clear/ Off is pressed. The
sensor cook will be cancelled as well. If the Door is
opened during the counting down, close it and press
Start/ Pause immediately.
After removing food from the oven, stir, if possible,
to even out the temperature. If the food is not
hot enough, use Cook Time to reheat for more
time. Reheated foods may have wide variations in
temperature. Some areas may be extremely hot.
SENSOR FEATURES
Food Display Pad Weight/Portion
Potato POTATO 1 1-4 potatoes
Chicken CHICKEN 2 1-4 serving (4oz/serv)
Fish/Seafood FISH 3 1-4 serving (4oz/serve)
Ground Meat MEAT 4 1-4 serving (4oz/serv)
Fresh Veggies FRES-VE 5 1-4 serving (4oz/serv)
Frozen Veggies FROZ-VE 6 1-4 serving (4oz/serve)
Canned Veggies CANN-VE 7 1-4 serving (4oz/serv)
Code Entry Food
1 Pasta
2 Pizza
3 Plate
4 Soup
16

OTHER FEATURES
MELT
Melt enables you to melt Butter/Margarine, Chocolate,
Cheese, or Marshmallows.
1. Press Melt button, “BUTTER” is displayed.
2. Continue to press Melt button, “BUTTER”, “CHOCOLA”,
“CHEESE” or “MARSHMA” will display in order.
3. Press number button to select the amount per the
table below.
4. Press Start/ Pause to confirm amount and start
cooking directly, the remaining cook time countdown
is displayed. Icon “oz” turns off, AUTO MENU icon
stays on.
SOFTEN
Soften enables you to soften Butter/Margarine, Ice Cream,
or Cheese.
1. Press Soften button, “BUTTER” is displayed.
2. Continue to press Soften button, “BUTTER”, “ICE-CRE”,
or “CHEESE” will display in order.
3. Press number button to select the amount per the
table below.
4. Press Start/ Pause to confirm amount and start
cooking directly, the remaining cook time countdown
is displayed. Icon “oz” turns off, AUTO MENU icon
stays on.
BEVERAGE
Beverage enables you to reheat coffee or tea to restore
to a more suitable drinking temperature or to make instant
coffee or tea.
1. Press Beverage once and “1 CUP” will appear in the
display.
2. Press Beverage twice and “2 CUP” will appear in the
display.
3. Press Start/ Pause to start.
NOTE:
• To add extra time press Add 30 Sec button
• Pressing Start/ Pause to pause cycle
• Press Clear/ Off to cancel at any time.
Food Display Weight/Qty
Butter/ Margarine BUTTER 1 / 2 / 3 Sticks
Chocolate CHOCOLA 4 / 8 oz
Cheese CHEESE 8 / 16 oz
Marshmallows MARSHMA 5/ 10 oz
Food Display Weight/Qty
Butter/ Margarine BUTTER 1 / 2 / 3 Sticks
Ice Cream/Frozen Juice ICE-CRE 8 / 16 / 32 oz
Cheese CHEESE 3 / 8 oz
17

LOCK CONTROLS
You may lock the control panel to prevent the microwave
from being accidentally started or used by children. To
lock or unlock the controls, press and hold Lock Controls
for three seconds. When the control panel is locked,
“LOCKED” will appear in the display
SET CLOCK
Press to enter the time of day or to check the time of day
while microwaving.
1. Press Set Clock.
2. Enter time of day.
3. Press Start/ Pause or Set Clock.
START/PAUSE
In addition to starting many functions, Start /Pause allows
you to stop cooking without opening the door or clearing
the display. Press Start/ Pause again to restart the oven.
SOUND
You can turn off all beeping sounds by pressing the Mute
On/ Off button so that MUTE ON shows on the display.
Pressing the Mute On/ Off button again will change to
MUTE OFF on the display and turns all beeping sounds
back on.
TIMER
Timer operates as a minute timer and can be used at any
time, even when the oven is operating.
1. Press Timer.
2. Enter the amount of time you want to count down.
3. Press Timer or Start/ Pause to start. When the time
is up, the oven will signal. To turn off the timer signal,
press Timer. After the timer signal turns off, the display
will return to any cook/defrost time countdown or the
time of day display. The Clear/ Off button will not
turn off the timer signal. The display shows the Timer
countdown time even when the oven is operating
COOKING COMPLETE REMINDER
To remind you that you have food in the oven, the oven
will display “END” and beep once a minute until you either
open the oven door or press the Clear/ Off button.
OTHER FEATURES
18

COVERING
Covers hold in moisture, allow for more even heating and
reduce cooking time.
Venting plastic wrap or covering with wax paper allows
excess steam to escape.
STANDING TIME
When you cook with regular ovens, foods such
as roasts or cakes are allowed to stand to finish cooking or
to set.
Standing time is especially important in microwave
cooking. Note that a microwaved cake is not placed on a
cooling rack.
VENTING
After covering a dish with plastic wrap, you vent the plastic
wrap by turning back one corner so excess steam can
escape.
SHIELDING
In a regular oven, you shield chicken breasts or baked
foods to prevent over-browning. When microwaving, you
use small strips of foil to shield thin parts, such as the tips
of wings and legs on poultry, which would cook before
larger parts.
ARCING
Arcing is the microwave term for sparks in the oven. Arcing is caused by:
■Metal or foil touching the side of the oven.
■Foil that is not molded to food (upturned edges act like
antennas).
■Metal such as twist-ties, poultry pins, gold-rimmed
dishes.
■Recycled paper towels containing small metal pieces.
■Plates or dishes with a metallic trim or glaze with a
metallic sheen.
MICROWAVE TERMS
19

Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suit ble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable.
Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
MAINTENANCE
a
PN:
