Midea TM034D4HL User manual

SAVE THESE INSTRUCTIONS CAREFULLY
Read these instructions carefully before using your
microwave oven, and keep it carefully.
If you follow the instructions, your oven will provide you with
many years of good service.
Model:TM034D4HL

PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
(a) Do not attempt to operate this oven with the door open since
operation can result in harmful exposure to microwave energy.
It is important not to defeat or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allows soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particular important that
the oven door close properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken or loosened)
(3)DOOR SEALS AND SEALING SURFACE
(d) The oven should not be adjusted or repaired by anyone except properly
qualified service personnel.
open door
S
ly
Specifications
120 V~ 60 Hz
Model
Rated Voltage
Microwave Input
Microwave Output 1000 W
1500 W
TM034D4HL-PHNA00
2

WARNING -
1. Read all instructions before using the
appliance.
2. Read and follow the specific:
EXCESSIVE MICROWAVE ENERGY"
found on page 2.
combustible materials are placed inside the oven to facilitate cooking.
only to properly grounded outlet. See
found on page
accordance with the provided installation
instructions.
To reduce the risk of burns, electric shock, fire, injury to persons or exposure
to excessive microwave energy:
3. This appliance must be grounded. Connect
" PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
" GROUNDING INSTRUCTIONS"
4. Install or locate this appliance only in
5. Some products such as whole eggs and sealed containers - for example, closed glass
jars - are able to explode and should not be heated in this oven.
6. Use this appliance only for its intended use as described in the manual. Do not use
corrosive chemicals or vapors in this appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
supervision is necessary when used
by children.
7. As with any appliance, close
damaged cord or plug, if it is not
working
properly, or if it has been
damaged or dropped.
8. Do not operate this appliance if it has a
by qualified service personnel.
Contact nearest
authorized service
facility for examination, repair, or
adjustment.
9. This appliance should be serviced only
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this product near water - for
example,
near a kitchen sink, in a wet
basement, near a swimming pool, or
similar location.
1 . Do not immerse cord or plug in water.2
1 . Keep cord away from heated surface.
14. Do not let cord hang over edge of
table or counter.
3
15. When cleaning surfaces of door and oven that comes together on closing the door,
16. To reduce the risk of fire in the oven cavity:
1). Do not overcook food. Carefully attend appliance when paper, plastic, or other
2). Remove wire twist-ties from paper or plastic bag before placing bag in oven.
3). If material inside of the oven ignite, keep oven door closed, turn oven off, and
disconnect the power cord, shut off power at the fuse or circuit breaker panel.
4). Do not use the cavity for storage purposes. Do not leave paper products, cooking
utensils, or food in the cavity when not in use.
point without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present.
17. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling
IMPORTANT SAFETY INSTRUCTIONS
precautions should be followed, including
When using electrical appliances basic safety
following:the
use only mild, nonabrasive soaps, or detergent applied with a sponge or soft cloth.
or
4.
3

stand in the microwave oven for a short time
before removing the container.
spoon or other utensil into the container.
This appliance must be grounded. In the event of an electrical short circuit, grounding
of electric shock by providing an escape wire for the
appliance is equipped with a cord having a
plugged into an outlet that is properly installed and grounded.
GROUNDING INSTRUCTIONS
THIS COULD RESULT IN VERY HOT LIQUID SUDDENLY BOILING OVER WHEN
THE CONTAINER IS DISTURBED OR A UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
1) Do not overheat the liquid.
2) Stir the liquid both before and halfway through heating it.
3) Do not use straight-sided containers with narrow necks.
4) After heating, allow the container to
5) Use extreme care when inserting a
grounding wire with a grounding plug.
reduces the risk
The plug
WARNING -Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not
completely or if doubt exists as to whether the appliance is properly grounded.
extension cord, use only a 3-wire extension cord that has a
The marked rating of the extension cord shall be equal to or greater than the electrical
appliance.
understood,
If it is necessary to use an
3-blade grounded plug, and 3-slot receptacle that will accept the plug on the appliance.
rating of the
Electric Shock Hazard
Touching some of the internal components can cause serious personal injury or death.
disassemble this appliance.
DANGER -
Do not
Electric Shock Hazard
Improper use of the grounding can result in electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
WARNING -
SA E THESE INSTRUCTIONS
must be
V
on top of the appliance surface when the appliance is in
20. Do not mount over sink.
21. Do not store anything directly
operation.
operate anyheating or cooking appliance beneath the appliance.18. Do not
19. Do not mount unit over or near anyportion of heating or cooking appliance.
4

1. A short power supply cord is provided to reduce the risks resulting from becoming
entangled in or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised
in their use.
3. If a long cord or extension cord is used:
1) The marked electrical rating of the cord set or extension cord should be at least as
great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The longer cord should be arranged so that it will not drape over the counter top or
tabletop where it can be pulled on by children or tripped over unintentionally.
-
1. Operation of the microwave oven may cause interference to your radio, TV
or similar
2. When there is interference, it may be reduced or eliminated by taking the
following
1) Clean door and sealing surface of the oven
2) Reorient the receiving antenna of radio or television.
3) Relocate the microwave oven with respect to the receiver.
4) Move the microwave oven away from the receiver.
5) Plug the microwave oven into a different outlet so that microwave oven
are on different branch circuits.
RADIO INTERFERENCE
equipment.
measures:
and receiver
5
This device complies with part 18 of the FCC Rules.

Personal Injury Hazard
Tightly-closed utensils could explode. Closed containers should be opened and plastic
pierced before cooking.
Utensil Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave
4. Do not exceed 1 minute cooking time.
UTENSILS
See the instructions on "Materials you can use in microwave oven or to be avoided in
There may be certain non-metallic utensils that are not safe to use for microwaving. If
utensil in question following the procedure below.
CAUTION -
pouches should be
microwave oven."
in doubt, you can test the
utensil in question.
cooking.
Materials you can use in microwave oven
UtensilsRemarks
Follow manufacturer* instructions. The bottom of browning dish must be
at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause
the turntable to break.
Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Follow manufacturer* instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Use for short*erm cooking/warming only. Do not leave oven unattended
while cooking.
Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Use as a cover to prevent splattering or a wrap for steaming.
Browning dish
Glass jars
Glassware
Oven cooking
bags
Paper plates
and cups
Paper towels
Parchment
paper
Dinnerware
6

Materials you can use in microwave oven
UtensilsRemarks
Microwave-safe only. Follow the manufacturer* instructions. Should be
labeled "Microwave Safe". Some plastic containers soften, as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by package.
Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
ThermometersMicrowave-safe only (meat and candy thermometers).
Wax paperUse as a cover to prevent splattering and retain moisture.
Plastic
Plastic wrap
Materials to be avoided in microwave oven
UtensilsRemarks
Aluminum tray
Food carton with
metal handle
Metal or metal-
trimmed utensils
Metal twist ties
Paper bags
Plastic foam
Wood
Metal shields the food from microwave energy. Metal trim may
cause arcing.
May cause a fire in the oven.
Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood will dry out when used in the microwave oven and may split
or crack.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing. Transfer food into microwave-safe dish.
May cause arcing and could cause a fire in the oven.
7

A) Control atch
B) Control Box
C) RightMounting Plate
D) Cavity
E) Handle
F) Windows
G) Door Frame
SETTING UP YOUR OVEN
Names of Oven Parts and Accessories
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
A
BC
DE
F
G
H
I
J
K
H) Automatic putter
I) Drawer
J) Hinge Joint Board
K) Left Mounting Plate
P
and do not use for cooking. Do not use without food )
Defrosting Rack( Only be used in defrosting function
8

30
CLEARANCES AND DIMENSIONS
MICROWAVE DRAWER MEASUREMENTS
9
·Dimensions that are shown in Figure 1 must be used. Given dimensions provide minimum
clearance. Locate electrical outlet in the shaded area in the upper left-hand corner of the cutout.
Figure 1
·Contact surface must be solid and level. Pay special attention to the floor on which the
Microwave Drawer will sit. The floor of the opening should be constructed of plywood strong
enough to support the weight of the oven (about 100 pounds).
·Check location where the Microwave Drawer will be installed for proper electrical supply
·Your oven can be built into a cabinet or wall by itself or under a gas or electric wall oven.
·Be sure that the clearance of the floor between the wall oven and the microwave drawer is a
minimum of 2-inches.
·The microwave interior will easily accommodate a 9" x 13" oblong dish or a bag of microwave
popcorn.
See Figure 3

NOTE
10
Figure 2
Figures 1 and 2 contain many Microwave Drawer
measurements for reference when
planning the drawer's location .This Microwave Drawer can be installed below
any electric or gas wall oven.
*Can also be installed using an electrical outlet in an
adjacent cabinet within the area where tire provided electrical cord can reach.
Power cord access hole in cabinet should be a minimum l
1/2" diameter hole and debarred
of all sharp edges.
Always allow sufficient power cord length to the electrical outlet to prevent tension
Always check electrical codes for requirements.
6

ANTI-TIP BLOCK ELECTRICAL OUTLET
S
u
gg
e
sted
el
e
ct
r
ic
a l
outle
t
lo
c
ation
5
''
4
'
'
Anti Tip
block
(6'')
3
12
'
Figure 3 Figure 4
NORMAL INSTALLATION STEPS
ANTI-TIP BLOCK INSTALLATION INSTRUCTIONS
To reduce the risk of tipping of the drawer, the Anti-Tip block must be properly
13/16- installed located 14inches above the floor on which the Microwave
Drawer will sit. The 6-inch Anti-Tip block must be provided by the installer.
See Figures 1 and 3. The Anti-Tip block prevents serious injury that might result
from spilled hot liquids. If the Microwave Drawer is ever moved to a different
location, the Anti-Tip block must also be moved and installed , When installed to the
thewall make sure that screws completely penetrate the dry wall and are
secured in wood or metal so that the block is totally stable. When fastening,
be sure that the screws do not penetrate electrical wiring or plumbing. The electrical
requirements are a 120 volt 60 Hz, AC only,l5 amp. or more protected electrical supply.
recommended that a separate circuit serving only this appliance be provided.
The drawer is equipped with a 3-prong grounding plug, It must be plugged into a wall
properly installed and grounded. Should you only have 2-prong outlet,
have a qualified electrician install a correct wall receptacle.
Note: If you have any questions about the grounding or electrical Instructions, consult
a qualified electrician or service person.
*Can also be installed using an electrical outlet in an adjacent cabinet within the area
where the provided electrical cord can reach.Always check electrical codes ,for requirements.
It is
receptacle that is
11

1. Place the drawer adjacent to the wall or cabinet opening.Plug the power supply cord into the electrical outlet.
2. Carefully guide the drawer into the prepared opening. Avoid pinching the cord between the oven and the wall.
3. Slide the drawer all the way until the mounting
flange is flush with the face of the cabinet.
See Figure 5.
4. Open the drawer. Using the 4 holes on
the drawer as a template , pre drill the cabinet
using a 1/16" bit. See Figure 5.
5. Secure the drawer with the 4 screws supplied.
See Figure 6.
The name plate includes model and serial number. Open the Microwave Drawer fully. The label is beyond the
back wall of the microwave cavity facing up from the flat surface.
Refer to the Operation Manual for cleaning instructions.
4 Screws
4 Sc rews
Figure 6
MODEL AND SERIAL NUMBER LOCATION
CARE,CLEANING AND MAINTENANCE
DRAWER INSTALLATION
Figure 5
12

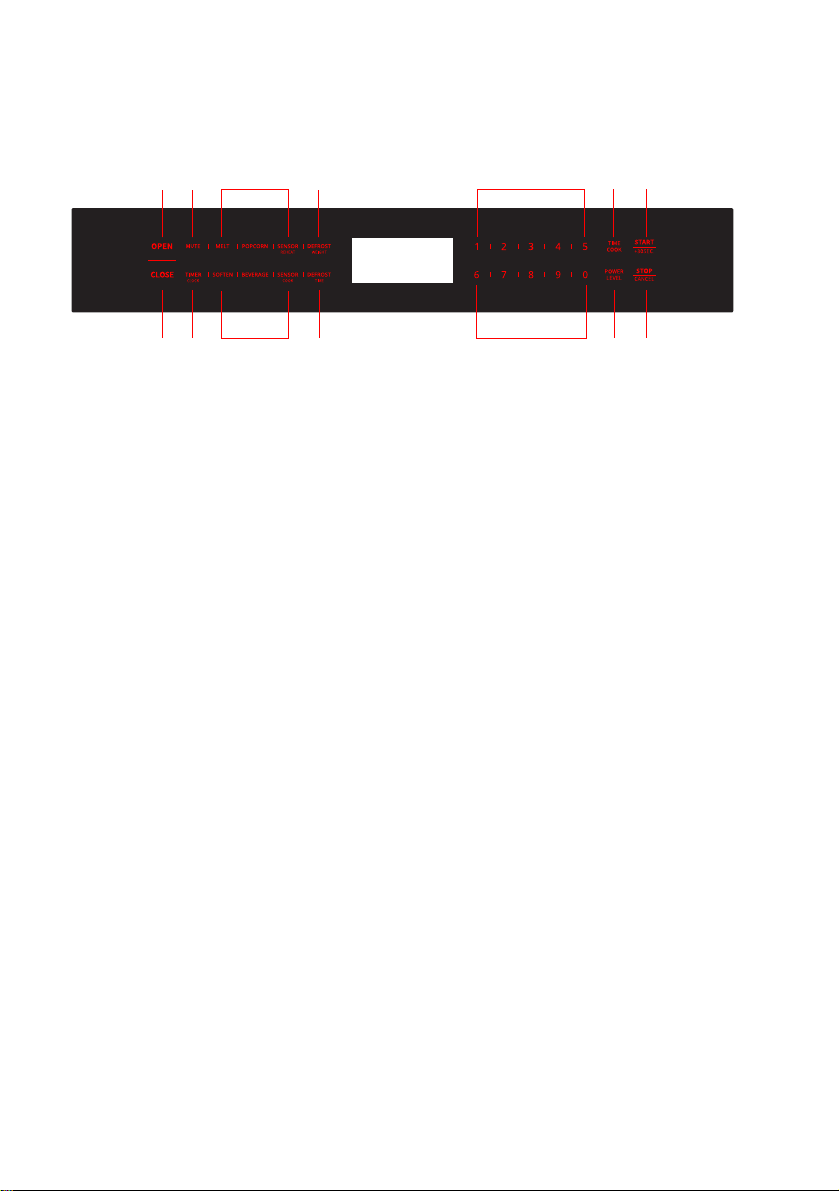

Control Panel and Features
OPERATION
13
(1) (2) (4)(3)
(3)(5) (7)
(9)
(11)
(10)
(12)(6)
(8)
(8)
1 ) Open
2 ) Setup
3 ) Auto Menu
4 ) Defrost Weight
Defrost Time
5 ) Close
6 ) Timer/Clock
7 )
8 ) Number Keys
9 ) Time Cook
10 ) Start/+30sec.
11 ) Power Level
12 ) Stop/Cancel

Level
Power
10
100%
9
90%
8
80%
7
70%
6
60%
5
50%
4
40%
3
30%
2
20%
1
10%
Display PL10 PL09 PL08 PL07 PL06 PL05 PL04 PL03 PL02 PL01
10 power levels are available.
2. Kitchen Timer
3. Time Cook
OPERATION
1. Clock Setting
(1) Press "TIMER/CLOCK" button twice. “12:00” will flash.
(2) Press number keys to set the clock,it should be within 1:00~12:59.
(3) Press "START+30SEC." or "TIMER/CLOCK" to finish the setting.
(4) Press "START+30SEC." to start cooking.
Note: In the process of clock setting, if the "STOP/CANCEL" button is pressed or if there
is no operation within 1 minute, the oven will go back to former setting automatically.
(1) Press "TIMER/CLOCK" button once. “00:00” will display.
(2) Press number keys to set the clock,it should be within 00:01-99:99.
(3) Press "START+30SEC." to start counting down .
(1) Press "TIME COOK" button once. “00:00” will display.
(2) Press number keys to set the cook time,it should be within 00:01-99:99.
(3) Press "POWER LEVEL" once,and then to confirm and then press "POWER LEVEL"
repeatedly or press number key to set the power level.
14

(1) Press "DEFROST TIME" button. displays defrost icon.
"00:00" will light.And
(3) Press "START/+30SEC." to start defrosting.
Note: The defrosting power level is PL03.it cannot be changed
The buzzer will sound twice to remind you of turning over the food during defrosting.
Note: The buzzer will sound twice to remind you of turning over the food during defrosting.
(2) Press number buttons to enter the ng time between 00:01-99:99.defrosti
6. Time Defrost Function
Screen
(1) Press "POPCORN" to start cooking directly.
7.Popcorn
(1) Press "DEFROST WEIGHT" button. Screen displays the defrost icon.
(2) Press numeber buttons to input the weight to be defrosted.
(1) In waiting state, instant cooking at 100% power level with 30 seconds' cooking time can
be started by pressing "START/+30SEC". Each press on the same button will increase
cooking time by 30 seconds.
(2) During microwave and defrost by time, "START/+30SEC."
can be pressed to increase
And "0.0 lbs" willlight.
The input weight should be between 0.1-6.0 lbs.
(3) Press "START/+30SEC." to start defrosting. Buzzer sounds once.
4.Add 30Sec
5. Weight Defrost Function
cooking time. Each press will increase 30 seconds.
15

(1) In waiting state, press "Sensor Reheat" once,"Sr-1" will display.
(2) Press "Sensor Reheat" repeatedly or press "1-4" to choose the menu.
(1) In waiting state, press "Sensor Cook" once,"Sc-1" will display.
(2) Press "Sensor Cook" repeatedly or press "1-7" to choose the menu.
8.Sensor Reheat
9.Sensor Cook
(1) In waiting state, press "Beverage" once,"1","01:30" will display.
(2) Press "Beverage" repeatedly or press "1"or "2" to choose the menu.
10.Beverage
16
(3) Press "START+30SEC." to start cooking.
(3) Press "START+30SEC." to start cooking.
(3) Press "START+30SEC." to start cooking.
PASTA
PIZZA
PLATE
SOUP
Sr-1
Sr-2
Sr-3
Sr-4
Potato
Chicken
Fish
Ground Meat
Fresh Veggies
Frozen Veggies
Canned Veggies

MenuDisplay Weight
MenuDisplay
Butter
Weight
Ice cream/ Frozen juice
8 oz ICE
Cream Cheese
16 oz ICE
3 oz CHEE
8 oz CHEE
3 oz
8 oz
32 oz ICE
8 oz
16 oz
32 oz
1(STICH)
2(STICHS)
3(STICHS)
17
(1) In waiting state, press "MELT" once,"1 buTT" will display.
(2) Press "MELT" repeatedly to choose the menu.
11.MELT
12.SOFTEN
(3) Press "1"or "2" to choose the correspond weight.
(4) Press "START+30SEC." to start cooking.
(1) In waiting state, press "SOFTEN" once,"1 buTT" will display.
(2) Press "SOFTEN" repeatedly to choose the menu.
(3) Press "1"or "2" to choose the correspond weight.
(4) Press "START+30SEC." to start cooking.
Choc
Choc
CHEE
CHEE

P
In silent mode,
ress "
14. Buzzer On/Off
MUTE
MUTE
" button. displays silent icon.
Lock: In waiting state, press "STOP/CANCEL" for 3 seconds, the oven will enter into the
children-lock state. will display “Loc”.
Lock quitting: In locked state, press "STOP/CANCEL" for 3 seconds to release the lock.
15. LOCK FUNCTION FOR CHILDREN
Screen
press " " button.the buzzer will sound twice.
Screen
will display “UnLo”.Screen
To enter silent mode
To cancel silent mode
18
Note: The defrost function only could be one stage of the multiple cook.
Two stage cook can be set at most.
13.Multiple Cook
(2) Press numeber buttons to input the weight to be defrosted.
The input weight should be between 0.1-6.0 lbs.
(6) Press "START+30SEC." to start cooking.
(3) Press "TIME COOK" button once. “00:00” will display.
(4) Press number keys to set the cook time,it should be within 00:01-99:99.
(5) Press "POWER LEVEL" once,and then to confirm and then press "POWER LEVEL"
repeatedly or press number key to set the power level.
(1) In waiting state, press "DEFROST WEIGHT" once,"0.0 lbs" will display.

(1) In cooking state, press "TIMER/CLOCK" button to check the clock. The current time
will display for 3 seconds at most.
17. INQUIRING FUNCTION
when the oven door is closed,in waiting state, if there is not any operations in 1 minute.
In eco mode, open the door or press any key to cancel it.
16. ECO MODE
19
To enter eco mode
To cancel eco mode

Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
Oven will not start
POSSIBLE CAUSE POSSIBLE REMEDY
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Wrong operation is set.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were
used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were
used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suit ble.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is
not suitable.
Use correct cooking time,
power level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven ventilation ports are
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe
cookware only.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only.
b. Use correct cooking time,
power level.
c. Turn or stir food.
MAINTENANCE
a
PN:P0000004451389
