Model:TM034K6LE-PDH
MICROWAVE OVEN
&
Introduction ...................................................2
Important Safety Instructions....................3
Precautions Microwave Energy .................. 4
Names Of Oven Parts And Accessories ...8
Operation ...................................................
9
Maintenance ....................................................16
Cleaning And Care...................................... 17-19
Warranty................................................................21

2
INTRODUCTION
Welcome to our family
Thank you for bringing Frigidaire into your home!
We see your purchase as the beginning of a long
relationship together.
This manual is your resource for the use and care
of your product. Please read it before using your
appliance. Keep it handy for quick reference. If
something doesn’t seem right, the troubleshooting
section will help you with common issues.
FAQs, helpful tips and videos, cleaning products, and
kitchen and home accessories are available at www.
frigidaire.com.
We are here for you! Visit our website, chat with an
agent, or call us if you need help. We may be able
to help you avoid a service visit. If you do need
service, we can get that started for you.
Let's make it official! Be sure to register your prod-
uct.
Keep your product info here so it’s easy to find.
Model Number:
Serial Number:
Purchase Date:
Serial Number Location

IMPORTANT SAFETY INSTRUCTIONS 3
Read all instructions before using this appliance.
This manual contains important safety symbols and instructions. Please pay at-tention to these symbols
and follow all instructions given.
Do not attempt to install or operate your appliance until you have read the safety precautions in this
manual. Safety items throughout this manual are labeled with a WARNING or CAUTION statement based
on the risk type.
Warnings and important instructions ap-pearing in this guide are not meant to cover all possible
conditions and situations that may occur. Common sense, caution, and care must be exercised with
installing, maintaining, or operating your appliance.
DEFINITIONS
This is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible injury or death.
SAVE THESE INSTRUCTIONS
CAUTION
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
Indicates a short, informal reference –something
written down to assist the memory or for future
reference.
NOTE
Indicates a potentially hazardous situation which,
if not avoided, may result in death or serious
injury.
WARNING
NOTE
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz,
1.7 kilowatts and 14.2 amps(Conv/Air Fry) . This
product must be connected to a seperate and
dedicated supply circuit of the proper voltage
and frequency. Wire size must conform to the
requirements of the National Electrical Code or
the prevailing local code for this kilowatt rating.
The power supply cord and plug should be
brought to a seperate and dedicated 15- to 20-
ampere branch circuit single grounded outlet. The
outlet box should be located in the cabinet above
the microwave oven. The outlet box and supply
circuit should be installed by a qualifed electrician
and conform to the National Electrical Code or
the prevailing local code.
Indicatesinstallation,operationormain-tenance
information which is important but not hazard-
related.
IMPORTANT
1. If you have any questions about the grounding
or electrical instructions, consult a qualified
electrician or service person.
2. Neither Electrolux nor the dealer can accept
any liability for damage to the microwave oven
or personal injury resulting from failure to
observe the correct electrical connection
procedures.
IMPORTANT

SAVE THESEINSTRUCTIONS
4
PRECAUTIONS MICROWAVE ENERGY
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
Do not attempt to operate this oven
with the door open since open door operation can
result in harmful exposure to microwave energy. It
is important not to defeat or tamper with the safety
interlocks.
Do not place any object between the oven front
face and the door or allow soil or cleaner residue to
accumulate on sealing surfaces.
Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) DOOR (bent)
(2) HINGES AND LATCHES (broken orloosened)
(3) DOOR SEALS AND SEALING SURFACES.
The oven should not be adjusted or repaired by
anyone except properly qualified service
personnel.
This device complies with part 18 of the FCC Rules.
RADIO INTERFERENCE
• Operation of the microwave oven may cause
interference to your radio, TV or similar
equipment.
• When there is interference, it may be reduced
or eliminated by taking the following measures:
- Clean door and sealing surface of the oven.
- Reorient the receiving antenna of radio or
television.
- Relocate the microwave oven with respect to
the receiver.
- Move the microwave oven away from the
receiver.
- Plug the microwave oven into a different outlet
so that microwave oven and receiver are on
different branch circuits.
UTENSILS
• Tightly-closed utensils could explode. Closed
containers should be opened and plastic pouches
should be pierced before cooking.
• See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave
oven."
There may be certain non-metallic utensils that are
not safe to use for microwaving. If in doubt, you
can test the utensil in question following the
procedure below.
Utensil Test:
- Fill a microwave-safe container with 1 cup of
cold water (250ml) along with the utensil in
question.
- Cook on maximum power for 1 minute.
- Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
- Do not exceed 1 minute cooking time.
To reduce the risk of burns, electric shock, fire,
injury to persons or exposure to excessive
microwave energy:
WARNING
• Personal Injury Hazard
CAUTION

SAVE THESEINSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS 5
When using electrical appliances basic safety
precautions should be followed, including the
following:
Read all instructions before using the appliance.
 Read and follow the specific:
"PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY" found on page 4.
 This appliance must be grounded. Connect only
to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on page 6.
 Install or locate this appliance only
in accordance with the provided installation
instructions.
 Some products such as whole eggs and sealed
containers - for example, closed glass jars - are
able to explode and should not be heated in this
oven.
 Use this appliance only for its intended use as
described in the manual. Do
not use corrosive chemicals or vapors in this
appliance. This type of oven is specifically
designed to heat, cook or dry food. It is not
designed for industrial or laboratory use.
 HOT CONTENTS CAN CAUSE SEVERE BURNS.
DO NOT ALLOW CHILDREN TO USE THE
MICROWAVE. Use caution when removing hot
items.
 Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it
has been damaged or dropped.
 This appliance should be serviced only by
qualified service personnel. Contact nearest
authorized service facility for examination, repair,
or adjustment.
Do not cover or block any openings on the
appliance.
 Do not store this appliance outdoors. Do not use
this product near water - for example, near a
kitchen sink, in a wet basement, near a swimming
pool, or similar location.
 Do not immerse cord or plug in water.
Keep cord away from heated surface.
Do not let cord hang over edge of table or
counter. When cleaning surfaces of door and
oven that comes together on closing the door,
use only mild, nonabrasive soaps, or detergent
applied with a sponge or soft cloth.
• To reduce the risk of fire in the oven cavity:
- Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible
materials are placed inside the oven to facilitate
cooking.
- Remove wire twist-ties from paper or plastic bag
before when placing bag in oven.
- If material inside of the oven ignite, keep oven
door closed, turn oven off, and disconnect the
power cord, or shut off power at the fuse or circuit
breaker panel.
- Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
• Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without
appearing to
be boiling. Visible bubbling or boiling when the
container is removed from the microwave oven is
not always present. THIS COULD RESULT IN VERY
HOT LIQUID SUDDENLY BOILING OVER WHEN THE
CONTAINER IS DISTURBED OR A UTENSIL IS
INSERTED INTO THE LIQUID. To reduce the risk of
injury to persons:
• Do not overheat the liquid.
• Stir the liquid both before and halfway through
heating it.
• Do not use straight-sided containers with narrow
necks.
• After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
• Use extreme care when inserting a spoon or other
utensil into the container.
• Oversized food or oversized metal utensils should
not be inserted in a microwave/toaster oven as they
may create a fire or risk of electric shock. Do not
clean with metal scouring pads. Pieces can burn off
the pad and touch electrical parts involving a risk of
electric shock.
• Do not use paper products when appliance is
operated in the toaster, air fry or convection mode.
• Do not store any materials, other than
manufacturer's recommendedaccessories,in this
oven when not in use.
• Do not cover racks or any other part of the oven
with metal foil. This will cause over- heating of the
oven.
• Clean Ventilation Hoods Frequently -Grease should
not be allowed to accumulate on hood or filter.
• When flaming foods under the hood, turn the fan on.
• Use care when cleaning the vent-hood filter.
Corrosive cleaning agents, such as lye-based oven
cleaners, may damage the filter.
• Suitable for use above both gas and electric cooking
equipment.
To reduce the risk of burns, electric shock, fire,
injury to persons or exposure to excessive
microwave energy:
WARNING

SAVE THESEINSTRUCTIONS
6
IMPORTANT SAFETY INSTRUCTIONS
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly
installed and grounded.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
appliance is properly grounded. If it is necessary to
use an extension cord, use only a
3-wire extension cord that has a 3-blade grounded
plug, and 3-slot receptacle that will accept the
plug on the appliance.The marked rating of the
extension cord shall be equal to or greater than the
electrical rating of the appliance.
• A short power supply cord is provided to reduce
the risks resulting from becoming entangled in or
tripping over a longer cord.
• Longer cord sets or extension cords are available
and may be used if care is exercised in their use.
• If a long cord or extension cord is used:
- The marked electrical rating of the cord set or
extension cord should be at least as great as the
electrical rating of the appliance.
- The extension cord must be a grounding-type3-
wire cord.
- The longer cord should be arranged so that it
will not drape over the counter top or tabletop
where it can be pulled on by children or tripped
over unintentionally.
Electric Shock Hazard
Touching some of the internal components can
cause serious personal injury or death. Do not
disassemble this appliance.
DANGER
Improper use of the grounding can result in a risk
of electric shock.
WARNING
1. If you have any questions about the
grounding or electrical instructions, consulta
qualified electrician or service person.
2. Neither Electrolux nor the dealer can accept
any liability for damage to the microwave
oven or personal injury resulting from failure
to observe the correct electrical connection
procedures.
IMPORTANT
Electric Shock Hazard
Improper use of the grounding can result in
electric shock. Do not plug into an outlet until
appliance is properly installed and grounded.
WARNING

IMPORTANT SAFETY INSTRUCTIONS 7
Materials you can use in microwave oven
Browning dish
Follow manufacturer instructions. The bottom of browning dish must be at
least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the
turntable to break.
Dinnerware
Microwave-safe only. Follow manufacturer's instructions. Do not use cracked
or chipped dishes.
Glass jars
Always remove lid. Use only to heat food until just warm. Most glass jars are
not heat resistant and may break.
Glassware
Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not
use cracked or chipped dishes.
Oven cooking bags
Follow manufacturer instructions. Do not close with metal tie. Make slits to
allow steam to escape.
Paper plates and cups
Use for short term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels
Use to cover food for reheating and absorbing fat. Use with supervision for a
short-term cooking only.
Parchment paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic
Microwave-safe only. Follow the manufacturer instructions. Should be labeled
"Microwave Safe". Some plastic containers soften, as the food inside gets hot.
"Boiling bags" and tightly closed plastic bags should be slit, pierced or vented
as directed by package.
Plastic wrap
Microwave-safe only. Use to cover food during cooking to retain moisture. Do
not allow plastic wrap to touch food.
Thermometers
Microwave-safe only (meat and candy thermometers).
Wax paper
Use as a cover to prevent splattering and retain moisture.
Materials to be avoided in microwave oven
Aluminum tray
May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties
May cause arcing and could cause a fire in the oven.
Paper bags
May cause a fire in the oven.
Plastic foam
Plastic foam may melt or contaminate the liquid inside when exposed to high
temperature.
Wood
Wood will dry out when used in the microwave oven and may split or crack.

8
NAMES OF OVEN PARTS AND ACCESSORIES
C(&// T1.*0&b(! Turntable Ring Assembly
CONVECT

OPERATION 9
• Before operating your new appliance make sure
you read and understand this Use and Care
Guide completely.
• The clock can be disabled when the microwave
is first plugged in and the STOP key is selected.
To re-enable the clock follow clock instructions.
CHILD LOCK
• Suppose you want to lock or unlock the controls.
Touch: Display Shows:
SETTING THE CLOCK
1.
STOP
(for 3 seconds)
LOCK
XX:XX
Example: setting clock display for 9:00:
(current time will display after 2 seconds)
2.
Enter time usingnumber pads.
3.
Touch
START
pad.
SETTING THE CLOCK ON/OFF
Example: to turn off clock display:
VENT FAN
Touch:
1. x 1
2. x 2
3. x 3
Display Shows:
2.
Time will display, after 3s, OFF
will display.
3.
Tap the clock button to see the current
time if the display is off.
Example: to turn on clock display:
4. x 4
LIGHT
Touch: Display Shows:
1. x 1
1. Hold the clock button for 3s and the
clock will show in the display and when
ON is shown in the display the clock will
remain on.
2. x 2
3. x 3
1. Touch
pad once .
1. Touch
and hold pad .

3.
X2
10 OPERATION
ELECTRIC DOOR
Press “””once, the door will open automatically.
If the door does not open a buzzer will sound 8
times and E-03 will show in the display. All keys
aredisabledexceptCancel.PressCancelto clear
the E-03.

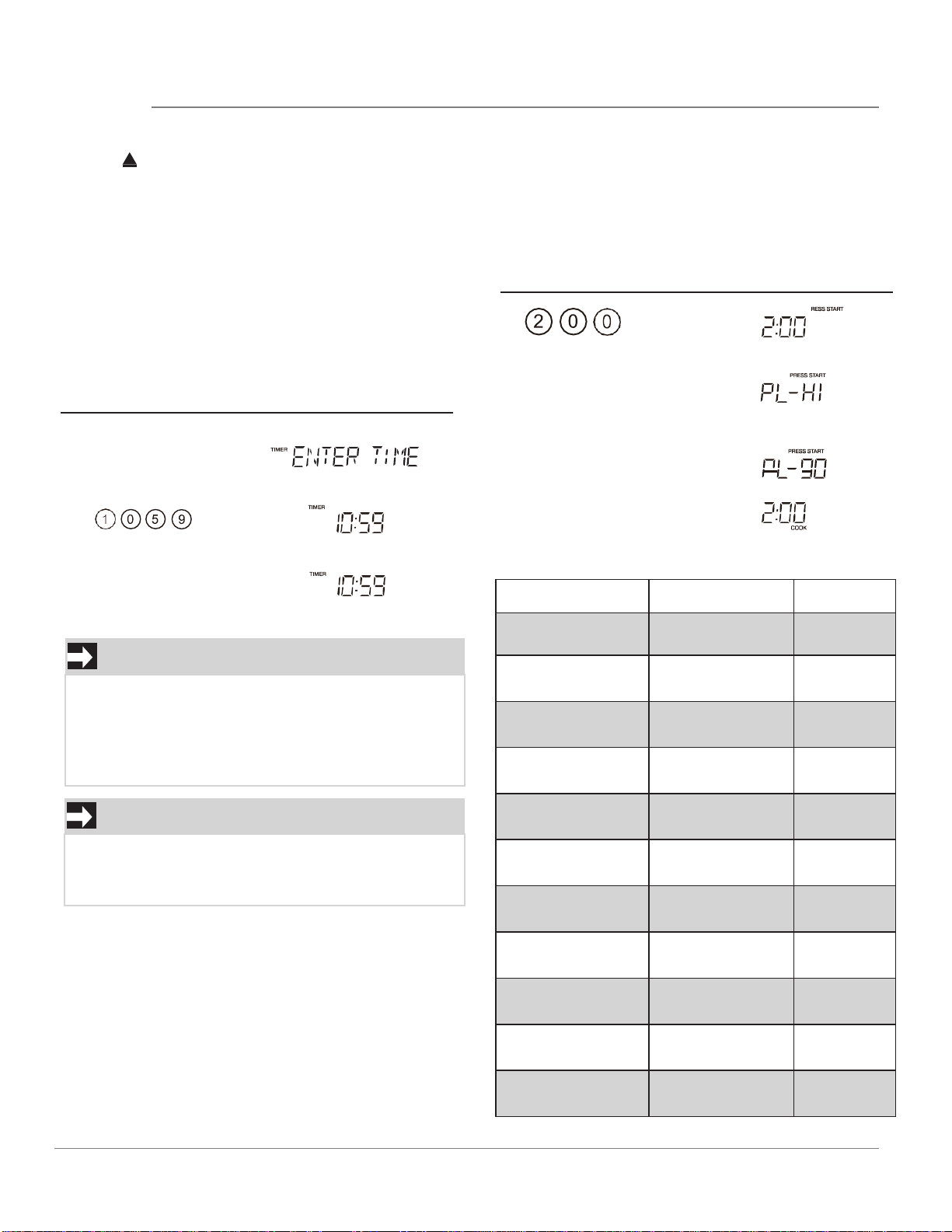

SETTING THE TIMER
• Your microwave oven can be used as a kitchen
timer. You can set up to 99:99. The kitchen timer
can be used while the microwave oven is running.
• Suppose you want to set a timer for 10:59.
Touch: Display Shows:
1. Timer
On-Off
MICROWAVE AT LOWER POWER LEVEL
Your Over the Range Microwave Oven can be
programmed for 99 minutes 99 seconds (99 :99).
Always enter the seconds after the minutes, even if
they are both zeros.
• Suppose you want to cook for 2 minutes at
90% power.
Touch: Display Shows:
1.
Power
2.
Level
X1
Power
Level
2.
Timer
3. On-Off
(Timer counts down)
4. START
POWER CHART
There are not any other programs during the
kitchen timer.
During the process of setting the timer, if you
touch STOP or there is not any operation in 5
minutes, the oven will enter to waiting state.
NOTE
TOUCH
POWER LEVEL
DISPLAY
POWER LEVEL
x 1
100%
PL-HI
POWER LEVEL
x 2
90%
PL-90
POWER LEVEL
x 3
80%
PL-80
POWER LEVEL
x 4
70%
PL-70
POWER LEVEL
x 5
60%
PL-60
POWER LEVEL
x 6
50%
PL-50
POWER LEVEL
x 7
40%
PL-40
POWER LEVEL
x 8
30%
PL-30
POWER LEVEL
x 9
20%
PL-20
POWER LEVEL
x 10
10%
PL-10
POWER LEVEL
x 11
0%
PL-0
The display will return to default setting after 15
minutes if a cooking cycle is stopped and not
restarted.
NOTE

OPERATION
11
Popcorn Sensor Cook
• Ac^^]aS g]c eO\b b] Q]]Y 3.0oz . ^]^Q]`\.
Touch: Display Shows:
1. Popcorn
The weight of these menus cannot be adjust except
bacon menu.
• Suppose you want cook 2 slices of bacon.
Touch: Display Shows:
2. Popcorn X2 or
3. START
Time counting down
1.
Sensor
Cook
X1
2. START
3.
4. START
Time counting down
Frozen Dinner
Beverage
• Suppose you want to cook Frozen Dinner.
• Suppose you want to cook 2 cups of beverage.
Touch: Display Shows:
1. Beverage
2.
Touch: Display Shows:
1. Sensor
Cook X2
3. START
Time counting down
2. START
Touch sensor cook once, Bacon displays, then
Touch start to enter the slice setting, 1-3 SLE will
display, touch 1, 2, or 3 slices.
When the food is near completion, the display
will show time count down.
NOTE
Touch number key
Amount
1
1 cup
2
2 cups
2
2
Touch popcorn
Weight
x1
3.3 oz
x2
3.0 oz
x3
1.75 oz
2

12 OPERATION
Touch sensor
cook
Food
Amount
X1
Bacon
1-3 slices
X2
Frozen Dinner
10 oz/20 oz
X3
Rice
1-2 cups
X4
Frozen Breakfast
8-12 oz
X5
Potato
1-4
X6
4` esh DSUUWSa
1-4 cups
X7
4`]hS\ DSUUWSa
1-4 cups

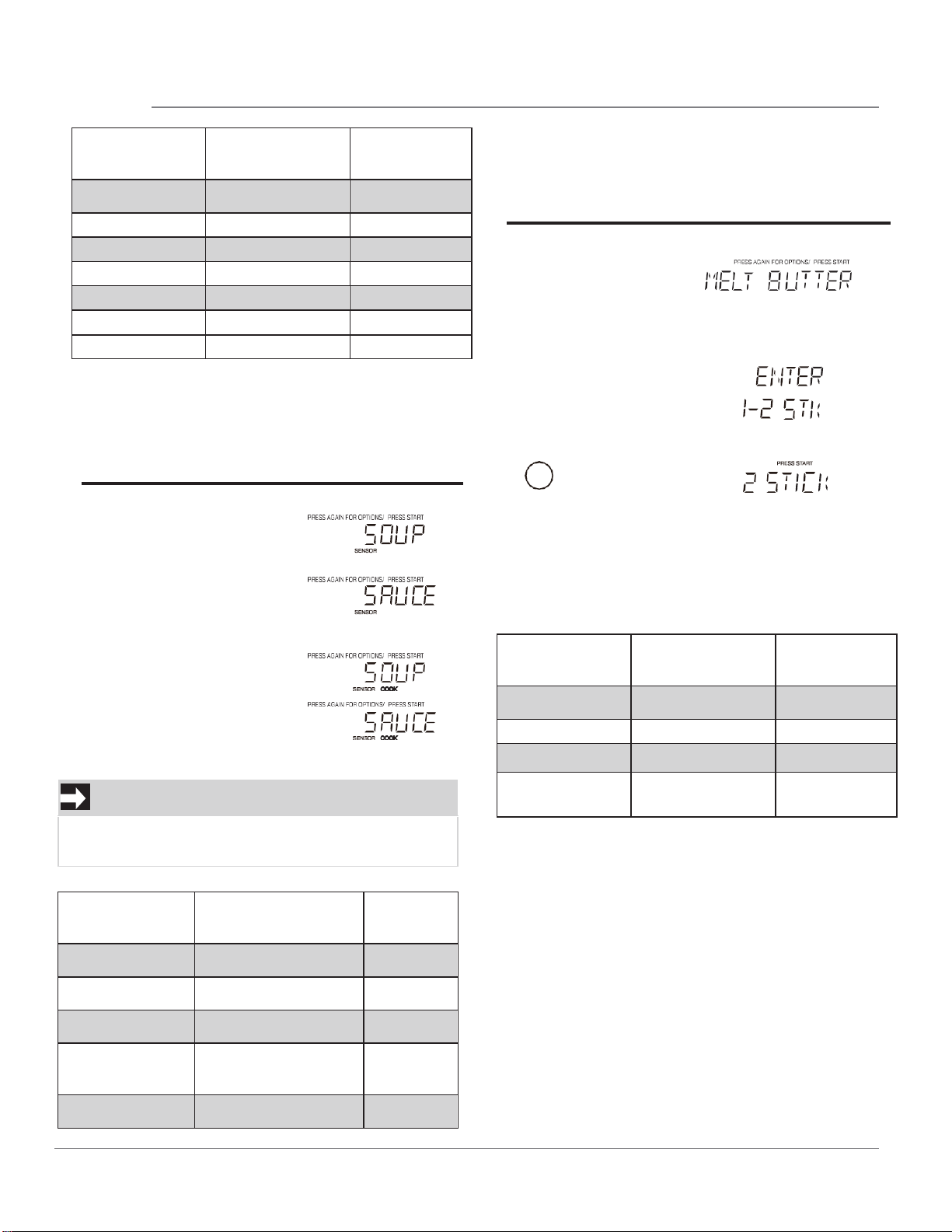

Sensor Reheat
The weight of these menus cannot be adjusted.
• Suppose you want to reheat Soup .
Touch: Display Shows:
Melt / Soften
• Suppose you want to melt 2 sticks of Butter.
Touch: Display Shows:
1.
Melt/
Soften X1
2. START
3.
1.
Sensor
Reheat X1
4. START
Time counting down
2. START
Touch sensor
Reheat
Food
Amount /
Weight
X1
Soup / Sauce
1-2 cups
X2
Pizza
2-3 slices
X3
Dinner Plate
1-2 plates
X4
Casserole
10.5 oz
serving
X5
Rolls
1-3 pieces
2
Touch Melt
Soften
Food
Amount /
Weight
X1
Melt Butter
1/2 stick
X2
Melt Chocolate
2/4/8 oz
X3
Soften Ice Cream
1 pint/1.5 quart
X4
Soften Cream
Cheese
3/8 oz
When the food is near completion, the display
will show time count down.
NOTE

OPERATION 13

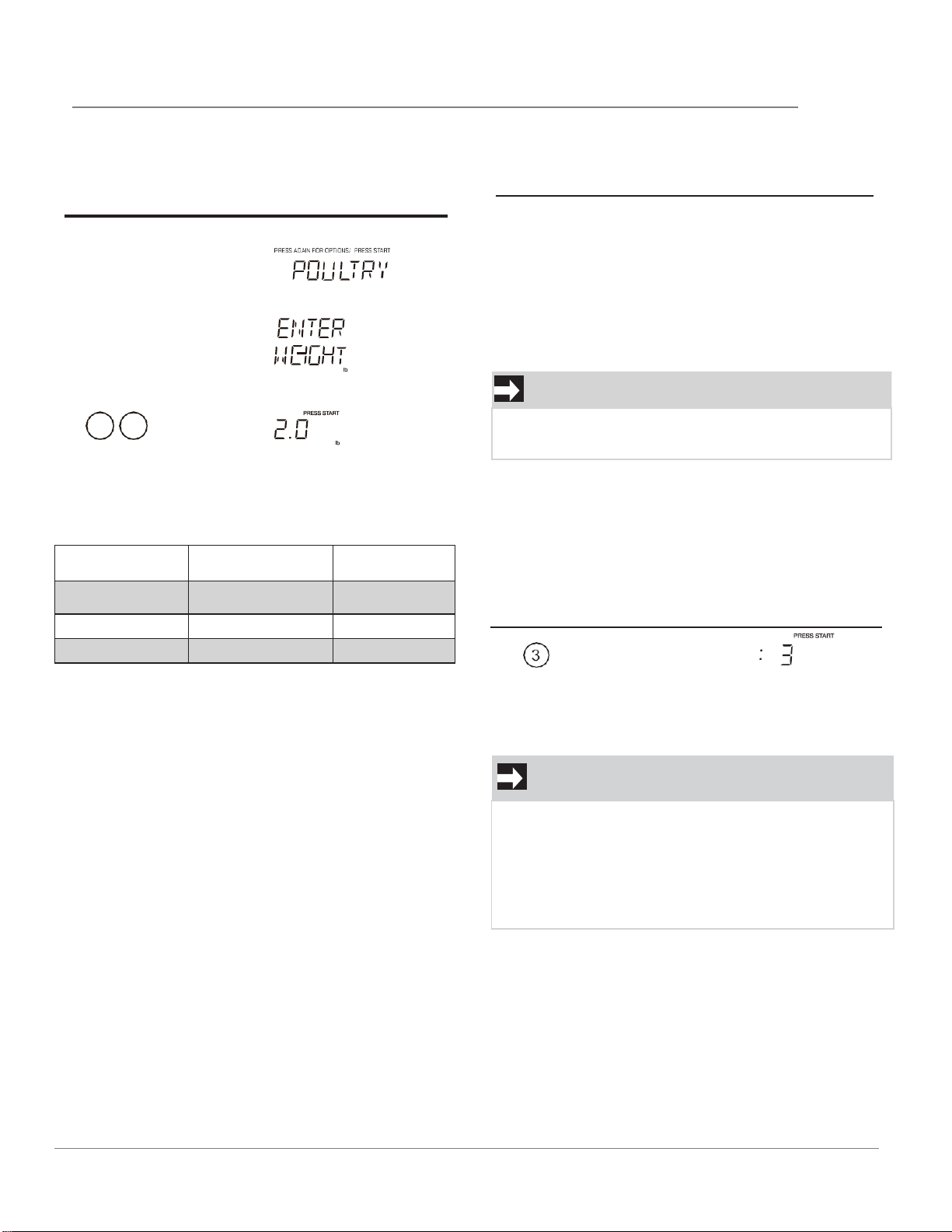

Weight Defrost
• Suppose you want to choose the poultry for2.0
lbs.
Touch: Display Shows:
1. Defrost x2
2. START
Using the +10 sec /+ 30 sec key
This feature will let you quickly start or add 10 or
30 seconds.
Touch the +10 sec /+30 sec pad to:+10 Sec /
+30 Sec
1. Start cooking for 10 seconds/30 seconds at
100% power level.
2. Extend cooking time in multiples of 10
seconds/30 seconds each time this pad is
touched during microwave cooking.
3.
4. START
Time counting down
USING ONE TOUCH START
Touch 1 - 9 for 1 - 9 minutes microwave cooking. The
cooking will start 2 seconds after your selection.
• Suppose you want to microwave for 3
minutes.
Touch: Display Shows:
1.
Time counting down
automatically after 2
seconds
2
0
Touch the +10 sec or +30sec to add time to any
cooking cycle except weight defrost in progress.
NOTE
Touch
defrost
Food
Weight
X1
Meat
0.1 - 6.0 lbs.
X2
Poultry
0.1 - 6.0 lbs.
X3
Fish
0.1 - 6.0 lbs.
"FOOD" will be displayed if a quick start cooking
cycle or +10 Sec / +30 Sec key is touch more than
5 minutes after the door of microwave oven is
closed. You must open then close the door again
to clear "FOOD" from thedisplay.
NOTE

14 OPERATION

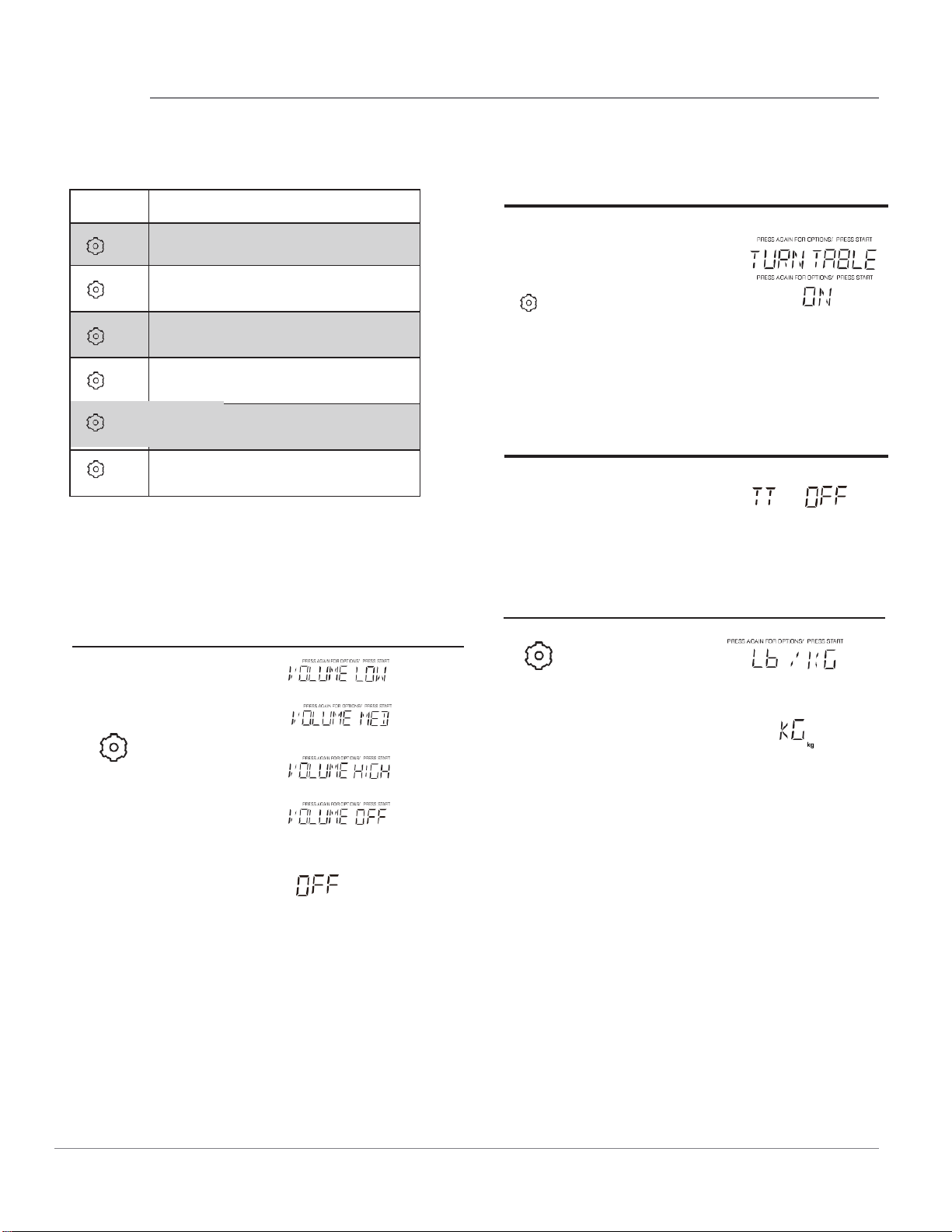

User Pref Turntable ON/OFF
• Suppose you want to enter turntable onmode.
Touch: Display Shows:
1. x 2
• Suppose you want to set turntable offmode.
Touch: Display Shows:
1. START
USER SETTING
Volume
• Suppose you want to set the volume for "off".
Touch: Display Shows:
SETTING WEIGHT LB/KG
• Suppose you want to change from lb to kg.
Touch: Display Shows:
1. x 3
1. x 1
The display will scroll.
When you see the
desired setting touch
Start.
2. START
(after 3 seconds)
(after 3 seconds)
(after 3 seconds)
2. START
Key
Setting
x 1
Volume Hi / Med /Low/Off
x 2
Turntable On/Off
x 3
Weight lb/kg
x 4
Language English/French
x 5
Filter Mode
x 6
Demo Mode

OPERATION 15
SETTING LANGUAGE
When previous language is english, suppose you
want to set the language.
SETTING FILTER
Touch: Display Shows:
Touch: Display Shows:
1. x 4
1. x 5
FILTER
FILTER
2. START
When the setting is completed, the current time
willdisplay2secondslater,ifthetimeisnotset,the
oven will return to waitingstate.
FILTER
FILTER
FILTER
2. START
DEMO SETTING
Touch: Display Shows:
1. x6
2. START
FILTER
FILTER
When STARTispressedandtheprevioussetting
was English it will be set to French. If you want
switch back to English you will have to again
pressSTARTfourtimesandthenpressSTART.
NOTE
FILTER
On yes
FILTER indicator light on by default for recirculation.
The FILTER indicator light will track the vent fan on
time.
Off yes
Turn off the FILTER indicator light when vented to
outside. The FILTER indicator light will not track the
vent vent fan on time.
Reset yes
Reset FILTER Indicator
The filter indicator light on the display will track
the vent fan on time.
When it is time to change the charcoal filter, the
FILTER indicator light will come on.
Use RESET YES to reset the vent motor tracking
time and to turn off the FILTER indicator light.
Reset no
Will not reset the time for FILTER indicator light.
When STARTispressed andthe previoussetting
was OFF then it will be set to ON. If you want to
turn the demo mode back OFF you will have to
again press six times andthen press START.
NOTE

16 MAINTENANCE
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem. If the
microwave oven still does not work properly, contact the nearest authorized service center.
TROUBLE
POSSIBLE CAUSE
POSSIBLE REMEDY
Oven will not start
• Electrical cord for oven is not
plugged in.
• Door is open.
• Wrong operation is set.
• Plug into the outlet.
• Close the door and try again.
• Check instructions.
Arcing or sparking
• Materials to be avoided in
microwave oven were used.
• The oven is operated when empty.
• Spilled food remains in the cavity.
• Use microwave-safe cookware only.
• Do not operate with oven empty.
• Clean cavity with wet towel.
Unevenly cooked
foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted completely.
• Cooking time, power level is not
suitable.
• Food is not turned or stirred.
• Use microwave-safe cookware only.
• Completely defrost food.
• Use correct cooking time, power
level.
• Turn or stir food.
Overcooked foods
• Cooking time, power level is not
suitable.
• Use correct cooking time, power
level.
Undercooked foods
• Materials to be avoided in
microwave oven were used.
• Food is not defrosted completely.
• Oven ventilation ports are
restricted.
• Cooking time, power level is not
suitable.
• Use microwave-safe cookware only.
• Completely defrost food.
• Check to see that oven venti-
lation ports are not restricted.
• Use correct cooking time, power
level.
Improper defrosting
• Materials to be avoided in
microwave oven were used.
• Cooking time, power level is not
suitable.
• Food is not turned or stirred.
• Use microwave-safe cookware only.
• Use correct cooking time, power
level.
• Turn or stir food.

$-&"/*/( "/% $"3&
1 7
EXTERIOR
The outside surface is precoated steel and plastic. Clean
the outside with mild soap and water; rinse and dry with
a soft cloth. Do not use any type of household or abrasive
cleaner.
DOOR
Wipe the window on both sides with a soft cloth to remove
any spills or spatters. Metal parts will be easier to maintain
if wiped frequently with a soft cloth. Avoid the use of spray
and other harsh cleaners as they may stain, streak or dull
the door surface.
may overheat and cause smoke or possibly catch fire.
DO NOT REMOVE THE WAVEGUIDE COVER.
ODOR REMOVAL
Occasionally, a cooking odor may remain in the microwave
oven. To remove, combine 1 cup water, grated peel and
juice of 1 lemon in a 2-cup glass measuring cup.
Boil for several minutes using 100% power.
Allow to set in microwave oven until cool. Wipe interior with
a soft cloth.
TURNTABLE/TURNTABLE SUPPORT
EASY CARE™ STAINLESS STEEL/ The turntable and turntable support can be removed for
easy cleaning. Wash them in mild, sudsy water; for stubborn
SMUDGE_PROOF™ STAINLESS STEEL / stains use a mild cleanser and non-abrasive scouring
BLACK STAINLESS STEEL (SOME MODELS)
Your microwave oven(some models) may have a Stainless
Steel finish or coating. Clean the stainless with warm
soapy water using a clean sponge or cloth. Rinse with clean
water and dry with a soft clean cloth. DO NOT use ANY
store bought cleaners like Stainless Steel cleaners or any
other types of cleaners containing any abrasive, chlorides,
chlorines or ammonia. It is recommended to use mild dish
soap and water or a 50/50 solution of water and vinegar.
TOUCH CONTROL PANEL
Care should be taken in cleaning the touch control panel.
If the control panel becomes soiled, open the microwave
oven door before cleaning. Wipe the panel with a cloth
dampened slightly with water only. Dry with a soft cloth.
Do not scrub or use any sort of chemical cleaners. Close
door and touch STOP/Cancel
INTERIOR
Cleaning is easy because little heat is generated to the
interior surfaces. To clean the interior surfaces, wipe
with a soft cloth and warm water. DO NOT USE
ABRASIVE OR HARSH CLEANERS OR SCOURING
PADS. For heavier soil, use baking soda or a mild
soap; rinse thoroughly with hot water. The round wire
rack and shelf can be cleaned with hot soapy water,
rinsed and dried.
WAVEGUIDE COVER
The waveguide cover is located on the right side in
the microwave oven cavity. It is made from mica so
requires special care. Keep the waveguide cover clean
to assure good microwave oven performance. Carefully
sponge. They are also dishwasher-proof. Use upper
wirerack of dishwasher. The turntable motor shaft is not
sealed, so excess water or spills should be wiped up
immediately.
wipe with a damp cloth any food spatters from the surface
of the cover immediately after they occur. Built-up splashes
Disconnect the power cord or leave the door open to deactivate the oven
during cleaning. Disconnect the power cord before replacing filters and lights.

18
$-&"/*/( "/% $"3&

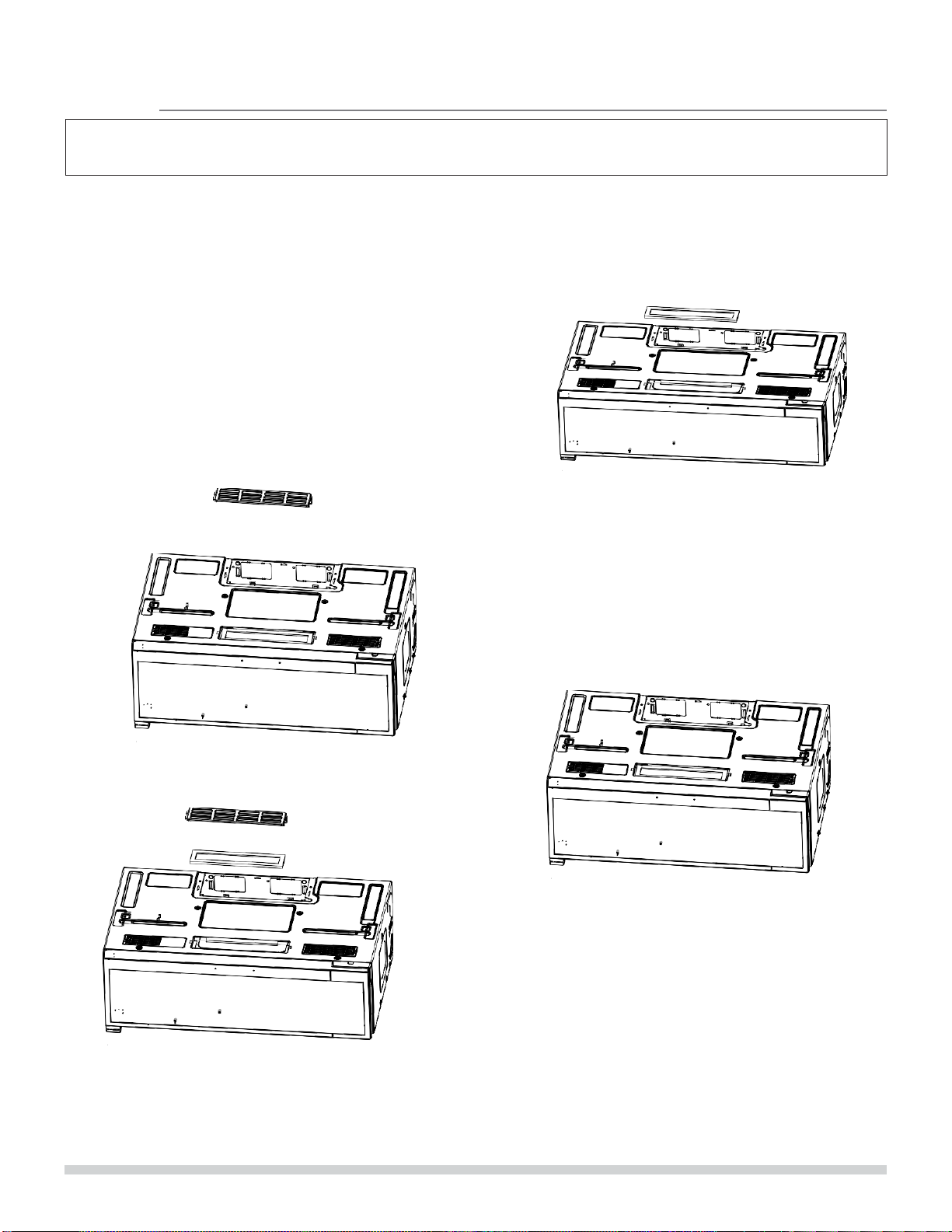

Charcoal filter replacement
Charcoal filter part number FRPAMRAF
To order parts call 800-599-7569
Charcoal Filter when installed in your microwave oven, is
used for nonvented, recirculated Installation. When it is time
to replace the charcoal filter, the FILTER light on display will
turn on.
If your microwave is vented to the outside, then you can turn
off the filter light in the settings.
1. Disconnect power to the microwave oven at the circuit
breaker panel or by unplugging.
2. Take out the plastic air guide on the top and replace the
filter screen.
3. Take out the old charcoal filter of the top area of out case.
4. Replace the old charcoal filter with a new one.
5. Install plastic air guide plate.
Disconnect the power cord or leave the door open to deactivate the oven
during cleaning. Disconnect the power cord before replacing filters and lights.

$-&"/*/ ( "/ % $"3&
1 9
CLEANING THE GREASE FILTER
The oven ventilation grease filters should be removed
and cleaned often; generally at least once every month.
2. Soak the grease filter in hot water using a mild
detergent. Rinse well and shake to dry or wash
grease filter in dishwasher. It is best to place in upper
rack of dishwasher for cleaning.
1. To remove the grease filter, pull the lever, then pull
filter downward. The filter will drop out.
3. To reinstall the grease filter, infix the hooks into the
holes of base plate, then pull the lever and toward
oven to lock.
CAUTION
CAUTION GREASE FILTER
Filter should be cleaned at least once a month. Never
operate the fan or microwave oven without the filter in
place.
1. Pull down slightly on the tab toward the front of the
microwave oven and remove the filter.
2. Soak the filter in a sink or dish pan filled with hot
water and detergent. DO NOT use ammonia or
other alkalli; they will react with the filter marterial
and darken it.
3. Agitate and scrub with a brush to remove embedded
dirt.
4. Rinse thoroughly and shake dry.
5. Replace by fitting the filter back inito the opening.
Do not use ammonia cleaner. The ammonia cleaner may
corrode and darken the aluminum on the filter.
NOTE
To avoid risk of personal injury or property damage,
do not operate oven hood without filter properly in
place.
CAUTION
WARNING
Disconnect the power cord before cleaning or leave the door open to deactivate the oven
during cleaning.

2 0
4&37*$ & $"- - $)&$ ,
Please check the following before calling for service:
Place one cup of water in a glass measuring cup in the microwave oven and close the door securely.
Operate the microwave oven for one minute at HIGH 100%.
A Does the microwave oven light come on?
YES ____
NO ____
B Does the cooling fan work? (Put your hand at top above Display.)
YES ____
NO ____
C Does the turntable rotate? (It is normal for the turntable to turn in either direction.)
YES ____
NO ____
D Is the water in the microwave oven warm?
YES ____
NO ____
If “NO” is the answer to any of the above questions,
please check electrical outlet, fuse and/or circuit
breaker. If they are functioning properly, CONTACT
YOUR NEAREST ELECTROLUX AUTHORIZED SER-
VICER.
A microwave oven should never be serviced by a
“do-it-yourself” repair person.
AC Line Voltage: Single phase 120V, 60Hz, AC only
AC Power Required: 1500W 13.5 amps.
Output Power*: 1000 W
Frequency: 2450 MHz (Class B/Group2)**
Outside Dimensions:
Cavity Dimensions:
Microwave oven Capacity***:
75.9”(W) x 47. 26 ”(D) x 26.1 ”(H)
55.67 ”(W) x 31.05 ”(D) x 18.98 ”(H)
1.2 Cu.Ft.
Cooking Uniformity: Turntable
Weight:
Work/Night Light:
Oven Light:
Approx. (net) 53.8 lbs, (gross) 61.5 lbs
2*2W LED
1*1.2W LED
* The International Electrotechnical Commission’s standardized method for measuring output wattage. This test method
is widely recognized.
** This is the classification of ISM (Industrial, Scientific and Medical) equipment described in the International Standard CISPR11.
*** Internal capacity is calculated by measuring maximum width, depth and height. Actual capacity for holding food is less.
In compliance with standards set by:
FCC - Federal Communications Commission Authorized.
DHHS - Complies with Department of Health and Human Services (DHHS) rule, CFR, Title 21, Chapter I, Subchapter J.
-This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc.
-This symbol on the nameplate means the product is listed by Underwriters Laboratories, Inc. for use in
USA or Canada.
1. If time appearing in the display is counting down
very rapidly, check Demonstration Mode on page 20.
2. If the oven is set for more than 30 minutes at
90 or 100 percent power level, after the first 30
minutes the power level will automatically adjust
itself to 80 percent power to avoid overcooking.
NOTES
SPECIFICATIONS
