Midea MFW-850M2 User manual

Washing Machine
OWNER’S MANUAL
Before using your washing machine, please read
this manual carefully and keep it for future reference.
Read This Manual
Inside you will find many helpful hints on how
to use and maintain your washing machine properly.
Just a little preventative care on your part can
save you a great deal of time and money over
the life of your washing machine. You'll find many
answers to common problems in the chart of
troubleshooting tips. If you review the chart of
Troubleshooting Tips first, you may not need
to call for service.
MFW-850M2

Notes
1
2
5
7
8
11
12
13
15
17
18
Contents
Safety and precautions........................................................................
Installation of the washer......................................................................
Preparation before washing..................................................................
Parts identification of the washer...........................................................
Instruction of the washer operation panel...............................................
Quick start..........................................................................................
The main wash....................................................................................
Special features..................................................................................
About the procedure of full automatic wash program..................................
Cleaning and Maintenance of the washing machine..............................................
Identify usual trouble of washer..............................................................................
Malfunction display and solutions..........................................................
Technical specifications................................................................................
9
19
19
2
Safety and precautions
Please do not directly rinse the
machine with water when
cleaning.
Please do not install the machine in
damp and raining environment to avoid
electric shocking, catching fire, faults
and distortion
accidents.
No dampness No rinsing
小天鹅
小天鹅

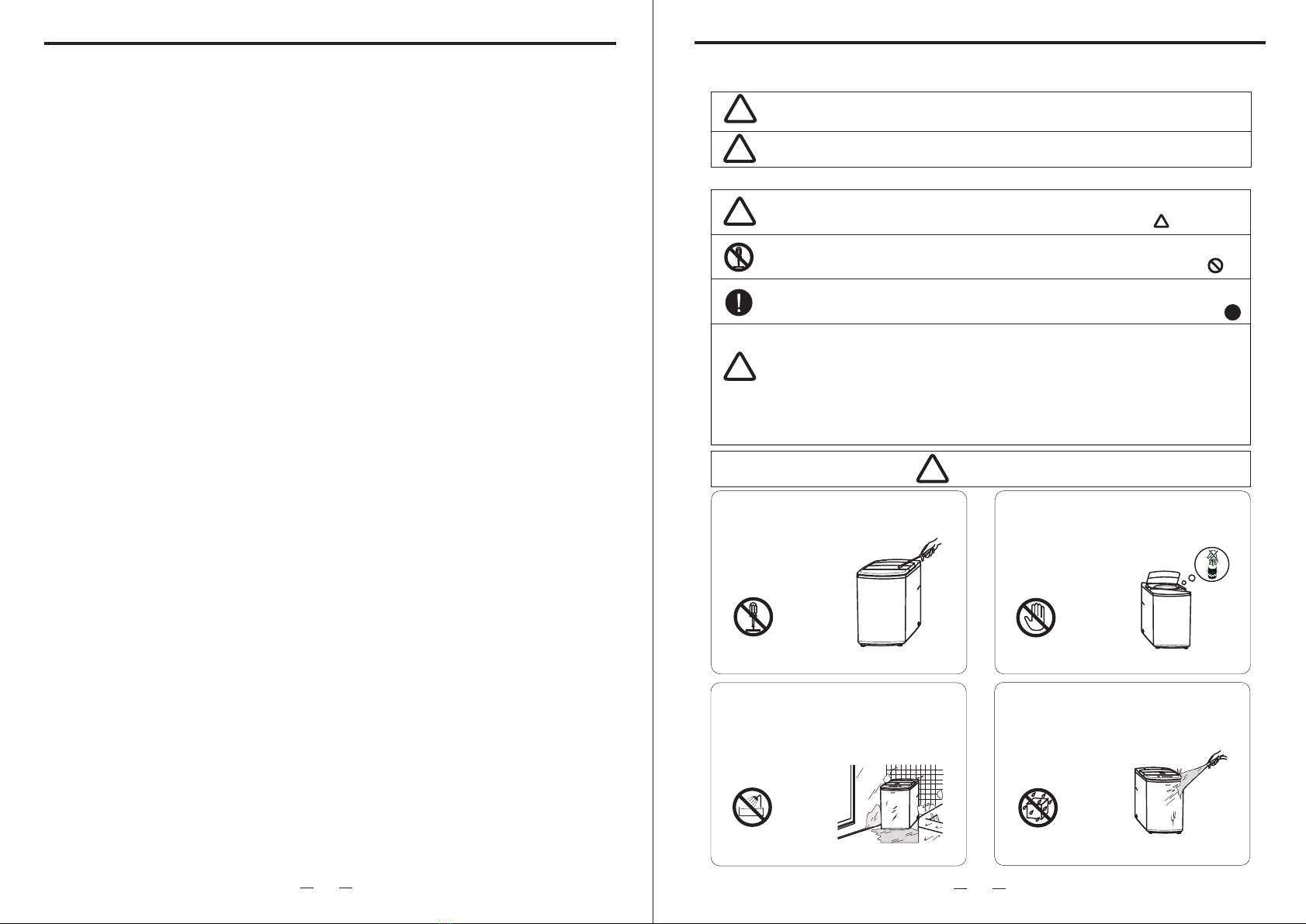

Observe the following items in order to prevent from injuring yourself, others
and the damage of property:
Please observe following contents of graphics.
！
Warning
Caution
This indicates serious injury or death to human
being may be caused.
This will remind you that injury to people and
damage to property may occur.
This graphics represents (operation prohibited), and detailed
prohibitive items will be displayed inside the graphics.
This graphics represents(cause attention),and detailed
cautions will be displayed inside the graphics.
This graphic represents (forcible execution), and detailed
forcible execution items will be displayed inside the graphics.

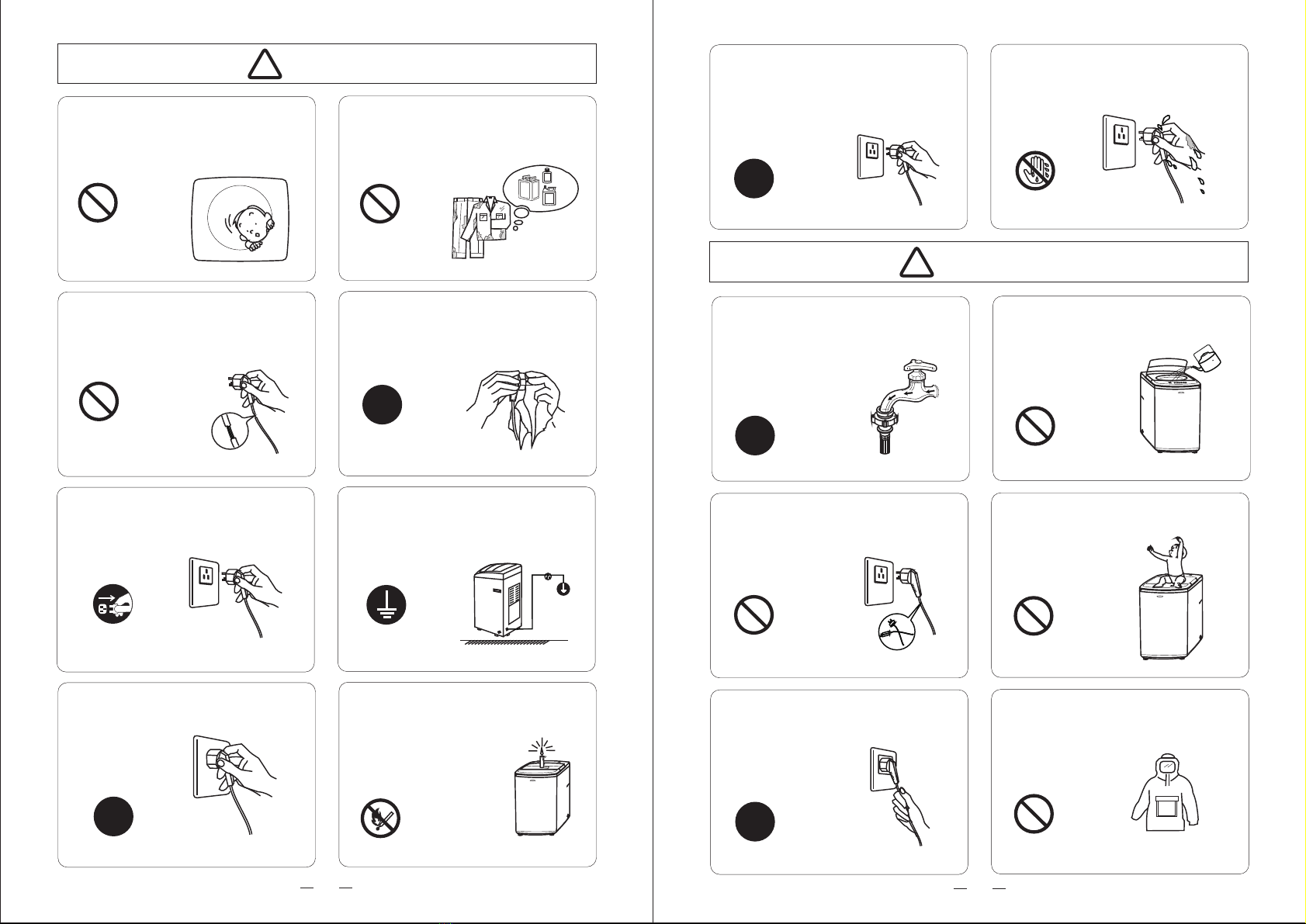

Warning
No dismantling No touching
Please do not disassembly
and assembly the
machine without
authorization.
Please do not insert your hand
and take out clothes inside the
spin barrel before
it is fully stopped.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack knowledge, unless they have been
of experience and
given supervision or instruction concerning
use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
！！！
！

Please do not let children climb the
machine or peer into the rotating
spin barrel to avoid accidents.
It is prohibited to wash the clothes
touching with kerosene, gasoline,
alcohol and other flammable materials.
Please do not damage power flexible
cord and power plug to avoid electric
shocking, short circuit and catching
fire.
Regularly clean the power plug to
remove dust and dirt to avoid contact
failure.
Please pull out plug from the socket
if the machine is not in use.
Please well connect the earth line of
socket to avoid electric shocking by
accidental leakage.
（earthing）
Please insert the power plug tightly.
！
!
!
小天鹅
Prohibited
Prohibited
Prohibited
Smoke and fire prohibited
Earthing
Pull out the plug
Warning
Please do not place on the washer
burning candle, mosquito-repellent
incense, cigarette and other
flammable things, as well
as electric stove, air
heating fan and other
heating
sources.
3
Please use correct power source. Please do not pull out or insert the
plug with wet hands to avoid electric
shocking.
Please ensure that the water inlet pipe
is connected and the tap is opened
before washing
clothes.
Customers are not allowed to change
the power line without permission.
It is strictly prohibited to place
children or lay
weights on the
washer.
Please do not pull the electric cord
when pulling out the
plug.
Please do not wash down jacket,
raincoat, fishing coat and similar
clothes in the
washer.
！
!
!
!
Wet hands are
prohibited
+
+
小天鹅
>50 C
小天鹅
The water temperature shall not exceed
50℃ when washing
with warm water.
Prohibited
Prohibited Prohibited
Prohibited
Caution
4

55
Remove package
Installation of drain hose
Remove package and take out the bottom board of
the cabinet on the foam cover.
Open the lid of washer's door and take out accessories.
A trial operation or washing on the foamed cushion is
strictly forbidden.
Completely sleeve the drain
hose over the sewer.
Fix and tighten it with a hoop.
( As shown in the figure )
Base foamed cushion
FOR LOWER DRAIN SYSTEM ONLY
Placement of water drain hose
Under3m
Under 15cm
If the water drain hose shall
be extended, its length shall
not exceed 3 meters,
otherwise it will affect the
water discharging time.
The placed height of water
drain hose shall not exceed
15cm.
Do not bend the water
drain hose and place
it under the washer.
The height of drain hose (“a”)should between 86-100 cm.
Diameter of “b”shuld not less than 3 cm, and flow capacity
not less than 40 L/Min.
FOR UPPER DRAIN SYSTEM ONLY
86~100 cm
Placement of upper water drain hose
Installation of water inlet pipe
Before washing machine starts, user should hang up the
drain pipe 86-100cm height from the floor.
Put the water inlet pipe(which has
metallic filtering bag) screw on to the tap.
Tightly screw another end of water
inlet hose on water inlet valve .
(with rubber seal ring inside).
Note: When tightening the
clamping nut, evenly apply the
force and do not twist the water
inlet valve to avoid breaking of
water inlet valve joint.
Water inlet hose
Clamping nut
Only for model with double
screw thread water inlet pipe
Installation of the washer
666
Installation of the washer
6
Clamping nut Water inlet hose
+
+
+
+
+
+
+
Small ball
Junk ring
Connect: Push down the slide jacket
of speedy connector (4 small balls
must be exposed ),insert it into the
connection socket and then push
upward Release the connection
of water tap with speedy connector
completely. If it is required to feed
water, simply open the water tap.
Separate: Close the water tap, push
down the slide jacket of speedy
connector and pull out the speedy connector.
Unscrew four screws of part A
and sleeve part A horizontally
over the mouth at the end of
water tap (the mouth at the end
of water tap must be flat and
smooth. Flatten it by filing if it is
not flat) and push it upward with force making the rubber
washer firmly press the plane center of water tap mouth.
Then tighten the screw sequentially. After that, tightly
screw on part B.
Connect
Separate
The connection socket
consists of A and B two
parts. Before installation,
A and B two parts must
be unscrewed about
5mm, or directly
disconnected. If the
bore of water tap is
larger, remove the
plastic junk ring of
part A.
Push down the slide jacket
to expose the small balls and
enable separation of connector
socket from speedy connector.
5mm
+
+
A
B
+
+
+
+
1
6
+
+
7
5
4
3
2
Installation of water inlet pipe
Tightly screw another end of water inlet
hose on water inlet valve . (with rubber
seal ring inside).
Note: When tightening the clamping nut,
evenly apply the force and do not twist
the water inlet valve to avoid breaking of
water inlet valve joint.
Only for model with single screw thread water inlet pipe
！
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons
in order to avoid a hazard. The instructions for appliances
connected to the water mains by detachable hose-sets shall
state that the new hose-sets supplied with the appliance are
to be used and that old hose-sets should not be reused.The
openings must not be obstructed by a carpet.This appliance
is for indoor use only.

Preparation before washing
7
Before washing, please do take out coins,
keys and other hard goods, and zip up clothes
and barrel from damage.
！
NOTICE
Adjust the adjustable foot to make
the washer be placed stable.
1
Adjustable foot (extend when
clockwise rotating and shorten
when counterclockwise rotating)
(Slightly incline the washer first and loosen the
adjustable foot knob. Adjust the adjustable foot so
as to ensure four corners of washer be steadily
contacted with the ground. Then tighten the
adjustable foot knob and lock it. If the ground is
obviously not flat, correction should be made on
the ground surface, otherwise the washer barrel
will incline and knock the cabinet)
Connect with to
power source.
3
4
+
+
Put down the drain
house.
5
Gravity drain
Upper drain
Note:
The water
will overflow
when the
height of
the drain
hose under
860mm.
>860mm
Put in
clothes
and
suitable
amount of
washing
powder.
6
Install the water
inlet hose.
2
+
+
For one inlet hose
For two inlet hoses
+
+
+
+
8
Parts identification of the washer
tightly to prevent them
Turn on the
water supply.
Top lid
Control panel
frame
Cabinet
Drain hose
(For lower drain only)
Adjustable leg
Adjustable foot knob
Upper drain hose
(For upper drain only)
Accessories
Water inlet hose assembly Base cover
Only for lower drain hose
Fixing ring (1) is used
for the fixing in time of
the installation of the
lower drain hose.
Universal connector
Water inlet hose assembly
Self-tapping screw
Only for models including base cover
Only for model with double
screw thread water inlet pipe
Only for model with single
screw thread water inlet pipe
Please refer to the real material as the attachment

910
Instruction of the washer operation panel
！
If the drawing is changed, no information anymore.
To protect the control panel, the interval time of power on and off should be not less than 30 seconds.
Remain Time(mins)
ECO
Press the button to select
the time of rinse.
Press the button to select
the washing time.
Press the button to select
the time of spin.
Wash
Rinse
Spin
Press the "water level" and Spin
at the same time to lock buttons on
control panel.
Press the "water level"and "Spin"
at the same time again to unlock
buttons.
" " Standard(light) Quick(flash)
Jeans(light) Anti-crease(flash)
Air dry(flash)ECO(light)

The wash stops
Programme selection
1 Install the washing
machine
3 measure out the
detergent 7 Plug the power supply
8 Select the desired
programme
5 Put down (hang up)
the drain pipe
4 Close the
machine door
9 Press the
[start/pause] key
11
When the wash stops, the buzzer will buzz continuously for 6 times and
then the power will be automatically cut off.
Turn off the water tap.
Although the power can be cut off automatically, the power plug must be pull
out for the safety.
1Press the POWER button.
3 press the start/pause key.
2 Select the proper water level and other attached functions.
2 Load the laundry
Instruction of the STANDARD program
Instruction to single wash procedure
Steps in details
1.Press the power switch.
2.According to the washing amount choose the proper water level.
3.Press START/PAUSE button.
12
1.Close the lid of the door when machine is running, otherwise, it will automatically
stop working during spin process and send out abnormal warning.
2.The washer will not work when the filled water does not reach the set water level.
1.[Standard] wash program is the easiest, most convenient and most common washing
program. When the user press the power switch and then press [Start/Pause] button,
the standard washing program will start to work.
2.When the washer start to work, the digital tube show the remain time. The indicator
light which stand for remaining time is flickering.
1.User may freely select any single procedure, or any combination of procedures
among WASH, RINSE and SPIN according to the actual requirements. It is only
required to turn off any one or two of these three indicators that not needed by the
user. And keep the indicator be on showing the process needed by the user.
2.Single wash -- after switching on the power, turn off RINSE and SPIN two indicators
by pressing these two keys. The operation for single rinse and single spin is similar.
3.Single wash-spin – after switching on the power, turn off RINSE indicator by pressing
that key. The operation for single rinse-spin and single wash-rinse is similar.
NOTICE
！
Quick start The main wash
Use the cleaning solution for twice
1. Put the laundry in the first batch and wash powder and press “Function” button to set
single “wash” to run.
2. Take out the laundry in the first batch after hearing the buzzing sound.
3. put in the laundry in the second batch, and run “ Wash”, “Rinse”, “Spin”.
4. Take out the laundry in the second batch after hearing the buzzing sound.
5. Put in the laundry in the first batch and press “ Function” button to run “Rinse” and “Spin”.
6 Turn on water supply

13 14
Special features
Delay time means the preset beginning
time of washing.
2.Open the tap and lay the drain hose.
3.Put in the laundry and detergent.
Delay time program
Confirmation of the delay and inspection
1. After the delay function is started, the corresponding delay light will flash, and other lights
are turned off.
2. After the delay function is started , press “ Delay” button continuously , you may inspect
the preset program and function . Loose the button , the program return to delay status.
Cancel the delay time, or alternate the delay time
2. To change the delay time , cancel the delay time first ,
and then press “Delay” button to reset.
1.Switch on the power .
4.Select the propre water level according
to the quantity of clothes.
5.Select the functions and programs.
6.Press “DELAY” button to select the
beginning time of washing.
7.close the lid and press “START/PAUSE”
button
1. Press “ Power” button to cancel the delay time.
Press t he “ DELAY” b utton e ach t ime,
the n umber o n the d igital i ndication
adds b y “1” ; After the n umber
reaches “ 24”,press t he “ DELAY”button
each t ime , t he n umber a dds b y “6” ;
After t he number reaches 4 8, t he l ight
of delay t ime i s turned o ff , and t he
delay p rogram return to original status.
Special features
1. If the machine do not start to work within 10 minutes after powered on, it will power off automatically.
2. After end of operation and the buzzer sounding 6 times, it will power off automatically.
Function of automatic power shut off
Function of adjusting for imbalance
1. If the laundry is placed uneven before spinning, it is likely to cause vibration during spinning. The
washing machine has a function of adjusting imbalance. When working,the washing machine always
inspects operation state automatically. If the spinning vibration is too great, the washing machine
automatically starts the adjusting program to balance.
2. When the machine adjusts imbalance, rinse light will flash, and the machine will start to inject water
to set water level. The machine adjusts imbalance automatically for about 1 minute, then drains water,
returns to original spinning state. If the washing machine can adjust the imbalance twice. If the
adjustment has no function, it will alarm.
Fuzzy control function
Standard procedures default implementation fuzzy control function. After startup,
such as water level before starting the keys will be cancelled automatically
according to the fuzzy control functions; In addition, the fuzzy measure before, if
there is no water, tub fuzzy measurement, the water level directly as the default
file namely 6 gear levels.
Fuzzy control function is at boot automatically after the determination of cloth is
measured, decide the water level. In fuzzy testing process, water circulation flashing
lights display, digital pipe display "--".
Power failure memory function
If the power supply becomes off suddenly during operation, the machine remembers the
current operation state.When power is on,the machine returns to former operation state
automatically.
After power on,push “start/pause”button directly to One-key Washing.The function will be canceled if
other buttons,such as water level,program,temperature and function are pressed before.It will also
be invalid if there is water left in the inner tube,and the program will be directly set into Normal with
default water level 6.
WM will perform fuzzy detection immediately by pushing “start/pause” after power on and water
level and program will be selected according to amount of clothing.During the selecting,water level
lamp is flashing continuously,as digital display shows “--”,at the same time,only power button is
effective.After detecting is completed,program is chosen to “Rapid”with automatically setting water
level 1/2/3,and “Normal”with water level 4/5/6,also, “Super clean” with water level 7/8. Program will
run automatically when checked out and finished program and water level setting.
One Touch System
Wash time is short. Suitable to wash light stained clothes and clothes in summer.
1 time rising is suitable for light contaminated clothes in order to save water.
The wash time is short ,rinses many time with high water level ,thoroughly wash
away the garment.
As for not easily fading ,deforming , and non-waterproof clothes , can use the function to
dry clothes without heating, and to reach the result of being dried in a room.
Quick
ECO
Jeans
Anti-crease
Air dry
High wash ability, suitable to wash heavy or serious stained clothes.
Press the “Water level” and “Spin”at the same time to lock buttons on control panel.
Press the “Water level” and “Spin”at the same time again to unlock buttons.
Child lock

15 16
About the procedure of full automatic wash program
Program Wash time Rinse times Spin time Total time
Standard
Quick
ECO
Jeans
Anti-crease
12 minutes two times 5 minutes 42 minutes
3 minutes 19 minutes
41 minutes
70 minutes
35 minutes
one time
Soak13 minutes
Wash 4 minutes
two times 1 minute
Soak34 minutes
Wash 6 minutes
Air dry
9 minutes two times
one time
3 minutes
1 minute
6 minutes
60 minutes
57 minutes
About the procedure of full automatic wash program

17 18

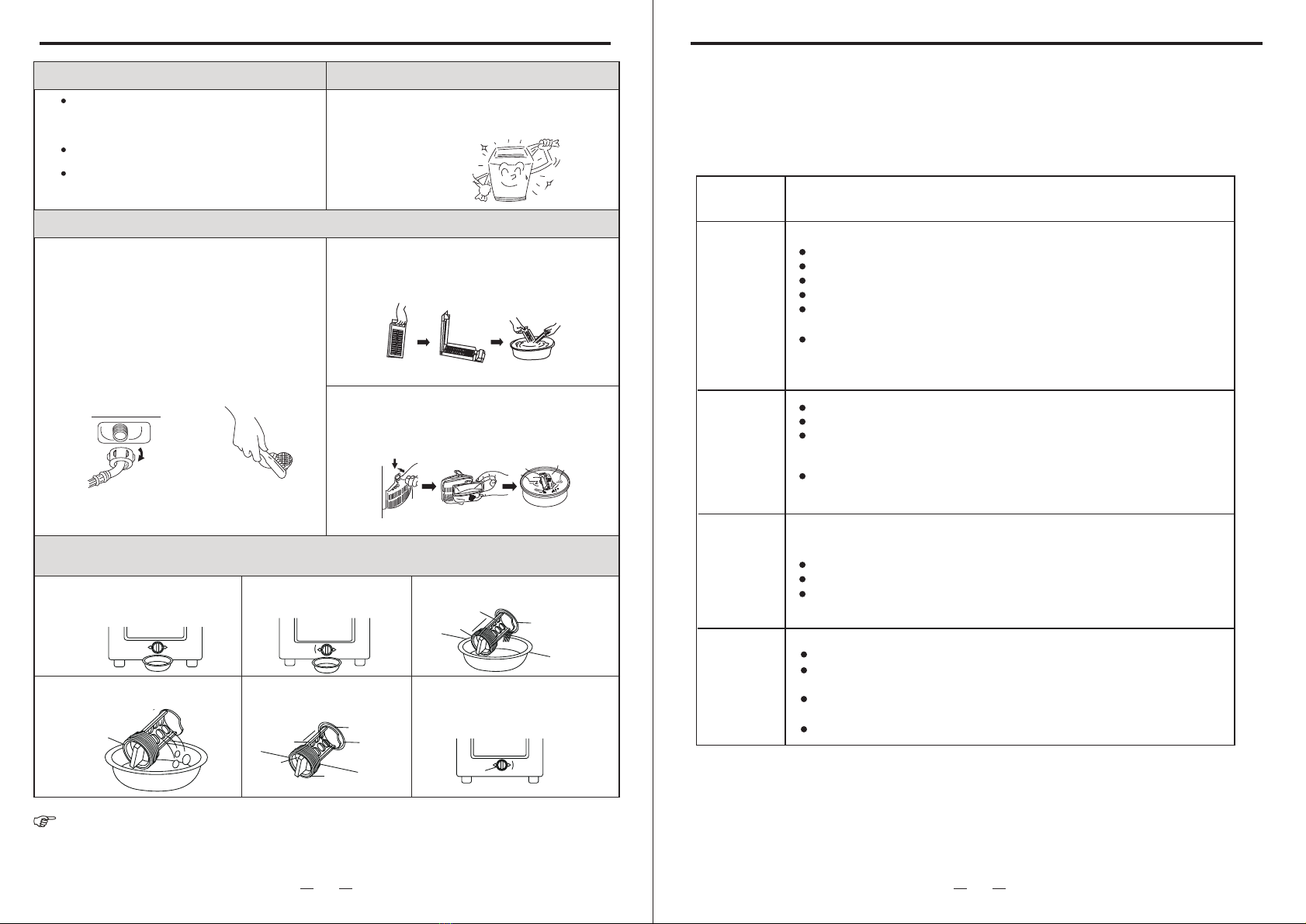

Cleaning and Maintenance of the washing machine
If the drain filter is not cleaned at proper time (every 10 times of use),Drain problem could be caused.
Notes:
Clean the lint filter in the drain pump (only for having drain filter)
1. Drain the water out of the
pump,under which use a
container to collect.
2. Loosen the pump cover
anticlockwise.
3. Take out the lint filter.
4. Clean the filter. 5. Restore it and adjust the
convex place to align at
the pump hole.
6. Tighten the pump cover
clockwise.
End of program
The washing machine will send off the sound
of dou-dou at the end of any program operation
to remind you to take out the laundry or operate
it again.
After the sound ,the washing machine returns
to its power-off state with no display and all lights off.
Please shut off the tap, pull out the plug when not
in use to avoid water leakage or the fire accidents.
" "
Maintenance
Use gentle clothing to wipe off the water and dirt on
the surface each time after using the washing machine.
Detergent , propellant and
other chemicals are not
allowed to use so as to avoid
any damage to the plastic
accessories.
Clean the water inlet Clean Of the filter
After long time use,the water inlet mesh bag may
be blocked with smudginess,and should be cleaned
according to the following steps:
1.Switch on the power,followed by shutting off the tap .
2.Let the washer works for 5seconds so that water
flows into the tub through the water inlet hose.then
turn off the power.
3.Unload the water inlet hose and clean the mesh bag,
then restore the water inlet assembly.
After using the washing machine for aperiod,please clean
it according to the following steps:
1.Take out the lint filter.
2.Open the filter and wash it clean in the water.
3.Restore it and fix it.
After using the washing machine for a period, clean it
according to the following steps:
1. Take off the lint filter.
2. Turn over the mesh bag and wash it clean in the water.
3. Restore and fix it.
(only for magic filter)
(only for normal filter)
No
washing
Abnormal
draining
Abnormal
spin
Identify usual trouble of washer
List of faults and inspection
Faults Inspection Items
No water
flows in
If the power is off or the fuse is burned out.
If the water supply is cut off or the water pressure is too low.
If the inlet hose is properly connected and the water tap is opened.
If the filtering screen of inlet valve is blocked by dirt.
If the coil of inlet valve is damaged. (The slight electromagnetic
sound is normal phenomenon when the inlet valve is switched on)
If the "Start / Pause" button is pressed after the power
switch is pressed.
If the door lid is closed.
If all clothing piled largely at one side of barrel or the clothing
is excessively placed.
If the washer is not placed in stable condition or it is placed in
inclination state. (The ground is not flat).
If the motor belt is loosened.
Note: During the de spin process, if washing are piled at one side of the spin barrel,
it will cause unbalance of spin barrel resulting in striking. At this moment, the
computer inside the washer will feel this unbalance phenomenon and will automatically
correct it ( fill in water Washing ). However, if unbalance situation is not removed after
continuous three corrections, which means the computer auto-correction can not
resolve the problem. Then the user has to manually and evenly place the clothing
inside the barrel to solve the problem.
When the washer is in trouble, please contact local service office or the sales service
department of our company and the customer should not dismantle the machine without
permission.
If the washer can not work normally, or appear abnormity or alarms, please check and
correct as follows.
If the water drain hose is placed very high.
If the end of water drain hose is sealed in pond.
If the internal rubber ring of drain valve is blocked by dirt.
If the power is off or the fuse is burned out.
If the power supply voltage is too low.
If the water amount reaches to the required water level.
(The washer will not work if the water amount does not reach the
required water level)
If it is set to "Delay" washing mode. (It will only start to work
until the reservation time reached)

19
Technical specifications

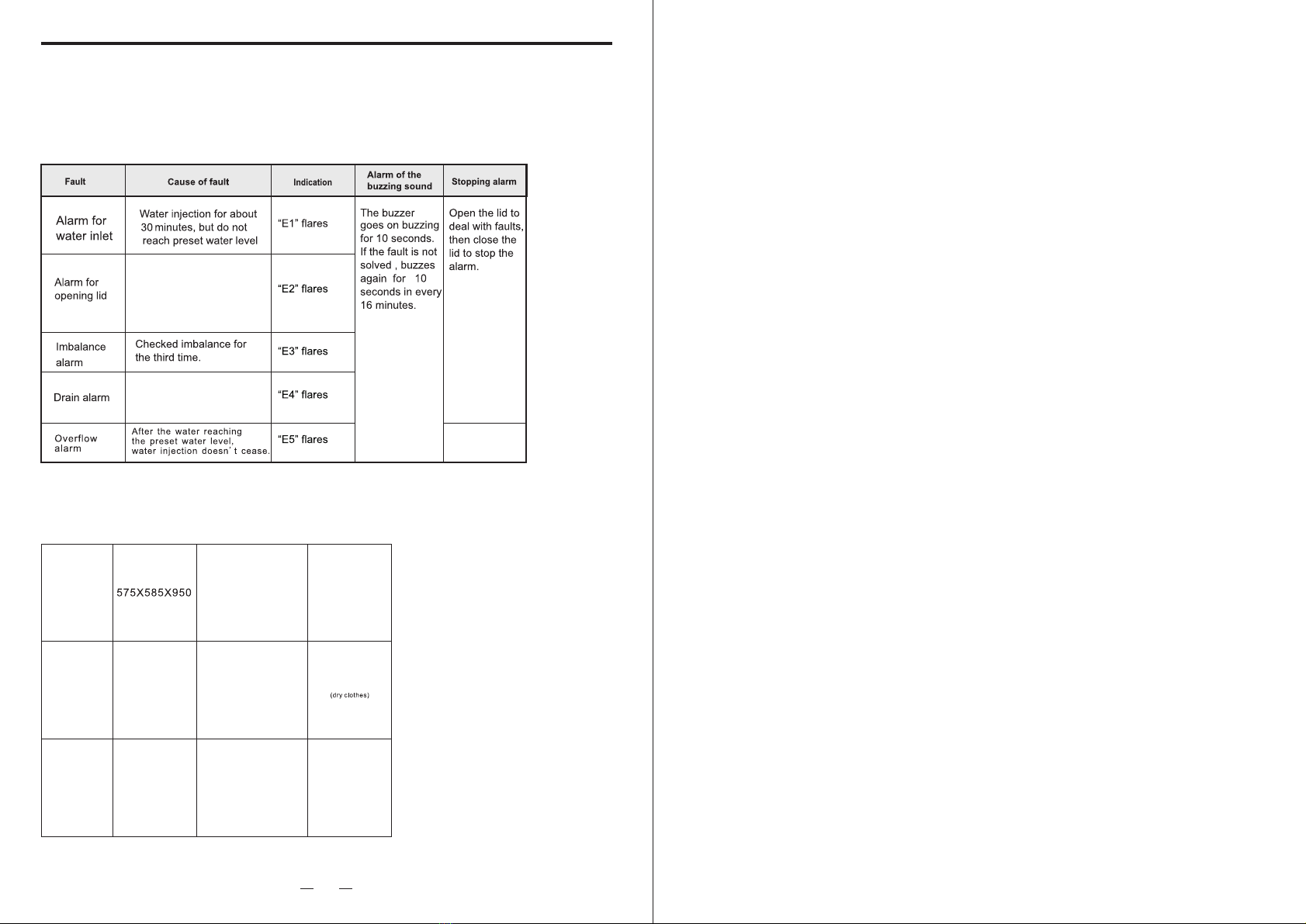

Malfunction display and solutions
When the washer is in trouble, please contact local service office or the sales service
department of our company and the customer should not dismantle the machine
without permission.
If the washer can not work normally, and the abnormal indication is shown in the nixie
tube window or the machine alarms, please check and correct them as follows.
Alarm for water drain time out.
Open the lid after starting
the delay time.Open the
lid when the washer is
spinning.
After treatment
failure, switch
power key again.
500W
240V~/50Hz 0.1Mpa~0.6Mpa
40kg
Rated power
supply
Application
water pressure
Input power
of motor
Rated capacity
of wash and
spinning
Overall
dimensions
(mm)
Net weight
8.5kg
