Midea MF20EW70WB User manual

MODEL:
MF20EW70WB
MF20EW80WB
MF20EW90WB
MF20EW100WB
Read all instructions and explanations for
the installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
appliance is sold or passed on, ensure
that the new owner always receives this operation instructions.
delete installation before use. Follow the
instructions carefully. Keep the operation
instructions handy for later use. If the
product is sold or passed on then ensure
that the new owner always receives this
manual.
MODEL:
EN

1
Congratulations to your new machine !
This user manual will help you discover all the benefits of your machine and use
it the way you want.
We strongly recommend that you read this manual carefully before using
the washing machine for the first time.It contains important safety instructions
and information relating to the installation, operation and maintenance.Proper
handling contributes to efficient, environmentally friendly and safe use and
minimises energy consumption during operation. Please always keep the proof
of purchase to preserve any warranty claims.
This manual includes instructions for setting up your SmartHome App “MSmartHome” as
well.
These instructions for use are in general terms. This means: Certain functions
apply to your machine, while others do not. We are continuously working on
the further development and improvement of our unit types and models.
Therefore, we reserve the right to make changes to the design, features and
accessories of all types and models without prior notice.
On our website www.midea.com you can also download the user manual in
digital form and discover other products. We hope you enjoy using your
machine.
Danger
This symbol indicates that there are dangers to the life and health
of persons due to extremely fammable gas.
Warning of electrical voltage
This symbol indicates that there is a danger to life and health of
persons due to voltage.
Explanation of symbols
Warning
The signal word indicates a hazard with a medium level of risk which,
if not avoided, may result in death or serious injury.
Caution
The signal word indicates a hazard with a low degree of risk which,
if not avoided, may result in minor or moderate injury.
Notice
The signal word indicates important information (e.g. damage to
property), but not danger.
Observe instructions
Notes with this symbol indicate that you should read the operating
instructions carefully.
Observe instructions
This symbol indicates that a service technician should only operate
and maintain this appliance in accordance with the operating
instructions.

CONTENTS
2
4 MAINTENANCE .......................................
4.1 Cleaning and Care ...............................
Cleaning the Cabinet...........................
Cleaning the Drum ..............................
Cleaning the Door Seal and Glass..
Cleaning the Inlet Filter .....................
Cleaning the Detergent Dispenser..
Cleaning the Drain Pump Filter........
Emergency Door Release..................
4.2 Trouble Shooting..................................
4.3 Customer service..................................
5 TECHNICAL SPECIFICATION ................
6 PRODUCT FICHE ....................................
7 SMART FUNCTION .................................
INSTRUCTIONS
Safety Instructions ................
INSTALLATION
Product Description ............
2.2 Installation ...........................
3 OPERATION
Quick Start ..............................
Calibration
3.2 Before Each Washing ..........
3.3 Detergent Dispenser ..........
Control Panel .........................
3.5 Display .....................................
3.6 Programmes............................
1 SAFETY .................
1.1 .........
2 ......................................
2.1 ..........
Accessories ......................................
............
Installation area ..............................
Unpacking the machine................
Remove transport bolts ...............
Levelling the machine....................
Connect the water supply hose
Drain Hose ........................................
Acoustic Sponge ............................
......................................
3.1 ..........
..........................................
.........
...........
Detergent Recommendation .....
3.4 ..........
.........
..........
3.7 Option..................................................
3
3
11
11
11
12
12
13
13
14
14
14
15
16
16
16
19
20
21
22
23
24
32
36
36
36
36
36
37
38
39
40
41
42
43
44
49

Please read the following safety information
thoroughly and follow it strictly to minimize the
risk of fire or explosion, electric shock and to
prevent property damage, personal injury or
loss of life. Failing to follow these instructions
shall void any warranty.
1 SAFETY INSTRUCTIONS
1.1 Safety Instructions
3
INTENDED USE
The product is intended only for home use and for textiles in household
amounts suitable for washing. This appliance is for indoor use only and
not intended for built in use. Only use according to these instructions.
The appliance is not intended for commercial use.
Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
This appliance is intended to be used in household and similar
applications such as:
- Staff kitchen areas in shops, offices and other working environments;
- Farm houses;
- By clients in hotels, motels and other residential type environments;
- Bed and breakfast type environments;
- Areas for communal use in blocks of flats or in launderettes.
•
Warning!
This combination of symbol and signal word
indicates a potentially dangerous situation
which may result in death or serious injuries
unless it’s avoided.
indicates a potentially dangerous situation
which may result in slight or minor injuries.
This combination of symbol and signal word
Caution!
This combination of symbol and signal word
indicates a potentially dangerous situation
which may result in slight or minor injuries or
damage to property and the environment.
Note!

1 SAFETY INSTRUCTIONS
4
ELECTRIC SHOCK HAZARD
Warning!
If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid
a hazard.
If the machine is damaged, it must not be
operated unless repaired by the manufacturer,
its service agent or similarly qualified persons.
Risk of electric shock!
The appliance can be used by children aged
from 8 years and above and persons with
reduced physical,sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
Children should be supervised that they do not
play with the appliance.
Children 3 years and under shall be kept away
from the appliance or continuously supervised.
Animals and children may climb into the
machine. Check the machine before every
operation.
Do not climb or sit on the appliance.
•
•
•
•
•
•
•
•

1 SAFETY INSTRUCTIONS
5
INSTALLATION LOCATION AND
SURROUNDING
All washing and additional substances are to
be kept in a safe place out of the reach of
children.
Do not install the machine on a carpet floor.
The obstruction of the openings by a carpet
can damage the machine.
Keep the appliance clear from heating sources
and direct sunlight to avoid plastic and rubber
parts to corrode.
Do not use the appliance in humid
environments or rooms containing explosive or
caustic gas. In case of water leakage or water
splashes let the appliance dry in the open air.
The appliance must not be installed behind a
lockable door, a sliding door or a door with a
hinge on the opposite side to that of the
washing machine .
Do not operate the machine in rooms with a
temperature of below 5°C. This can cause
damages to parts of it. If it is unavoidable,
make sure to drain the water completely from
the appliance after every use (see
“Maintenance - Cleaning of drain pump filter”)
to avoid damages caused by frost.
Never use flammable sprays or substances in
the immediate proximity of the appliance.
•
•
•
•
•
•
•
•

1 SAFETY INSTRUCTIONS
6
INSTALLATION
Remove all packaging material and transport
bolts before using the appliance. Otherwise,
serious damage may result.
This appliance is equipped with a single inlet
valve and can be connected to the cold water
supply only.
Mains plug must be accessible after installation.
Before washing clothes for the first time, the
product shall be operated once throughout all
the procedures without any clothes inside.
Before using the washing machine, the product
shall be calibrated.
Do not put any excessively heavy objects on
the appliance, like water containers or heating
devices.
The new hose-sets supplied with the appliance
are to be used and that old hose-sets should
not be reused.
Max. Inlet water pressure 1 MPa. Min. inlet water
pressure 0.05 MPa.
•
•
•
•
•
•
•
ELECTRICAL CONNECTION
Make sure the supply cable is not trapped by
the machine, it can get damaged.
Connect the product to a grounded outlet
protected by a fuse complying with the values
in the “ Technical specifications” table. The
grounding installation has to be made by a
qualified electrician. Ensure that the machine is
installed in accordance with the local
•
•

7
1 SAFETY INSTRUCTIONS
Don´t use multiple plugs or extension cords.
The appliance must not have an external
switching device such as a timer or
connected to a circuit that is regularly
switched on and off.
Do not pull the plug out of the mains outlet
if there is flammable gas around.
Never pull out power plug with wet hands.
Always pull at the plug, not at the cable.
Always unplug the appliance if it is not being
used.
Warning!
•
•
•
•
•
•
regulations.
Water and electrical connections must be
carried out by a qualified technician in
accordance with the manufacturer’s
instructions and local safety regulations.
•
WATER CONNECTIONS
Check the connections of the water inlet tubes,
the water tap and the outlet hose for possible
problems due to changes of water pressure. If
the connections loosen or leak, close the water
tap and get it repaired.
Do not use the appliance before the pipes and
hoses are installed properly by qualified
persons.
Glass door may become very hot during the
operation. Keep children and pets far away
from the machine while it is operating.
The water inlet and outlet hoses have to be
safely installed and remain undamaged.
Otherwise, water leakage can occur.
•
•
•
•

8
1 SAFETY INSTRUCTIONS
OPERATION AND MAINTENANCE
Do not remove the drain pump filter while there
is still water in the appliance. Big quantities of
water can leak out, and there is a risk of
scalding due to hot water.
•
Never use any flammable, explosive or toxic
solvents. Do not use gasoline and alcohol etc.
as detergents. Only select detergents that are
suitable for machine washing.
Make sure that all pockets are emptied. Sharp
and rigid items such as coins, brooches, nails,
screws, stones etc. may cause serious
damages to this machine.
Remove all objects from pockets such as
lighters and matches before use the appliance.
Thoroughly rinse items that have been washed
by hand.
Items that have been soiled with substances
such as cooking oil, acetone, alcohol, petrol,
kerosene, spot removers, turpentine, wax and
wax removers should be washed in hot with an
extra amount of detergent before being dried
in the appliance.
Items containing foam rubber (latex foam),
shower caps, water proof textiles, rubber
backed articles and clothes or pillows fitted
with foam rubber pads should not be washed
in the machine.
Fabric softeners or similar products should be
used are recommended in their instructions.
Never try to open the door forcefully.
•
•
•
•
•
•

9
1 SAFETY INSTRUCTIONS
The door will unlock shortly after the end of a
cycle.
Please do not close the door with excessive
force. If it is found difficult to close the door,
please check if the clothes are properly
inserted and distributed.
Always unplug the appliance and close the
water tap before cleaning and maintenance
and after each use.
Never pour water over the appliance for
cleaning purpose. Risk of electric shock!
Repairs shall only be carried out by the
manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.
The producer will not be responsible for
damages caused by the intervention of not
authorized persons.
•
•
•
•
•
•
•
TRANSPORT
• Before Transport:
-Bolts shall be reinstalled to the machine by a
specialized person;
- Accumulated water shall be drained out of
the machine.
• This appliance is heavy. Transport with care.
Never hold any protruding part of the machine
when lifting. The machine door can not be
used as a handle.

10
1 SAFETY INSTRUCTIONS
ENVIRONMENT
(Only for EU countries)
This appliance is labelled in accordance with the European Directive
2012/19/EU on waste electrical and electronic equipment (WEEE). The
directive provides the framework for the EU-wide take-back and recycling
of waste equipment.
Disposal of old appliances
The devices marked with this symbol
must not be disposed of in household waste!
As a manufacturer, we ensure
environmentally friendly
treatment and recycling of old
appliances within the scope of
product responsibility. Our
products are registered with the
authorities for electrical
appliances and packaging. For
further information on
collection and disposal, please
contact your local authority,
city council or your
(specialised) retailer. Already
during the development of new
appliances, we pay attention to a
high recyclability of the materials
used. High recycling rates are
achieved via the take-back system
to reduce the burden on waste
dumps and the environment.
Together, we are making an
important contribution to
environmental protection.

11
2 INSTALLATION
2.1 Product Description
1
2
3
4
5
6
1
2
3
4
5
6
Service flap
Door
Detergent dispenser
Control panel
Drain hose
Power supply cord
• The product picture is for illustration only, please refer to real
product as reference.
Accessories
4 x Cover
caps
1 x Supply hose
cold water
1 x Owner’s
manual
Acoustic sponge
(optional)
Note!

Before installing the machine, the location characterized as follows shall be
selected:
1. Rigid, dry, and level surface.
2.Avoid direct sunlight.
3.Sufficient ventilation.
4.Room temperature is above 5°C.
5.Keep far away from the heat sources such as coal or gas burning appliances.
Stability is important to prevent the product from wandering!
Make sure the machine is standing leveled and stable.
Make sure that the product does not stand onto the power cord.
Make sure to maintain the minimum distances from the walls as
shown in the picture.
Installation area
12
2 INSTALLATION
2.2 Installation
w
w
W> 20mm
•
•
•
•
Warning!
Tools Needed If Installation By Yourself (not include)

2 INSTALLATION
Unpacking the machine
• Packaging material (e.g. Films,
Styrofoam) can be dangerous for
children.
• There is a risk of suffocation ! Keep
all packaging well away from
children.
1. Remove the cardboard box and styrofoam packing.
2. Lift the and remove the base packaging. Make sure the
small triangle foam (a) is removed with the bottom packaging together.
If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
washing machine

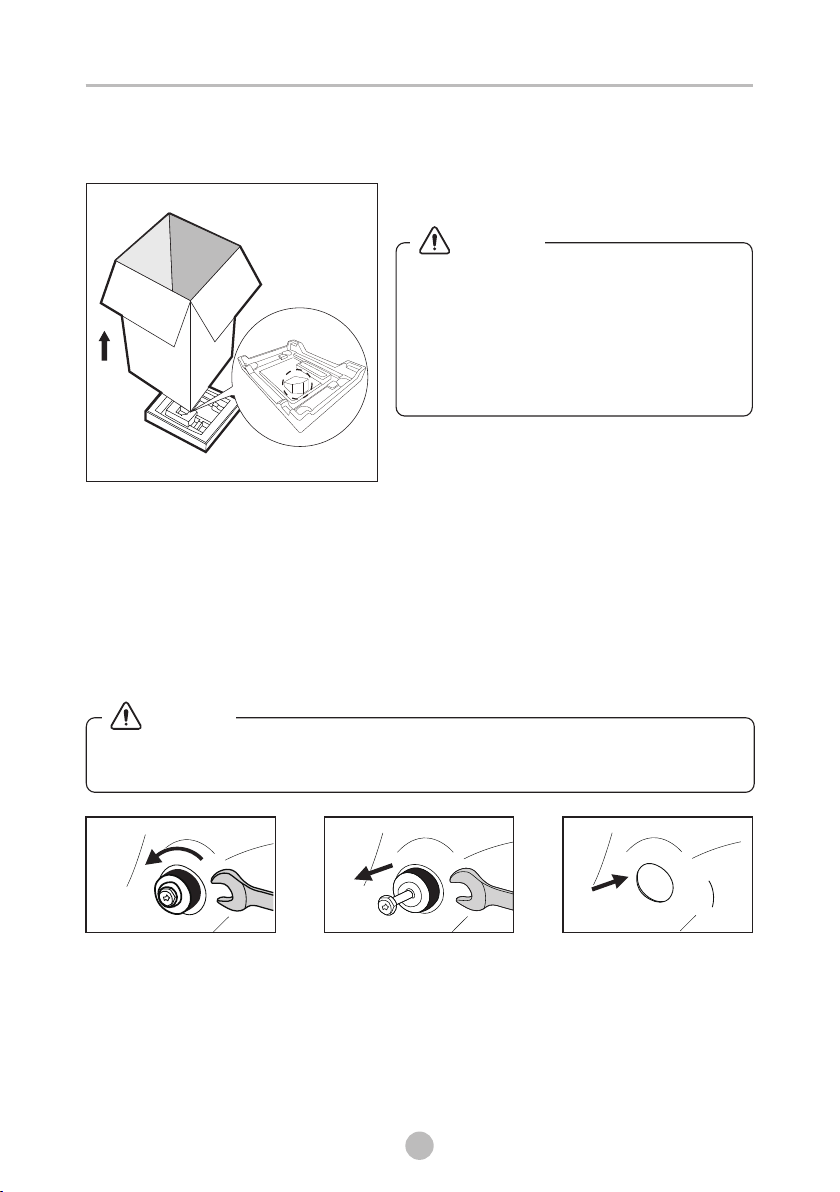

Remove transport bolts
• You must remove the transport bolts from the backside before using
the product.
Loosen the 4
transport bolts with
a spanner.
Close the holes
using the cover
caps.
Remove the bolts
including the rubber
parts and keep them
for future use.
13
a
Warning!
Warning!

2 INSTALLATION
14

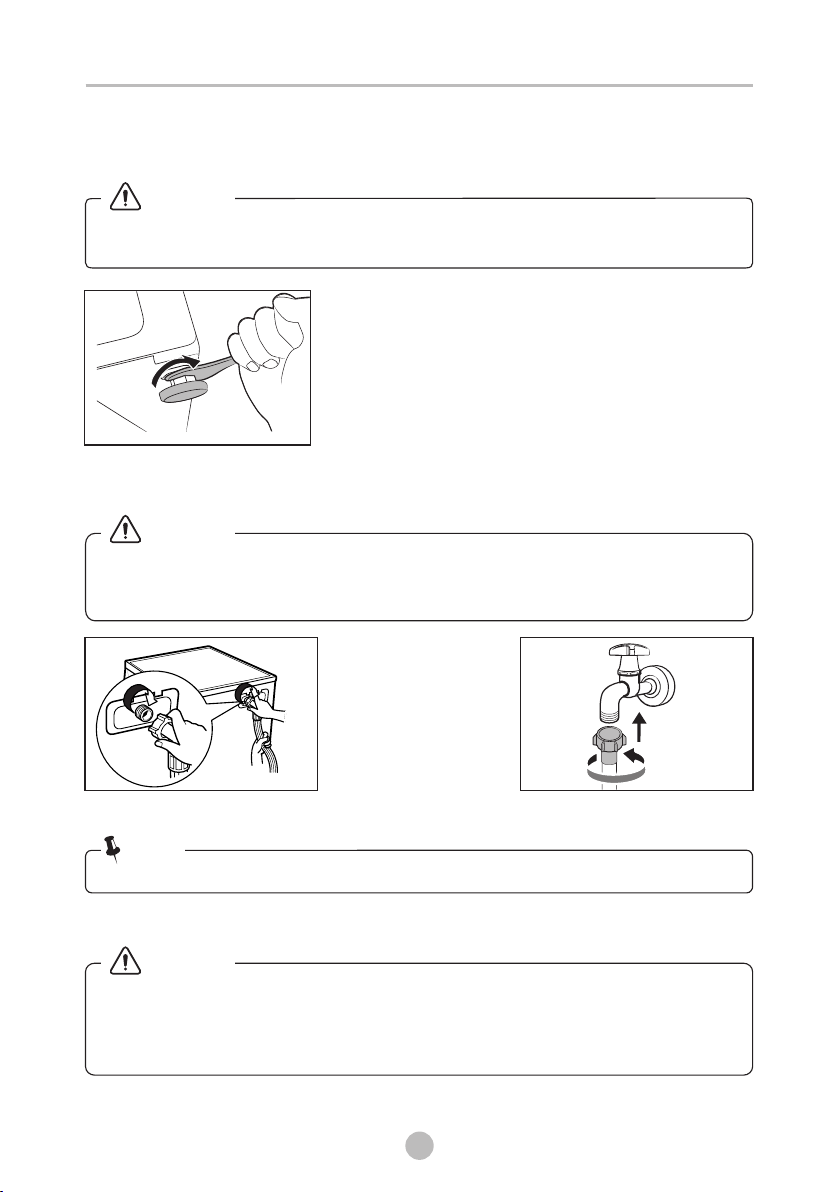

Levelling the machine
• The lock nuts on all four feet must be screwed tightly against the
housing.
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a
spanner. Make sure the machine is level
using a spirit level.
Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this
chapter.
• Do not kink, crush or modify water inlet hose.
Connect the water
supply hose to the
water inlet valve
and a water tap
with cold water as
indicated.
• Connect manually, do not use tools. Check if the connections are tight.
Drain Hose
•
• Position drain hose properly ,otherwise damage might result of water
leakage.
It is not allowed to remove the buckle of drain pipe.
Do not kink or protract the drain hose.
•
Warning!
Warning!
Warning!
Note!

2 INSTALLATION
There are two ways to place the end of drain hose:
2.Connect it to the branch drain
pipe of the trough.
100cm
Max.
Min.60cm
100cm
Max.
Water
trough
100cm
Max.
Min.60cm
15
1.Put it into the water trough.
•
effectively reduce the noise caused by the machine while working,
in order to provide you with a more peaceful and quiet living
environment.
Please make sure to assemble the acoustic sponges, which can
Acoustic Sponge
2x
2x
1. Get the machine laid on the floor, using some soft material like foam or
clothes between the machine and floor for a protection.
2. Stick the 2x longer sponges to the longer bottom edges of machine,
and the 2x shorter sponges to the shorter bottom edges.
Note!

4. Press to start the appliance, initially“---” is displayed, and then
“***” (such as “126”)is displayed to indicate the real time drum speed.
When the number reaches a certain value (stop changing),it means the
washing machine is successfully calibrated.
• Before washing, please make sure the washing machine is installed
properly.
• Your appliance was thoroughly checked before it left the factory. To
remove any residual water and to neutralize potential odors, it’s
recommended to clean your appliance before first use. For this
reason, start the Cotton program at 90°C without laundry and
detergent.
3.1 Quick Start
3 OPERATION
16
It’s recommended to calibrate the washing machine, so that provide the
best performance.
The appliance is able to detect the amount of laundry loaded. This
function is optimizing the product performance by minimizing energy and
water consumption, saving you money and time. For this reason it’s
recommended to calibrate the appliance for best use.
1. Remove all accessories from the drum and close the door;
2. Insert the mains plug to the socket;
3. Switch on the washing machine, and within10 seconds, press
“Turbo” and “Extra Rinse” simultaneously and continuously
(normally 3 seconds) until “t19” is displayed on the knob.
Calibration
Caution!

3 OPERATION
1. Before Washing
• Detergent need to be added in compartment I if the pre-wash
function is selected.
Open tap
Load
Close door
Plug in
Add detergent
Main
wash
Prewash
Softener
earth
terminal
17
123
5
4
Note!

3 OPERATION
18
Press Start/Pause to
start the program
3. After Washing
Buzzer beep and “End” on display.
34
2. Washing
Power on
Select programme
12
Select function or remain
default settings

• Do not wash articles that have been cleaned in, washed in, soaked
in, or dabbed with combustible or explosive substances like
wax, oil, paint, gasoline, alcohol, kerosene, and other flammable
materials.
• Washing single clothes items may easily create big eccentricity .
Therefore it is suggested to add one or two more laundry items to
the wash so that spin can be done smoothly.
• The ambient temperature of the machine should be 5 -40°C. If used
under 0°C, the inlet valve and draining system may be damaged. If the
machine is installed under freezing conditions, it should be transferred to
normal ambient temperature to ensure the water supply hose and drain
hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions
before wash. Use non-foaming or less-foaming detergent suitable for
machine properly.
°C
washing
Tie together long textile
strips and belts, close
zips and button
Take all items out of the
pockets
Put small items into a
laundry bag
3.2 Before Each Washing
Sort laundry according to
color and textile type
3 OPERATION
2
3
19
4
1
Warning!
