Midian TVS-2-VX User manual

1
TVS-2-VX
High Level Hopping Code Scrambler for Vertex Radios
VP -15-VX
Voice Inversion Scrambler with Kryptic Signaling for Vertex Radios
Manual Revision: 2018-03-23 Rev E
Covers Software Revisions:
TVS-2-VX: 4.96 & Higher
VP -15-VX: 4.96 & Higher
Covers Hardware Revisions:
E & Higher
This manual & product supports the following Vertex radios:
Portables: V -350, V -410, V -420, V -450-V -460, V -600, V -800, V -820, V -900, V -920
Mobiles: V -2100, V -2200, V -4000, V -4100, V -4200, V -4500, V -4600, V -5500, V -6000

2
SPECIFICATIONS
Operating Voltage 3.5 VDC
Operating Current 8 mA
Operating Temperature -30 - +60 C
Frequency Response 300-2400 Hz
Input Impedance >25 kΩ
Carrier Suppression 65 dB < Peak Voice
Encryption Specifications
TVS-2: Encryption Sequences +40 Trillion
TVS-2: Random Number Generator 64 bits
TVS-2: Sequence Length (est.) 84 billion years
VP -15: Inversion Codes Available 37
INSTALLATION OVERVIEW
1. Test the radio for functionality.
2. Program the scrambler per the Product Programming Section of this manual.
3. Install the scrambler into the radio per the Hardware Installation Section of this manual.
4. Program the radio per the Radio Programming Section of this manual.
*** Midian is not responsible for any damage/loss resulting from the use of Midian’s products.
GENERAL INFORMATION
TVS-2 Series:
The TVS-2 series is a high-level hopping code scrambler. The TVS-2 uses hopping type rolling code encryption
for higher security rather than sweeping code type and offers 4 user-programmable hop rates and is down
gradable to voice inversion. The scrambler is capable of features such as ANI, ENI, OTAR, Deadbeat Disable,
Spy, and more when using Midian’s Kryptic Signaling format with the CAD-300/DDU-300/TRC-300. For more
information on the TVS-2 please read the TVS-2 Technical Reference Manual.
Note: The TVS-2-V by Midian is the same module as the FVP-35 sold by Vertex Standard (Yaesu).
VP -15 Series:
The VPU-15 series is an entry level voice inversion scrambler with Midian’s Kryptic Signaling. The scrambler is
capable of features such as ANI, ENI, OTAR, Deadbeat Disable, Spy, and more when using Midian’s Kryptic
Signaling format with the CAD-300/DDU-300/TRC-300.

3
PROD CT PROGRAMMING
Midian’s TVS-2-V and VPU-15-V are programmed via Midian’s KL-4 programming interface and the MPS
software.
Go to our website midians.com and under downloads> software download the latest MPS software version. If
using the supplied CD-ROM insert it into the PC’s CD-ROM drive. In the browser that will pop-up, install the MPS
programming software. Be certain that the “Install KL-4 USB Driver” box is checked during the installation
process.
Open Windows’ Control Panel and go to Device Manager.
Open Ports (COM& LPT) to identify the port assignment issued by computer. Plug in the KL4 programmer to the
USB port and the screen will flash and show the device location.
Open the software and choose product from product tree then set appropriate comport selection in the MPS
software as needed.
After the latest MPS has been installed default programming files for specific radio models can be found at:
C:\Apps\Midian\MPS\MPS_v _xx\Additional Default Files\ TVS2_VPU15\Vertex
Set the parameters of the scrambler software to fit the application. If any clarifications on a feature are required,
move the mouse cursor over the feature name until the question mark appears and right click, a definition of the
feature will be shown.
After entering the parameters, save the file by going to File - Save As. Enter the file name in the File Name block
and click “Save”. Saving the file will allow for quick and easy reprogramming of units.
Programming: Plug the board onto the KL-4 and connect the green clip lead to the Prog In* hole. Push and hold
the power button on the KL-4 and click “Program Unit” in the MPS software. The ACK LED on the KL-4 will flash
if programmed successfully.
Reading: Plug the board onto the KL-4, connect the green clip lead to the Prog In* hole, and connect the yellow
clip lead to the Prog Out* hole. Push and hold the power button on the KL-4 and click “Read Unit” in the MPS
software.
NOTE: When the scrambler is read, the security codes will be read out as zeroes. If another scrambler is then
cloned with this information, the scramblers will be incompatible because they have different security codes.

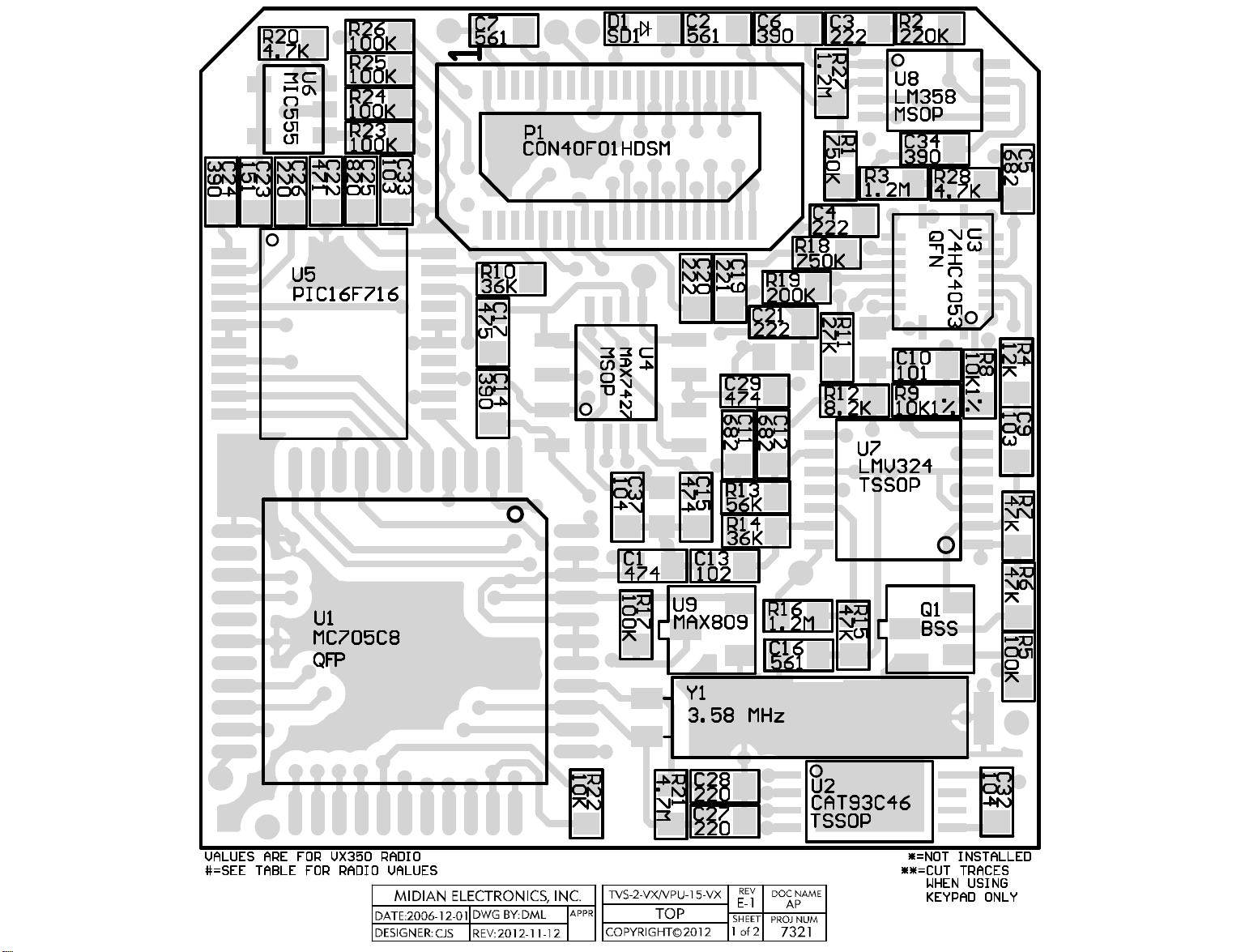

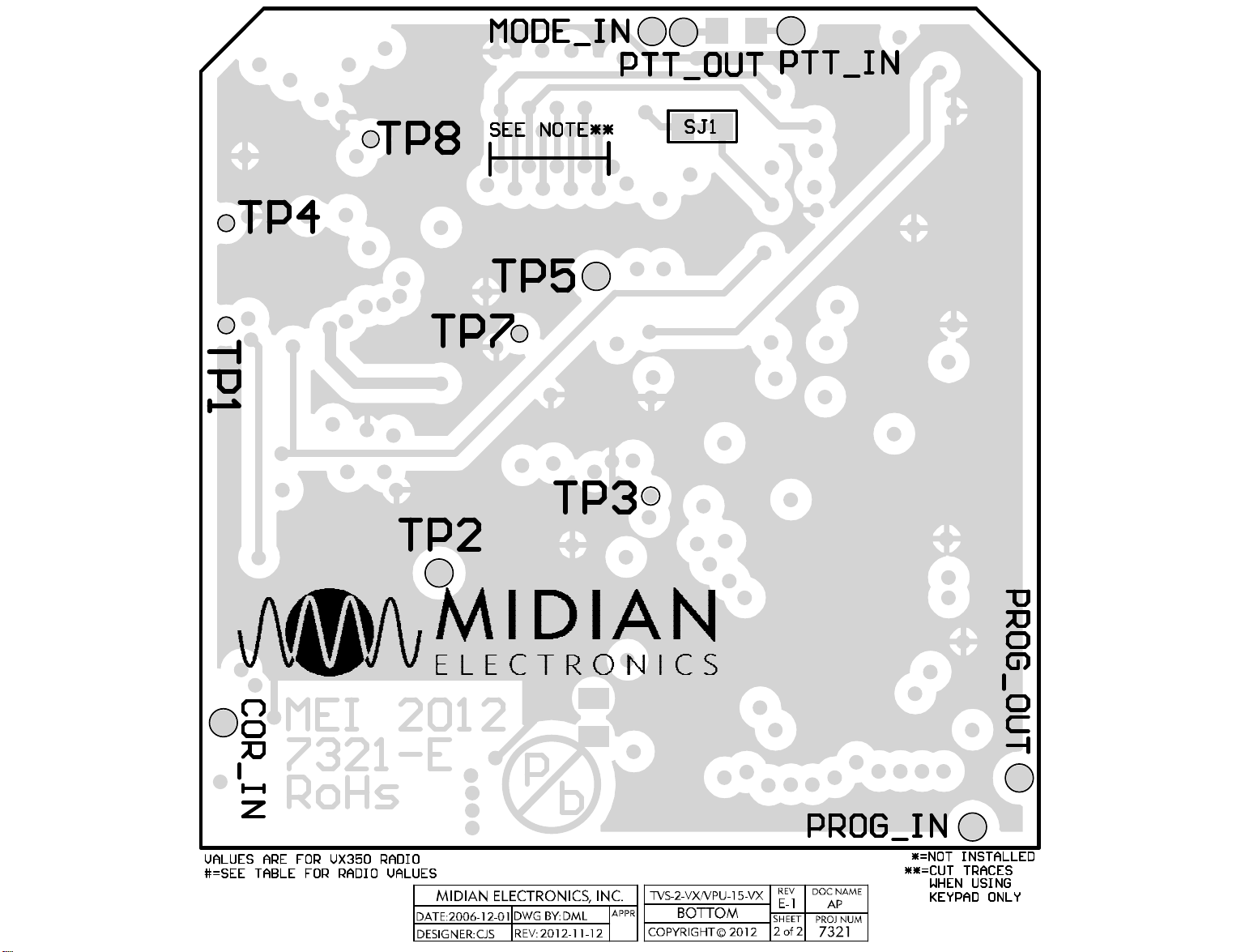

*Please reference the pictorial at the end this manual for location of programming connections.*

4
HARDWARE INSTALLATION
Be certain to follow standard anti-static procedures when handling any of Midian’s products.
VX-350: Remove the battery, exposing the option board cover and remove the cover. Plug the scrambler onto
the options connector. Replace the option board cover and battery. The scrambler requires this radio have
firmware version 1.0 or higher.
VX-410 & VX-420: Remove the battery, exposing the option board cover and remove the cover. Remove the
dummy board from the radio and replace with the scrambler. Replace the option board cover and battery. The
scrambler requires this radio have firmware version 1.04 or higher.
VX-450 & VX-460: Remove the battery, exposing the option board cover and remove the cover. Plug the
scrambler onto the Options Connector. Replace the option board cover and battery. The scrambler has been
tested in firmware version 1.10.00.00.
VX-600 & VX-900: Remove the battery, exposing the option board cover and remove the cover. Remove the
dummy board from the radio and replace with the scrambler. Replace the option board cover and battery. The
scrambler requires this radio have firmware version 1.22 or higher.
VX-800: Remove the battery, exposing the option board cover and remove the cover. Remove the dummy board
from the radio and replace with the scrambler. Replace the option board cover and battery. The scrambler
requires this radio have firmware version 1.28 or higher.
VX-820/920: Remove the battery, exposing the option board cover and remove the cover. Plug the scrambler
onto the options connector. Replace the option board cover and battery. The scrambler requires this radio have
firmware version 1.19 or higher.
VX-2100/VX-2200: Remove the cover of the radio exposing the options connector. Plug the scrambler onto the
Options Connector. Replace the cover of the radio. The scrambler has been tested in firmware version 1.00.
Note: Some versions of this radio may have a large diode (D1002) installed under the options connector that can
cause a short on the unit. If this diode is present protect the option board using electrical or kapton tape.
VX-4100/VX-4200: Remove the cover of the radio exposing the options connector. Plug the scrambler onto the
Options Connector. Replace the cover of the radio. The scrambler has been tested in firmware version 1.25.
VX-4500/VX-4600: Remove the cover of the radio exposing the options connector. Plug the scrambler onto the
Options Connector. Replace the cover of the radio. The scrambler has been tested in firmware version
1.10.00.00.
VX-4000, VX-5500 & VX-6000: Remove the cover of the radio exposing the options connector. Plug the FIF-7A
(from Vertex) onto the options connector per Vertex’s instructions. Then plug the scrambler onto the FIF-7A.
Replace the cover of the radio. The scrambler requires firmware version 2.02 or higher in the V -4000. The V -
5500 has been tested with firmware version 0324. The V -6000 has been tested with firmware version 4.02.
NOTE: The scrambler should be ordered for the specific radio model. However, if you need to change radio
models please see the tables under technical notes at the end of this manual for necessary component changes.

5
RADIO PROGRAMMING
VX-350:
For the V -350 radio programming software CE-86 v1.01 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Option”. The “Option
Unit” should be read as “FVP-35”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the mode
select button to “Option Switch” or “Option Switch 2”.
Download the program to the radio.
VX-410 & VX-420:
For the V -410 & V -420 radio programming software CE-64 v1.00 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Option”. Set the
“Option Board” to “Encryption (Hi Level)”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the “Side 1”
or “Side 2” Key to “ACC 1”. Press or Press & Hold may be used. The assigned button will then control scramble
on/off and/or code select. On full keypad versions the A, B, C, or D button may be used.
In the main screen, in the “ENCR” column, every channel must have the flag checked. NOTE: This does not
provide encryption on a per channel basis. On this screen, the “SQ” column must have a figure greater than “0”.
Download the program to the radio.
VX-450 & VX-460:
For the V -450 & V -460 radio programming software CE-115 v1.01 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Option”. The “Option
Unit” should be read as “FVP-35”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the mode
select button to “Option Switch 1”.
Download the program to the radio.
VX-600 & VX-900:
For the V -600 & V -900 radio programming software CE-39 v1.04 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Miscellaneous”. Set
the “Encryption Type” to “Hi Level”. This will also change the “Encryption Device” setting under “Common” >
“Option” to “Yes”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the “TOP
SEL Key” (top orange button), “SIDE SEL Key” (top side button), or the A, B, C, or D (keypad models only) button
to “ACC1”. The assigned button will then control scramble on/off and/or code select.
In the main screen, in the “ENCR” column, every channel must have the flag checked. NOTE: This does not
provide encryption on a per channel basis.
Download the program to the radio.

6
VX-800:
For the V -800 radio programming software CE-31 v1.20 or higher (DOS) or v1.05 (Windows) must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Miscellaneous”. Set
the “Encryption Type” to “Hi Level”. This will also change the “Encryption Device” setting under “Common” >
“Option” to “Yes”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the “SEL1
Key” (top orange button), “SEL2 Key” (top gray button), or the A, B, C, or D (keypad models only) button to
“ACC1”. The assigned button will then control scramble on/off and/or code select.
In the main screen, in the “ENCR” column, every channel must have the flag checked. NOTE: This does not
provide encryption on a per channel basis.
Download the program to the radio.
VX-820 & VX-920:
For the V -820/920 radio programming software CE-59 v2.10 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Option”. The “Option
Unit” should be read as “FVP-35”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the mode
select button to “Option SW1” or “Option SW2”. Option SW1 is momentary and Option SW2 is latched.
Download the program to the radio.
VX-2100 & VX-2200:
For the V -2100 & V -2200 radio programming software CE-82 v1.04 or higher must be used.
Read the radio with the option board installed. “Key Function” to set which key will control scramble on/off. Set
the “P1-P4 Short Press” button to “Option SW”.
Download the program to the radio.
VX-4100 & VX-4200:
For the V -4100 & V -4200 radio programming software CE-59 v1.01 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Option”. The “Option
Unit” should be read as “FVP-35”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the “P1-P4”
or “A” button to “Option Switch 1”.
Download the program to the radio.

7
VX-4500 & VX-4600:
For the V -4500 & V -4600 radio programming software CE-115 v1.01 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Option”. The “Option
Unit” should be read as “FVP-35”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the “P1-P4”
or “A” button to “Option Switch 1”.
Download the program to the radio.
VX-4000, VX-5500 & VX-6000:
For the V -4000 radio programming software CE-35 v2.0.2.0 or higher or CE-49 v3.3.0.0 or higher must be used.
For the V -5500/V -6000 radio programming software CE-49 v3.3.0.0 or higher must be used.
Read the radio with the option board installed. Select “Common” from the menu and then “Option”. Set the
“Option Unit” to “FVP-35 (Hi Level Encr)”. This will also change the “Encryption Type” setting under “Common” >
“Miscellaneous” to “Hi Level”.
Under the “Common” heading select “Key Function” to set which key will control scramble on/off. Set the PF1-
PF5 (long or short) button to “Hi-Level Encr SW”. If the short press is selected only scramble on/off is available.
If the long press is selected scramble on/off and code select are available.
In the main screen, in the “ENCR” column, every channel must have the flag checked. NOTE: This does not
provide encryption on a per channel basis.
Download the program to the radio.

8
OPERATION
Mode Select: Press the radio key that was assigned in the radio programming. A tone followed by a higher tone
indicates the unit was toggled into scramble mode. A tone followed by a lower tone indicates the unit was toggled
into clear mode.
Code Select: When the unit is programmed with multiple security keys, pressing and holding the mode button
can access different keys. A number of tones will be emitted as the unit changes from one code to another.
TECHNICAL NOTES
Radio Compatibility: Midian has taken the utmost care to ensure the option board integrates into the radio with
minimal impact to the features of the radio. However, some features may not be available in the radio when an
option board is used.
VX-4000: Go-Ahead beeps are not supported in this radio.
NOTE: The scrambler should be ordered for the specific radio model. However, if you need to change radio
models you will need to complete the component changes on the following list.
TVS-2-VX & VP -15-VX REVISION C & D
Radio
C3
C4
C9
C20
C21
R1
R2
R6
R7
R15
R18
R19
V -350 222 222 103 222 222 750 K 220 K 47 K 47 K 47 K 750 K 200 K
V -410/420 222 222 103 222 222 1 M 220 K 62 K 47 K 47 K 220 K 220 K
V -450/460
V -4500/4600
102 102 104 472 222 560 K 470 K 62 K 47 K 75 K 100 K 270 K
V -600/900/
2100/2200/4000/
5500
222 222 103 222 222 1 M 220 K 47 K 47 K 47 K 200 K 62 K
V -800 222 222 103 222 222 1 M 470 K 62 K 47 K 75 K 200 K 220 K
V -820/920 222 103 104 222 104 750 K 47 K 47 K 47 K 62 K 750 K 750 K
V -4100/4200 222 103 104 223 103 1 M 470 K 62 K 47 K 75 K 470 K 150 K
V -6000 222 103 104 222 222 560 K 220 K 62 K 36 K 47 K 750 K 750 K
MIDIAN CONTACT INFORMATION
MIDIAN ELECTRONICS, INC.
2030 N. Forbes Blvd. #101
Tucson, Arizona 85745 USA
Toll-Free: 1-800-MIDIANS
Main: 520-884-7981
E-mail: [e-mail]
Web: www.midians.com

1
1
2
2
3
3
4
4
5
5
6
6
D D
C C
B B
A A
CP
CJS
2006-12-01 DML
2012-11-12
E-1
1 of 1 7321
MIDIAN ELECTRONICS, INC.
DATE:
DESIGN:
DWN BY:
REV:
APPR
COPYRIGHT ©
REV
SHEET PROJECT NUMBER
DOCUMENT NAME
SCHEMATIC
2012
TVS-2-VX/VPU-15-VX
GND
P1:1
NOT USED P1:2
PTT_IN
P1:3
+VB[NU]
P1:4
NOT USED P1:5
NOT USED P1:6
NOT USED P1:7
MODE_IN
P1:8
AUDIO SWITCH
P1:9
COR IN
P1:10
NOT USED P1:11
NOT USED P1:12
NOT USED P1:13
RX_OUT
P1:14
PTT_OUT
P1:15
RX_IN
P1:16
ENABLE P1:17
TX_OUT
P1:18
NOT USED P1:19
TX_IN
P1:20
NOT USED P1:21
P1:22
P1:23
P1:24
P1:25
P1:26
P1:27
P1:28
P1:29
P1:30
P1:31
P1:32
P1:33
P1:34
P1:35
P1:36
P1:37
P1:38
GND
P1:39
+3.5V(SW)
P1:40
100K
R23
100K
R24
100K
R25
100K
R26
3.5V
OSC2 36
TCMP
33
VDD 38
VPP 43
SS 32
B3
11
D7
34
OSC1 37
B0 8
B1 9
A5
2
A6
1
A7
44
A4
3
A3
4
A2
5
A1
6
A0
7
C4
21
C5
20
C3
23
C0
26
C1
25
C2
24
C6
19
C7 18
B4 12
B7
15
B6
14
GND 17
RES
41
B2
10
TCAP
35
IRQ 42
B5 13
SCK
31
MOSI
30
MISO
29
RDI 27
TDO 28
NC1 16
NC2 22
NC3 39 NC4 40
MC705C8
U1
SD1
D1
3.5V 3.5V
.47u
C1
CS 1
SCLK 2
SI 3
SO 4
VCC
8
NC1
7
NC2
6
GND
5
CAT93C46
U2
.1u
C32
3.5V
PAD1 PTT_IN
PAD7 PTT_OUT
PAD2 MODE_IN
PAD6 COR_IN
560p
C7
*
RJ1
-
+
2
3
1
LM358
U8:1
-
+
6
5
7
LM358
U8:2
8
VCCVCC
4
GNDGND
LM358
U8:3
.0022u
C3
39p
C34
1.2M
R3
VAN
4.7K
R28
.0068u
C5
TP4
3V+V+ 2
OUTOUT
1
GNDGND
MAX809-S
U9
560p
C2
100K
R17
3.5V 3.5V
A
11
A
11
X0
12
X0
12
X1
13
X1
13
X
14
X
14
74HC4053
U3:1
B
10
B
10
Y1
1
Y1
1
Y0
2
Y0
2Y
15
Y
15
74HC4053
U3:2
C
9
C
9
Z
4
Z
4
Z0
5
Z0
5
Z1
3
Z1
3
E\
6
E\
6
VCC
16
VCC
16
VEE
7
VEE
7
GND
8
GND
8
74HC4053
U3:3
.47u
C29
12K
R4
3.5V
39p
C6
1.2M
R27 TP1
VAN
750K
R1
BSS
Q1
100K
R5
-
+
2
3
1
LMV324
U7:1
-
+
6
5
7
LMV324
U7:2
-
+
9
10
8
LMV324
U7:3
-
+
13
12
14
LMV324
U7:4
4
VCCVCC
11
GNDGND
LMV324
U7:5
VAN 10K1%
R8
10K1%
R9
100p
C10
VAN
36K
R10
OSC1 18
OSC2
17
A4 3
A0
19
A1 20
MCLR 4
VDD
15
VDD
16
VSS
5
VSS
6
B6 13
B7
14
B1 8 B2 9 B3 10 B4 11
B0
7
B5 12
A2 1 A3
2
16F716
U5
3.5V
27K
R11
8.2K
R12
.0068u
C11
.0068u
C12
56K
R13
VAN
36K
R14
1.2M
R16
.001u
C13
VAN
TP2
SHDN 7
V+ 4
CLK 8
IN
2OUT 5
COM
1
OS
6
V-
3
MAX7427
U4
.47u
C15
39p
C14
TP3
3.5V
560p
C16
VAN
TP8
1
VSVS
2
GNDGND
3
OUTOUT
4TRGTRG
5THSTHS
MIC555
U6
22p
C26
82p
C25
39p
C24
150p
C23 470p
C22
4.7K
R20
.01u
C33
3.5V
750K
R18 .0022u
C20
220p
C19
*
C18
TP7
TP5
22p
C28
22p
C27
3.58 MHz.
Y1
4.7M
R21
PAD3
PROG_IN
PAD4
PROG_OUT
SJ1
10K
R22
3.5V
3.5V 3.5V
1
2
3
4
5
6 7
8
U4B
*
4.7u
C17
*
C38
.1u
C37
*
UK1
CUT LINES ON PCB ONLY WHEN USING KEYPAD
(SOURCE)
.0022u
C4
.01u
C9
.0022u
C21
220K
R2
47K
R6
47K
R7
47K
R15
200K
R19
PIC101
PIC102
COC1
PIC201
PIC202
COC2
PIC301 PIC302
COC3
PIC401 PIC402
COC4
PIC501
PIC502
COC5
PIC601 PIC602
COC6
PIC701
PIC702
COC7
PIC901 PIC902
COC9
PIC1001
PIC1002
COC10
PIC1101 PIC1102
COC11
PIC1201 PIC1202
COC12
PIC1301
PIC1302
COC13
PIC1401
PIC1402
COC14
PIC1501
PIC1502
COC15
PIC1601
PIC1602
COC16
PIC1701
PIC1702
COC17
PIC1801
PIC1802
COC18
PIC1901
PIC1902
COC19
PIC2001 PIC2002
COC20
PIC2101 PIC2102
COC21
PIC2201
PIC2202
COC22
PIC2301 PIC2302
COC23
PIC2401 PIC2402
COC24
PIC2501 PIC2502
COC25
PIC2601 PIC2602
COC26
PIC2701
PIC2702
COC27
PIC2801
PIC2802
COC28
PIC2901
PIC2902
COC29
PIC3201
PIC3202
COC32
PIC3301
PIC3302
COC33
PIC3401 PIC3402
COC34
PIC3701
PIC3702
COC37
PIC3801
PIC3802
COC38
PID101PID102
COD1
PIP101
COP1:1
PIP102
COP1:2
PIP103
COP1:3
PIP104
COP1:4
PIP105
COP1:5
PIP106
COP1:6
PIP107
COP1:7
PIP108
COP1:8
PIP109
COP1:9
PIP1010
COP1:10
PIP1011
COP1:11
PIP1012
COP1:12
PIP1013
COP1:13
PIP1014
COP1:14
PIP1015
COP1:15
PIP1016
COP1:16
PIP1017
COP1:17
PIP1018
COP1:18
PIP1019
COP1:19
PIP1020
COP1:20
PIP1021
COP1:21
PIP1022
COP1:22
PIP1023
COP1:23
PIP1024
COP1:24
PIP1025
COP1:25
PIP1026
COP1:26
PIP1027
COP1:27
PIP1028
COP1:28
PIP1029
COP1:29
PIP1030
COP1:30
PIP1031
COP1:31
PIP1032
COP1:32
PIP1033
COP1:33
PIP1034
COP1:34
PIP1035
COP1:35
PIP1036
COP1:36
PIP1037
COP1:37
PIP1038
COP1:38
PIP1039
COP1:39
PIP1040
COP1:40
PIPAD101
COPAD1
PIPAD201
COPAD2
PIPAD301
COPAD3
PIPAD401
COPAD4
PIPAD601
COPAD6
PIPAD701
COPAD7
PIQ10D
PIQ10G
PIQ10S
COQ1
PIR101 PIR102
COR1
PIR201 PIR202
COR2
PIR301 PIR302
COR3
PIR401 PIR402
COR4
PIR501
PIR502
COR5
PIR601 PIR602
COR6
PIR701 PIR702
COR7
PIR801
PIR802
COR8
PIR901
PIR902
COR9
PIR1001
PIR1002
COR10
PIR1101
PIR1102
COR11
PIR1201
PIR1202
COR12
PIR1301 PIR1302
COR13
PIR1401 PIR1402
COR14
PIR1501 PIR1502
COR15
PIR1601 PIR1602
COR16
PIR1701
PIR1702
COR17
PIR1801 PIR1802
COR18
PIR1901 PIR1902
COR19
PIR2001
PIR2002
COR20
PIR2101
PIR2102
COR21
PIR2201
PIR2202
COR22
PIR2301
PIR2302
COR23
PIR2401
PIR2402
COR24
PIR2501
PIR2502
COR25
PIR2601
PIR2602
COR26
PIR2701 PIR2702
COR27
PIR2801 PIR2802
COR28
PIRJ101 PIRJ102
CORJ1
PISJ101 PISJ102
COSJ1
COtb0sch1
PITP101
COTP1
PITP201
COTP2
PITP301
COTP3
PITP401
COTP4
PITP501
COTP5
PITP701
COTP7
PITP801
COTP8
PIU101
PIU102
PIU103 PIU104 PIU105 PIU106 PIU107
PIU108
PIU109
PIU1010
PIU1011
PIU1012
PIU1013
PIU1014
PIU1015
PIU1016
PIU1017
PIU1018
PIU1019
PIU1020
PIU1021
PIU1022
PIU1023
PIU1024
PIU1025
PIU1026
PIU1027
PIU1028
PIU1029
PIU1030
PIU1031
PIU1032
PIU1033
PIU1034
PIU1035
PIU1036
PIU1037
PIU1038 PIU1039PIU1040
PIU1041
PIU1042 PIU1043
PIU1044
COU1
PIU201
PIU202
PIU203
PIU204PIU205
PIU206
PIU207
PIU208
COU2
PIU3011
PIU3012
PIU3013
PIU3014
COU3:1
PIU301
PIU302
PIU3010
PIU3015
COU3:2
PIU303
PIU304
PIU305
PIU306
PIU307
PIU308
PIU309 PIU3016
COU3:3
PIU401
PIU402
PIU403
PIU404
PIU405
PIU406
PIU407PIU408
COU4
PIU4B01
PIU4B02
PIU4B03
PIU4B04
PIU4B05
PIU4B06 PIU4B07
PIU4B08
COU4B
PIU501
PIU502
PIU503PIU504
PIU505 PIU506PIU507
PIU508 PIU509 PIU5010PIU5011 PIU5012PIU5013
PIU5014
PIU5015
PIU5016
PIU5017
PIU5018
PIU5019
PIU5020
COU5
PIU601
PIU602
PIU603
PIU604
PIU605
COU6
PIU701
PIU702
PIU703
COU7:1
PIU705
PIU706
PIU707
COU7:2
PIU708
PIU709
PIU7010
COU7:3
PIU7012
PIU7013
PIU7014
COU7:4
PIU704
PIU7011
COU7:5
PIU801
PIU802
PIU803
COU8:1
PIU805
PIU806
PIU807
COU8:2
PIU804
PIU808
COU8:3
PIU901
PIU902PIU903
COU9
PIUK101
PIUK102
COUK1
PIY101
PIY102
COY1

-This Page Intentionally left Blank-

PAC102 PAC101
COC1
PAC201 PAC202
COC2
PAC302 PAC301
COC3
PAC401 PAC402
COC4
PAC502
PAC501
COC5
PAC602 PAC601
COC6
PAC701 PAC702
COC7
PAC902
PAC901
COC9
PAC1001PAC1002
COC10
PAC1102
PAC1101
COC11
PAC1201
PAC1202
COC12
PAC1302 PAC1301
COC13
PAC1401
PAC1402
COC14
PAC1502
PAC1501
COC15
PAC1601 PAC1602
COC16
PAC1702
PAC1701
COC17
PAC1801PAC1802
COC18
PAC1902
PAC1901
COC19
PAC2001
PAC2002
COC20
PAC2102 PAC2101
COC21
PAC2201
PAC2202
COC22
PAC2302
PAC2301
COC23
PAC2401
PAC2402
COC24
PAC2502
PAC2501
COC25
PAC2601
PAC2602
COC26
PAC2702 PAC2701
COC27
PAC2801 PAC2802
COC28
PAC2902 PAC2901
COC29
PAC3201
PAC3202
COC32
PAC3302
PAC3301
COC33
PAC3401 PAC3402
COC34
PAC3701
PAC3702
COC37
PAC3802
PAC3801
COC38
PAD101 PAD102
COD1
PAP102 PAP104 PAP106 PAP108 PAP1010 PAP1012 PAP1014 PAP1016 PAP1018 PAP1020 PAP1022 PAP1024 PAP1026 PAP1028 PAP1030 PAP1032 PAP1034 PAP1036 PAP1038 PAP1040
PAP1039PAP1037PAP1035PAP1033PAP1031PAP1029PAP1027PAP1025PAP1023PAP1021PAP1019PAP1017PAP1015PAP1013PAP1011 PAP109PAP107PAP105PAP103PAP101
COP1
PAQ10G
PAQ10D PAQ10S
COQ1
PAR101
PAR102
COR1
PAR202 PAR201
COR2
PAR301 PAR302
COR3
PAR402
PAR401
COR4
PAR501
PAR502
COR5
PAR602
PAR601
COR6
PAR701
PAR702
COR7
PAR802
PAR801
COR8
PAR901PAR902
COR9
PAR1002 PAR1001
COR10
PAR1101
PAR1102
COR11
PAR1202 PAR1201
COR12
PAR1301 PAR1302
COR13
PAR1402PAR1401
COR14
PAR1501
PAR1502
COR15
PAR1602 PAR1601
COR16
PAR1701
PAR1702
COR17
PAR1802 PAR1801
COR18
PAR1901PAR1902
COR19
PAR2002 PAR2001
COR20
PAR2101
PAR2102
COR21
PAR2202
PAR2201
COR22
PAR2301 PAR2302
COR23
PAR2402PAR2401
COR24
PAR2501 PAR2502
COR25
PAR2602PAR2601
COR26
PAR2701
PAR2702
COR27
PAR2802PAR2801
COR28
COtb0sch1
PAU1044
PAU1043
PAU1042
PAU1041
PAU1040
PAU1039
PAU1038
PAU1037
PAU1036
PAU1035
PAU1034
PAU1033PAU1032PAU1031PAU1030PAU1029PAU1028PAU1027PAU1026PAU1025PAU1024 PAU1023
PAU1022
PAU1021
PAU1020
PAU1019
PAU1018
PAU1017
PAU1016
PAU1015
PAU1014
PAU1013
PAU1012
PAU1011 PAU1010 PAU109 PAU108 PAU107 PAU106 PAU105 PAU104 PAU103 PAU102 PAU101
COU1
PAU208
PAU207
PAU206
PAU205PAU204
PAU203
PAU202
PAU201
COU2
PAU3016
PAU3015
PAU3014
PAU3013
PAU3012
PAU3011
PAU3010
PAU309 PAU308
PAU307
PAU306
PAU305
PAU304
PAU303
PAU302
PAU301
COU3
PAU401 PAU402 PAU403 PAU404
PAU405PAU406 PAU407PAU408
COU4
PAU4B01
PAU4B02
PAU4B03
PAU4B04 PAU4B05
PAU4B06
PAU4B07
PAU4B08
COU4B
PAU501
PAU502
PAU503
PAU504
PAU505
PAU506
PAU507
PAU508
PAU509
PAU5010 PAU5011
PAU5012
PAU5013
PAU5014
PAU5015
PAU5016
PAU5017
PAU5018
PAU5019
PAU5020
COU5
PAU603
PAU601
PAU604 PAU602
PAU605
COU6
PAU7014
PAU7013
PAU7012
PAU7011
PAU7010
PAU709
PAU708 PAU707
PAU706
PAU705
PAU704
PAU703
PAU702
PAU701
COU7
PAU801
PAU802
PAU803
PAU804 PAU805
PAU806
PAU807
PAU808
COU8
PAU902
PAU903 PAU901
COU9
PAUK101
PAUK102
COUK1
PAVO501
PAVO502
PAVO503 PAVO505 PAVO507 PAVO509 PAVO5011 PAVO5013 PAVO5015 PAVO5017 PAVO5019 PAVO5021 PAVO5023 PAVO5025 PAVO5027 PAVO5029 PAVO5031 PAVO5033 PAVO5035 PAVO5037 PAVO5039
PAVO5040 PAVO5038PAVO5036 PAVO5034 PAVO5032PAVO5030 PAVO5028 PAVO5026 PAVO5024PAVO5022 PAVO5020 PAVO5018 PAVO5016PAVO5014 PAVO5012 PAVO5010 PAVO508 PAVO506 PAVO504
PAVO50S
PAVO50D PAVO50G
PAVO5041
PAVO5042
PAVO5043
PAVO5044
PAVO50GND
COVO5
PAY102
PAY101
PAY10GND
COY1

PAPAD101
COPAD1
PAPAD201
COPAD2
PAPAD301
COPAD3
PAPAD401
COPAD4
PAPAD601
COPAD6
PAPAD701
COPAD7
PARJ101PARJ102
CORJ1
PASJ102 PASJ101
COSJ1
COtb0sch2
PATP101
COTP1
PATP201
COTP2
PATP301
COTP3
PATP401
COTP4
PATP501
COTP5
PATP701
COTP7
PATP801
COTP8
COVO4
PAVO602 PAVO601
COVO6
