Midtronics MSP-070-2 User manual

USER GUIDE
MSP-070C
70A Battery Maintainer

MSP-070C Battery Maintainer
2
Contents
Safety Guidelines 3
General Safety Precautions 3
Personal Precautions 3
Preparing To Charge The Battery 3
Grounding & Power Cord Connections 4
Charger Location 4
DC Connection Precautions 4
Installing The Battery 5
Removing the Battery 5
Maintenance & Storage 5
Locking Power Cord 5
Wireless Safety 5

MSP-070C Battery Maintainer
3
Safety Guidelines
For safe, ecient, and accurate charging and testing, review the
safety and operating instructions in this manual before using the
analyzer. In addition, follow all manufacturers’ instructions and BCI
(Battery Council International) safety recommendations.
1 General Safety Precautions
Risk of explosive gases
Batteries generate explosive gases during normal
operation, and when discharged or charged.
1.1 To reduce risk of battery explosion, follow these safety instructions
and those published by the battery manufacturer and the manu-
facturer of any equipment you intend to use in the vicinity of a
battery. Review cautionary marking on these products and on the
engine, and on the vehicle or equipment containing the battery.
Charging a non-rechargeable battery may
cause the battery to burst.
To reduce the risk of injury, only charge rechargeable
lead-acid type batteries including maintenance-free,
low-maintenance, or deep-cycle batteries.
If you are uncertain as to the type of battery you are attempting
to charge, or the correct procedure for checking the battery’s
state of charge, contact the seller or battery manufacturer.
1.2 Use of an attachment not recommended or sold by the battery
charger manufacturer may result in a risk of re, electric shock, or
injury to persons.
1.3 To reduce risk of damage to the electric plug and cord, pull by the
plug rather than by the cord when disconnecting the charger.
1.4 Position the AC and DC leads to avoid tripping over them and to
prevent damage from moving engine parts; protect from heat,
oil, and sharp edges.
1.5 Do not operate the charger if it has received a sharp blow, been
dropped or otherwise damaged in any way; take it to a qualied
service center.
1.6 Do not disassemble charger; take it to a qualied service center
when repair is required. Incorrect reassembly may result in a risk
of electric shock or re.
1.7 To reduce risk of electric shock, unplug the charger from the AC
outlet before attempting any maintenance or cleaning. Turning
o the controls will not reduce this risk.
1.8 Connect and disconnect the battery leads only when the AC
supply cord is disconnected.
1.9 Do not overcharge the battery.
1.10 Charge the battery in a dry, well-ventilated area.
1.11 Never place articles on or around the charger, or locate the charger
in a way that will restrict the ow of cooling air through the cabinet.
1.12 An extension cord should not be used unless absolutely neces-
sary. (See paragraph 4.2)
1.13 Have a damaged cord or plug replaced immediately.
1.14 Do not expose the charger to rain or snow.
2 Personal Precautions
2.1 The MSP-series chargers are not to be used by people with re-
duced physical, sensory or mental capabilities, or lack of experi-
ence and knowledge, unless they have been given supervision
or instruction.
2.2 Children should be supervised to ensure they do not play with
the appliance
2.3 Always have someone within range of your voice, or close enough
to come to your aid, when working around lead acid batteries.
2.4 Have plenty of fresh water and soap nearby in case battery acid
contacts skin, clothing or eyes.
2.5 Wear complete eye protection, clothing protection, and wear
rubber soled shoes. Place damp cloth over battery to protect
against acid spray. When ground is very wet or covered with
snow, wear rubber boots. Avoid touching eyes while working
near battery.
2.6 If battery acid contacts skin or clothing, wash immediately with
soap and water. If acid enters the eye, immediately ush with
cold running water for at least 10 minutes, and seek medical at-
tention.
2.7 NEVER smoke or allow a spark or ame in vicinity of a battery or
engine.
2.8 Be extra cautious to reduce risk of dropping a metal tool onto
the battery. It might spark or short circuit the battery or other
electrical part that may cause an explosion.
2.9 Before working with a lead-acid battery, remove personal metal
items such as rings, bracelets, necklaces, watches, etc. A lead-
acid battery can produce a short circuit current high enough to
weld such items causing a severe burn.
Non-rechargeable batteries may burst when
charging causing personal injury and damage.
To avoid electrical shock or burn, never alter the char-
ger’s original AC cord and plug. Disconnect plug from
outlet when charger is idle.
The charger is not intended to supply power to a low-voltage
electrical system other than applications using rechargeable,
lead-acid type batteries. Do not use the battery charger
for charging dry-cell batteries commonly used with home
appliances. These batteries may burst and cause personal injury
and property damage.
2.10 NEVER charge a frozen battery; thaw it out rst.
3 Preparing To Charge The Battery
3.1 If it is necessary to remove the battery from vehicle to charge
it, always remove the grounded terminal from the battery rst.
Make sure all accessories in the vehicle are o, so as not to cause
an arc.
3.2 Be sure the area around the battery is well ventilated while the
battery is being charged. Gas can be forcefully blown away by
using a piece of cardboard or other nonmetallic material as a fan.
3.3 Clean the battery terminals. Be careful to keep corrosion from coming
into contact with your eyes.
Safety Guidelines

MSP-070C Battery Maintainer
4
Safety Guidelines
3.4 For ooded cell batteries, add distilled water in each cell until
the battery acid reaches the level specied by the manufacturer.
This helps purge excessive gas from the cells. Do not overll. For
a battery without caps, carefully follow the manufacturer’s re-
charging instructions
3.5 Study all battery manufacturer’s specic precautions such as
removing or not removing cell caps while charging and recom-
mended rates of charge.
4 Grounding & Power Cord Connections
Recommended minimum AWG* size
for extension cords for battery chargers
AC input rating Amps AWG* size of cord
Equal or
greater than:
But less
than:
Length of cord, feet (m)
25 (7.6) 50 (15.2)
100 (30.5) 150 (45.6)
8 10 18 14 12 10
10 12 16 14 10 8
12 14 16 12 10 8
14 16 16 12 10 8
16 18 14 12 8 8
*American Wire Gauge
4.1 The charger must be grounded to reduce risk of electric shock.
The charger is equipped with an electric cord having an equip-
ment grounding conductor and a grounding plug. The plug
must be plugged into an outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
Hazardous voltage.
An improper connection can result in
electric shock
To avoid electrical shock or burn, never alter
the charger’s original AC cord and plug. Dis-
connect plug from outlet when charger is idle.
IF THE PLUG DOES NOT FIT THE OUTLET, HAVE A PROPER
OUTLET INSTALLED BY A QUALIFIED ELECTRICIAN.
4.2 An extension cord should not be used unless absolutely neces-
sary. Use of an improper extension cord could result in a risk of re
and electric shock. If an extension cord must be used, make sure:
a. that the pins on plugs of the extension cord are the same
number, size, and shape as those of the plug on the charger;
b. that the extension cord is properly wired and in good
electrical condition;
c. that the wire size is large enough for the AC ampere rating
of charger.
5 Charger Location
Not for permanent installation: Modifying this charger for permanent
installation in a vehicle or installing this charger in a vehicle for
permanent use is not recommended.
In the event of fail device may generate
and emit sparks.
Only charge rechargeable ooded maintenance-
free, low-maintenance or deep-cycle batteries.
The MCC-Series is NOT designed outside use or for wet location
mounting. The charger must always be protected from direct contact
with water.
5.1 The charger must be located in an area with sucient air space to
allow unrestricted airow in and around the charger.
5.2 Locate the charger as far away from the battery as the charger
cables permit.
5.3 Never place the charger directly above the battery being
charged; gases from the battery will corrode and damage the
charger.
5.4 Never allow battery acid to drip on the charger when taking
gravity readings or lling a ooded cell battery.
5.5 Operate the charger only in a well-ventilated area that is free of
dangerous vapors.
5.6 Store the charger in safe, dry location and maintain it in perfect
condition.
5.7 Do not set the battery on top of the charger or where its acid
might drip onto the charger.
6 DC Connection Precautions
6.1 When attaching the charger clamps, be certain to make the best
possible mechanical as well as electrical connection. This will tend
to prevent the clamps from slipping o the connections, avoid dan-
gerous sparking, and assure safer and more ecient charging. The
clamps should be kept clean.
Hazardous voltage.
Can cause death or serious
personal injury.
Setting the switches to “OFF” does not always
disconnect the charger electrical circuit from
the AC power cord or the DC charger clamps.

MSP-070C Battery Maintainer
5
Safety Guidelines
7 Installing The Battery
Risk of explosive gases.
A spark near the battery may cause a battery explosion.
Follow these steps when the battery is installed in the
vehicle to reduce the risk of explosion.
7.1 Locate the charger as far away from the battery as the charger
cords permit and position the AC and DC cords to avoid stepping
on or tripping over them and to prevent damage by moving en-
gine parts.
7.2 Turn OFF all vehicle loads, including door lights, and correct any
defects in the vehicle’s electrical system that may have caused
low battery.
7.3 First connect the POSITIVE (RED) clamp from the charger to
the POSITIVE (POS., P, +) ungrounded post of the battery. Then
connect the NEGATIVE (BLACK) clamp to the NEGATIVE (NEG.,
N,–) post of the battery. Do not connect the clamp to the carbu-
retor, fuel lines, or sheet-metal body parts.
8 Removing the Battery
8.1 If it is necessary to remove the battery from the vehicle or equip-
ment, always remove the grounded terminal from the battery
rst.
Risk of explosive gases.
A spark near the battery may cause a battery explosion.
Follow these steps when the battery is installed in the
vehicle to reduce the risk of explosion.
Risk of explosive gases.
Make sure all vehicle loads are OFF to prevent a
possible arc.
8.2 Check the polarity of battery posts.
8.3 Connect the POSITIVE (RED) charger clamp to the POSITIVE
(POS., P, +) post of battery.
8.4 Position yourself and the free end of cable as far away from the
battery as possible—do not face the battery when making the
nal connection—then connect the NEGATIVE (BLACK) charger
clamp to the free end of the cable.
8.5 When disconnecting the charger, always do so in the reverse se-
quence of the connecting procedure; break the rst connection
while staying as far away from the battery as practical.
9 Maintenance & Storage
Follow these guidelines to protect the charger and test cables from
damage and premature wear:
9.1 The grease, dirt, and sulfation that build up on battery terminals
are highly corrosive and can damage the clamps over time. Be-
fore connecting the clamps, ensure accurate test readings and
protect the clamps by cleaning the battery case and terminals
using a wire brush and a mixture of water and baking soda.
9.2 Periodically clean the clamps using a mixture of baking soda and
water, or a mild hand-soap, and a small bristle brush.
9.3 Clean the battery terminals. If stud adapters are required, fasten
them with the proper tool. Do not use the battery clamps to
tighten adapters.
9.4 Never remove the clamps from a battery to abort an active
charging session. Always press the red STOP button before re-
moving the clamps.
9.5 Do not leave the clamps laying in battery acid.

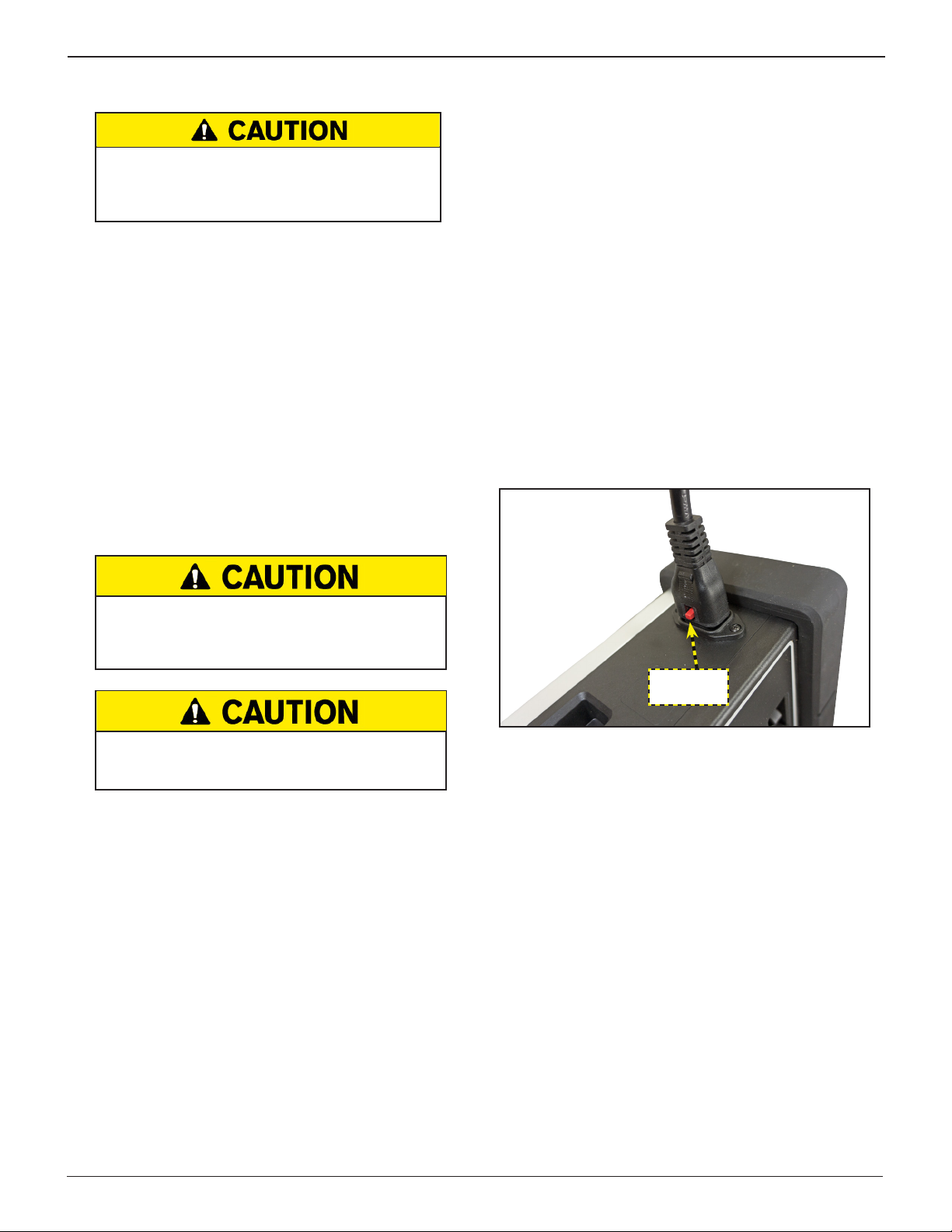

Locking Power Cord
Always use the red tabs on each side of the power cord connector to
release/remove it from the charger’s power socket.
Pull Up To
Release
Storage
Always store the charger in safe, dry location and maintain it in
perfect condition.
When not in use, always keep the charger on the stabilizing base that
came with the unit. Make sure it is secured using the two (2) included
Phillips-head screw and the appropriate threaded holes.
Wireless Safety
The operation of this equipment is subject to the following two
conditions.
1. This equipment or device may not cause harmful interference.
2. This equipment or device must accept any interference. Includ-
ing interference that may cause undesired operation.

MSP-070C Battery Maintainer
6
Connections & Controls
The Midtronics MSP-070C converts 120-240 volts nominal AC
to a selectable (14.4 VDC, 13.6 VDC, or 13.2 VDC) voltage for use
as a power supply. After the unit has detected the battery is
fully charged and current is not being drawn from the vehicle,
it will shut down the ouput to conserve energy and protect the
vehicle.

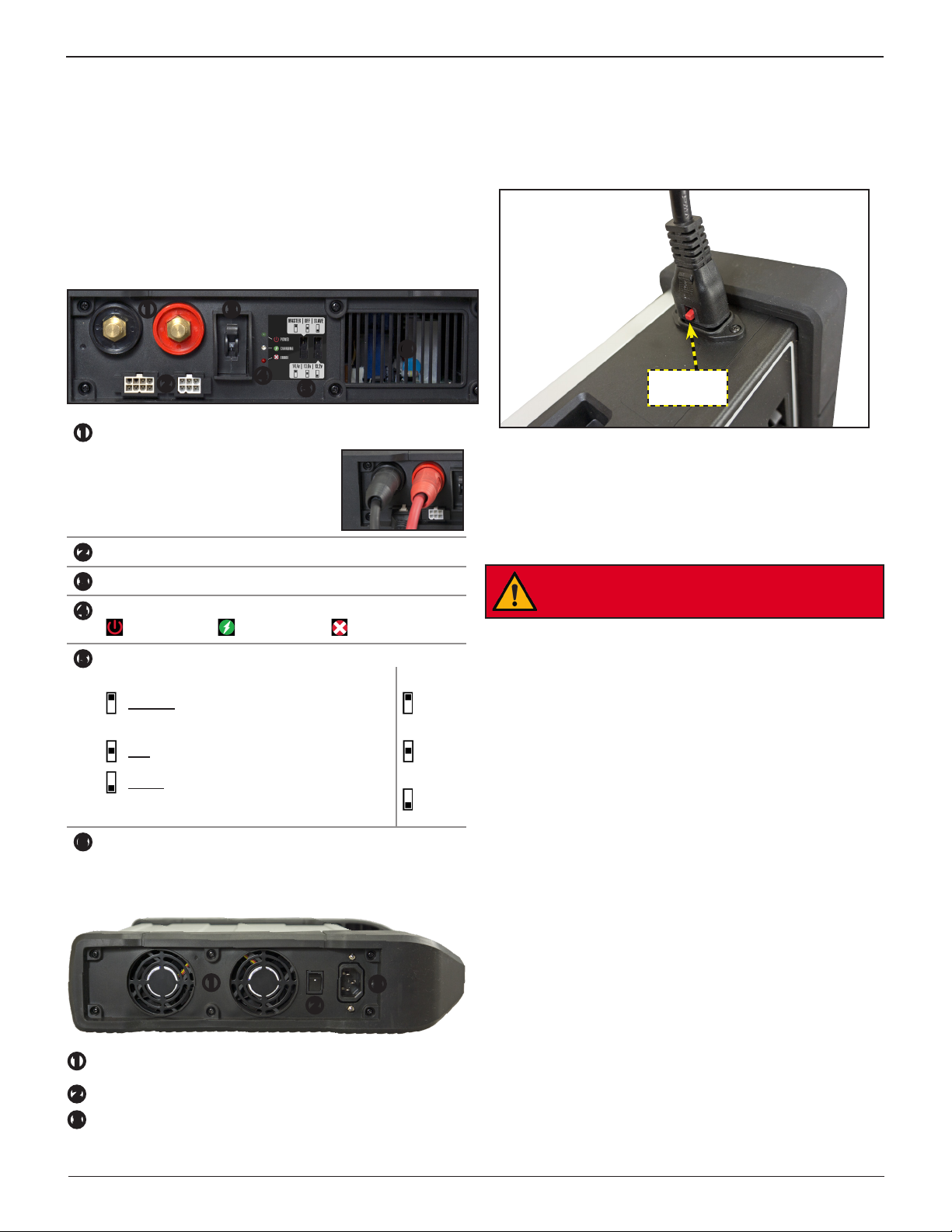

Back View





Charging Cable Connections
Insert and rotate the charge cable
quick connectors clockwise 180° to
lock them onto the Quick Connector
Locking Post.
CAN Bus Cable Connections
Circuit Breaker
Indicator LEDs
Power Charging Error
Selectable Voltage Switches
Status
Master: Unit operates standalone and can
control other slave units
Off: Not used
Slave: Unit is controlled by another device via
CAN port. Output matches controlling unit
Voltage
14.4v
13.6v
13.2v
Cooling Vent
Side View



Cooling Fans
On/Off Switch
C14 Power Cable Plug-in
Locking Power Cord
Always use the red tabs on each side of the power cord connector to
release/remove it from the charger’s power socket.
Pull Up To
Release
1. Insert the control connector.
2. The connection process is complete when all three cables
are connected to the charger.
Connecting To A Battery
IMPORTANT: When charging an AGM battery, do
NOT use the 14.4v setting.
1. Identify battery terminal polarity (Negative: NEG, N /Posi-
tive: POS, P, or + ).
2. With the MSP unplugged, connect the positive clamp
(red) to the positive battery terminal and the negative
clamp (black) to the negative battery terminal.
3. Plug the power cord into a grounded 120-240 Vac outlet
and turn ON the power swtich.
Disconnecting From A Battery
1. Turn OFF the MSP power switch.
2. Unplug the MSP from the 120-240 Vac outlet.
3. Disconnect the positive (red) clamp from the positive bat-
tery terminal and the negative clamp (black) from the nega-
tive battery terminal.
Connections & Controls

MSP-070C Battery Maintainer
7
Connections & Controls
Product Specications
Operating Parameters
Input Voltage 110V – 240V~, 50 – 60 Hz, 12A max.
Output 1 14.4VDC max., 70A max.
Charge Cables
•2m (Standard)
•3m
•5m
Power Cord
Accepts locking C13 connector for region-specic power
cables:
•United States: EMA 5-15 termination, rated at 15A/125V
UL CSA
Applications
•Automotive •Group 31
•Heavy-Duty •Commercial 4D/8D
•Power Sports
Battery Chemistries
•Lead acid •EFB
•AGM
CCA Range
•100 – 2000 CCA
Dimensions
(without handle or base)
•Height: 4.80 in (12.19 cm)
•Width: 13.1 in (33.27 cm)
•Length: 12.0 in (30.48 cm)
•Weight:18 lbs
Safety
•UL1236, IEC 60335
EMC
•EN61000-6-4 (Emissions) CISPR 11 Class A
•EN61000-6-2 (Immunity)
•EN61000-3-2 (Harmonics)
•EN61000-3-3 (Flicker)
•CEC, California Energy Commission
Protection Features
•Reverse polarity •Battery voltage too low
(<5.5V)
•Non-12V battery
connection
•Clamp high temperature
detection
•Clamp connection
Error Codes
Error codes are transmitted via the red LED on the side of the
charger. The number of ashes correspond with the error code
number (Example: Two [2] ashes = Error Code 02)
Code Description Action
01 Reverse polarity Correct clamp connections to
battery
(Red to + / Black to –)
02 Connection problem Correct connections & restart
charge sequence
03 Non 12V battery
connected
Connect to 12V
04 Battery voltage too
low (<5.5V)
Battery deeply discharged or may
be damaged. consider replacing
battery
08 Internal current failure Switch unit off then on again. If fan
is not running call for service.
09 Internal voltage failure Switch unit off then on again. If fan
is not running call for service.
10 Internal temperature
too high
Switch unit off then on again. If fan
is not running call for service.
11 Cable temperature
sensor open
Replace charge cable:
SO, (Tsensor = open)
12 Cable temperature
sensor short
Replace charge cable:
SS, (Tsensor = short)
13 Charge cable (Vab) Replace clamp or charge cable
14 Sensing cable (Vcd) Replace clamp or charge cable
15 Battery temperature
exceeds thermal limit
Battery replacement recommended,
unsafe to charge
16 Battery temperature
below thermal limit
Frozen battery, may not recover
20 Unit internal error Call for service
Shop for other automotive tools on our website.
