Miele professional PT 7138 Plus Specification sheet

Operating and Installation manual
Vented Dryer
PT 7138 Plus
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 10 037 970
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

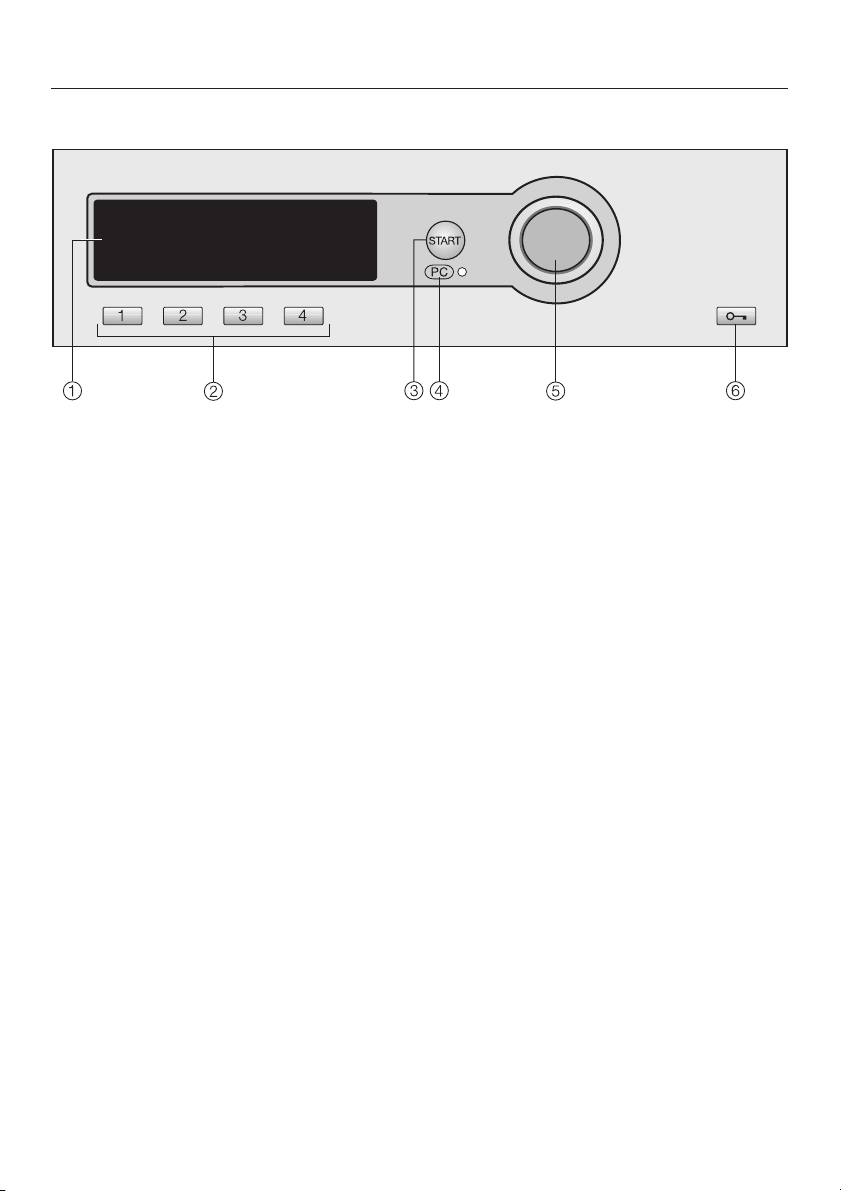

Control panel ......................................................7
Display function .................................................8
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Fabric care labels .................................................11
Drying tips .......................................................11
Coin mechanism ..................................................15
Canceling a program...............................................15
Adding/removing laundry during a drying program .......................15
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Selecting/Changing a Favorite .....................................20
Low temp. .....................................................22
Saving a Favorite ...............................................22
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cleaning the lint filter ...............................................23
Cleaning the exterior and the control panel .............................25
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Optional accessories ...............................................32
INSTALLATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Electrical connection ...............................................40
Installation of exhaust venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
General notes ....................................................41
How to calculate the effective duct length ..............................42
Determining the position of the exhaust connection .......................46
Exhaust connection with a flexible exhaust hose or rigid pipe ...............47
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Contents
2

Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Settings J. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Opening the menu Settings .......................................54
Language J......................................................55
Settings - Supervisor level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Contents
3

,WARNING - To reduce the risk
of fire, electric shock, or injury to
persons when using your appliance,
follow basic precautions, including
the following:
~It is essential to read all instructions
before using this appliance.
This tumble dryer is only intended
for industrial or institutional use and
should not be used by anyone who
is not specially trained to operate it.
This also applies to industrial
applications performed in residential
environments.
This machine conforms to current
safety requirements. However,
inappropriate installation and use
can lead to personal injury and
property damage. Read the
operating and installation
instructions carefully before using
this machine.
All personnel working with this
machine must be fully trained in all
aspects of its use and safety.
Keep these operating instructions in
a safe place and pass them on to
any future user.
~The tumble dryer is only intended for
drying fabrics washed in a water
solution. Check fabric care labels to
verify materials can be machine dried.
~Before maintenance, or cleaning
and care disconnect the dryer from the
electrical supply pulling the plug or
tripping the circuit breaker.
~Compliant use of the dryer has been
investigated with respect to industrial
use only (UL1240).
~Make sure that no unattended
children can access the machine.
There is a potential danger that children
can be trapped in the drum. This may
cause major injuries or the death of the
child.
~Do not reach into the dryer if the
drum is moving.
~Do not install or store this appliance
where it will be exposed to the weather.
~Do not tamper with the controls.
~Do not repair or replace any part of
the appliance or attempt any servicing
unless specifically recommended in
these operating instructions. Repairs to
electrical appliances should only be
performed by qualified personnel.
Incorrectly repaired machines may
pose a considerable risk to the user.
~Clean the lint filter before or after
each load.
~Keep the area around the exhaust
opening (toe-kick) and adjacent
surrounding areas free of lint, dust and
dirt.
~The interior of the machine and
exhaust duct should be cleaned
periodically by qualified personnel.
IMPORTANT SAFETY INSTRUCTIONS
4

~Only use genuine Miele accessories
and replacement parts. If other parts
are used, guarantee, performance and
product liability claims may become
void.
~To prevent the risk of fire, the
following articles must not be dried in
this tumble dryer:
–items which have not been washed.
–items, such as workwear, which have
not been thoroughly cleaned and are
still soiled with grease, oil or other
substances (such as cosmetics,
lotions, etc.).
If items have not been thoroughly
cleaned there is a danger that they
could ignite when heated, even after
they have been removed from the
dryer at the end of the program.
– items that have been previously
cleaned, washed, soaked or spotted
with gasoline, dry-cleaning solvents,
wax, wax remover, chemicals for
buffing (e.g. mops and floor cloths)
or other flammable or explosive
substances. They may give off
vapors that could ignite or explode.
–items which have been spattered
with hair spray, nail polish remover or
similar substances.
When washing heavily soiled items
ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the
items several times.
~To prevent the risk of fire, the
following articles or items must not be
dried in this tumble dryer:
–fabrics which contain a large amount
of rubber, foam rubber or rubber-like
materials. For example, products
made from latex, shower caps,
waterproof textiles, rubberized
articles, and items of clothing and
pillows with foam rubber filling, or
similarly textured rubber-like
materials.
–which contain padding or fillings
(e.g. pillows, jackets). If these were
damaged the filling could get out
with the risk of igniting in the dryer.
~In many programs, the heating
phase is followed by a cooling down
phase to ensure that the items are not
too hot to handle when you remove
them (this also avoids the danger of the
laundry self-igniting). The program is
not finished until the cooling down
phase is complete.
Always wait until the end of the
program before removing the laundry.
~Warning: Do not switch the tumble
dryer off before the end of the drying
program. If this was done and the
laundry was then removed immediately
it could give off a great amount of heat.
~Do not use fabric softeners or
products to eliminate static unless
recommended by the manufacturer of
the fabric softener or product.
IMPORTANT SAFETY INSTRUCTIONS
5
