To avoid the risk of accidents or damage to the machine it is en - AU, NZ
essential to read these instructions before installing,
commissioning and using it for the first time. M.-Nr. 09 179 270

Gas-heated appliances
Safety precautions to take if you smell gas
^Turn off the gas emergency control valve immediately.
This is usually located near the gas meter.
^Eliminate all sources of ignition in a safe manner.
Do not smoke, light cigarette lighters or matches.
^Do not operate electrical lights or switches, i.e. do not switch them "On" or "Off".
^Open all doors and windows to ventilate the area.
^If the smell of gas persists, evacuate the building.

Warning and Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Caring for the environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Description of the machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Control elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
How to wash correctly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Sort the laundry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Maximum loads for the standard programmes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Add cleaning agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Detergent dispensing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Select a programme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Open the door at the end of the programme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Card operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Card access operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Language selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Start date and time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Programme stop. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Programme cancellation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Changing the programme order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Optional modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Liquid dispensers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Peak load cut-out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Communication module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Operating data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Weighing system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
The door will not open . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Power cut during a wash programme - Emergency door release . . . . . . . . . . . . . . . . . . . . . . . 29
Error messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Explanation of symbols on the data plate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Notes for the installer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Transit fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Plumbing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Water inlet / drainage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Dispenser system connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Connecting the dispenser pumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Steam connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Gas connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Abbreviated operating instructions PW 6241, PW 6321 . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Contents
M.-Nr. 09 179 270 3

Explanation of the Warning and
Safety symbols on the machine
It is essential to read these
operating instructions.
Please refer to specific
instructions, e.g. Installation
instructions
Caution, hot surfaces.
Caution, voltage up to 1000 volts.
Earthing
To avoid the risk of accidents and
damage to the machine read the
operating instructions carefully before
using it for the first time. They contain
important information about the
installation, safety, use and maintenance
of the machine. Keep these operating
instructions in a safe place and ensure
that new users are familiar with the
content. Pass them on to any future owner
of the machine.
Correct application
This machine is not designed for
washing items which have been treated
with dangerous or flammable substances.
Only use the machine to wash items
which are specified by the manufacturer
to be machine-washable on the wash-care
label.
Any other applications may be dangerous.
The manufacturer is not liable for damage
resulting from improper use or operation.
Chemical dry cleaning agents must not
be used in this machine. Most dry
cleaning agents, e.g. benzine, pose a fire
and explosion hazard.
Petrol, paraffin, or any easily flammable
liquid must not be stored or used near
the machine. Do not use the machine lid as
a storage shelf.
Fire and explosion hazard.
Do not store any chemicals on the
machine lid (liquid detergent, fabric
conditioners etc). They could discolour the
lid and also damage the surface finish. If
any chemicals should come in contact with
the surface, wipe them away immediately
with clean water. Then dry with a soft cloth.
When used in a commercial environment
ensure that all operators are trained to
use the machine correctly.
If the machine is used in a publically
accessible room, please ensure that
operators are able to use it safely.
This machine is not intended for outdoor
use.
Technical and electrical safety
The electrical safety of this machine can
only be guaranteed if connected to a
correctly installed earthing system on site. It
is most important that this basic safety
requirement is present and tested regularly,
and where there is any doubt, the on-site
electrical wiring should be inspected by a
qualified electrician. The manufacturer
cannot be held liable for the consequences
of an inadequate earthing system (e.g.
electric shock).
Do not damage, remove or bypass the
safety features, fixtures and control
elements of this machine.
Do not use a machine with damaged
controls or cables. These must be
repaired before it is used again.
Any removable outer panels must be
back in place, and all moving or
electrical parts shielded before the machine
is switched on.
Warning and Safety instructions
4 M.-Nr. 09 179 270

Connection should be made via a
suitable isolator which complies with
local and national safety regulations and
which is easily accessible for disconnecting
the machine from the electricity supply.
Provision must be made on site to switch off
all poles.
The machine is only completely isolated
from the electricity supply either when it
is switched off at the isolator switch or the
mains fuse has been withdrawn.
Repairs to electrical, gas or steam
operated machines may only be carried
out by a suitably qualified person in
accordance with national and local safety
regulations Repairs and other work by
unqualified persons could be dangerous.
The manufacturer cannot be held liable for
unauthorised work.
Do not force the drum door open. The
door handle is fitted with a safety device
to ensure that the door lock functions
correctly.
Faulty components must only be
replaced by genuine Miele original spare
parts. Only when these parts are fitted can
the safety standards of the machine be
guaranteed.
The best materials are used in the
manufacture of this machine, and every
care is taken to check all parts. However,
with time, deterioration of parts can occur,
especially with such components as hoses,
giving rise to leaks. Check the inlet hoses
regularly for signs of wear and tear. Change
in good time to avoid the risk of leaks and
subsequent damage.
Local regulations regarding regular
inspection and maintenance of this
machine must be observed. A log book
should be kept with the machine.
Gas-heated washer-extractors
Important After installation, maintenance,
conversion, repairs and before using for the
first time it is essential that a test for possible
leakages is carried out. All components
which carry gas must be checked, including
the gas valve and burner jets.
Particular attention must be paid to the test
nipple on the gas valve.
Testing must be carried out with the burner
switched on and switched off.
Using the washer-extractor
This machine is not intended for use by
people reduced physical, sensory or
mental capabilities, or lack of experience
and knowledge, unless they are supervised
whilst using it or have been shown how to
use it correctly by a person responsible for
their safety.
This machine is not a toy! To avoid the
risk of injury never allow children to play
on or near the machine, or to operate it
themselves.
Remember that the porthole glass will be
hot when washing at very high
temperatures. Do not let children touch it.
Always close the door after use. This
way you will avoid the danger of:
–children climbing onto or into the
washer-extractor or hiding things in it.
–pets or other small animals climbing into it.
Always make sure that the drum is
stationary before reaching into the
machine to remove laundry. Reaching into a
moving drum is extremely dangerous.
Take care in the area of the hinges of the
drum door. Danger of injury.
The drum door must be able to be
opened to its fullest extent. This area
must not be restricted by doors or structural
features.
The water used for washing is a suds
solution and is not drinking water.
The suds solution must be drained away via
an appropriate drainage system.
Warning and Safety instructions
M.-Nr. 09 179 270 5

The washer-extractor may only be
operated without supervision if there is a
floor drain (gully) in the immediate vacinity.
If the washer-extractor is switched off
and the drum door is closed, you need
to switch the machine on before you can
open the door.
If water comes out of the suds container
when the door is opened, close the door and
switch the washer-extractor on. Drain the
water away before you try and open the
door.
It is the operator's responsiblity to ensure
that the standard of disinfection in
thermal as well as chemo thermal
procedures is maintained (in accordance
with § 18 IFSG and national health and
safety regulations) by carrying out suitable
validation tests. These procedures should
be checked on a regular basis, either
thermo-electrically using loggers, or
bacteriologically with bio indicators. The
operator must pay particular attention to
maintaining the correct parameters in the
procedure, including temperature and with
chemo thermal programmes, the chemical
concentration used. Disinfection
programmes must not be interrupted, as this
can have a limiting effect on the disinfection
result.
It is particularly important to observe
manufacturer's instructions when using a
combination of cleaning agents and special
application products. Only use the product
for the application described by the
manufacturer, to avoid any material damage
or the occurrence of strong chemical
reactions.
Confirm with the detergent manufacturer that
their product can be used in combination
with another type of product.
Only use dyes, colour run and dye
removers specified as being suitable for
use in washing machines. Always observe
the manufacturer's instructions carefully.
Laundry that was soiled with biological
oils or fat should be washed using a
suitable detergent and /or wash programme.
It must also be inspected after washing. If
oils or fat are not sufficiently removed they
could cause the laundry to self ignite during
the drying process. This type of soiling
should be removed using specialist
detergents and/or programmes.
Do not use a pressure washer or hose to
clean the machine.
Further notes
Cleaning and disinfecting agents often
contain chlorine-based substances. Do
not let such agents dry out on stainless steel
surfaces, as the chlorine can have a
corrosive effect. Use chlorine-free agents for
washing and disinfecting and also for
cleaning stainless steel surfaces to protect
them from corrosion.
If in doubt, confirm with the manufacturer
that their product is suitable. If any agent
containing chlorine comes into contact with
the stainless steel surfaces, wipe it away
immediately with clean water. Then dry with
a soft cloth.
The manufacturer cannot be held liable
for the effect of a chemical cleaning
agent on laundry or the machine, even when
the use of such agents is recommended.
Please note that changes to the product
which have not been made known by the
manufacturer can affect the quality of the
wash result.
Using accessories
Accessory parts may only be fitted when
expressly approved by Miele. Using
spare parts or accessories from other
manufacturers will invalidate the warranty,
and Miele cannot accept liability.
Any additional components used, e.g.
suction devices for liquid agents,
electronic water meters or dispenser
monitors, must conform to Safety Class II.
If connected to an external PC, this must
conform to EN 60950-1:2001 (IEC
60950-1:2001).
Warning and Safety instructions
6 M.-Nr. 09 179 270

Chlorine and component damage
Notes on using chlorine bleach and
perchlorethylene
Frequent use of chlorine increases the
risk of component damage.
The use of agents containing chlorine, such
as sodium hypochlorite and chlorine bleach
in powder form, can damage the protective
upper surface of stainless steel and cause
corrosion to components. Factors affecting
this are chlorine concentration levels,
contact time and temperature. It is therefore
advisable to avoid the use of such agents.
Oxygen based bleaching agents should be
used instead.
If, however, chlorine based bleaching
agents have to be used for particular types
of soiling, then anti-chlorine measures must
also be carried out. If this is not done
irreparable damage can occur to
components in the machine and to laundry.
Anti-chlorine treatment
Anti-chlorine treatment has to be carried out
immediately after chlorine bleach has been
used. The use of hydrogen peroxide or an
oxygen based cleaning or bleaching agent
is recommended and the laundry should not
be drained in between.
With thiosulfate, especially when used with
hard water, gypsum can form, which can
lead to incrustations on laundry or deposits
in the machine. The use of hydrogen
peroxide is preferable as it aids the chorline
neutralising process.
The exact quantity of additives and the
treatment temperatures required must be set
and tested on site in accordance with the
dosage recommendations of the detergent
and additive manufacturers. The laundry
must also be tested to check whether it
contains any active chlorine residues.
Disposing of your old machine
Before disposing of an old machine, first
make the door lock unusable. This way
you will prevent children from accidentally
locking themselves in and endangering their
lives.
All personnel working with this machine
must be fully trained in all aspects of its
use and safety.
Keep these instructions in a safe and
accessible place.
Warning and Safety instructions
M.-Nr. 09 179 270 7

Disposing of the packing material
The packaging is designed to protect the
machine from damage during transportation.
The packaging materials used are selected
from materials which are environmentally
friendly for disposal and should be recycled.
Recycling the packaging reduces the use of
raw materials in the manufacturing process
and also reduces the amount of waste in
landfill sites.
,Packaging materials such as plastic
film and bags must be kept out of the
reach of babies and children. Danger of
suffocation.
Disposing of your old machine
Electrical and electronic machines often
contain valuable materials. They also contain
materials which, if handled or disposed of
incorrectly could be potentially hazardous to
human health and to the environment. They
are, however, essential for the correct
functioning of your machine. Please do not
dispose of it with your general waste.
Please dispose of it at your local community
waste collection/recycling centre.
Please contact your dealer, your local waste
collection centre or scrap merchant about
recycling schemes.
Please store it out of the reach of children
whilst awaiting disposal.
Tips on saving energy
To save energy and water, try to load the
maximum for the programme selected.
Underloading is uneconomical. Overloading
gives a poorer quality of wash result and
may cause unnecessary creasing.
Make sure that your laundry is thoroughly
spun before drying. This saves time and
energy.
Carrying out the final rinse with hot water
helps to reduce the residual moisture level,
and the residual heat in the laundry will help
keep processing time down in dryer and for
ironing, thus saving energy.
Follow detergent manufacturer's advice
regarding the right amount of detergent to
use.
This will depend on the size of the load, the
water hardness level and the amount of
soiling in the laundry.
Chose the correct programme (with
pre-wash or intensive options selected) and
the correct temperature.
Caring for the environment
8 M.-Nr. 09 179 270

aEmergency stop switch
Press the red button to switch the machine
off.
bControl panel
cDetergent dispenser drawer
Pull the handle to open the compartment.
dDrum door
Pull the door handle to open the drum door.
Do not use force to open it.
eDoor handle
The door handle is fitted with a safety device
to ensure that the door lock functions
correctly (see page 29).
fService panel
gPlinth
Description of the machine
M.-Nr. 09 179 270 9
f
a
b
d
c
e
g

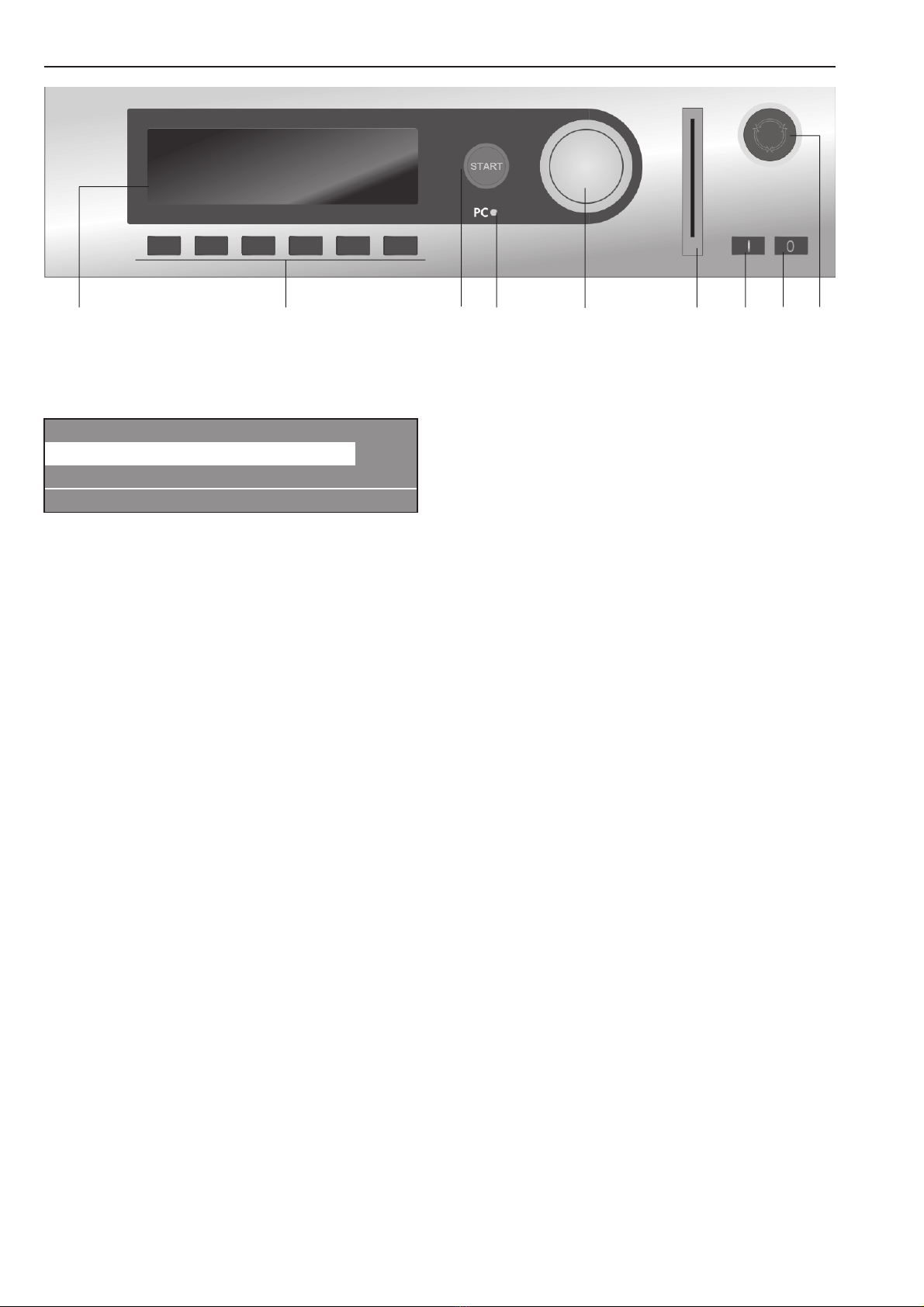

Control elements
aDisplay
1 Cottons 90 °C
2 Cottons universal 60 °C
3 Cottons intensive 60 °C
iFC A
After switching on the "Welcome" display will
appear for a short time followed by the
programme list. The most recently used
programme is highlighted.
bFunction buttons
The six buttons underneath the display are
the function buttons. These buttons have
specific functions depending on the status
of the machine.
These functions will be listed in the display
above the buttons and will be highlighted
once selected.
If the machine is reprogrammed to "Direct
button allocation" the first 6 programmes
listed in the display can be selected directly
via these buttons.
cSTART button
The lightring will flash when a selected
programme can be started. Pressing the
Start button will start the programme. After a
programme has started, pressing this button
will show the display as it was before the
start of the programme.
dPC / Optical interface
This interface is used for transferring data to
the control unit from a PC and vice versa.
eRotary selector
Turning the selector brings up options and
menus in the display.
Pressing the selector confirms your
selection.
fChip card reader
When a chip card is inserted, the
programmes on the chip card can be used.
Insert the card in the direction of the arrow
(on the card).
gI Mains on switch
Switches the machine on.
h0 Mains off switch
Switches the machine off.
iEmergency stop switch
Only for use in an emergency.
Press the red button to switch the machine
off. After the problem has been resolved,
turn the red dial clockwise to release it. Then
press the START button to continue the
interrupted programme.
Description of the machine
10 M.-Nr. 09 179 270
a b c d e f g h i

Function buttons
Pressing the button activates the function
and pressing the button again deactivates it.
fStop/End
The function button on the right-hand side is
used to stop a programme after it has
started.
Pressing it again finishes the programme.
+iBlock plus
The relevant programme block (e.g.
Pre-wash) is added to the programme.
mStarch stop
Press this button if you wish to laundry to be
starched.
kWithout spin
Press this button if you do not want the
laundry to be spun after being rinsed.
FC Settings
Press this button to switch to another
language temporarily.
mStart time
Press this button before the start of a
programme to display the message that a
start time can be selected.
KInformation
Press this button to call up programme
information in the display.
qWater drainage
iManual control
See the programming instruction booklet.
Change order
üThe order of the programme in progress
can be changed or programme blocks can
be repeated.
ABack
Takes you back to the previous display.
e/-Indicates more information on the next
/ previous line
SSave
See the programming instruction booklet.
$Programme locked
Once a locked programme has been
started, the End button can only be used to
stop and cancel it during the first minute.
)Programme unlocked
ßDispensing
äDispensing switched off
\Operating data
> I < 0- Setting (calibration)
If the display does not show 00.0 when the
drum is empty press this button to reset it.
DData transfer
Chip card operation
The chip card is supplied without any
programmes.
See the programming instruction booklet for
information on transferring data from the
control unit to the chip card and vice versa.
A chip card is available to order as an
optional extra. It can store a maximum of 30
programmes, each with 6 blocks. The back
of the chip card can be labelled.
Description of the machine
M.-Nr. 09 179 270 11

The machine must be commissioned by a
Miele service technician or a technician
authorised by the manufacturer before it is
used for the first time.
^Turn on the on-site taps for water and
depending on the type of heating, gas or
steam.
^Switch on the on-site mains switch.
^Press the "On" Iswitch to switch the
machine on.
M
PROFESSIONAL
PW 6321
Welcome
A "Welcome" message will appear in the
display.
1 Cottons 90 °C
2 Cottons universal 60 °C
3 Cottons intensive 60 °C
iäFC A
This is followed by the programme list (with
the most recently used programme
highlighted).
Turn the selector dial to highlight the
programme you want. The programme can
be then started by simply pressing the
START button.

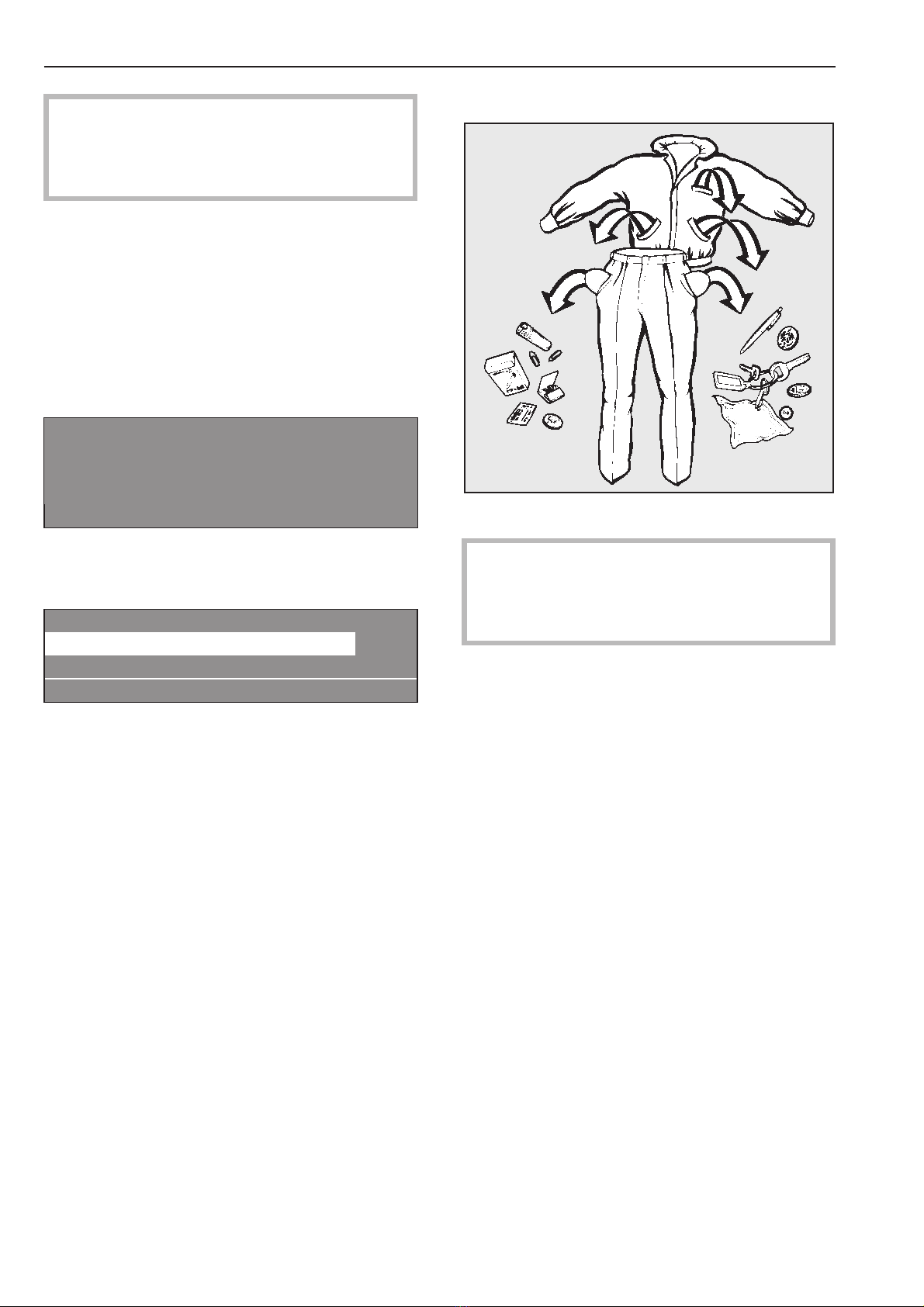

Sort the laundry
^Empty any pockets.
Foreign objects (e.g. nails, coins, paper
clips, etc.) can cause damage to
garments and components in the
machine.
How to wash correctly
12 M.-Nr. 09 179 270

Maximum loads for the standard
programmes
(Dry weight of laundry)
PW 6241 PW 6321
1Cottons 90°C
2Cottons universal 60°C
3Cottons intensive 60°C
4Cottons universal 30°C
5Cottons intensive 30°C
6Cottons Eco short
max. 24 kg max. 32 kg
7Minimum iron 60°C
8Minimum iron intensive 60°C
9Minimum iron 30°C
10 Minimum iron intensive 30°C
max. 12 kg max. 16 kg
11 Delicates
12 Woollens 30°C
13 Handwashable woollens 30°C
max. 9.6 kg max. 12.8 kg
The maximum load for other programmes is
given in the relevant programme overview.
^Load the laundry
^Close the drum door with the door handle.
Do not slam it shut.
Make sure that no garments are caught
between the drum door and the drum
opening.

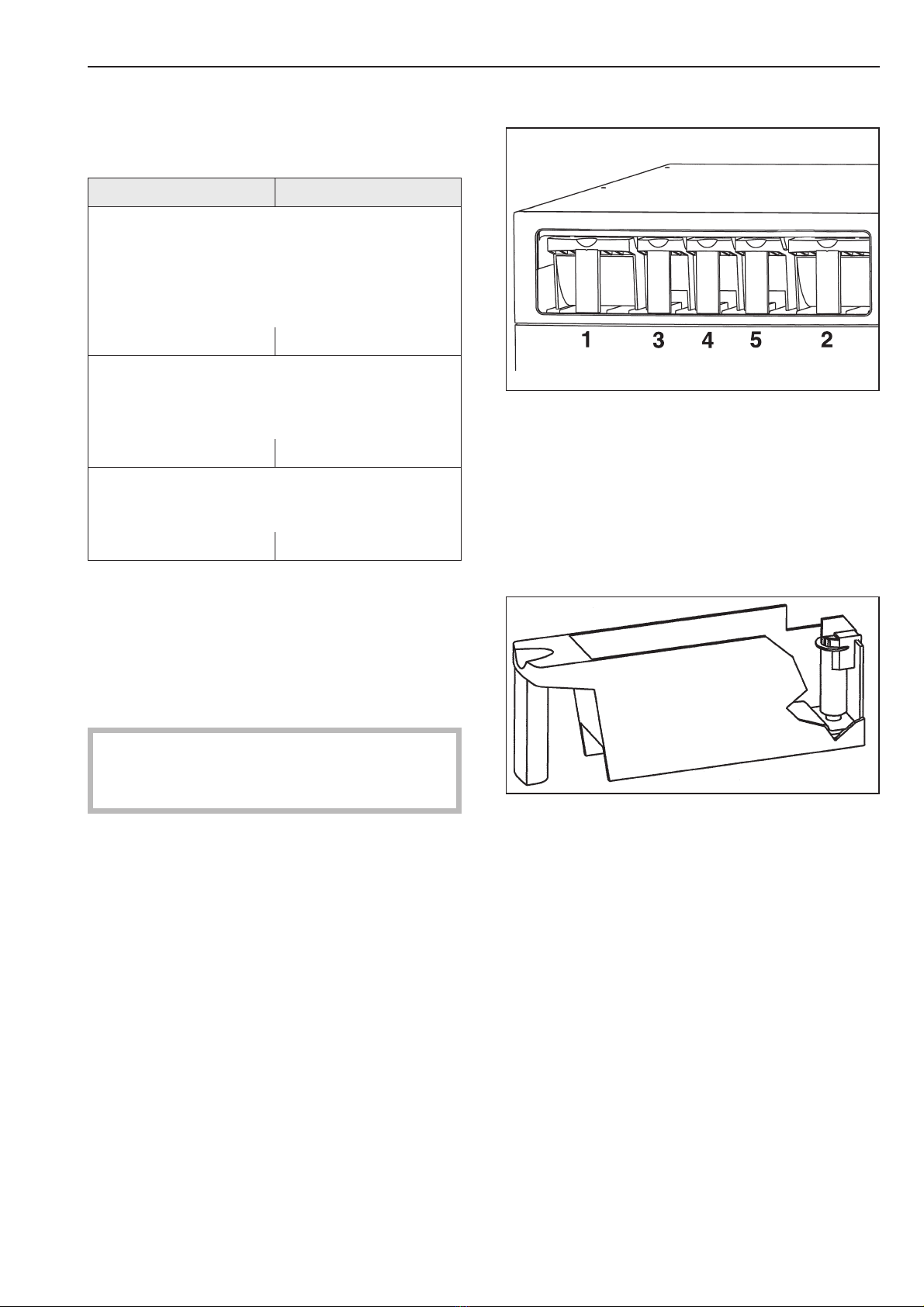

Add cleaning agent
^For the standard programmes add
detergent for the Main wash into dispenser
compartment 2- and as required,
detergent for a Pre-wash into dispenser
compartment 1, fabric conditioner into
compartment 3, bleach into compartment
4, and liquid detergent into compartment
5.
^Do not fill fabric conditioner or bleaching
agent higher than the level marker in the
relevant dispenser compartment.
Otherwise they can run through the siphon
into the suds container.
How to wash correctly
M.-Nr. 09 179 270 13
?

Bleaching agents
Only use bleaching agents on textiles with
the xsymbol on the wash care label.
Liquid bleaching agents may only be placed
in the compartment designated for them.
This is to ensure that the agent is added
automatically at the second rinse. Liquid
bleaching agents should only be used with
coloureds if the textile manufacturer's wash
care label states that the textile is colour fast
and suitable for bleaching.
A 3rd rinse cycle must be programmed in
if bleach is to be used (see Profitronic
programming manual).
,Frequent use of chlorine increases the
risk of component damage.
Only use dyes, colour run, dye removers
and descaling agents which are specified
as being suitable for use in washing
machines. Always observe the
manufacturer's instructions carefully.
Detergent dispensing
It is important to avoid adding too much
detergent as this causes excessive foam.
–Do not use detergents which create a lot
of foam.
–Follow the detergent manufacturer's
instructions for use.
The right amount to dispense will depend on
the following:
–The amount of laundry
–The water hardness level
–The soiling level of the laundry
The amount to dispense
Take the water hardness into account and
follow the detergent manufacturer's
instructions on the packaging.
Water hardness levels
Hardness
range Water properties Hardness level in
mmol/l
German
scale
°d
I soft 0 - 1.3 0 - 7
II medium 1.3 - 2.5 7 - 14
III hard 2.5 - 3.8 14 - 21
IV very hard above 3.8 above 21
Check with your local water supplier if you
do not know the hardness level in your area.
Gas heated machines
On gas heated machines the suds solution
is pumped around the heater elements. This
additional agitation of the suds solution
creates foam. It is therefore important to use
a low-foaming detergent and not to use too
much detergent.
If over-foaming occurs use a reduced foam
detergent or call in a detergent application
specialist.
How to wash correctly
14 M.-Nr. 09 179 270

Select a programme
^Turn the rotary dial to select a programme
(e.g. Programme 1Cottons universal).
For this example, the following will appear in
the display:
18 Separate drain
1 Cottons 90 °C
2 Cottons universal 60 °C
iäFC A
Select the Pre-wash, Starch stop or
Without spin additional option
^Confirm the selection of the programme by
pressing the rotary selector.
For this example, the following will appear in
the display:
1 Cottons 24.0 / 24.0 kg
90 °C Main wash
Rinses 1100 rpm
+im k mA
^If wished you can now select the Pre-wash
programme block, by pressing the +i
function button.
When the +ifunction button is pressed,
the following will appear in the display:
1 Cottons 24.0 / 24.0 kg
40 °C Pre-wash
90 °C Main wash 1100 rpm
+imk mA
"+i" is highlighted.
Press the function button again to deselect
the function.
Press the mStarch stop button if the
laundry is to be starched.
Press the kWithout spin button if you do
not want the laundry to be spun after being
rinsed.
If you do not wish to make any further
alterations to the programme:
^Press the START button. The programme
will start.
How to wash correctly
M.-Nr. 09 179 270 15

If you wish to make alterations before the
start of the programme, e.g. to the load
size, temperature or spin speed:
Load weight
You can enter the weight of the load
manually before the start of the programme.
1 Cottons 10.0 24.0 kg
40 °C Pre-wash
90 °C Main wash e
+im k mA
^Turn the rotary dial until "Load" (10.0 /
24.00 kg) is highlighted. Press the dial to
confirm your selection. Turn the dial to
alter the weight and confirm your selection
by pressing it.
Temperature in 1 °C increments from cold,
15 to max. 95 °C .
^Turn the rotary dial to select the
"Temperature" field (40°C for pre-wash)
and press it to confirm your selection.
1 Cottons 10.0 / 24.0 kg
40 °C Pre-wash
90 °C Main wash e
+im k mA
^Turn the rotary dial to alter the temperature
value and then press it to confirm your
selection.
Spin speed in 25 rpm increments from 0,
300 to max. 1100 (PW 6241) or 1000 rpm
(PW 6321).
^Turn the rotary dial to select the "Spin
speed" field (1100 rpm for the final spin)
and press it to confirm your selection.
1 Cottons 10.0 / 24.0 kg
90 °C Main wash
Rinses 1100 rpm
+im k mA
^Turn the rotary dial to alter the spin speed
and then press it to confirm your selection.
Maximum spin speeds
PW 6241 PW 6321
1100 rpm 1000 rpm
^Press the START button. The programme
will start.
How to wash correctly
16 M.-Nr. 09 179 270

Once a programme has started the
programme sequence will appear in the
display.
1 Cottons
40 °C Pre-wash 20 °C
Main wash Ready at 12:35
+im k mKf
In the 2nd line of the display, pre-wash in
this example, the actual suds temperature
will also be shown.
1 Cottons
90 °C Main wash 60 °C
Rinse 1 Cold Ready at 12:35
+im k mKf
Once the pre-wash programme block has
finished the programme block for the main
wash will appear in the 2nd line of the
display together with the actual suds
temperature. Under that the following
programme block will be listed. Rinse 1 in
this example.
The time that the programme will finish is
shown on the right hand side of the display.
1 Cottons
90 °C Main wash 60 °C
Rinse 1 Cold Ready at 12:35
+im k mKf
Pressing the K"Information" button will call
up further information about the programme
e.g.:
1 Cottons
Start date and time: 10.7.2003
Start time: 9:47 e
A
Time after start: 0h 23 min
Time left: 0h 11min
Time after start: 0h 23 min e
Time left: 0h 11min
Repeat: No
Area 3: rinse e
Block 2: Rinse 2
Block step: Wash time 1
Actual level: 22 mm e
Rqrd. level: 60 mm
Actual temperature: 35 °C
Rqrd. temperature: 60 °C e
1 Cottons
Spin speed: 40 rpm
Rhythm: 12 / 3 -
A
^Press the A"Back" button to return to the
programme sequence display.
Open the door at the end of the
programme
The following message will appear in the
display at the end of the programme as long
as there is no water in the machine and the
drum is stationary:
1 Cottons
Programme finished
The door can be opened.
mFC A
At the same time an acoustic buzzer will
sound for 5 seconds to let you know that the
programme has finished.
^Pull the door handle to open the drum
door.
Important: If the door will not open press
against it and then pull on the handle again.
Do not use force to open it.
^Unload the drum.
How to wash correctly
M.-Nr. 09 179 270 17

If the programme was interrupted with water
in the drum, or if the programme was
stopped, for example, during the spin the
following message will appear in the display:
1 Cottons
Programme finished. Water in the drum.
mFC A
or
1 Cottons
Programme finished. Drum still rotating.
mFC A
,The machine door is locked. Never
use force to try and open the door.
^Press the q"Water drainage" function
button or select the Separate spin
programme and press the START button.
Open the door at the end of the
programme.
If no more laundry is to be processed:
^Leave the drum door open to air the
machine.
^Switch the machine off by pressing the
"Off" 0button and then switch off at the
on-site mains switch.
^Turn off all taps for water, gas and steam
as applicable.
How to wash correctly
18 M.-Nr. 09 179 270

Cards on which a programme has been
saved can only be used on the machine
type for which they have been written.
Unwritten cards can be used universally.
^Press the "On" Ibutton to switch the
machine on.
The Welcome screen will appear.
^Insert the card in the reader.
The programmes listed on the card will
appear in the display.
Card operation
17 Masks 45 °C
18 Minimum iron 60 °C
ißFC A
^Use the rotary dial to highlight the
programme you want to use. Press the
rotary dial to select the programme you
have highlighted.
^Press the START button. The programme
will start.
After pressing the START button you can
remove the card from the reader. The
programme is deleted from the machine's
memory once it has finished.
,Never insert any other type of card or
object into the card reader!
If the card is inserted the wrong way round
the following message will appear in the
display:
§Card fault
Card incorrectly inserted in card reader.
A
^Insert the card the right way round in the
card reader.
If the card is not the right one for the
machine it is being used in the following
message will appear in the display:
Card contents
Programmes on the card are
only suitable for machine type PW 6161
A
^Insert the correct card for the machine in
the card reader.
Card access operation
Programmes requiring special procedures
are written on to a card which is then used to
run the programme.
"Card access" has to be activated via the
supervisor level in the machine.
The machine will then only run programmes
by using a card (on which one programme
has been saved). Programmes in the
machine's control unit cannot then be
accessed.
Card operation
M.-Nr. 09 179 270 19

Language selection
The language shown in the display can be
changed briefly before starting a
programme if you wish. To do so use the
button underneath the flag symbol.
The language will revert back to the default
setting 5 minutes after the end of a
programme with the door open.
1 Cottons 90 °C
2 Cottons universal 60 °C
3 Cottons intensive 60 °C
iFC A
If you press the FC button the following will
appear in the display:
Settings Back <-
Main menu Language
Supervisor level
FC A
^Press the rotary dial to confirm your
selection of the "Language" menu.
Settings deutsch
Language Fenglish (GB)
español
FC A
^Turn the rotary dial to highlight the
language you want and then press the dial
to confirm your selection.
Start date and time
If you want a programme to start at a later
time use the mbutton for "Start date and
time".
To set a date and time
After selecting your programme, e.g.
Cottons in the example here, the following
will appear in the display:
1 Cottons 10.0 / 16.0 kg
90 °C Main wash
Rinses 1000 rpm
+im k mA
^Press the m"Start date and time" button.
The following (example) will appear in the
display:
1 Cottons 10.0 /16.0 kg
Start time: 16 : 10 Start date: 2.4.2010
After selection press the start button A
The actual time and date will then appear.
The input field for hours will be highlighted.
^Press the rotary dial to change the hour.
Turn the rotary dial to alter the hour and
then press it to confirm your selection.
^Then turn the rotary dial to select the
"Minutes" field and press it to confirm your
selection.
Turn the dial to alter the minutes and then
press it to confirm your selection.
^Then turn the rotary dial to select the "Start
date" field and press it to confirm your
selection.
Turn the dial to alter the date and then
press it to confirm your selection.
^Do the same for the month and the year.
After setting the required start date and time:
^Press the START button and the
programme selected will commence at the
time specified.
The display will now contain the following
information:
1 Cottons 10.0 / 16.0 kg
90 °C Main wash
16:15 -2.4.2010 Start 6:00 -3.4.2010
+im k mA
The current time and date as well as the
start time will be displayed.
^If the door is opened again you will have to
press the START button again.
To cancel the start time and date function
Press the m"Start date and time" button
again or press the A"Back", and any
changes will be rejected.
Additional options
20 M.-Nr. 09 179 270
