Miele G5980 User manual

Operating instructions
for dishwashers
To avoid the risk of accidents or
damage to the appliance, it is
essential to read these instructions
as well as the installation plan before
it is installed and used for the
first time. M.-Nr. 09 256 030
en-GB

Guide to the appliance .............................................5
Appliance overview .................................................5
Control panel ......................................................6
Miele{home ......................................................7
Warning and Safety instructions .....................................9
Caring for our environment ........................................19
Disposal of the packing
material .........................................................19
Disposal of your old appliance .......................................19
Energy saving dishwashing..........................................20
Before using for the first time.......................................21
To open the door ..................................................21
To close the door ..................................................21
Display ..........................................................22
Basic settings ....................................................23
Water softener ....................................................26
Programming the water hardness level ..............................27
Before using the appliance for the first time, you require:...................28
Filling the salt reservoir .............................................28
Salt indicator .....................................................30
Rinse aid ........................................................31
Adding rinsing agent ...............................................31
"Rinse aid low" message ............................................32
Loading the dishwasher ...........................................33
Items not suitable for dishwashers: ....................................34
Upper basket .....................................................35
Hinged spikes..................................................35
Hinged cup rack ................................................35
Jumbo cup rack (depending on model)..............................36
Glass rail ......................................................36
Adjusting the upper basket .......................................37
Lower basket .....................................................38
Removable MultiComfort insert.....................................39
Glass rack.....................................................39
Glass rail ......................................................40
Hinged spikes..................................................40
Bottle holder ...................................................40
Contents
2

Cutlery ..........................................................41
3D cutlery tray (depending on model) ...............................41
Cutlery basket (depending on model) ...............................42
Operation .......................................................43
Detergent ........................................................43
Adding detergent..................................................44
Switching on .....................................................45
Selecting a programme .............................................45
Select an extra option(s) ............................................46
Starting the programme.............................................47
Display ..........................................................47
Standby .........................................................48
At the end of the programme.........................................48
Switching off .....................................................49
Unloading the dishwasher ...........................................49
Interrupting a programme ...........................................49
Changing a programme ............................................50
Additional functions ..............................................51
Delay start .......................................................51
BrilliantLight ......................................................53
DetergentAgent ...................................................53
Cleaning and care ................................................54
Cleaning the wash cabinet ..........................................54
Cleaning the door and the door seal ...................................54
Cleaning the reflector panel .........................................54
Cleaning the control panel and door front...............................55
Checking the filters in the wash cabinet ................................56
Cleaning the filters .................................................56
Cleaning the spray arms ............................................58
Problem solving guide ............................................59
Technical problems ................................................59
Water inlet/drain fault ...............................................61
General problems .................................................63
Noises ..........................................................65
Unsatisfactory washing result ........................................66
Contents
3

Maintenance .....................................................69
Cleaning the water inlet filter .........................................69
Cleaning the drain pump and non-return valve...........................70
After sales service ................................................71
Repairs .......................................................71
Guarantee .....................................................71
Future updates .................................................71
For testing institutes................................................71
Programme chart .................................................72
Optional accessories..............................................78
Electrical connection..............................................79
Plumbing........................................................80
The Miele waterproof anti-leak system .................................80
Connection to the water supply .......................................80
Drainage ........................................................82
Technical data ...................................................83
Settings menu !..................................................84
To open the Settings !menu .........................................84
Language J......................................................85
Time ...........................................................85
Water hardness ...................................................86
Rinse aid ........................................................86
Sensor wash .....................................................86
AutoOpen........................................................86
Optimise standby..................................................87
Refill display......................................................87
Check filters ......................................................87
Change main menu ................................................88
Save extras ......................................................89
Temperature .....................................................89
Buzzer ..........................................................89
Keypad tone .....................................................90
Brightness .......................................................90
Memory .........................................................90
Showroom programme .............................................91
Factory default ....................................................91
To close the Settings !menu.........................................91
Contents
4

Appliance overview
aUpper spray arm (not visible)
bCutlery tray (depending on model)
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gFilter combination
hData plate
iIn-operation indicator light
jRinse aid reservoir
kDual compartment detergent
dispenser
lSalt reservoir
Guide to the appliance
5

Control panel
aSelector buttons
For selecting the option displayed
next to them.
For altering the values displayed
(+/-).
For scrolling to other menus.
bDisplay
See next page for more information.
cClear button U
For returning to the previous menu or
deleting values which have been set
previously.
dDelay start button ,with indicator
light
For selecting the delay start function.
eInformation button :
For displaying additional information
about the option being displayed.
fOn/Off button K
For switching the appliance on and
off.
gService interface
Used by service technicians to run
diagnostic checks on your
appliance, or to update
programming data in the future.
hIn-operation indicator light
Shows if a programme is running
when the door is shut.
iMiele<home
The appliance is compatible with the
Miele|home system.
This instruction book applies to several different dishwasher models.
The specific dishwasher models are referred to as follows:
Standard = 80.5 cm high dishwashers (integrated)
and 84.5 cm high dishwashers (freestanding)
XXL = 84.5 cm high dishwashers
Guide to the appliance
6

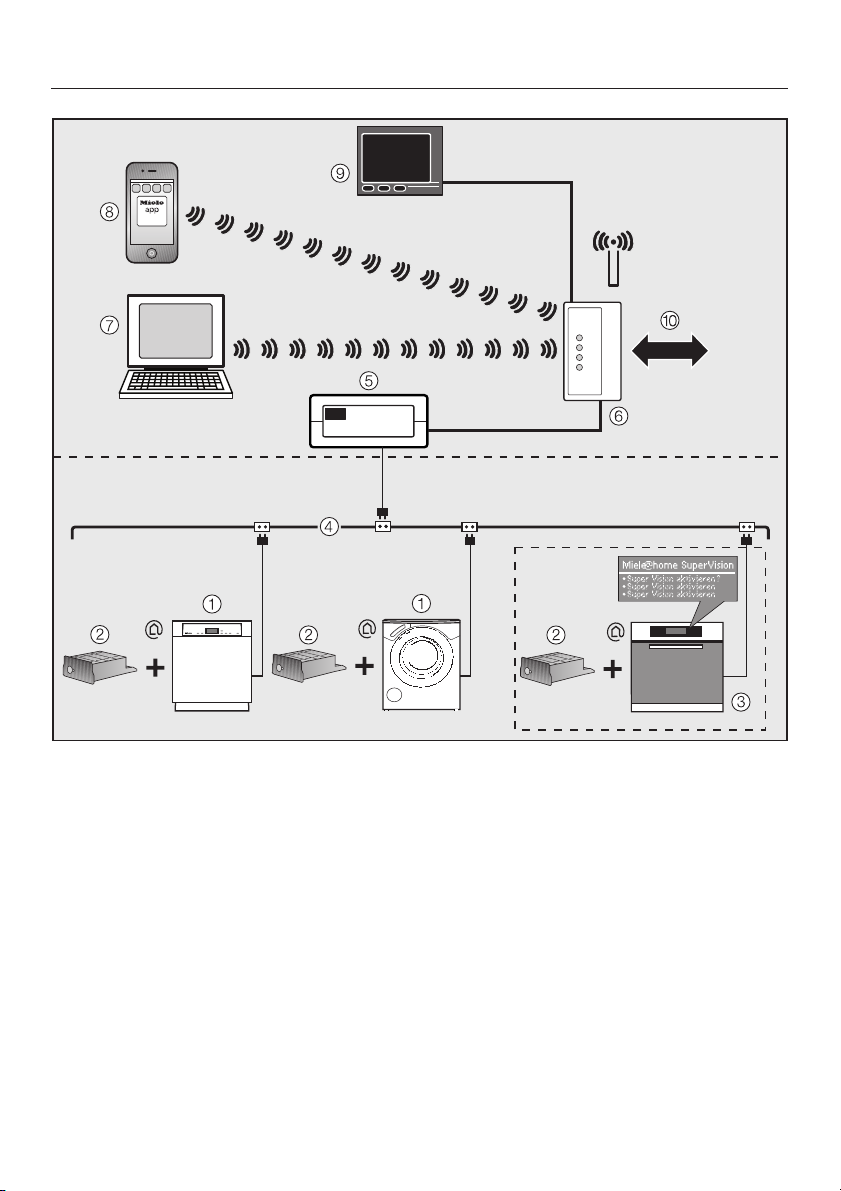

aCommunication enabled appliances
bCommunication module
cSuperVision master appliance
dPower supply
eMiele|home Gateway
f(WLAN) Router
Possible connections (optional)
gPC, Notebook
hiPod* or iPhone*
iConnection with a domestic bus
system display
jPossible internet connection
* iPod und iPhone are registered trade
marks of Apple Inc.
Miele{home
7

Depending on country, this appliance is
communication enabled and can be
linked into the Miele|home system via
a communication module b(optional
accessory).
Miele|home enabled appliances send
information via the household power
supply network dto the master
appliance c/eabout the operational
status of the appliances, as well as
information about the progress of the
programme.
Displaying information, controlling
appliances
– SuperVision master appliance c
The status of other communication
enabled appliances in the system
can be shown in the display of the
SuperVision master appliance.
– Mobile terminal appliances g/h
A PC, Notebook or an iPod* /
iPhone* can be used within the
operating radius of a WLAN fto
display status information about the
networked appliances and to carry
out some operational commands.
–Household network i
Miele|home enables smarter living.
With the Miele|home Gateway e
communication-enabled appliances
can be integrated into the domestic
bus system.
* iPod und iPhone are registered trade
marks of Apple Inc.
Smart Grid / SmartStart
Smart Grid enabled appliances can be
started automatically to take advantage
of cheaper electricity tariffs. Reduced
electricity tariffs can be stored in the
Miele|home Gateway e, which then
starts the appliance automatically at the
right time.
Optional accessories required
–Communication module XKM 2000
–Miele|home Gateway
Both of these are supplied with their
own installation and operating
instructions.
Further information
Further information about Miele|home,
SuperVision and future options please
contact Miele.
Miele{home
8

This appliance conforms to current safety requirements.
Inappropriate use can, however, lead to personal injury and
damage to property.
To avoid the risk of accidents and damage to the appliance,
please read these instructions carefully before using it for the first
time. They contain important information on its safety, use and
maintenance.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
~This dishwasher is not designed for commercial use. It is
intended for use in domestic households and in similar working and
residential environments.
~The dishwasher is not intended for outdoor use.
~It must only be used as a domestic appliance as specified in
these operating instructions, for cleaning domestic crockery and
cutlery.
Any other usage is not supported by the manufacturer and could be
dangerous. Miele cannot be held liable for damage resulting from
incorrect or improper use or operation.
~The appliance can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been
shown how to use it in a safe way and understand the hazards
involved.
Warning and Safety instructions
9

Safety with children
~Children under 8 years of age must be kept away from the
appliance unless they are constantly supervised.
~Children 8 years and older may only use the dishwasher if they
have been shown how to use it in a safe way and understand the
hazards involved.
~Children must not be allowed to clean or maintain the appliance
unsupervised.
~Keep very young children away from it at all times and supervise
them whilst you are using it. To prevent the risk of injury, do not allow
them to play with it or use the controls. There is a danger that
children playing might shut themselves in the dishwasher.
~Keep children away from detergents. Dishwasher detergents
contain irritant and corrosive ingredients which can cause burning in
the mouth, nose and throat if swallowed, or inhibit breathing. Keep
children away from the dishwasher when the door is open. There
could still be detergent residues in the cabinet.
Seek medical attention immediately if your child has swallowed or
inhaled detergent.
Warning and Safety instructions
10

Technical safety
~Before setting up the appliance, check it for any externally visible
damage. Under no circumstances should you use a damaged
appliance. It could be dangerous.
~The dishwasher must only be plugged into the electricity supply
via a suitable switched socket. The electrical socket must be easily
accessible after the dishwasher is installed so that it can be
disconnected from the electricity supply at any time. (See "Electrical
connection").
~There must be no electrical sockets behind the dishwasher.
Danger of overheating and fire risk if the dishwasher were to be
pushed up against a plug.
~The dishwasher must not be installed under a hob. The high
radiant temperatures which are sometimes generated by a hob
could damage the dishwasher. For the same reason it should not be
installed next to open fires or other appliances which give off heat,
such as heaters etc.
~Do not connect the dishwasher to the mains supply until it has
been fully installed and any adjustment has been made to the door
springs.
Warning and Safety instructions
11

~Before connecting the appliance, check that the connection data
on the data plate (voltage and frequency) match the mains
electricity supply. If in any doubt, consult a qualified electrician.
~The electrical safety of this appliance can only be guaranteed if
correctly earthed. It is most important that this basic safety
requirement is observed and regularly tested and where there is any
doubt the electrical system in the house should be checked by a
qualified electrician.
The manufacturer cannot be held liable for the consequences of an
inadequate earthing system (e.g. electric shock).
~Do not connect the appliance to the mains electricity supply by a
multi-socket adapter or an extension lead. These do not guarantee
the required safety of the appliance (e.g. danger of overheating).
~The appliance must not be used in a non-stationary location (e.g.
on a ship).
~Do not install the dishwasher in a room where there is a risk of
frost. Frozen hoses may burst or split. The reliability of the electronic
control unit may be impaired at temperatures below freezing point.
Warning and Safety instructions
12

~The plastic housing of the water connection contains an electrical
component. The housing must not be dipped in water.
~There are electrical wires in the water inlet hose. Do not cut the
water inlet hose, even if it is too long.
~The integrated Waterproof System offers protection from water
damage, provided the following conditions are met:
–The dishwasher is correctly installed and plumbed in.
–The dishwasher is properly maintained and parts are replaced
where it can be seen that this is necessary.
– The stopcock has been turned off when the appliance is not used
for a longer period of time (e.g. during holidays).
The Waterproof system will work even if the appliance is switched
off. However, the appliance must remain connected to the electricity
supply.
~A damaged dishwasher could be dangerous. If the dishwasher
gets damaged, switch it off at the mains and call your Miele Dealer
or the Miele Service Department.
Warning and Safety instructions
13

~Unauthorised repairs could result in unforeseen dangers for the
user, for which Miele cannot accept liability. Repairs should only be
undertaken by a Miele approved service technician, otherwise any
subsequent damage will not be covered by the guarantee.
~Faulty components must only be replaced by genuine Miele
original spare parts. Only when these parts are fitted can Miele
guarantee the safety standards of the appliance.
~Always disconnect the dishwasher from the electrical supply for
maintenance work (switch off at the wall socket and remove the
plug).
~If the connection cable is damaged it must be replaced with a
special cable available from Miele. For safety reasons this must only
be fitted by Miele Service or a Miele approved service technician.
~In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings in a clean condition at all times. Any damage which
may be caused by cockroaches or other vermin will not be covered
by the guarantee.
Warning and Safety instructions
14

Correct installation
~The dishwasher must be installed and connected in compliance
with the diagram supplied.
~Take care, both before and during installation of the
dishwasher, not to cut yourself on the metal parts. Danger
of injury. Wear protective gloves.
~The dishwasher must be correctly aligned to ensure problem-free
operation.
~In order to ensure stability, built-under and integrated
dishwashers must only be installed under a continuous worktop
which is secured to adjacent cabinetry.
~If you want to convert your freestanding dishwasher to a
built-under ("U") model, you will need to order the appropriate
conversion kit. If you remove the existing plinth, you must replace it
with a U-model plinth. This is necessary to avoid the risk of injury
caused by protruding metal parts.
~The door springs must be adjusted equally on both sides. They
are correctly adjusted when the door remains stationary when left
open at 45°. It is important that the door is held in place by the
springs and cannot fall open.
Warning and Safety instructions
15

Correct use
~Do not use solvents in the dishwasher. Danger of explosion.
~Do not inhale or ingest dishwasher detergent. Dishwasher
detergents contain irritant or corrosive ingredients which can cause
burning in the nose, mouth and throat if swallowed, or inhibit
breathing. Seek medical attention immediately if detergent has been
swallowed or inhaled.
~Avoid leaving the door open unnecessarily, as you could trip over
it.
~Dishes can be very hot at the end of the programme.
Allow them to cool until they are comfortable enough to handle
before unloading.
~Do not sit or lean on the opened door. This could cause the
dishwasher to tip and be damaged, and you could get injured.
~Only use detergent and rinse aid formulated for domestic
dishwashers. Do not use washing-up liquid.
~Do not use commercial or industrial detergents as these may
cause damage, and there is a risk of severe chemical reaction.
Warning and Safety instructions
16

~Do not fill the rinse aid reservoir with powder or liquid detergent.
This will cause serious damage to the reservoir.
~Do not fill the salt reservoir with powder or liquid dishwasher
detergent. This will damage the water softener. Make sure you have
picked up the correct packet of dishwasher salt before filling the salt
reservoir!
~Only use special coarse grained dishwasher salt for reactivation,
as other salts may contain insoluble additives which can impair the
functioning of the water softener.
~In an appliance with a cutlery basket (depending on model)
cutlery is cleaned and dried more efficiently if placed in the basket
with the handles downwards. However, to avoid the risk of injury,
place knives and forks etc. with the handles upwards.
~Plastic items which cannot withstand being washed in hot water,
such as disposable plastic containers, or plastic cutlery and
crockery should not be cleaned in the dishwasher. The high
temperatures in the dishwasher may cause them to melt or lose
shape.
~On models with "Delay start", make sure that the dispenser is dry
before adding detergent. Wipe dry if necessary. Detergent will clog
if poured into a damp dispenser and may not be thoroughly
dispersed.
Warning and Safety instructions
17

Accessories
~Only use genuine Miele original spare parts and accessories with
this dishwasher. Using spare parts or accessories from other
manufacturers will invalidate the guarantee, and Miele cannot
accept liability.
Disposal of your old dishwasher
~Make the door lock inoperative so that children cannot
accidentally shut themselves in. Make appropriate arrangements for
the disposal of the appliance.
The manufacturer cannot be held liable for damage caused by
non-compliance with these Warning and Safety instructions.
Warning and Safety instructions
18

Disposal of the packing
material
The transport and protective packing
has been selected from materials which
are environmentally friendly for disposal
and should be recycled.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of babies and
young children. Danger of suffocation.
The packaging consists of the following
materials:
Outer packaging:
– Corrugated cardboard made from up
to 100% recyclable material:
or: Polyethylene (PE) shrink wrap
– Polyproplylene (PP) strapping
Inner packaging:
– Chlorine and fluorine free expanded
polystyrene (EPS)
–Base, lid frame and support battens
made from untreated natural wood
from renewable forests
–Polyethylene (PE) protective wrap
Disposal of your old appliance
Electrical and electronic appliances
often contain materials which, if
handled or disposed of incorrectly,
could be potentially hazardous to
human health and to the environment.
They are, however, essential for the
correct functioning of your appliance.
Please do not therefore dispose of it
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre or contact your dealer for
advice.
Ensure that it presents no danger to
children while being stored for
disposal.
To enable sorting by type of plastic for
recycling, all plastic parts of the
appliance are labelled with international
standard symbols.
Caring for our environment
19

Energy saving dishwashing
This dishwasher is exceptionally
economical in its use of water and
electricity. You can make the most of
your appliance by following these tips:
^For most economical dishwashing
make full use of the baskets without
overloading the dishwasher.
^Choose the programme to suit the
type of crockery being washed and
the degree of soiling.
^Select the ECO programme for
energy-saving dishwashing.
This programme is the most efficient
in terms of its combined energy and
water consumption at cleaning
normally soiled crockery.
^If your household water system is
suitable, this dishwasher can be
connected to a hot water supply.
Select the Without heater
programme when washing lightly to
normally soiled dishes.
The rinse water will not be heated in
this programme. However, because
the water is not heated, drying results
may not match those of other
programmes.
^Follow the detergent manufacturer's
recommendations on detergent
dosage.
^When using powder or liquid
detergent you can use 1/3less
detergent if baskets are only half full.
Caring for our environment
20
