Miele G 800 Series User manual

Installation instructions
Integrated slimline dishwasher
To prevent accidents
and machine damage,
read these instructions
before
installation or use.
UV
M.-Nr. 05 620 692

IMPORTANT SAFETY INSTRUCTIONS
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ
Caring for the environment
Disposal of the packing material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Disposal of an old machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Opening the oor
Opening the door without a panel in place . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Without the mounting bracket in place: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pro uct an Cut-out Dimensions
Installation
1. Install the steam deflector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2. Install the slide skis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3. Install the dishwasher under the countertop . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4. Level the legs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5. Install the custom door panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6. Adjust and secure the front panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7. Secure the dishwasher to adjacent cabinetry . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8. Adjust the door springs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9. Make the plumbing connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10. Make the electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
11. Test the unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
12. Install the toekick . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Contents
2

Installation
Installation, maintenance and
repair work should be by a Miele
authorized service technician. Work by
unqualified persons could be a hazard
and may void the warranty.
This equipment is not designed for
maritime use or for use in mobile
installations such as caravans or
aircraft. However, under certain
conditions it may be possible for an
installation in these applications. Please
contact the nearest Miele dealer or the
Miele Technical Service Department
with specific requirements.
Inspect the dishwasher for
transport damage. Do not install or
use a damaged unit. Contact the place
of purchase.
This dishwasher must be installed
under a continuous countertop
secured to adjacent cabinetry.
Do not install this dishwasher
beneath a cooking surface or oven.
Do not, under any circumstances,
cut the intake hose or submerge in
liquid. This hose contains electrical
components that could cause injury or
property damage if cut or submerged.
If there is any doubt concerning
installation contact the Technical
Service Department.
USA 1-800-999-1360
[email protected]
CDN 1-800-565-6435
[email protected]
,During the installation process,
please be careful of sharp edges
that can cause harm.
IMPORTANT SAFETY INSTRUCTIONS
3

Electrical safety
Before installation, make sure the
voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
To guarantee the electrical safety
of this appliance, continuity must
exist between the appliance and an
effective grounding system.
It is imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of the
house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack, or inadequacy of, an
effective grounding system
Before installation or service,
disconnect the power supply to the
work area by manually "tripping" the
circuit breaker, unplugging the unit, or
removing the fuse.
Do not use an extension cord to
connect the unit to electricity.
Extension cords do not guarantee the
required safety of the appliance, (e.g.
danger of overheating).
Chil safety
Ensure that any plastic wrappings,
bags etc. are disposed of safely
and kept out of the reach of babies and
young children. Danger of suffocation!
If the appliance is removed from its
installation and will not be used,
the door to the wash cabinet should be
removed to prevent children from being
locked in the machine.
When discarding an old
dishwasher, unplug it from the
power outlet, remove the door to the
wash cabinet and cut off the power
cord.
IMPORTANT SAFETY INSTRUCTIONS
4

Installation
L’installation et les travaux de répa-
ration et d’entretien doivent être ef-
fectués par un technicien de service
autorisé Miele. Les travaux effectués
par des personnes non qualifiées,
pourraient être dangereux et faire annu-
ler la garantie.
Cet équipement n’a pas été conçu
pour usage maritime ou pour les
installations mobiles telles que les rou-
lottes ou les avions. Toutefois, il peut
être parfois possible de faire
l’installation de ces applications sous
certaines conditions. Veuillez contacter
le Concessionnaire Miele le plus près
de chez-vous ou le Département du
service technique Miele pour leur don-
ner vos exigences précises.
Inspecter le lave-vaisselle pour voir
s’il a été endommagé lors de
l’expédition. Ne pas installer ou utiliser,
un appareil endommagé. Veuillez
contacter le point d’achat.
Ce lave-vaisselle doit être installé
sous un comptoir continu bien fixé
aux armoires adjacentes.
Ne pas installer ce lave-vaisselle
sous une surface de cuisson ou un
four.
Ne jamais, sous aucunes circons-
tances, couper le boyau de prise
ou submerger dans un liquide. Ce
boyau contient des éléments électri-
ques qui pourraient causer des blessu-
res ou des dégâts matériels s’ils sont
coupés ou submergés.
Si vous avez des doutes au sujet
de l’installation, contactez le Dé-
partement du service technique Miele.
USA 1-800-999-1360
[email protected]
CDN 1-800-565-6435
[email protected]
,Durant le processus
d’installation, veuillez faire attention
aux rebords coupants qui peuvent
blesser.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ
5

Sécurité électrique
Avant l’installation, s’assurer que la
tension et la fréquence énumérées
sur la plaque signalétique correspon-
dent à la source d’électricité de la rési-
dence. Ces données doivent corres-
pondre afin d’éviter de vous blesser et
d’endommager l’appareil. Consulter un
électricien qualifié si vous avez des
doutes.
Pour garantir la sécurité électrique
de cet appareil, il doit y avoir conti-
nuité entre l’appareil et un système effi-
cace de mise à la terre. Ce critère de
sécurité doit absolument être respecté.
Si vous avez des doutes, faire vérifier le
système électrique de votre maison par
un électricien qualifié. Le fabricant ne
peut pas être tenu responsable des
dommages causés par un système de
mise à la terre efficace, manquant ou
inadéquat.
Débrancher le courant de la zone
de travail avant l’installation, en dé-
branchant l’appareil, retirant le fusible
ou en faisant "sauter" le disjoncteur.
Ne pas utiliser de rallonge pour
brancher l’appareil. Les rallonges
ne garantissent pas la sécurité requise
pour l’appareil, (par ex. danger de sur-
chauffage).
Sécurité es enfants
S’assurer de disposer de tous les
emballages de plastique, sacs etc.
et de les garder hors de la porté des
bébés et jeunes enfants. Danger de
suffocation!
Si l’appareil est retiré de son instal-
lation et que vous ne l’utilisez pas,
vous devez retirer la porte du meuble
de lavage pour empêcher les enfants
de s’enfermer dans l’appareil.
Pour disposer d’un ancien
lave-vaisselle, le débrancher de la
prise, enlever la porte du meuble de la-
vage et couper le cordon électrique.
INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ
6

Disposal of the packing
material
The cardboard box and packaging
protect the appliance during shipping.
These materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an ol machine
Old appliances may contain materials
that can be recycled. Please contact
your local recycling authority about the
possibilty of recycling these materials.
Ensure that the appliance presents no
danger to children while being stored
for disposal. Before discarding an old
appliance, unplug it from the outlet and
cut off its power cord and remove any
doors to prevent hazards.
Caring for the environment
7

Opening the oor without a
panel in place
^Gently pull on the upper portion of
the mounting bracket until the door
latch releases (small arrow).
Without the mounting bracket in
place:
^Grip the T shaped opening with a
finger and pull the door open.
Opening the oor
8

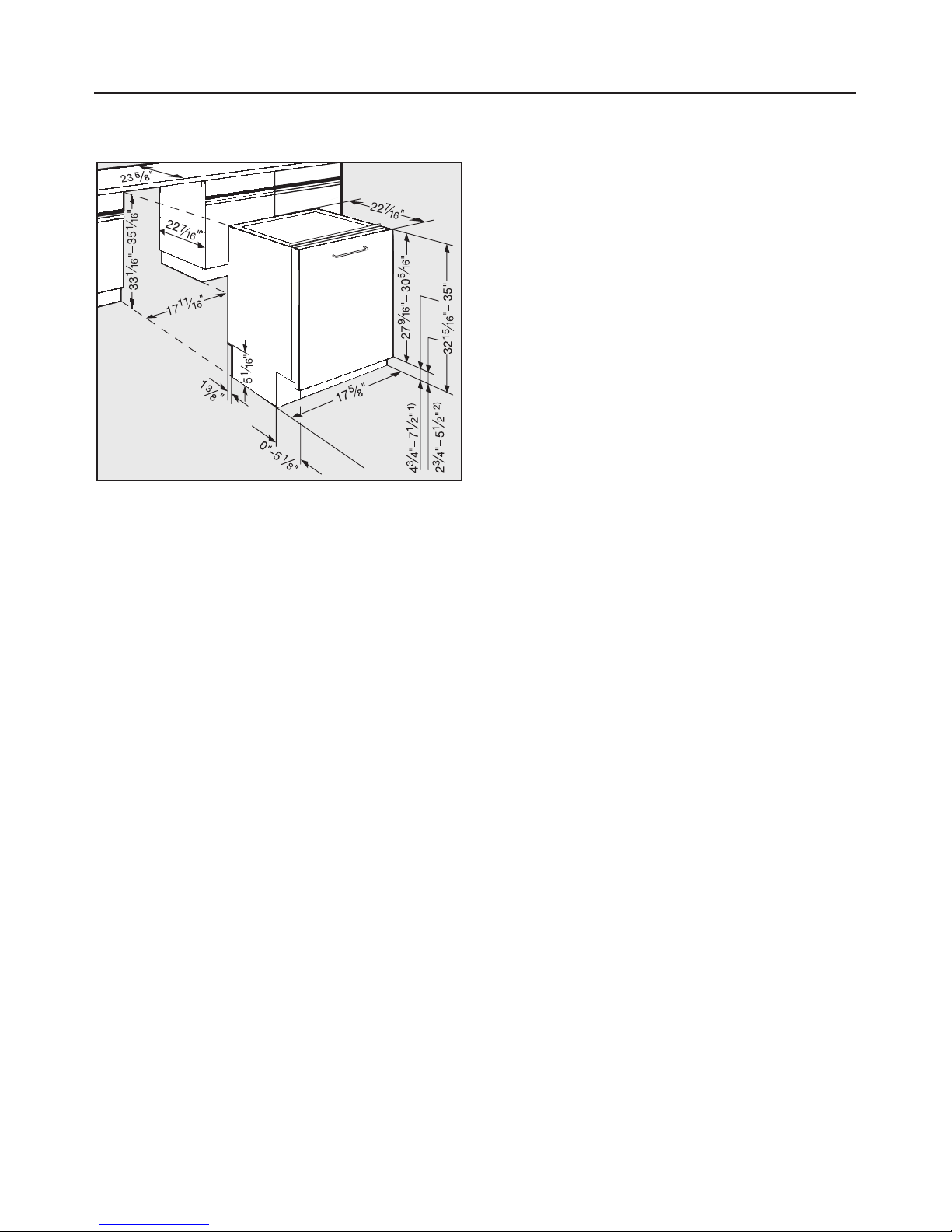

G 800 Series Dishwashers
Machine heights between 35" (890 mm)
and 37" (940 mm) can be obtained if
the supplied legs are removed and
extended legs are attached. Contact
the Technical Service Department for
the appropriate legs.
Pro uct an Cut-out Dimensions
9

1. Install the steam eflector
A stainless steel steam deflector is
supplied to protect the countertop from
steam and condesation when the
dishwasher is opened. If the countertop
is made of Corian®, granite, marble or
other solid, waterproof material, the
steam deflector is not required.

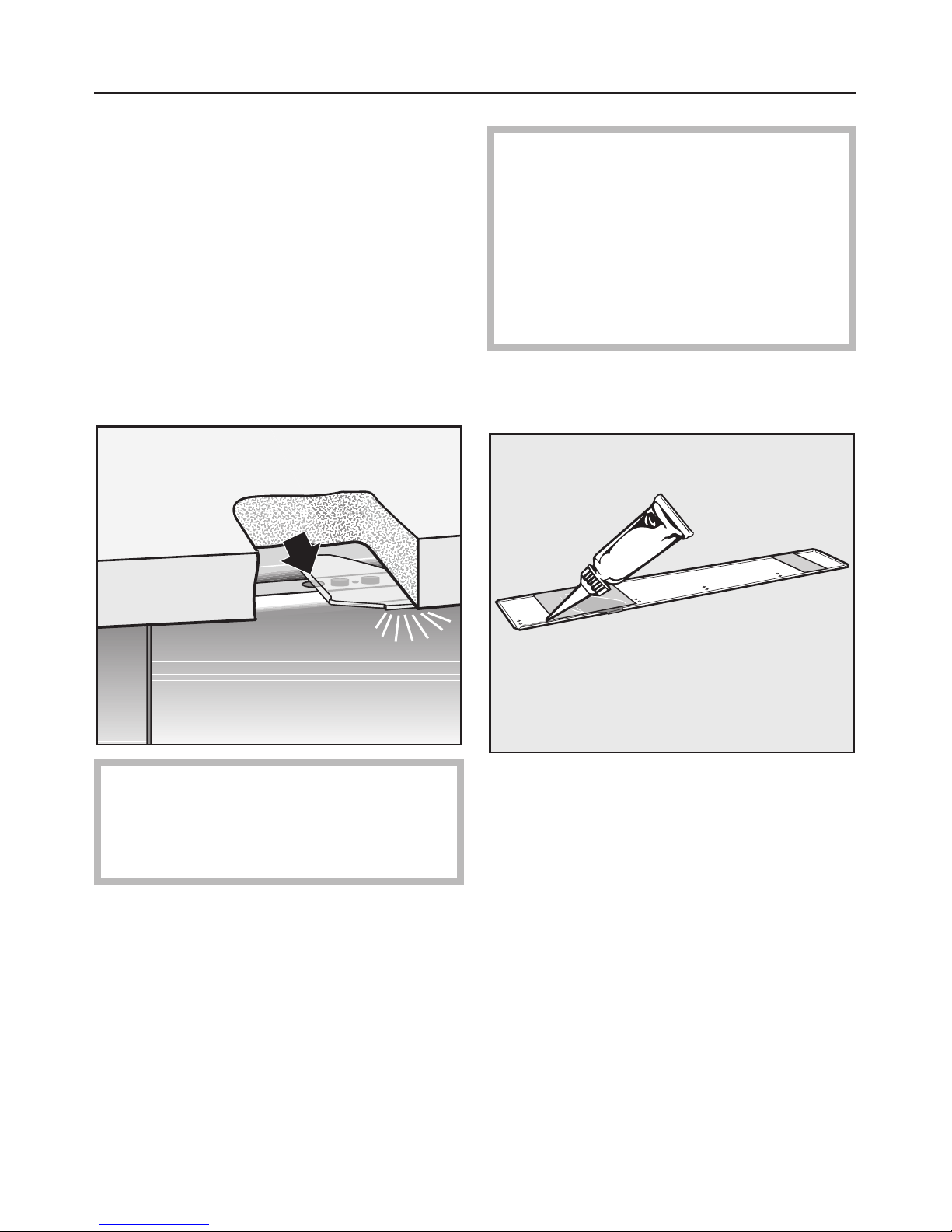

The steam deflector has an indicator
reflector to show when the dishwasher
is running.
The left side of the reflector and the
optic indicator in the the control
panel must line up for the indicator
to work.
If the counter is made of different
materials, the steam deflector
should be positioned so that it
covers the edge where the materials
are joined. Countertops with wood or
laminate edging should be tacked
through the rear holes of the steam
deflector.
^Remove the protective film from the
deflector.
^Squeeze the supplied silicone
sealant along the groove of the
deflector.
Installation
10

^Center the steam deflector in the
opening for the dishwasher and align
with the lower front edge of the
countertop.
Note:
For rounded countertops it may be
necessary to pull the steam deflector
closer to the counter’s edge so the
optic reflector will be visible.
^Secure the deflector in place using
the supplied nails.
^Wipe of any excess silicone with a
solution of liquid dish soap and warm
water.
^Press the optic indicator reflector in
place.
Installation
11

Stone or marble countertops:
The steam deflector is not required for
countertops made of solid, waterproof
material. But, it is needed for
determining the correct position of the
optic indicator reflector.

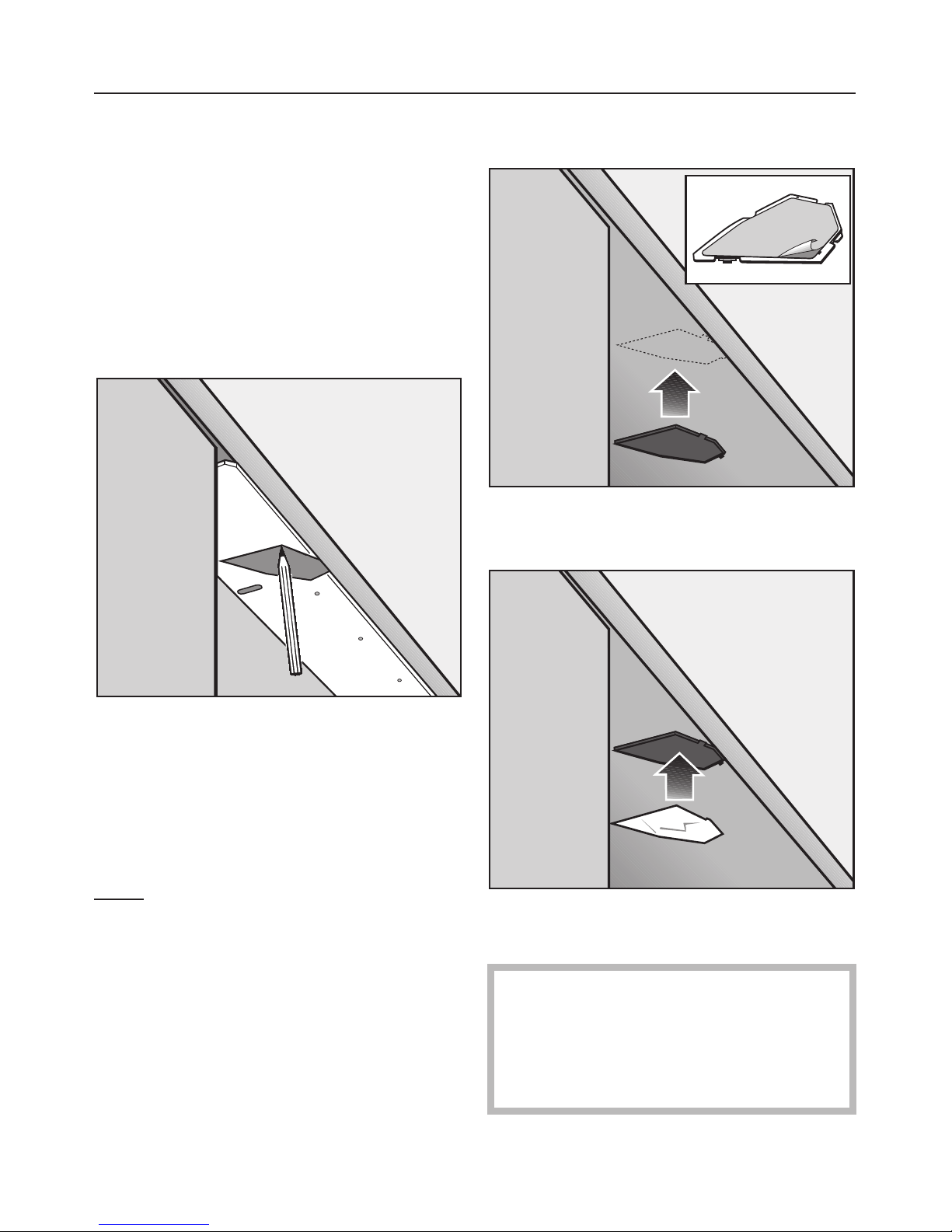

^Remove the black plastic reflector
holder and the tape holding it in
place from the steam deflector.
^With the reflector cut out left and
frontwards, align the steam deflector
with the front edge of the counter.
Trace the outline of the reflector on
the underside of the counter with a
pencil.
Note:
For rounded countertops it may be
necessary to make the tracing closer to
the counter’s edge so the optic
reflection will be visible.
^Adhere the double-sided sticker to
the back of the optic indicator
reflector.
^Remove the backing from the other
side of the sticker.
^Line up the black reflector holder with
the tracing and press into place.
^Press the optic indicator reflector into
the reflector holder.
The "Extended drying" feature can
be activated to further protect the
counter from condensation. See the
"Operating instructions / Additional
features."
Installation
12

2. Install the sli e skis
Two slide skis are included and should
be installed on the feet of the
dishwasher before the machine is
pushed under the countertop. This will
allow the machine to slide easier,
protect the floor, and allow adjustment
of the rear leveling legs from the front of
the unit.
^First, adjust the height of the legs so
that the top of the dishwasher is
roughly 1/8" (3 mm) below the
countertop.
Tipping the machine slightly to the rear,
if possible, will make adjusting the front
legs easier. Make sure the machine is
level when adjustments are complete.
^Place the skis, with the ratchet at the
rear, under the dishwasher legs.
Installation
13

3. Install the ishwasher un er
the countertop
The dishwasher must be installed so
that the water and electricity supplies
can be accessed through an adjacent
cabinet. The supplies must not be
located behind the machine.
,WARNING - Fire hazard
Do not cover or crush the plug of an
electric appliance. Ensure that the
cabinet opening for the dishwasher
provides ample space for the plug.
Installing the dishwasher in a tight
space may crimp the power cord or
put pressure on the plug which may
cause overheating.
The floor of the cut out where the
dishwasher will be installed should be
even in height with the surrounding
kitchen floor. Plywood can be secured
to the floor to make the two areas even.
^Make a 2" x 4" (5 x 10 cm) cut out in
the side or bottom of the cabinet
adjoining the dishwasher. This cut out
is necessary for connections to pass
through.
^Make certain that there are no rough
edges that could damage the power
cord or hoses. If metal cabinets are
used, place the supplied rubber
grommet around the edge of the
opening before passing the cable
through.
^Slide the machine into the opening,
making sure the electrical cable and
hoses can reach their connection
points without kinking.
The left side of the optic indicator
reflector and the optic indicator must
align.
The drain hose connection at the rear of
the dishwasher can be turned to allow
the hose to be angled to the right or
left.
^Exercise care when sliding the
dishwasher in or out, to prevent
damage to the power cord or hoses.
Installation
14

4. Level the legs
^The rear leveling legs can be
adjusted with a T20 Torx screwdriver
by turning the screws at the front of
the slide skis.
To raise the machine turn clockwise.
To lower the machine turn counter
clockwise.
Several turns may be needed to set the
correct height. Do not use a power
screwdriver.
^Adjust the front leveling legs by
pushing on the feet with a slotted
screwdriver.
^Tipping the machine slightly
backwards, if posssible will make
adjusting the front legs easier. Make
sure the machine is level when
adjustments are complete.
The dishwasher should be raised
until it just touches the underside of
the countertop.
Installation
15

5. Install the custom oor
panel
A custom door panel must be installed
on the dishwasher before it can be
safely operated. A single large panel or
a two piece panel separated at the
drawer line can be used.

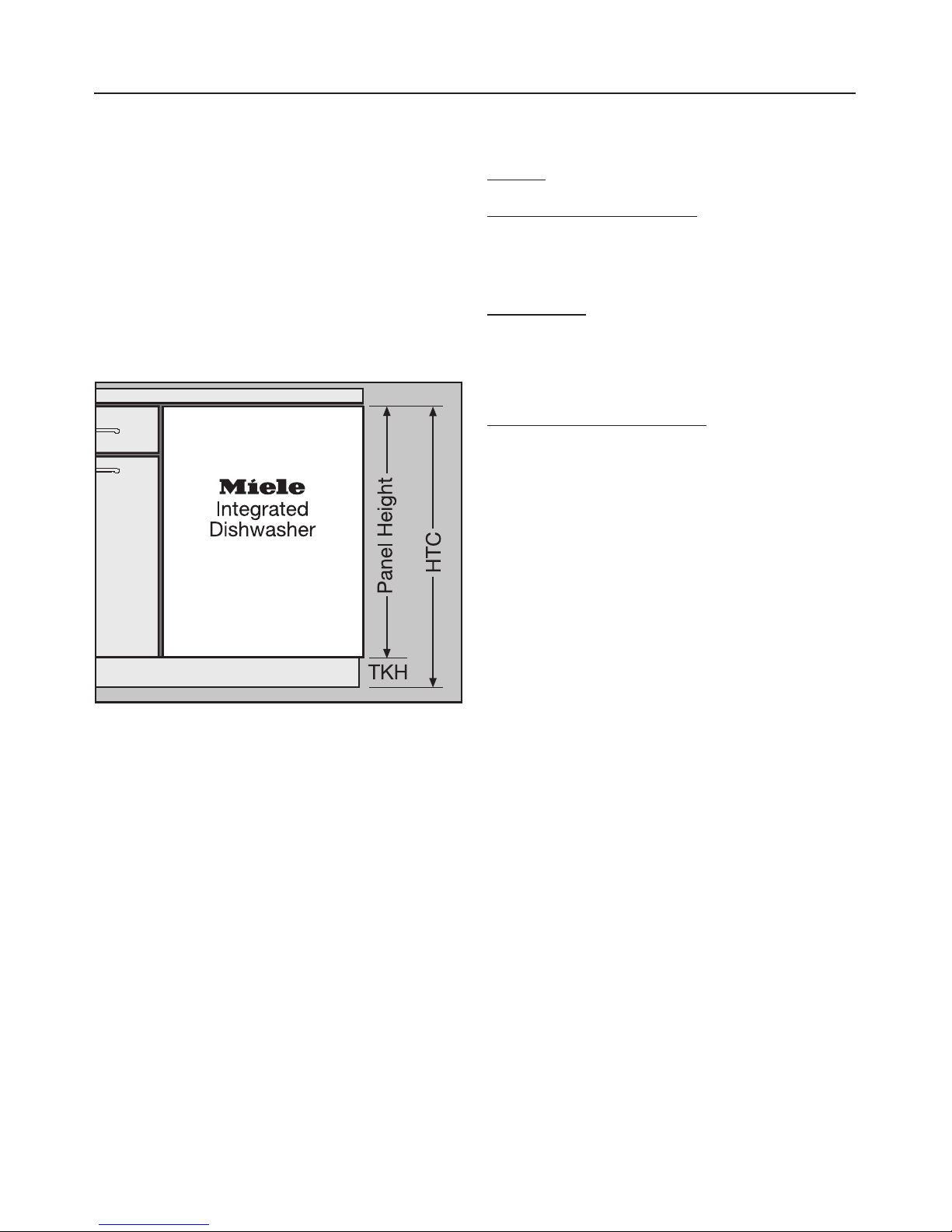

Panel size is determined in the
following manner:
Panel Height = HTC - TKH
HTC = Height to the underside of
countertop
TKH = Toe Kick Height
Panel Dimensions:
Width: . . . . . . . . . . . . . . 17 3/4" (45 cm)
Range of panel height:
G 800 series . . . . . . . . . 27 1/2" - 30 1/4"
. . . . . . . . . . . . . . . . . . . (699 - 768 mm)
Thickness:
At least 3/4" (18 mm) where the
mounting bracket is to be screwed in
position.
Maximum panel weight:
. . . . . . . . . . . . . . . . . . . . . . 11 lbs (5 kg)
Installation
16

The door panel is attached to the
dishwasher using the mounting bracket
that comes secured to the front of the
dishwasher.
To remove the bracket:
^Open the door 2 - 4" (5 - 10 cm).
^Loosen the bracket retaining screw
(black arrow) located on each side of
the machine door.
^Pull the bracket up until the upper
section of the bracket disengages
from the locator pins, then remove
the bracket.
Installation
17

Install the bracket on the rear of the
custom oor panel
^Push the dishwasher into its opening
and adjust the height.

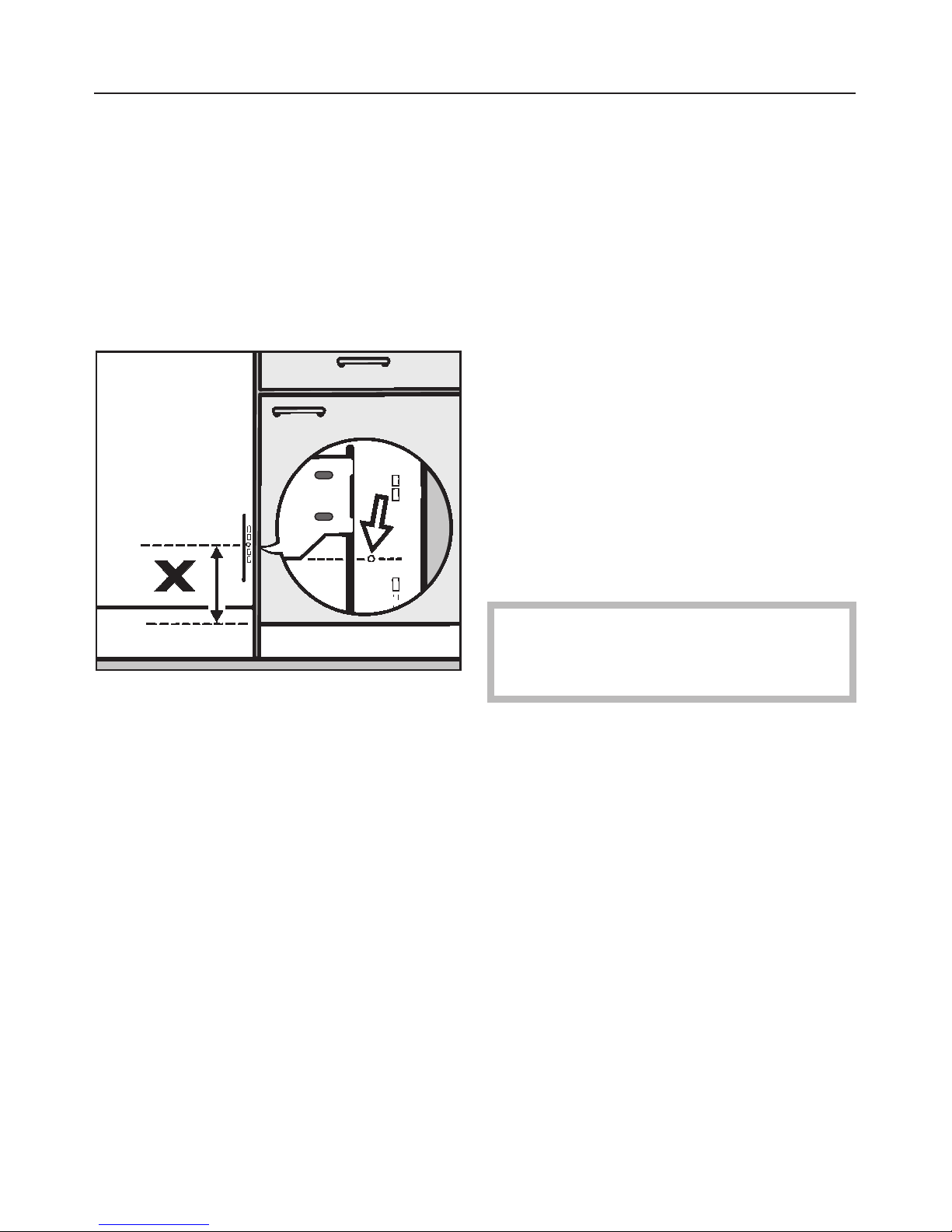

^Measure the distance Xbetween the
round hole in the machine outer door
panel (shown in inset) and the lower
edge of the adjoining cabinet door.
^Place the door panel on a flat
surface, good side face down, being
careful not to scratch the surface.
Make certain that the bottom of the
panel is towards you.
^Using a pencil, lightly draw a vertical
centerline on the panel (See the
illustration on the next page).
^Draw a horizontal line Xinches up
from the bottom edge of the panel.
For two piece panels:
Two piece panels should be made so
that any joining hardware is flush with
the back of the panel. Failure to do this
may impede proper operation of the
dishwasher.
In certain instances, you may be able
to use the mounting bracket supplied
with the machine to secure both pieces
to the dishwasher. Consult your cabinet
supplier / maker for the best method of
joining the panels.
When mounting the two pieces,
make sure that the desired finished
panel height is maintained.
Installation
18

^Place the bracket on the door panel
so the notches, a, cross the drawn
centerline, and the bottom of the
bracket lines up with the horizontal X
line.
^Mark and drill pilot holes for the
screws using a 3/32" (2.5 mm) drill bit.
^Attach the bracket to the back of the
panel, using the 14 screws provided.
The top four pair of holes, only need
to be secured once per pair.
^Double check the location of the
bracket before mounting the panel to
the dishwasher.
The door handle must be installed on
the panel before it is attached to the
machine. It should be located in the
center of the panel at a height that will
match the surrounding drawer handles.
Any screws used to attach the door
handle must be countersunk so that
the rear of the front panel remains
flat.
Installation
19

Attach the front panel to the
ishwasher
^Open the door 2 - 4" (5 - 10 cm).
^Place the lower mounting clips into
the slots of the dishwasher door as
shown in the illustration.
^Seat the U shaped slots of the upper
bracket onto their respective locator
pins.
^Press the panel against the door and
slide down so that all the brackets
catch.
The "T" shaped hanger behind the door
handle should fit easily into its
respective hole.
Installation
20
