Miele G880 User manual

Operating instructions
for the G880
dishwasher
To prevent accidents and reduce
the risk of damaging the machine, ö
read the Operating Manual
before installing or using
the machine. M.-Nr. 04 873 731

2

Contents
Guide to the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
View of the machine. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Control panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Instructions importantes sur la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Opening and closing the door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Child safety lock. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Water Softener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Programming the Water hardness level. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Checking the programmed Water hardness level. . . . . . . . . . . . . . . . . . . . . . . . . 17
Selector settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Filling the salt reservoir. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Salt indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Bypassing the Salt indicator lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Adding rinse aid. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Setting the dosage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Loading examples.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Upper basket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Bottom basket. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Cutlery tray. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Adjustable cup racks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Coffee bar. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Adjusting the upper basket.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Items not suitable for dishwashers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Adding detergent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Choosing a program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Program chart. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Contents
3

Operating the dishwasher.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Turning on. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Starting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Sequence indicator.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Program end . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Turning off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Interrupting a program. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Changing a program.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Unloading the dishwasher. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Additional features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Top Solo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Cleaning and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning the filters in the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Cleaning the spray arms.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Cleaning the drain pump and non-return valve. . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Cleaning the water intake filter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Cleaning the wash cabinet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the door and the door seal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the control panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Cleaning the door panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Problem solving guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Dishwasher installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Contents
4

Guide to the appliance
Miele dishwashers are available in two
versions:
1. Integrated (“i”) dishwashers
“i”- dishwashers are designed for instal-
lation under a continuous countertop.
The control panel with its accessories
is included with the “i”- dishwasher in a
separate package for on-site installa-
tion. The front is designed to accept a
custom made panel, matching the exist-
ing kitchen cabinets.
Installation directions can be found in
the Installation chapter.
2. “U” dishwashers
The built-under (“U”) dishwashers use
the integrated (“i”) dishwashers as the
basic machine.
By using a GDU decor kit the “i”dish-
washer can be converted into a “U”
model dishwasher.
GDU installation instructions are in-
cluded in a separate pamphlet sup-
plied with the decor kit.
Guide to the appliance
5

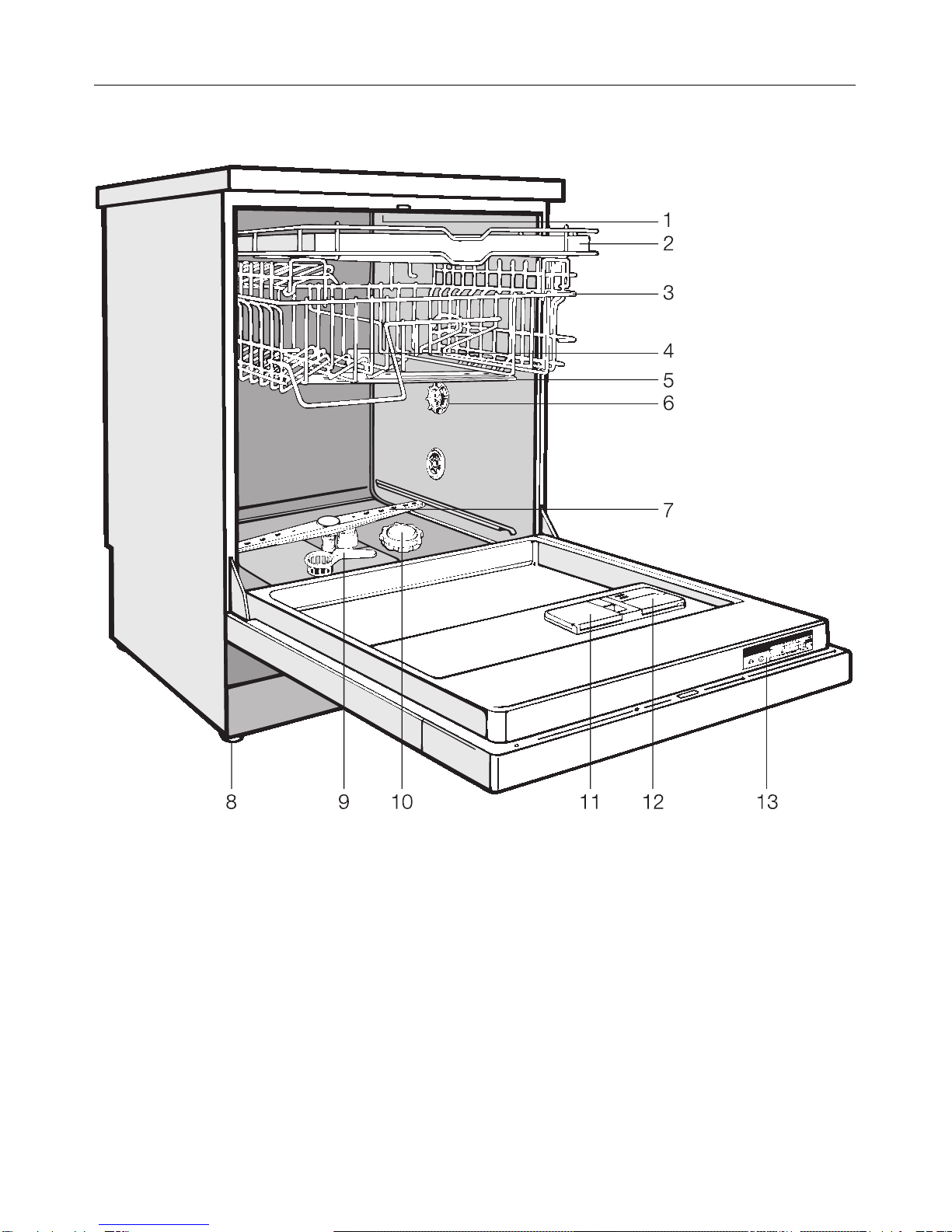

View of the machine
1. Upper spray arm (not visible)
2. Cutlery tray
3. Upper basket
4. Water feed tube for the middle
spray arm
5. Middle spray arm
6. Water hardness selector
7. Lower spray arm
8. Four height adjustable levelling legs
9. Combination filter
10. Salt reservoir
11. Dual compartment detergent
dispenser
12. Rinse aid reservoir
(with dosage selector)
13. Data plate
Note: Lower basket is not shown.
Guide to the appliance
6

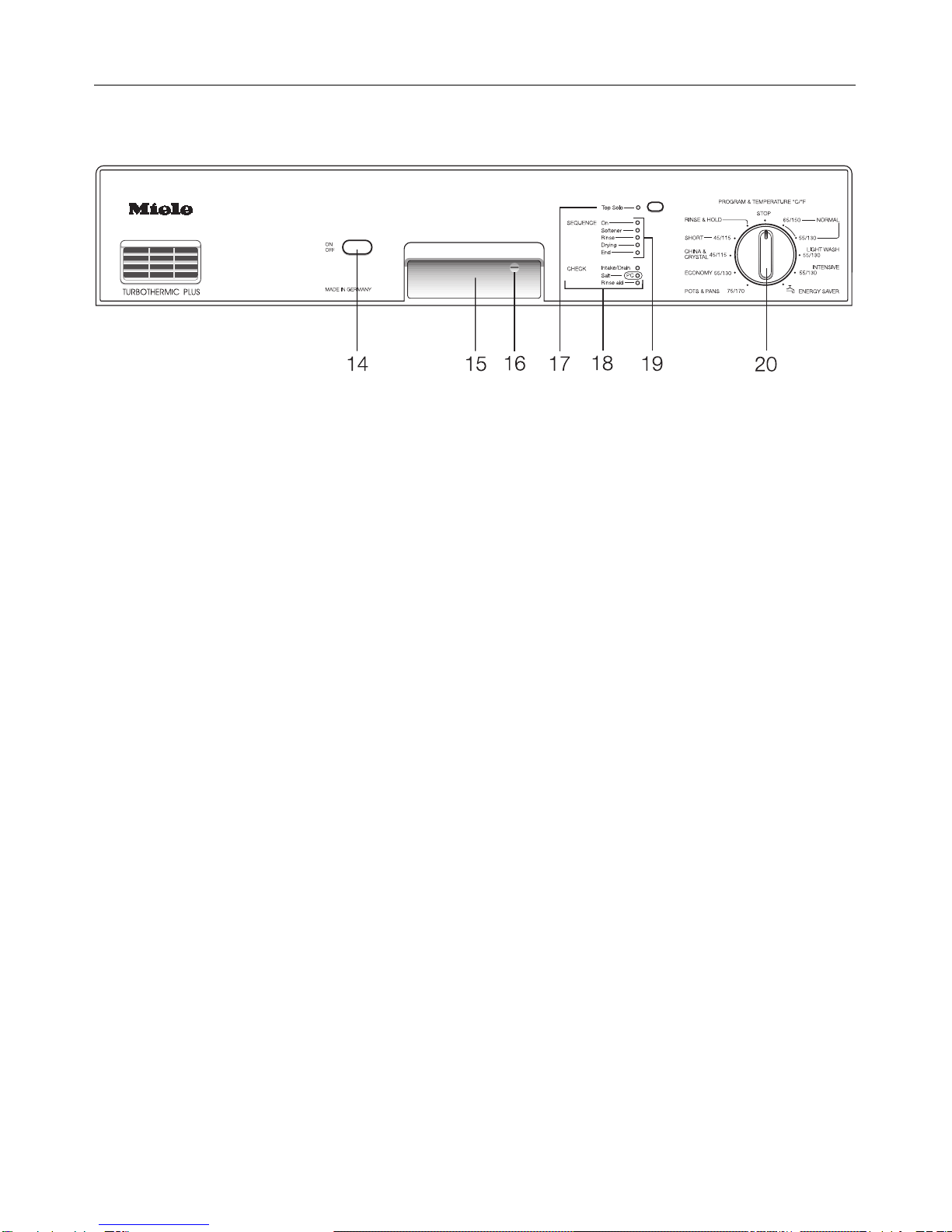

Control panel
14. On/Off button
15. Door release
16. Child safety lock
17. “Top Solo” button
18. “Check” indicator lamps
19. Program sequence display
20. Program and temperature
selector knob
Guide to the appliance
7

IMPORTANT SAFETY INSTRUCTIONS
WARNING
When using your dish-
washer, follow all basic
safety precautions.
This appliance conforms to
all uniform safety codes and
regulations. To avoid injury
and machine damage, read
the operating instructions
carefully before using the
dishwasher.
This dishwasher is designed for
household use only.
The manufacturer cannot be held
responsible for damage or injury
caused by improper use or for
uses other than those for which
the appliance is intended.
Repairs should only be performed
by qualified personnel. Disconnect
the appliance from the power supply
before servicing (pull out the plug or
turn off the circuit breaker).
If not purchased specifically as a
“Freestanding” model, only install
the dishwasher under a continuous
countertop which is secured to the
cabinetry.
The dishwasher must be electri-
cally grounded. Install the dish-
washer as per the included Installation
instructions.
Use only powder detergents and
liquid rinse aids recommended for
dishwashers. Never use gels or liquid
detergents.
Do not use commercial or indus-
trial grade detergents, as these
may cause adverse chemical reactions
and damage the machine. Use only
detergents made for residential dish-
washers.
Do not use your dishwasher unless
all enclosure panels are properly in
place.
Do not allow children to play in or
on the dishwasher.
Keep all detergents and rinse aids
out of the reach of children.
Dishwasher detergents contain So-
dium Silicate and Sodium Carbo-
nate. In case of eye contact, immediate-
ly flush with water. Call a physician or
poison control.
Do not tamper with the
controls.
8

IMPORTANT SAFETY INSTRUCTIONS
When loading items to be
washed:
– Load pointed items so that they are
not likely to damage the door seal.
– Load knives with the cutting edge
down to reduce the risk of injuries.
Do not wash plastic items unless
they are labeled “dishwasher safe”
or the equivalent. For items not labeled,
check the manufacturer’s recommenda-
tions.
Do not abuse, sit, or stand on the
door or dishracks of the dish-
washer.
Remove the front door and cut off
the power cord of the dishwasher
before removing it from service or dis-
carding it. This will help protect child-
ren from injury or accidentally locking
themselves in.
Under certain conditions, hy-
drogen gas may be produced in a
hot water system that has not been
used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. If the
hot water system has not been used for
such a period, turn on all hot water
faucets and let the water flow from
each for several minutes before using
the dishwasher. This will release any ac-
cumulated hydrogen gas. Do not
smoke or use an open flame during this
time.
Do not drink the water from the
wash cabinet.
For dishwashers with visible heating
element
Do not touch the heating element
during or immediately after use.
SAVE THESE INSTRUCTIONS
9

INSTRUCTIONS IMPORTANTES SUR LASÉCURITÉ
AVERTISSEMENT
Au moment d’utiliser votre lave-vais-
selle, veuillez observer toutes les me-
sures de sécurité de base.
Cet appareil électroménager est con-
forme à tous les règlements et codes
sur la sécurité. Pour éviter de vous
blesser et d’endommager l’appareil,
veuillez lire soigneusement les in-
structions sur l’utilisation.
N’utilisez le lave-vaiselle que pour
laver la vaiselle.
Le fabricant ne peut être tenu re-
sponsable des dommages ou bless-
ures causés par une utilisation
inadéquate ou par des utilisations
autres que celles auxquelles l’ap-
pareil est destiné.
Les réparations doivent être effec-
tuées uniquement par une per-
sonne compétente. Débrancher l’ap-
pareil de la prise de courant avant d’en
faire l’entretien (enlever la fiche de la
prise ou fermer le disjoncteur).
Installer uniquement le lave-vais-
selle sous un comptoir continu qui
est fixé à des meubles adjacents.
Vous devez mettre le lave-vaisselle
à la terre. Installer le lave-vaisselle
en observant les instructions pour l’in-
stallation ci-jointes.
Utiliser uniquement des détersifs et
des produits de rinçage recom-
mandés pour les lave-vaisselle.
Ne pas utiliser de détersifs de
qualité commerciale ou industrielle
puisqu’ils pourraient causer des réac-
tions chimiques défavorables et en-
dommager l’appareil. Utiliser des déter-
sifs pour les lave-vaisselle ménagers
seulement.
Ne pas utiliser votre lave-vaisselle
à moins que tous les panneaux
soient bien en place.
Ne pas permettre aux enfants de
jouer dans ou sur le lave-vaisselle.
Ranger tous les détersifs et pro-
duits de rinçage hors de la portée
des enfants.
Les détersifs pour lave-vaisselle
contiennent du silicate de soude et
du carbonate de soude. En cas de con-
tact avec les yeux, les rincer immédi-
atement à grande eau. Téléphoner à
un médecin ou à un centre de traite-
ment antipoison.
10

INSTRUCTIONS IMPORTANTES SUR LA SÉCURITÉ
Ne pas modifier les
commandes.
Ne pas boire l’eau du meuble de
lavage.
Au moment de remplir le lave-vais-
selle :
– Mettre les articles pointus de manière
à ce qu’ils n’endommagent pas le seau
étanche de la porte.
– Mettre le tranchant des couteaux vers
le bas afin de réduire les risques de
blessure.
Ne pas laver les articles en plas-
tique à moins qu’ils n’indiquent “Va
au lave-vaisselle” ou l’équivalent. Véri-
fier les recommandations du fabricant
pour les articles non étiquetés.
Ne pas abuser et ne pas vous as-
seoir ni vous tenir sur la porte ou
sur les paniers du lave-vaisselle.
Enlever la porte et débrancher le
lave-vaisselle avant de le faire rép-
arer ou de le jeter afin d’empêcher les
enfants de se blesser ou de s’enfermer
dans l’appareil par accident.
Dans certaines conditions, un sys-
tème d’eau chaude qui n’a pas été
utilisé pendant plus de 2 semaines
peut dégager de l’azote.
L’AZOTE EST EXPLOSIF. Si le système
d’eau chaude n’a pas été utilisé pend-
ant une telle période de temps, ouvrir
tous les robinets d’eau chaude et
laisser l’eau couler pendant plusieurs
minutes avant d’utiliser le lave-vais-
selle. Ceci dissipera tout l’azote accu-
mulé. Ne pas fumer ni utiliser une
flamme nue durant ce temps.
Lave-vaiselle avec l’élément
chauffant
Ne touchez pas l’élément chauf-
fant pendant le fonctionnement de
l’appareil ou immédiatement après.
CONSERVER CES INSTRUCTIONS
11

Caring for the environment
Disposal of the packing material.
The cardboard box and packing ma-
terial protects the appliance during
shipping. It has been deliberately de-
signed to be biodegradable and recy-
clable. Please dispose of these ma-
terials as you would any other
recyclable products.
Disposal of your old machine.
Old machines contain materials which
can be recycled. Please contact your
local recycling center about the possi-
bility of recycling these materials. Make
certain the machine has been made
child resistant as outlined in the “Import-
ant safety instuctions” before disposing
of the appliance.
Energy saving washing.
These dishwashers are exceptionally ef-
ficient in their use of water and elec-
tricity. You can make the most of your
appliance by following these tips:
Make full use of the baskets without
overloading the dishwasher for the
most economical washing.
For small loads:
Select the “Top Solo” function (see
“Additional features” chapter).
Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
If baskets are only half full, use the
ECONOMY program.
Use the correct amounts of deter-
gent and rinse aid.
Caring for the environment
12

Before using for the first time
Before using for the first time please
note the following points:
Setting the water softener.
The water softener must be set to corre-
spond to the water hardness in your
area. This can be obtained from your
local water company, or by using a test
kit that can be purchased from the
Miele Parts Department.
The salt reservoir must only be filled
with water and salt. Never fill it with
detergent.
Adding rinse aid.
Inadvertently filling the rinse aid
reservoir with liquid or powder deter-
gent will damage the reservoir.
Use only powder detergents and liquid
rinse aids formulated for domestic dish-
washers.
It is important to choose the correct
program.
Different wash programs should be se-
lected for different loads and different
degrees of soiling. See the program
chart for further program descriptions.
When the dishwasher is run for the
first time, the selected program will
not start for approximately 7
minutes.
During these 7 minutes, the Water
Softener reactivation program will
run, and the “Softener” indicator
lamp will be on.
Add the correct amount of detergent.
Generally, one to two tablespoons of
detergent will be adequate for most
wash loads. Not enough or too much
detergent can lead to poor wash re-
sults.
Cleaning results vary between deter-
gents. If you are not satisfied with the
results from one brand, try another
quality brand before contacting the
Miele Service Department for advice.
Load the dishes correctly.
Load the dishes so that water can con-
tact all surfaces. Ensure that the spray
arms are not blocked by items which
are too tall for the basket or which ex-
tend through the bottom of the basket.
If necessary, manually rotate the spray
arms to test for clearance.
The combination filter in the base of
the wash cabinet and the spray arms
must be kept clean.
These should be regularly inspected
and cleaned if necessary.
See the corresponding chapters for de-
tailed information on the above points.
Before using for the first time
13

Opening and closing the door
To open the door.
Press the release catch inside the
door grip.
If the door is opened during operation,
all functions will automatically be inter-
rupted.
To close the door.
Push the baskets in.
Lift the door and push until it clicks
into position.
Child safety lock.
The child safety lock is designed to
deter children from opening the dish-
washer door.
Use the provided key to turn the
child safety lock to the desired set-
ting.
Horizontal setting = The door is
locked.
Vertical setting = the door can
be opened.
Opening and closing the door
14

Water Softener
The water softener must be set to corre-
spond to the water hardness in your
area. This can be obtained from your
local water company, or by using a test
kit that can be purchased from the
Miele Parts Department.
To avoid the build up of calcium de-
posits on dishes, cutlery, and in the
dishwasher, if the water hardness is
above 7 gr/gal, the water should be
softened.
The dishwasher is factory set for a hard-
ness level of 1 - 4 gr/gal.
If your water hardness differs from
the factory setting, the correct set-
ting must be entered into the dish-
washer using the adjacent table.
To ensure a steady supply of soft-
ened water, the built in water sof-
tener must be:
1. Correctly set.
2. Reactivated with salt when depleted
Where the water hardness fluctuates
(e.g. 8-17 gr/gal), always set the ma-
chine to the higher value (17 in this
example).
Programming Table
gr/gal ppm
Program knob
setting
water
hardness
selector
(setting)
*1 - 4 20 - 70 NORMAL
65/150
6
5 - 6 90 - 110 NORMAL
55/130
6
7 130 LIGHT WASH
55/130
6
8 - 10 140 - 180 INTENSIVE
55/130
6
11 - 12 200 - 220 ENERGY
SAVER
6
13 230 "6 o’clock
position"
6
14 - 16 250 - 290 POTS & PANS
75/170
6
17 310 ECONOMY
55/130
6
18 - 22 320 - 400 CHINA &
CRISTAL
45/115
6
23 - 35 410 - 630 SHORT
45/115
6
36 - 47 650 - 850 RINSE &
HOLD
4
48 - 65 860 -1170 RINSE &
HOLD
5
66 - 70 1190-1260 RINSE &
HOLD
6
* factory setting
Water Softener
15

Programming the Water
hardness level.
Turn the dishwasher off.
Turn the Program selector knob to
the “STOP” position.
Enter the programming mode by
pressing the “Top Solo” button, while
simultaneously turning the machine
“On”. After 2 seconds release the
“Top Solo” button. The “On” lamp
should be lit and the “Softener” lamp
should be blinking once you have en-
tered the programming mode. If the
“Softener” lamp is not blinking or if
other lamps are blinking, repeat the
process. (Ignore the “Salt” and
“Rinse aid” lamps).
Using the Table on the previous
page, set the Program selector knob
to the position that corresponds to
your water hardness level, then
press the “Top Solo” button to lock in
the selection.
Example:
For a water hardness of 6 gr/gal,
set the Program selector knob to
“NORMAL 55/130”, then press the “Top
Solo” button.
Return the Program selector knob to
the “STOP” position and turn the ma-
chine off. The programmed water
hardness is now stored.
The water hardness selector in the
wash cabinet is factory set to posi-
tion 6. This should only be changed
if your water has a hardness level
between 36 – 65 gr/gal.
Water Softener
16

Checking the programmed
Water hardness level.
Turn the dishwasher off.
Turn the Program selector knob to
the “STOP” position.
Enter the programming mode by
pressing the “Top Solo” button, while
simultaneously turning the machine
“On”. After 2 seconds release the
“Top Solo” button. The “On” lamp
should be lit and the “Softener” lamp
should be blinking once you have en-
tered the programming mode. If the
“Softener” lamp is not blinking, re-
peat the process. (Ignore the “Salt”
and “Rinse aid” lamps).
Slowly turn the Program selector
knob clockwise, through all the pro-
gram selections.
The “Top Solo” lamp will light when
the currently programmed hardness
level is reached.
When the “STOP” position is
reached, turn off the machine.
Selector settings.
The water hardness selector in the
wash cabinet is factory set to posi-
tion 6. This needs to be changed if
your water hardness level is between
36 – 65 gr/gal (refer to following table).
gr/gal ppm
water
hardness
selector
(setting)
1 - 35 20- 630 6*)
36 - 47 650 - 850 4
48 - 65 860 -1170 5
66 - 70 1190- 1260 6*)
*factory setting
Do not set the selector on
settings 1-3.
Using a screwdriver remove the
cover from the water hardness
selector.
Adjust the water hardness selector
as necessary. There will be a click as
each setting is reached.
Example:
The water hardness is 38 gr/gal.
The water hardness selector in the
wash cabinet must be set to 4 (36 -
47gr/gal).
Replace the cover on the water
hardness selector.
Water Softener
17

Filling the salt reservoir.
The salt reservoir should be filled be-
fore the first use and when the “Salt” in-
dicator lamp lights up. Use water sof-
tener reactivation salt (1 - 4 mm grain
size), as other salts may contain inso-
luble additives which can impair the
functioning of the softener.
The salt reservoir holds approx. 4 lbs
(2 kg) of salt.
Inadvertently filling the salt reservoir
with dishwashing detergent will
damage the water softener. Make
sure that only water softener reacti-
vation salt of the proper grain size is
used.
To fill the salt reservoir:
Remove the lower basket.
Unscrew and remove the salt reser-
voir cap.
Before adding salt for the first time:
Fill the reservoir with approximately
2 quarts (2 l) of water.
Place the funnel (provided) over the
salt reservoir.
Carefully fill with salt. As it is filled,
water will run out.
Clean any excess salt from the
threads of the reservoir opening.
Screw the cap on firmly.
If the dishwasher will not be used im-
mediately after reactivation, run the
RINSE & HOLD program. This will
remove any traces of salt from the
cabinet.
Water Softener
18

Salt indicator.
When the salt reservoir is empty, the
“Salt 9” indicator lamp will light, not-
ifying you that the reservoir should be
refilled with reactivation salt.
After the reservoir has been filled, the
water softener is automatically reacti-
vated the next time the dishwasher is
run.
The “Softener” indicator lamp illumi-
nates during this process.
Note:
If your water is very soft (below
7 gr/gal), the salt indicator lamp will
stay on. In this case the reservoir
should not be filled with salt. The indica-
tor lamp will remain lit and should be
disregarded or bypassed.
The “Salt 9” indicator lamp has also
been designed for future program up-
dates (PC). See the “After Sales Ser-
vice” section for further details.
Bypassing the Salt indicator lamp.
In order to bypass the salt indicator
lamp, you will need a screwdriver and
needle nose pliers.
Remove the salt reservoir cap.
Looking into the salt reservoir, you will
see the top of the float chamber on the
right hand side b.
Using a screwdriver, carefully pivot
the float chamber towards the center
of the reservoir.
Using the needle nose pliers, first
pull the cap coff of the float cham-
ber, then remove the float d.
Replace the float chamber cap,
push the chamber back into its up-
right position, and replace the salt
reservoir cap. The indicator lamp
should now remain off.
Water Softener
19

Adding rinse aid
The use of Rinse Aid is recommended
to prevent spotting on dishes and glass-
ware that normally occurs during the
drying phase of automatic dishwashing.
Inadvertently filling the rinse aid
reservoir with detergent will always
damage the reservoir. Only pour liq-
uid rinse aid formulated for residen-
tial dishwashers into the reservoir.
Adding rinse aid.
Add Rinse Aid before the first use
and anytime the “Rinse Aid” indica-
tor lamp comes on.
Press the button in the direction of
the arrow until the flap springs open.
Adding rinse aid
20
