Miele G 2872 User manual

Operating Instructions
Dishwasher
G 2872
To prevent accidents
and machine damage
read these instructions
before
installation or use. M.-Nr. 07 329 160
en - US, CA

IMPORTANT SAFETY INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Guide to the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Control panel ......................................................8
Display function ....................................................9
Caring for the environment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Before using for the first time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
To open the door ..................................................11
To close the door ..................................................11
Water softener ....................................................14
Filling the salt container .............................................15
Salt refill message .................................................15
Rinse aid ........................................................16
Adding rinse aid ..................................................16
Rinse aid refill message.............................................17
Loading the dishwasher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Items not recommended for dishwashing ...............................19
Split cutlery tray ..................................................20
Upper basket .....................................................21
Adjusting the upper basket ..........................................24
Lower basket .....................................................25
Basket accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Adding detergent..................................................30
Program guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Selecting options ..................................................34
Starting a program.................................................35
Time display......................................................35
At the end of a program.............................................36
Interrupting a program..............................................36
Additional options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Contents
2

Settings !. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Drying Plus.......................................................43
Water hardness ...................................................43
External water softener .............................................44
Filter check ......................................................44
Button tone.......................................................48
Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Technical faults ...................................................50
Problems water intake/drain .........................................52
General problems with the dishwasher .................................54
Sounds..........................................................56
Poor cleaning results ...............................................57
Comparison Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
After sales service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
User Maintenance Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Triple filter system .................................................68
Cleaning the spray arms ............................................70
Cleaning the water inlet filter .........................................71
Cleaning the drain pump and non-return valve...........................72
Installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Electrical connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Plumbing. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Waterproof system .................................................75
Connection to the water supply ........................................75
Drainage ........................................................76
RemoteVision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Contents
3

WARNING –
When using your dishwasher, follow
basic precautions, including the
following:
Read all instructions before
installation or use of the dishwasher
to prevent injury and machine
damage.
The manufacturer cannot be held
responsible for damage or injury
caused by improper use of this
appliance.
Use the dishwasher only for its
intended purpose. This appliance is
intended for residential use only.
Keep these operating instructions in
a safe place and pass them on to
any future user.
Electrical Safety
~Before installation, make sure that
the voltage and frequency listed on the
data plate correspond with the
household electrical supply. This data
must correspond to prevent injury and
machine damage. Consult a qualified
electrician if in doubt.
~Before installation or service,
disconnect the power supply to the
work area by unplugging the unit,
"tripping" the circuit breaker or
removing the fuse.
~Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance (e.g.
danger of overheating).
~Be certain your appliance is
properly installed and grounded by a
qualified technician. To guarantee the
electrical safety of this appliance
continuity must exist between the
appliance and an effective grounding
system. It is imperative that this basic
safety requirement be met. If there is
any doubt, have the electrical system of
the house checked by a qualified
electrician. The manufacturer cannot be
held responsible for damages caused
by the lack or inadequacy of an
effective grounding system.
IMPORTANT SAFETY INSTRUCTIONS
4

Installation
~The dishwasher must be installed
and connected in compliance with the
installation instructions.
~Installation and repair work should
be performed by a Miele authorized
service technician. Work by unqualified
persons could be dangerous and may
void the warranty.
~Do not install or use a damaged
dishwasher. A damaged appliance is
dangerous. Unplug the machine and
call your Miele dealer or the Miele
Technical Service Department.
~Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
~This equipment is not designed for
maritime use or for use in mobile
installations such as recreational
vehicles or aircraft. However, under
certain conditions it may be possible for
an installation in these applications.
Please contact the nearest Miele dealer
or the Miele Technical Service
Department with specific requirements.
~It is recommended that the
dishwasher only be connected to the
mains with the plug (no hard-wiring).
The outlet must be accessible at all
times after installation to disconnect the
dishwasher.
~,WARNING - Fire hazard
Do not cover or crush the plug of the
appliance. Ensure that the cabinet
opening for the dishwasher provides
ample space for the plug. Installing the
dishwasher in a tight space may crimp
the power cord or put pressure on the
plug which could cause overheating.
~This dishwasher should only be
installed under a continuous counter
top secured to adjacent cabinetry.
~Do not install this dishwasher
beneath a cooking surface, oven or any
appliance that radiates heat.
High temperatures from these units
may damage the dishwasher.
~When installing the dishwasher
under a counter top and removing the
toekick, a build-under toekick must be
installed. Use the respective installation
kit. Danger of injuries.
~Do not cut the intake hose or
submerge it in liquid. This hose
contains electrical components that
could cause injury or property damage
if cut or submerged.
~Only connect the dishwasher to the
mains when all installation and
plumbing work is complete.
IMPORTANT SAFETY INSTRUCTIONS
5

Use
~To reduce the risk of injury, do not
allow children to play in, on or near the
dishwasher.
~Only use the dishwasher if all panels
are properly in place.
~Do not tamper with the controls.
~Do not damage, sit or stand on the
door or baskets of the dishwasher.
Close the door when not in use.
~Under certain conditions, hydrogen
gas may be produced in a hot water
system that has not been used for two
weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has
not been used for such a period, turn
on all hot water faucets and let water
flow from each for several minutes
before using the dishwasher. This will
release any accumulated hydrogen
gas. Do not smoke or use an open
flame during this time.
~Be sure that all items placed in the
dishwasher are "dishwasher safe". For
items not labeled, check the
manufacturer’s recommendations.
~When loading tableware, place
sharp items away from the door to
prevent damage to the seal. Load
sharp items pointing downwards to
prevent injuries.
~Only use detergents and rinse aids
recommended for residential
dishwashers. Keep all detergents and
rinse aids out of the reach of children.
~Do not inhale or swallow detergents.
Dishwasher detergents contain irritant
and corrosive ingredients. They can
cause burning in the mouth and throat if
swallowed, or inhibit breathing. Consult
a doctor immediately if detergent has
been swallowed or inhaled.
~Do not drink water from the
dishwasher! Harmful residues could be
present.
~Do not fill the rinse aid reservoir or
salt container with detergent. It will
destroy the rinse aid compartment and
water softener.
~If the power cord is damaged it
must only be replaced by a Miele
Service technician with a genuine Miele
power cord.
Disposal of an appliance
~If the appliance is removed from its
installation site and will not be used,
remove the doorlock to the wash
cabinet to prevent children from locking
themselves in the machine.
SAVE THESE
INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
6

aUpper spray arm (not visible)
bCutlery tray
cUpper basket
dMiddle spray arm
eAir inlet for drying
(depending on model)
fLower spray arm
gTriple filter system
hData plate
iOptical interface
jRinse aid reservoir
kDual compartment detergent
dispenser
lSalt container
Guide to the dishwasher
7

Control panel

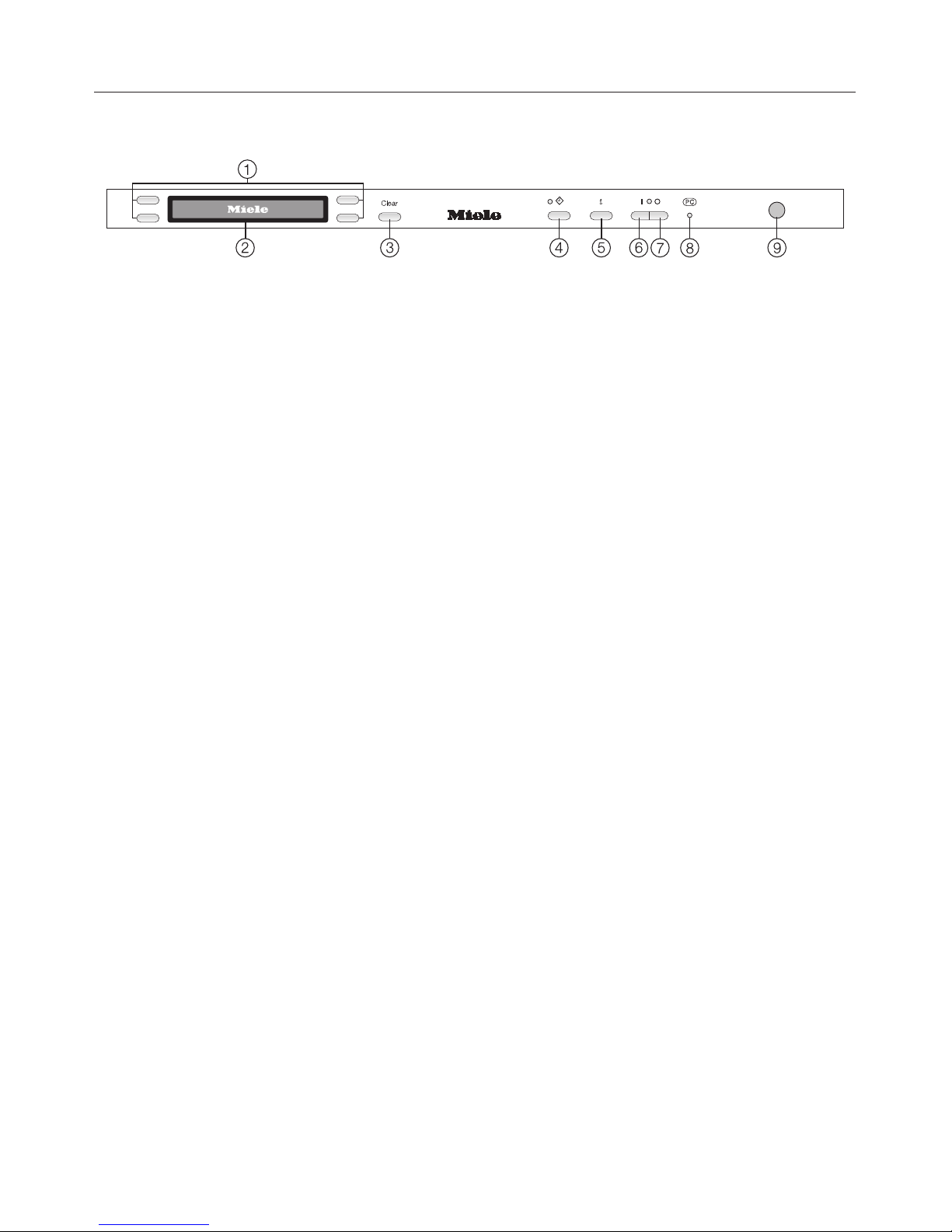

aSelection buttons
To select a menu point from this
display, to change the displayed
value (+/-) or to browse between
menus.
bDisplay
See the following pages for more
information.
cClear button
To switch back to the previous menu
level or to discard a selected setting.
ddDelay Start button with indicator
eKbutton (Information)
To display more info about the
displayed menu
fgOn button with indicator
To turn the dishwasher on
goOff button
To turn the dishwasher off
hTechnical Service interface
Allows a service technician to check
and update the machine when
applicable.
iOptical interface
To show the current wash cycle
status when the door is closed
Guide to the dishwasher
8

Display function
The following can be selected in the
display
–the wash program
–the options
–the start time
–the settings Jmenu
– information
During a running program the display
shows
– the program name
– the current time of day
– the program sequence
– the approximate remaining time
–faults and messages
To save energy the display turns off 10
minutes after a button is pressed.
To turn the display on again, press any
button.
!
A bullet in the display next to the touch
control shows that a function can be
selected with this control.
n
The arrow on the right side in the
display shows that more selections or
text follow and can be displayed with
the respective control.
------
A dotted line is shown to indicated the
last selection available.
OK
To confirm these messages or settings
touch OK and the next menu or another
menu level will appear.
(
A check will appear beside the
currently selected option.
The "Settings J" menu allows you to
customize the dishwasher settings.
See "Settings" for more information.
Guide to the dishwasher
9

Energy saving washing
This dishwasher is exceptionally
economical in the use of water and
electricity. For best results follow these
tips:
^For lowest energy consumption and
the gentlest washing of china and
crystal, connect the dishwasher to a
cold water source.
^For fastest possible wash times, yet
higher energy consumption, connect
the dishwasher to a hot water source.
^If the dishwasher is connected to hot
water, select "Energy Saver" when
washing light to normally soiled
dishware. The water will not be
heated, therefore the dishes may be
more wet at the end of this program
than when using other programs.
^Make full use of the baskets without
overloading for the most economical
washing.
^Use the correct amount of detergent
and rinse aid.
^When using powder or gel detergent
reduce the amount to 2/3when
washing a small load.
^Choose a program that best suits the
degree of soiling and the type of
dishes being washed.
^For small loads select "Express".
Caring for the environment
10

To open the door
The door will open automatically at the
end of the program to aid in the drying
process.
This function can be deactivated (see
"Settings - Drying Plus").
^Pull the handle to open the door.
If the door is opened during operation,
the dishwasher will stop running. Once
the door is closed the program will
restart.
To close the door
^Push the baskets in.
^Lift the door and push until the catch
engages.
The door will then close automatically.
,Do not put your hand inside of
the door as it is closing. Danger of
injury.
Before using for the first time
11

Welcome screen
^Turn the dishwasher on g.
A Welcome screen shows when the washer is turned on for
the first time.

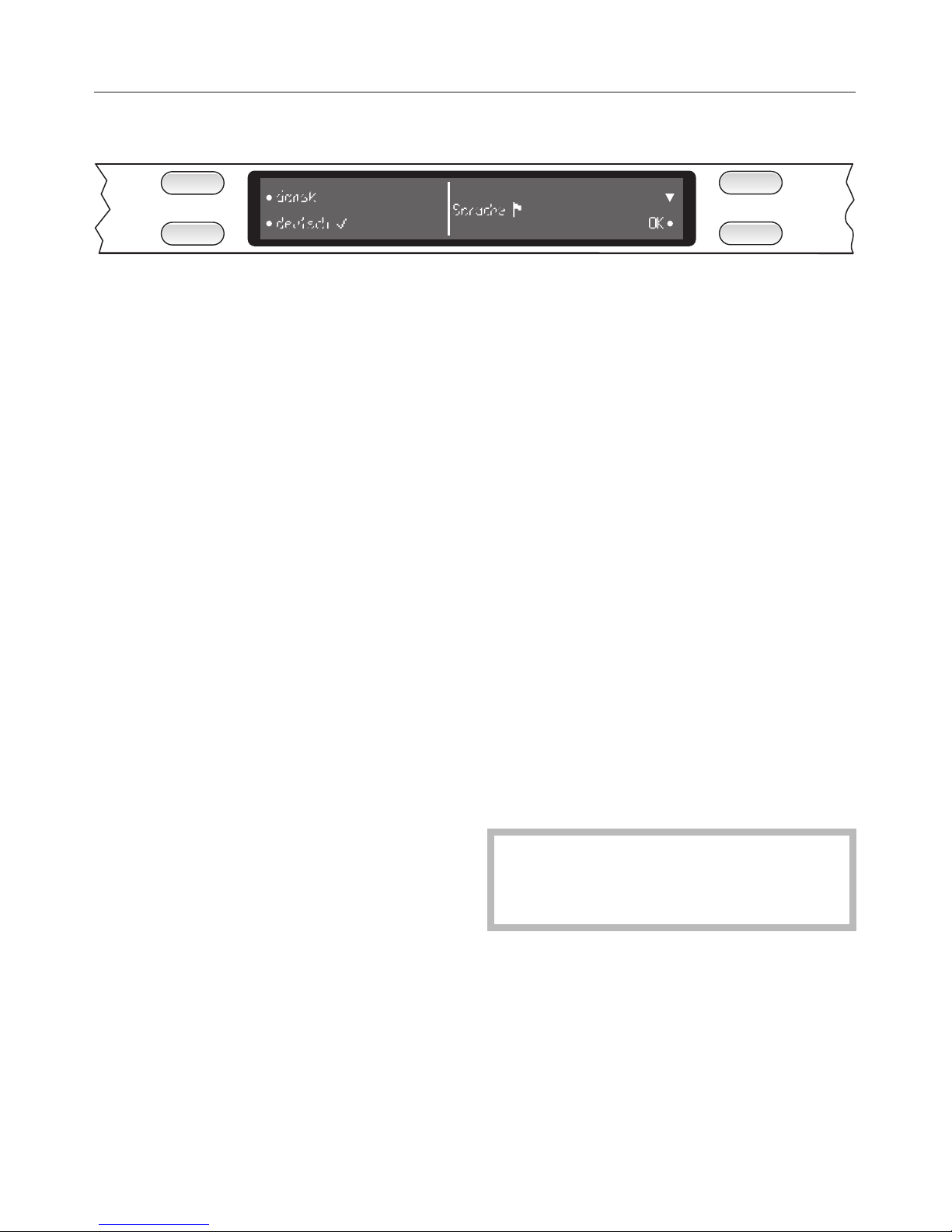

Language setting
The display changes automatically to the language setting.
}deutsch BSprache Fe
}english (GB) OK }
^Select the desired language and confirm with OK.
The selected language is marked with a Lcheck.
Clock format
The display changes automatically to the clock format.
}12 h clock Clock Format
}24 h clock OK }
^Select the desired setting and confirm with OK.
Before using for the first time
12

Time of day setting
The display changes automatically to the time of day setting.
}+12 :00
}-Please set the time of day OK }
^Set the hours using the +/- controls and confirm with OK.
Set the minutes and confirm.
The settings will be saved after the first wash program has
completed.
Two messages Insufficient salt and Insufficient rinse aid
may show. These messages are to remind you to fill the salt
and rinse aid if necessary (see the relevant sections of this
manual for more information).
Confirm with OK and the display changes to the main menu.
}Normal Main menu r}Pots & Pans
You can now either select a program or turn the dishwasher
off "o".
Before using for the first time
13

Water softener
Every dishwasher is tested before
leaving the factory. Any water
remaining in the machine is from the
final factory test and does not
indicate that the machine has been
used.
To achieve good cleaning results, the
dishwasher needs soft water. Hard
water results in calcium deposits on
dishware and in the dishwasher.
If your tap water hardness is above 4 °d
(4 gr/gal [US]), the water should be
softened. This takes place
automatically in the unit’s integrated
water softener.
– The water softener must be filled with
dishwasher salt for reactivation.
If using "Tab" products which include
salt, you should still add salt to the
machine to achieve optimal cleaning
results.
If the hardness of your local supply
is constantly lower than 4 °d (4 gr/gal
[US]), you do not need to add water
softener salt. The "Refill salt"
indicator will turn itself off
automatically.
Checking the water hardness
The water hardness measured by the
sensor can be displayed.
See "Settings J- Water hardness".
External water softener
If the dishwasher is connected to an
external water softener unit which is
regenerated with salt, the water
hardness must be set in the
dishwasher.
^Set the dishwasher to the water
hardness of the external water
softener. See "Settings J- External
water softener".
Before using for the first time
14

Filling the salt container
,Inadvertently filling the salt
container with dishwashing
detergent will damage the water
softener.
,Only use water softener salt
specially formulated for
dishwashers. Other salts may
contain insoluble additives which
can impair the water softener.
^Remove the lower basket and
unscrew the salt container lid.
When opening the salt container,
water will run out. Open the
container only to refill salt.
Important: The salt container must
be filled with 2 quarts (2 l) of water
before adding salt for the first
time. Water does not have to be
added with subsequent refills.

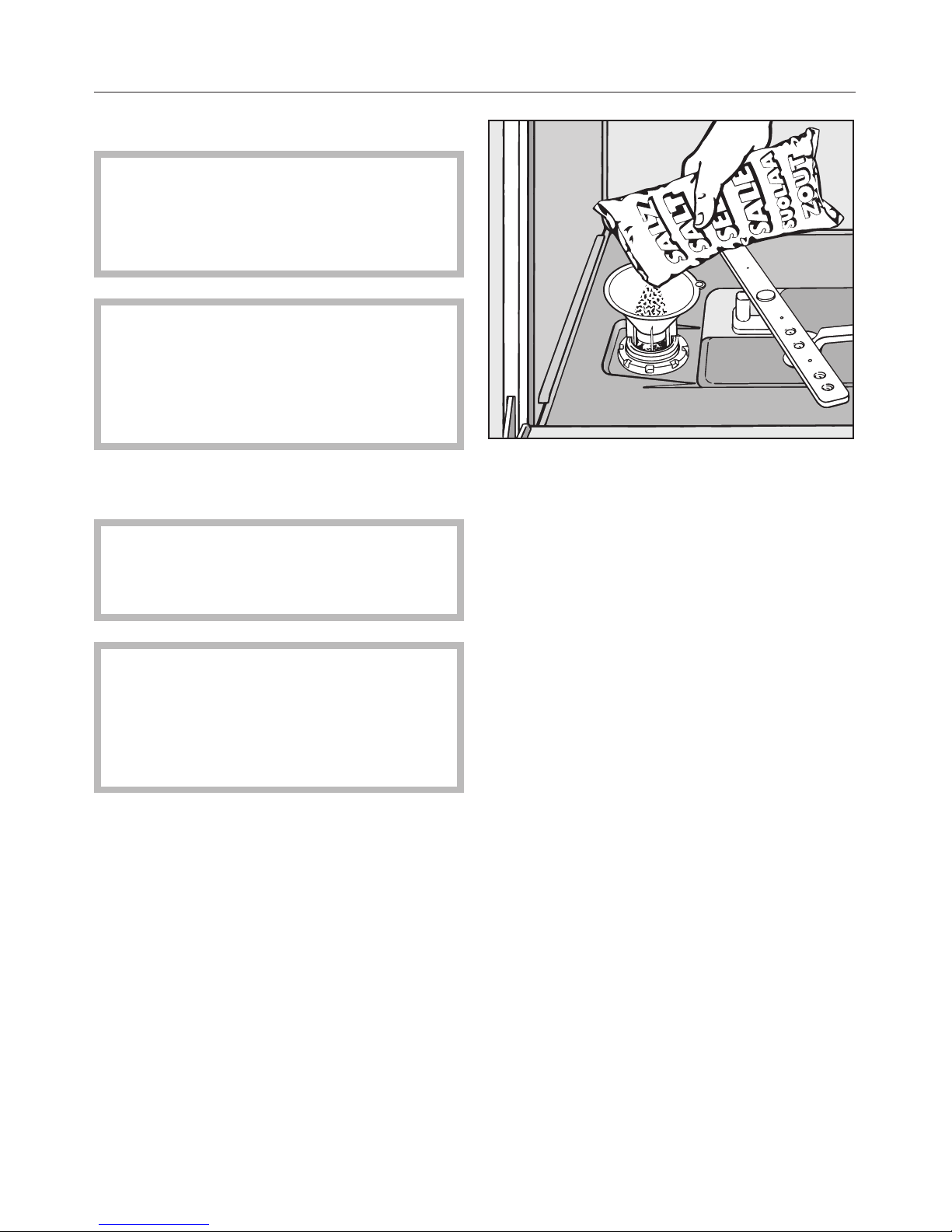

^Place the provided funnel over the
salt container. Carefully fill with salt.
The salt container holds approx.
4.5 lbs (2 kg) of salt. As it is filled,
water will run out.
^Clean any excess salt from the
threads of the container opening.
Screw the lid on firmly.
^If the dishwasher will not be used
immediately, run the "Express"
program (without the "Turbo"
function). This will remove any traces
of salt from inside the wash cabinet.
Salt refill message
^When the display shows Insufficient
salt, refill the salt after the program
has finished.
^Confirm with OK.
The message will clear from the display.
After the container has been filled, the
water softener is automatically
reactivated the next time the
dishwasher is started. The Insufficient
salt message will show again during
this process. Confirm again with OK.
Before using for the first time
15

Rinse aid
Rinse aid helps to prevent spotting on
dishes and glassware.
The rinse aid is filled in the reservoir
and the set amount will be
automatically dosed.
,Filling the rinse aid reservoir with
detergent will damage the reservoir.
Only pour rinse aid formulated for
residential dishwashers into the
reservoir.
When using "Tab" detergents rinse
aid is not needed.
Adding rinse aid
^Press the button in the direction of
the arrow until the flap springs open.

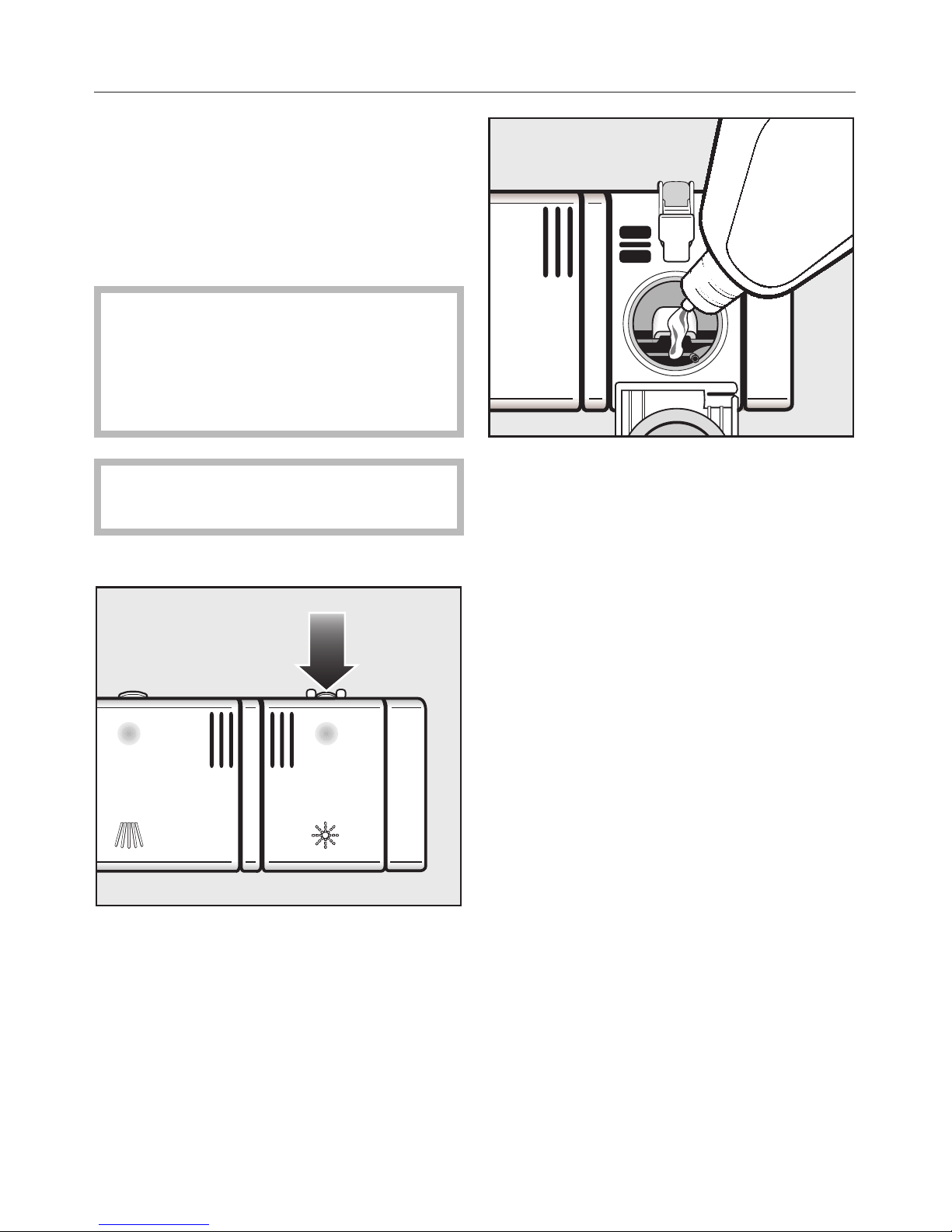

^Pour liquid rinse aid into the reservoir
until it is visible on the surface of the
screen.
The rinse aid reservoir holds approx.
3.7 oz (110 ml).
^Press on the flap until you hear it
click shut. Failure to close it all the
way allows water to enter the
reservoir during the wash program.
^Clean any spilled rinse aid. The flap
will remain closed during normal
operation.
To optimize the wash result, the rinse
aid dosage can be adjusted. See
"Settings J- Rinse aid".
Before using for the first time
16

Rinse aid refill message
When the Insufficient rinse aid
message first comes on, there will be
enough rinse aid left for2-3washes.
^Refill rinse aid after the program has
finished.
If the "Tab" function is selected, the
Insufficient rinse aid message will
not come on. See "Settings J-
Detergent".
^Confirm with OK.
The Insufficient rinse aid message will
clear from the display.
Before using for the first time
17

,Do not wash items soiled with
ash, sand, wax, grease or paint in
the dishwasher.
Ash and sand do not dissolve and
will be distributed throughout the
inside of the dishwasher.
Wax, grease and paint will cause
permanent discoloration and
damage to the dishwasher.
^Scrape food from dishes before
placing them in the dishwasher,
rinsing is not necessary.
^Some foods contain natural dyes,
e.g. carrots or tomatoes. Plastic items
may discolor permanently if they
come in contact with food dyes.
^All items can be placed anywhere in
the baskets.
^Load dishes so that water can reach
all surfaces. Do not place dishes or
cutlery inside other pieces.
^Make sure that all items are securely
positioned.
^Hollow items such as cups and
glasses should be placed upside
down in the baskets.
^To ensure good water coverage,
tall, narrow and hollow items,
i.e. vases or champagne glasses,
should be placed in the center of the
basket rather than in the corners.
^Concave based items such as mugs
or bowls, should be placed at an
angle so that water does not pool.
^The spray arms must not be blocked
by items that are too tall or hang
through the baskets. Check
clearance by manually rotating the
spray arms.
^Place very small items in the cutlery
tray or basket so they do not fall to
the bottom of the wash cabinet.
^Food residue and spilled liquids
should be cleaned from the sides of
the dishwasher door. These are
outside of the wash cabinet and are
not cleaned by water from the spray
arms.
Loading the dishwasher
18

Items not recommended for
dishwashing
–Cutlery with wooden handles
–Wooden cutting boards
–Glued items such as old knives with
handles glued together around the
shank of the blade
–Handmade craft items, antique,
metal trimmed or decorative
glassware
–Plastic items that are not heat
resistant
– Copper, brass, tin or aluminum
– Dishes with color painted over the
glaze. These dishes may fade over
time
– Fine glassware and crystal items
should only be washed using the
"China & Crystal" program*.
Otherwise clouding or etching may
occur after frequent washing.
–Cast iron pots and pans
* depending on model
Glassware:
–There are no standard guidelines for
washing glassware, when in doubt
wash by hand.
–When purchasing new dishes,
glasses and cutlery, make sure they
are dishwasher safe. Only wash
items marked "dishwasher safe" in
the dishwasher.
–If fine glassware is washed in the
dishwasher select the "China &
Crystal" program*. This will reduce
the risk of clouding.
Silver and aluminum:
– Silver or aluminum items may tarnish.
– Silverware previously cleaned with a
silver polish may be damp or spotted
at the end of a program where water
has adhered to the polish. This can
be rubbed off with a soft, dry cloth.
Silver that has been cleaned in an
immersion dip is usually dry at the
end of a program, but may tarnish.
–If left to dry, foods containing sulfur
can discolor silver. These include
egg yolk, onions, mayonnaise,
mustard, fish and marinades.
–Silverware may tarnish or pit if
washed next to stainless steel.
Leave space between these metals.
–Clean aluminum items, e.g. grease
filters, with domestic dishwasher
detergent only.
Loading the dishwasher
19

Split cutlery tray
^Arrange the cutlery as shown in the
cutlery tray.
For easier unloading cutlery should be
grouped in zones, one for knives, one
for forks, one for spoons, etc.
Place knives with the cutting edge and
forks with the prongs between the
holders. Spoons should be placed in
the opposite direction with the handles
between the holders.
The upper spray arm must not be
blocked by tall cutlery items.
The inserts of the cutlery tray can be
removed.
Single inserts can be removed to make
room for tall items in the upper basket.
Spoons with thick handles may have to
be placed as knives and forks with their
heads in the holders.
Loading the dishwasher
20
